Dual Chamber Forced Convection Oven

<br>Dual Chamber Forced Convection Oven provides higher temperature consistency and faster recovery rates. It comes in an AC 220V, 50/60Hz configuration and can reach <br>temperatures of up to 250u00b0C with a quick ramp-up and recovery time. This oven features a 91 liters u00d7 2 chambers capacity and a front window made of triple-paned <br>safety glass for extra implosion protection. Because it has a fan-assisted air circulation system, the chamber ventilation and exhaust vent are simply adjustable.

Kimber4
Download Presentation

Dual Chamber Forced Convection Oven

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

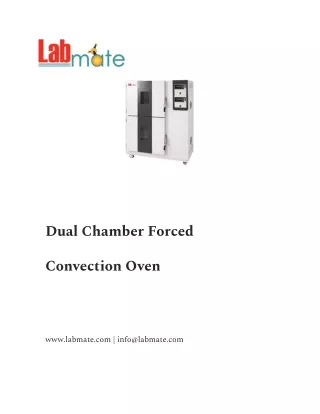

  1. Dual Chamber Forced Convection Oven www.labmate.com | info@labmate.com

  2. Overview Dual Chamber Forced Convection Oven provides higher temperature consistency and faster recovery rates. It comes in an AC 220V, 50/60Hz configuration and can reach temperatures of up to 250°C with a quick ramp-up and recovery time. This oven features a 91 liters × 2 chambers capacity and a front window made of triple-paned safety glass for extra implosion protection. Because it has a fan-assisted air circulation system, the chamber ventilation and exhaust vent are simply adjustable. Specifications : Capacity 91 L × 2 chambers Temperature Range Amb ±10°C to 200°C (Max 250°C)

  3. Temperature Accuracy ±0.5°C Timer 99 Hr 59 Mints Shelves 4 EA Temperature Digital PID Controller, 5 pattern Controller 18 steps Temperature SSR Regulator Regulator Thermocouple K (CA type) Insulation Glass Wool Window High Temp. safety glass/3 glass Safety Device Circuit Breaker, Sensor Alarm

  4. Fan Motor 1-16 HP Heater Capacity 2.4 Kw Power AC 220V, 50/60Hz, 1ɸ Internal Material Stainless Steel External Material Steel Plate with powder coating Internal Dimension 450×450×450 mm (× 2 chambers) (W×D×H) External Dimension 1020×720×1420 mm (W×D×H) Features : - Intuitive and easy to use operating menu - Easy to open door handles

  5. - Current temperature and setting temperature is displayed separately on control panel - High efficient fan motor ensures uniform air circulation - Excellent temperature accuracy - Simple to use and maintain - Simultaneous display of set constant and measured temperature - Increased safety and self-diagnostic functions - Over-temperature limit function - Specialized ventilation opening function to control air circulation and exhaust gas - Height adjustable shelves to enhance end-users’ convenience regardless of the size of the reagent - Less and low noise operation with gentle air currents - Chamber and door is insulated by solid heat insulator - Quick Auto start and auto stop functions - Fast recovery time when opening the door - Comes with 4/6 shelves with height adjustment option Applications :

  6. These drying ovens are suitable for drying of every kind of laboratory glassware, drying of heat-sensitive materials, and sterilizing, residue-free drying of intricately designed parts. Also used for temperature control functions in Life Science, Research and Material tests in industries and laboratories. aging, curing, so?ening, annealing and Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
