Digital 3D Shaker

<br>A digital 3D shaker is an advanced laboratory instrument designed to provide controlled and efficient mixing of samples in three dimensions. This device is widely<br>used in scientific research, molecular biology, biochemistry, and other laboratory applications where precise and thorough mixing is essential. <br>

Kimber4
Download Presentation

Digital 3D Shaker

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

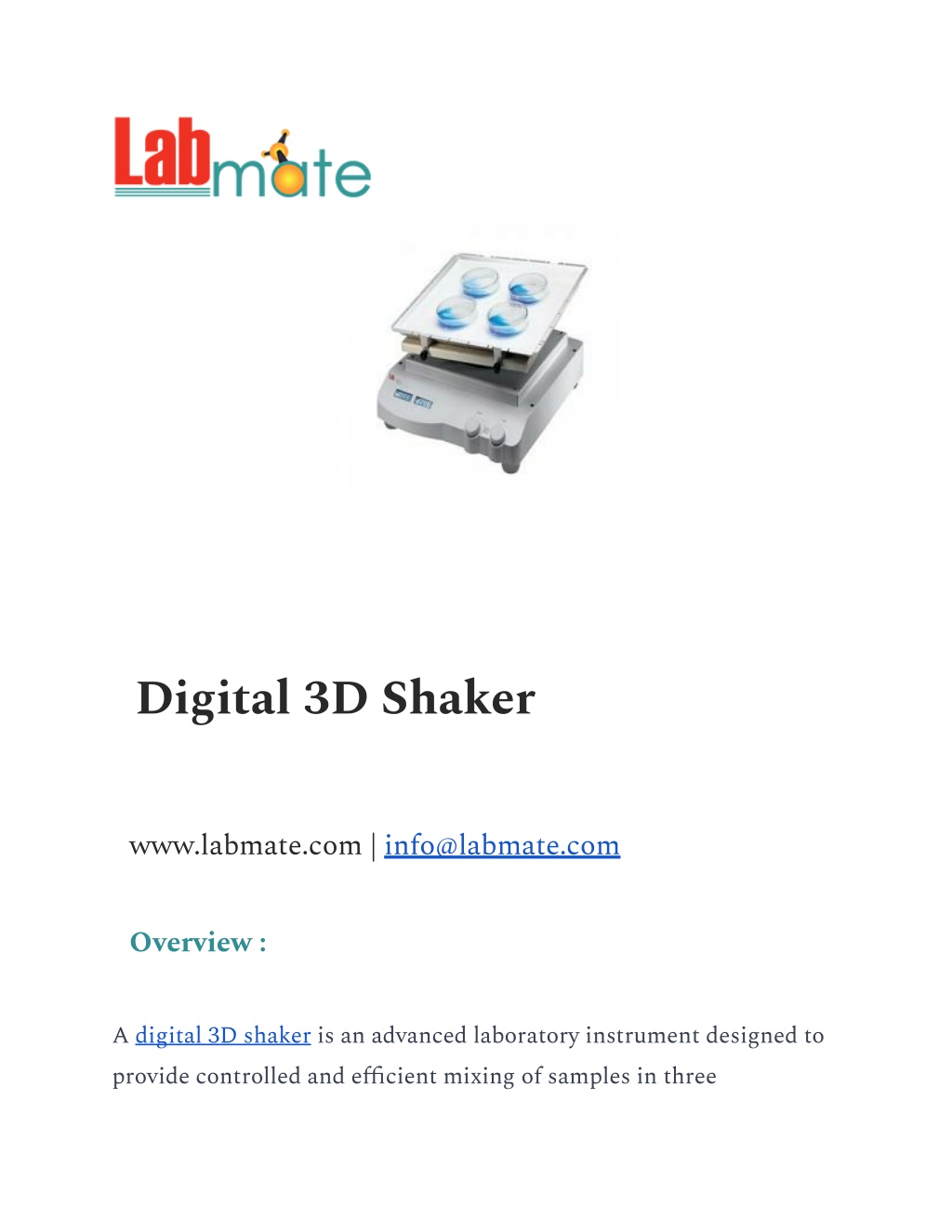

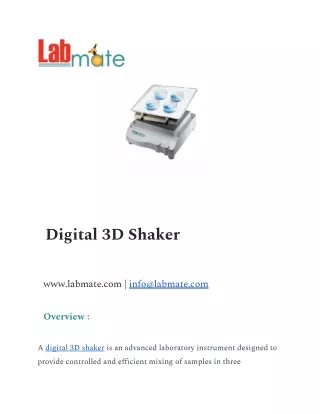

  1. Digital 3D Shaker www.labmate.com | info@labmate.com Overview : A digital 3D shaker is an advanced laboratory instrument designed to provide controlled and efficient mixing of samples in three

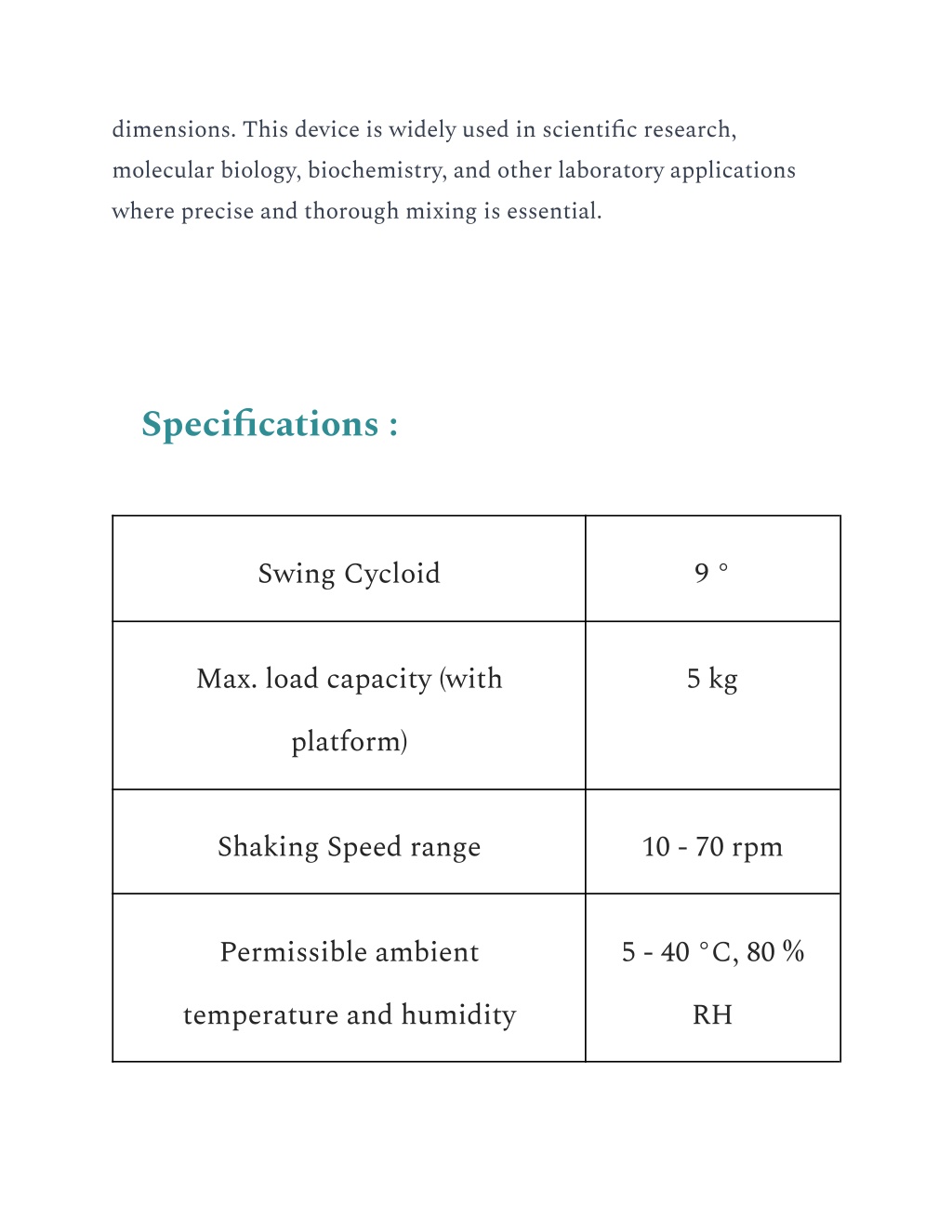

  2. dimensions. This device is widely used in scientific research, molecular biology, biochemistry, and other laboratory applications where precise and thorough mixing is essential. Specifications : Swing Cycloid 9 ° Max. load capacity (with 5 kg platform) Shaking Speed range 10 - 70 rpm Permissible ambient 5 - 40 °C, 80 % temperature and humidity RH

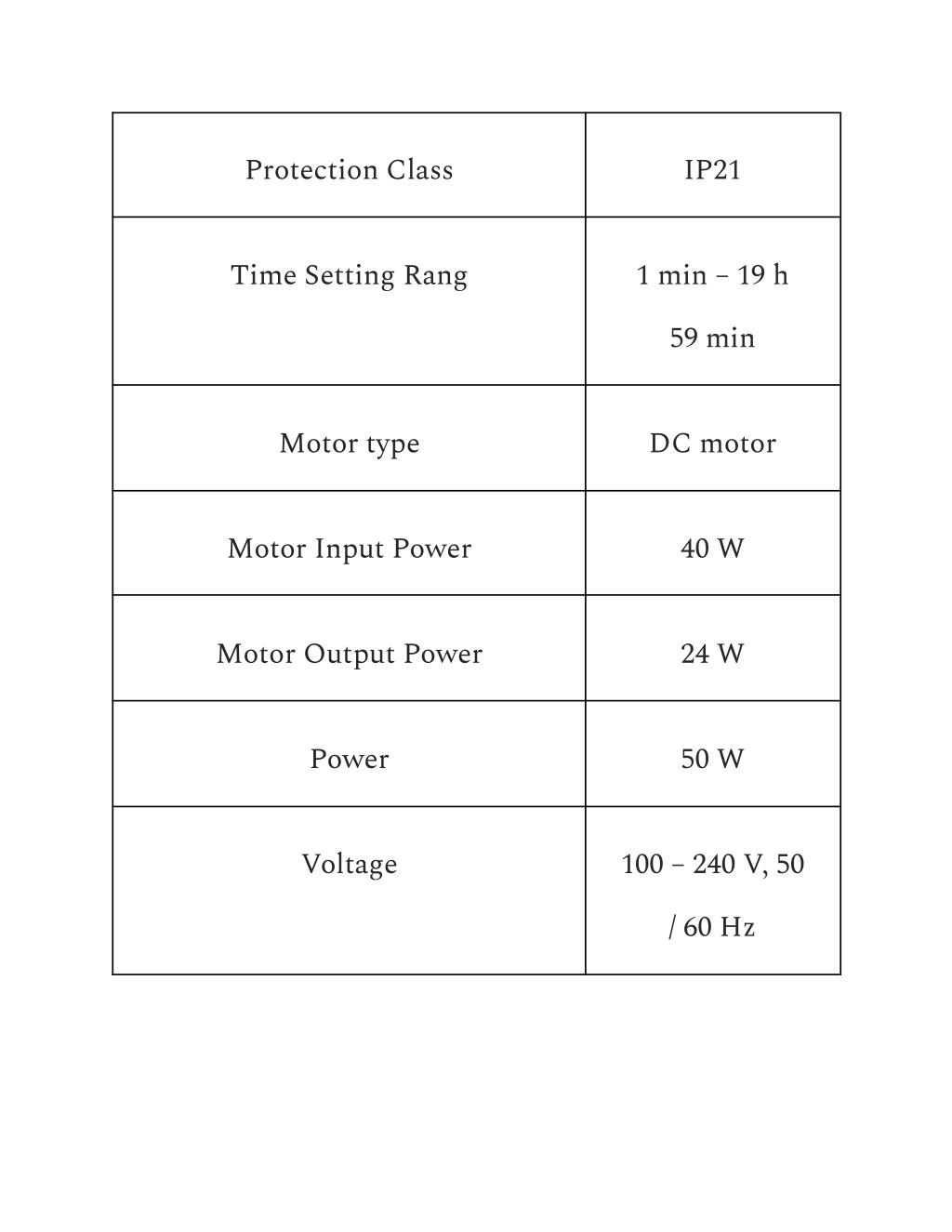

  3. Protection Class IP21 Time Setting Rang 1 min – 19 h 59 min Motor type DC motor Motor Input Power 40 W Motor Output Power 24 W Power 50 W Voltage 100 – 240 V, 50 / 60 Hz

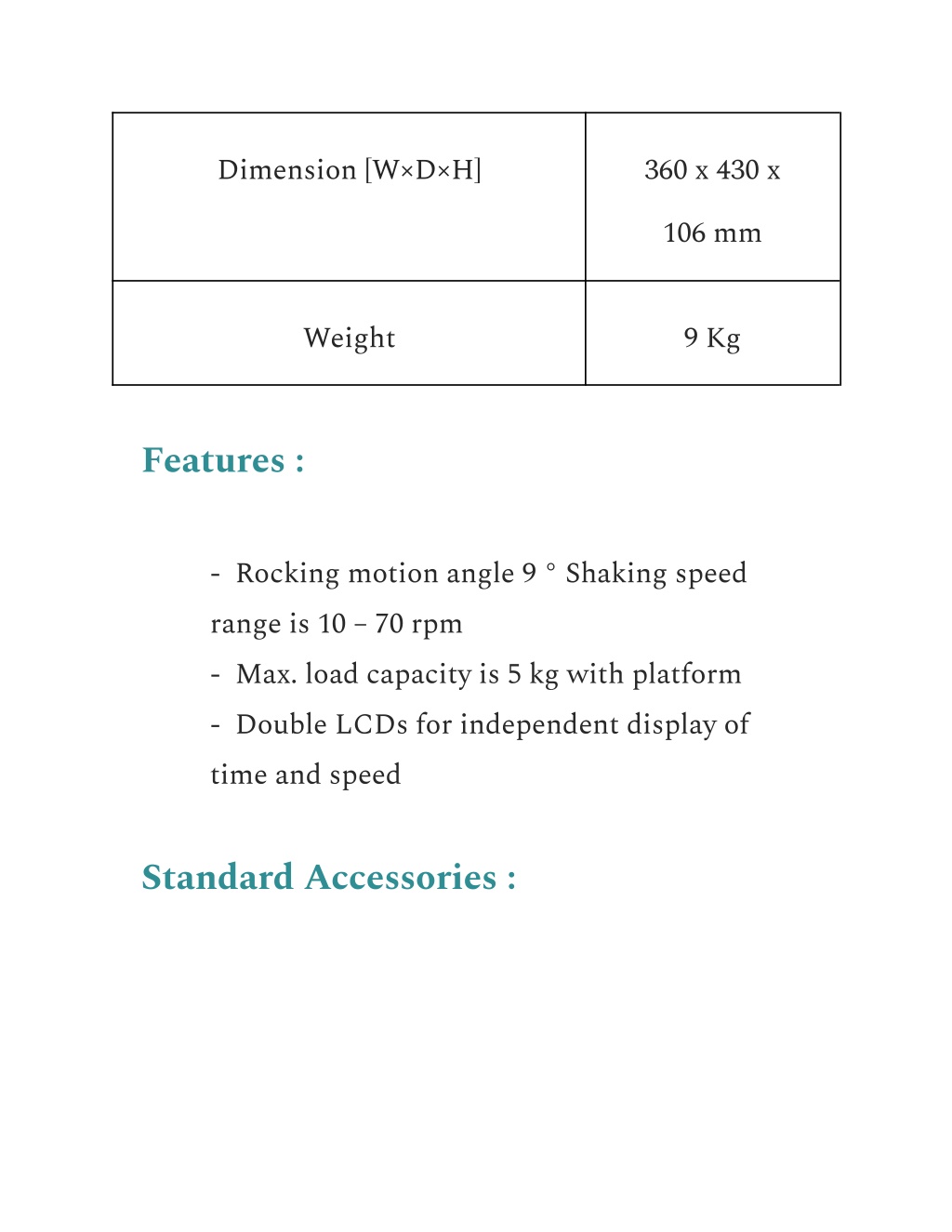

  4. Dimension [W×D×H] 360 x 430 x 106 mm Weight 9 Kg Features : - Rocking motion angle 9 ° Shaking speed range is 10 – 70 rpm - Max. load capacity is 5 kg with platform - Double LCDs for independent display of time and speed Standard Accessories :

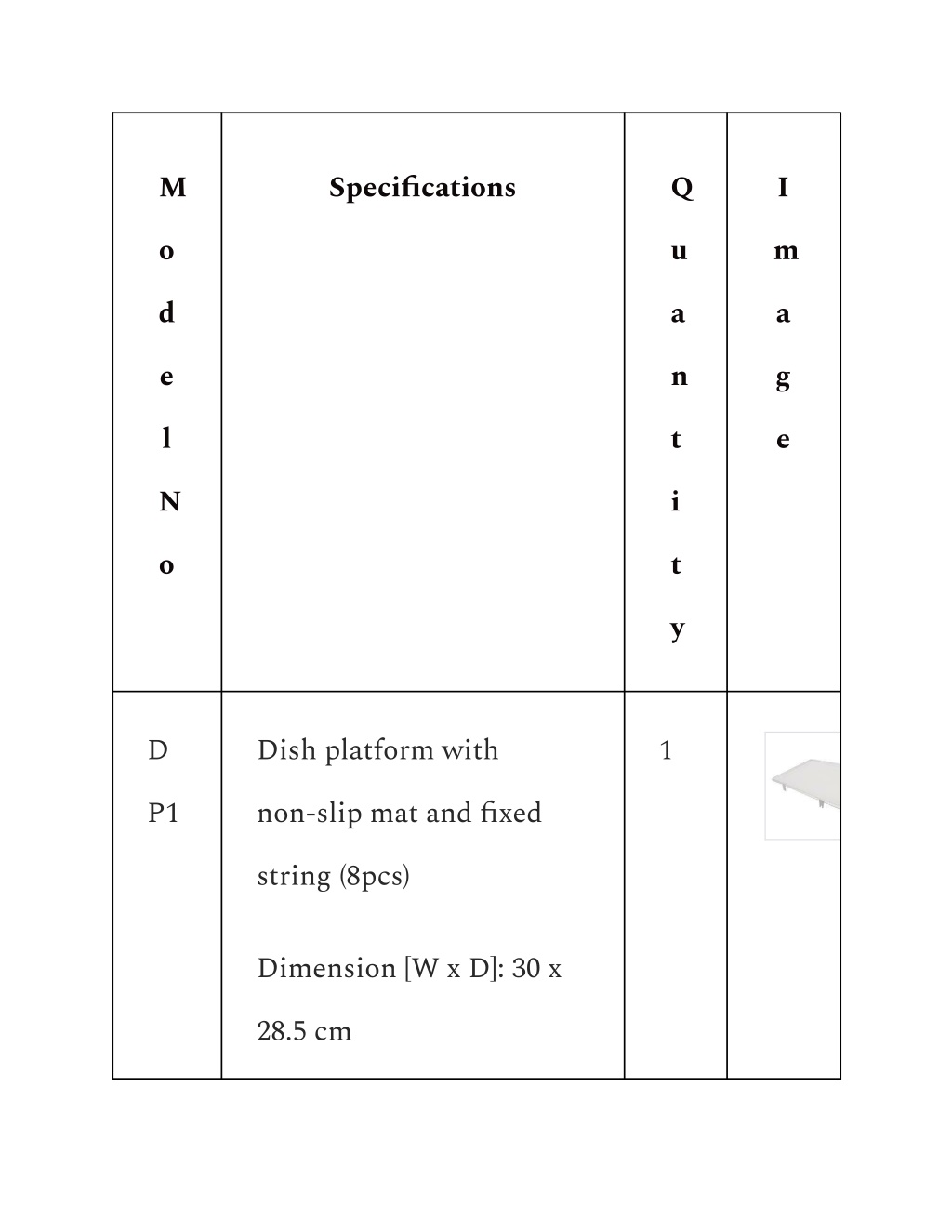

  5. M Specifications Q I o u m d a a e n g l t e N i o t y D Dish platform with 1 P1 non-slip mat and fixed string (8pcs) Dimension [W x D]: 30 x 28.5 cm

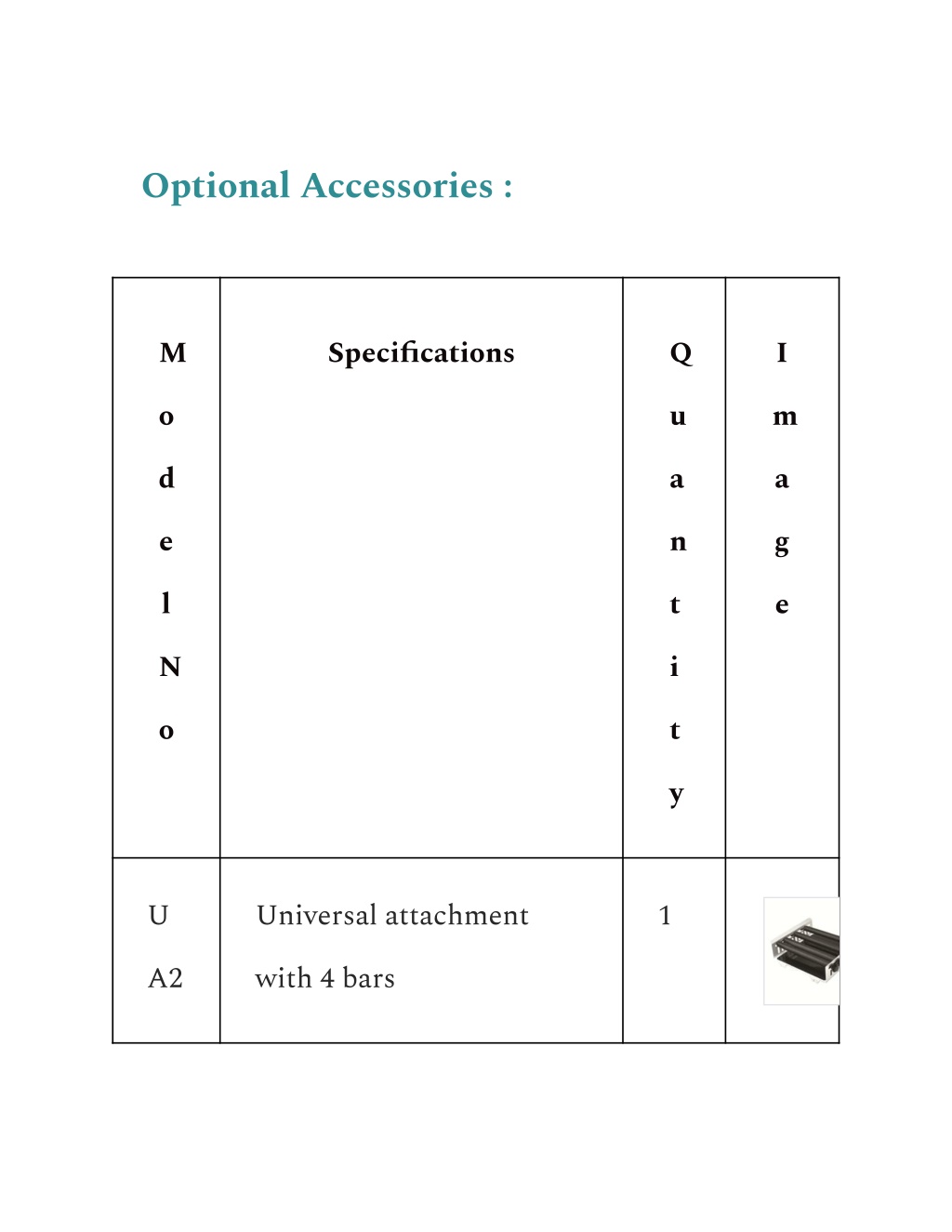

  6. Optional Accessories : M Specifications Q I o u m d a a e n g l t e N i o t y U Universal attachment 1 A2 with 4 bars

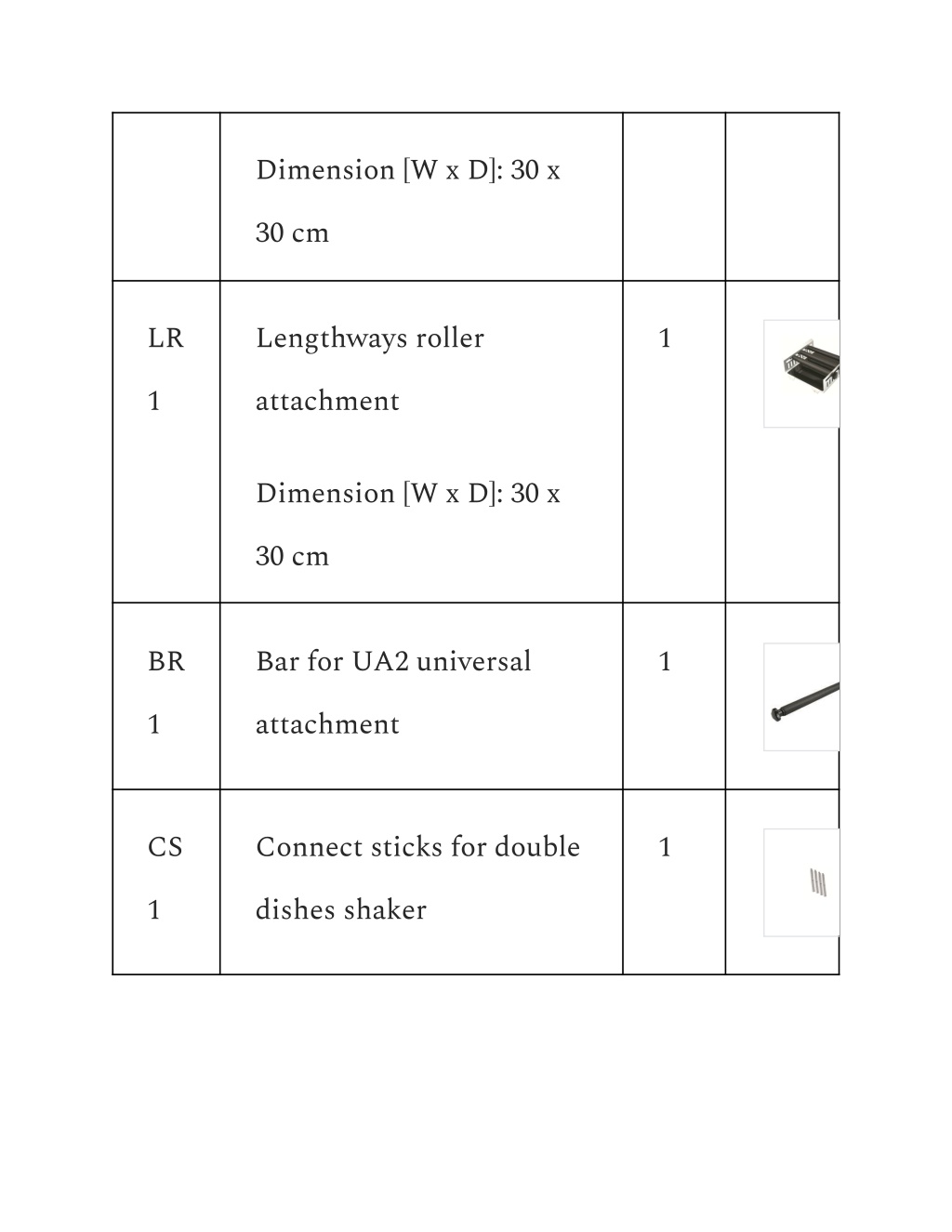

  7. Dimension [W x D]: 30 x 30 cm LR Lengthways roller 1 1 attachment Dimension [W x D]: 30 x 30 cm BR Bar for UA2 universal 1 1 attachment CS Connect sticks for double 1 1 dishes shaker

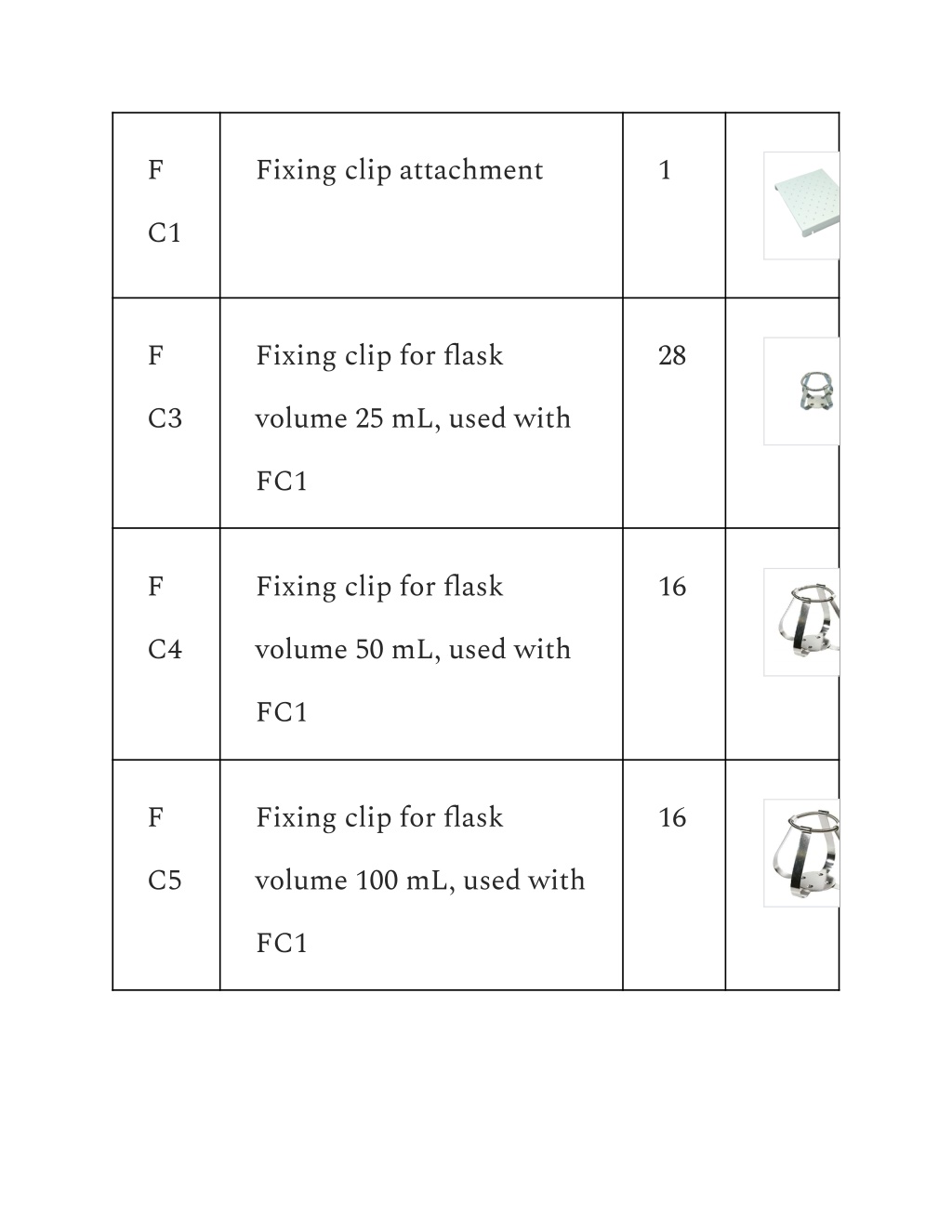

  8. F Fixing clip attachment 1 C1 F Fixing clip for flask 28 C3 volume 25 mL, used with FC1 F Fixing clip for flask 16 C4 volume 50 mL, used with FC1 F Fixing clip for flask 16 C5 volume 100 mL, used with FC1

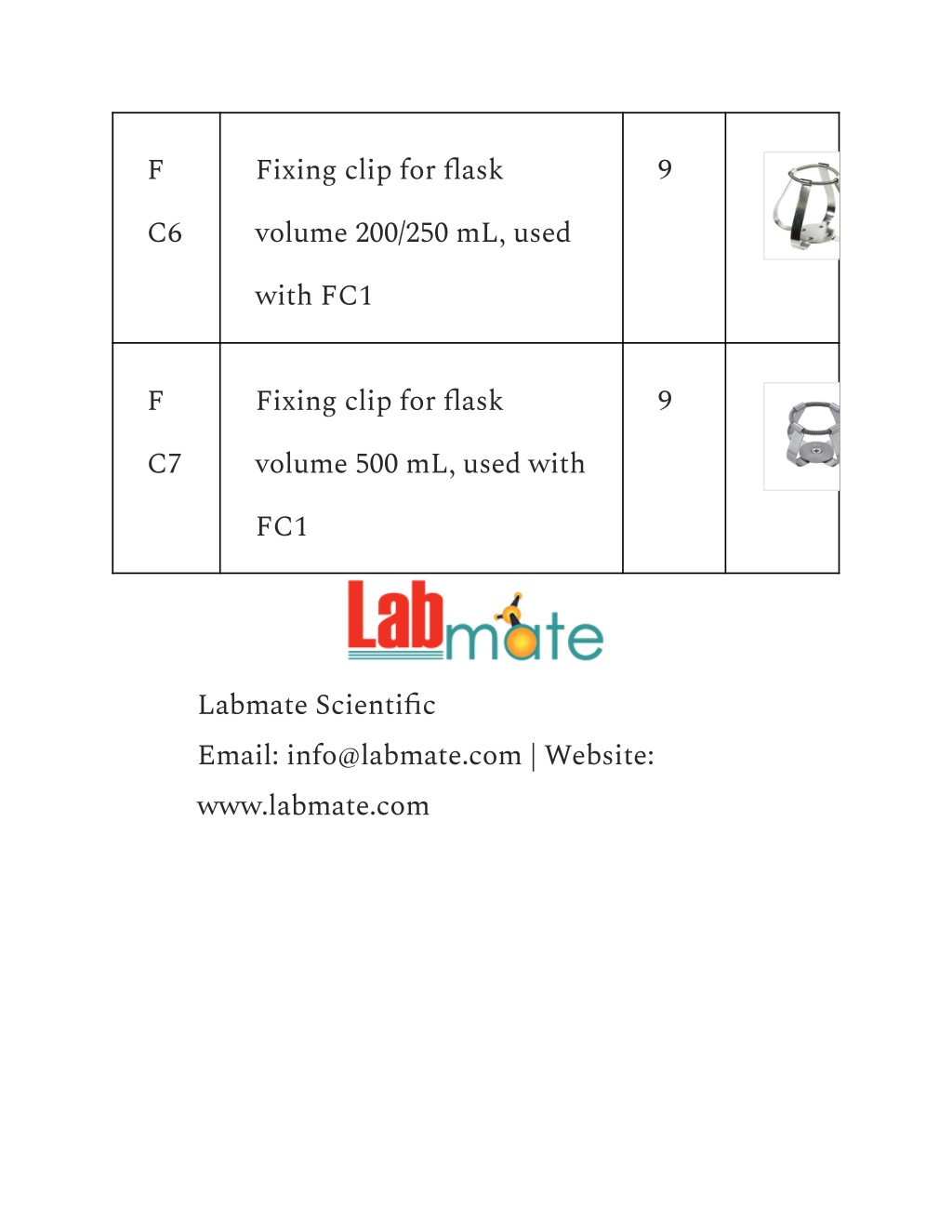

  9. F Fixing clip for flask 9 C6 volume 200/250 mL, used with FC1 F Fixing clip for flask 9 C7 volume 500 mL, used with FC1 Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
