Bottle Top Dispenser

<br>Labmate Bottle Top Dispenser is a crucial equipment while handling chemical solutions. It ensures a safe and convenient way to handle chemicals to avoid spills or <br>over-addition of it. It is easy to take a part for cleaning. The various measures on the equipment assures accurate discharge of the solution. Made up of PTFE, <br>PP, BSG and FEP for rigidity and better shelf life.<br>

Kimber4
Download Presentation

Bottle Top Dispenser

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

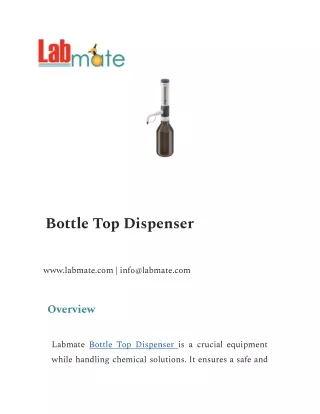

  1. Bottle Top Dispenser www.labmate.com | info@labmate.com Overview Labmate Bottle Top Dispenser is a crucial equipment while handling chemical solutions. It ensures a safe and

  2. convenient way to handle chemicals to avoid spills or over-addition of it. It is easy to take a part for cleaning. The accurate discharge of the solution. Made up of PTFE, PP, BSG and FEP for rigidity and better shelf life. various measures on the equipment assures Specifications : Volume Range 0.5 - 5 mL Sub division 0.1 mL Accuracy ≤ ±0.50 %; 25 μL Precision 0.10 %; 5 μL Max. Vapor pressure 500 mbar Max. Viscosity 500 mm2 / s

  3. Max. temperature 40 °C Max. Density 2.2 g / cm2 Features : - Fully autoclavable at 121 °C - Good Chemical resistance - Fast and precise dispensing with optional flexible discharge tube - Smooth piston design - Integrated recirculation valve for priming the dispensing system without reagent loss - PTFE, FEP,PP and BSG body Standard Accessories : Model No Specifications

  4. LMBD-A100-A1 45 / 40 mm Adapter LMBD-A100-A2 45 / 32 mm Adapter LMBD-A100-A3 45 / 38 mm Adapter LMBD-A100-A4 32 / 25 mm Adapter LMBD-A100-A5 32 / 28 mm Adapter LMBD-A100-F1 Filling tube LMBD-A100-D1 Discharge tube Optional Accessories : Model No Specifications

  5. LMBD-A100-R1 Reagent Bottle (Brown, 1L) Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
