Bench-top-Shaking-Incubator-LMSI-C101

The Bench-top Shaking Incubator is a dynamic tool for precise sample incubation. With customizable speed, temperature, and duration settings, it accommodates diverse <br>laboratory applications. Its compact design and user-friendly interface make it an indispensable asset for reliable and efficient shaking incubation in research and <br>diagnostics.

Kimber4
Download Presentation

Bench-top-Shaking-Incubator-LMSI-C101

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

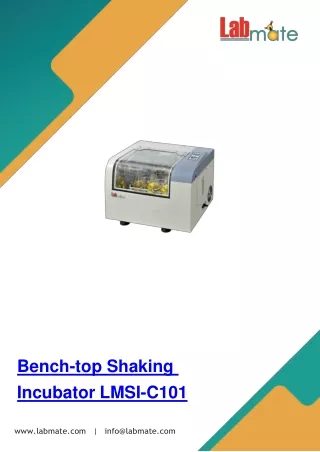

  1. Bench-top Shaking Incubator LMSI-C101 www.labmate.com | info@labmate.com

  2. Overview The Bench-top Shaking Incubator is a dynamic tool for precise sample incubation. With customizable speed, temperature, and duration settings, it accommodates diverse laboratory applications. Its compact design and user-friendly interface make it an indispensable asset for reliable and efficient shaking incubation in research and diagnostics. Specifications : Control P.I.D. (Environmental Scanning Microprocessor) Display LCD (simultaneous display of working & set parameters)) Convection Mode Forced Circulation Oscillation Mode Orbital Drive Single-shaft balance device Working environment Temperature: 25°C.Humidity20%-90% Temp. Range 4°C~60°C Temp. Accuracy ±0.1°C Temp. Uniformity ±1°C Speed Range(rpm) 30-600 RPM Speed Accuracy ±1 RPM Oscillation Amplitude Φ0 -50 mm

  3. Refrigerant CFC-Free(134A) Cooler Power 118 W Heater Power 400W Timing Range 0-999.59hr/Continuous Tray Size(mm) 420 x 400 mm Tray Number 1 pieces Net Weight 100 kg Chamber Size 740x740x560 mm Lid-open Height 990 mm Overall Dimensions 740x740x560 mm Power 581 W Power Supply AC 200-240V/50-60HZ. Optional: AC110V/60Hz Chamber Material Polished stainless steel Construction ABS engineering plastic Features : -Benchtop and floor standing dual-purpose design -P.I.D environmental scanning micro-processing controller -ABS construction with LCD display -Single-shaft drive technology -CFC-Free(134A) Refrigeration system -Durable and no noise -Audio Visual alarming system: High/low limit over temperature, high/low limit over speed alarm, stop-running protection for door opening, electric current leakage and over load protection

  4. -Motor over-heat protection -Pneumatic spring support for stable lid opening -Programmed power cut-off abnormal temperature -Repeat, increment (step) and 8-segment curve programming setting -60W AC inductive long-life brushless motor, maintenance free -Acceleration control circuit ensures soft start, smooth acceleration and safety of samples -Automatic stop of shaking when door is opened Standard Accessories : Model No Particular Quantity LMSI-C-SA01 Shaking tray 1 LMSI-C-SA02 Flask clamp 1 Optional Accessories : Model No Particular Quantity LMSI-B-OA01 Humidity testing/control system 1 LMSI-B-OA02 Gas inlet 1 LMSI-B-OA03 Illumination system (15000Lux) 1 LMSI-B-OA04 UV lamp 1

  5. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
