Aging Oven

Aging Oven is purpose-built to simulate and replicate environmental conditions for testing the stability, reliability, durability, and dependability of products. <br>With its 90L capacity, it spans a temperature spectrum from ambient temperature 20u2103 to 250u2103, all while maintaining a 10 to 12rpm turntable speed making it the <br>best choice for manufacturers and researchers in various fields.<br>

Kimber4
Download Presentation

Aging Oven

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

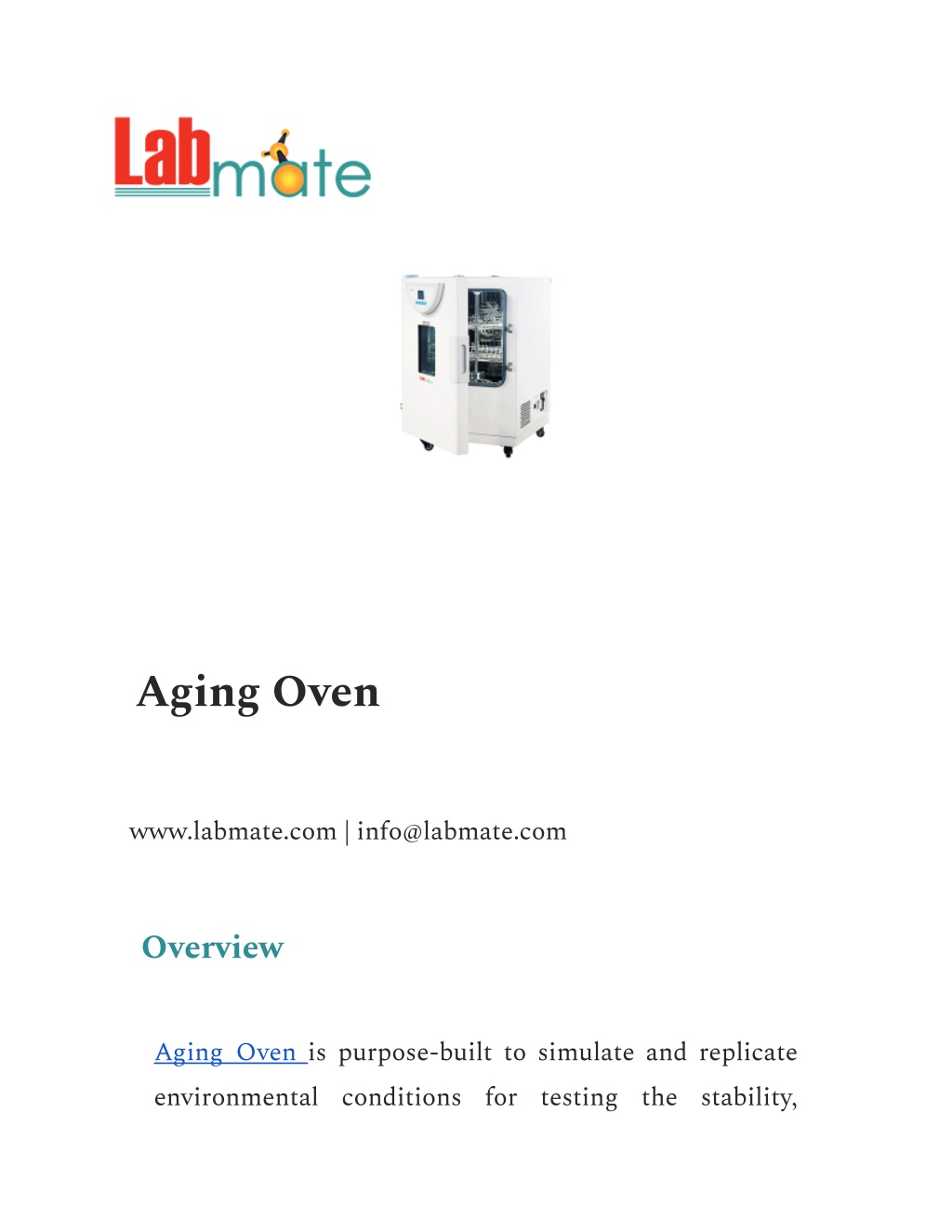

  1. Aging Oven www.labmate.com | info@labmate.com Overview Aging Oven is purpose-built to simulate and replicate environmental conditions for testing the stability,

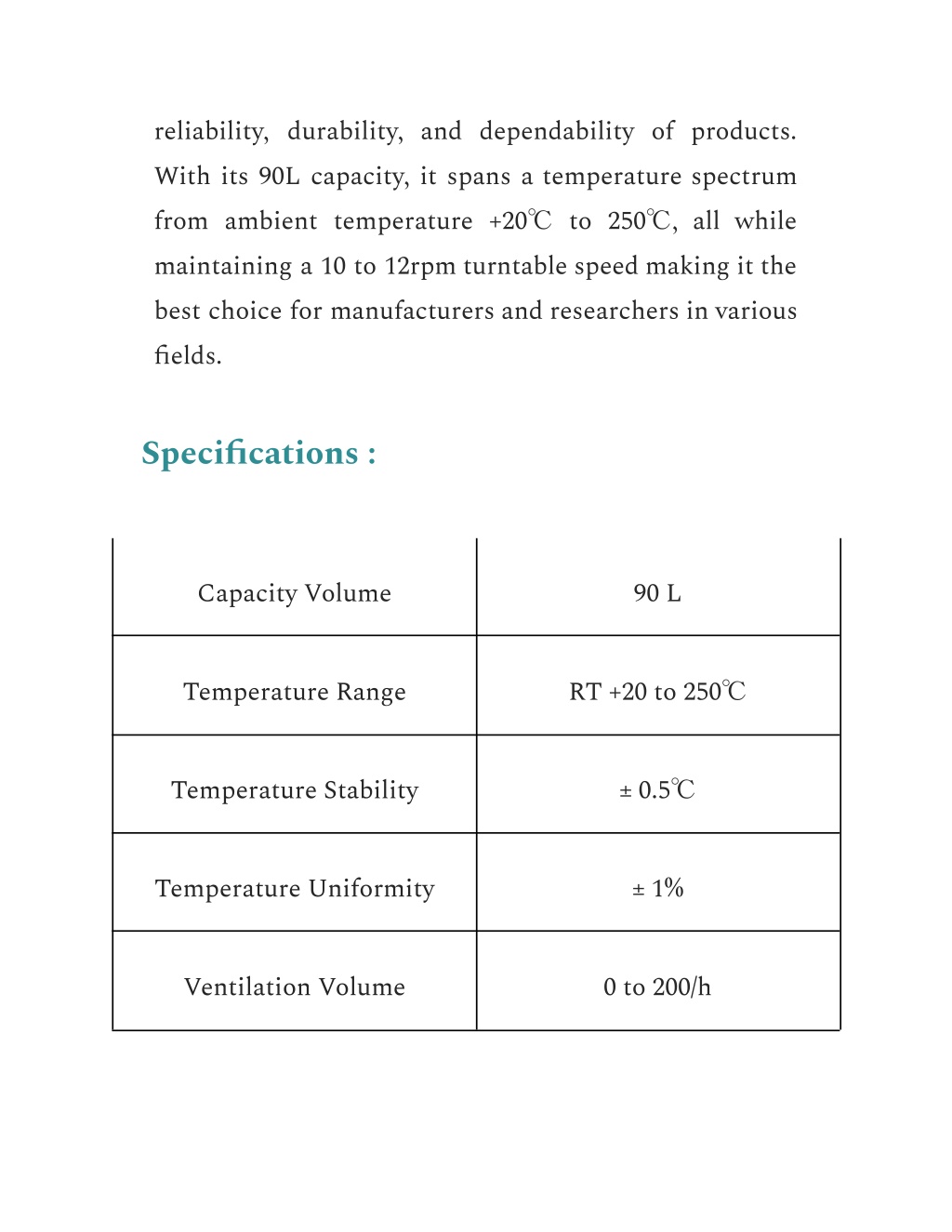

  2. reliability, durability, and dependability of products. With its 90L capacity, it spans a temperature spectrum from ambient temperature +20℃ to 250℃, all while maintaining a 10 to 12rpm turntable speed making it the best choice for manufacturers and researchers in various fields. Specifications : Capacity Volume 90 L Temperature Range RT +20 to 250℃ Temperature Stability ± 0.5℃ Temperature Uniformity ± 1% Ventilation Volume 0 to 200/h

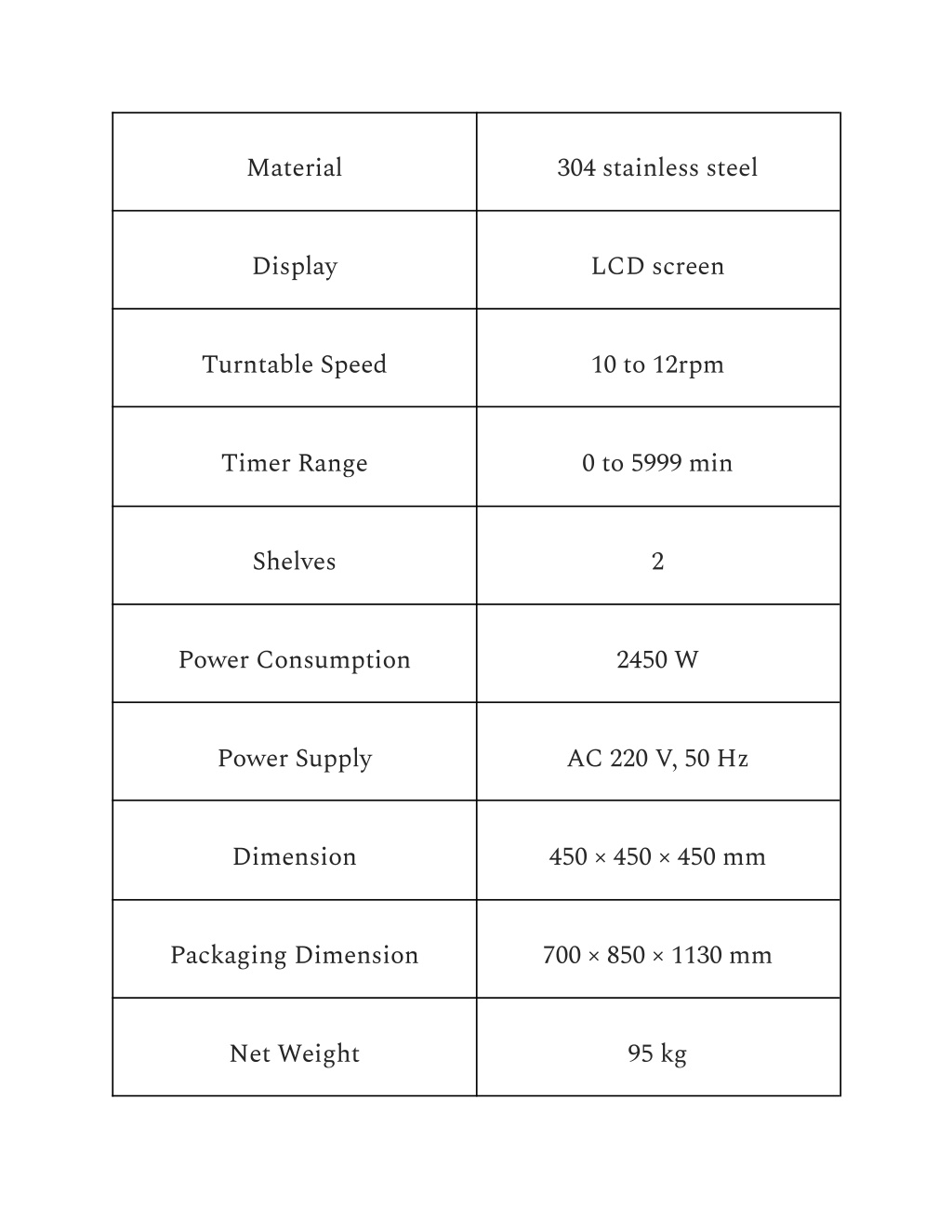

  3. Material 304 stainless steel Display LCD screen Turntable Speed 10 to 12rpm Timer Range 0 to 5999 min Shelves 2 Power Consumption 2450 W Power Supply AC 220 V, 50 Hz Dimension 450 × 450 × 450 mm Packaging Dimension 700 × 850 × 1130 mm Net Weight 95 kg

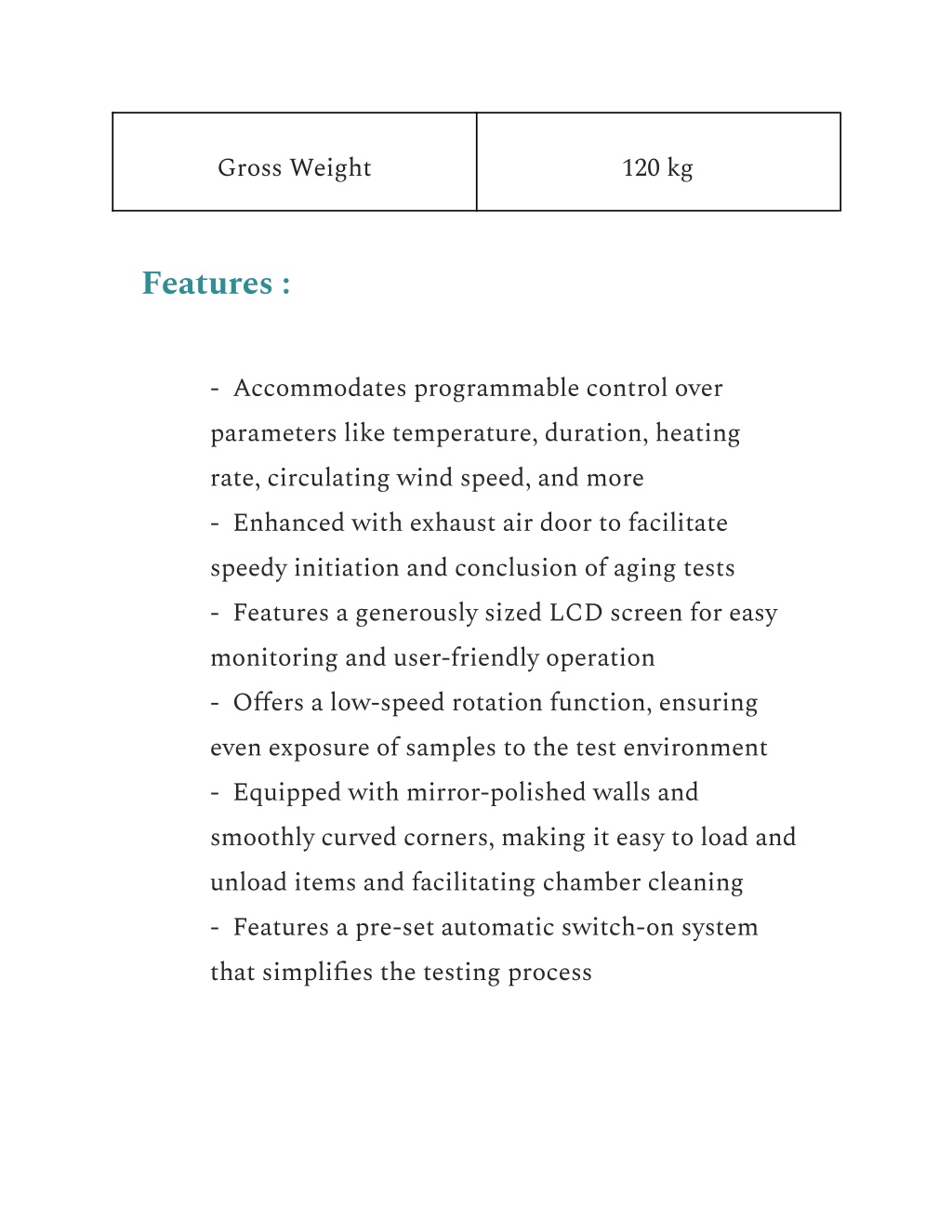

  4. Gross Weight 120 kg Features : - Accommodates programmable control over parameters like temperature, duration, heating rate, circulating wind speed, and more - Enhanced with exhaust air door to facilitate speedy initiation and conclusion of aging tests - Features a generously sized LCD screen for easy monitoring and user-friendly operation - Offers a low-speed rotation function, ensuring even exposure of samples to the test environment - Equipped with mirror-polished walls and smoothly curved corners, making it easy to load and unload items and facilitating chamber cleaning - Features a pre-set automatic switch-on system that simplifies the testing process

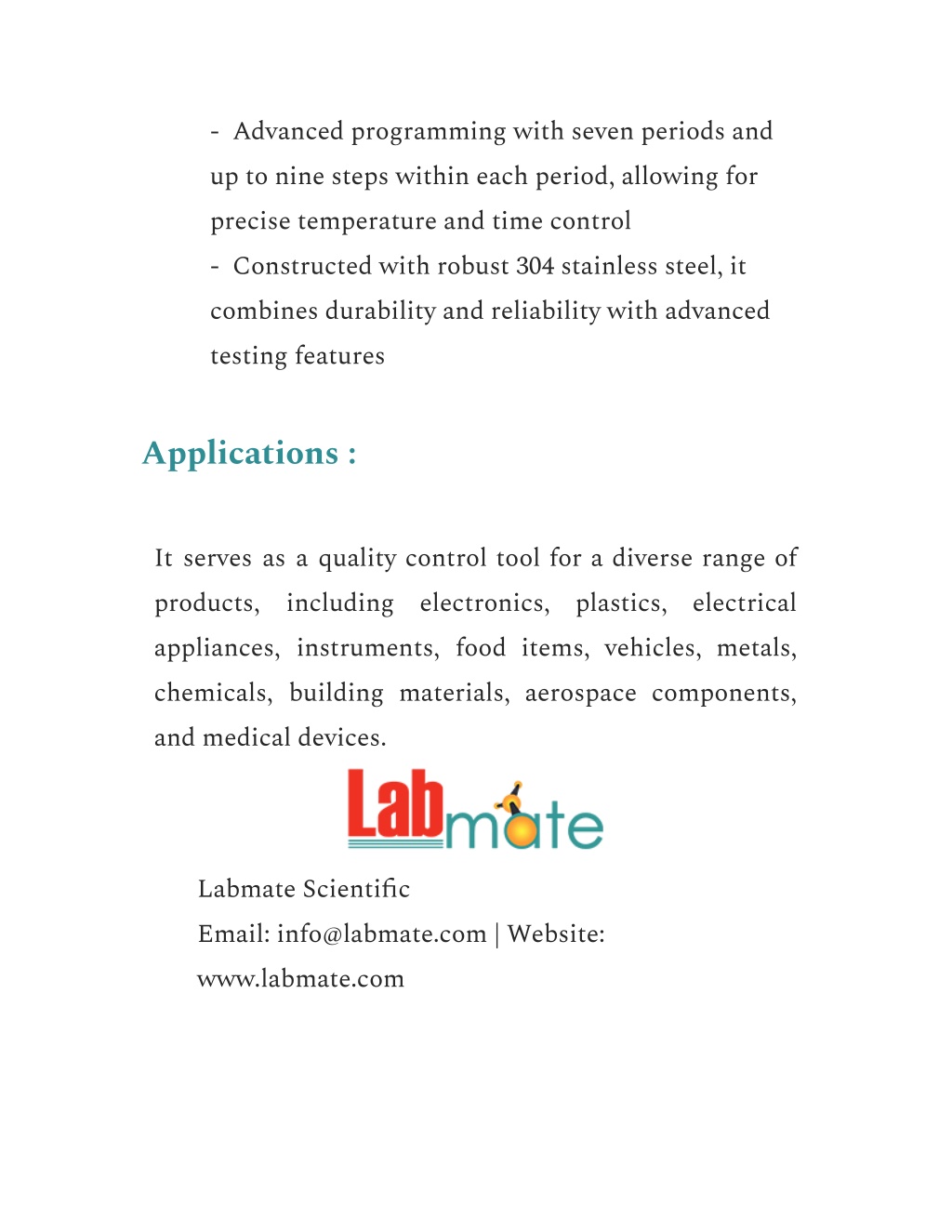

  5. - Advanced programming with seven periods and up to nine steps within each period, allowing for precise temperature and time control - Constructed with robust 304 stainless steel, it combines durability and reliability with advanced testing features Applications : It serves as a quality control tool for a diverse range of products, appliances, instruments, food items, vehicles, metals, chemicals, building materials, aerospace components, and medical devices. including electronics, plastics, electrical Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
