LOD in BIM: The Secret Weapon for Flawless Construction

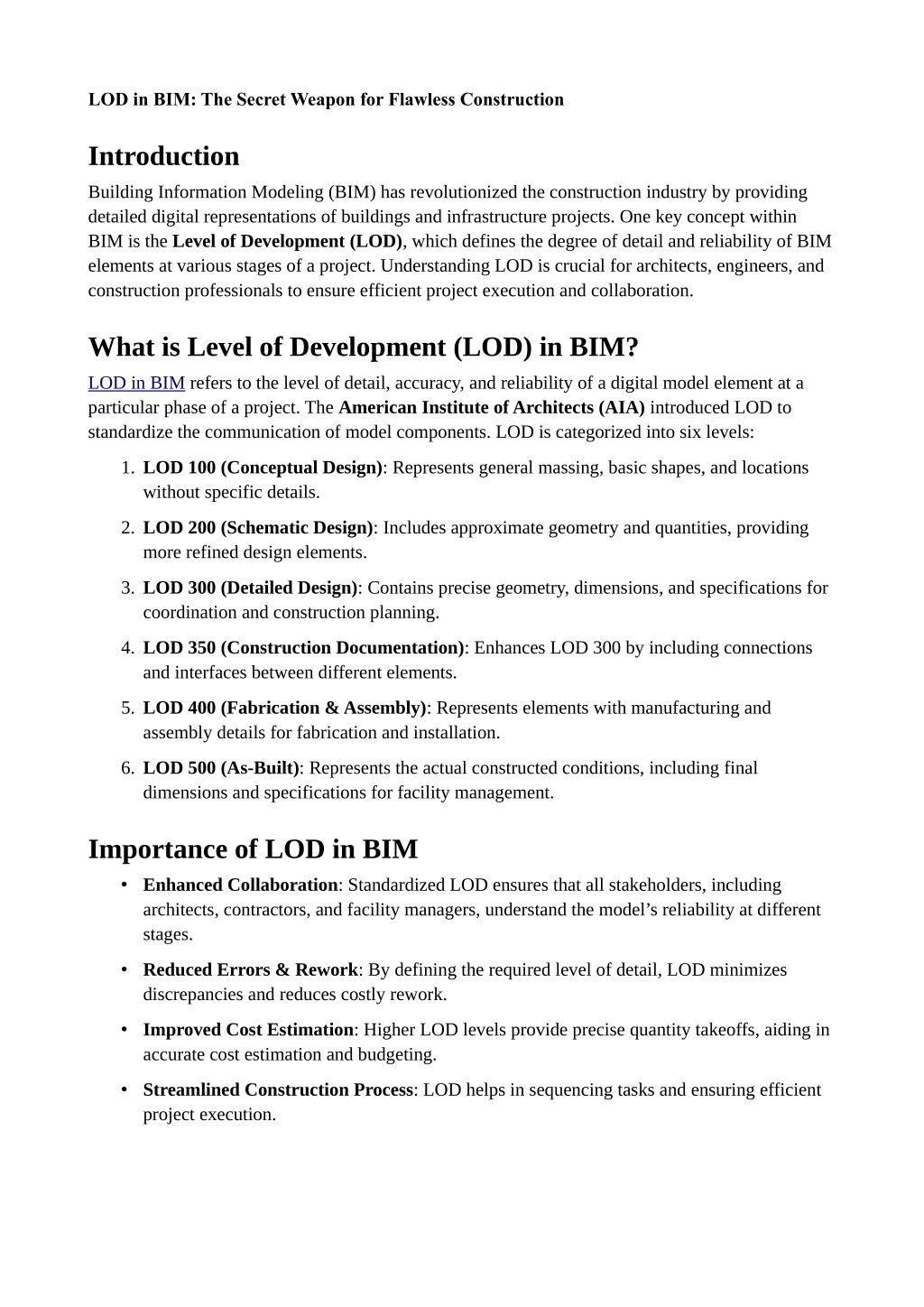

1. LOD in BIM: The Secret Weapon for Flawless Construction Introduction Building Information Modeling (BIM) has revolutionized the construction industry by providing detailed digital representations of buildings and infrastructure projects. One key concept within BIM is the Level of Development (LOD), which defines the degree of detail and reliability of BIM elements at various stages of a project. Understanding LOD is crucial for architects, engineers, and construction professionals to ensure efficient project execution and collaboration. What is Level of Development (LOD) in BIM? LOD in BIM refers to the level of detail, accuracy, and reliability of a digital model element at a particular phase of a project. The American Institute of Architects (AIA) introduced LOD to standardize the communication of model components. LOD is categorized into six levels: 1. LOD 100 (Conceptual Design): Represents general massing, basic shapes, and locations without specific details. 2. LOD 200 (Schematic Design): Includes approximate geometry and quantities, providing more refined design elements. 3. LOD 300 (Detailed Design): Contains precise geometry, dimensions, and specifications for coordination and construction planning. 4. LOD 350 (Construction Documentation): Enhances LOD 300 by including connections and interfaces between different elements. 5. LOD 400 (Fabrication & Assembly): Represents elements with manufacturing and assembly details for fabrication and installation. 6. LOD 500 (As-Built): Represents the actual constructed conditions, including final dimensions and specifications for facility management. Importance of LOD in BIM • Enhanced Collaboration: Standardized LOD ensures that all stakeholders, including architects, contractors, and facility managers, understand the model’s reliability at different stages. • Reduced Errors & Rework: By defining the required level of detail, LOD minimizes discrepancies and reduces costly rework. • Improved Cost Estimation: Higher LOD levels provide precise quantity takeoffs, aiding in accurate cost estimation and budgeting. • Streamlined Construction Process: LOD helps in sequencing tasks and ensuring efficient project execution.

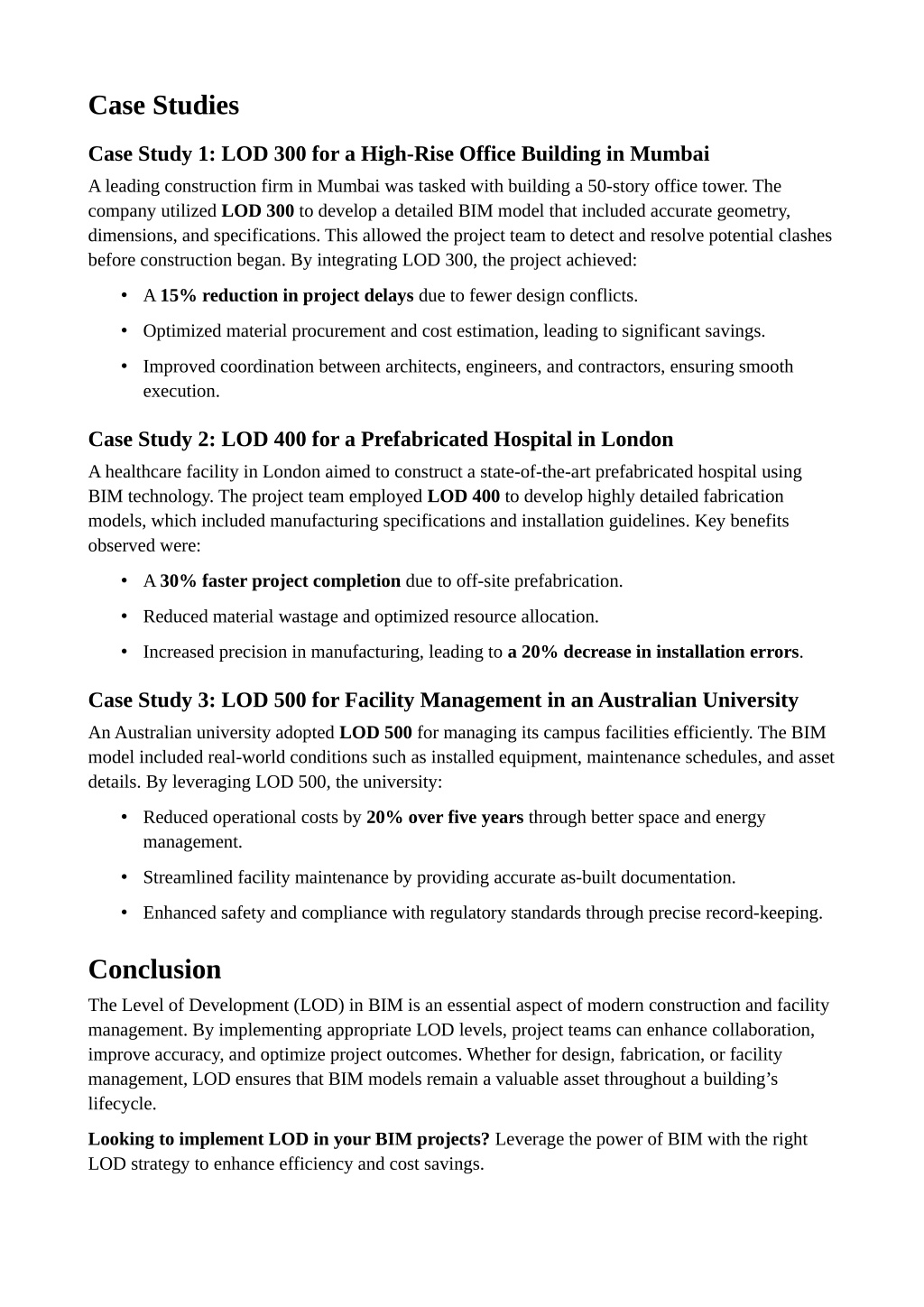

2. Case Studies Case Study 1: LOD 300 for a High-Rise Office Building in Mumbai A leading construction firm in Mumbai was tasked with building a 50-story office tower. The company utilized LOD 300 to develop a detailed BIM model that included accurate geometry, dimensions, and specifications. This allowed the project team to detect and resolve potential clashes before construction began. By integrating LOD 300, the project achieved: • A 15% reduction in project delays due to fewer design conflicts. • Optimized material procurement and cost estimation, leading to significant savings. • Improved coordination between architects, engineers, and contractors, ensuring smooth execution. Case Study 2: LOD 400 for a Prefabricated Hospital in London A healthcare facility in London aimed to construct a state-of-the-art prefabricated hospital using BIM technology. The project team employed LOD 400 to develop highly detailed fabrication models, which included manufacturing specifications and installation guidelines. Key benefits observed were: • A 30% faster project completion due to off-site prefabrication. • Reduced material wastage and optimized resource allocation. • Increased precision in manufacturing, leading to a 20% decrease in installation errors. Case Study 3: LOD 500 for Facility Management in an Australian University An Australian university adopted LOD 500 for managing its campus facilities efficiently. The BIM model included real-world conditions such as installed equipment, maintenance schedules, and asset details. By leveraging LOD 500, the university: • Reduced operational costs by 20% over five years through better space and energy management. • Streamlined facility maintenance by providing accurate as-built documentation. • Enhanced safety and compliance with regulatory standards through precise record-keeping. Conclusion The Level of Development (LOD) in BIM is an essential aspect of modern construction and facility management. By implementing appropriate LOD levels, project teams can enhance collaboration, improve accuracy, and optimize project outcomes. Whether for design, fabrication, or facility management, LOD ensures that BIM models remain a valuable asset throughout a building’s lifecycle. Looking to implement LOD in your BIM projects? Leverage the power of BIM with the right LOD strategy to enhance efficiency and cost savings.
