Tokyo Institute of TechnologyCommodity Grid Computing Infrastructure(and other Commodity Grid resources in Japan)

Satoshi Matsuoka

Professor, GSIC & Dept. Mathematical and Computing Sciences Tokyo Institute of Technology

commodity grid resources starting april 2002 under our control
“Commodity Grid” Resources Starting April, 2002(under our control)
  • 1. My Lab Machines: ~900 CPUs, ~2 TeraFlops, IA32
  • 2. Titech (Campus) Grid Resources: ~800 CPUs, 1.3 TeraFlops, IA32 “Blades”
  • 3. “Nationwide” Commodity Grid Experiment: ~several hundred IA32 CPUs (2H2002)
  • Total: 1700~2000 processors in 2002
    • 256 Processors for APGrid Testbed

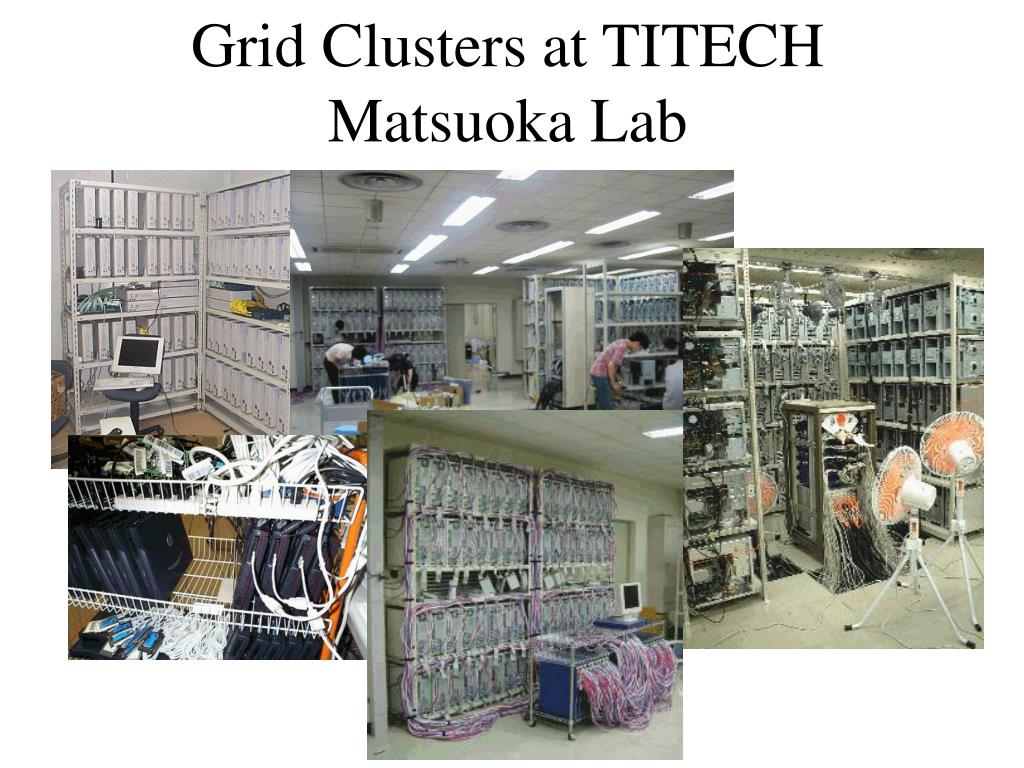

titech gsic matsuoka lab grid cluster infrastructure 4q2001
Titech GSIC Matsuoka Lab Grid Cluster Infrastructure (4Q2001)

1H2002 Total: 6 Clusters, 890 Procs ~2 TFlops(Peak), >100TeraByte

presto iii athlon cluster 2001 2002 1 6 teraflops 100terabytes
Full Assistance from AMD, Donation of Athlon CPUs

Gfarm/LHC/ATLAS, Bioinfomatic Apps

Presto III(1), April, 2001 – 80 node Athlon 1.33Ghz

206 Gigaflops Peak

Top500 2001/June, 439th

The first-ever AMD-Powered Cluster on the Top500

PrestoIII(2) – Oct, 2001 Dual 256 proc AthlonMP 1.2Ghz

614 GigaFLOPS Peak

Top500 2001/Nov. 331.7GigaFlops, 86th

Presto III(3) – April 2002 – Dual 512 proc AthlonMP 1900+

1.6 TeraFlops Peak, 1TFlops Linpack

100Terabytes (for LHC/ATLAS)

Presto III Athlon Cluster (2001-2002)1.6 TeraFlops, 100Terabytes
matsuoka lab grid clustering project
Dependable, Fault-tolerant clustering for the Grid

Parakeet Fault Tolerant MPI

Fault Tolerant GridRPC

Plug&Play Clustering

Extended Parakeet

Lucie Dynamic Cluster installer

Heterogeneous Clustering

Hetergeneous Omni OpenMP

Heterogeneous High Performance Linpack (HPL)

Muliple Cluster Coupling on the Grid

Grid Projects on Clusters

Ninf-G GridRPC

SOAP/XML GridRPC prototype

GFarm – middleware for Petascale data processing

Grid Performance Benchmarking and Monitoring

Bricks Parallel Grid Simulator

JiPANG Jini-based Grid Portall

Java for Cluster and the Grid

OpenJIT Flexible high-performance JIT compiler

JavaDSM – Secure and Portable Java DSM System for Clusters

Titech Grid – Campus Grid Infrastructure

Matsuoka Lab Grid Clustering Project
2 background for the titech campus commodity grid
2. Background for theTitech Campus Commodity Grid
  • Titech GSIC operates 3 supercomputers
    • 16 proc SX-5, 256 proc Origin2K, 64 proc AlphaServer GS320, 400GFlops total
    • All are heavily utilized (99.9% for SX-5)
    • Annual rental budget: $5 million
    • We have 4 years left on 6-year rental contract
    • All may disappear from the Top500 in Heidelberg (June, 2002)
    • We don’t have large extra money for new stuff or staff
  • Chicken and Eggs Problem for Grid Adoption
    • Most Japanese SC centers share the same problem

Titech Campus Grid - System Image

  • Titech Grid is a large-scale, campus-wide, pilot commodity Grid deployment for next generation E-Science application development within the Campuses of Tokyo Institute of Technology (Titech)
  • High-density blade PC server systems consisting of 800 high-end PC processors installed at 13 locations throughout the Titech Campuses, interconnected via the Super TITANET backbone.
  • The first campus-wide pilot Grid system deployment in Japan, providing next-generation high-performance “virtual parallel computer” infrastructure for high-end computational E-Science.




Super TITANET(1-4Gbps)

NEC Express 5800 Series Blade Servers

24-processor Satellite Systems @

each department ×12 systems



Grid-wide Single System Image via Grid middleware: Globus, Ninf-G, Condor, NWS, …

GSIC Main Servers

(256 processers) x 2 systems

in just 5 cabinets


(10 Gbps MOE National Backbone Network)

to other Grids

800-processor high-perf blade servers, > 1.2 TeraFlops, over 25 Terabytes stoarge

titech grid campus sites
Titech Grid Campus Sites
  • 15 installation sites amongst 2 campuses
  • 18 participating departments
    • Univ.-wide solicitation and applications thereof
    • Each department lists its own apps – Bioinfo, CFD, Nanotech, Env. Sci, etc.etc.

Comp. Eng. C

Math. Comp.Science C

Oo-okayama (10 sites)

Suzukakedai (5 sites)

how we implement the field of dreams
How we implement the Field of Dreams
  • Fact: Departments lack space, power, air-conditioning, maintenance expertise etc.
  • Technological solutions
    • High density, high performance blade design
      • x2 density c.f., 1U rack server design
      • GSIC – 512 P3 1.4G in just 5 19inch racks
      • Department – 24 P3 1.4G in a small desk-sized unit, can be run off a wall plug (Just 2K Watts/Cluster)
      • High Operational Temperature (33 degrees Celsius)
    • Employ remote server management technologies for low-level management
      • Need to be firewall friendly
  • And of course, all the Cluster & Grid middleware
    • Globus, Condor, Sun GridEngine, NWS, MPICH-G, Cactus, Ninf-G, Gfarm, Lucie…
  • The first Titech Grid is just a operational prototype
    • Proposal for 60 TeraFlops, 1.6 Petabyte Campus Grid Federation w/Univ. Tsukuba

3. Nationwide Commodity Grid

4) Grid-Enabled, Terascale Mathematical Optimization Libraries and Apps

-Non-Convex Quadratic Optimizaion using SCRM

-Higher-order polynomial solving w/Homotopy meth.

-BMI optimization for control theory apps

-Parallel GA for Genome Informatics apps

2) Highly-Reliable Commodity Cluster Middlewarea) Nonintrusive FTb) Dynamic Plug&Play

c) Heterogeneity

x1+x2+x3=c1x1x2+x1x3+x2x3=c2x1x2x3=c3Cyclic Polynomial All-Solutions

3) Scalable and FT extensions for GridRPCa) >million task parallelism

b) FT under various fault models

c) High-level and generalized GridRPC-API

Structural Optimization Probs

Protein NMR structural prediction







Objective: sustain 1 Teraflop for a week at 1/100 cost

1) Commodty Nationwide PC Cluster Testbed

> 1000 processors, multi-teralops

ex terascale ga optimization challenges on the grid
Ex. TeraScale GA Optimization Challenges on the Grid

Apply to difficult problem domain where experts spend considerable time in try&error in optimal solution finding

Example1: Lens Design

Search for curvature, spacing, material, etc. to achieve optimal image  takes an expert weeks, GA-based design in few minutes

NMR Protein Structure Analysis

Optimize protein structure according to the observed NMR signal (takes months ~ year by an expert)

Evaluation of Solution Extremely costly  require massive parallelization (millions of GridRPC calls)

Plan to determine structures of up to 30,000Da class proteins, limit of current NMR scan

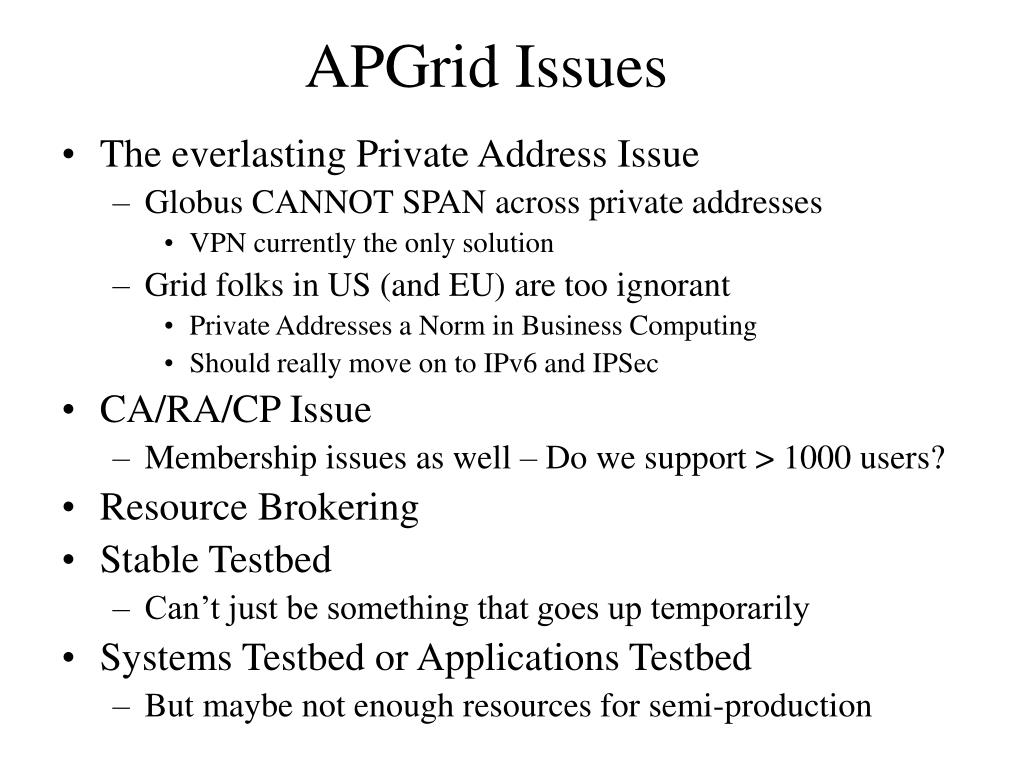

apgrid issues
APGrid Issues
  • The everlasting Private Address Issue
    • Globus CANNOT SPAN across private addresses
      • VPN currently the only solution
    • Grid folks in US (and EU) are too ignorant
      • Private Addresses a Norm in Business Computing
      • Should really move on to IPv6 and IPSec
  • CA/RA/CP Issue
    • Membership issues as well – Do we support > 1000 users?
  • Resource Brokering
  • Stable Testbed
    • Can’t just be something that goes up temporarily
  • Systems Testbed or Applications Testbed
    • But maybe not enough resources for semi-production
