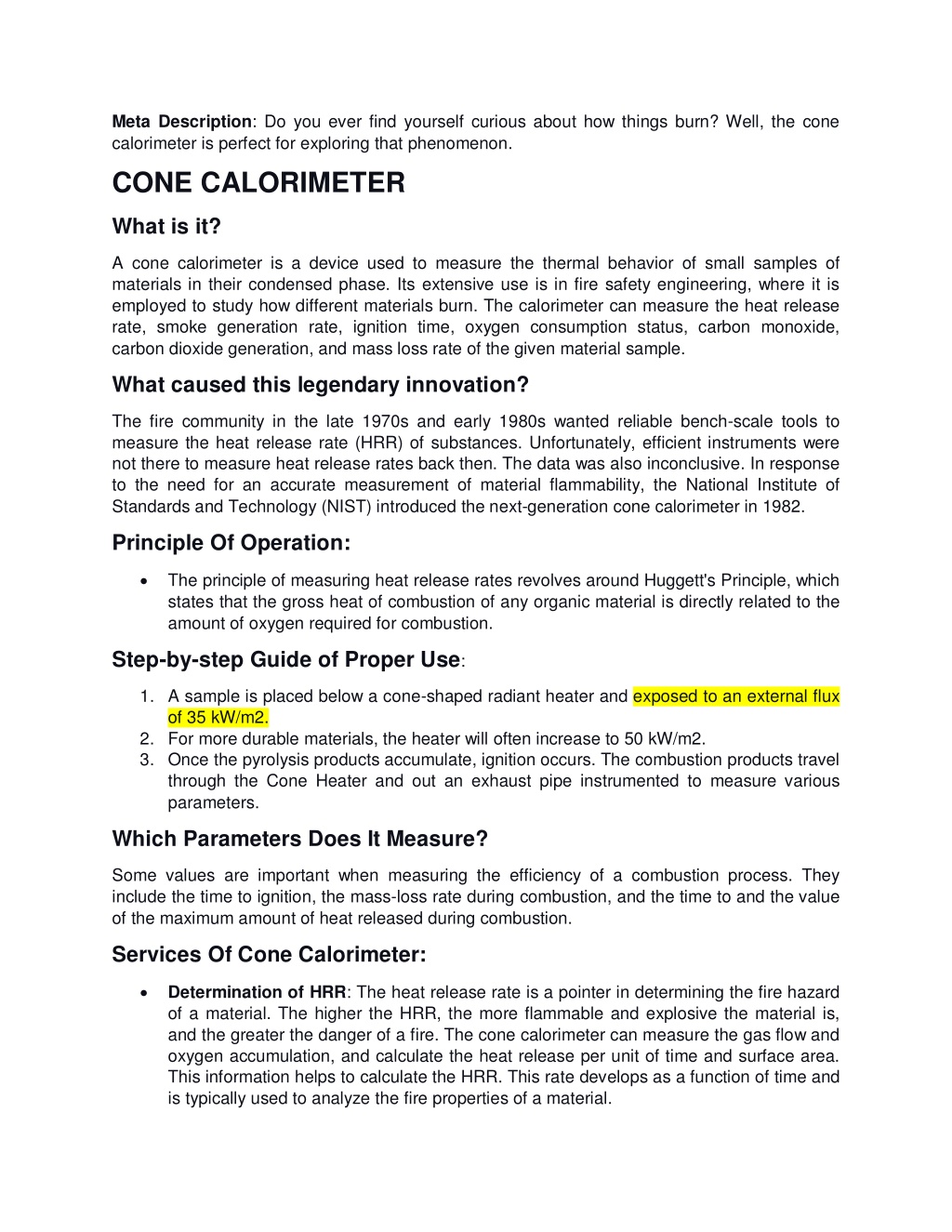

1. Meta Description: Do you ever find yourself curious about how things burn? Well, the cone calorimeter is perfect for exploring that phenomenon. CONE CALORIMETER What is it? A cone calorimeter is a device used to measure the thermal behavior of small samples of materials in their condensed phase. Its extensive use is in fire safety engineering, where it is employed to study how different materials burn. The calorimeter can measure the heat release rate, smoke generation rate, ignition time, oxygen consumption status, carbon monoxide, carbon dioxide generation, and mass loss rate of the given material sample. What caused this legendary innovation? The fire community in the late 1970s and early 1980s wanted reliable bench-scale tools to measure the heat release rate (HRR) of substances. Unfortunately, efficient instruments were not there to measure heat release rates back then. The data was also inconclusive. In response to the need for an accurate measurement of material flammability, the National Institute of Standards and Technology (NIST) introduced the next-generation cone calorimeter in 1982. Principle Of Operation:  The principle of measuring heat release rates revolves around Huggett's Principle, which states that the gross heat of combustion of any organic material is directly related to the amount of oxygen required for combustion. Step-by-step Guide of Proper Use: 1. A sample is placed below a cone-shaped radiant heater and exposed to an external flux of 35 kW/m2. 2. For more durable materials, the heater will often increase to 50 kW/m2. 3. Once the pyrolysis products accumulate, ignition occurs. The combustion products travel through the Cone Heater and out an exhaust pipe instrumented to measure various parameters. Which Parameters Does It Measure? Some values are important when measuring the efficiency of a combustion process. They include the time to ignition, the mass-loss rate during combustion, and the time to and the value of the maximum amount of heat released during combustion. Services Of Cone Calorimeter: Determination of HRR: The heat release rate is a pointer in determining the fire hazard of a material. The higher the HRR, the more flammable and explosive the material is, and the greater the danger of a fire. The cone calorimeter can measure the gas flow and oxygen accumulation, and calculate the heat release per unit of time and surface area. This information helps to calculate the HRR. This rate develops as a function of time and is typically used to analyze the fire properties of a material.

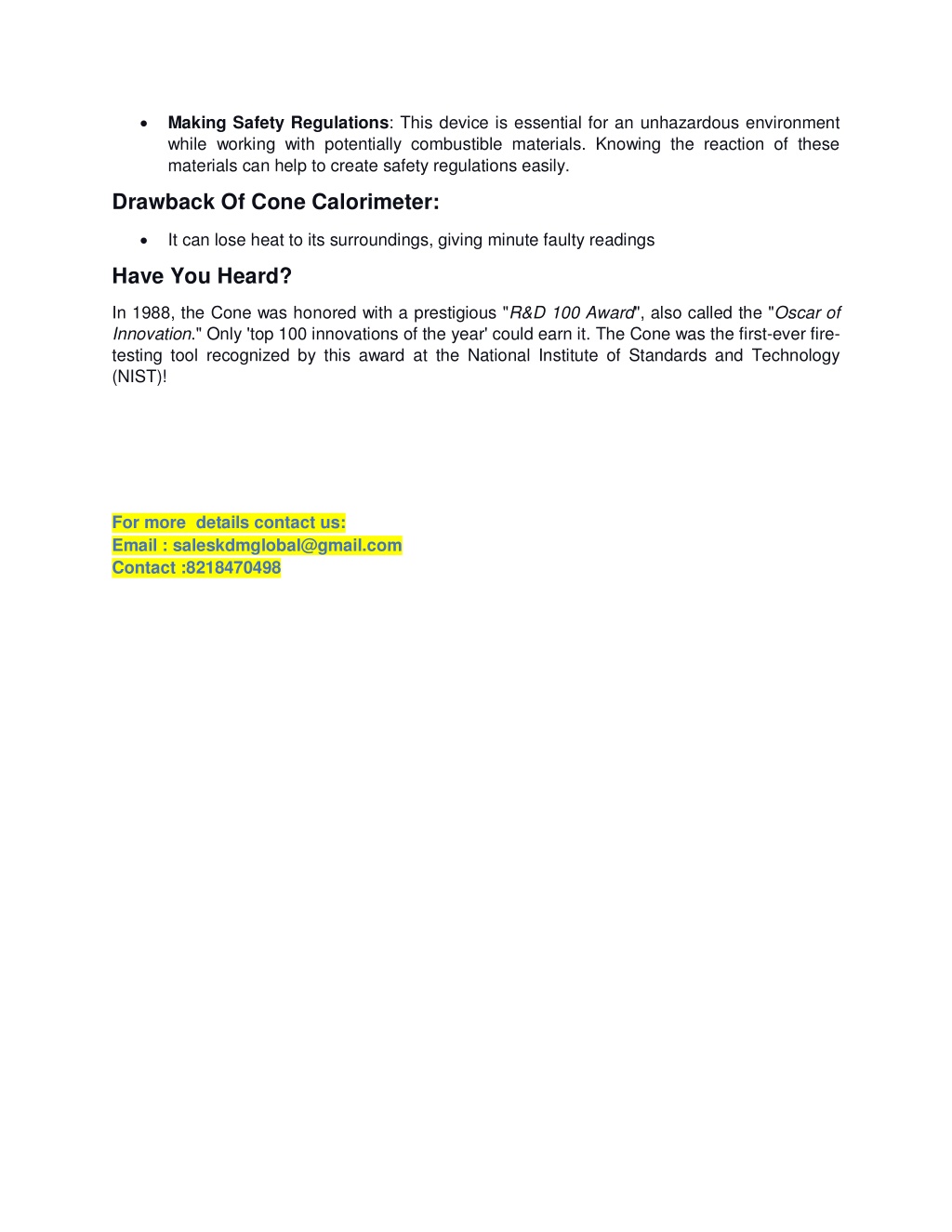

2. Making Safety Regulations: This device is essential for an unhazardous environment while working with potentially combustible materials. Knowing the reaction of these materials can help to create safety regulations easily. Drawback Of Cone Calorimeter:  It can lose heat to its surroundings, giving minute faulty readings Have You Heard? In 1988, the Cone was honored with a prestigious "R&D 100 Award", also called the "Oscar of Innovation." Only 'top 100 innovations of the year' could earn it. The Cone was the first-ever fire- testing tool recognized by this award at the National Institute of Standards and Technology (NIST)! For more details contact us: Email : saleskdmglobal@gmail.com Contact :8218470498
