Solved: Asus Rt-Ac55u Router Setup |Easy Steps

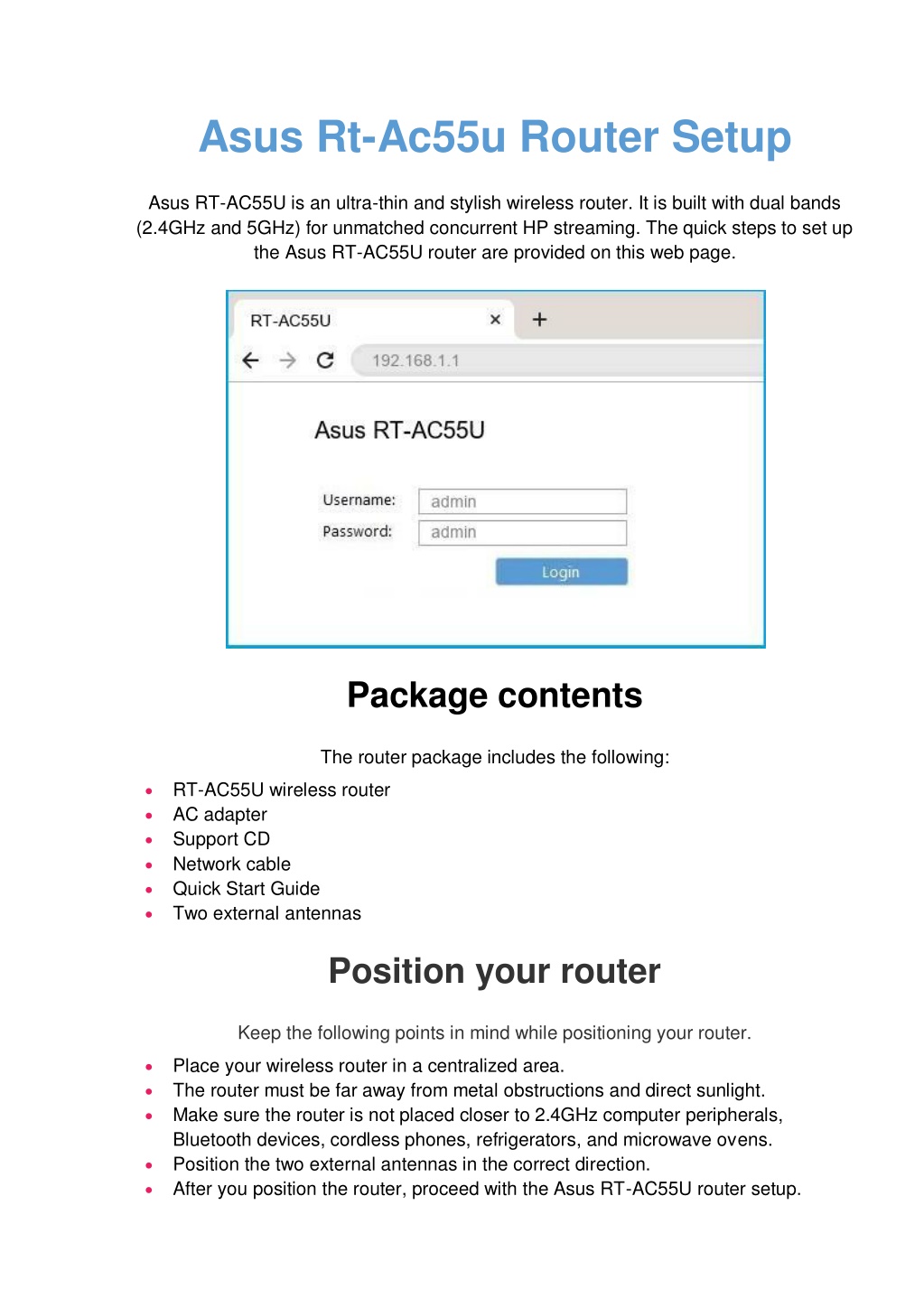

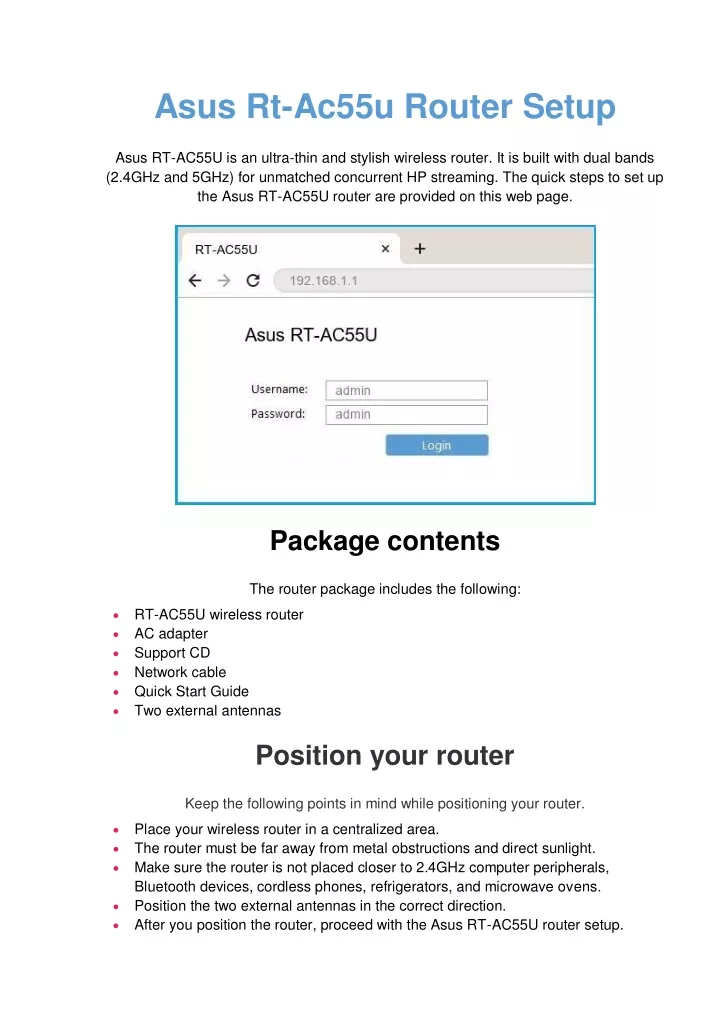

1. Asus Rt-Ac55u Router Setup Asus RT-AC55U is an ultra-thin and stylish wireless router. It is built with dual bands (2.4GHz and 5GHz) for unmatched concurrent HP streaming. The quick steps to set up the Asus RT-AC55U router are provided on this web page. Package contents The router package includes the following: RT-AC55U wireless router AC adapter Support CD Network cable Quick Start Guide Two external antennas Position your router Keep the following points in mind while positioning your router. Place your wireless router in a centralized area. The router must be far away from metal obstructions and direct sunlight. Make sure the router is not placed closer to 2.4GHz computer peripherals, Bluetooth devices, cordless phones, refrigerators, and microwave ovens. Position the two external antennas in the correct direction. After you position the router, proceed with the Asus RT-AC55U router setup.

2. Setup requirements Your computer must meet the following requirements. Ethernet RJ-45 port IEEE 802.11a/b/g/n/ac wireless capability TCP/IP service installed Supported web browser - Internet Explorer, Firefox, Safari, and Google Chrome 1.Router hardware setup Insert the AC power cord into your router’s DC-IN and a power outlet. Use the network cable to establish a connection between the router’s LAN port and your computer’s Ethernet port. Take another Ethernet cable and plug it into the router’s WAN port and your modem’s rear port. Connect the modem’s AC adapter to a power outlet.Ensure that the router and modem are powered up.You have now completed the hardware setup of the Asus RT-AC55U router. 2. Quick Internet Setup (QIS) Step 1 Open a supported browser on your computer that is connected to the router’s network. Step 2 In the address field, type your router’s default IP address (192.168.1.1). Press Enter. When the router's login page appears, enter admin in the User name and Password fields. Click the OK button. Step 3 Wait until the wireless router detects your ISP connection type. Depending on the detected connection type, carry out one of these instructions. DHCP - Click MAC Clone to clone your MAC address. Select the Next option. PPPoE, PPTP, and L2TP - Enter the information provided by your ISP in the User Name and Password fields. Click Next. Static IP - Fill in all the required details and click the Next button. Once done with the ISP type settings, continue with the following steps to set up the Asus RT-AC55U router. Read More...
