Grounding Rod – An Integral Part Of A Modern Electrical Lightning Protection System

Its a connection between electrical equipment, devices with earth plate, earth electrode through a thick wire/strip/rod of low resistance material to provide protection known as u2018earthingu2019 or grounding. The management of electrical grounding systems includes accurate design, effective implementation, and comprehensive audits of the installed systems. In fault current or lightning strikes, the current passes through down conductor to grounding rod system protecting facilities and machinery. Get in touch with us: https://www.lightningprotection.com/grounding-earthing/chem-rod/<br>

JonathanBush
Download Presentation

Grounding Rod – An Integral Part Of A Modern Electrical Lightning Protection System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Grounding Rod • An Integral Part Of A Modern Electrical Lightning Protection System

  2. In general terms, a connection between electrical equipment and devices with an earth plate or earth electrode through a thick wire/strip/ rod of low resistance material to provide protection is known as ‘earthing’ or grounding. • In case of surge voltage (due to lightning strikes, line faults, etc), grounding can be understood as the path for transmitting the sudden discharge of electricity, by means of low resistance electric cables or wires, to the earth.

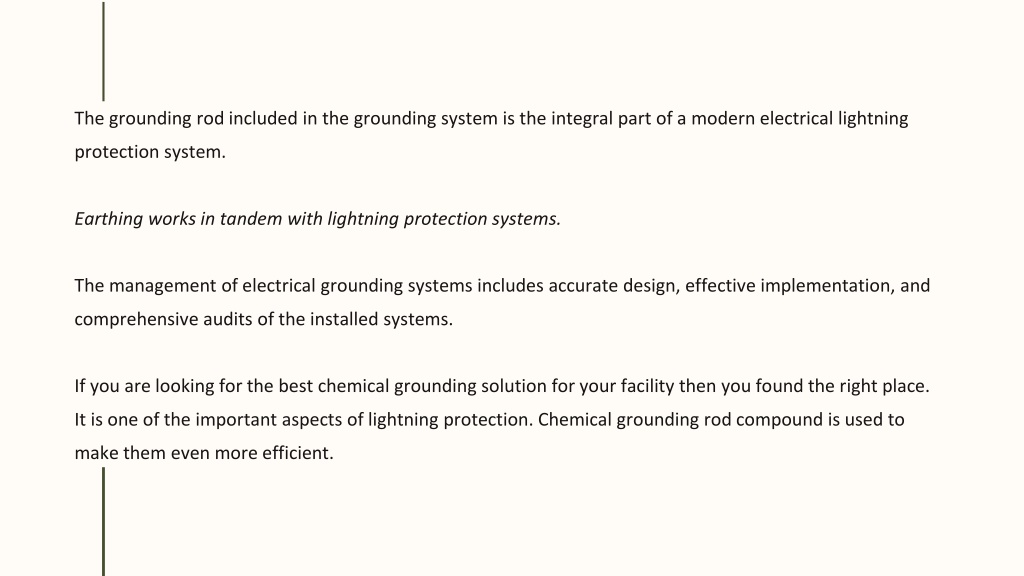

  3. The grounding rod included in the grounding system is the integral part of a modern electrical lightning protection system. • Earthing works in tandem with lightning protection systems. • The management of electrical grounding systems includes accurate design, effective implementation, and comprehensive audits of the installed systems. • If you are looking for the best chemical grounding solution for your facility then you found the right place. It is one of the important aspects of lightning protection. Chemical grounding rod compound is used to make them even more efficient.

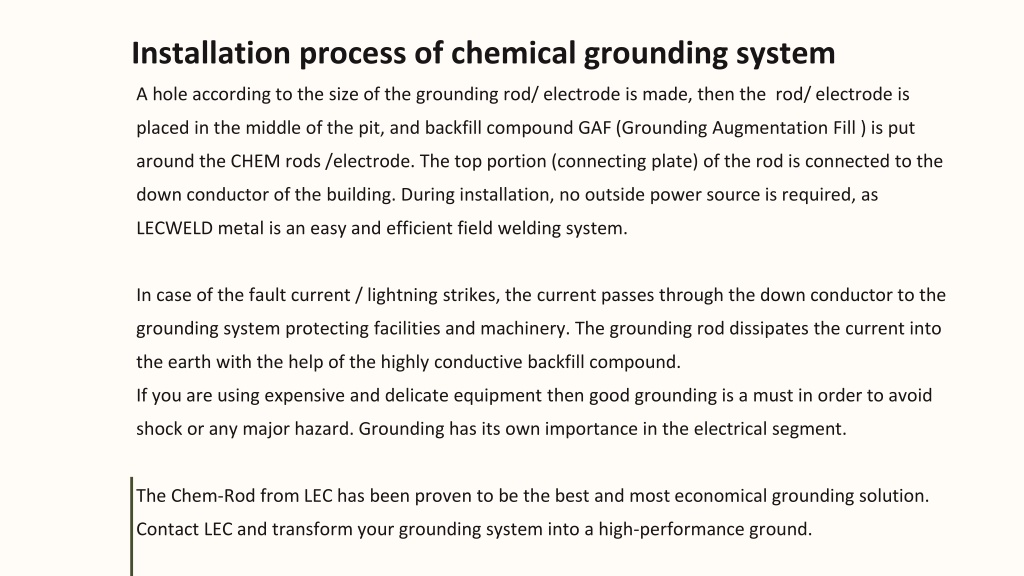

  4. Installation process of chemical grounding system • A hole according to the size of the grounding rod/ electrode is made, then the rod/ electrode is placed in the middle of the pit, and backfill compound GAF (Grounding Augmentation Fill ) is put around the CHEM rods /electrode. The top portion (connecting plate) of the rod is connected to the down conductor of the building. During installation, no outside power source is required, as LECWELD metal is an easy and efficient field welding system. • In case of the fault current / lightning strikes, the current passes through the down conductor to the grounding system protecting facilities and machinery. The grounding rod dissipates the current into the earth with the help of the highly conductive backfill compound. • If you are using expensive and delicate equipment then good grounding is a must in order to avoid shock or any major hazard. Grounding has its own importance in the electrical segment. • The Chem-Rod from LEC has been proven to be the best and most economical grounding solution. • Contact LEC and transform your grounding system into a high-performance ground.

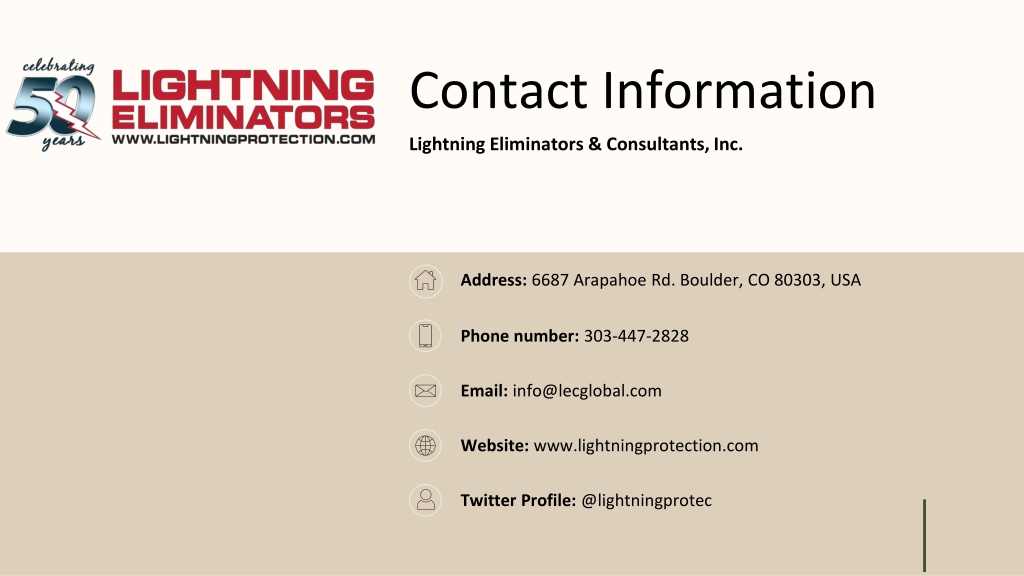

  5. Contact Information • Lightning Eliminators & Consultants, Inc. • Address: 6687 Arapahoe Rd. Boulder, CO 80303, USA • Phone number:303-447-2828 • Email: info@lecglobal.com • Website:www.lightningprotection.com • TwitterProfile:@lightningprotec
