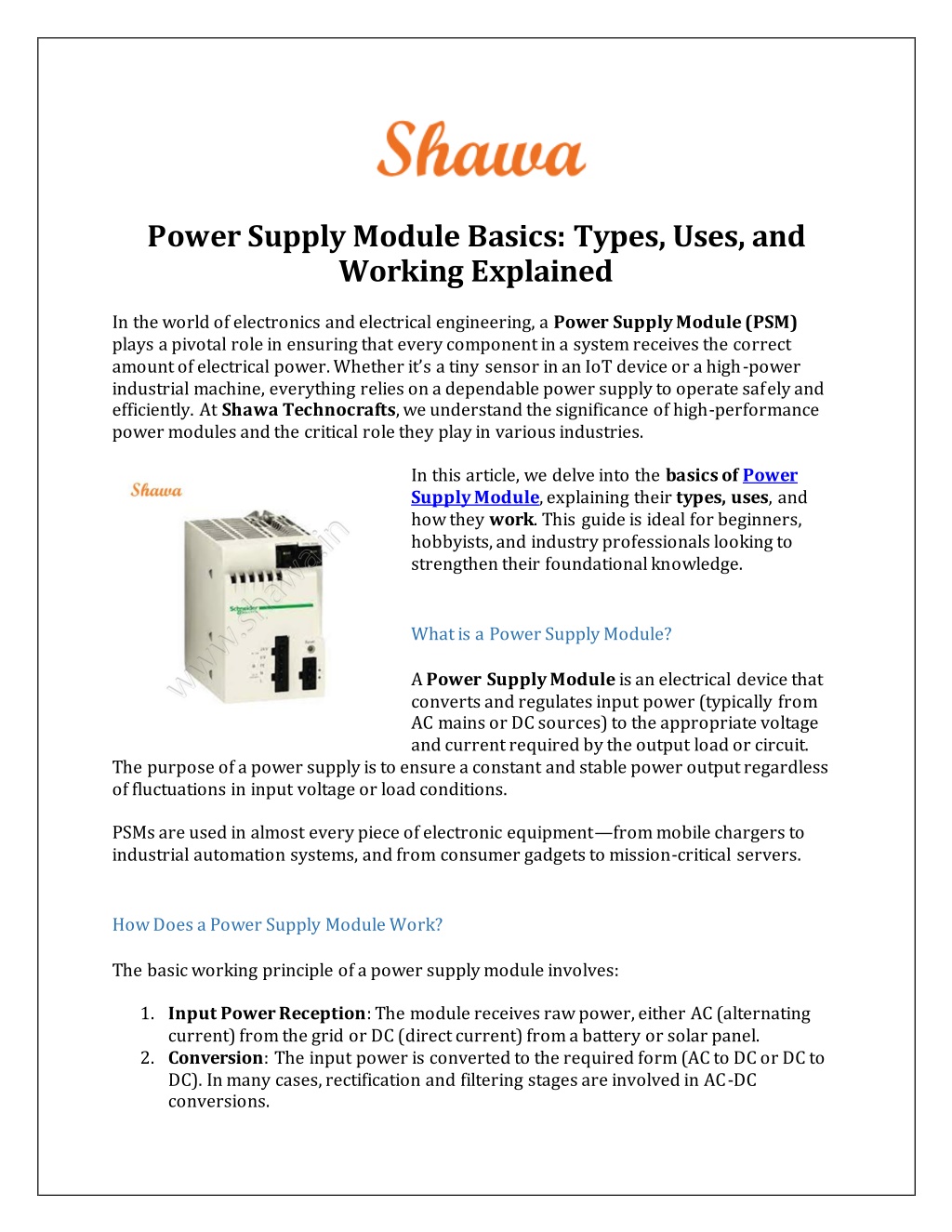

1. Power Supply Module Basics: Types, Uses, and Working Explained In the world of electronics and electrical engineering, a Power Supply Module (PSM) plays a pivotal role in ensuring that every component in a system receives the correct amount of electrical power. Whether it’s a tiny sensor in an IoT device or a high-power industrial machine, everything relies on a dependable power supply to operate safely and efficiently. At Shawa Technocrafts, we understand the significance of high-performance power modules and the critical role they play in various industries. In this article, we delve into the basics of Power Supply Module, explaining their types, uses, and how they work. This guide is ideal for beginners, hobbyists, and industry professionals looking to strengthen their foundational knowledge. What is a Power Supply Module? A Power Supply Module is an electrical device that converts and regulates input power (typically from AC mains or DC sources) to the appropriate voltage and current required by the output load or circuit. The purpose of a power supply is to ensure a constant and stable power output regardless of fluctuations in input voltage or load conditions. PSMs are used in almost every piece of electronic equipment—from mobile chargers to industrial automation systems, and from consumer gadgets to mission-critical servers. How Does a Power Supply Module Work? The basic working principle of a power supply module involves: 1.Input Power Reception: The module receives raw power, either AC (alternating current) from the grid or DC (direct current) from a battery or solar panel. 2.Conversion: The input power is converted to the required form (AC to DC or DC to DC). In many cases, rectification and filtering stages are involved in AC-DC conversions.

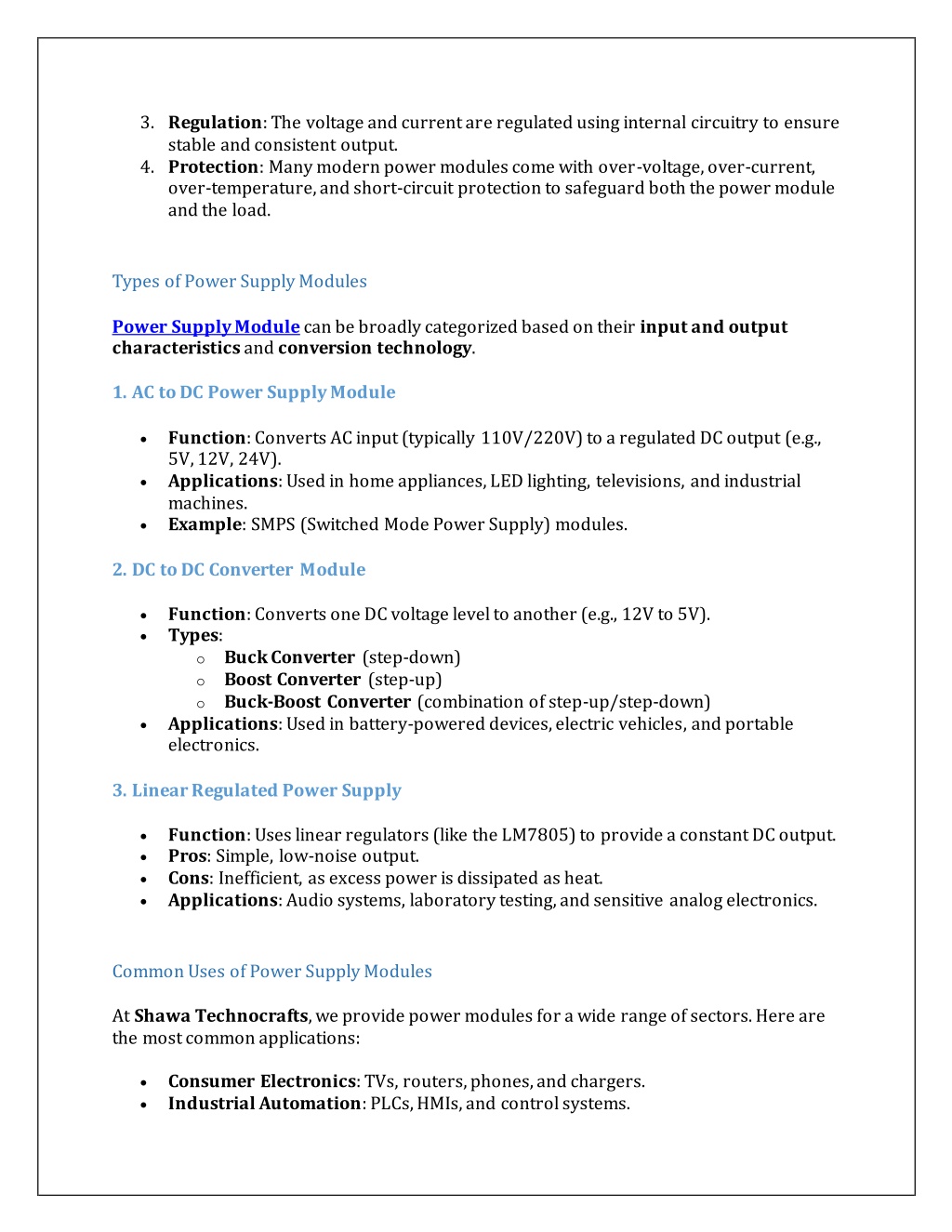

2. 3.Regulation: The voltage and current are regulated using internal circuitry to ensure stable and consistent output. 4.Protection: Many modern power modules come with over-voltage, over-current, over-temperature, and short-circuit protection to safeguard both the power module and the load. Types of Power Supply Modules Power Supply Module can be broadly categorized based on their input and output characteristics and conversion technology. 1. AC to DC Power Supply Module Function: Converts AC input (typically 110V/220V) to a regulated DC output (e.g., 5V, 12V, 24V). Applications: Used in home appliances, LED lighting, televisions, and industrial machines. Example: SMPS (Switched Mode Power Supply) modules. 2. DC to DC Converter Module Function: Converts one DC voltage level to another (e.g., 12V to 5V). Types: oBuck Converter (step-down) oBoost Converter (step-up) oBuck-Boost Converter (combination of step-up/step-down) Applications: Used in battery-powered devices, electric vehicles, and portable electronics. 3. Linear Regulated Power Supply Function: Uses linear regulators (like the LM7805) to provide a constant DC output. Pros: Simple, low-noise output. Cons: Inefficient, as excess power is dissipated as heat. Applications: Audio systems, laboratory testing, and sensitive analog electronics. Common Uses of Power Supply Modules At Shawa Technocrafts, we provide power modules for a wide range of sectors. Here are the most common applications: Consumer Electronics: TVs, routers, phones, and chargers. Industrial Automation: PLCs, HMIs, and control systems.

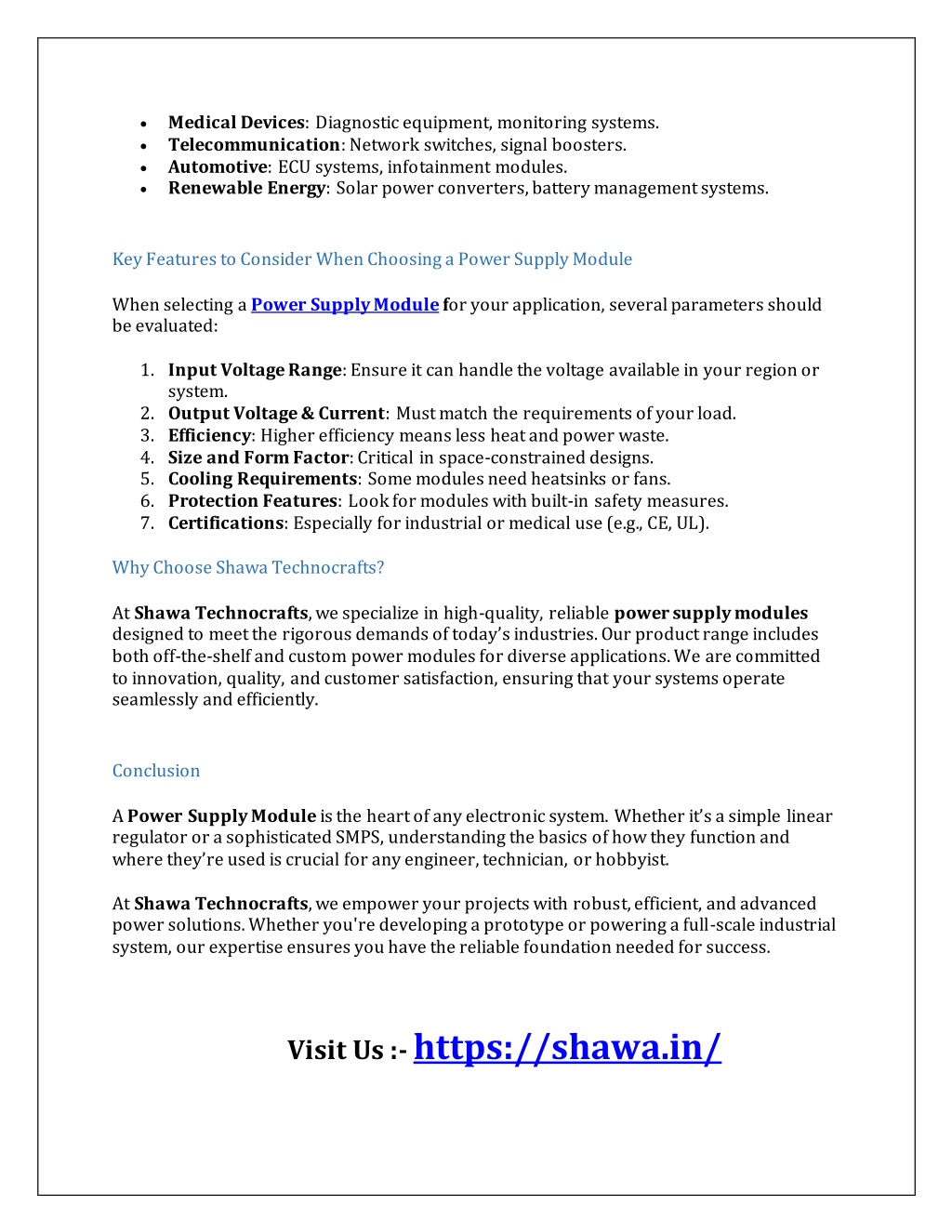

3. Medical Devices: Diagnostic equipment, monitoring systems. Telecommunication: Network switches, signal boosters. Automotive: ECU systems, infotainment modules. Renewable Energy: Solar power converters, battery management systems. Key Features to Consider When Choosing a Power Supply Module When selecting a Power Supply Module for your application, several parameters should be evaluated: 1.Input Voltage Range: Ensure it can handle the voltage available in your region or system. 2.Output Voltage & Current: Must match the requirements of your load. 3.Efficiency: Higher efficiency means less heat and power waste. 4.Size and Form Factor: Critical in space-constrained designs. 5.Cooling Requirements: Some modules need heatsinks or fans. 6.Protection Features: Look for modules with built-in safety measures. 7.Certifications: Especially for industrial or medical use (e.g., CE, UL). Why Choose Shawa Technocrafts? At Shawa Technocrafts, we specialize in high-quality, reliable power supply modules designed to meet the rigorous demands of today’s industries. Our product range includes both off-the-shelf and custom power modules for diverse applications. We are committed to innovation, quality, and customer satisfaction, ensuring that your systems operate seamlessly and efficiently. Conclusion A Power Supply Module is the heart of any electronic system. Whether it’s a simple linear regulator or a sophisticated SMPS, understanding the basics of how they function and where they’re used is crucial for any engineer, technician, or hobbyist. At Shawa Technocrafts, we empower your projects with robust, efficient, and advanced power solutions. Whether you're developing a prototype or powering a full-scale industrial system, our expertise ensures you have the reliable foundation needed for success. Visit Us :- https://shawa.in/
