A Power Supply is an electrical device that provides energy for electrical energy. The primary purpose of the power supply is to convert the current from the source to the correct voltage, current, and frequency to power the load.

Joddie
Download Presentation

Types of Power Supplies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

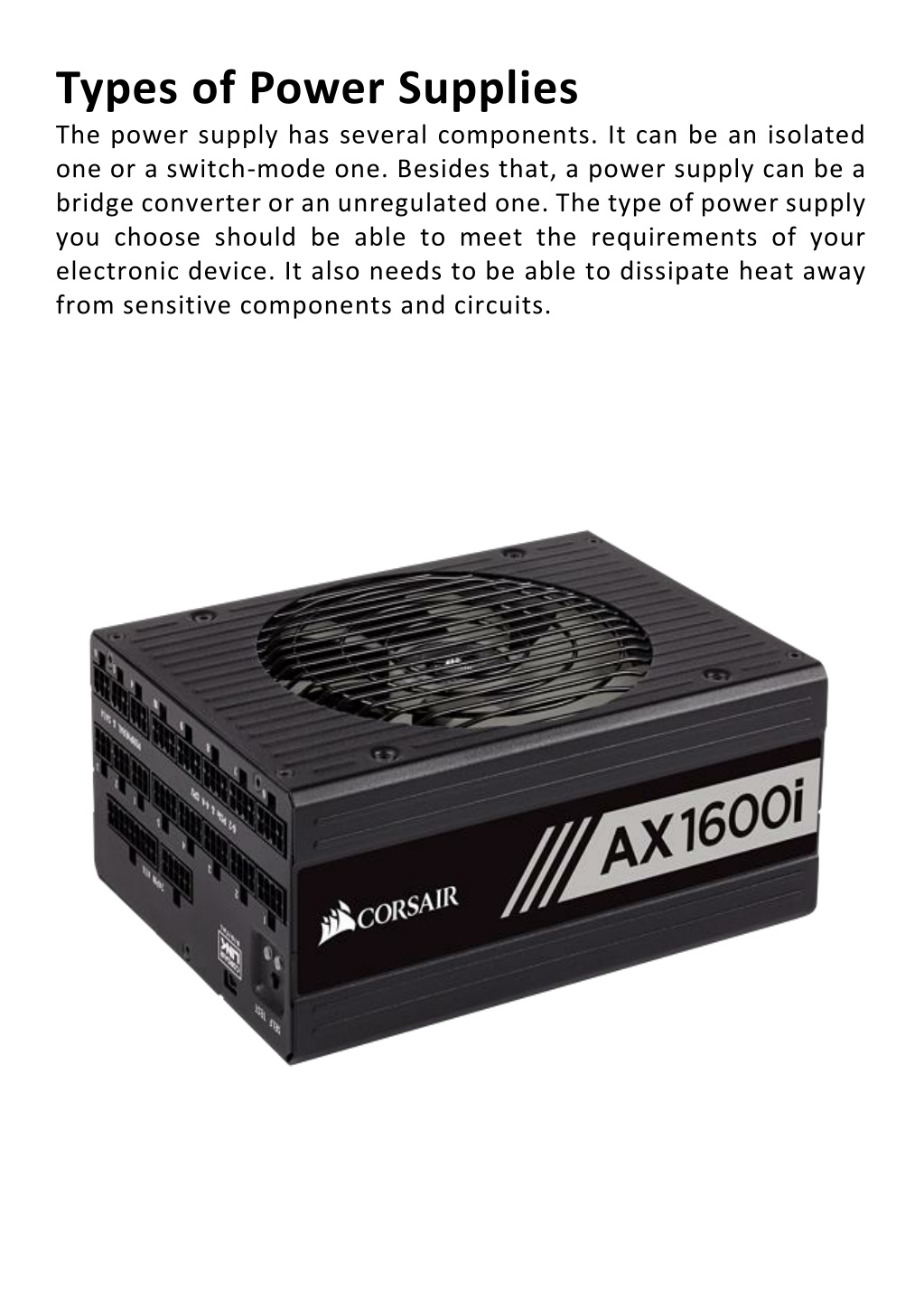

  1. Types of Power Supplies The power supply has several components. It can be an isolated one or a switch-mode one. Besides that, a power supply can be a bridge converter or an unregulated one. The type of power supply you choose should be able to meet the requirements of your electronic device. It also needs to be able to dissipate heat away from sensitive components and circuits.

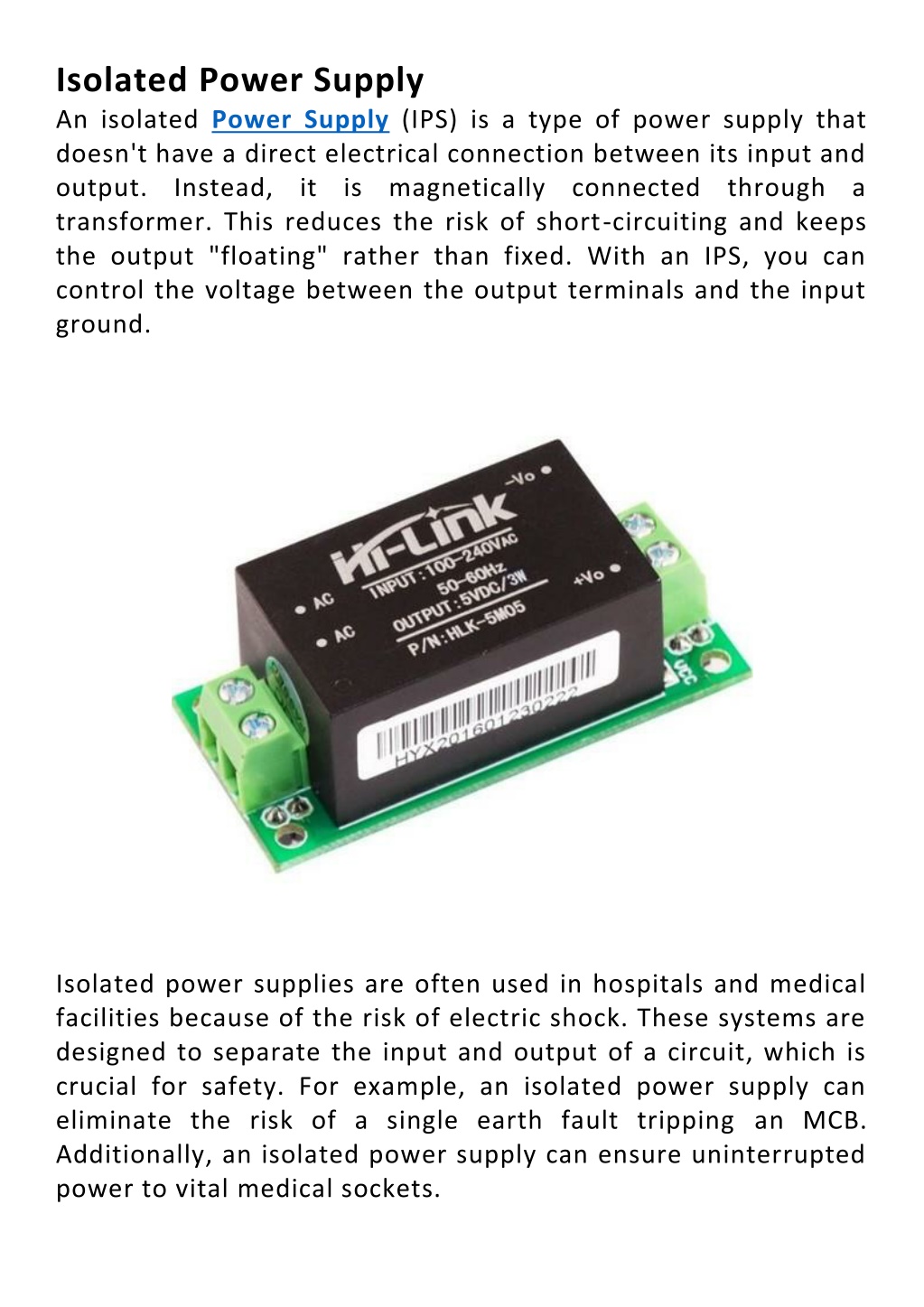

  2. Isolated Power Supply An isolated Power Supply (IPS) is a type of power supply that doesn't have a direct electrical connection between its input and output. Instead, it is magnetically connected through a transformer. This reduces the risk of short-circuiting and keeps the output "floating" rather than fixed. With an IPS, you can control the voltage between the output terminals and the input ground. Isolated power supplies are often used in hospitals and medical facilities because of the risk of electric shock. These systems are designed to separate the input and output of a circuit, which is crucial for safety. For example, an isolated power supply can eliminate the risk of a single earth fault tripping an MCB. Additionally, an isolated power supply can ensure uninterrupted power to vital medical sockets.

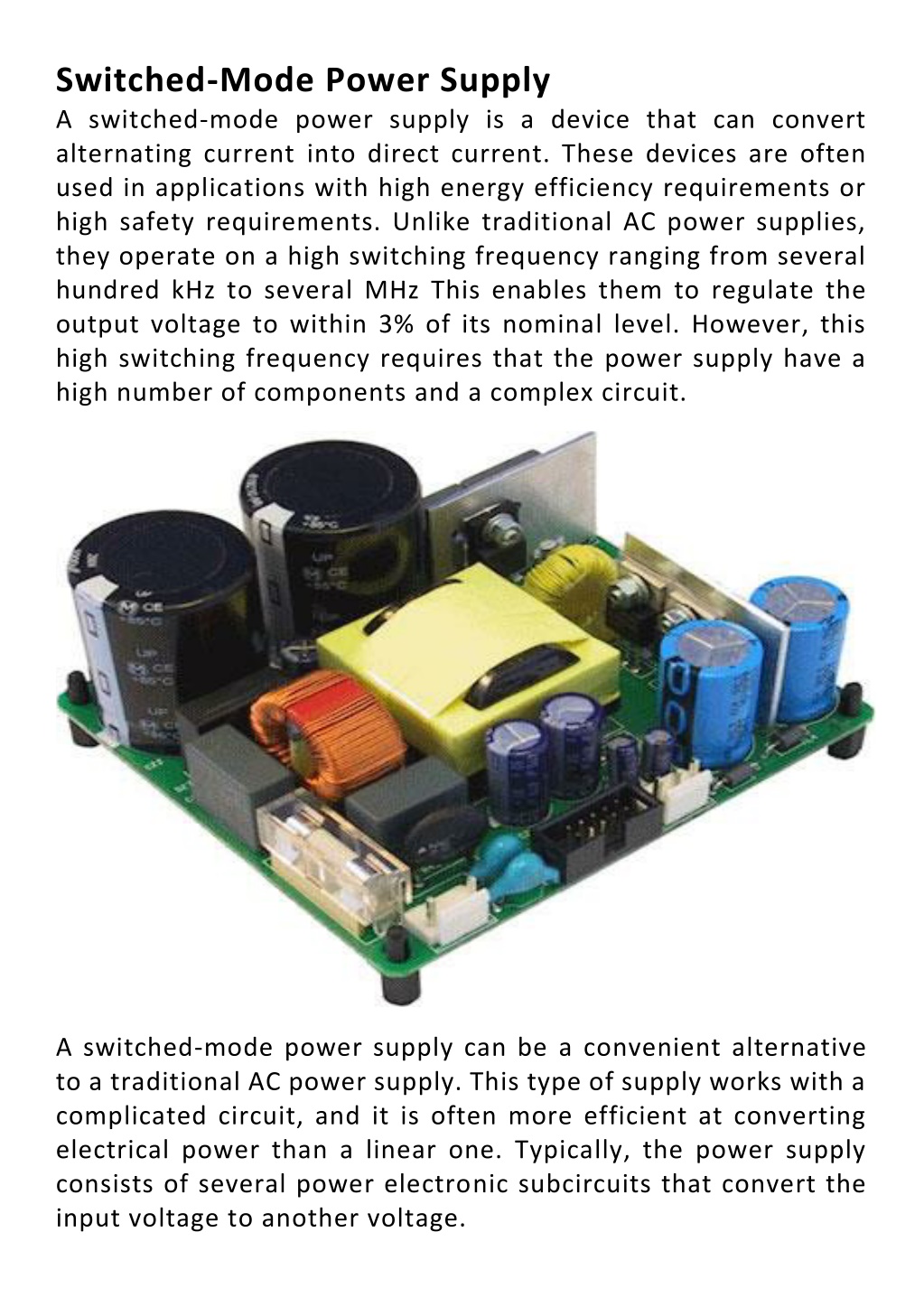

  3. Switched-Mode Power Supply A switched-mode power supply is a device that can convert alternating current into direct current. These devices are often used in applications with high energy efficiency requirements or high safety requirements. Unlike traditional AC power supplies, they operate on a high switching frequency ranging from several hundred kHz to several MHz This enables them to regulate the output voltage to within 3% of its nominal level. However, this high switching frequency requires that the power supply have a high number of components and a complex circuit. A switched-mode power supply can be a convenient alternative to a traditional AC power supply. This type of supply works with a complicated circuit, and it is often more efficient at converting electrical power than a linear one. Typically, the power supply consists of several power electronic subcircuits that convert the input voltage to another voltage.

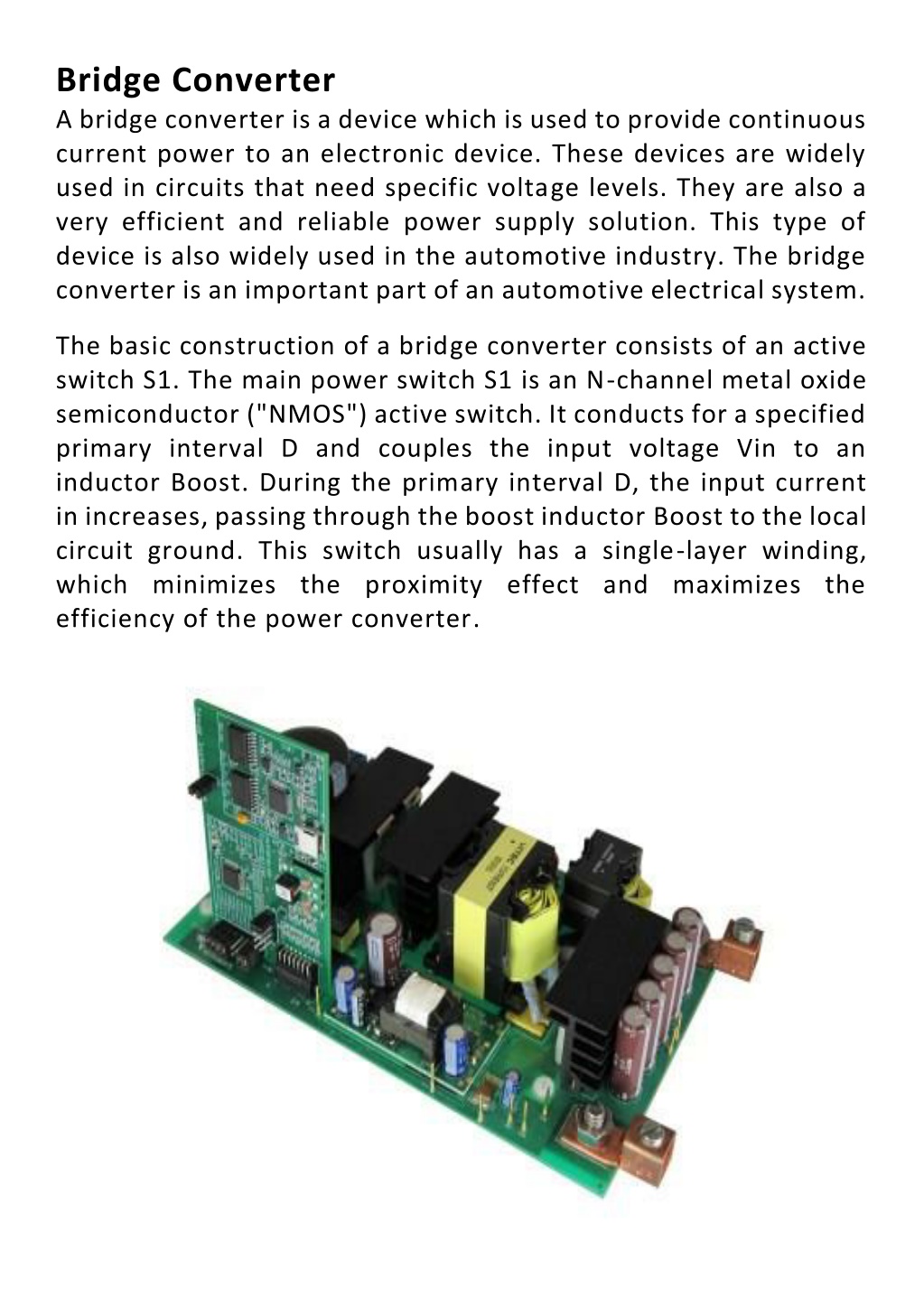

  4. Bridge Converter A bridge converter is a device which is used to provide continuous current power to an electronic device. These devices are widely used in circuits that need specific voltage levels. They are also a very efficient and reliable power supply solution. This type of device is also widely used in the automotive industry. The bridge converter is an important part of an automotive electrical system. The basic construction of a bridge converter consists of an active switch S1. The main power switch S1 is an N-channel metal oxide semiconductor ("NMOS") active switch. It conducts for a specified primary interval D and couples the input voltage Vin to an inductor Boost. During the primary interval D, the input current in increases, passing through the boost inductor Boost to the local circuit ground. This switch usually has a single-layer winding, which minimizes the proximity effect and maximizes the efficiency of the power converter.

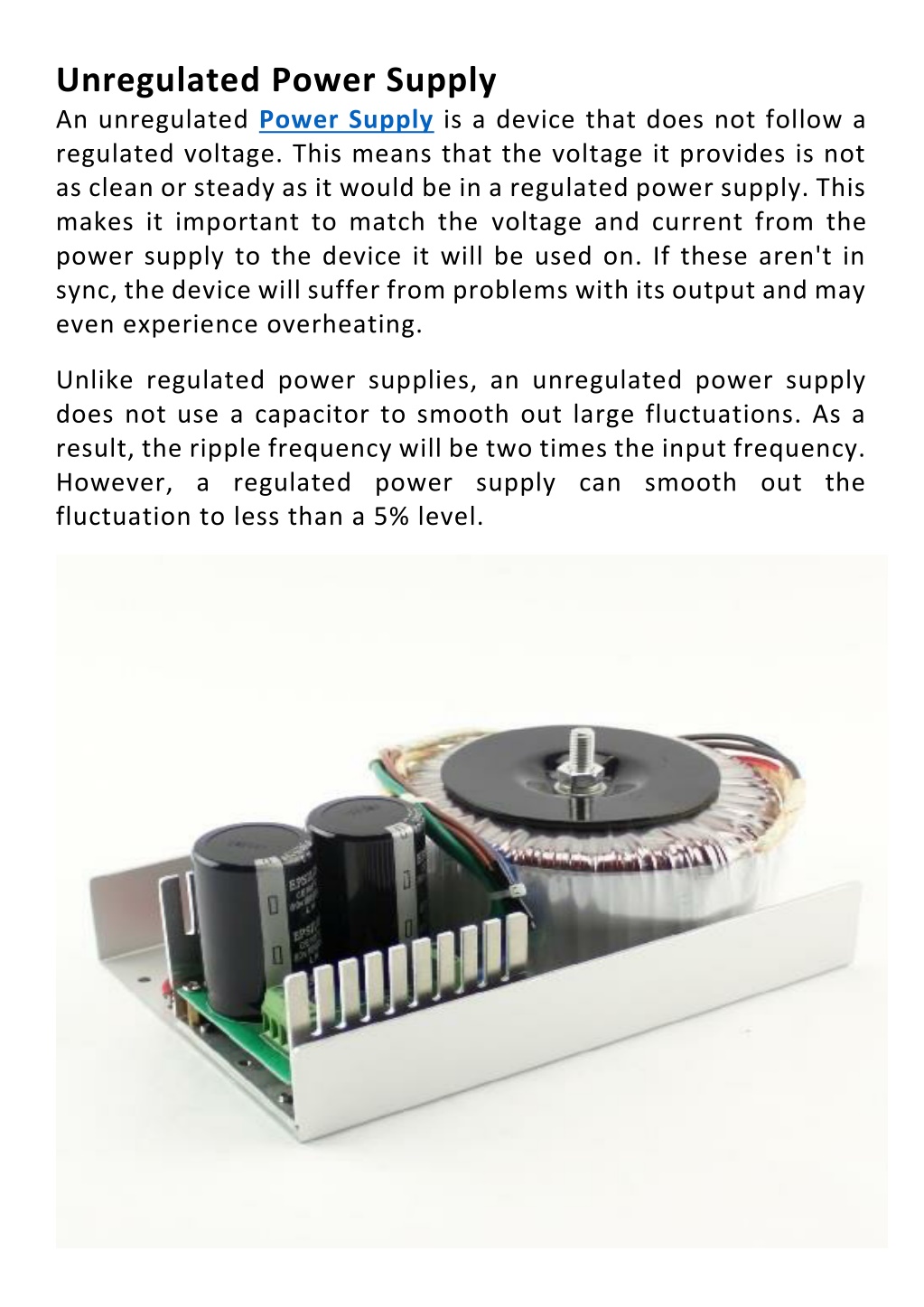

  5. Unregulated Power Supply An unregulated Power Supply is a device that does not follow a regulated voltage. This means that the voltage it provides is not as clean or steady as it would be in a regulated power supply. This makes it important to match the voltage and current from the power supply to the device it will be used on. If these aren't in sync, the device will suffer from problems with its output and may even experience overheating. Unlike regulated power supplies, an unregulated power supply does not use a capacitor to smooth out large fluctuations. As a result, the ripple frequency will be two times the input frequency. However, a regulated power supply can smooth out the fluctuation to less than a 5% level.

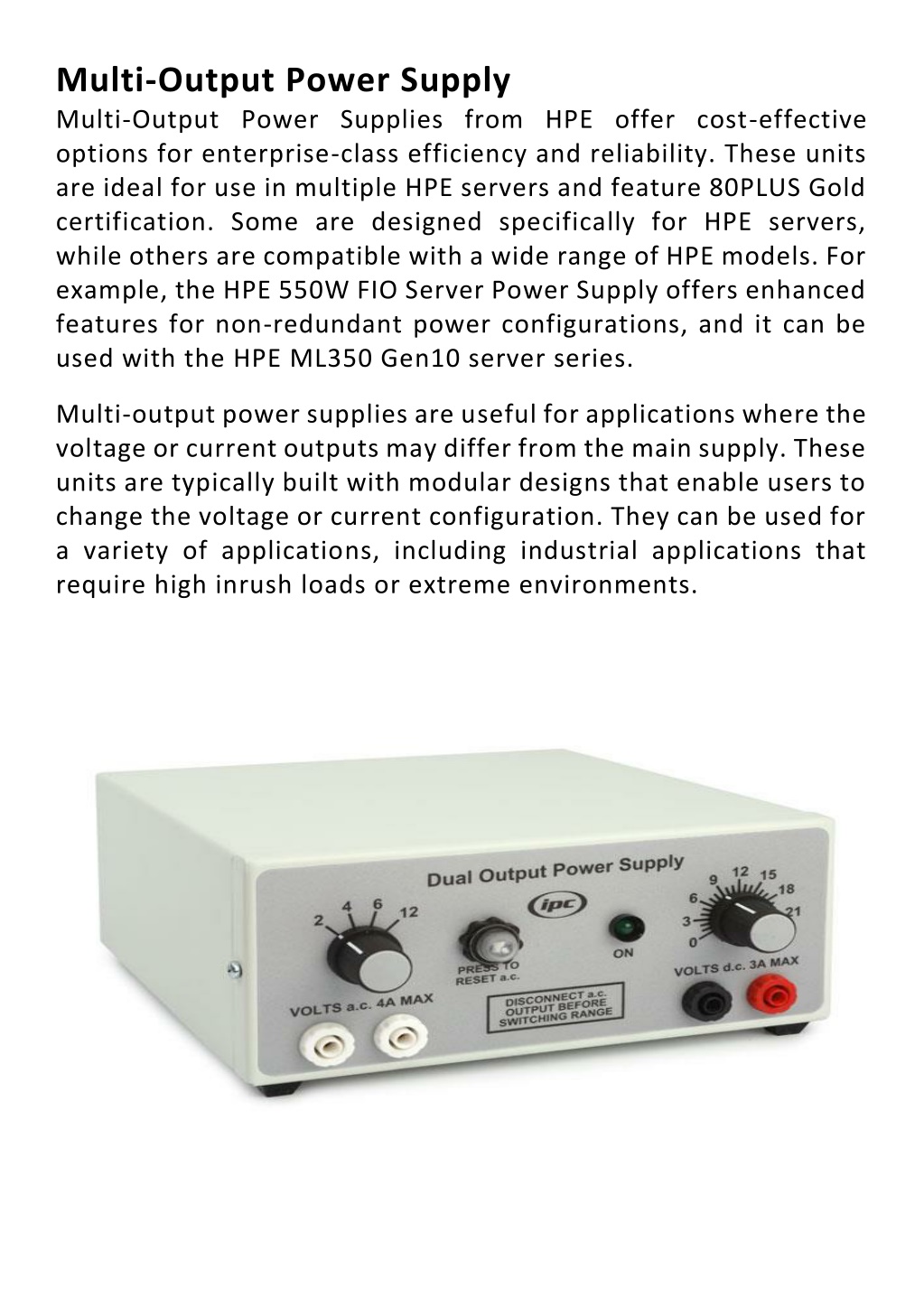

  6. Multi-Output Power Supply Multi-Output Power Supplies from HPE offer cost-effective options for enterprise-class efficiency and reliability. These units are ideal for use in multiple HPE servers and feature 80PLUS Gold certification. Some are designed specifically for HPE servers, while others are compatible with a wide range of HPE models. For example, the HPE 550W FIO Server Power Supply offers enhanced features for non-redundant power configurations, and it can be used with the HPE ML350 Gen10 server series. Multi-output power supplies are useful for applications where the voltage or current outputs may differ from the main supply. These units are typically built with modular designs that enable users to change the voltage or current configuration. They can be used for a variety of applications, including industrial applications that require high inrush loads or extreme environments.
