Presentation Transcript
Slide1 l.jpg

Unit 9

Frontiers of Genetics


Slide2 l.jpg

I. Biologists have learned to manipulate DNA

A. The Beginnings of DNA Technology

1. Biotechnology- the use of organisms to perform practical tasks for humans

2. Recombinant DNA technology- combines genes from different sources into a single DNA molecule


Slide3 l.jpg

II. Biologists can engineer bacteria to make useful products

A. Engineering Bacteria: An Introduction

1. Plasmid- a small, circular DNA molecule separate from the much larger bacterial chromosome

a) May carry a number of genes and can make copies of itself.


Slide4 l.jpg

Figure 13-3In addition to their main chromosome, many bacterial cells contain small, circular DNA molecules called plasmids.


Slide5 l.jpg

b) When a plasmid replicates, one copy can pass from one bacterial cell to another, resulting in gene “sharing” among bacteria.


Slide6 l.jpg

2. Biologists use plasmids to move pieces of DNA into bacteria.

a) First, a plasmid is removed from a bacterial cell and the desired gene is inserted into the plasmid.


Slide7 l.jpg

b) The plasmid is now a combination of its original DNA and the new DNA - it is called recombinant DNA.

c) Then, the recombinant DNA is put back into a bacterial cell, where it can replicate many times as the cell reproduces, making many copies of the desired gene. This is called gene cloning.


Slide8 l.jpg

Figure 13-4 the new DNA - it is called recombinant DNA.Plasmids can serve as carriers of genetic information. This diagram shows the basic technique for creating a genetically engineered bacterial cell.


Slide9 l.jpg

B. “Cutting and Pasting” DNA the new DNA - it is called recombinant DNA.

1. First, a piece of DNA containing the desired gene must be “cut” out of a much longer DNA molecule.

a) restriction enzyme- an enzyme that chops up foreign DNA into small pieces at specific spots in the DNA sequence


Slide10 l.jpg

2. Most restriction enzymes make staggered cuts. These staggered cuts leave single-stranded DNA hanging off the ends of the fragments. This is called a “sticky end” because it is available to stick to any sequence that is complementary to it.

a) DNA ligase (another enzyme) is used to join the sticky ends together.


Slide11 l.jpg

Figure 13-5 staggered cuts leave single-stranded DNA hanging off the ends of the fragments. This is called a “sticky end” because it is available to stick to any sequence that is complementary to it.Restriction enzymes cut DNA molecules at specific locations. Splicing together fragments of DNA from two different sources produces a recombinant DNA molecule.


Slide12 l.jpg

C. Cloning Recombinant DNA staggered cuts leave single-stranded DNA hanging off the ends of the fragments. This is called a “sticky end” because it is available to stick to any sequence that is complementary to it.

1. Libraries of Cloned Genes

a) Genomic Library- the complete collection of cloned DNA fragments from an organism


Slide13 l.jpg

2. Identifying Specific Genes with Probes staggered cuts leave single-stranded DNA hanging off the ends of the fragments. This is called a “sticky end” because it is available to stick to any sequence that is complementary to it.

a) One method requires knowing at least part of the gene’s nucleotide sequence.

1) Knowing this, a biologist can use nucleotides labeled with a radioactive isotope to build a complementary single strand of DNA.

2) Nucleic acid probe- used to locate specific genes


Slide14 l.jpg

b) Next, the biologist treats the DNA being searched with chemicals or heat to separate the 2 DNA strands. The nucleic acid probe is mixed in with these single strands.

c) The probe tags the correct DNA portion by pairing with the complementary sequence in the protein-V gene.


Slide15 l.jpg

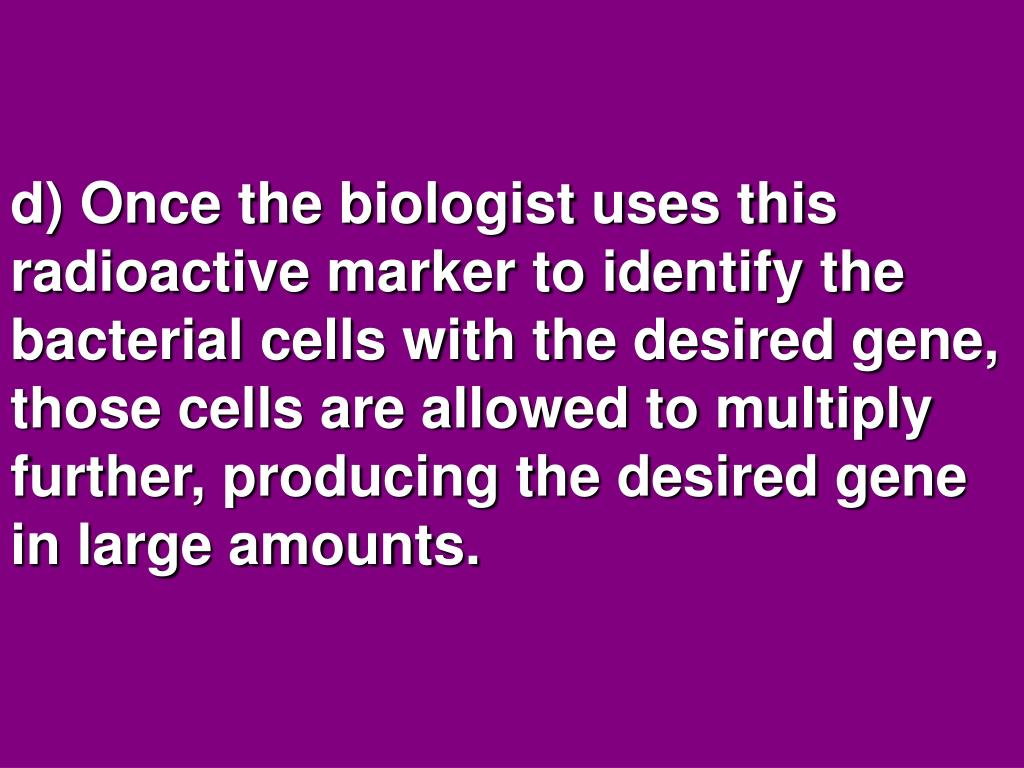

d) Once the biologist uses this radioactive marker to identify the bacterial cells with the desired gene, those cells are allowed to multiply further, producing the desired gene in large amounts.


Slide17 l.jpg

D. Useful Products from Genetically Engineered Microorganisms

1. Genetically engineered bacteria used to make medicine (ex: insulin)

2. Recombinant DNA technology is also helping to develop effective vaccines (ex: hepatitis B)


Slide18 l.jpg

III. Biologists can genetically engineer plants and animals Microorganisms

A. Producing Genetically Modified Plants

1. Genetically modified organism (GMO)- any organism that has acquired one or more genes by artificial means

a) Transgenic- a GMO whose source of new genetic materials is from a different species


Slide19 l.jpg

Figure 13-11 MicroorganismsTo genetically modify a plant, researchers insert a plasmid containing the desired gene into a plant cell. There, the gene is incorporated into the plant cell's DNA. The engineered plant cell then grows into a genetically modified plant.


Slide20 l.jpg

B. Producing Genetically Modified Animals Microorganisms

1. First step is to extract an egg cell from a female.

2. Sperm from the same species is used to fertilize the egg in a “test-tube” environment.

3. Then the desired gene is injected into the fertilized egg and the egg is returned to a uterus where it can develop into an embryo.


Slide21 l.jpg

C. Animal Cloning Microorganisms

1. The first successful clone was the sheep named Dolly.

2. The procedure for cloning is the same as producing a GM animal, except that instead of inserting a gene into an egg, an entire foreign nucleus replaces the egg’s own nucleus.


Slide22 l.jpg

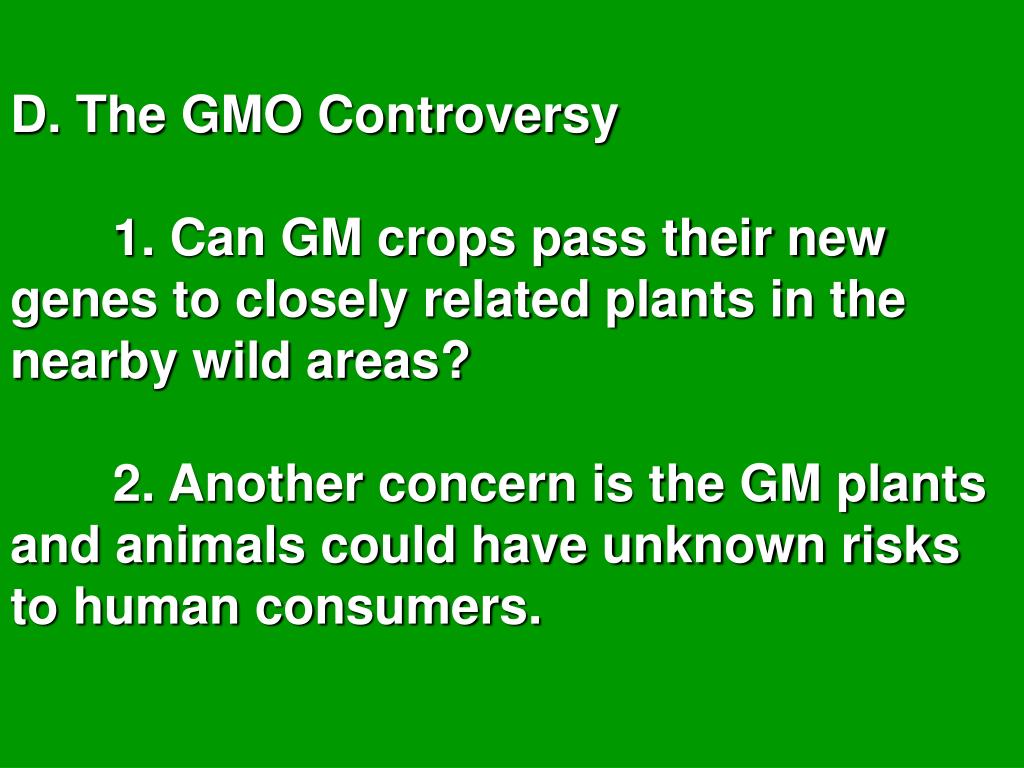

D. The GMO Controversy Microorganisms

1. Can GM crops pass their new genes to closely related plants in the nearby wild areas?

2. Another concern is the GM plants and animals could have unknown risks to human consumers.


Slide23 l.jpg

IV. DNA technologies have many applications Microorganisms

A. Mass-Producing DNA in a Test Tube

1. Polymerase chain reaction (PCR)- a technique that makes many copies of a certain segment of DNA without using living cells


Slide24 l.jpg

Figure 13-15 MicroorganismsPCR produces multiple copies of a segment of DNA.


Slide25 l.jpg

B. Comparing DNA Microorganisms

1. Gel electrophoresis- a technique for sorting molecules or fragments of molecules by length

a) First, each DNA sample is cut up into fragments by a group of restriction enzymes.


Slide26 l.jpg

b) Next, a few drops of each sample are placed in a small pocket or well at one end of a gel. The other end of the gel has a positive charge. All DNA molecules are negatively charged, so they move through pores in the gel toward the positive pole.


Slide27 l.jpg

c) The shorter DNA fragments slip more easily through the pores of the gel. Therefore, the shorter DNA fragments will travel faster through the gel and be closer to the positive end of the gel than the longer fragments.


Slide28 l.jpg

d) Lastly, the gel is treated with a stain that makes the DNA visible under ultraviolet light. The fragments show up as a series of bands in each “lane” of the gel.


Slide29 l.jpg

Figure 13-16 DNA visible under ultraviolet light. The fragments show up as a series of bands in each “lane” of the gel.The gel electrophoresis technique shown above can be used to compare DNA of individuals or species.


Slide30 l.jpg

2. Genetic markers- particular stretches of DNA that are variable among individuals (easy way to tell if an individual is a carrier of a disease)

3. DNA fingerprints- an individual’s unique banding pattern


Slide31 l.jpg

V. Control mechanisms switch genes on and off variable among individuals (easy way to tell if an individual is a carrier of a disease)

A. Regulation of Genes in Prokaryotes

1. Operon- cluster of genes and their controlled sequences

2. Promoter- control sequence on an operon where RNA polymerase attaches to the DNA


Slide32 l.jpg

Figure 13-18 variable among individuals (easy way to tell if an individual is a carrier of a disease)E. coli bacteria, natural inhabitants of your intestine, break down the sugar lactose. The genes that code for lactose-processing enzymes are located next to control sequences. Altogether, this stretch of DNA is called the lac operon.


Slide33 l.jpg

3. Operator- a control sequence that acts like a switch, determining whether or not RNA polymerase can attach to the promoter

4. Repressor- a protein that functions by binding to the operator and blocking the attachment of RNA polymerase to the promoter; turns off transcription


Slide34 l.jpg

Figure 13-19 determining whether or not RNA polymerase can attach to the promoterThe lac operon is inactive in the absence of lactose (top) because a repressor blocks attachment of RNA polymerase to the promoter. With lactose present (bottom), the repressor is inactivated, and transcription of lactose-processing genes proceeds.


Slide35 l.jpg

B. Regulation of Genes in Eukaryotes determining whether or not RNA polymerase can attach to the promoter

1. Transcription factors- proteins that regulate transcription by binding to those promoters or to RNA polymerases; are activated and deactivated by chemical signals in the cell

2. Gene expression- the transcription and translation of genes into proteins


Slide36 l.jpg

C. From Egg to Organism determining whether or not RNA polymerase can attach to the promoter

1. Cellular differentiation- when cells become increasingly specialized in structure and function


Slide37 l.jpg

Figure 13-21 determining whether or not RNA polymerase can attach to the promoterThough all the genes of the genome are present in every type of cell, only a small, specific fraction of these genes are actually expressed in each type of cell. The yellow color indicates a gene that is "turned on" (expressed).


Slide38 l.jpg

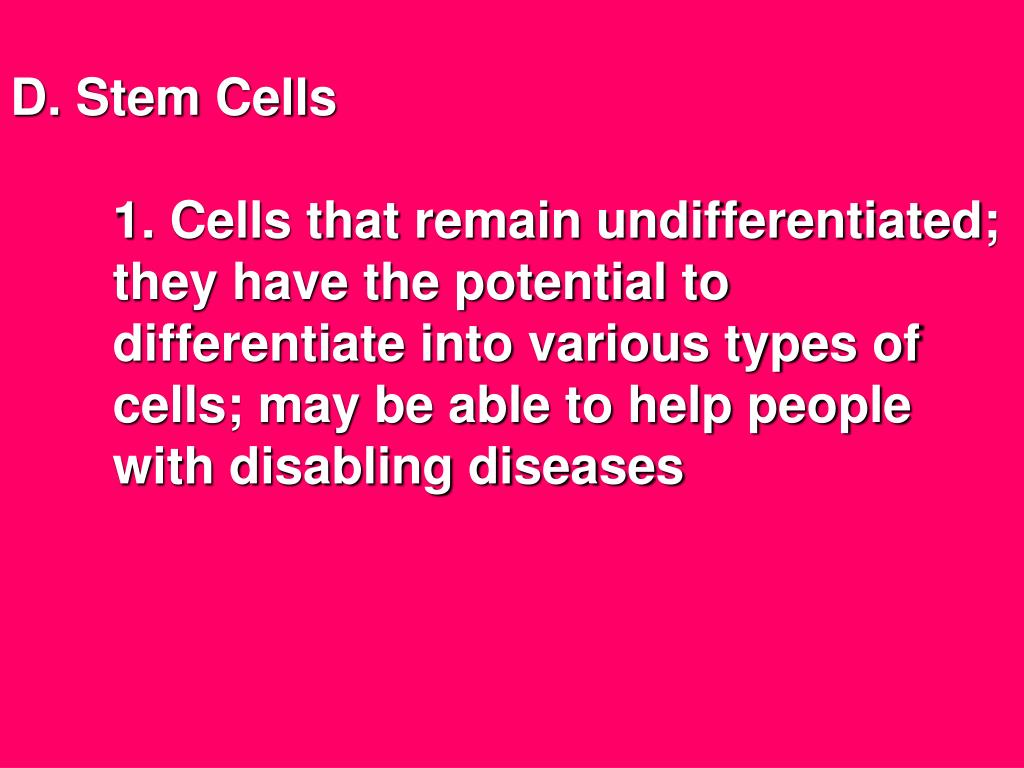

D. Stem Cells determining whether or not RNA polymerase can attach to the promoter

1. Cells that remain undifferentiated; they have the potential to differentiate into various types of cells; may be able to help people with disabling diseases


Slide39 l.jpg

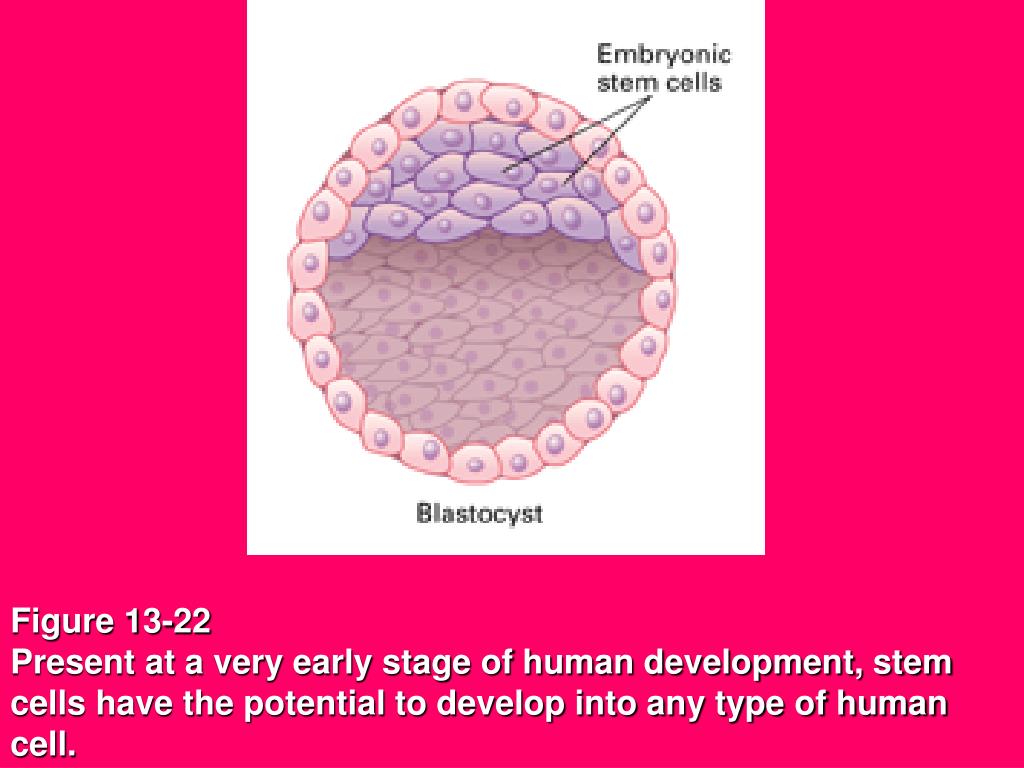

Figure 13-22 determining whether or not RNA polymerase can attach to the promoterPresent at a very early stage of human development, stem cells have the potential to develop into any type of human cell.


Slide40 l.jpg

E. Homeotic Genes determining whether or not RNA polymerase can attach to the promoter

1. Master control genes that direct development of body parts in specific locations in many organisms


Slide41 l.jpg

Figure 13-24 determining whether or not RNA polymerase can attach to the promoterThe highlighted portions of the fruit fly and mouse chromosomes carry very similar homeotic genes. The color coding identifies the parts of the embryo and adult animals that are affected by these genes.
