Introducing The IP550 IP Telephone. Things you should know about an IP Telephone system. The IPitomy system has many of the same features of traditional business telephone systems. The telephone has some new functionality that streamlines the way your phone operates.
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
Soft KeysLCD DisplayWhile on a Call
Inbound Caller ID Name and Number
Shows what line is being used. Use the arrow keys to navigate to other lines, or simply press the line key.
This is the phones extension number.
This is the name of the extension user.
Elapsed time of the current call.

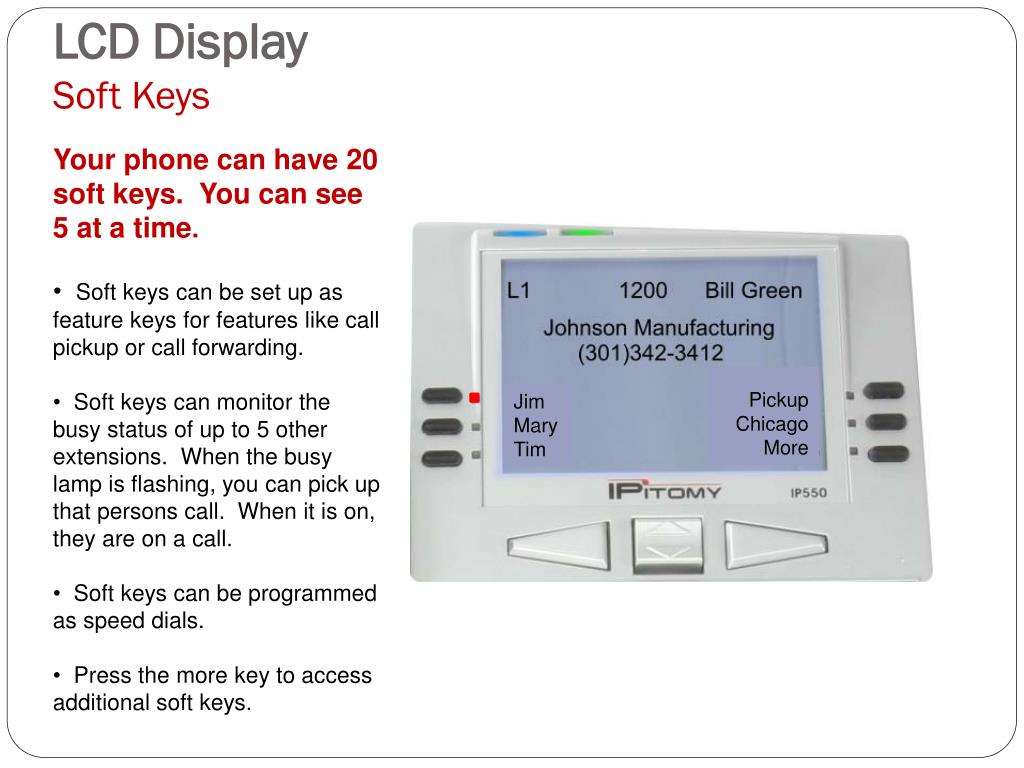

Soft Keys can be programmed as features, speed dials or busy lamp status indicators.
1*Dialed Call List
2 Missed Call List
3 Answered Call List
Dialed Call List
Fri Mar 20 03:30PM
Save to PB
QuitDialed CallsMissed CallsAnswered Calls
Press the Service key to access the list of Dialed, Missed and Answered Calls.
Use the center navigation rocker switch to select which call list to view.
Press show or right arrow navigation key to see the list.
Use the rocker switch to select the call from the list.
Press Detail to select the call.
Dial the number by pressing dial
Save to the phone book (PB)
Press Quit to exit
a new entry
To access the phone book press the phone book key.
Your phone will store a record of each missed call that rings to your extension. The missed call record is the name and number as it is available from the telephone service provider.
The call information can be stored in the phone book for dialing out. Numbers can be entered and edited in the phone book too.
To exit the phone book, press quit.
Each line key represents a separate call on your phone.
If you place a call on hold, the line key will blink while the caller is holding.
To transfer a caller, it is not necessary to put them on hold first using the hold button. Just press the transfer key and the first call is automatically placed on hold.
Dial tone will be heard on the second line and any number can be dialed. You can press the transfer key again to blind transfer the call or wait for the other party to answer. After the other party answers, you can press the transfer key again or just hang up.
Your new phone is based upon IP technology. It works similar to a cell phone with some of the same features of a traditional business telephone.
For best results –
DIAL NUMBER FIRST
Pick up the handset or,
Press the speaker button for a hands free call. The speaker button also enables the headset. Press the speaker button two times to enable the headset.
Pressing a line key will start a hands free call too.
When dialing before going off hook, you gain the advantage of having the backspace key.
You can also dial by picking up the handset or pressing speaker and dialing the number.
Dial the number you want to transfer the call to.
Wait for the other party to answer.
When the other party indicates they would like to take the call, press the transfer key or just hang up. If the other party decides not to accept the call, press the drop soft key or press the original line key.
You now have the original party back on the line.How Do I Transfer a CallAttended Transfer
Use Park when you want someone else to pick up this call. The Park pickup keys light up on all the telephones indication a live parked call.
If you answer a call and the party wishes to be connected to someone and you are not sure if that party can accept the call or may be away from their desk, place the caller on park by pressing the park key once.
The system will tell you by speaking what park button the caller is parked on. Then you can either call or page the party and inform them that they have a call parked on pickup 1,2,or 3.
The park pickup light will be illuminated on all phones until the call is picked up. The call can be picked up by anyone.
To get the caller back, press the appropriate park pickup key.
The voice mail button provides direct access to your voice mail messages.
Press the button once and the system will ask for your password.
When your blue message waiting indicator is flashing, you have voice mail messages waiting.
The display on your phone will indicate how many new messages and how many old messages are in your voice mail box.
Pressing the pause key once will put your phone in do not disturb mode and all incoming calls will be sent to your voicemail.
While your pause key is enabled, you busy lamp will be on indicating that you are not available to receive calls.
Pressing pause again will turn the feature off.
To place a call on hold, press the hold button once.
To remove the call from hold, press the flashing line key where the call originally came in.
Calls are automatically put on hold when you press the transfer key or press another line key.
Once a call is established, you can create a three party conference.
With the first call on the line, press the Con key.
You will receive dial tone from the next available line.
Dial the number you wish to conference in.
Press conference again.
All three parties are joined together.
Press drop or hang up to end the conference.
To end a call, press the hang up key.
To page another party press ** followed by the other parties extension number. This will cause a speaker phone page.
To page a group of people, press the appropriate group number. All parties in the group will receive the page.
To pick up a parked call, press the appropriate park pickup key.
Remember that it is not necessary to put a call on hold to transfer the call. Just press another line key or press the transfer button. The caller will be placed on hold automatically.
When placing a call, dial first then go off hook by picking up the receiver or pressing speaker.
If you go off hook first before dialing, remember to press the dial key.
