the evolution of programming languages

The Evolution of Programming Languages

CS 351

Mark Hennessy Dept. Computer Science NUIM CS351

1 customized digital computer

Ij

1. Customized Digital Computer

Oj

Task j

Task k

Ik

Ok

Rig different circuit for each task

Mark Hennessy Dept. Computer Science NUIM CS351

2 stored program computing
2. Stored Program Computing
  • von Neumann showed the existence of a Universal Machine (hardware) that can be customized using control inputs to carry out different tasks.
  • Software is the encoding of the task to control this machine.

encoding(Tj)

Ij

Oj

Mark Hennessy Dept. Computer Science NUIM CS351

imperative languages
Imperative Languages
  • Model of Computation
      • ALU + Memory + Input + Output

(von Neumann architecture)

  • Levels of Abstraction (“Human Interface”)
    • Machine Language
      • Binary Representation of the task
    • Assembly Language
      • Symbolic Representation of the task

Mark Hennessy Dept. Computer Science NUIM CS351

imperative languages fortran

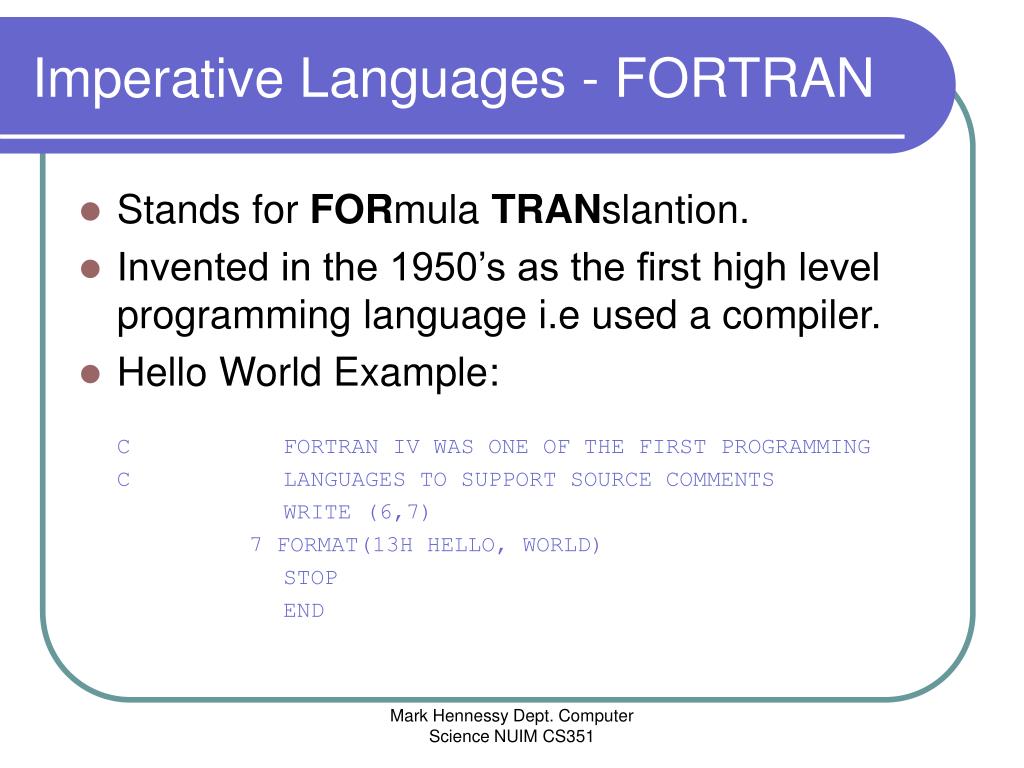

Imperative Languages - FORTRAN
  • Stands for FORmula TRANslantion.
  • Invented in the 1950’s as the first high level programming language i.e used a compiler.
  • Hello World Example:

C FORTRAN IV WAS ONE OF THE FIRST PROGRAMMING

C LANGUAGES TO SUPPORT SOURCE COMMENTS

WRITE (6,7)

7 FORMAT(13H HELLO, WORLD)

STOP

END

Mark Hennessy Dept. Computer Science NUIM CS351

imperative languages algol 60
Imperative Languages – ALGOL 60
  • Stands for ALGOrithmic Language
  • Defined in 1960 and was the first to introduce features still in use today:

block structure and syntax defined by a grammar.

procedure Absmax(a) Size:(n, m) Result:(y) Subscripts:(i, k); value n, m; array a; integer n, m, i, k; real y;

comment The absolute greatest element of the matrix a, of size n by m is transferred to y, and the subscripts of this element to i and k;

begininteger p, q; y := 0; i := k := 1;

for p:=1 step 1 until n do

for q:=1 step 1 until m do

if abs(a[p, q]) > y then

begin y := abs(a[p, q]); i := p; k := q

end

end Absmax

Mark Hennessy Dept. Computer Science NUIM CS351

imperative languages c
Imperative Languages - C
  • The most successful ALGOL type language.
  • Lexical variable scope and recursion
  • A static type system which prevents many meaningless operations
  • Function parameters are generally passed by value (pass-by-reference is achieved in C by explicitly passing pointer values)
  • Heterogeneous aggregate data types (struct in C) which allow related data elements to be combined and manipulated as a unit
  • A small set (around 30) of reserved keywords

Mark Hennessy Dept. Computer Science NUIM CS351

functional languages
Functional Languages
  • Imperative programs are concerened with programming a series of instructions that change the state of program towards giving the solution.
  • Functional Programming is concerned with viewing a program as a series of mathematical functions.
  • Based upon the maths model of Lambda Calculus, developed by Turing, Church and Kleene in the 1930’s.
  • Church’s thesis says that there is no one form of computation that is any more powerful than another.
  • This hold true as we are studying Paradigms!

Mark Hennessy Dept. Computer Science NUIM CS351

functional languages9
Functional Languages
  • Turing developed a model of computation called the Turing Machine …. TCS course.
  • Church developed lambda calculus.
  • This is based on the notion of parameterised expressions, which forms the basis of Functional Programming.
  • Passing arguments to methods.

Mark Hennessy Dept. Computer Science NUIM CS351

functional programming
Functional Programming
  • Introduced into programming the notions of:
    • First class and higher order functions
    • Polymorphism
    • Lists
    • Recursion
    • Constructors
    • Garbage Collection

Mark Hennessy Dept. Computer Science NUIM CS351

functional programming11

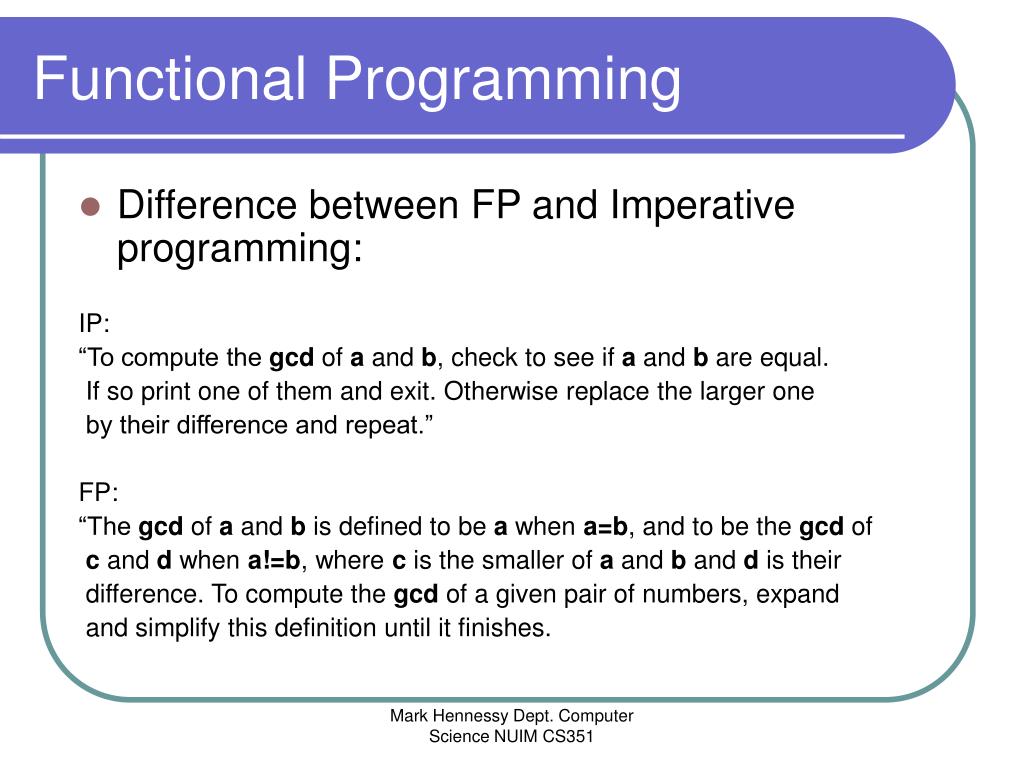

Functional Programming
  • Difference between FP and Imperative programming:

IP:

“To compute the gcd of a and b, check to see if a and b are equal.

If so print one of them and exit. Otherwise replace the larger one

by their difference and repeat.”

FP:

“The gcd of a and b is defined to be a when a=b, and to be the gcd of

c and d when a!=b, where c is the smaller of a and b and d is their

difference. To compute the gcd of a given pair of numbers, expand

and simplify this definition until it finishes.

Mark Hennessy Dept. Computer Science NUIM CS351

functional languages lisp
Functional Languages - Lisp
  • Stands for List Processing
  • Same vintage as Fortran and ALGOL.
  • Allows for operations on lists
    • Eg car(0, 2, 4, 6) = 0
    • Eg cdr(0, 2, 4, 6) = (2, 4, 6)
  • Lisp Program for factorials:

(defun factorial (n)

(if (<= n 1)

1

(* n (factorial (- n 1)))))

Mark Hennessy Dept. Computer Science NUIM CS351

functional languages ml
Functional Languages - ML
  • Stands for Meta Language
  • Functional Language with syntax closer to what you are familiar with. Will be doing practicals with it! (CaML).
  • CaML Program for factorials.

let rec fac n =    if n <= 1    then n    else n * fac(n-1);;

Mark Hennessy Dept. Computer Science NUIM CS351

logic programming

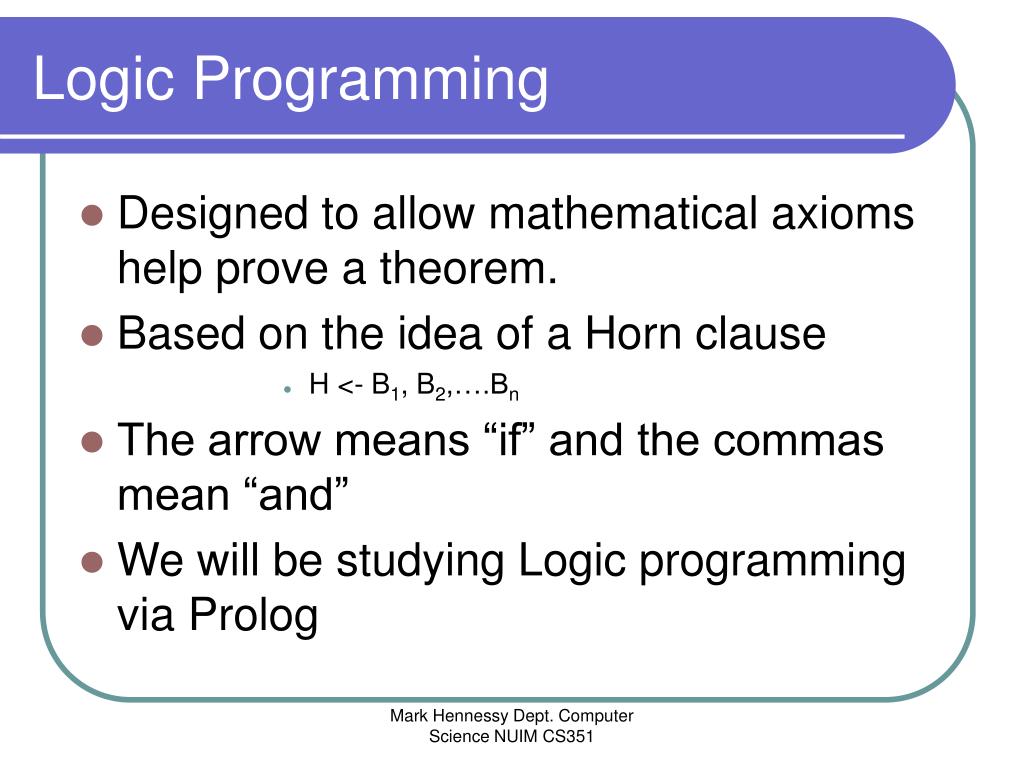

Logic Programming
  • Designed to allow mathematical axioms help prove a theorem.
  • Based on the idea of a Horn clause
          • H <- B1, B2,….Bn
  • The arrow means “if” and the commas mean “and”
  • We will be studying Logic programming via Prolog

Mark Hennessy Dept. Computer Science NUIM CS351

logic programming prolog
Logic Programming - Prolog
  • Name derives from the French programmation en logique.
  • Dates from the early 1970’s.
  • Based upon Predicate Calculus, the system uses backtracking.

Example Prolog Program for Factorials:

factorial(0,1).

factorial(N,F) :-

N>0,

N1 is N-1,

factorial(N1,F1),

F is N * F1.

Mark Hennessy Dept. Computer Science NUIM CS351

object oriented programming
Object Oriented Programming
  • Current paradigm. We write classes such that data is hidden, ideas are abstracted and code is re-usable! In theory….
  • Simula -> Smalltalk & Ada -> C++ -> Java
    • Sub paradigms
      • Aspect Oriented Programming
      • Generic Programming via Templates
  • We will use C++ to show some advanced OO features and generic programming.

Mark Hennessy Dept. Computer Science NUIM CS351

scripting

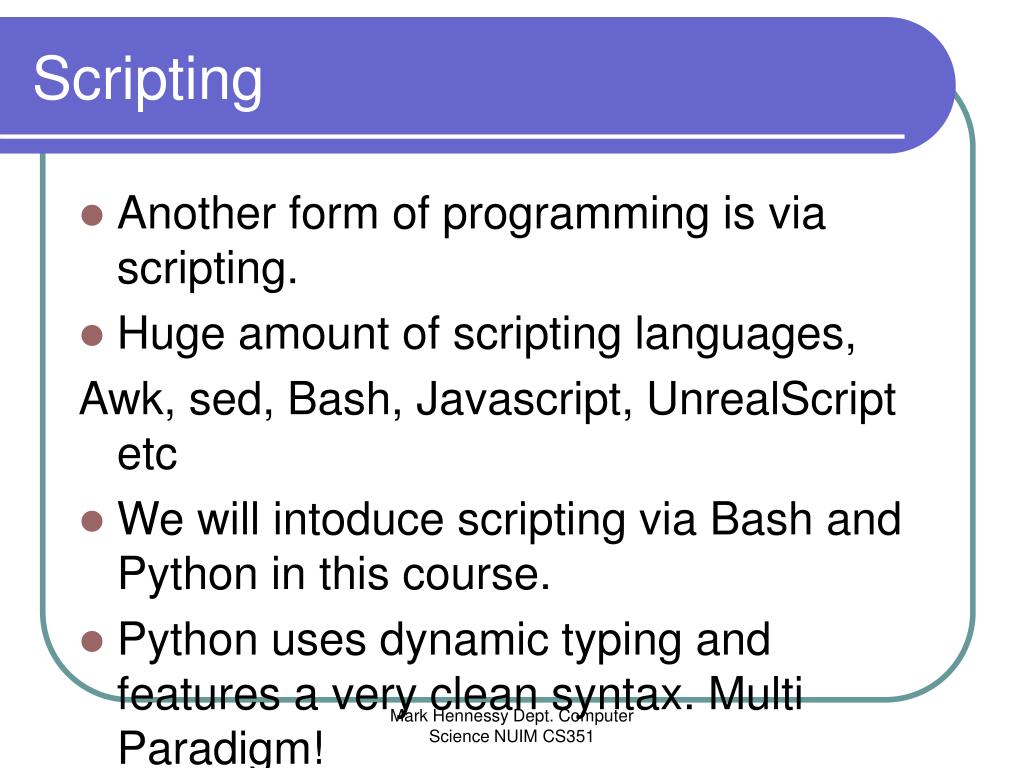

Scripting
  • Another form of programming is via scripting.
  • Huge amount of scripting languages,

Awk, sed, Bash, Javascript, UnrealScript etc

  • We will intoduce scripting via Bash and Python in this course.
  • Python uses dynamic typing and features a very clean syntax. Multi Paradigm!

Mark Hennessy Dept. Computer Science NUIM CS351

scripting python
Scripting - Python
  • Indentation is essential!
  • Sample factorial function:

def fac ( num ):

if num == 1:

return 1

else :

return num * fac(num-1)

Mark Hennessy Dept. Computer Science NUIM CS351
