selective open recursion modular reasoning about components and inheritance

Selective Open RecursionModular Reasoning aboutComponents and Inheritance

Jonathan Aldrich Carnegie Mellon University

Kevin Donnelly Boston University

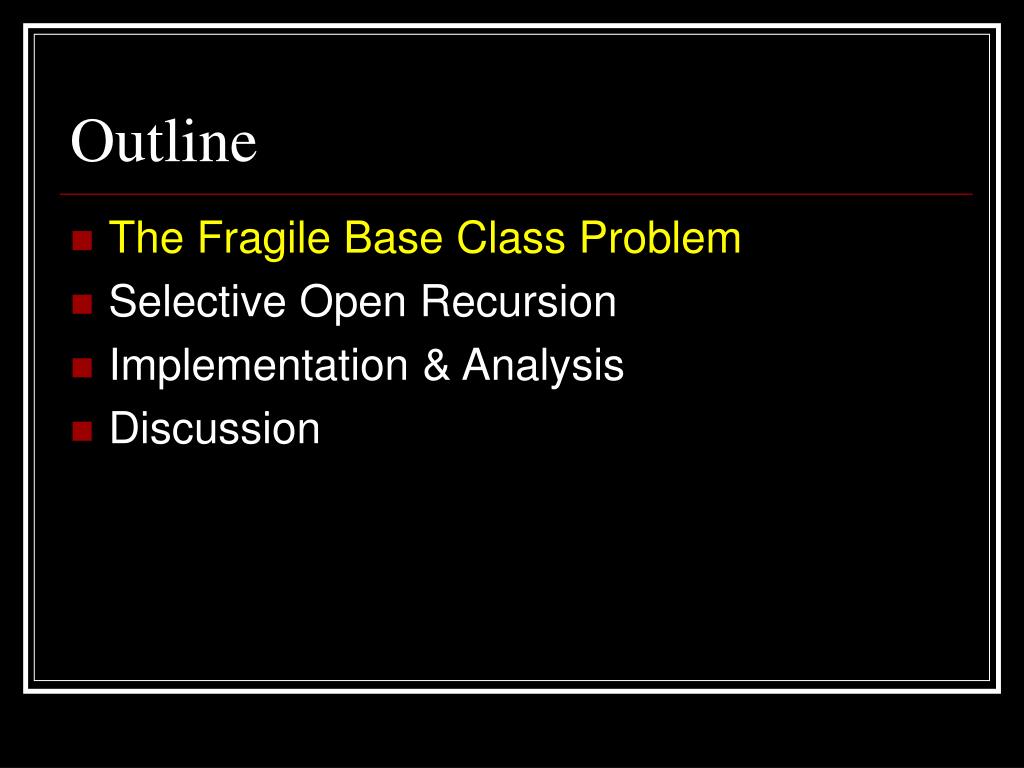

outline
Outline
  • The Fragile Base Class Problem
  • Selective Open Recursion
  • Implementation & Analysis
  • Discussion

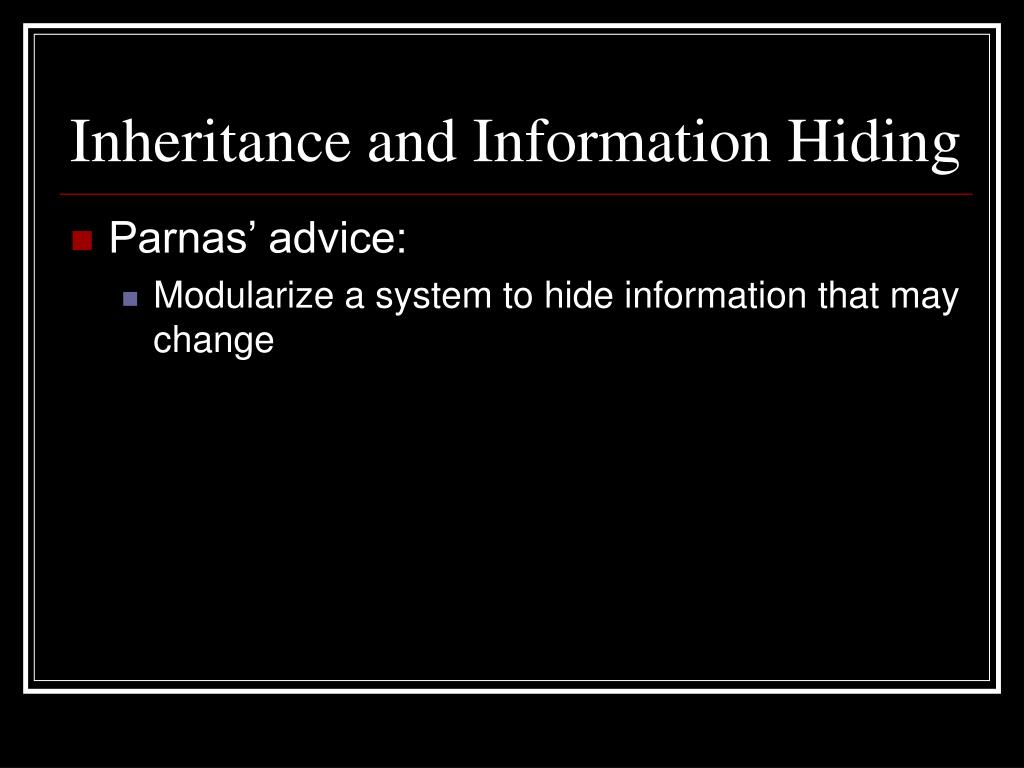

inheritance and information hiding
Inheritance and Information Hiding
  • Parnas’ advice:
    • Modularize a system to hide information that may change
inheritance and information hiding4
Inheritance and Information Hiding
  • Parnas’ advice:
    • Modularize a system to hide information that may change
  • Research question
    • How to hide information in component-based systems with inheritance?
a challenge open recursion

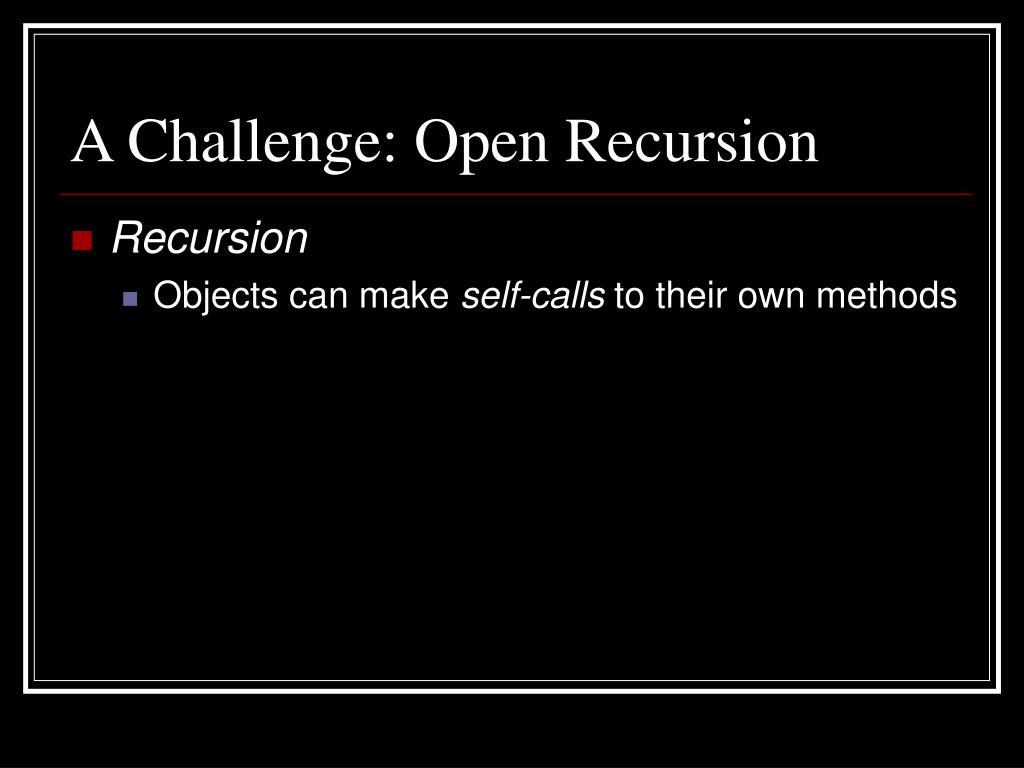

A Challenge: Open Recursion
  • Recursion
    • Objects can make self-calls to their own methods

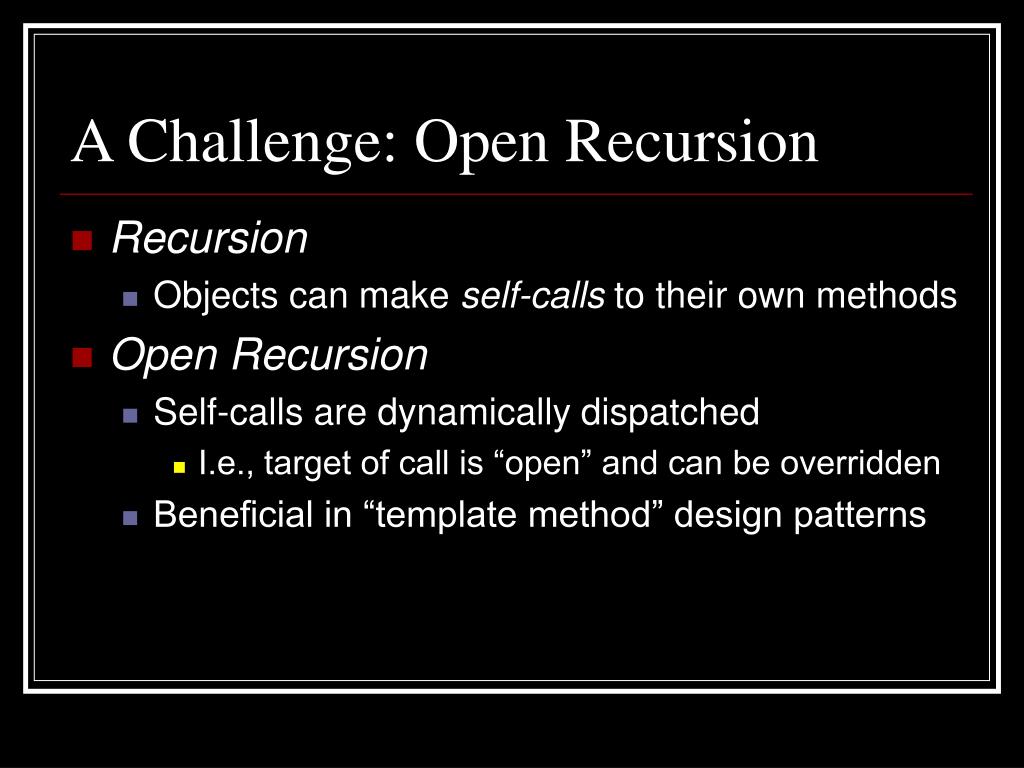

a challenge open recursion6
A Challenge: Open Recursion
  • Recursion
    • Objects can make self-calls to their own methods
  • Open Recursion
    • Self-calls are dynamically dispatched
      • I.e., target of call is “open” and can be overridden
    • Beneficial in “template method” design patterns
open recursion
class Window {

void draw() {

// draw background

this.drawForeground();

}

void drawForeground() { … }

}

class MyWindow {

void draw() { super.draw(); }

void drawForeground() {

super.drawForeground();

...

}

...

}

Open Recursion

Window

draw

drawFore

open recursion8
class Window {

void draw() {

// draw background

this.drawForeground();

}

void drawForeground() { … }

}

class MyWindow {

void draw() { super.draw(); }

void drawForeground() {

super.drawForeground();

...

}

...

}

Open Recursion

Window

draw

drawFore

Window

MyWindow

draw

draw

drawFore

drawFore

hook methods
Hook Methods
  • Hook methods
    • Called by this when some event occurs
    • Intended as extension point for subclasses
    • Open recursion is necessary
hook methods10
Hook Methods
  • Hook methods
    • Called by this when some event occurs
    • Intended as extension point for subclasses
    • Open recursion is necessary
  • Other methods
    • Perform some task
    • May be overridden, but has no “event” semantics
    • Open recursion unnecessary
      • At best, minor convenience
      • Has potential to cause the Fragile Base Class Problem
the fragile base class problem
class CountingSet extends Set {

private int count;

void add(Object elem) {

super.add(elem);

count++;

}

void addAll(Collection c){

super.addAll(c);

count+=c.size();

}

int size() { return count; }

// other functions

}

The Fragile Base Class Problem

Set

CountingSet

addAll

addAll

add

add

the fragile base class problem12
class CountingSet extends Set {

private int count;

void add(Object elem) {

super.add(elem);

count++;

}

void addAll(Collection c){

super.addAll(c);

count+=c.size();

}

int size() { return count; }

// other functions

}

The Fragile Base Class Problem

Set

CountingSet

addAll

addAll

add

add

Implicit assumption:

Set.addAll does not call Set.add

If this assumption is violated

(or changed), CountingSet breaks

the fragile base class problem13

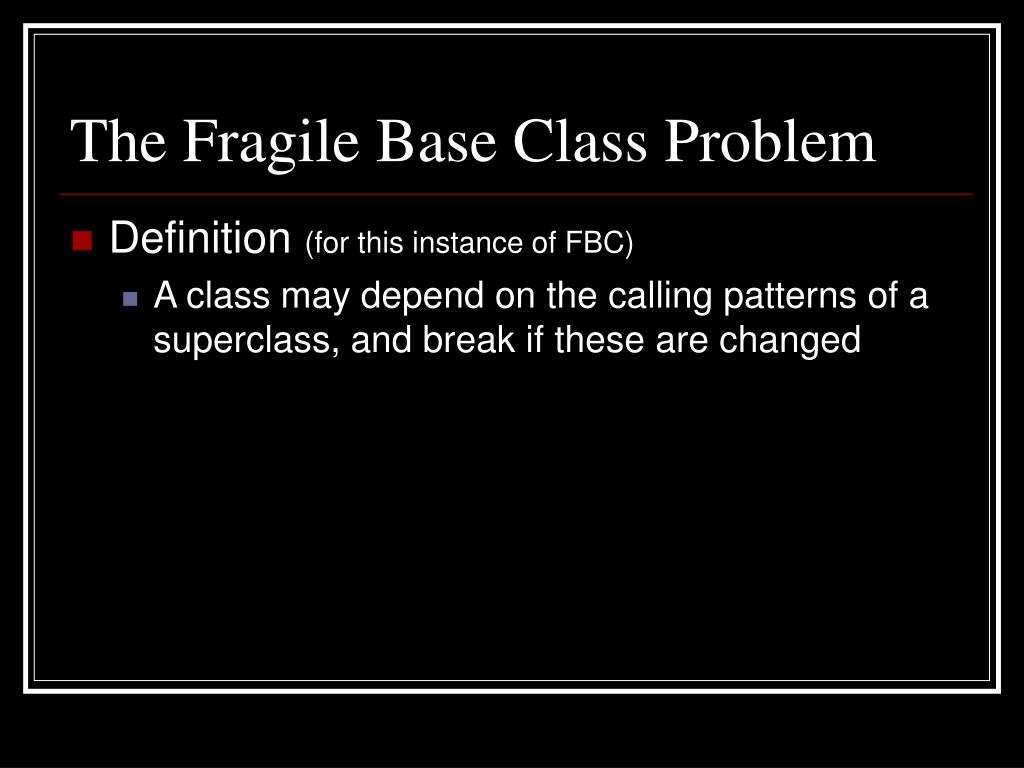

The Fragile Base Class Problem
  • Definition (for this instance of FBC)
    • A class may depend on the calling patterns of a superclass, and break if these are changed
two solutions to the fbc
Two Solutions to the FBC
  • Document open recursion

[Kiczales & Lamping, Steyaert et al., Ruby & Leavens]

    • Exposes information, rather than hiding it
    • Prohibits natural changes to superclass

Use forwarding to avoid open recursion

[Bloch,Szyperski]

Gives up benefits of open recursion

Can we get the benefits of open recursion without the reasoning costs?

two solutions to the fbc15

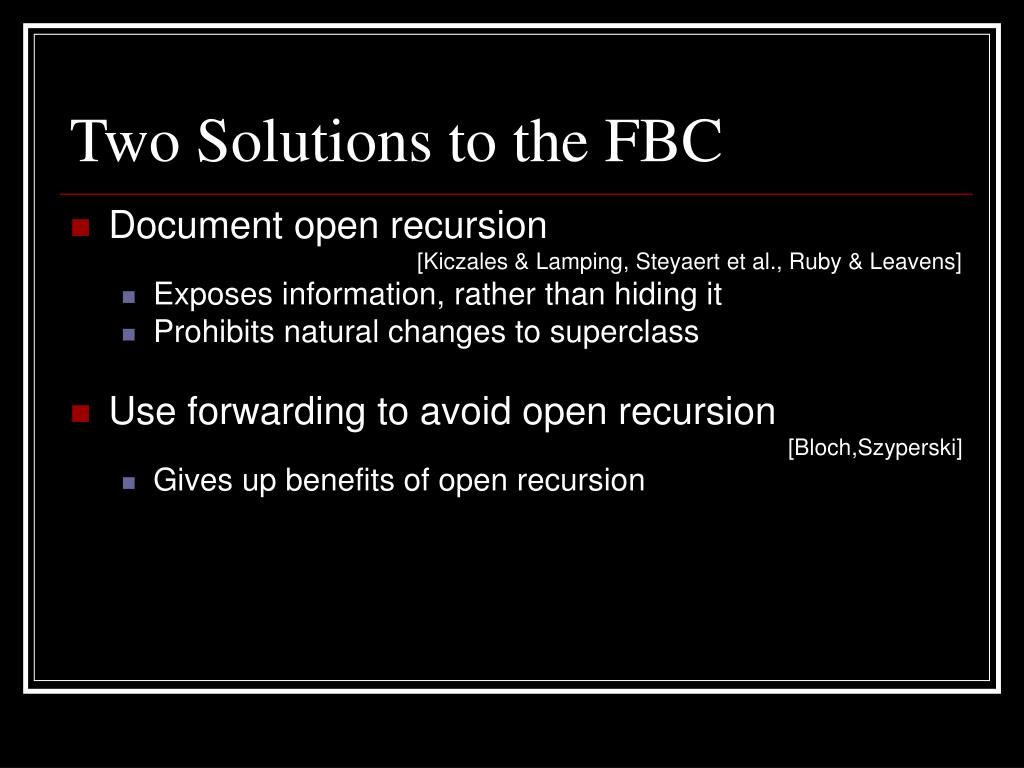

Two Solutions to the FBC
  • Document open recursion

[Kiczales & Lamping, Steyaert et al., Ruby & Leavens]

    • Exposes information, rather than hiding it
    • Prohibits natural changes to superclass
  • Use forwarding to avoid open recursion

[Bloch,Szyperski]

    • Gives up benefits of open recursion

Can we get the benefits of open recursion without the reasoning costs?

two solutions to the fbc16
Two Solutions to the FBC
  • Document open recursion

[Kiczales & Lamping, Steyaert et al., Ruby & Leavens]

    • Exposes information, rather than hiding it
    • Prohibits natural changes to superclass
  • Use forwarding to avoid open recursion

[Bloch,Szyperski]

    • Gives up benefits of open recursion
  • Can we get the benefits of open recursion without the reasoning costs?
outline17
Outline
  • The Fragile Base Class Problem
  • Selective Open Recursion
  • Implementation & Analysis
  • Discussion
selective open recursion
Selective Open Recursion

Use open recursion only where necessary

  • Hook methods
    • Use open modifier on method
      • Expresses “hook method” intent
    • All calls to open methods dispatched dynamically
      • Just as in Java today
selective open recursion19
Selective Open Recursion

Use open recursion only where necessary

  • Hook methods
    • Use open modifier on method
      • Expresses “hook method” intent
    • All calls to open methods dispatched dynamically
      • Just as in Java today
  • Other methods
    • Calls to non-open methods on this dispatched statically
      • The only change vs. Java
      • Hides internal calling patterns from subclasses
    • Other calls dispatched dynamically
      • open≠ virtual
selective open recursion examples
class Set {

void add(Object o) {

// adds an element

}

void addAll(Collection c){

foreach (Object o in c)

this.add(o);

}

}

add is not open, so subclass cannot intercept and depend on the call. Set can change without affecting subclasses.

Selective Open Recursion Examples

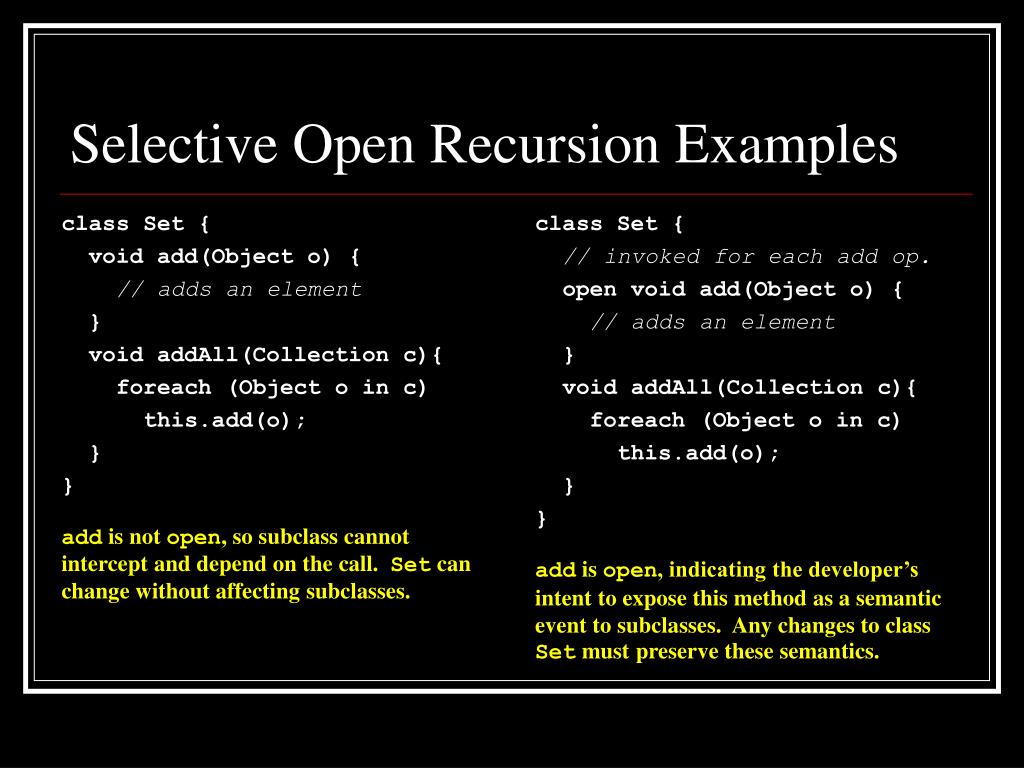

selective open recursion examples21
class Set {

void add(Object o) {

// adds an element

}

void addAll(Collection c){

foreach (Object o in c)

this.add(o);

}

}

add is not open, so subclass cannot intercept and depend on the call. Set can change without affecting subclasses.

class Set {

// invoked for each add op.

open void add(Object o) {

// adds an element

}

void addAll(Collection c){

foreach (Object o in c)

this.add(o);

}

}

add is open, indicating the developer’s intent to expose this method as a semantic event to subclasses. Any changes to class Set must preserve these semantics.

Selective Open Recursion Examples
design principles
Design Principles
  • Non-open as default
    • Only use open recursion when explicitly intended
design principles23
Design Principles
  • Non-open as default
    • Only use open recursion when explicitly intended
  • Annotate the method, not the call
    • Design intent is attached to operation

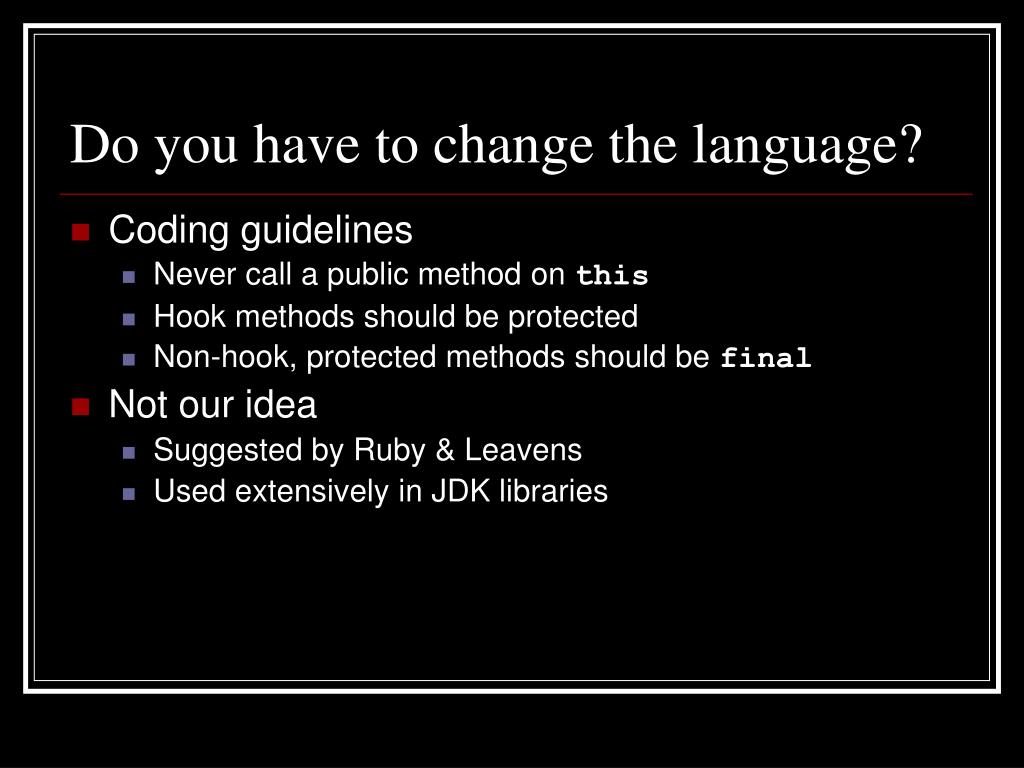

do you have to change the language
Do you have to change the language?
  • Coding guidelines
    • Never call a public method on this
    • Hook methods should be protected
    • Non-hook, protected methods should be final
  • Not our idea
    • Suggested by Ruby & Leavens
    • Used extensively in JDK libraries

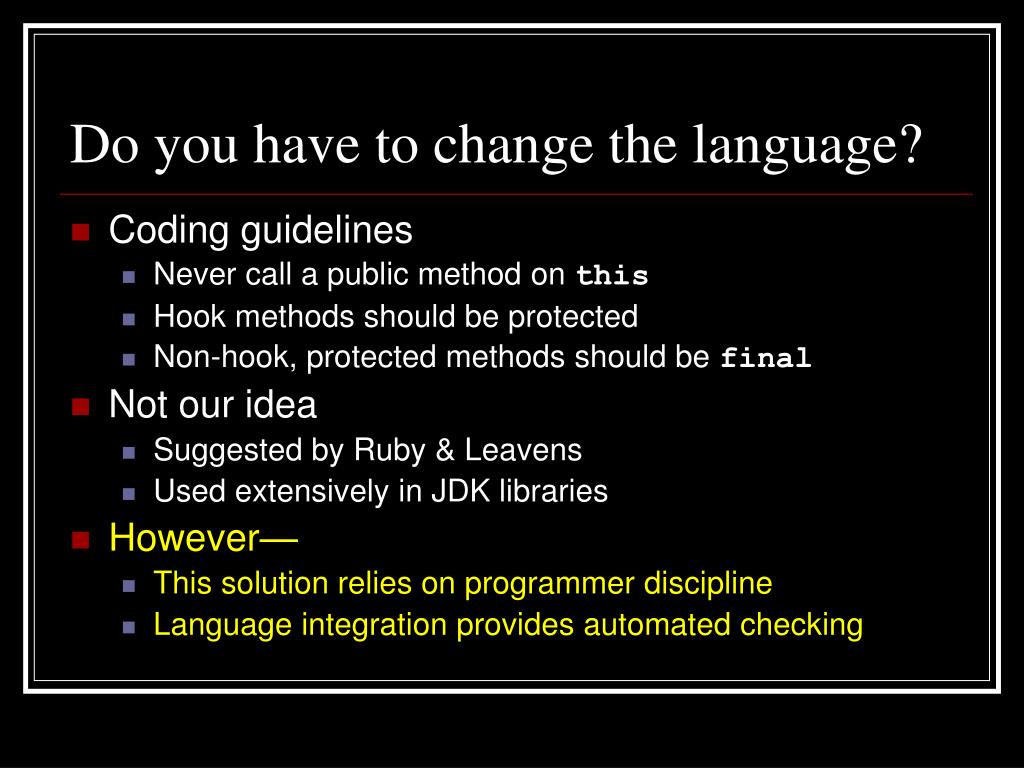

do you have to change the language25
Do you have to change the language?
  • Coding guidelines
    • Never call a public method on this
    • Hook methods should be protected
    • Non-hook, protected methods should be final
  • Not our idea
    • Suggested by Ruby & Leavens
    • Used extensively in JDK libraries
  • However—
    • This solution relies on programmer discipline
    • Language integration provides automated checking

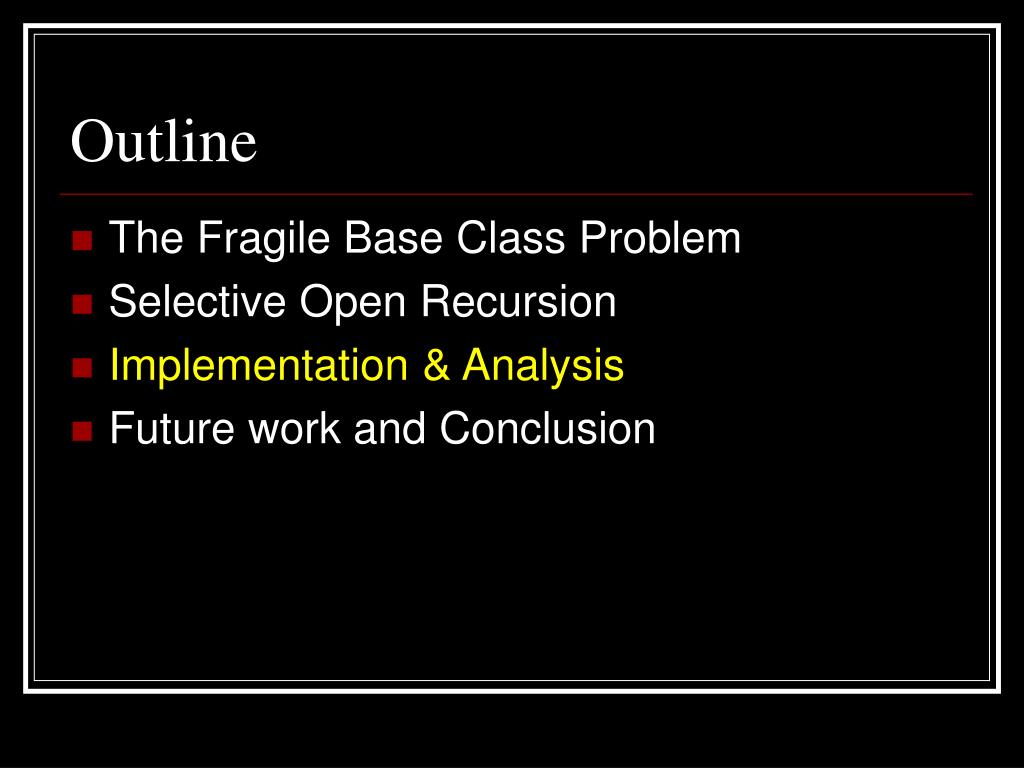

outline26
Outline
  • The Fragile Base Class Problem
  • Selective Open Recursion
  • Implementation & Analysis
  • Future work and Conclusion
implementation in java
Implementation in Java
  • Extension to Barat compiler
    • Bokowski & Spiegel
  • Rewrite calls to non-open methods on this
    • Call a final method with the implementation for the current class
  • Available at http://www.archjava.org/
open recursion inference
Open Recursion Inference
  • Analysis to compute open annotations
    • Method m in class C must be open if:
      • Method m’ in class C’ <= C calls this.m
      • Class C’’ <= C’ overrides m
      • Class C’’ inherits or super-calls C’.m’
open recursion inference29
Open Recursion Inference
  • Analysis to compute open annotations
    • Method m in class C must be open if:
      • Method m’ in class C’ <= C calls this.m
      • Class C’’ <= C’ overrides m
      • Class C’’ inherits or super-calls C’.m’
  • Results may be imperfect
    • Assumes whole program is available
      • Misses open methods that are not overridden
    • May mark methods open that should be refactored to be non-open

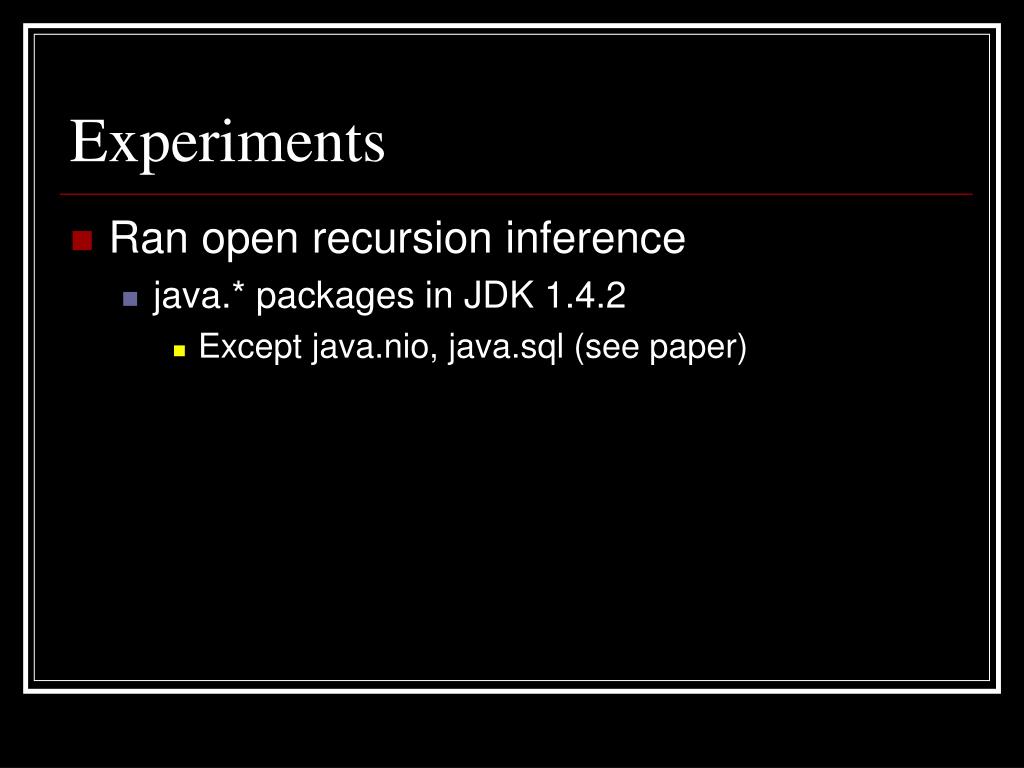

experiments
Experiments
  • Ran open recursion inference
    • java.* packages in JDK 1.4.2
      • Except java.nio, java.sql (see paper)
experiments31
Experiments
  • Ran open recursion inference
    • java.* packages in JDK 1.4.2
      • Except java.nio, java.sql (see paper)
  • Hypotheses
    • Open recursion is rarely needed
    • Selective open recursion enables more optimization
frequency of open recursion
Frequency of Open Recursion
  • 9897 methods in our portion of stdlib
  • 246 (2.5%) of methods were inferred open
frequency of open recursion33
Frequency of Open Recursion
  • 9897 methods in our portion of stdlib
  • 246 (2.5%) of methods were inferred open
  • Maybe the stdlib doesn’t use inheritance
    • 1394 of these methods are overridden
    • Only 18% of these are open

Open recursion is rarely needed

Thus making it selective may enable substantial information hiding

frequency of open recursion34
Frequency of Open Recursion
  • 9897 methods in our portion of stdlib
  • 246 (2.5%) of methods were inferred open
  • Maybe the stdlib doesn’t use inheritance
    • 1394 of these methods are overridden
    • Only 18% of these are open
  • Open recursion is rarely needed
    • Thus making it selective may enable substantial information hiding
optimization potential
Optimization Potential
  • 22339 calls in our portion of stdlib
  • 6852 self-calls
    • 716 to open methods
      • Must be dynamically dispatched
    • 6136 to non-open methods
      • Can be inlined in our proposal (27% of total calls)
      • Inlining in Java would require private, final, or whole-program analysis
outline36
Outline
  • The Fragile Base Class Problem
  • Selective Open Recursion
  • Implementation & Analysis
  • Future Work and Conclusion
future work application to formal reasoning
Future Work: Application to Formal Reasoning
  • Formalizing as Featherweight Java + module system
future work application to formal reasoning38
Future Work: Application to Formal Reasoning
  • Formalizing as Featherweight Java + module system
  • Goal: bisimulation-based proof technique for showing contextual equivalence of modules in the presence of inheritance
future work application to formal reasoning39
Future Work: Application to Formal Reasoning
  • Formalizing as Featherweight Java + module system
  • Goal: bisimulation-based proof technique for showing contextual equivalence of modules in the presence of inheritance
  • Use selective open recursion and other techniques to provide more information hiding
    • i.e. prove more programs equivalent
conclusion
Conclusion
  • Open Recursion complicates reasoning
    • rarely used in practice
  • Selective open recursion
    • retains benefits of open recursion where needed
    • avoids fragile base class problem
    • can be efficiently inferred
    • may allow more optimization and reasoning
open recursion42
class Set {

void add(Object elem) {

// adds an element

}

void addAll(Collection c) {

foreach (Object o in c)

this.add(o)

}

...

class CountingSet extends Set {

private int count;

void add(Object elem) {

super.add(elem);

count++;

}

void addAll(Collection c){

super.addAll(c);

count+=c.size();

}

int size() { return count; }

// other functions

}

Open Recursion

Calls to this are dispatched to

subclass

Thus subclass can tell exactly

when each method is called
