Presentation Transcript
sdreaderce

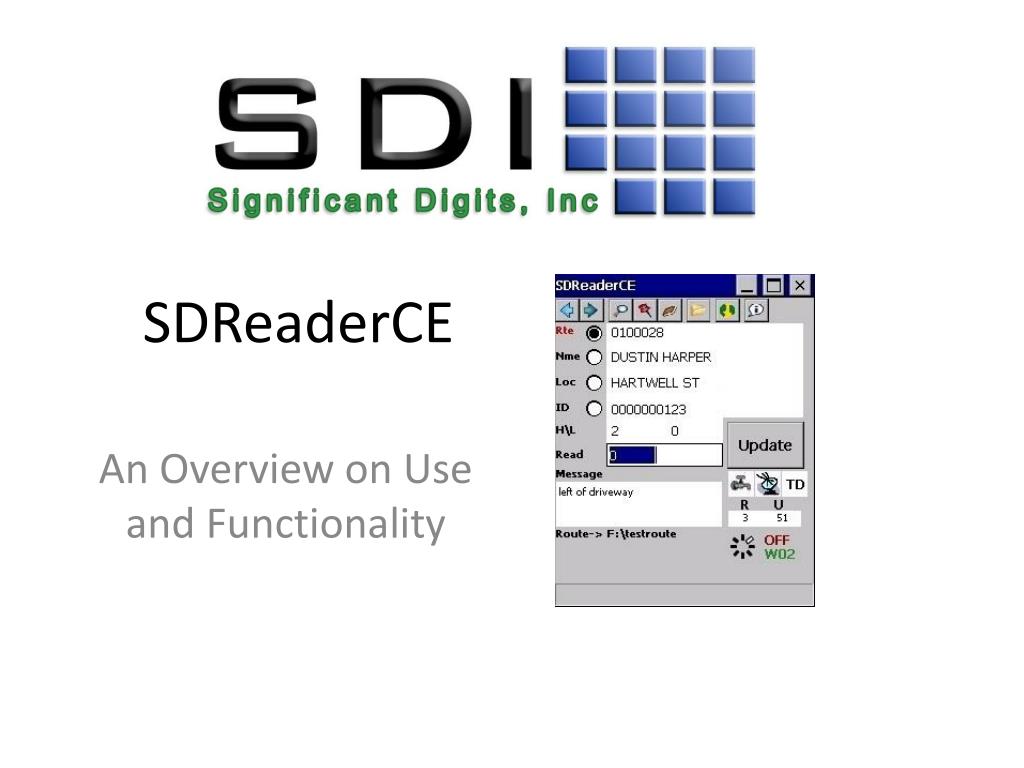

SDReaderCE

An Overview on Use and Functionality

using sdreaderce
Using SDReaderCE

After loading the route to the handheld from SDReader6, select the route folder from file list on the handheld

Select the route to be read and click OK

using sdreaderce3
Using SDReaderCE

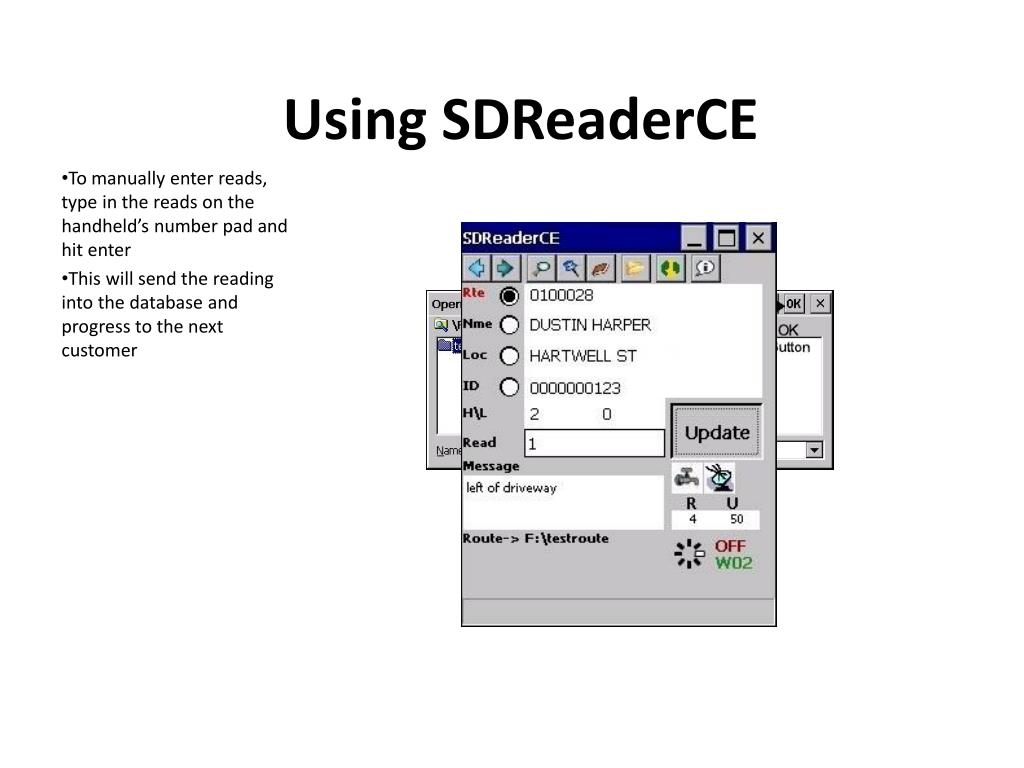

To manually enter reads, type in the reads on the handheld’s number pad and hit enter

This will send the reading into the database and progress to the next customer

using sdreaderce4
Using SDReaderCE

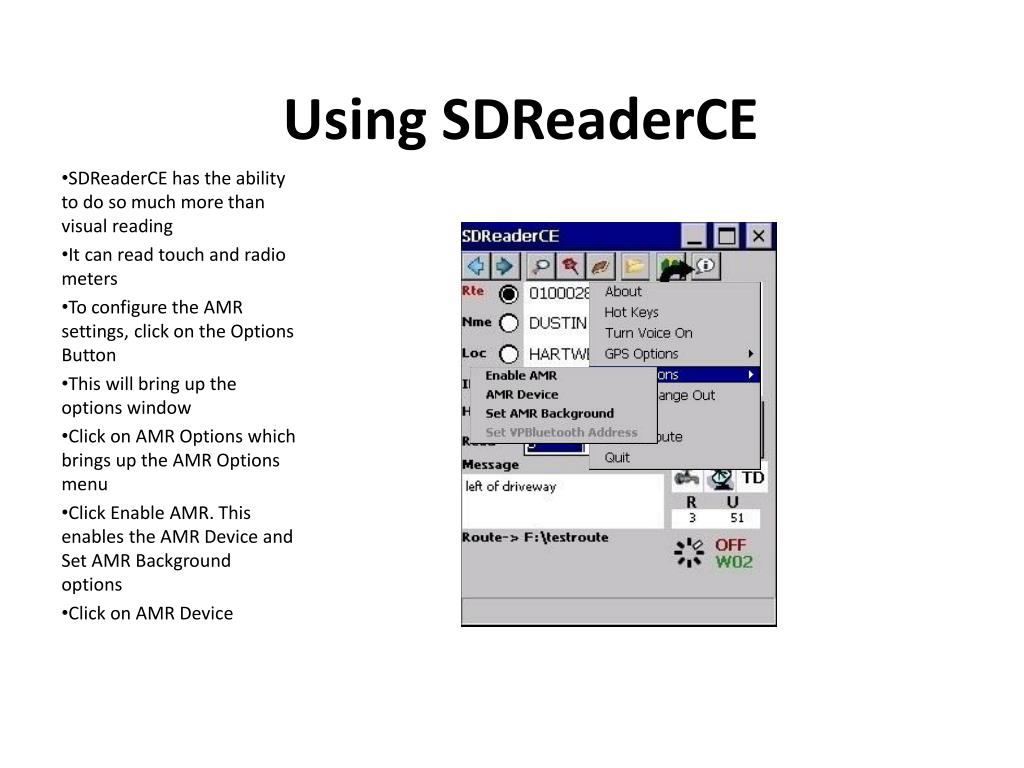

SDReaderCE has the ability to do so much more than visual reading

It can read touch and radio meters

To configure the AMR settings, click on the Options Button

This will bring up the options window

Click on AMR Options which brings up the AMR Options menu

Click Enable AMR. This enables the AMR Device and Set AMR Background options

Click on AMR Device

using sdreaderce5

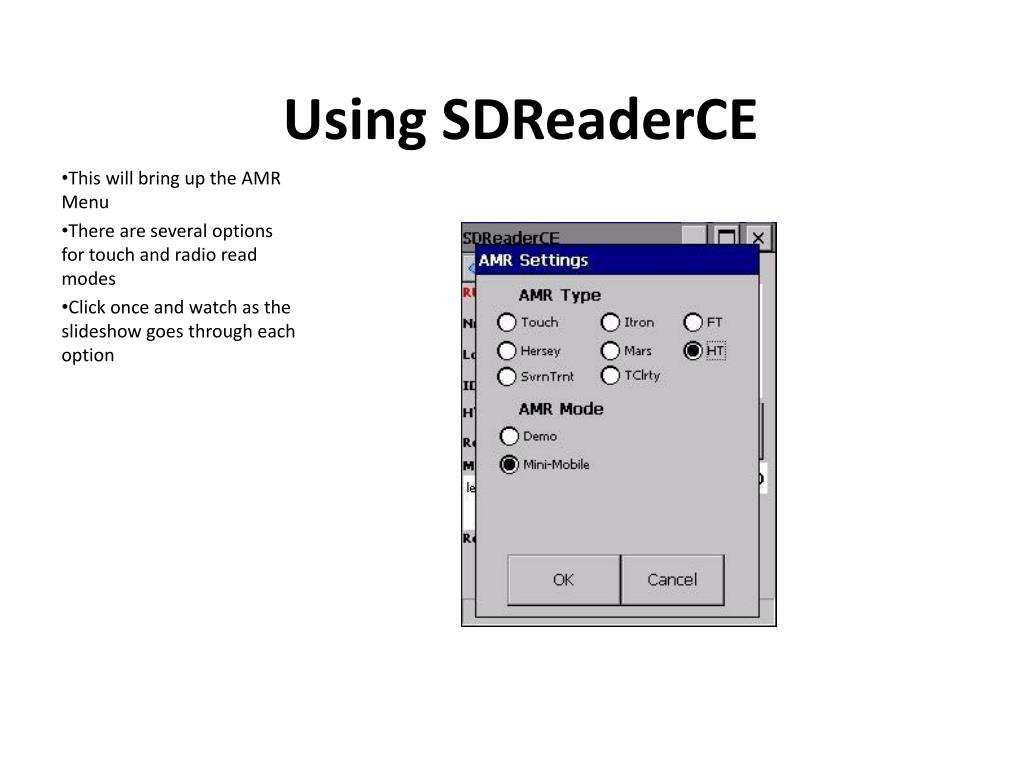

Using SDReaderCE

This will bring up the AMR Menu

There are several options for touch and radio read modes

Click once and watch as the slideshow goes through each option

using sdreaderce6
Using SDReaderCE

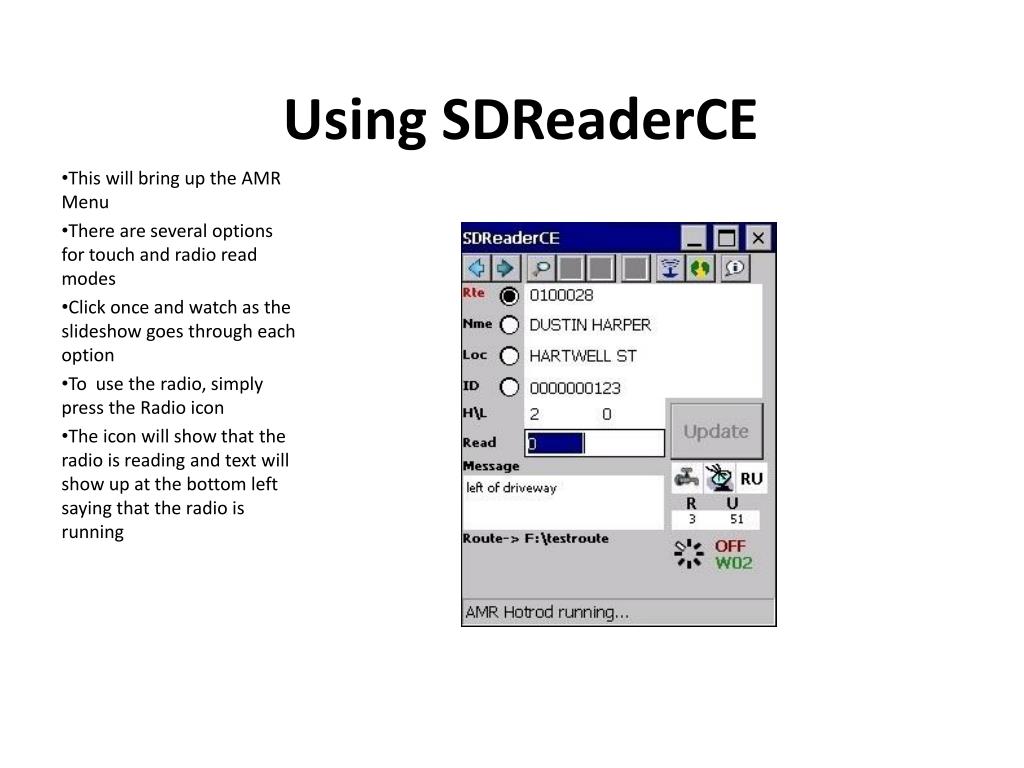

This will bring up the AMR Menu

There are several options for touch and radio read modes

Click once and watch as the slideshow goes through each option

To use the radio, simply press the Radio icon

The icon will show that the radio is reading and text will show up at the bottom left saying that the radio is running

using sdreaderce7

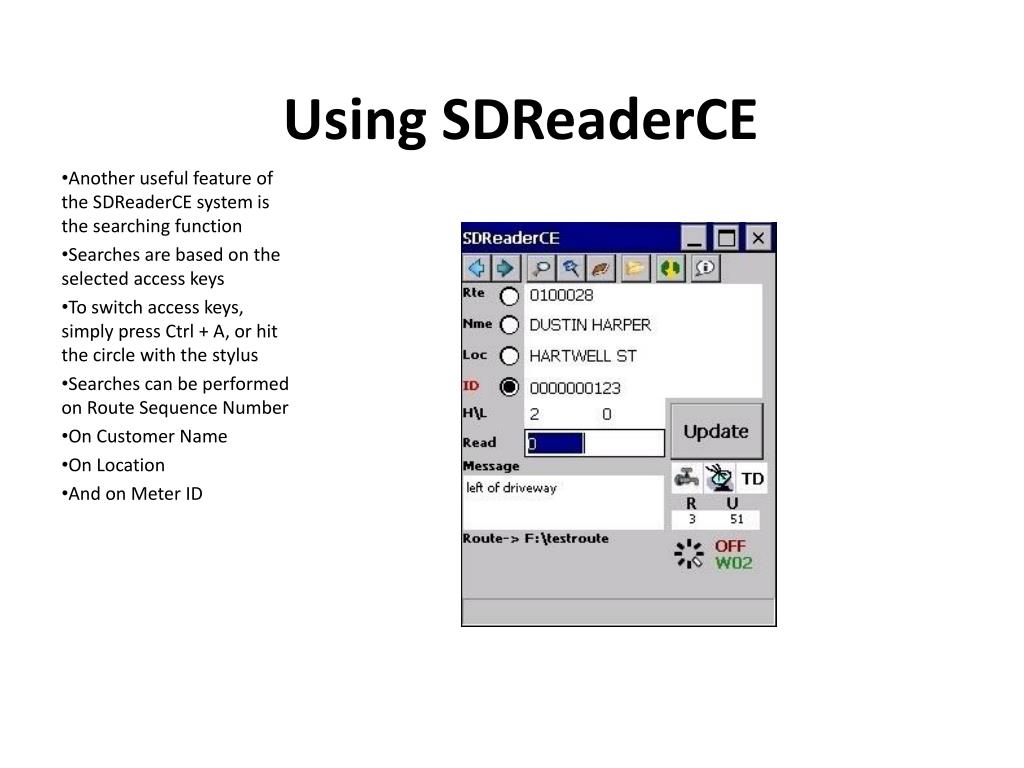

Using SDReaderCE

Another useful feature of the SDReaderCE system is the searching function

Searches are based on the selected access keys

To switch access keys, simply press Ctrl + A, or hit the circle with the stylus

Searches can be performed on Route Sequence Number

On Customer Name

On Location

And on Meter ID

using sdreaderce8

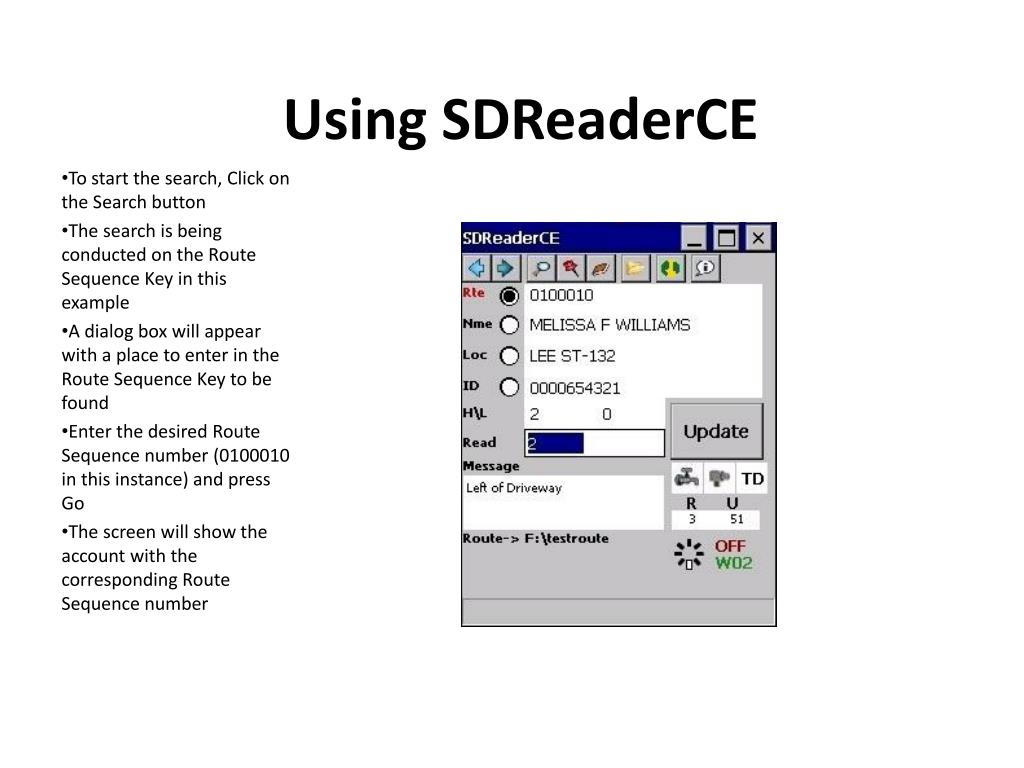

Using SDReaderCE

To start the search, Click on the Search button

The search is being conducted on the Route Sequence Key in this example

A dialog box will appear with a place to enter in the Route Sequence Key to be found

Enter the desired Route Sequence number (0100010 in this instance) and press Go

The screen will show the account with the corresponding Route Sequence number

using sdreaderce9

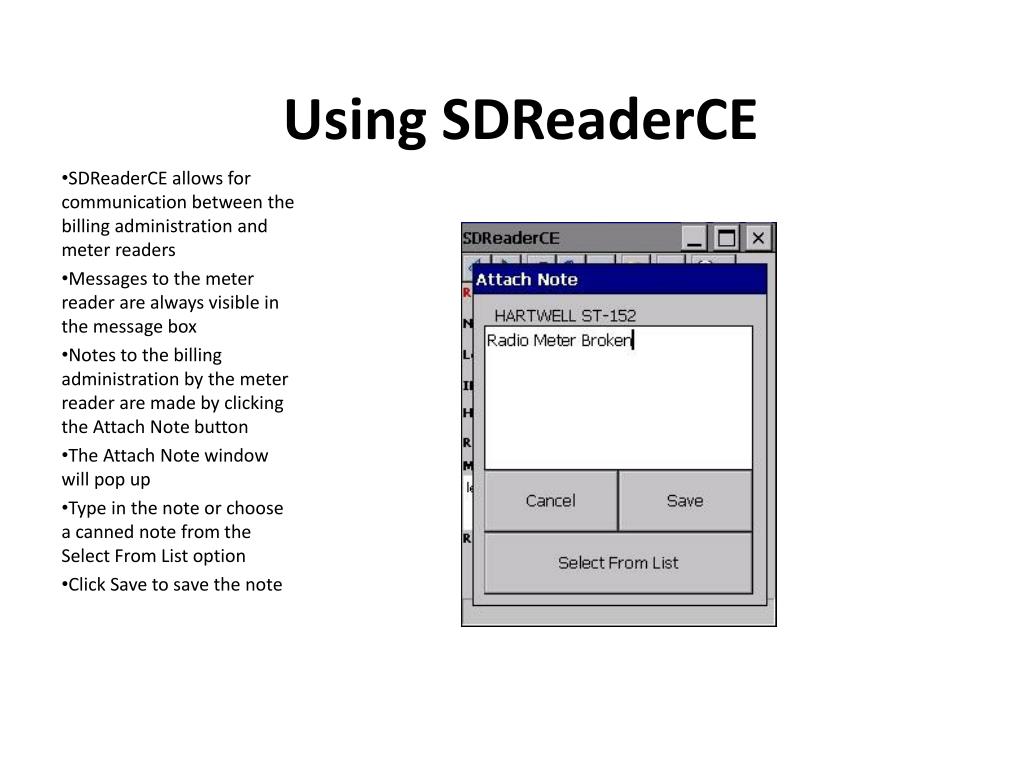

Using SDReaderCE

SDReaderCE allows for communication between the billing administration and meter readers

Messages to the meter reader are always visible in the message box

Notes to the billing administration by the meter reader are made by clicking the Attach Note button

The Attach Note window will pop up

Type in the note or choose a canned note from the Select From List option

Click Save to save the note

using sdreaderce10

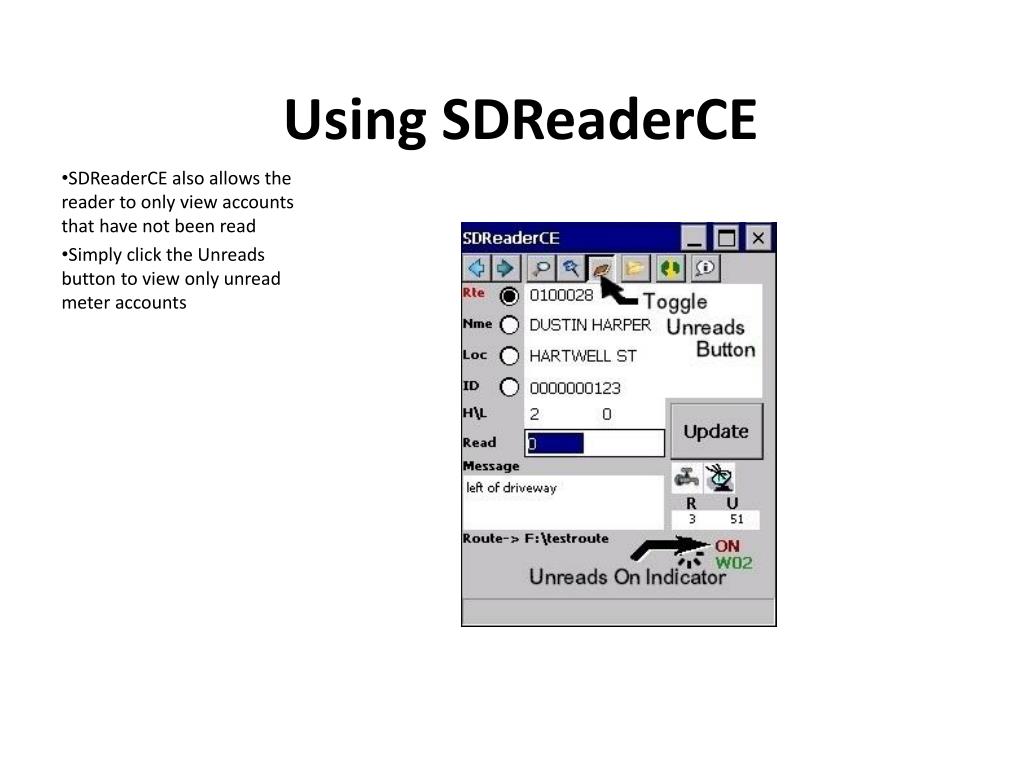

Using SDReaderCE

SDReaderCE also allows the reader to only view accounts that have not been read

Simply click the Unreads button to view only unread meter accounts

using sdreaderce11
Using SDReaderCE

The most exciting feature of the SDReaderCE program is its mapping capabilities

To view the map, click on the mapping button

As the meter reader progresses through the route, the meter points disappear as they are read

The meter reader can see the details of each account represented on the map by circling its dot with the stylus

A Dialog will pop up giving the address of the selected account

Press Go to go to the account information page

using sdreaderce12
Using SDReaderCE

If any shortcuts are forgotten or any help is needed, a list of features and shortcuts is available through the options menu

Select Hot Keys in the dropdown menu

The list of features and their shortcuts comes up

Press any key to escape back to the program

using sdreaderce13
Using SDReaderCE

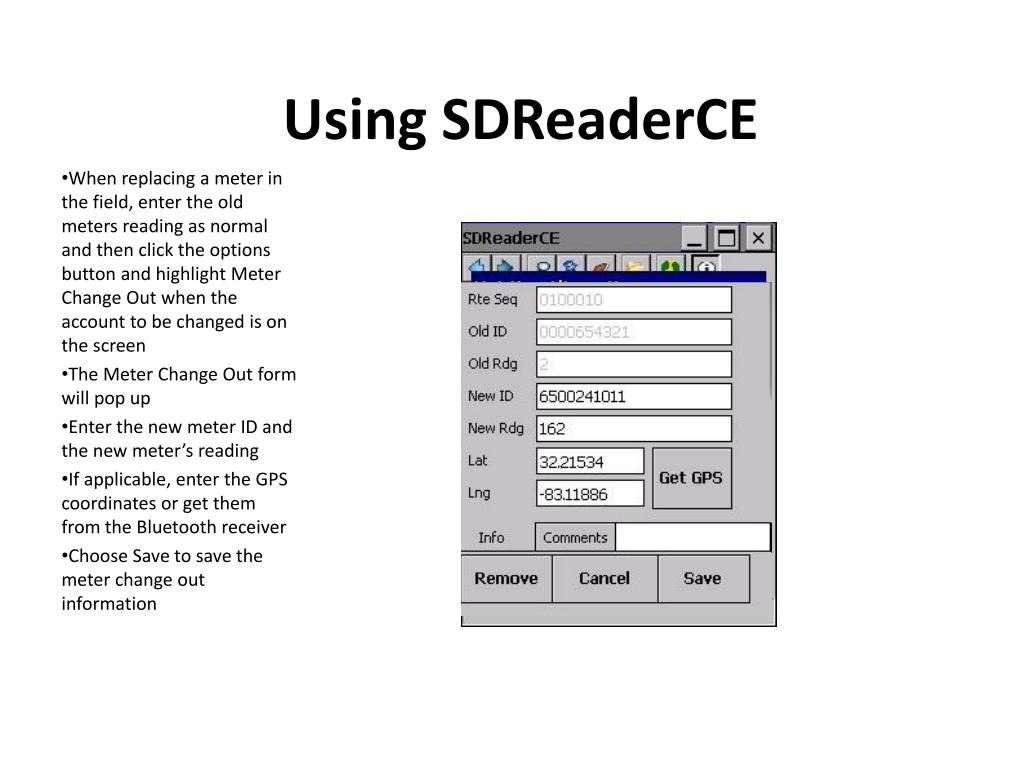

When replacing a meter in the field, enter the old meters reading as normal and then click the options button and highlight Meter Change Out when the account to be changed is on the screen

The Meter Change Out form will pop up

Enter the new meter ID and the new meter’s reading

If applicable, enter the GPS coordinates or get them from the Bluetooth receiver

Choose Save to save the meter change out information

using sdreaderce14

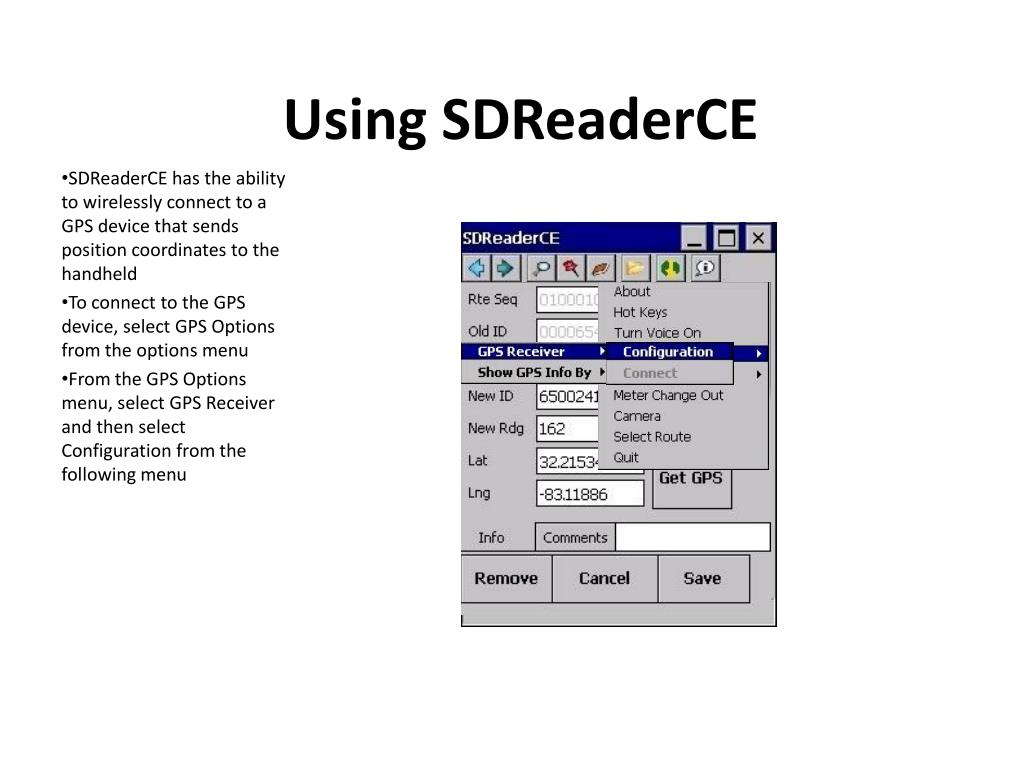

Using SDReaderCE

SDReaderCE has the ability to wirelessly connect to a GPS device that sends position coordinates to the handheld

To connect to the GPS device, select GPS Options from the options menu

From the GPS Options menu, select GPS Receiver and then select Configuration from the following menu

using sdreaderce15
Using SDReaderCE

SDReaderCE has the ability to wirelessly connect to a GPS device that sends position coordinates to the handheld

To connect to the GPS device, select GPS Options from the options menu

From the GPS Options menu, select GPS Receiver and then select Configuration from the following menu

The GPS Receiver Selection page pops up

Click Discover Devices to find Bluetooth GPS devices in range

Highlight the receiver that shows up and click Test Connection

Click Save after it is done testing the connection

using sdreaderce16
Using SDReaderCE

To connect the handheld to the Bluetooth GPS Receiver, select GPS Options, then GPS Receiver and then Connect

using sdreaderce17
Using SDReaderCE

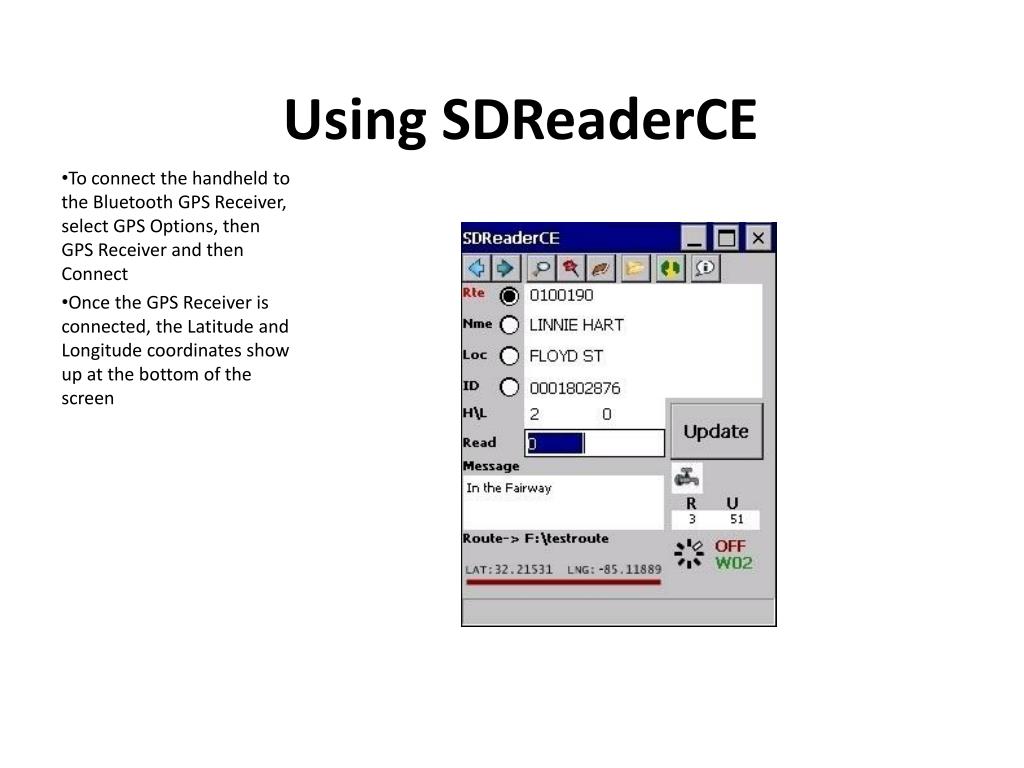

To connect the handheld to the Bluetooth GPS Receiver, select GPS Options, then GPS Receiver and then Connect

Once the GPS Receiver is connected, the Latitude and Longitude coordinates show up at the bottom of the screen

using sdreaderce18

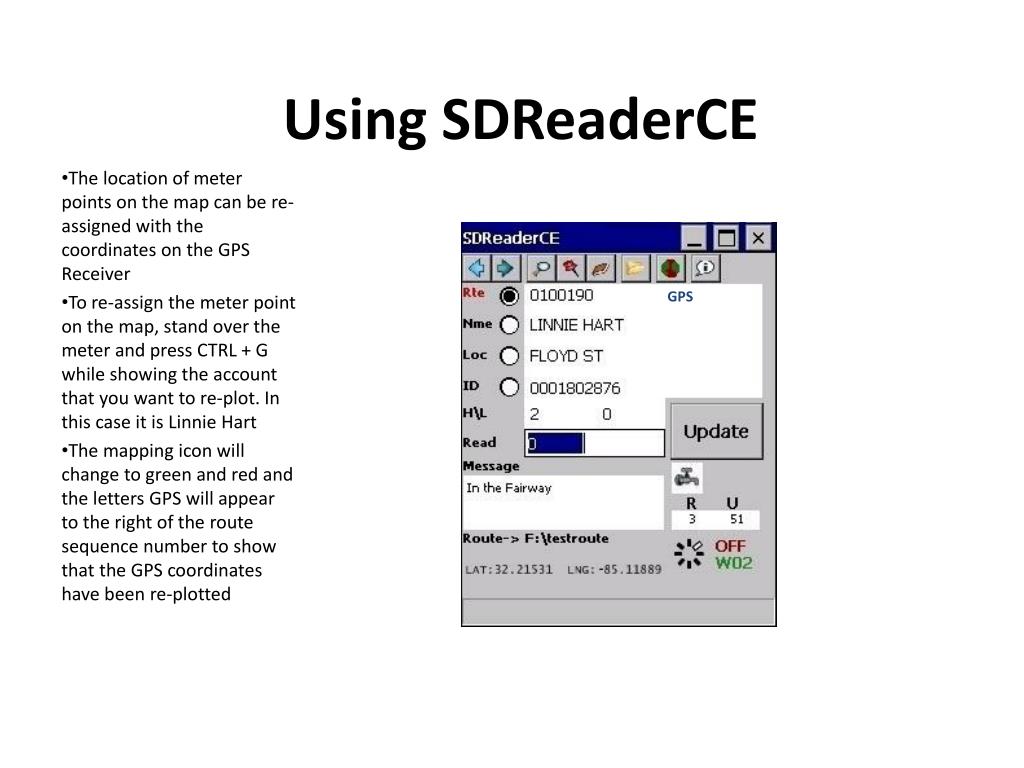

Using SDReaderCE

The location of meter points on the map can be re-assigned with the coordinates on the GPS Receiver

To re-assign the meter point on the map, stand over the meter and press CTRL + G while showing the account that you want to re-plot. In this case it is Linnie Hart

The mapping icon will change to green and red and the letters GPS will appear to the right of the route sequence number to show that the GPS coordinates have been re-plotted

GPS

smart phone
Smart Phone

SDReaderCE is not confined to handheld computers, it is also operational on Windows Mobile smart phones

The functionality is exactly the same with a few additions

smart phone20
Smart Phone

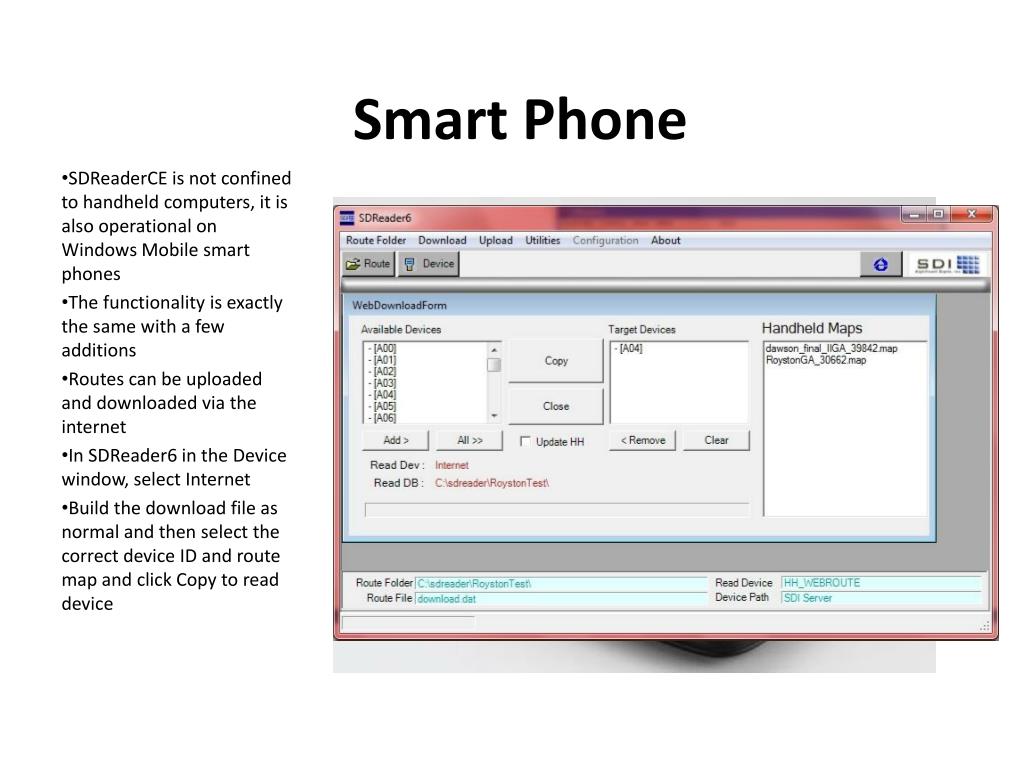

SDReaderCE is not confined to handheld computers, it is also operational on Windows Mobile smart phones

The functionality is exactly the same with a few additions

Routes can be uploaded and downloaded via the internet

In SDReader6 in the Device window, select Internet

Build the download file as normal and then select the correct device ID and route map and click Copy to read device

smart phone21
Smart Phone

On the smart phone, click the information button and select Manage Web Routes

Choose Get Web Routes to download the route into the smart phone

Select the appropriate route from the left column

Once selected, the route name will move to the right column

Click Download to copy the route to the phone

The downloaded route will then be ready to commence with reading

When finished reading the route, click the information button and select Post Web Route

This will automatically upload the route to the internet

Routes can be downloaded for free of charge at any wifi hotspot or anywhere at all with a paid data connection from any cell phone company that provides Windows Mobile smartphones

smart phone22
Smart Phone

The GPS coordinate plotting has also gained more functionality that is only available on devices running Windows Mobile 5.0 or higher

The Low Performance GPS (LPGPS) functionality remains unchanged

LPGPS functionality is included in the basic package and has an accuracy to within 10 - 15 meters

The only extra needed is a Bluetooth receiver to connect to the GPS satellites

smart phone23
Smart Phone

For High Performance GPS (HPGPS), SDReaderCE utilizes the Trimble system

The Trimble receiver and libraries can receive and calculate meter points with real time sub-meter accuracy

With post processing, the plotted points will be accurate to within 4 inches

This accuracy is achieved by a combination of multiple satellite technology and advanced algorithms that calculate the satellite information that is received

The receiver (pictured below to the right) is powered by a replaceable, rechargeable battery that lasts a whole day on a full charge

As with the LPGPS, the points are plotted on a map custom made by SDI
