  1. IDEM Emergency Response 888-233-7745 www.IN.gov/idem/er

  2. Agenda • Indiana Spill Rule • Remedial Response Referrals • Spill Assessment • Available for Assistance

  3. Indiana Spill Rule

  4. Highpoints Applicability Definitions Reportable Facility Spills Reportable Transportation Spills Responsibilities of Spiller

  5. Reporting Containment Response Hazardous Substances Extremely Hazardous Substances Petroleum Objectionable Substances Applicability For Spills of Rule applies to

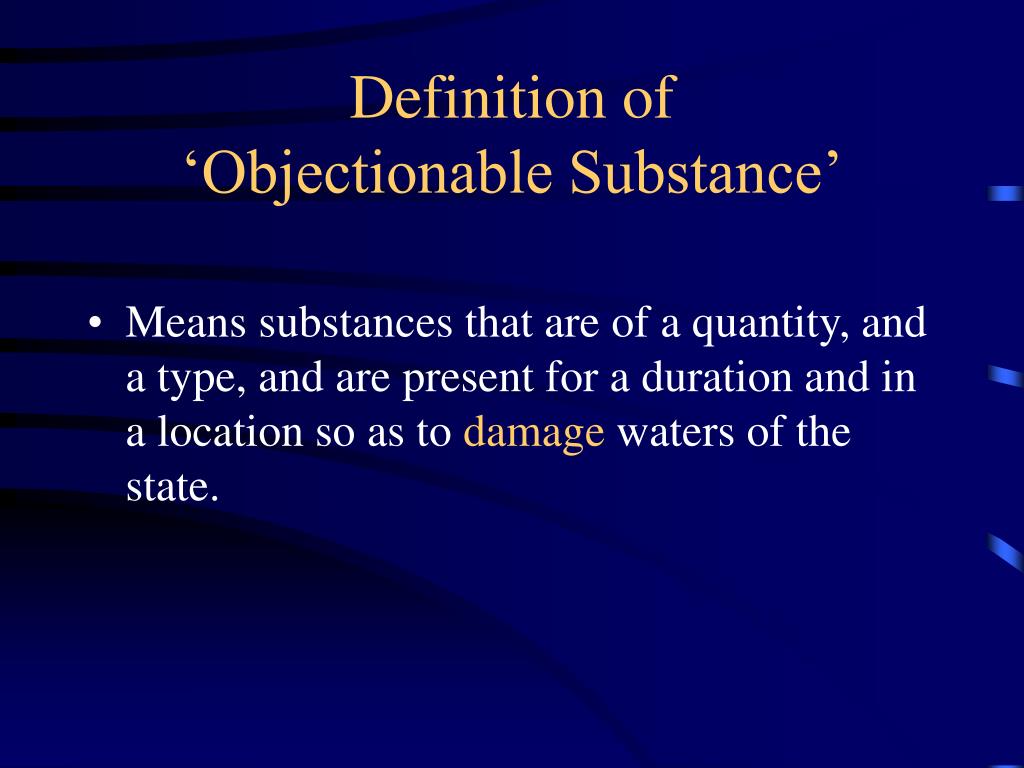

  6. Definition of ‘Objectionable Substance’ • Means substances that are of a quantity, and a type, and are present for a duration and in a location so as to damage waters of the state.

  7. Definition of ‘Damage’ • Means the actual or imminent alteration of the waters of the state so as to render the waters harmful, detrimental, or injurious.

  8. Definition of ‘Waters’ • Means the accumulations of water, surface and underground, natural and artificial, public and private. • The term does not include any private pond or any off-stream pond, reservoir, or facility built for reduction or control of pollution or cooling of water unless the discharge threatens to cause water pollution.

  9. Definition of ‘Spill’ • Means any unexpected, unintended, abnormal, or unapproved dumping, leakage, drainage, seepage, discharge or other loss of petroleum, HS, EHS, or objectionable substance.

  10. Definition of ‘Contain’ • Means to take such immediate action as necessary to dam, block, restrain, or otherwise act to most effectively prevent a spill from entering waters of the state or minimize damage to waters of the state from a spill.

  11. Definition of ‘Spill Response’ • Means the spill is • 1. contained, and • 2. free material is removed or neutralized.

  12. Reportable Spills - Facility • Damage water + death, injury, illness to humans, animals • Soil spills + Wellhead Protection Areas • Damage water + private wells, special waters • Most other applications* • No spill response was performed

  13. Reportable Spills - Facility*Most other applications • Surface Water RQs • Offsite Soil RQs • Onsite Soil RQs

  14. Reportable Spills - Transportation • Damage waters + death, injury, illness to humans, animals • Spills that damage surface waters • Soil RQs • No spill response was performed

  15. Responsibilities of Spiller • Any person who operates, controls, or maintains any mode of transportation or facility from which a spill occurs shall, upon discovery of a reportable spill to the soil or surface waters of the state, do the following:

  16. Responsibilities, cont’d • CONTAIN from waters of state • Spill Response - remove spilled materials • REPORT to IDEM Spill Line • Submit written report (when asked) • NOTIFY offsite land owners, water users

  17. Remedial Response Referrals Spill Hand-offs to IDEM Remediation Branch

  18. Emergency is over,Refer when response actions: • Threatens existing structures • Destroys sensitive environment, not save it • Threatens public and responder safety • Has no technological solution • Has no short term solution • As IDEM sees appropriate

  19. Spill case flow

  20. Spill Impact Assessment

  21. Spills to Water • Water dynamics • Flowing waters vs. standing • Observations: discoloration, chemical odors, etc • Spill dynamics - Discharging vs. contained • Condition of Flora, Fauna • Live • Stressed, damaged • Dead

  22. Spills to Soil • Native sandy/gravelly soils • Back-filled areas, loose sandy/gravelly • Underground structures • water wells • utilities, pipelines • septic systems, dry-wells, etc. • Call before you dig: 800-382-5544

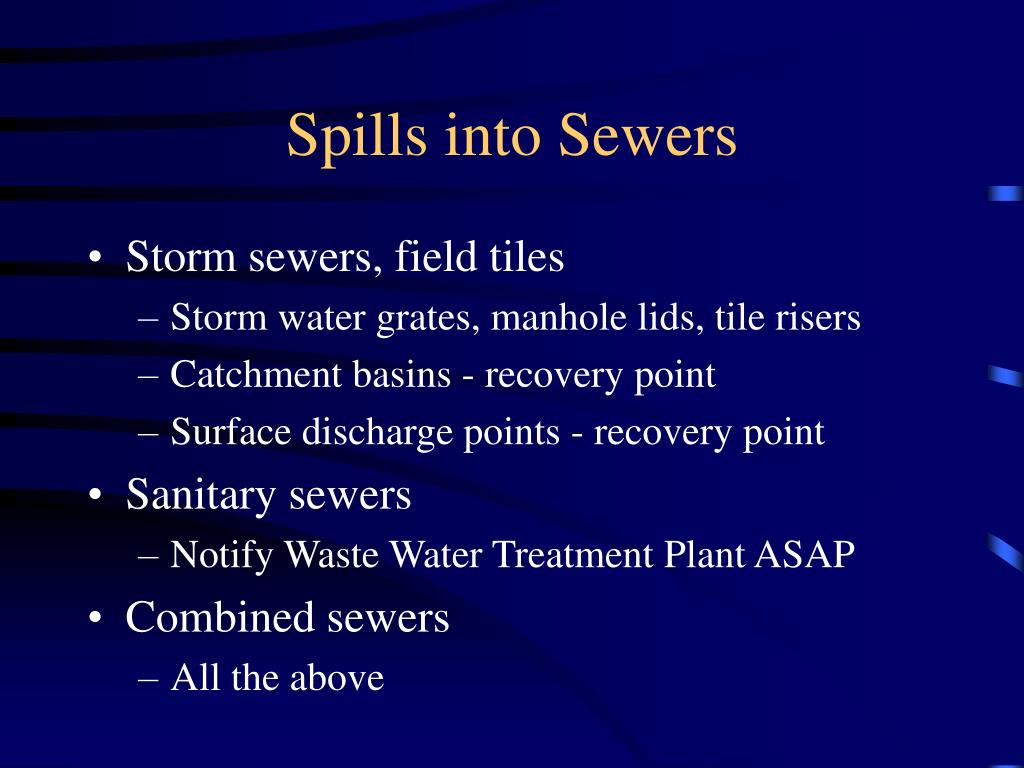

  23. Spills into Sewers • Storm sewers, field tiles • Storm water grates, manhole lids, tile risers • Catchment basins - recovery point • Surface discharge points - recovery point • Sanitary sewers • Notify Waste Water Treatment Plant ASAP • Combined sewers • All the above

  24. Safety FirstDo not endanger yourself during spill investigation activities! • No tasting spills to identify unknowns. • No inhaling gases to identify unknowns. • No touching materials to identify unknowns. • No going into hazardous atmospheres. • No reservations calling for assistance. • No forgetting safety comes first.

  25. IDEM ER Available for Assistance

  26. Call us for: • Reportable spills • Abandoned drums • Wastewater emergencies • Fire water runoff emergencies • Technical assistance • For all environmental emergencies

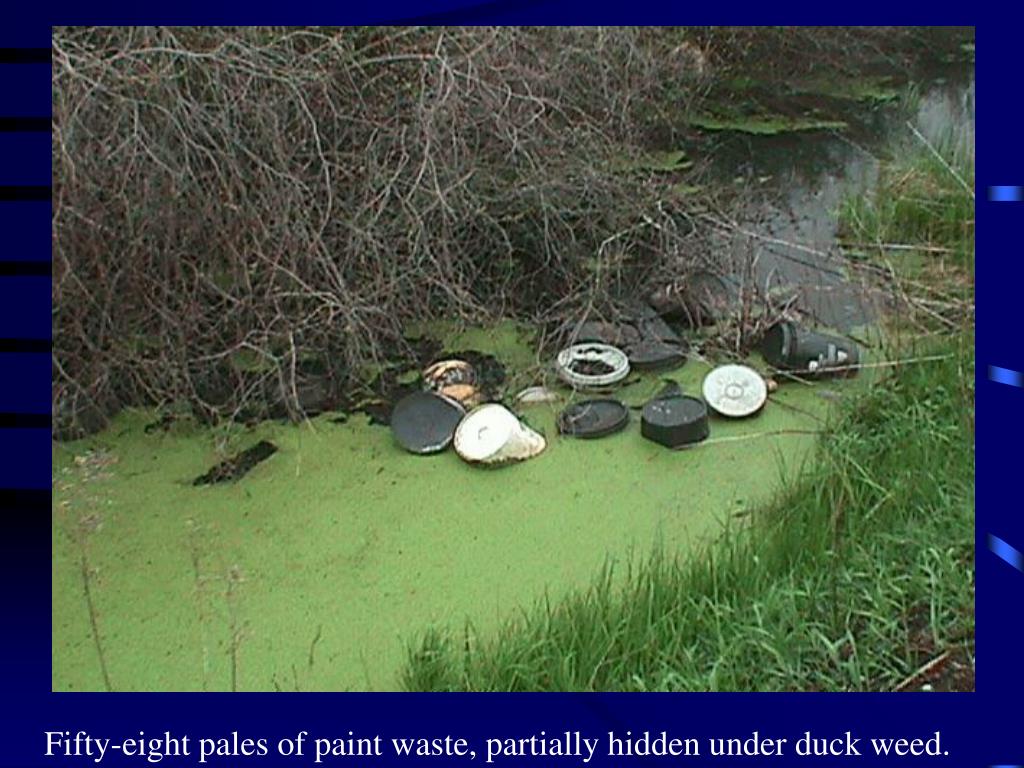

  27. Fifty-eight pales of paint waste, partially hidden under duck weed.

  28. Greencastle - Full chlorine tankers led to evacuation of 3,500 residents

  29. Ohio River - 25K gallons of fuel spilled when barge ran aground.

  30. Logansport - After BLEVE of Toluene Di-Isocyanate rail car.

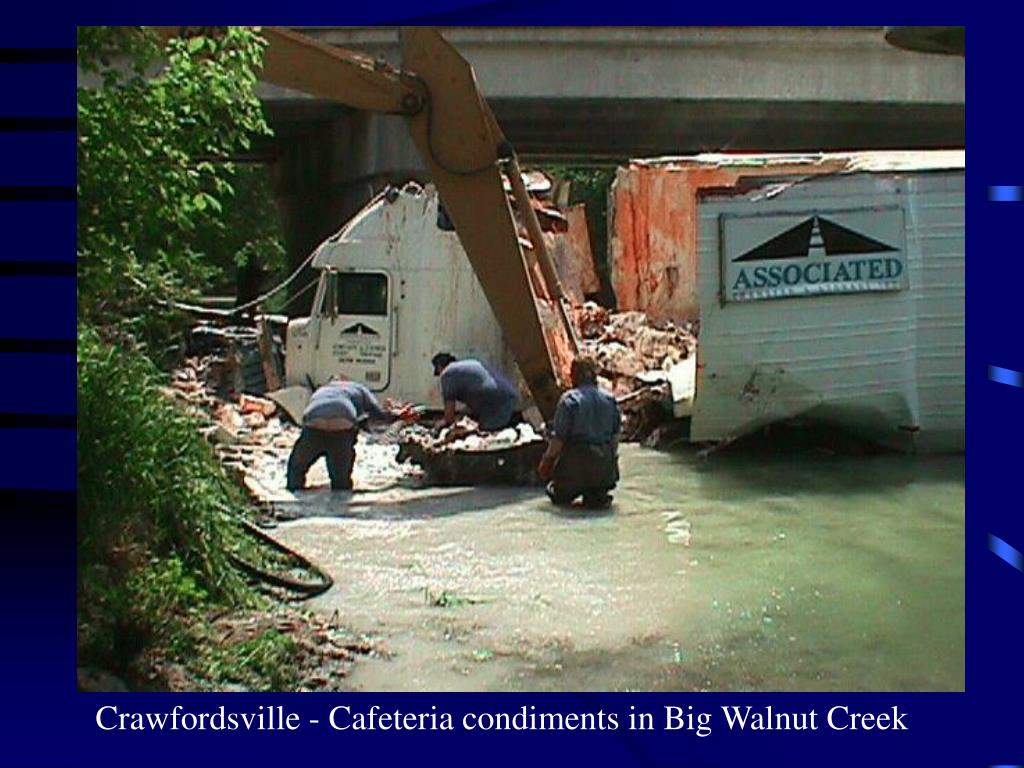

  31. Crawfordsville - Cafeteria condiments in Big Walnut Creek

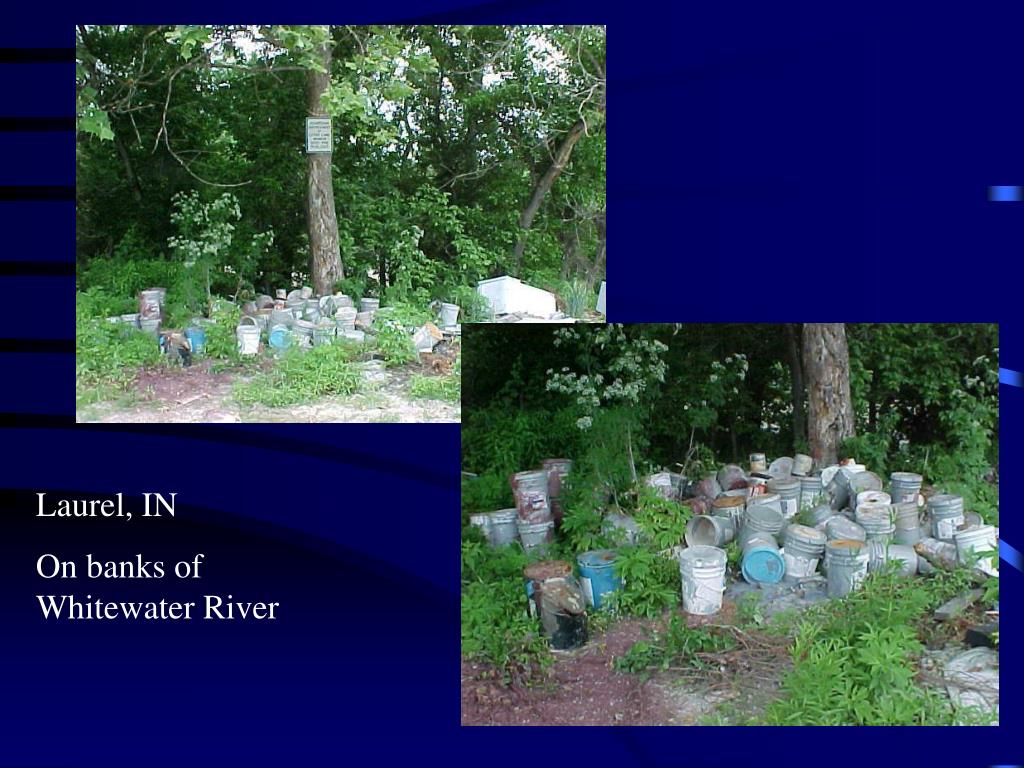

  32. Laurel, IN On banks of Whitewater River

  33. Over application of animal waste and spills to surface water

  34. Elkhart - Rail yard diesel fuel spill

  35. Surface water petroleum containment

  36. Surface water petroleum recovery

  37. Evansville - Severe surface water petroleum impact

  38. Madison County - partial tomato waste water treatment failure

  39. Mayonnaise in surface water

  40. Turf grass herbicide in surface water

  41. Waste water lagoon effluent Hog manure

  42. Crude oil in surface pond

  43. IDEM Emergency Response 888-233-7745 www.IN.gov/idem/er
