Clarity™ RP Series:50”& 67”

October 2008


Rp series overview 50 67 l.jpg

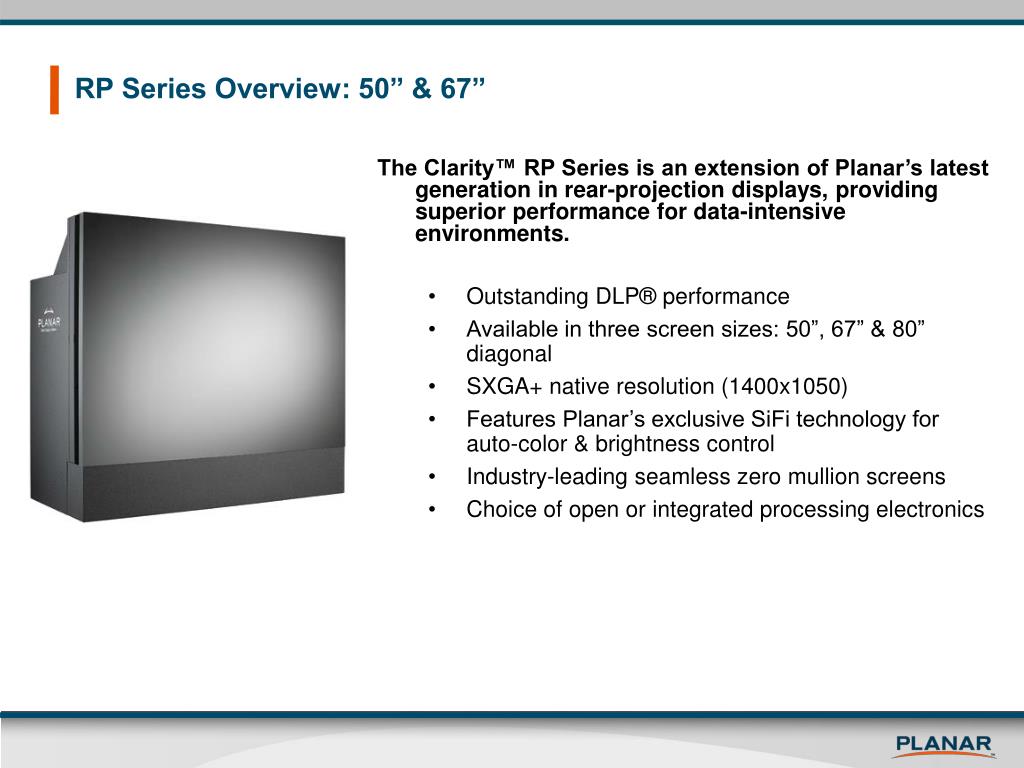

RP Series Overview: 50” & 67”

The Clarity™ RP Series is an extension of Planar’s latest generation in rear-projection displays, providing superior performance for data-intensive environments.

  • Outstanding DLP® performance

  • Available in three screen sizes: 50”, 67” & 80” diagonal

  • SXGA+ native resolution (1400x1050)

  • Features Planar’s exclusive SiFi technology for auto-color & brightness control

  • Industry-leading seamless zero mullion screens

  • Choice of open or integrated processing electronics


Rp key benefits 50 67 l.jpg
RP Key Benefits: 50” & 67”

  • Automatic color balance with built-in color sensor and algorithms (SiFi option)

  • Zero mullion screen design provides a rigid, flat surface with nearly invisible seams

  • Motorized alignment (engine alignment via remote and menus)

  • Optional Dual Lamp with lamp changer

  • Front access, zero rear clearance required (vertical cooling paths)

  • Modular design for easier component replacement (optical engine, ballast, power supply, input module)

  • Positive Pressure design

  • Remote control with OSD Menus

  • High-bright LED’s for visual diagnostics and troubleshooting


Open electronics l.jpg
Open Electronics

RP Open System: Electronics architecture similar to any multi-sync monitor and is compatible with a wide variety of sources and resolutions.

  • Uses our latest graphics chipset

    • Improved Scaler Sharpness

    • Same OSD look and feel

    • Each display size utilizes the same Electronics Module, with different firmware

  • Standard Inputs:

    • Two Analog D-Sub 15 pin Input and Loop Through

    • DVI-D Input and Loop Through

  • Optional Video Input Module (VIM)

    • Component Input (3 RCA connectors)

    • Composite (1 RCA connector)

    • S-video

    • SDI Input (1 BNC connector)

    • SDI Output (1 BNC connector)

  • Big Picture internal processing

  • SiFi auto-color balance can be scheduled through the WallNet device


Sifi auto color brightness control and auto switching lamp l.jpg

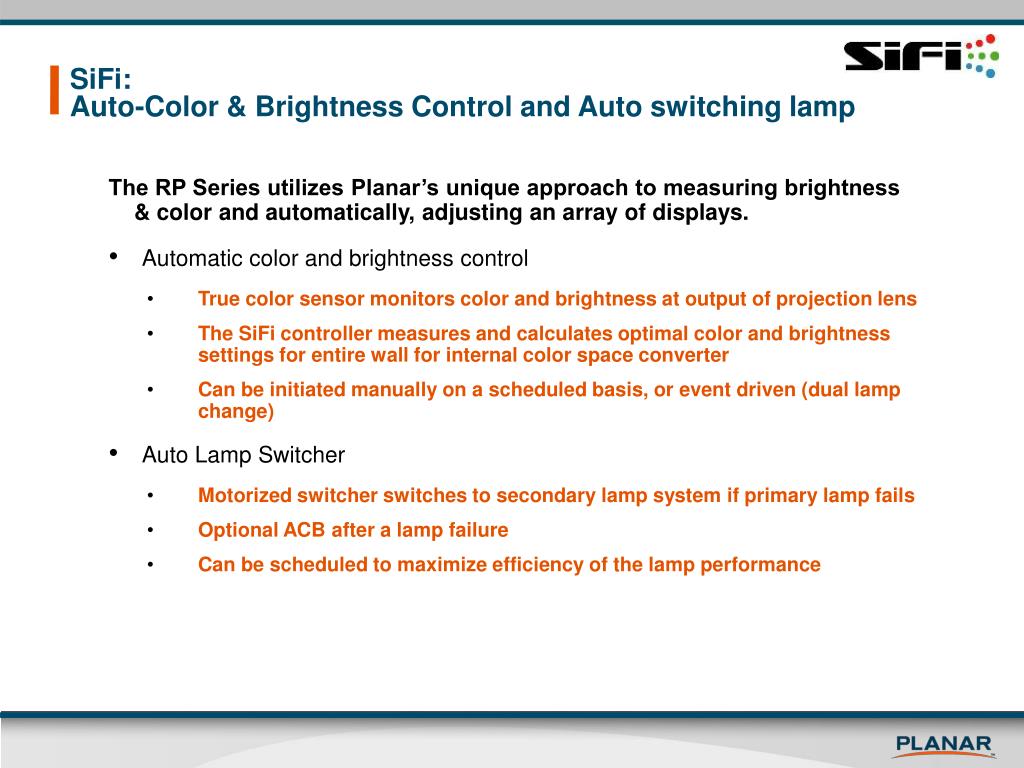

SiFi:Auto-Color & Brightness Control and Auto switching lamp

The RP Series utilizes Planar’s unique approach to measuring brightness & color and automatically, adjusting an array of displays.

  • Automatic color and brightness control

    • True color sensor monitors color and brightness at output of projection lens

    • The SiFi controller measures and calculates optimal color and brightness settings for entire wall for internal color space converter

    • Can be initiated manually on a scheduled basis, or event driven (dual lamp change)

  • Auto Lamp Switcher

    • Motorized switcher switches to secondary lamp system if primary lamp fails

    • Optional ACB after a lamp failure

    • Can be scheduled to maximize efficiency of the lamp performance


Lamp options l.jpg
Lamp Options

The RP Series gives you the flexibility of lamp options to match the needs of your application.

  • Single

  • Dual Lamp Changer

  • There are two lamp system configurations:

    • Optimal Life (100W)=10,000 hours

    • Optimal Brightness(120W) = 6,000 hours

    • Can be set through the on-screen menu of control software


Two screen options l.jpg
Two Screen Options

The RP Series utilizes Planar’s industry-leading screen technology with no stitching or staples & no bowing or pouching.

  • High-Brightness Acrylic (4.0 Gain)-Preferred

    • Provides brighter, higher contrast image quality

    • Recommended for any wall less than 3 displays high

  • Wide-View Acrylic (1.0 Gain)

    • Provides a larger viewing angle

    • Recommended for walls that are 3 displays high and above

  • Screen bracket choices

    • Universal and Rear Service

    • Custom curved screen brackets – Simplifies the installation of curved video walls



Rp optical specs comparison 50 67 l.jpg
RP Optical Specs Comparison: 50” & 67”

  • Specified without SLR (White boost)

  • Typical Nits (cd/m2) measurements


3d models 50 67 l.jpg
3D Models: 50” & 67”

Screen

Electronics Module

Screen Brace

Intake Air


C50rp series competitive comparison l.jpg
c50RP Series Competitive Comparison

* Typical w/o White Boost ( ~28% increase with White Boost)

** With White boost


C67rp series competitive comparison l.jpg
c67RP Series Competitive Comparison

* Typical w/o White Boost ( ~28% increase with White Boost)

** With White boost


Sp series vs rp series l.jpg

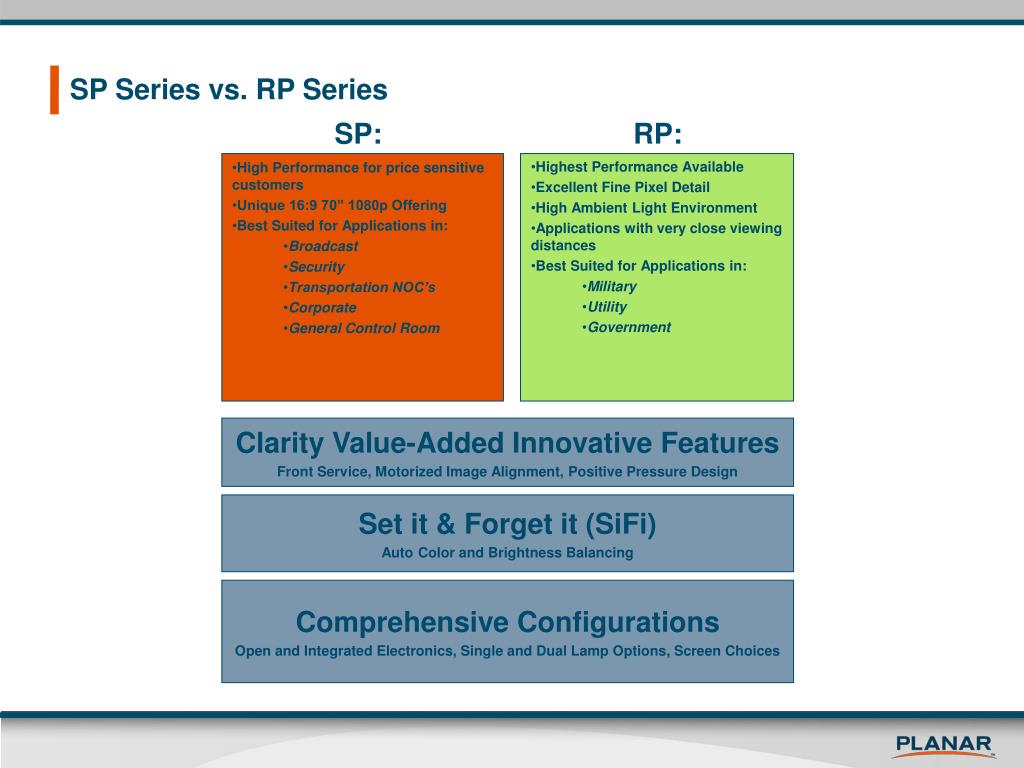

SP Series vs. RP Series

SP:

RP:

  • High Performance for price sensitive customers

  • Unique 16:9 70” 1080p Offering

  • Best Suited for Applications in:

    • Broadcast

    • Security

    • Transportation NOC’s

    • Corporate

    • General Control Room

  • Highest Performance Available

  • Excellent Fine Pixel Detail

  • High Ambient Light Environment

  • Applications with very close viewing distances

  • Best Suited for Applications in:

    • Military

    • Utility

    • Government

Clarity Value-Added Innovative Features

Front Service, Motorized Image Alignment, Positive Pressure Design

Set it & Forget it (SiFi)

Auto Color and Brightness Balancing

Comprehensive Configurations

Open and Integrated Electronics, Single and Dual Lamp Options, Screen Choices
