wind energy

Wind Energy

Ally Keefe, Dave Mccabe, Geoff Frazier, Ryan Whalen, Meghan Moroni, Jeb Stuart, Brianna Parke, Peter Virchick

general info

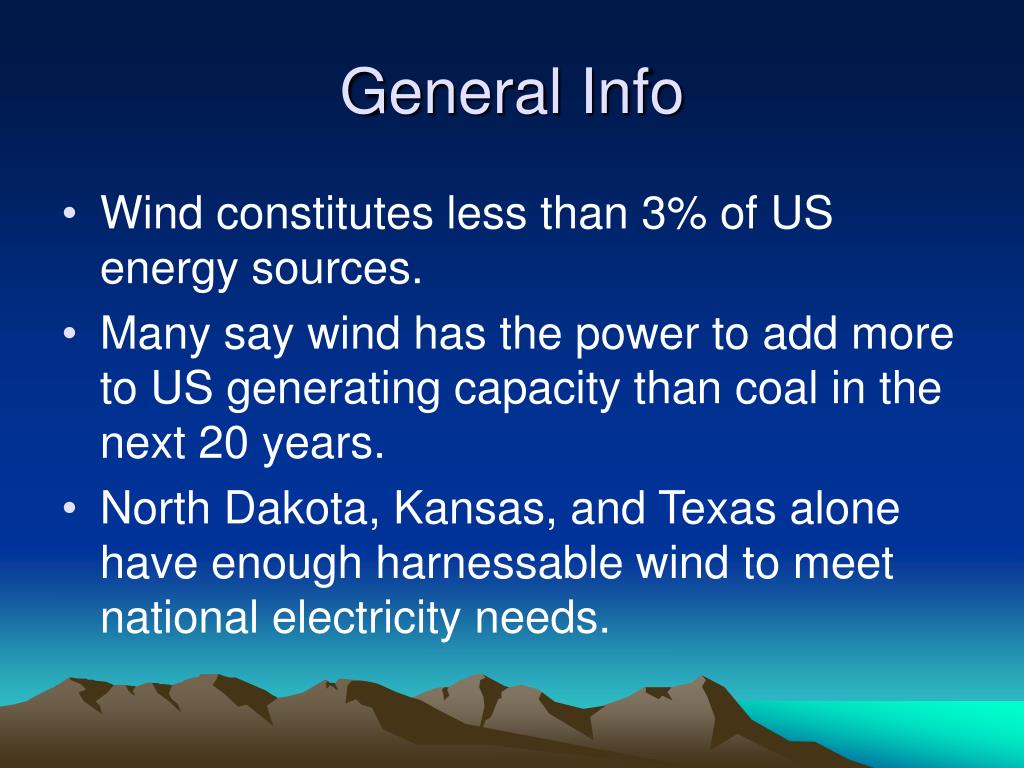

General Info
  • Wind constitutes less than 3% of US energy sources.
  • Many say wind has the power to add more to US generating capacity than coal in the next 20 years.
  • North Dakota, Kansas, and Texas alone have enough harnessable wind to meet national electricity needs.
history of wind power

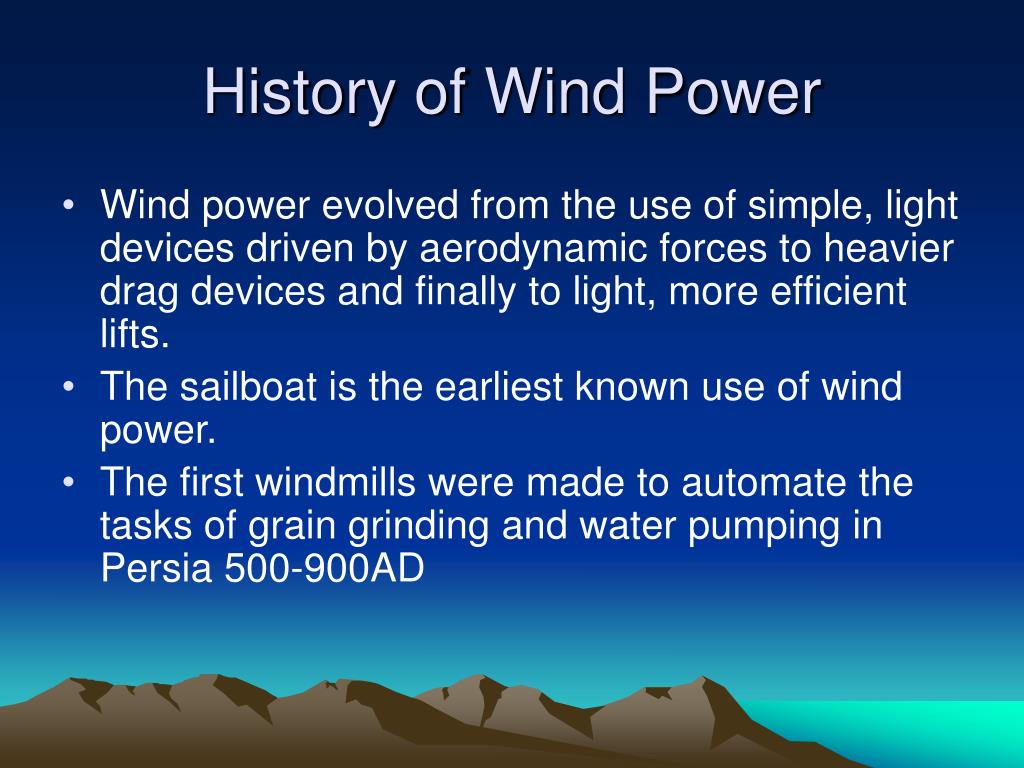

History of Wind Power
  • Wind power evolved from the use of simple, light devices driven by aerodynamic forces to heavier drag devices and finally to light, more efficient lifts.
  • The sailboat is the earliest known use of wind power.
  • The first windmills were made to automate the tasks of grain grinding and water pumping in Persia 500-900AD

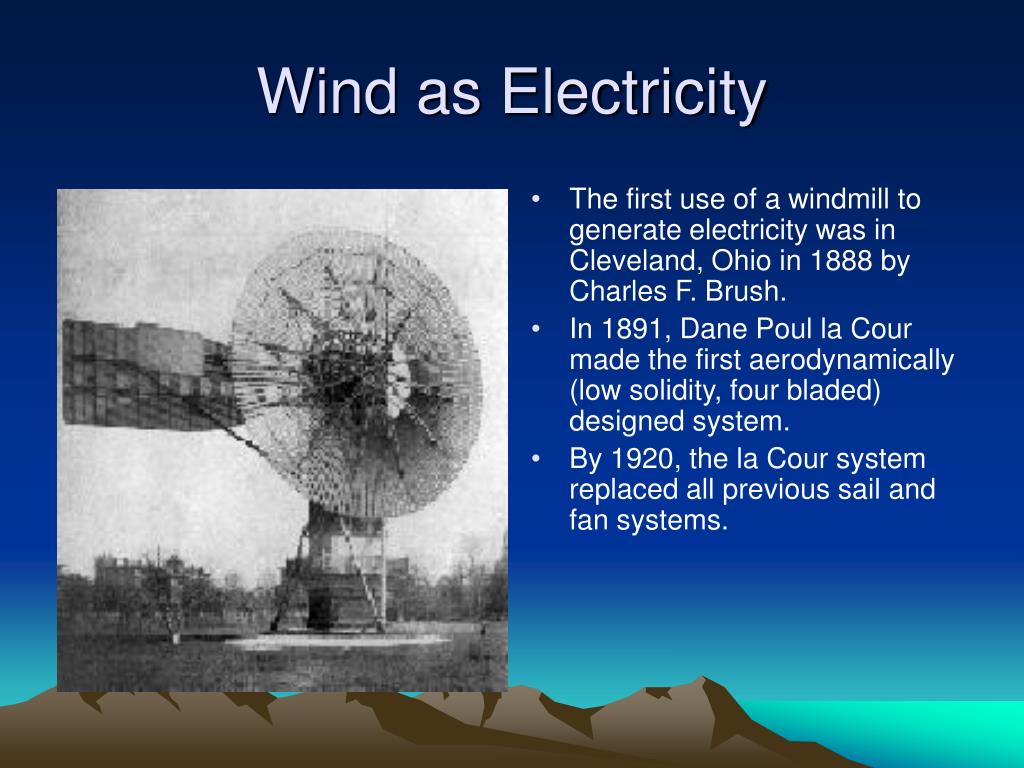

wind as electricity
Wind as Electricity
  • The first use of a windmill to generate electricity was in Cleveland, Ohio in 1888 by Charles F. Brush.
  • In 1891, Dane Poul la Cour made the first aerodynamically (low solidity, four bladed) designed system.
  • By 1920, the la Cour system replaced all previous sail and fan systems.

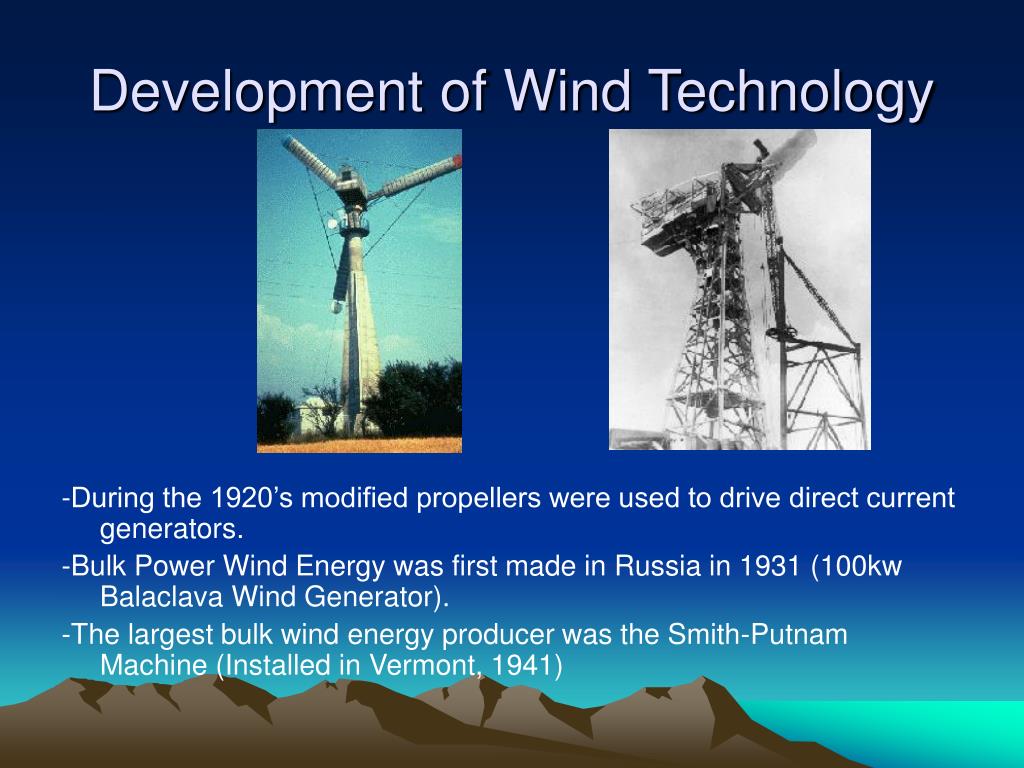

development of wind technology
Development of Wind Technology

-During the 1920’s modified propellers were used to drive direct current generators.

-Bulk Power Wind Energy was first made in Russia in 1931 (100kw Balaclava Wind Generator).

-The largest bulk wind energy producer was the Smith-Putnam Machine (Installed in Vermont, 1941)

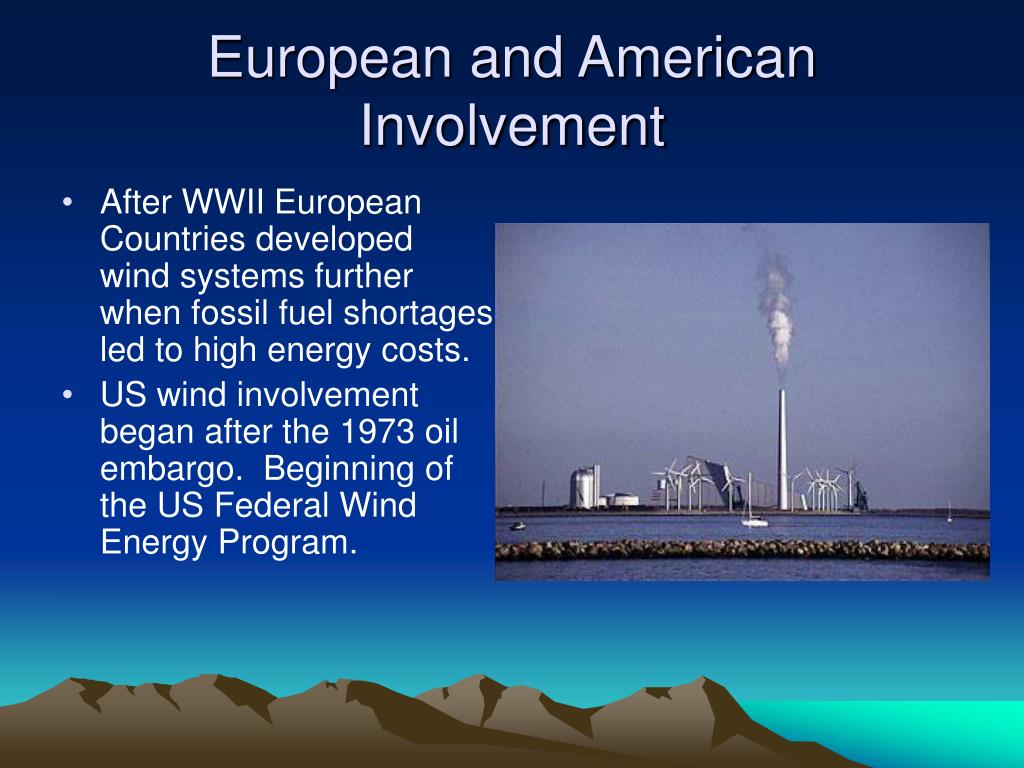

european and american involvement
European and American Involvement
  • After WWII European Countries developed wind systems further when fossil fuel shortages led to high energy costs.
  • US wind involvement began after the 1973 oil embargo. Beginning of the US Federal Wind Energy Program.
where does the wind come from

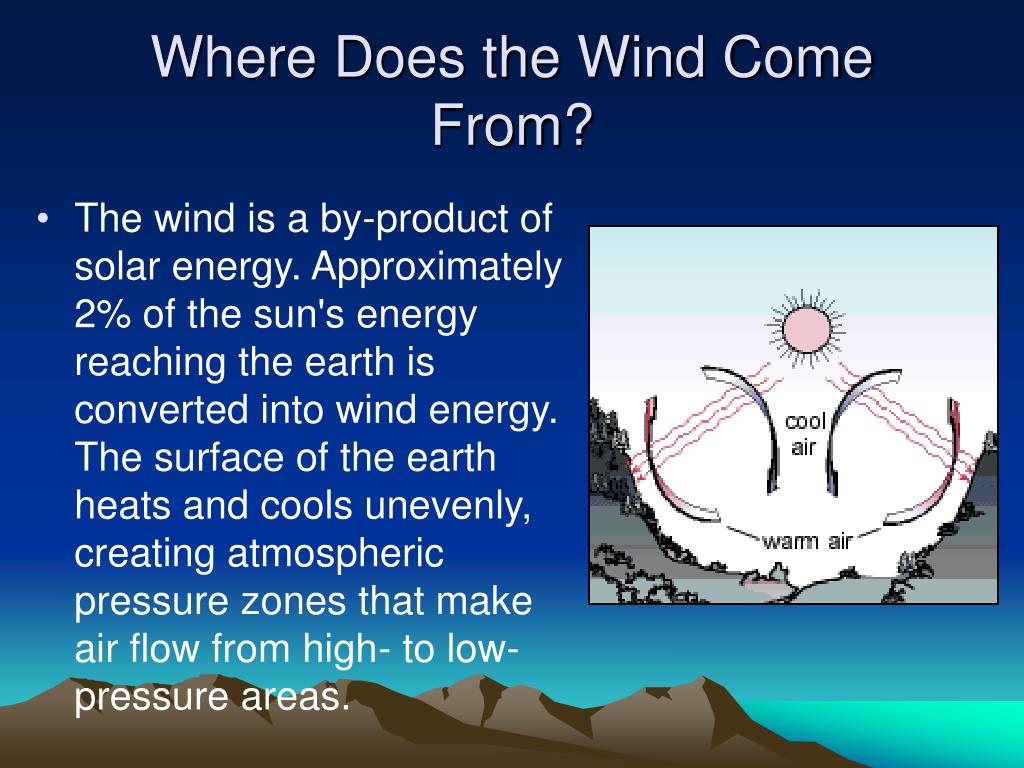

Where Does the Wind Come From?
  • The wind is a by-product of solar energy. Approximately 2% of the sun's energy reaching the earth is converted into wind energy. The surface of the earth heats and cools unevenly, creating atmospheric pressure zones that make air flow from high- to low-pressure areas.
slide9

Wind Power

  • Wind power is a measure of the energy available in the wind. It is a function of the cube (third power) of the wind speed. If the wind speed is doubled, power in the wind increases by a factor of eight (23). This relationship means that small differences in wind speed lead to large differences in power.
equation of wind power

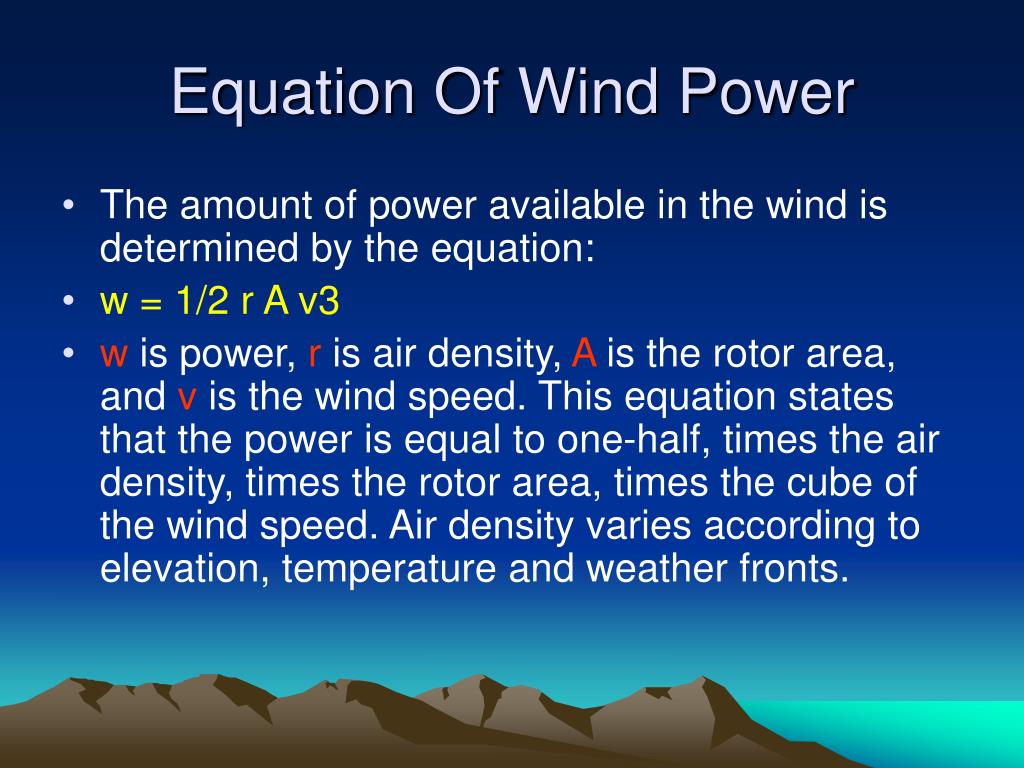

Equation Of Wind Power
  • The amount of power available in the wind is determined by the equation:
  • w = 1/2 r A v3
  • w is power, r is air density, A is the rotor area, and v is the wind speed. This equation states that the power is equal to one-half, times the air density, times the rotor area, times the cube of the wind speed. Air density varies according to elevation, temperature and weather fronts.
vertical axis turbines

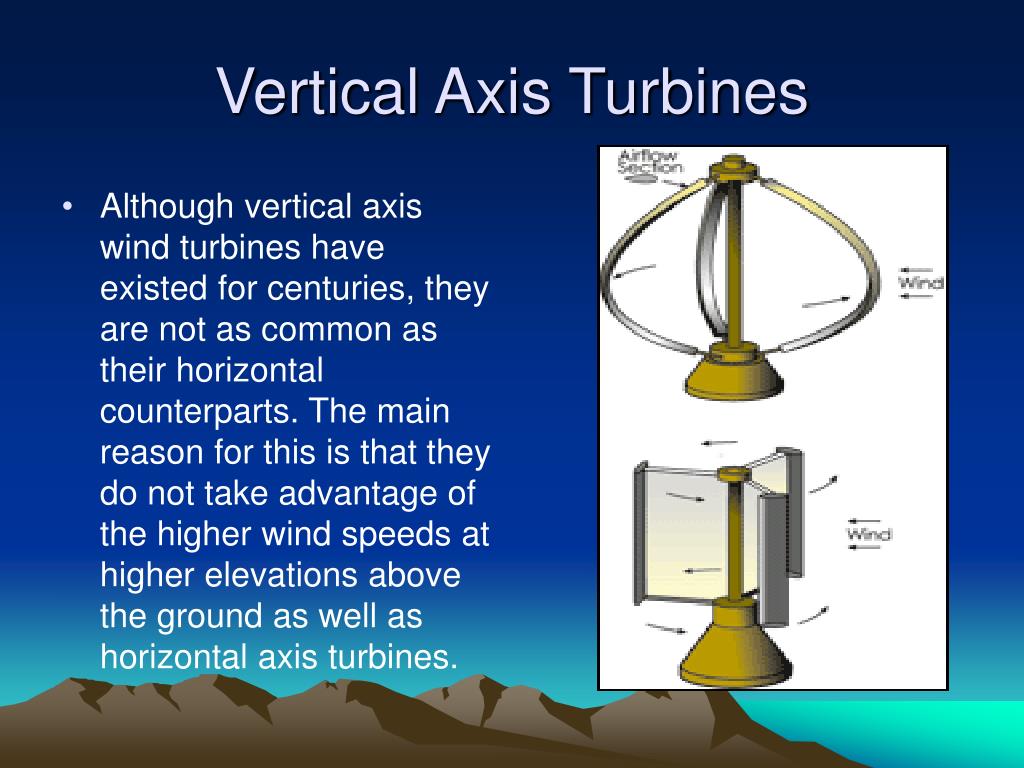

Vertical Axis Turbines
  • Although vertical axis wind turbines have existed for centuries, they are not as common as their horizontal counterparts. The main reason for this is that they do not take advantage of the higher wind speeds at higher elevations above the ground as well as horizontal axis turbines.
horizontal axis turbine

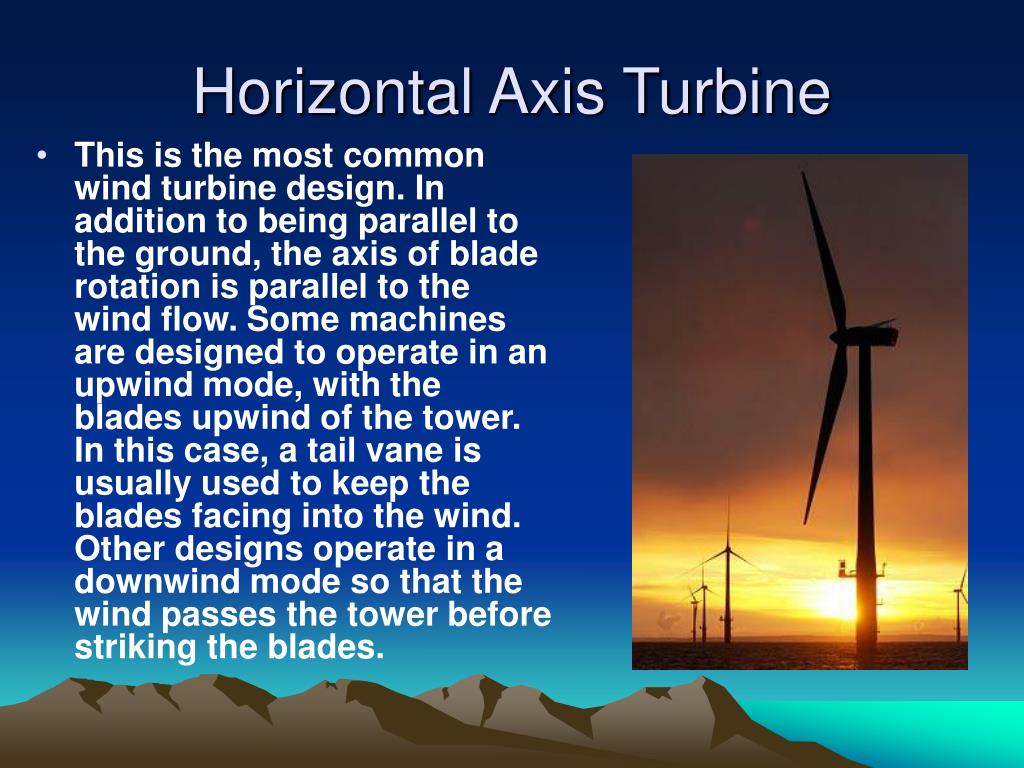

Horizontal Axis Turbine
  • This is the most common wind turbine design. In addition to being parallel to the ground, the axis of blade rotation is parallel to the wind flow. Some machines are designed to operate in an upwind mode, with the blades upwind of the tower. In this case, a tail vane is usually used to keep the blades facing into the wind. Other designs operate in a downwind mode so that the wind passes the tower before striking the blades.

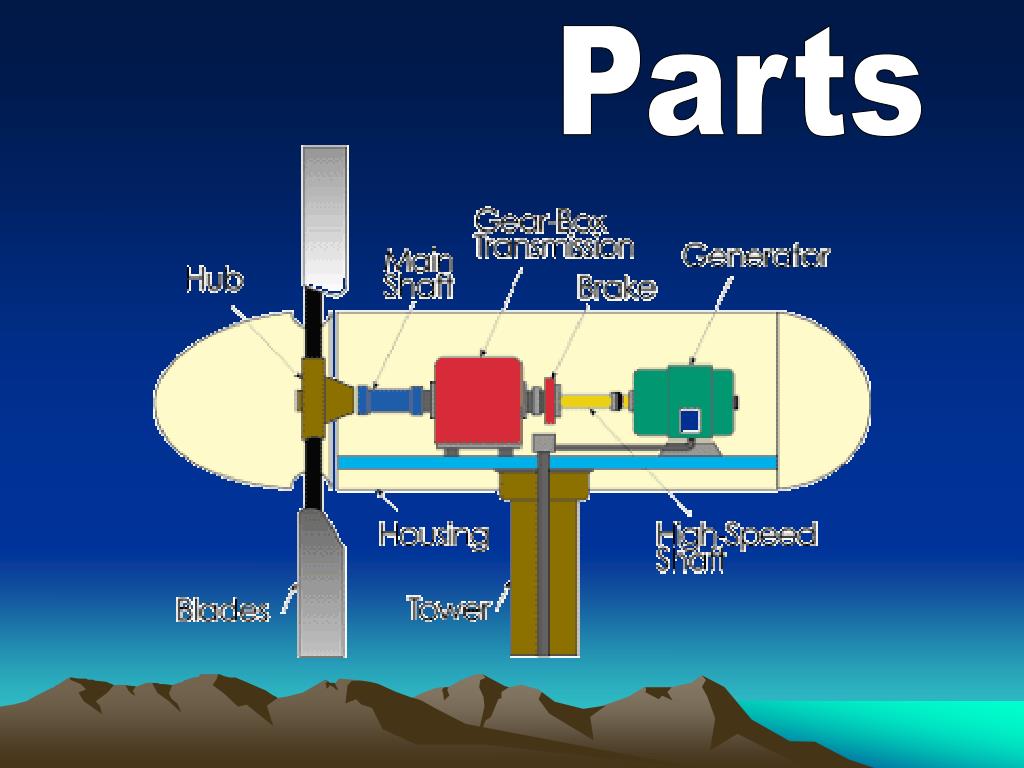

slide14

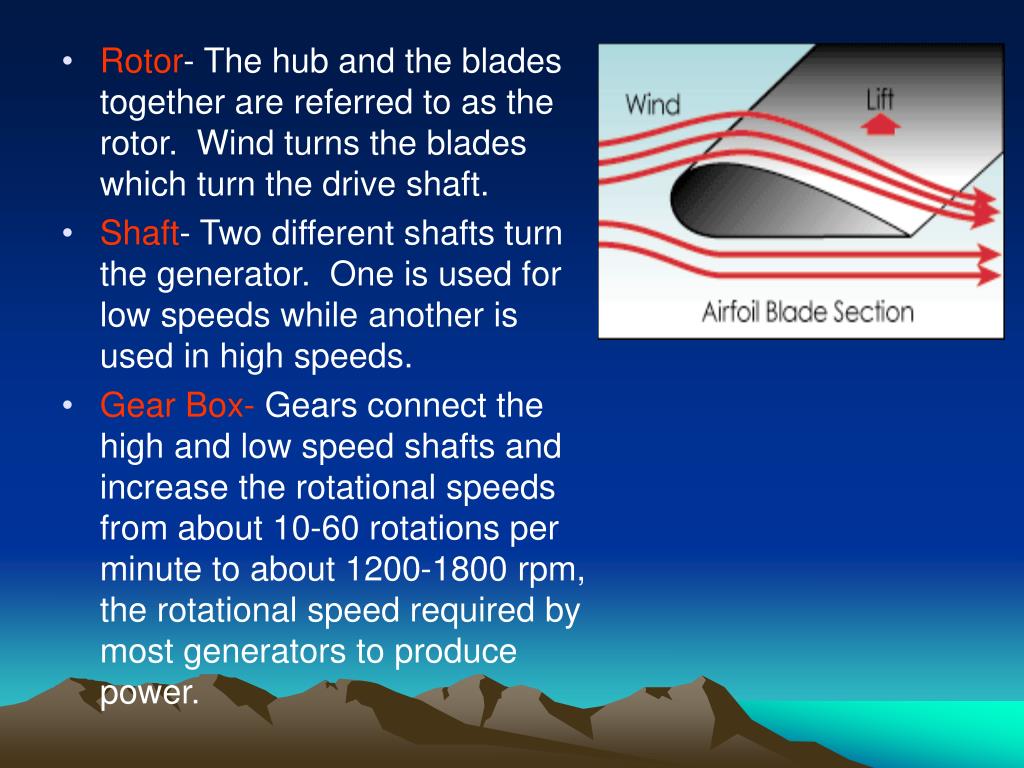

Rotor- The hub and the blades together are referred to as the rotor. Wind turns the blades which turn the drive shaft.
  • Shaft- Two different shafts turn the generator. One is used for low speeds while another is used in high speeds.
  • Gear Box- Gears connect the high and low speed shafts and increase the rotational speeds from about 10-60 rotations per minute to about 1200-1800 rpm, the rotational speed required by most generators to produce power.
slide15

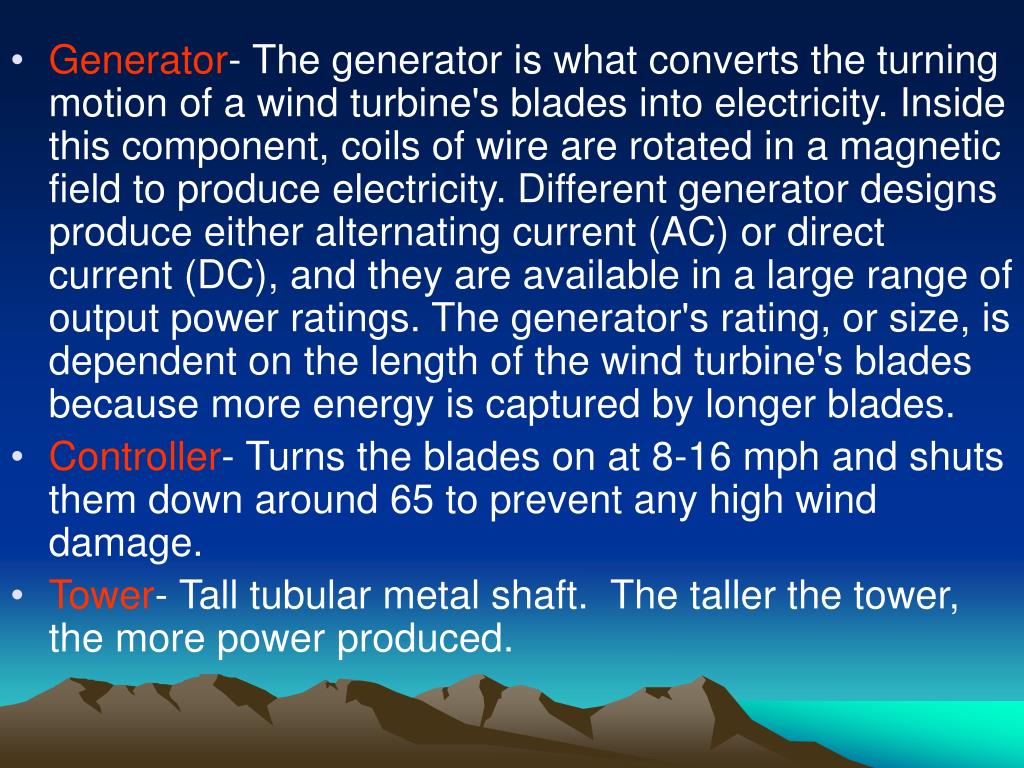

Generator- The generator is what converts the turning motion of a wind turbine's blades into electricity. Inside this component, coils of wire are rotated in a magnetic field to produce electricity. Different generator designs produce either alternating current (AC) or direct current (DC), and they are available in a large range of output power ratings. The generator's rating, or size, is dependent on the length of the wind turbine's blades because more energy is captured by longer blades.
  • Controller- Turns the blades on at 8-16 mph and shuts them down around 65 to prevent any high wind damage.
  • Tower- Tall tubular metal shaft. The taller the tower, the more power produced.

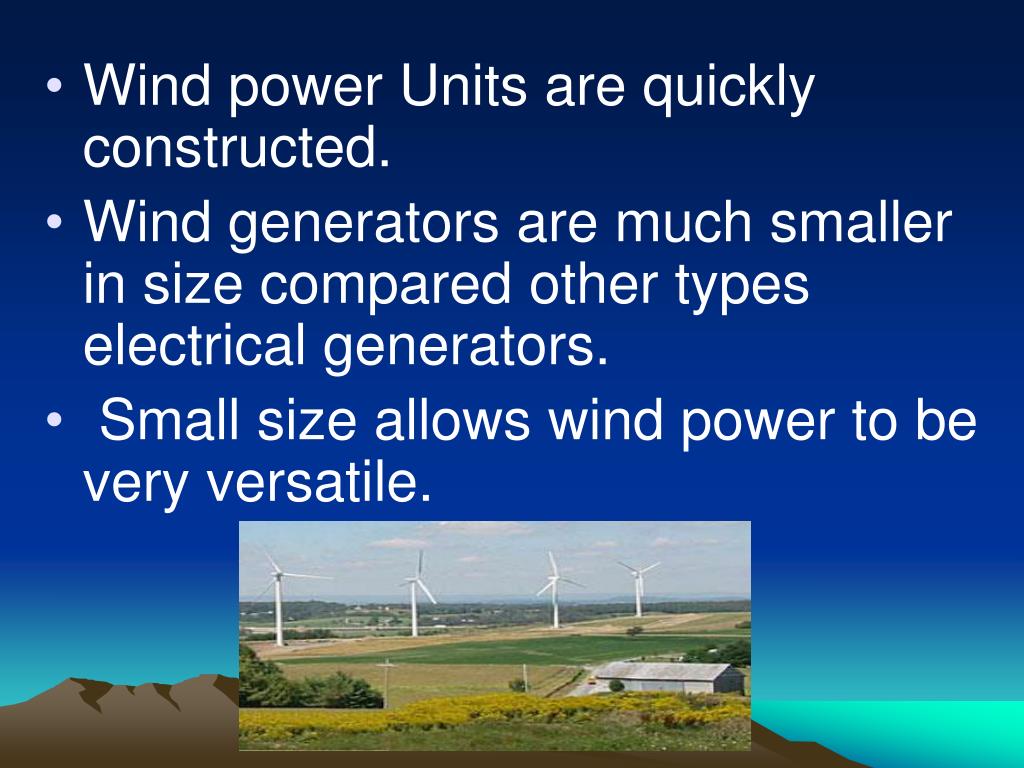

slide18
Wind power Units are quickly constructed.
  • Wind generators are much smaller in size compared other types electrical generators.
  • Small size allows wind power to be very versatile.
slide19

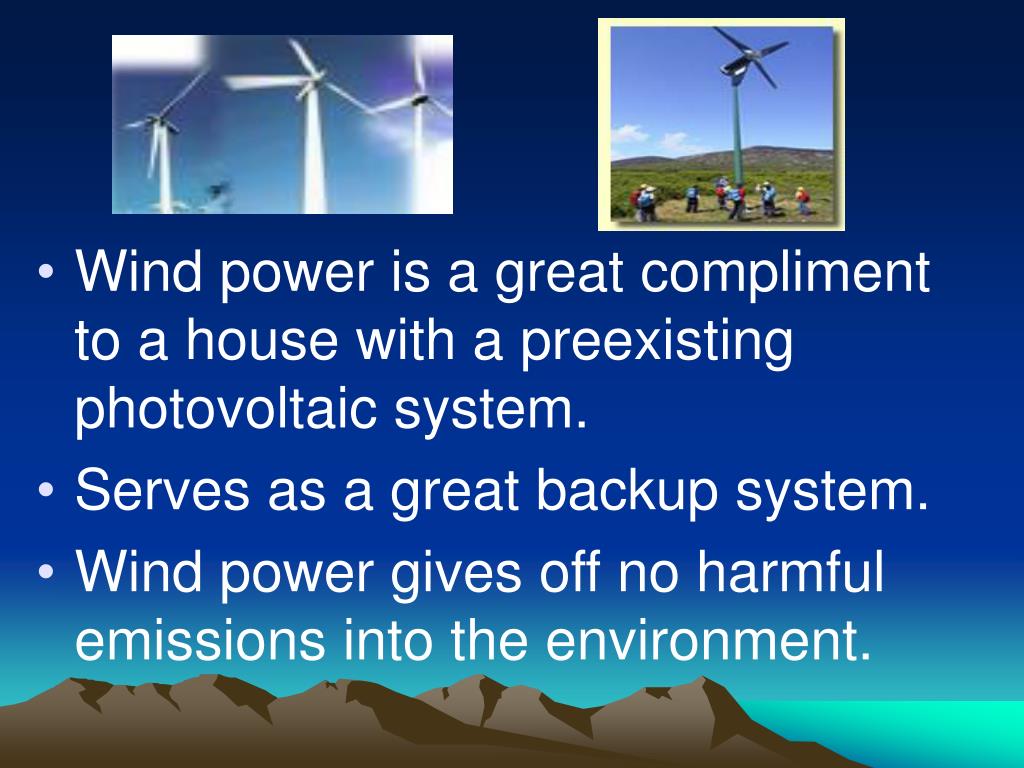

Wind power is a great compliment to a house with a preexisting photovoltaic system.
  • Serves as a great backup system.
  • Wind power gives off no harmful emissions into the environment.

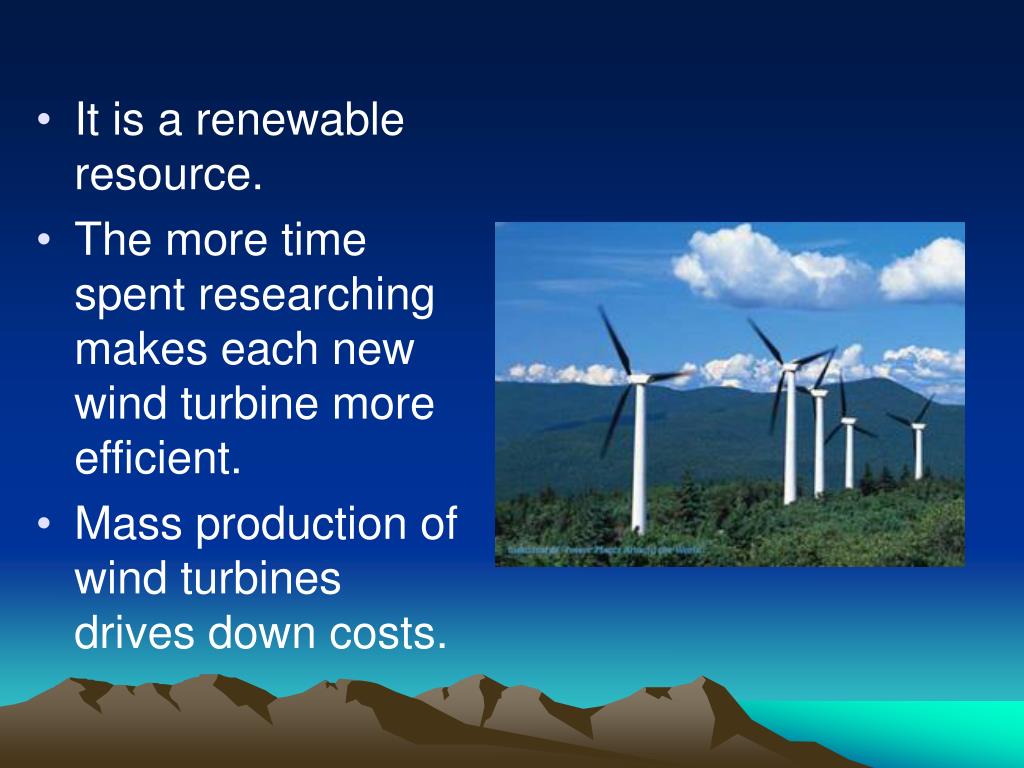

slide20
It is a renewable resource.
  • The more time spent researching makes each new wind turbine more efficient.
  • Mass production of wind turbines drives down costs.

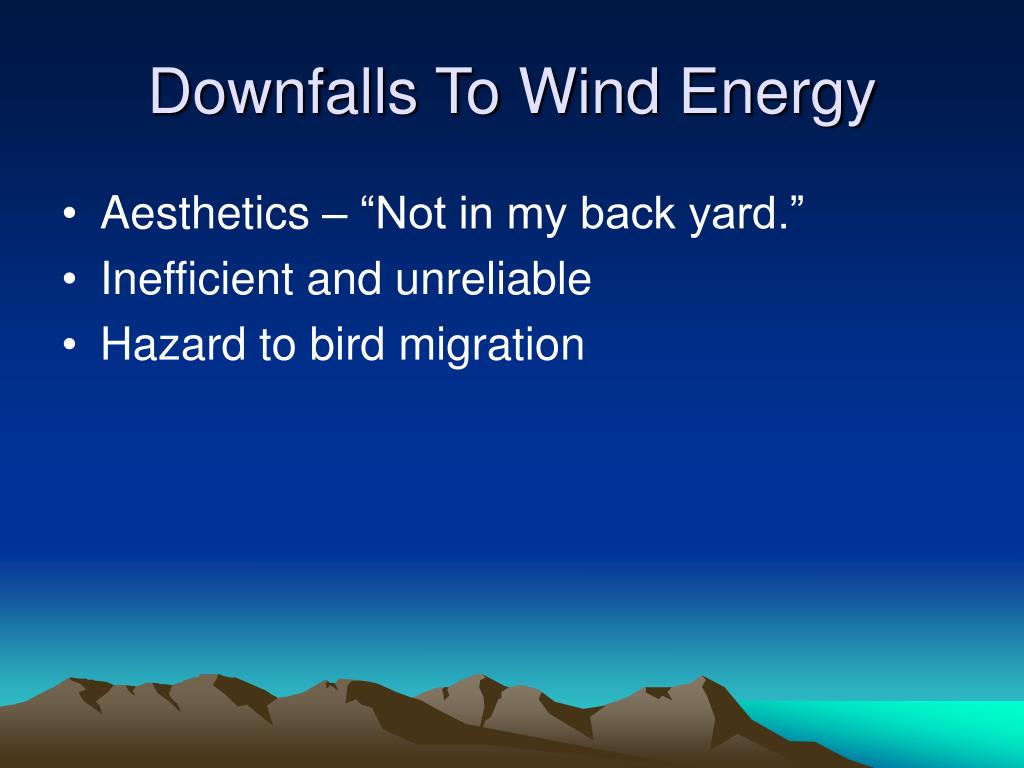

downfalls to wind energy
Downfalls To Wind Energy

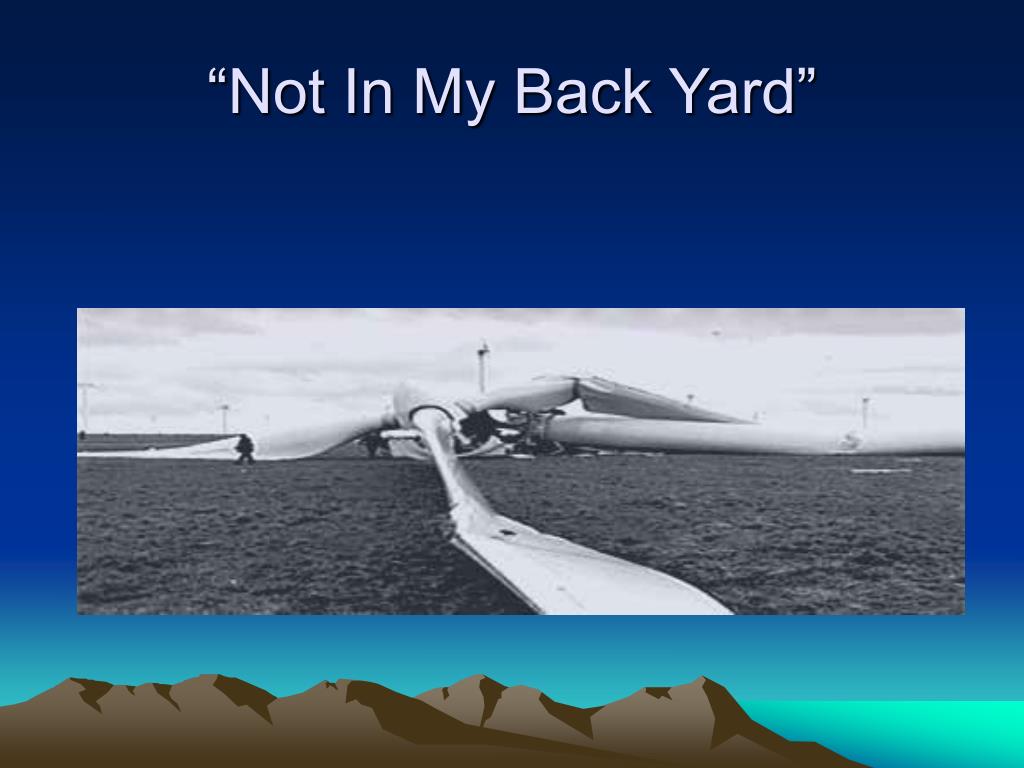

  • Aesthetics – “Not in my back yard.”
  • Inefficient and unreliable
  • Hazard to bird migration
aesthetics
Aesthetics
  • Turbines are around 50ft high and can be seen for miles
  • Wind Farms use up more space than any other form of power plant
  • Access roads will follow the construction of a wind farm
  • Houses too close to turbines will be disturbed by their noise
inefficient unreliable

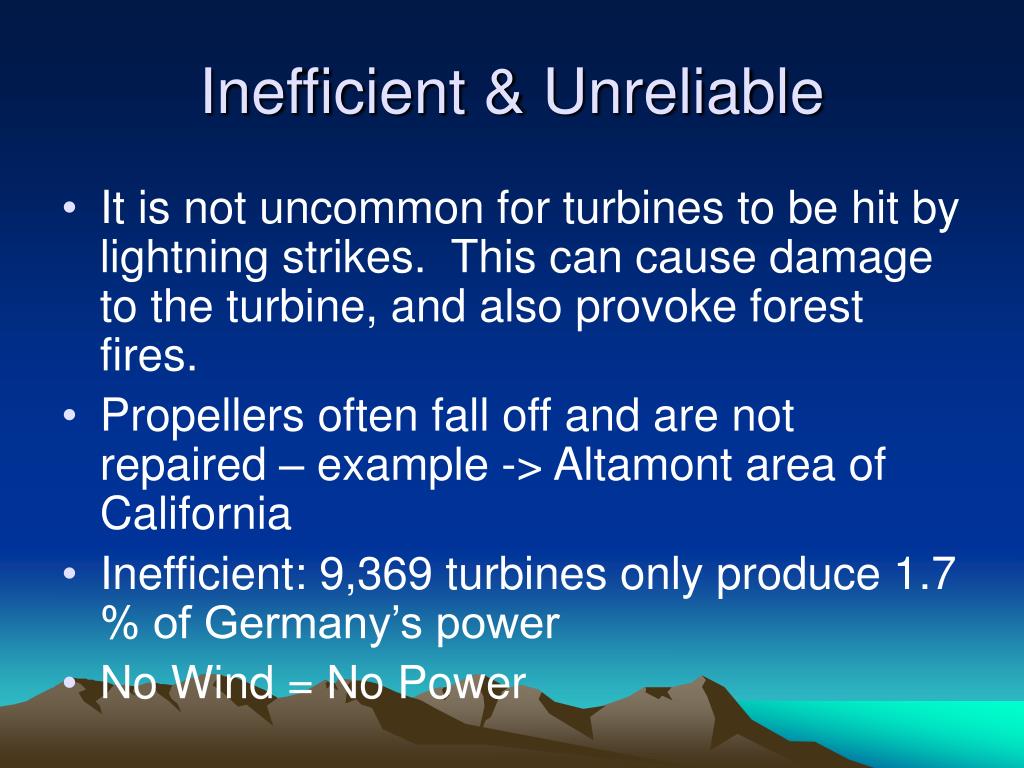

Inefficient & Unreliable
  • It is not uncommon for turbines to be hit by lightning strikes. This can cause damage to the turbine, and also provoke forest fires.
  • Propellers often fall off and are not repaired – example -> Altamont area of California
  • Inefficient: 9,369 turbines only produce 1.7 % of Germany’s power
  • No Wind = No Power
some stats on contribution and failure
Failure Stats for Germany (2000)

FAULT % TURBINES AFFECTED

Loosening of parts-------3

Cause unknown----------8

Other causes------------10

High wind----------------4

Grid failure--------------6

Control system---------20

Icing---------------------1

Component failure---44

Lightning---------------4

Some Stats on Contribution and Failure

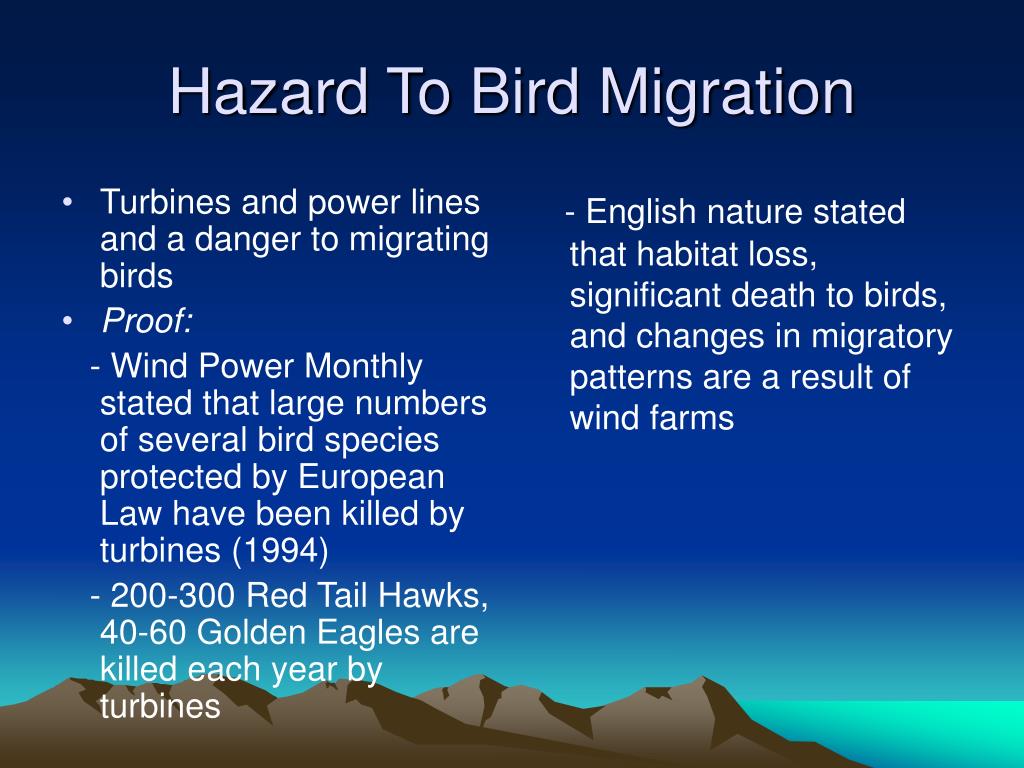

hazard to bird migration
Turbines and power lines and a danger to migrating birds

Proof:

- Wind Power Monthly stated that large numbers of several bird species protected by European Law have been killed by turbines (1994)

- 200-300 Red Tail Hawks, 40-60 Golden Eagles are killed each year by turbines

- English nature stated that habitat loss, significant death to birds, and changes in migratory patterns are a result of wind farms

Hazard To Bird Migration
sources

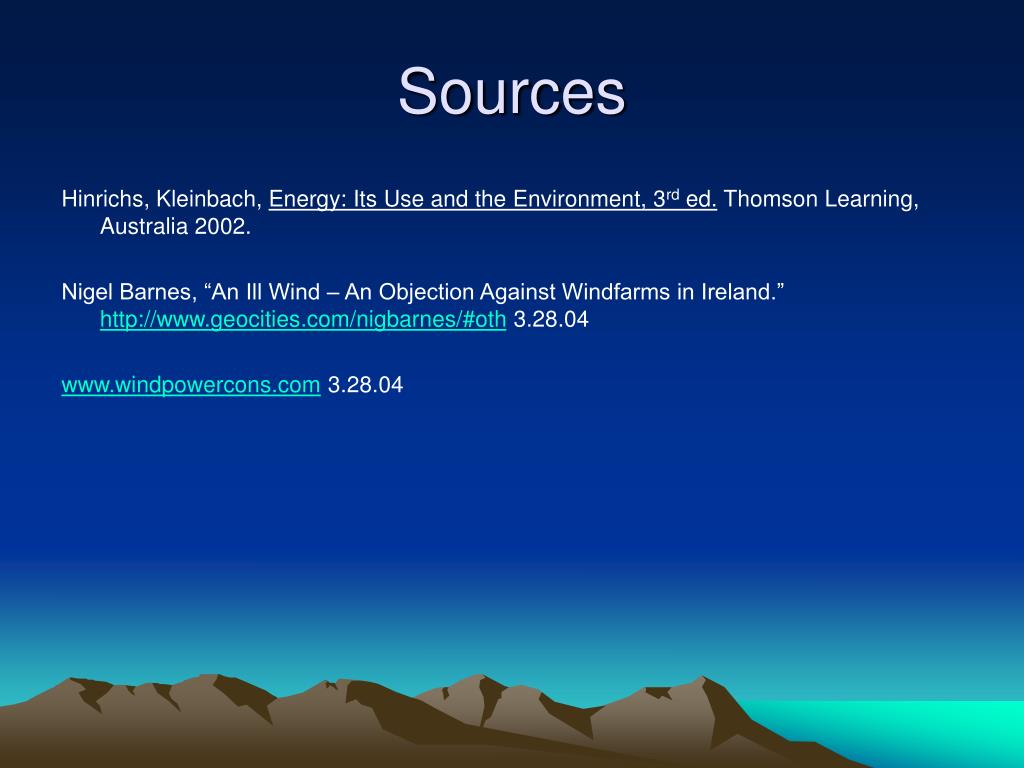

Sources

Hinrichs, Kleinbach, Energy: Its Use and the Environment, 3rd ed. Thomson Learning, Australia 2002.

Nigel Barnes, “An Ill Wind – An Objection Against Windfarms in Ireland.” http://www.geocities.com/nigbarnes/#oth 3.28.04

www.windpowercons.com 3.28.04

slide28

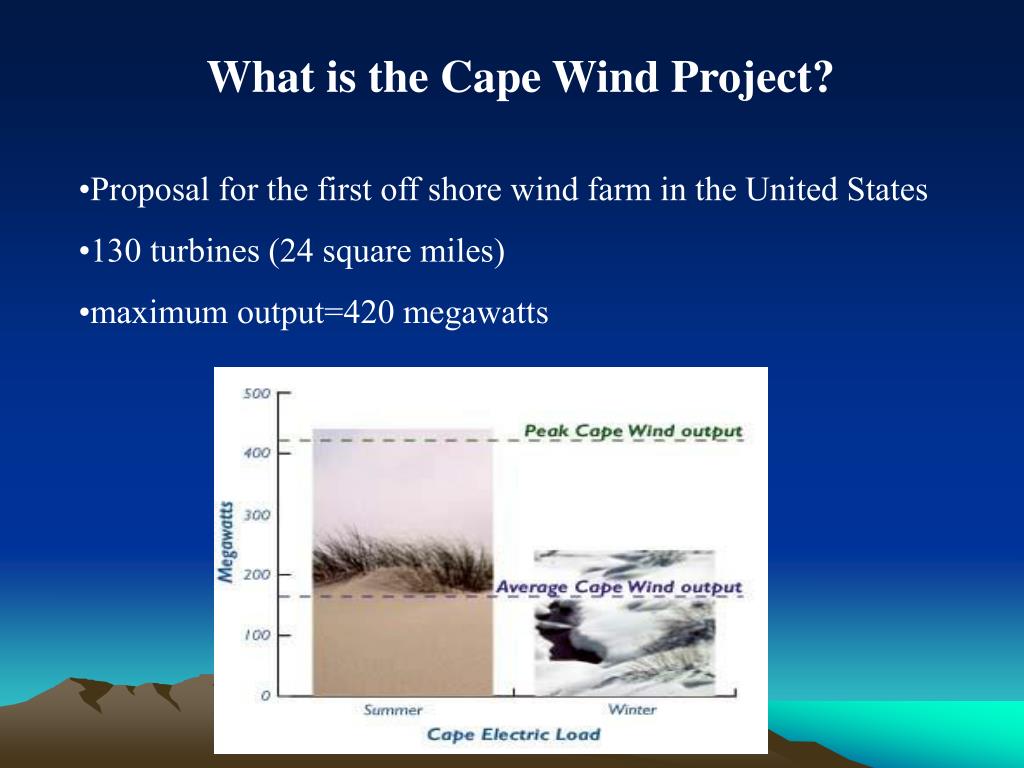

What is the Cape Wind Project?

•Proposal for the first off shore wind farm in the United States

•130 turbines (24 square miles)

•maximum output=420 megawatts

slide29

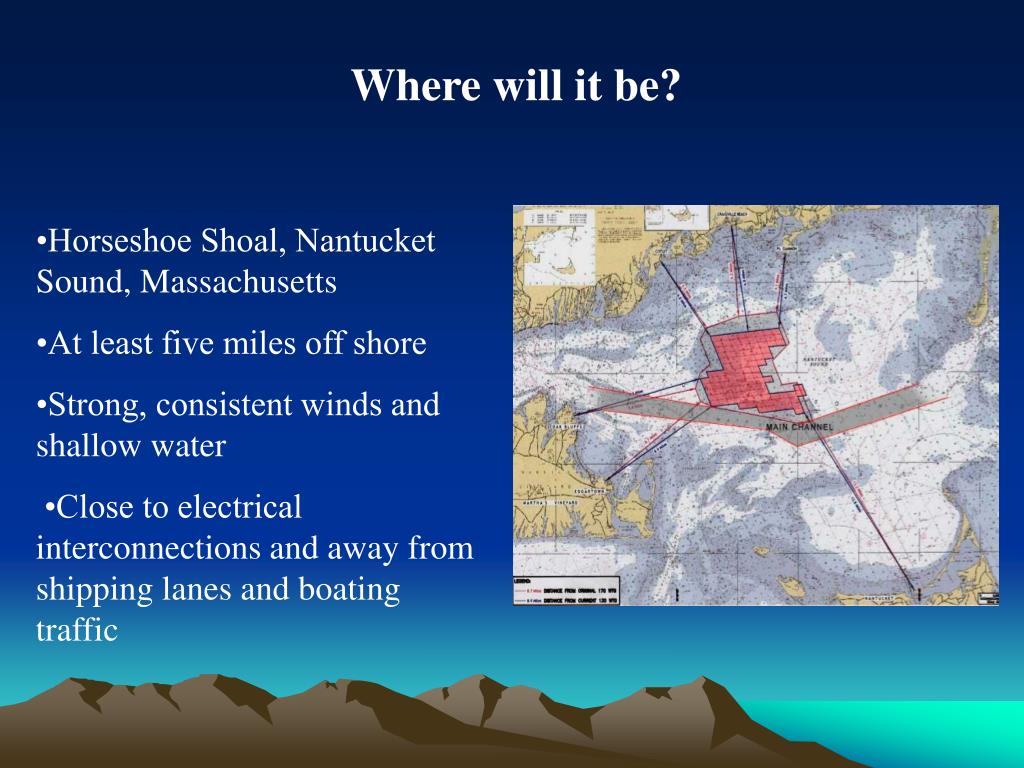

Where will it be?

•Horseshoe Shoal, Nantucket Sound, Massachusetts

•At least five miles off shore

•Strong, consistent winds and shallow water

•Close to electrical interconnections and away from shipping lanes and boating traffic

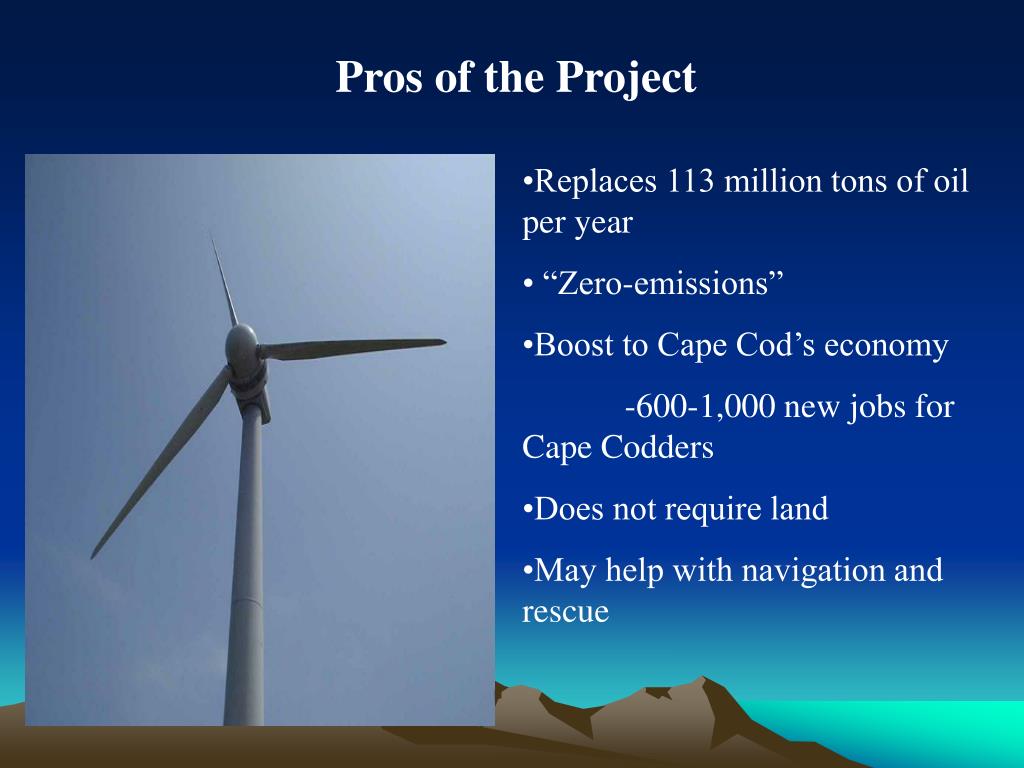

slide30

Pros of the Project

•Replaces 113 million tons of oil per year

• “Zero-emissions”

•Boost to Cape Cod’s economy

-600-1,000 new jobs for Cape Codders

•Does not require land

•May help with navigation and rescue

slide31

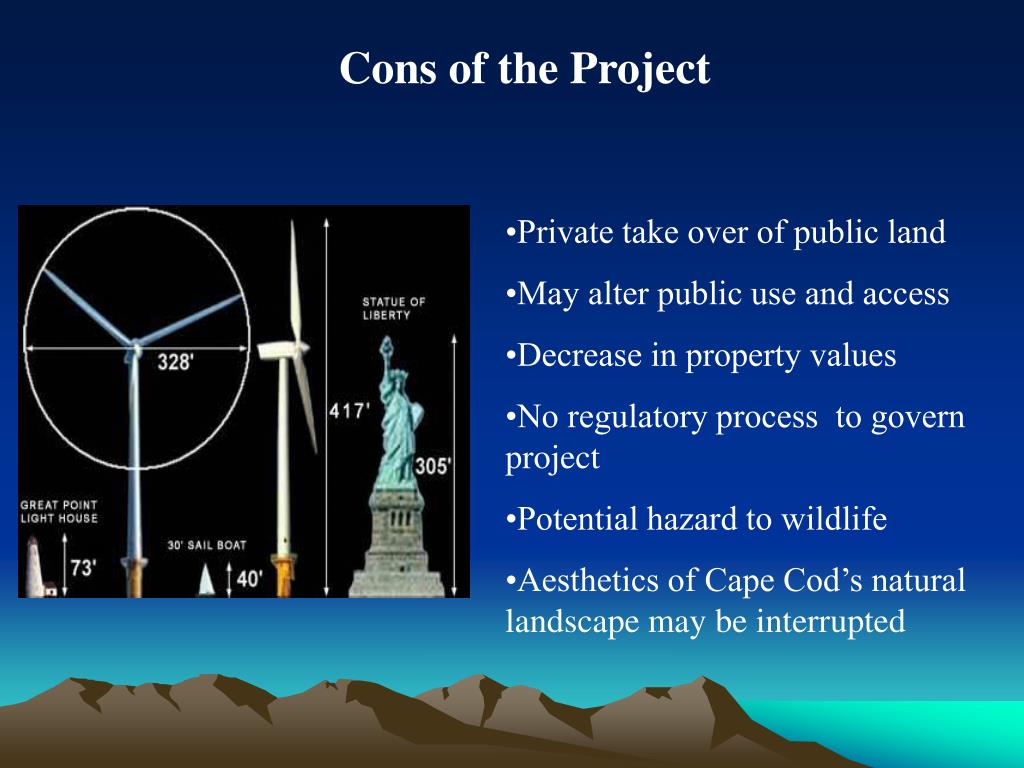

Cons of the Project

•Private take over of public land

•May alter public use and access

•Decrease in property values

•No regulatory process to govern project

•Potential hazard to wildlife

•Aesthetics of Cape Cod’s natural landscape may be interrupted

slide32

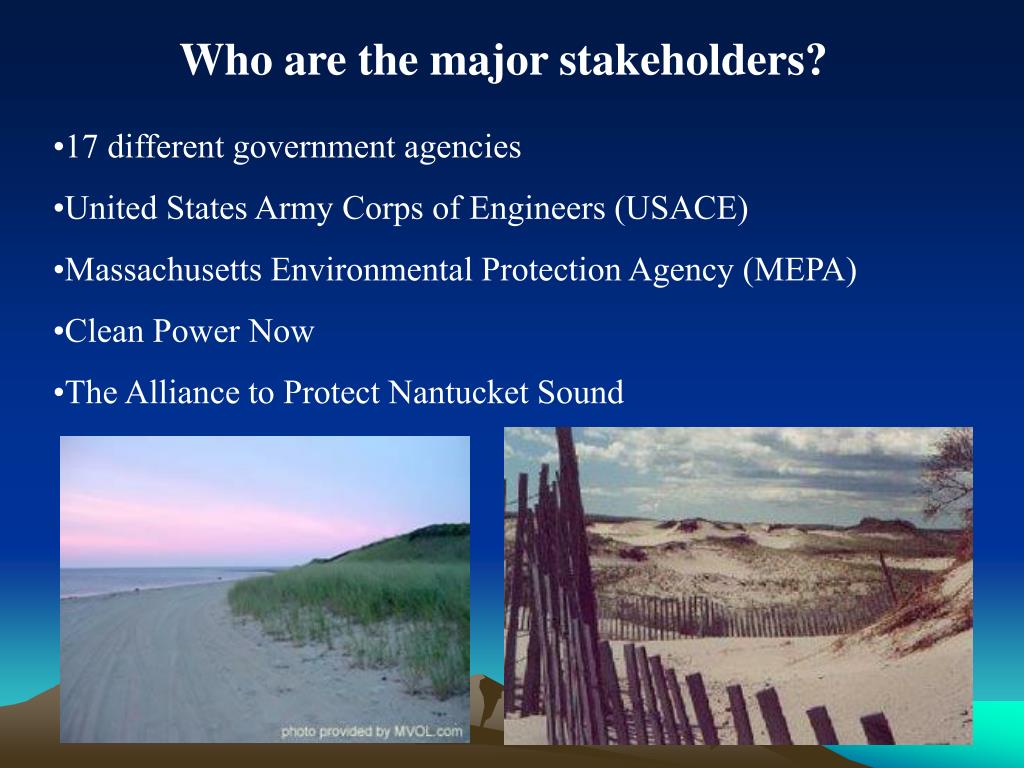

Who are the major stakeholders?

•17 different government agencies

•United States Army Corps of Engineers (USACE)

•Massachusetts Environmental Protection Agency (MEPA)

•Clean Power Now

•The Alliance to Protect Nantucket Sound

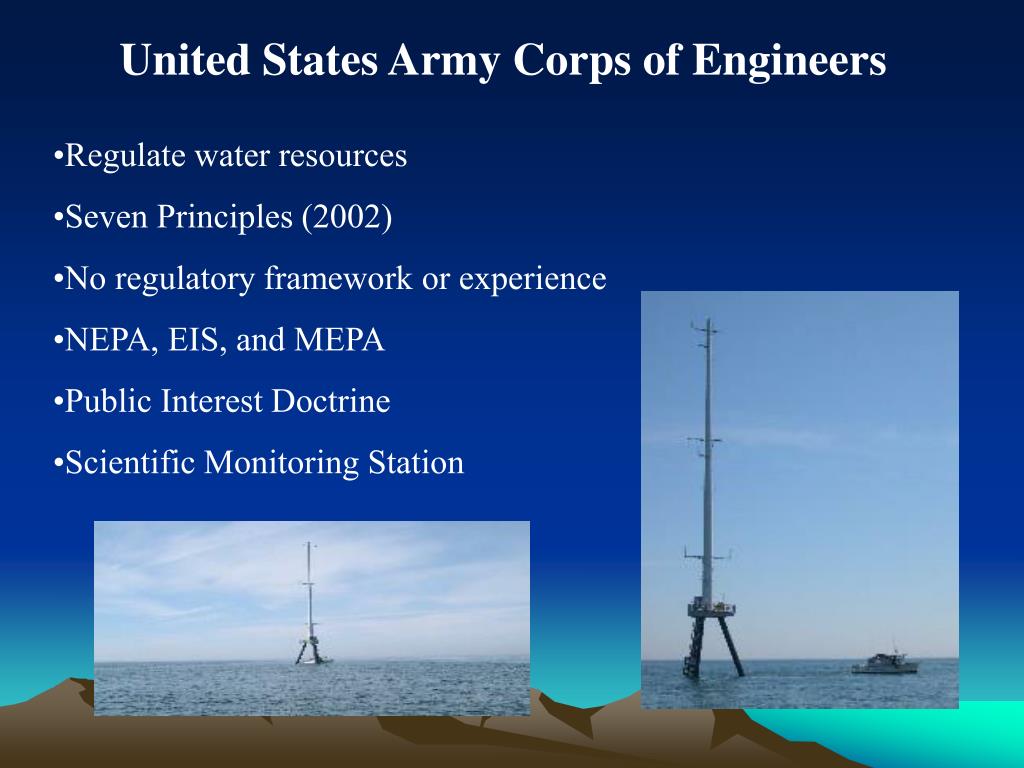

slide33

United States Army Corps of Engineers

•Regulate water resources

•Seven Principles (2002)

•No regulatory framework or experience

•NEPA, EIS, and MEPA

•Public Interest Doctrine

•Scientific Monitoring Station

slide34

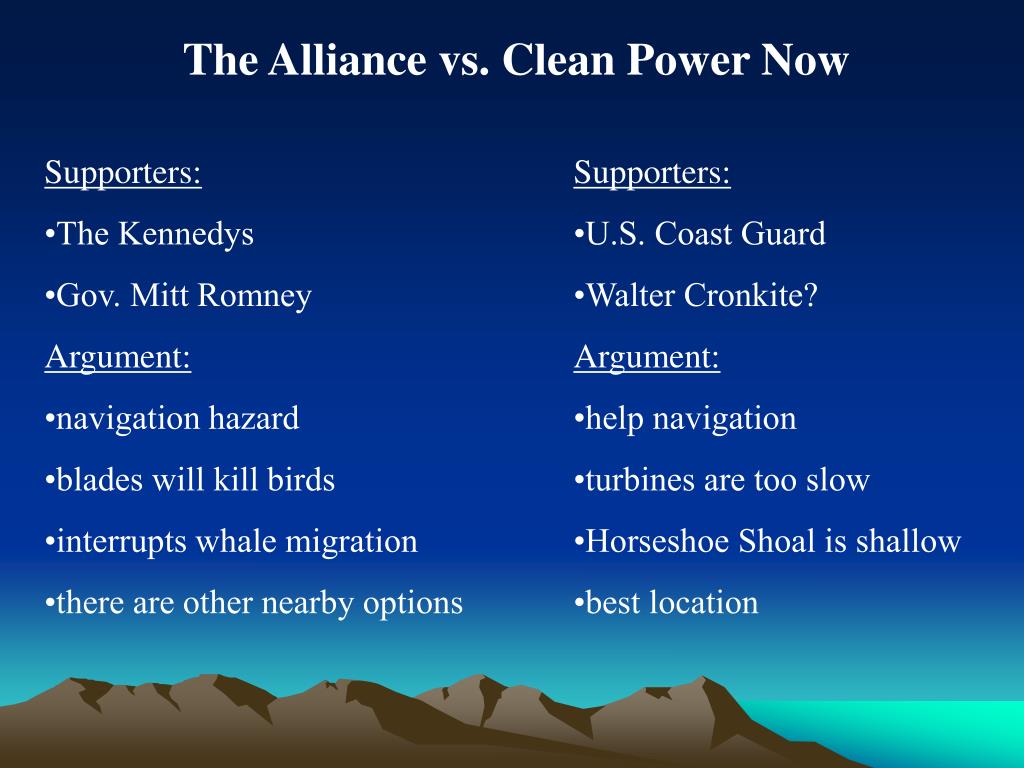

The Alliance vs. Clean Power Now

Supporters:

•The Kennedys

•Gov. Mitt Romney

Argument:

•navigation hazard

•blades will kill birds

•interrupts whale migration

•there are other nearby options

Supporters:

•U.S. Coast Guard

•Walter Cronkite?

Argument:

•help navigation

•turbines are too slow

•Horseshoe Shoal is shallow

•best location

slide35

Clean Power Now

Charley Cummings (representative of the Brown College Environmental Action Network)

Protest outside of USACE meeting in Falmouth, MA

Over 300 supporters gathered in front of the State House!

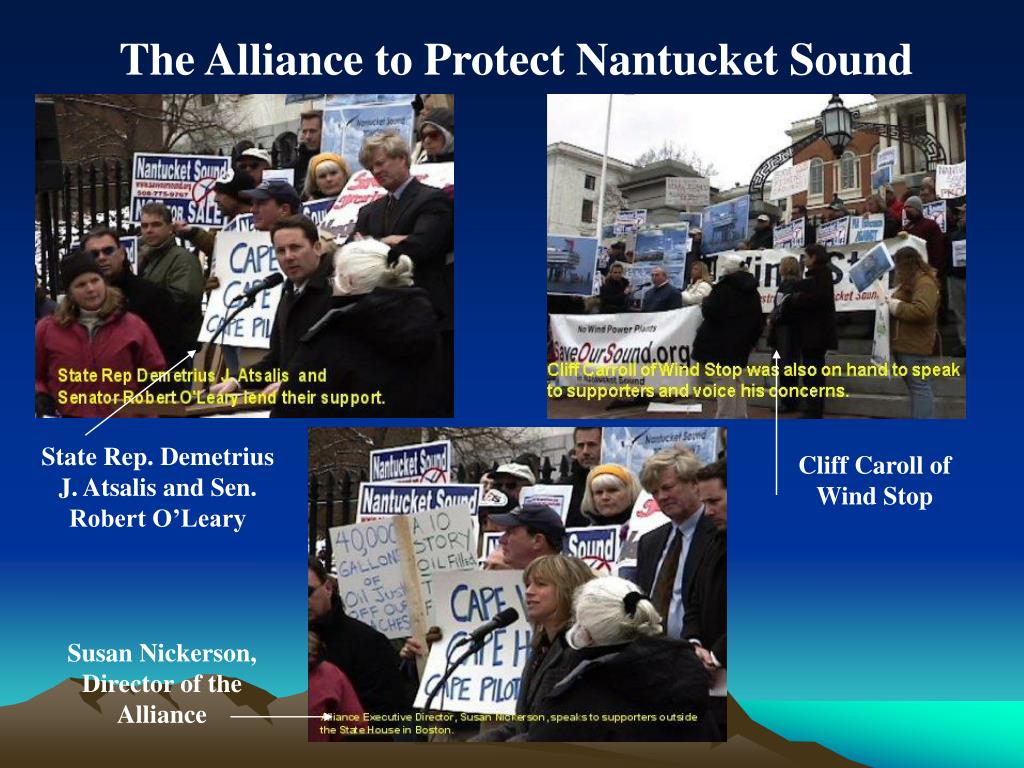

slide36

The Alliance to Protect Nantucket Sound

State Rep. Demetrius J. Atsalis and Sen. Robert O’Leary

Cliff Caroll of Wind Stop

Susan Nickerson, Director of the Alliance

slide39

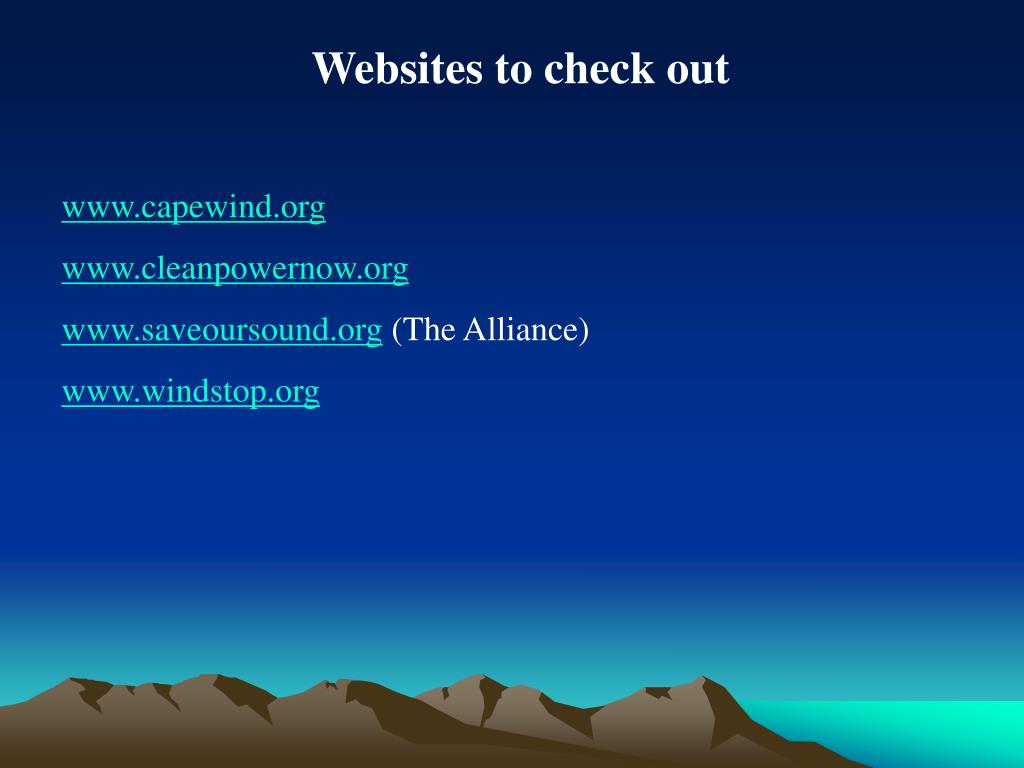

Websites to check out

www.capewind.org

www.cleanpowernow.org

www.saveoursound.org (The Alliance)

www.windstop.org
