outline

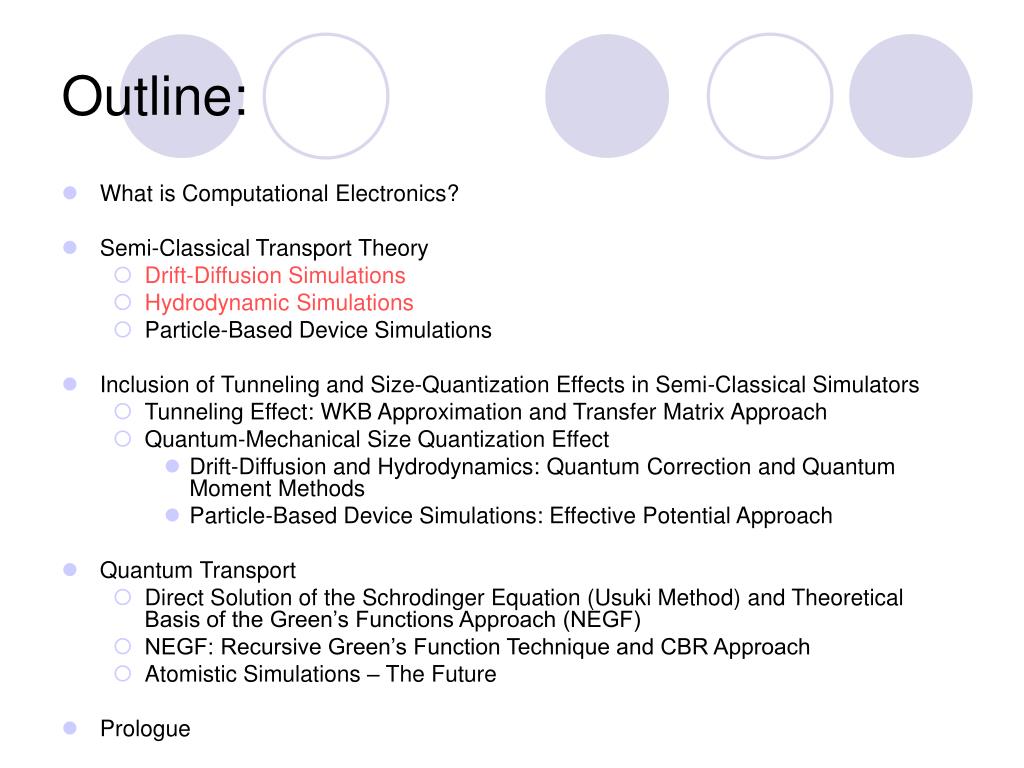

Outline:
  • What is Computational Electronics?
  • Semi-Classical Transport Theory
    • Drift-Diffusion Simulations
    • Hydrodynamic Simulations
    • Particle-Based Device Simulations
  • Inclusion of Tunneling and Size-Quantization Effects in Semi-Classical Simulators
    • Tunneling Effect: WKB Approximation and Transfer Matrix Approach
    • Quantum-Mechanical Size Quantization Effect
      • Drift-Diffusion and Hydrodynamics: Quantum Correction and Quantum Moment Methods
      • Particle-Based Device Simulations: Effective Potential Approach
  • Quantum Transport
    • Direct Solution of the Schrodinger Equation (Usuki Method) and Theoretical Basis of the Green’s Functions Approach (NEGF)
    • NEGF: Recursive Green’s Function Technique and CBR Approach
    • Atomistic Simulations – The Future
  • Prologue
semi classical transport theory1

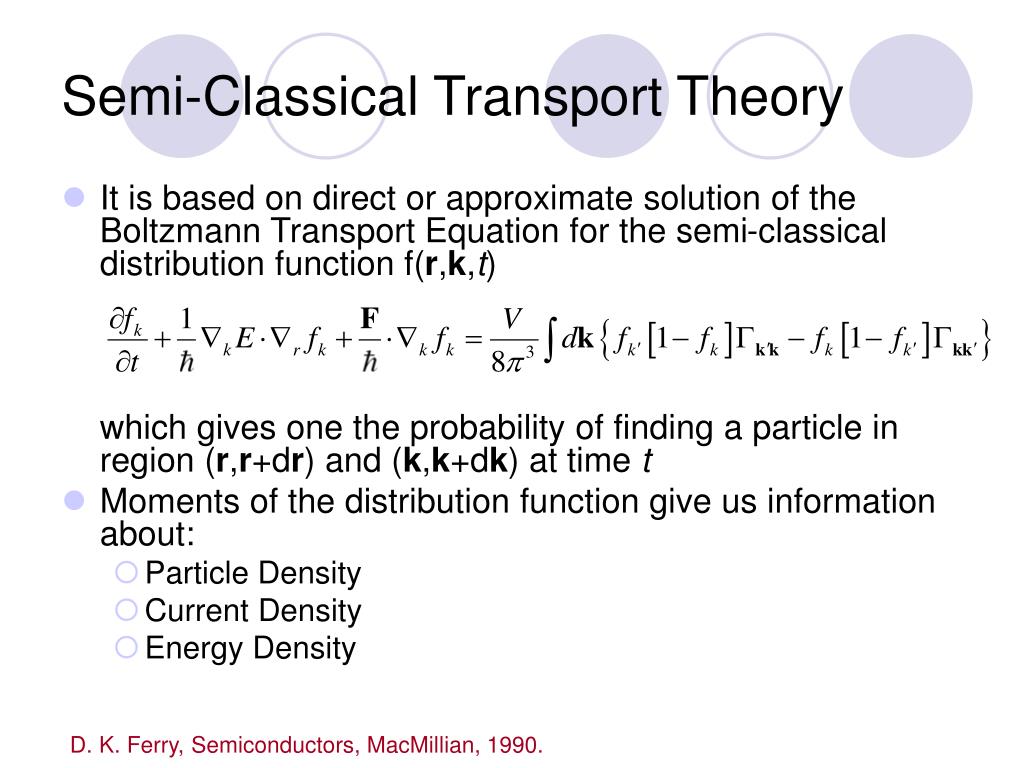

Semi-Classical Transport Theory
  • It is based on direct or approximate solution of the Boltzmann Transport Equation for the semi-classical distribution function f(r,k,t)

which gives one the probability of finding a particle in region (r,r+dr) and (k,k+dk) at time t

  • Moments of the distribution function give us information about:
    • Particle Density
    • Current Density
    • Energy Density

D. K. Ferry, Semiconductors, MacMillian, 1990.

semi classical transport approaches

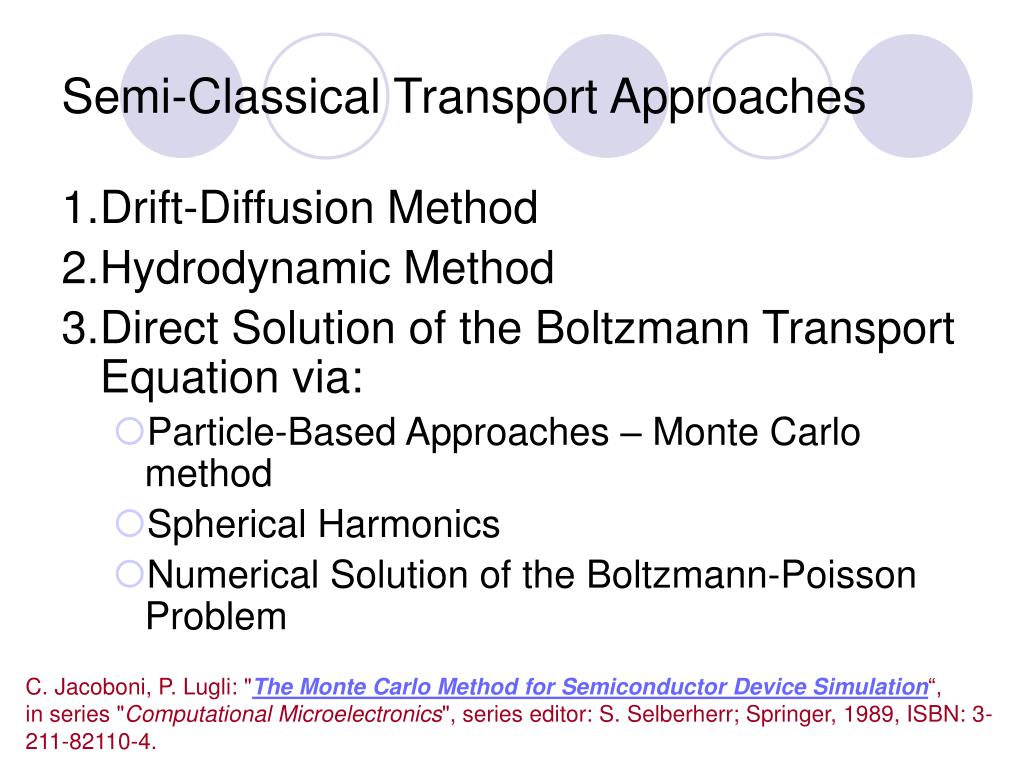

Semi-Classical Transport Approaches

1. Drift-Diffusion Method

2. Hydrodynamic Method

3. Direct Solution of the Boltzmann Transport Equation via:

  • Particle-Based Approaches – Monte Carlo method
  • Spherical Harmonics
  • Numerical Solution of the Boltzmann-Poisson Problem

C. Jacoboni, P. Lugli: "The Monte Carlo Method for Semiconductor Device Simulation“, in series "Computational Microelectronics", series editor: S. Selberherr; Springer, 1989, ISBN: 3-211-82110-4.

1 drift diffusion approach

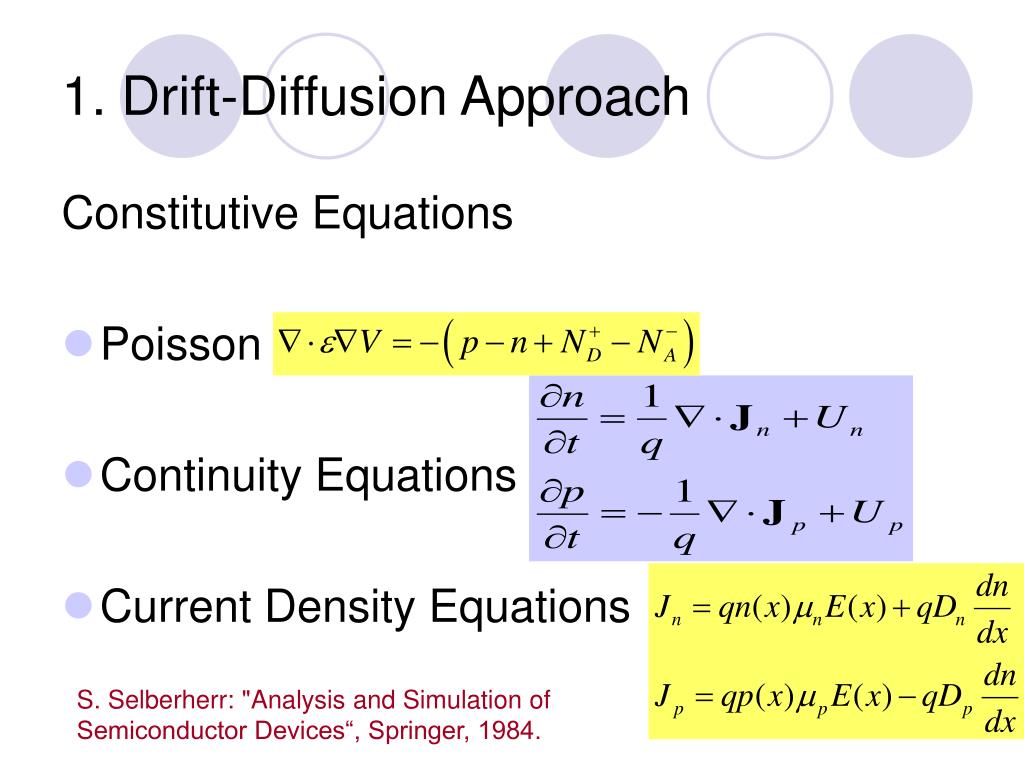

1. Drift-Diffusion Approach

Constitutive Equations

  • Poisson
  • Continuity Equations
  • Current Density Equations

S. Selberherr: "Analysis and Simulation of Semiconductor Devices“, Springer, 1984.

numerical solution details

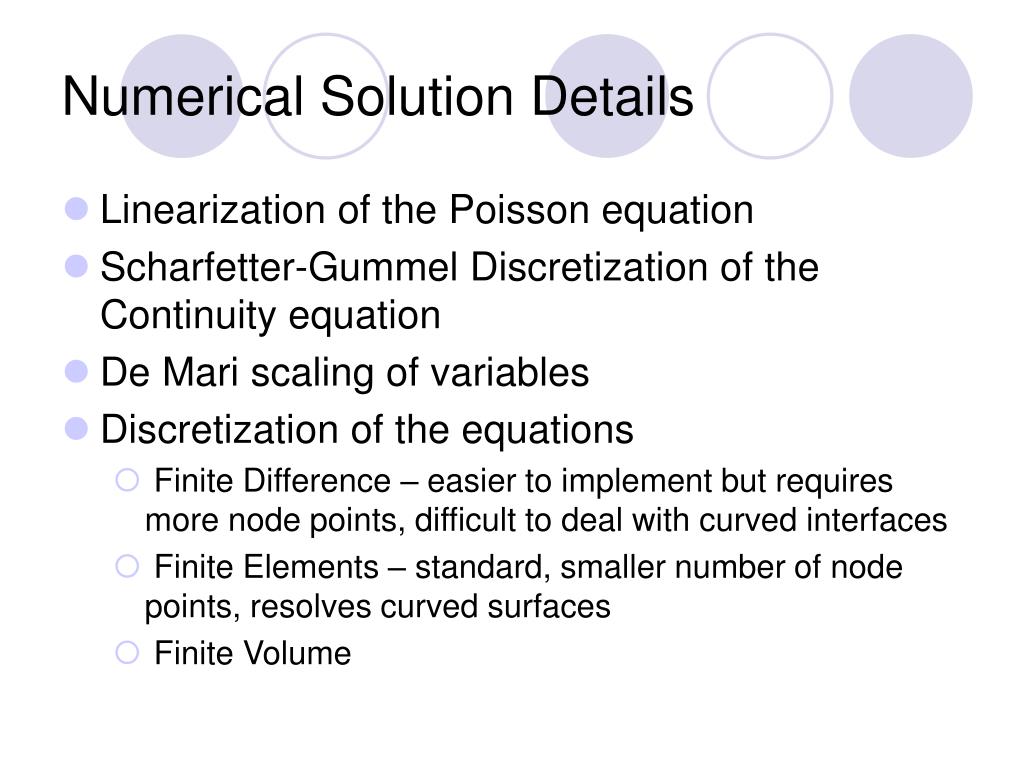

Numerical Solution Details
  • Linearization of the Poisson equation
  • Scharfetter-Gummel Discretization of the Continuity equation

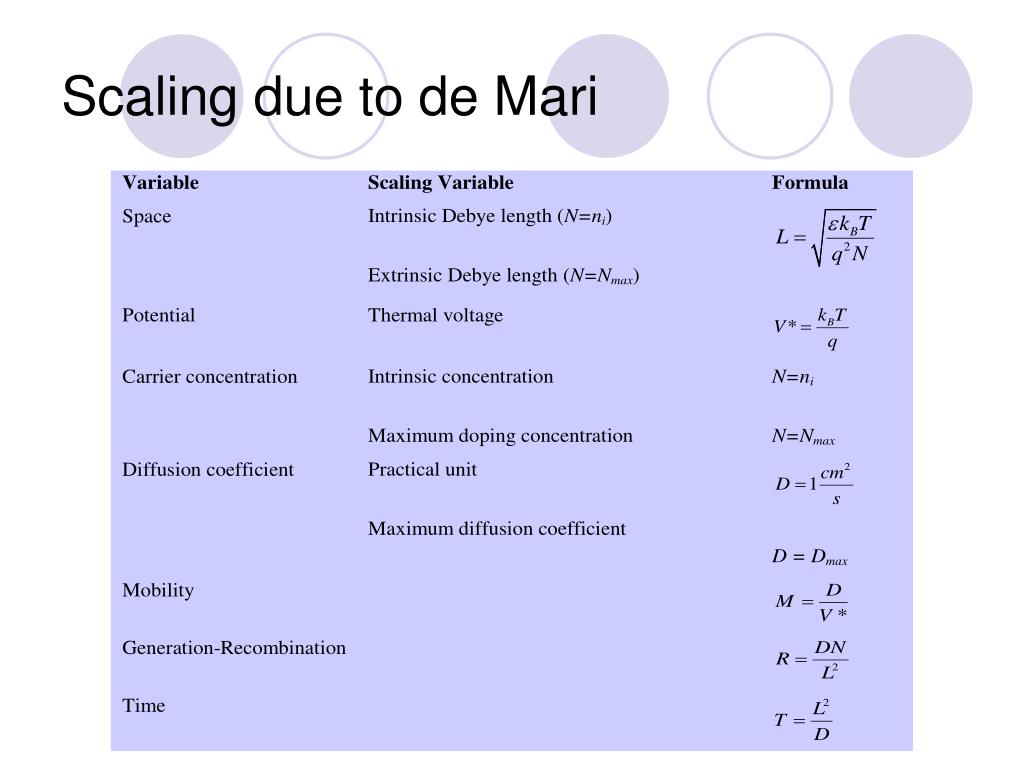

  • De Mari scaling of variables
  • Discretization of the equations
    • Finite Difference – easier to implement but requires more node points, difficult to deal with curved interfaces
    • Finite Elements – standard, smaller number of node points, resolves curved surfaces
    • Finite Volume
linearized poisson equation where new old
Linearized Poisson Equation φ→φ + δ where δ= φnew - φold
  • Finite difference discretization:
    • Potential varies linearly between mesh points
    • Electric field is constant between mesh points
  • Linearization → Diagonally-dominant coefficient matrix A is obtained
scharfetter gummel discretization of the continuity equation
Scharfetter-Gummel Discretization of the Continuity Equation
  • Electron and hole densities n and p vary exponentially between mesh points → relaxes the requirement of using very small mesh sizes
  • The exponential dependence of n and p upon the potential is buried in the Bernoulli functions

Bernoulli function:

numerical solution details1

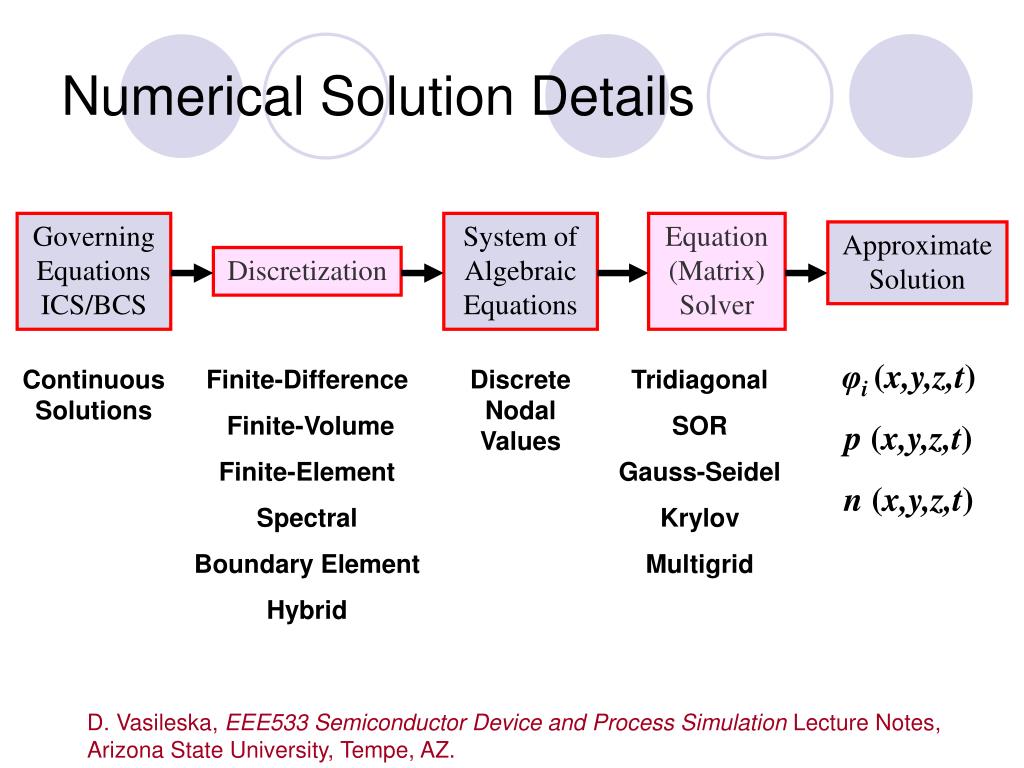

Numerical Solution Details

Governing Equations ICS/BCS

System of Algebraic Equations

Equation (Matrix) Solver

ApproximateSolution

Discretization

φi (x,y,z,t)

p (x,y,z,t)

n (x,y,z,t)

Continuous Solutions

Finite-Difference

Finite-Volume

Finite-Element

Spectral

Boundary Element

Hybrid

Discrete Nodal Values

Tridiagonal

SOR

Gauss-Seidel

Krylov

Multigrid

D. Vasileska, EEE533 Semiconductor Device and Process Simulation Lecture Notes,

Arizona State University, Tempe, AZ.

numerical solution details2
Numerical Solution Details

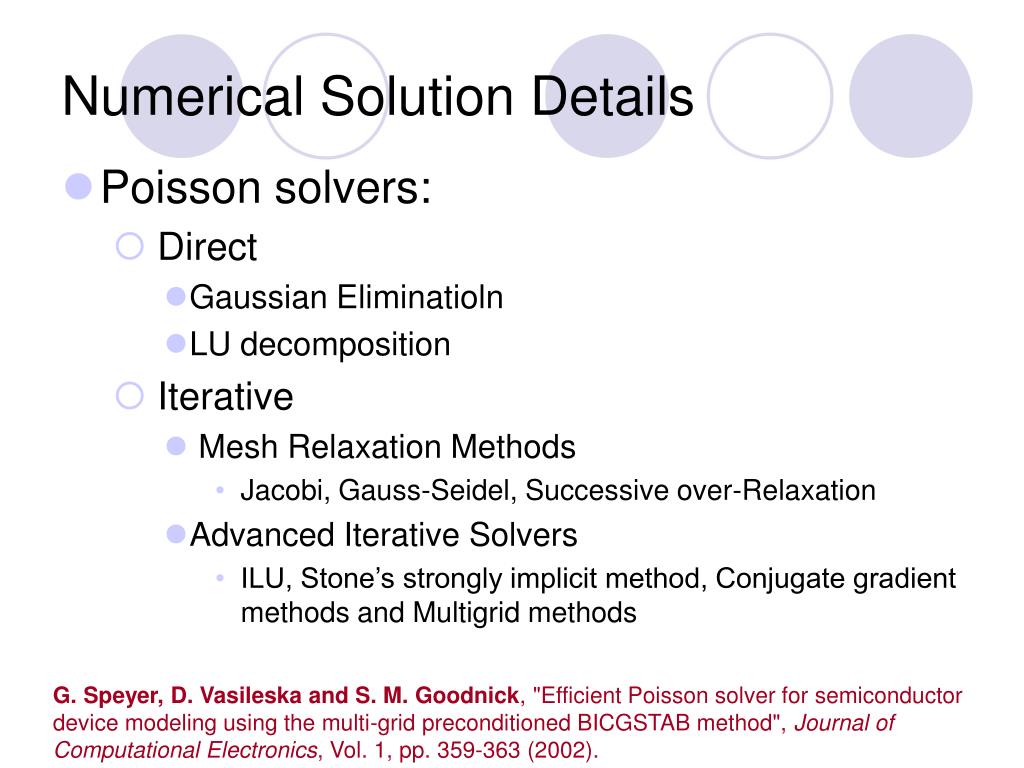

  • Poisson solvers:
    • Direct
      • Gaussian Eliminatioln
      • LU decomposition
    • Iterative
      • Mesh Relaxation Methods
        • Jacobi, Gauss-Seidel, Successive over-Relaxation
      • Advanced Iterative Solvers
        • ILU, Stone’s strongly implicit method, Conjugate gradient methods and Multigrid methods

G. Speyer, D. Vasileska and S. M. Goodnick, "Efficient Poisson solver for semiconductor device modeling using the multi-grid preconditioned BICGSTAB method", Journal of Computational Electronics, Vol. 1, pp. 359-363 (2002).

slide12

n1/2

n1/3

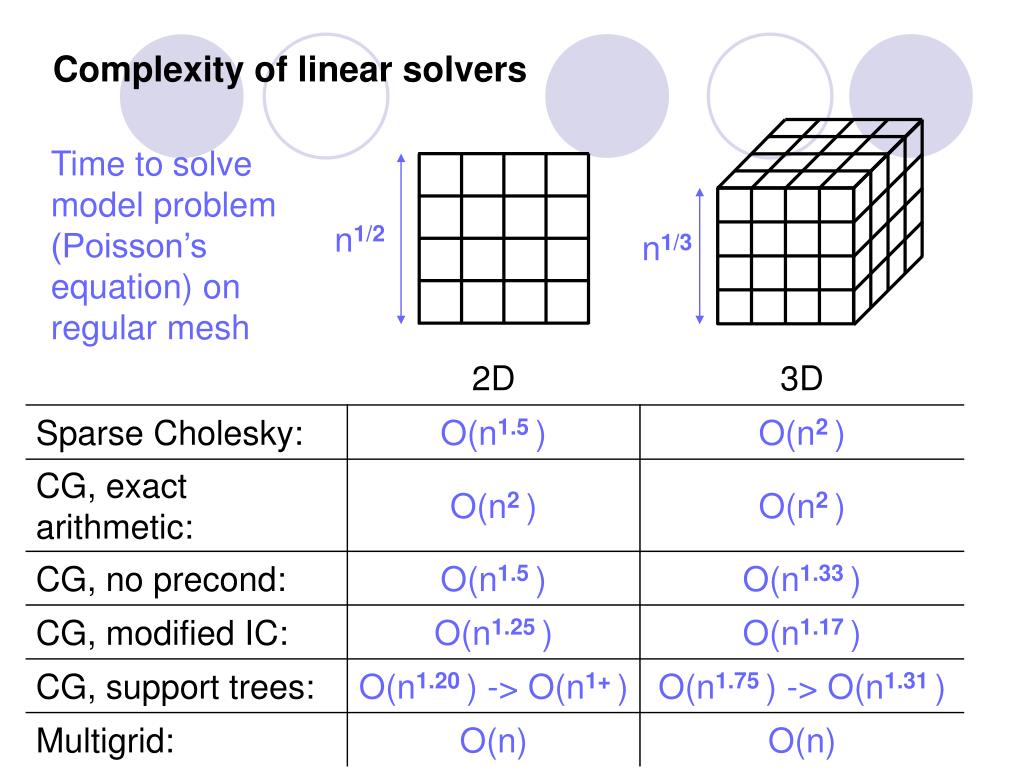

Complexity of linear solvers

Time to solve model problem (Poisson’s equation) on regular mesh

numerical solution details of the coupled equation set

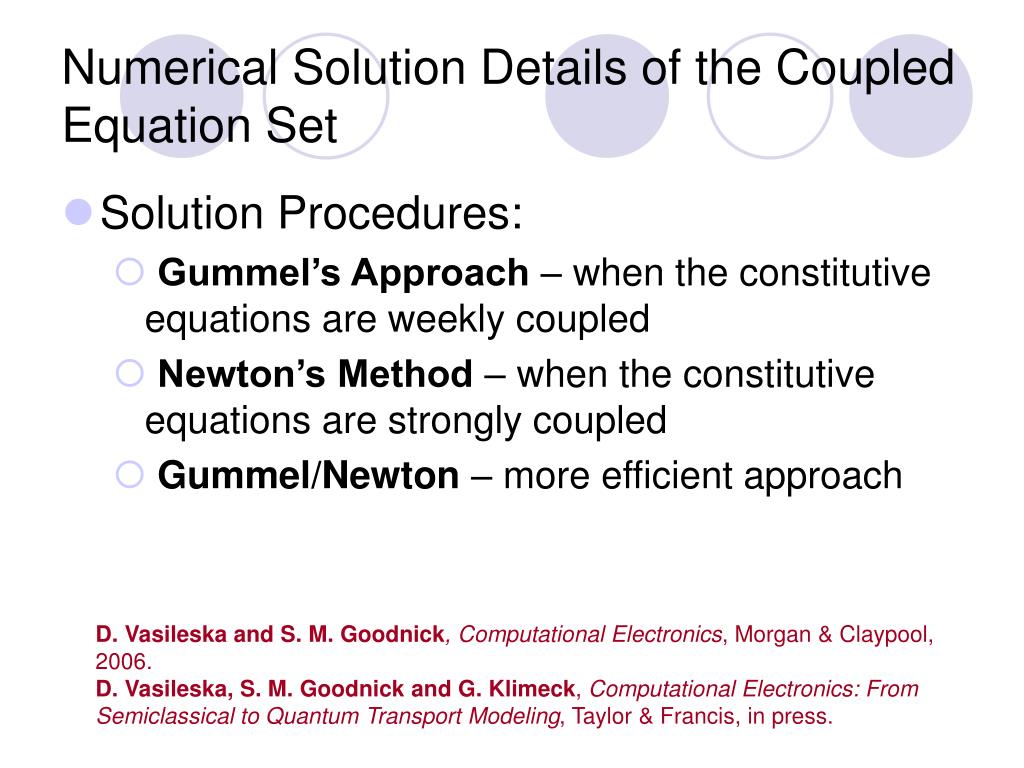

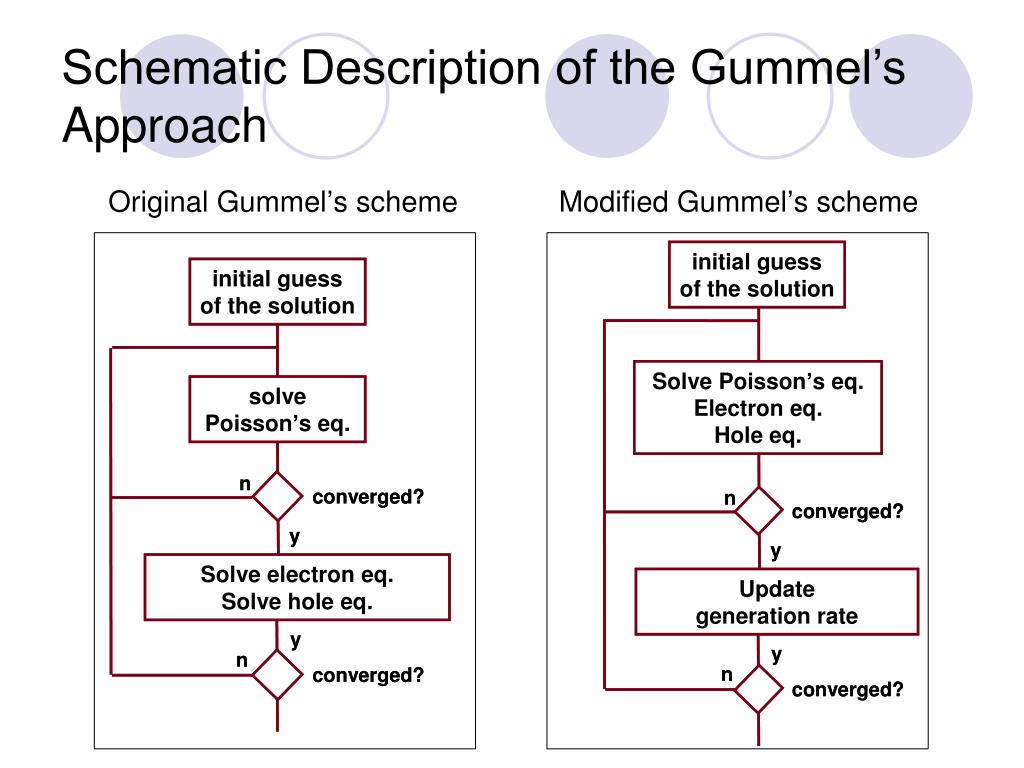

Numerical Solution Details of the Coupled Equation Set
  • Solution Procedures:
    • Gummel’s Approach – when the constitutive equations are weekly coupled
    • Newton’s Method – when the constitutive equations are strongly coupled
    • Gummel/Newton – more efficient approach

D. Vasileska and S. M. Goodnick,Computational Electronics, Morgan & Claypool,

2006.

D. Vasileska, S. M. Goodnick and G. Klimeck, Computational Electronics: From

Semiclassical to Quantum Transport Modeling, Taylor & Francis, in press.

constraints on the mesh size and time step

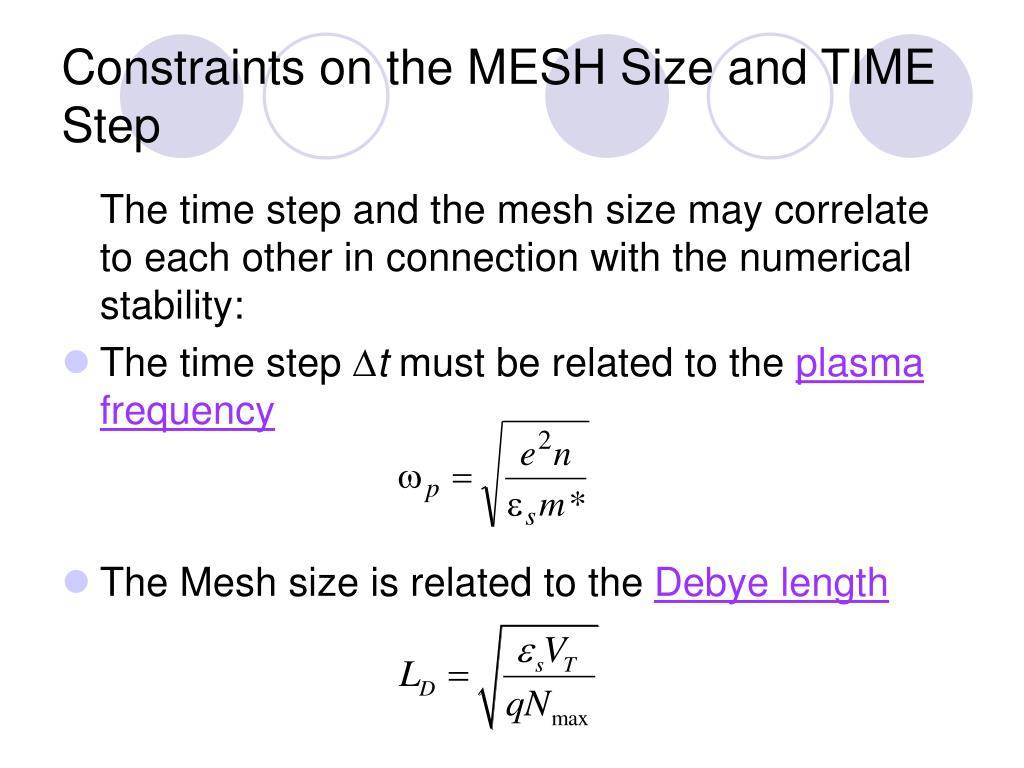

Constraints on the MESH Size and TIME Step

The time step and the mesh size may correlate to each other in connection with the numerical stability:

  • The time step t must be related to the plasma frequency
  • The Mesh size is related to the Debye length

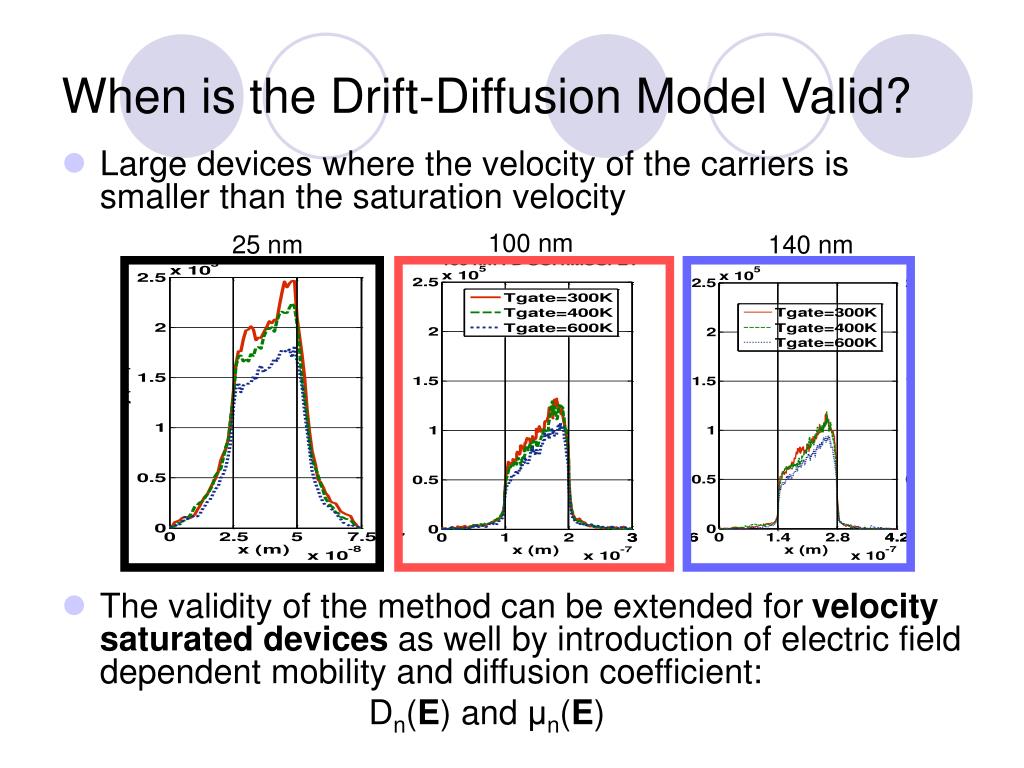

when is the drift diffusion model valid
When is the Drift-Diffusion Model Valid?
  • Large devices where the velocity of the carriers is smaller than the saturation velocity
  • The validity of the method can be extended for velocity saturated devices as well by introduction of electric field dependent mobility and diffusion coefficient:

Dn(E) and μn(E)

100 nm

25 nm

140 nm

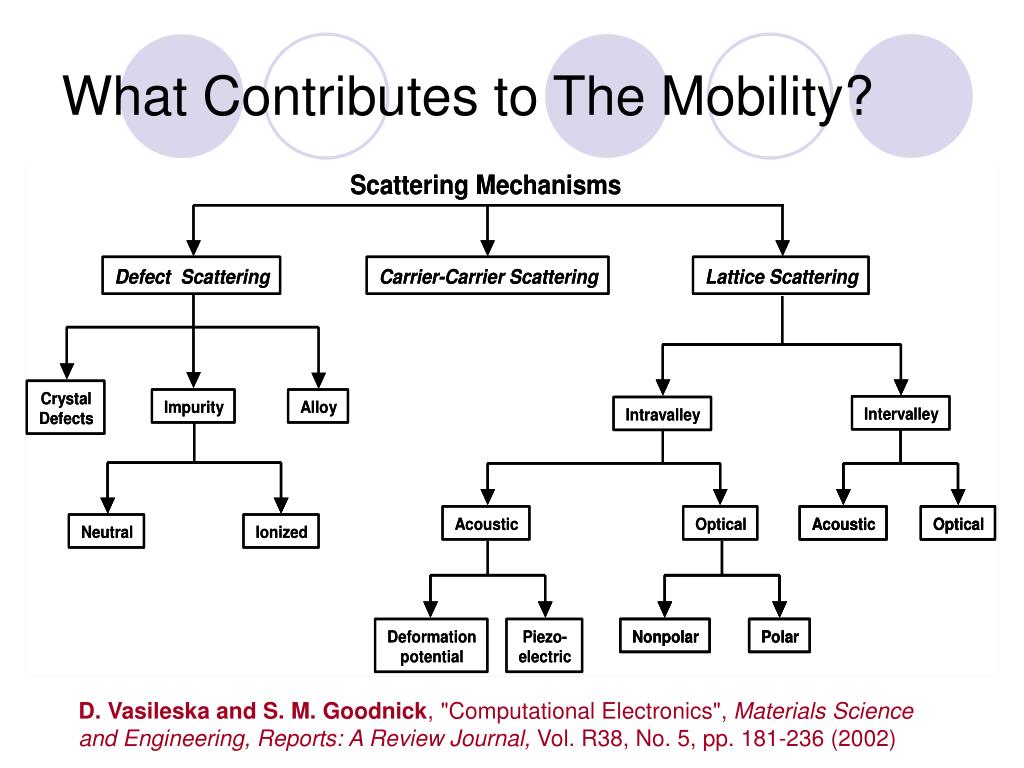

what contributes to the mobility
What Contributes to The Mobility?

D. Vasileska and S. M. Goodnick, "Computational Electronics", Materials Science and Engineering, Reports: A Review Journal, Vol. R38, No. 5, pp. 181-236 (2002)

mobility modeling
Mobility Modeling

Mobility modeling can be separated in three parts:

  • Low-field mobility characterization for bulk or inversion layers

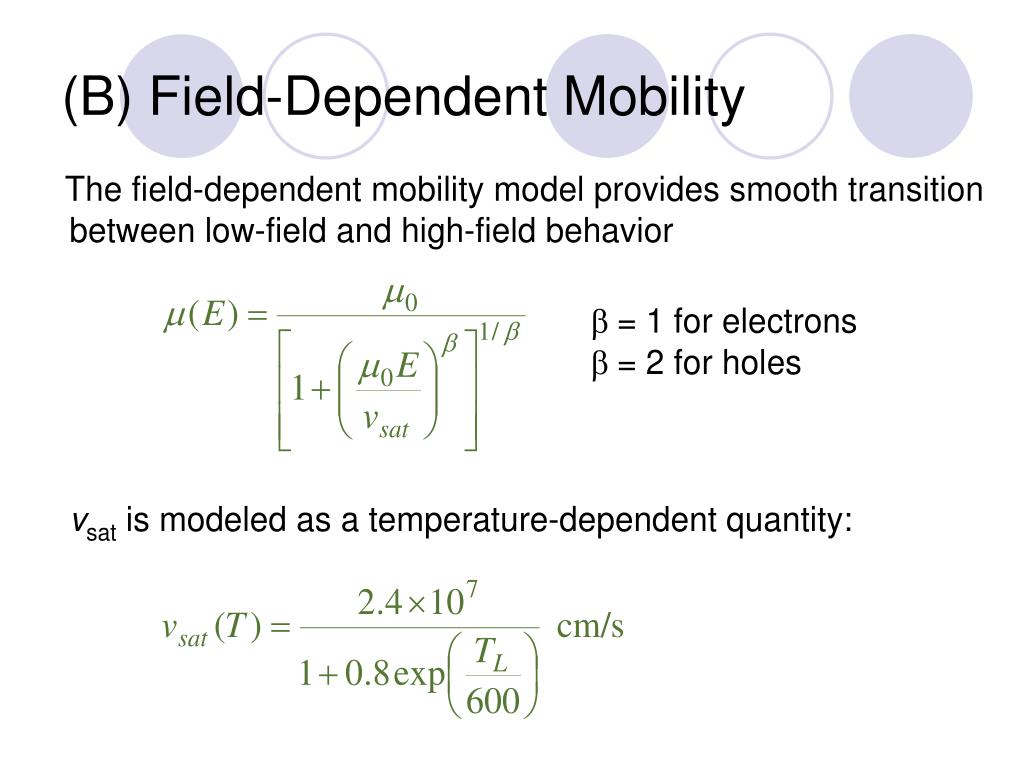

  • High-field mobility characterization to account for velocity saturation effect
  • Smooth interpolation between the low-field and high-field regions

Silvaco ATLAS Manual.

a low field models for bulk materials
(A) Low-Field Models for Bulk Materials

Phonon scattering:

- Simple power-law dependence of the temperature

- Sah et al. model: acoustic + optical and intervalley phonons combined via Mathiessen’s rule

Ionized impurity scattering:

- Conwell-Weiskopf model

- Brooks-Herring model

a low field models for bulk materials cont d
(A) Low-Field Models for Bulk Materials (cont’d)

Combined phonon and ionized impurity scattering:

- Dorkel and Leturg model:

temperature-dependent phonon scattering +ionized impurity scattering + carrier-carrier interactions

- Caughey and Thomas model:

temperature independent phonon scattering + ionized impurity scattering

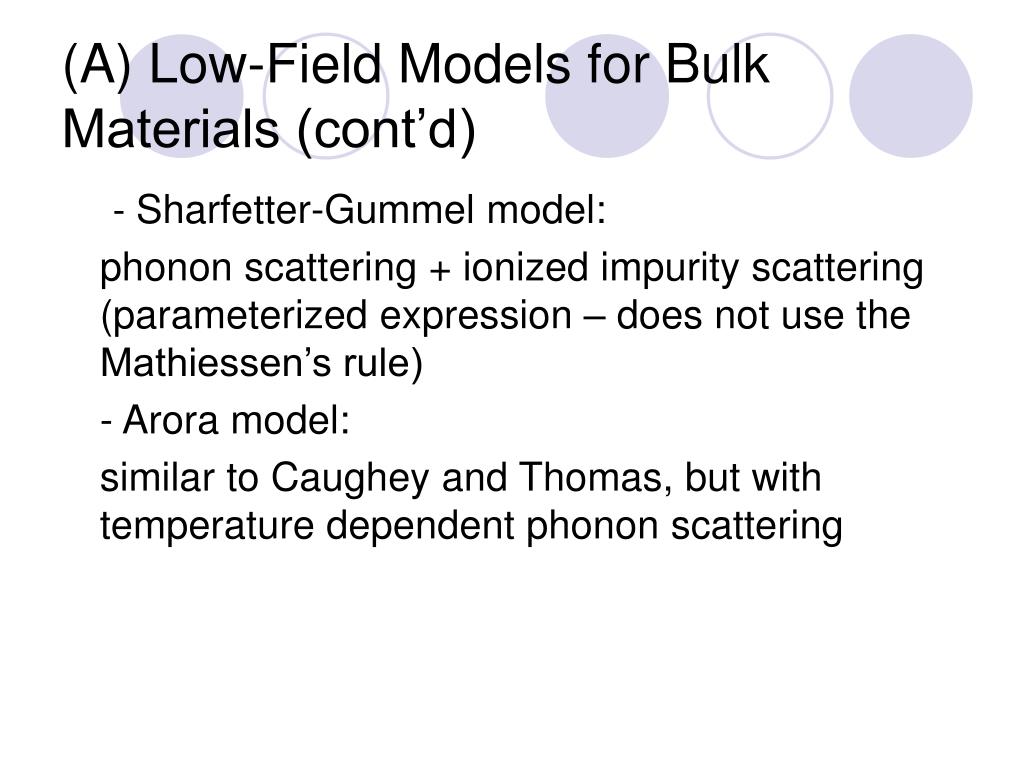

a low field models for bulk materials cont d1
(A) Low-Field Models for Bulk Materials (cont’d)

- Sharfetter-Gummel model:

phonon scattering + ionized impurity scattering (parameterized expression – does not use the Mathiessen’s rule)

- Arora model:

similar to Caughey and Thomas, but with temperature dependent phonon scattering

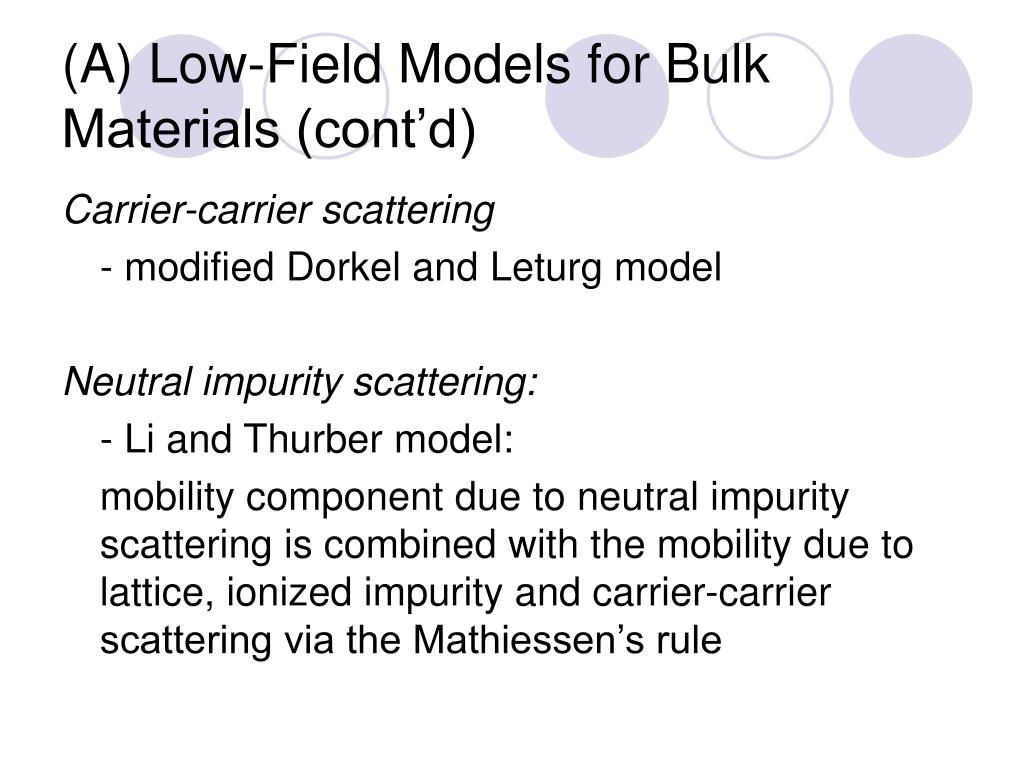

a low field models for bulk materials cont d2
(A) Low-Field Models for Bulk Materials (cont’d)

Carrier-carrier scattering

- modified Dorkel and Leturg model

Neutral impurity scattering:

- Li and Thurber model:

mobility component due to neutral impurity scattering is combined with the mobility due to lattice, ionized impurity and carrier-carrier scattering via the Mathiessen’s rule

c inversion layer mobility models

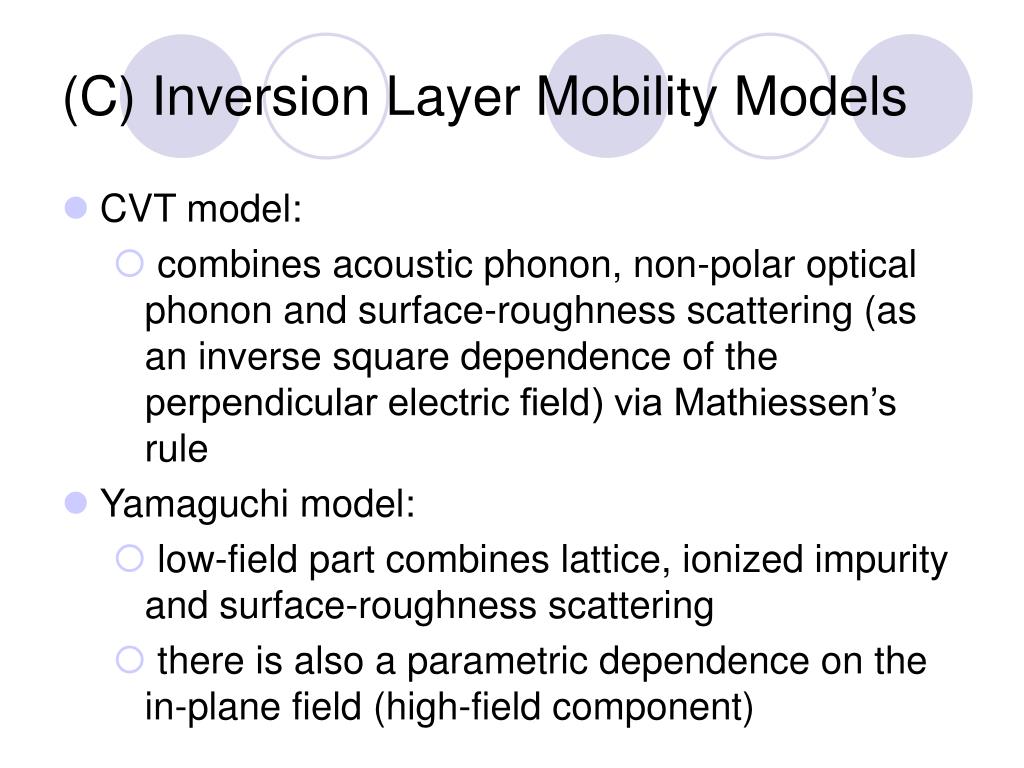

(C) Inversion Layer Mobility Models
  • CVT model:
    • combines acoustic phonon, non-polar optical phonon and surface-roughness scattering (as an inverse square dependence of the perpendicular electric field) via Mathiessen’s rule
  • Yamaguchi model:
    • low-field part combines lattice, ionized impurity and surface-roughness scattering
    • there is also a parametric dependence on the in-plane field (high-field component)
c inversion layer mobility models cont d
(C) Inversion Layer Mobility Models (cont’d)
  • Shirahata model:
    • uses Klaassen’s low-field mobility model
    • takes into account screening effects into the inversion layer
    • has improved perpendicular field dependence for thin gate oxides
  • Tasch model:
    • the best model for modeling the mobility in MOS inversion layers; uses universal mobility behavior
hydrodynamic modeling
Hydrodynamic Modeling
  • In small devices there exists non-stationary transport and carriers are moving through the device with velocity larger than the saturation velocity
    • In Si devices non-stationary transport occurs because of the different order of magnitude of the carrier momentum and energy relaxation times
    • In GaAs devices velocity overshoot occurs due to intervalley transfer

T. Grasser (ed.): "Advanced Device Modeling and Simulation“, World Scientific Publishing Co., 2003, ISBN: 9-812-38607-6 M.

M. Lundstrom, Fundamentals of Carrier Transport, 1990.

velocity overshoot in silicon

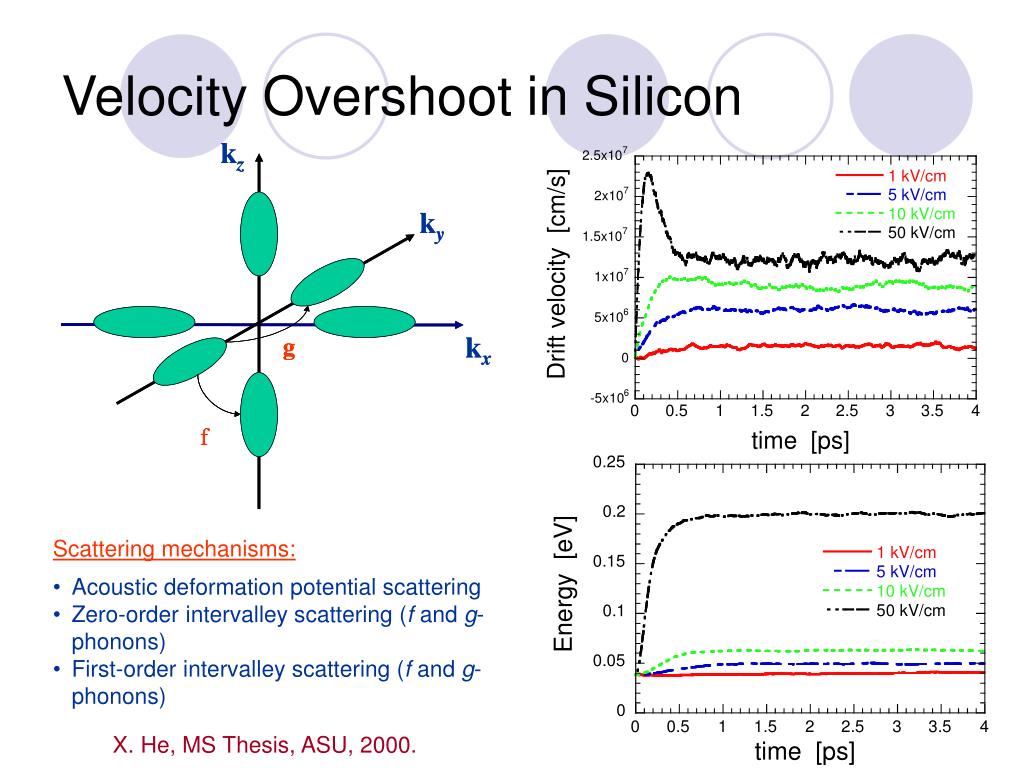

Velocity Overshoot in Silicon
  • Scattering mechanisms:
  • Acoustic deformation potential scattering
  • Zero-order intervalley scattering (f and g-phonons)
  • First-order intervalley scattering (f and g-phonons)

X. He, MS Thesis, ASU, 2000.

how is the velocity overshoot accounted for

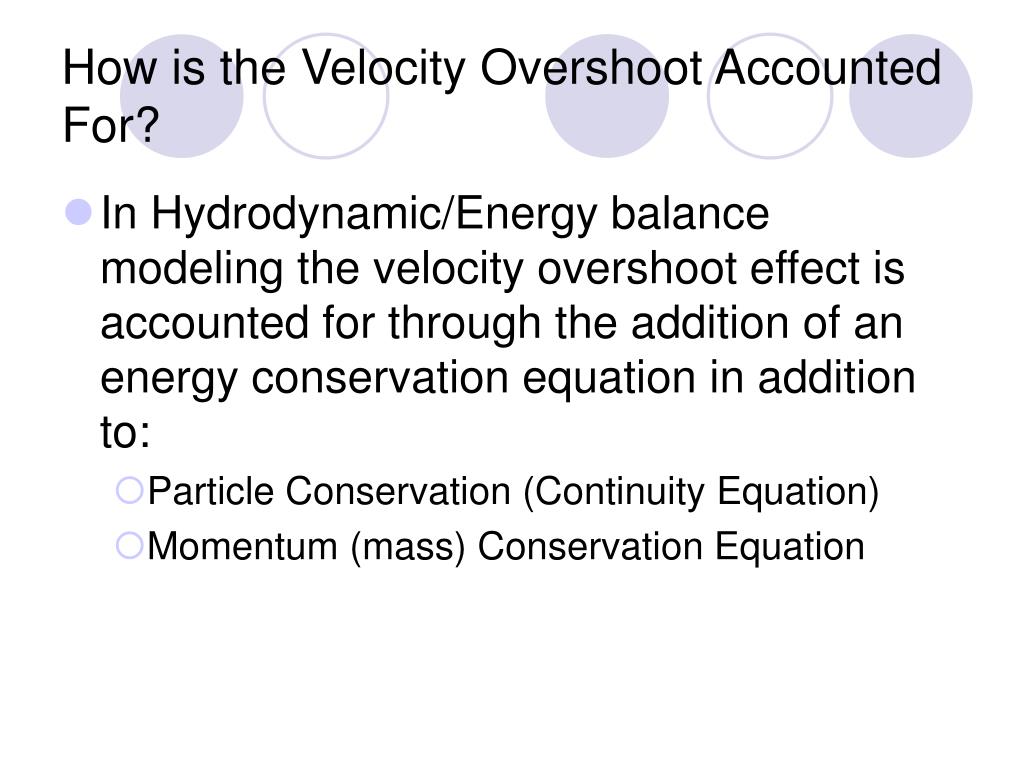

How is the Velocity Overshoot Accounted For?
  • In Hydrodynamic/Energy balance modeling the velocity overshoot effect is accounted for through the addition of an energy conservation equation in addition to:
    • Particle Conservation (Continuity Equation)
    • Momentum (mass) Conservation Equation
hydrodynamic model due to blotakjer
Hydrodynamic Model due to Blotakjer

Constitutive Equations: Poisson +

momentum relaxation rate

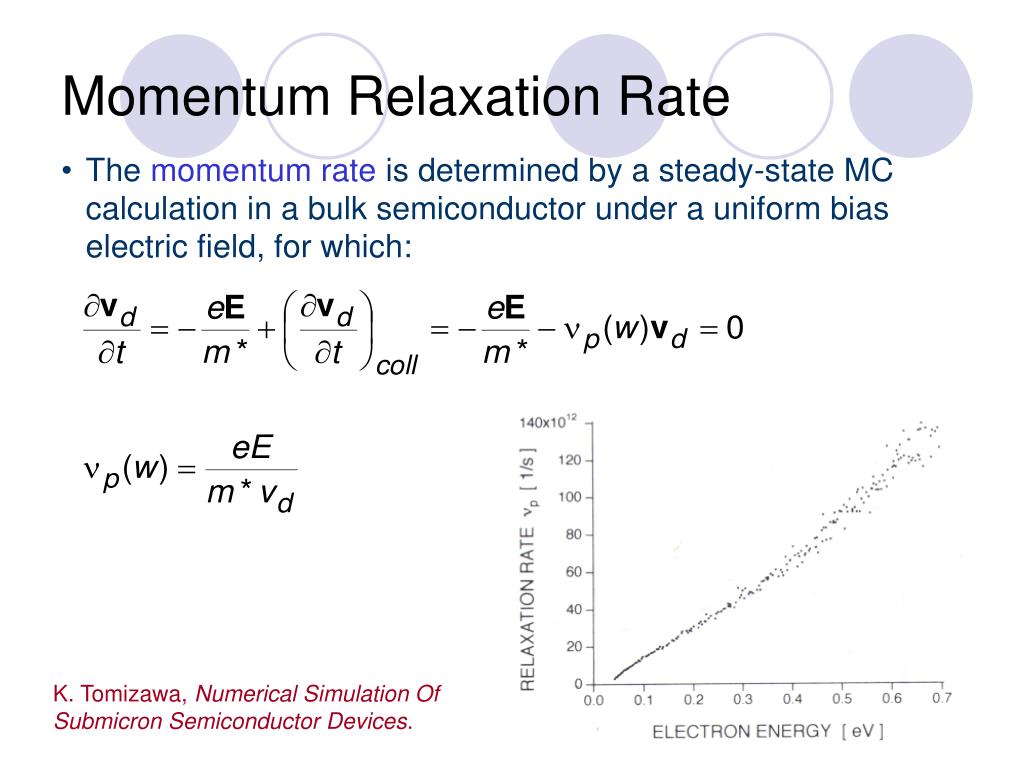

Momentum Relaxation Rate

K. Tomizawa, Numerical Simulation Of Submicron Semiconductor Devices.

energy relaxation rate
Energy Relaxation Rate

K. Tomizawa, Numerical Simulation Of Submicron Semiconductor Devices.

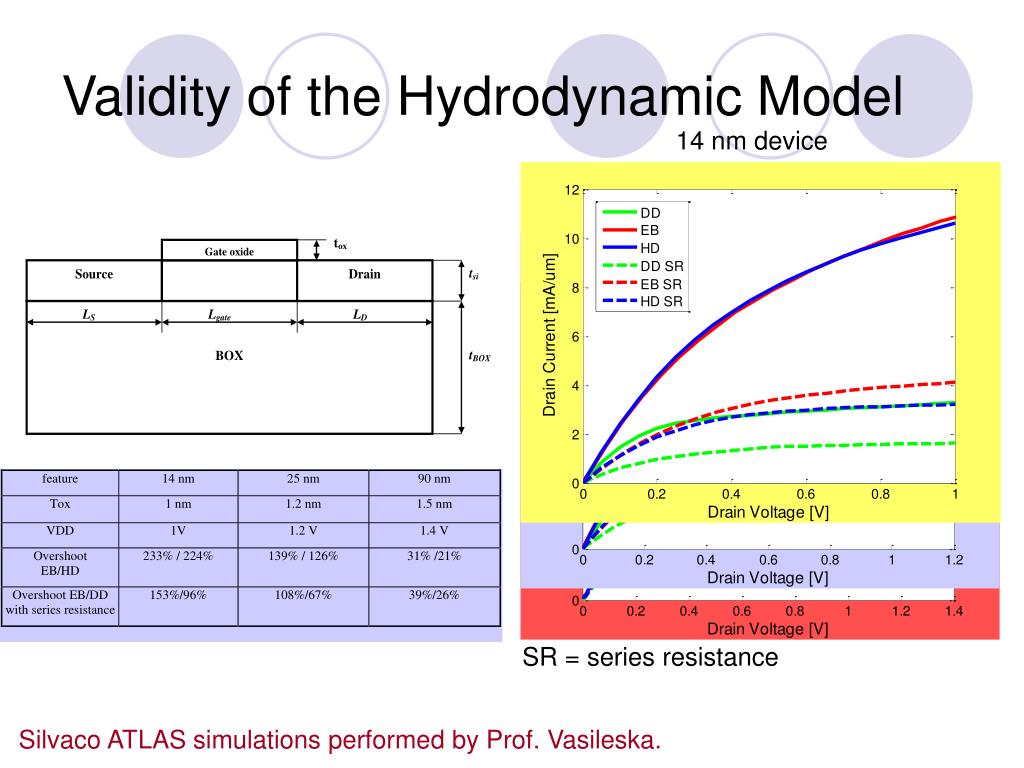

validity of the hydrodynamic model
Validity of the Hydrodynamic Model

90 nm device

SR = series resistance

Silvaco ATLAS simulations performed by Prof. Vasileska.

slide36

Validity of the Hydrodynamic Model

25 nm device

SR = series resistance

Silvaco ATLAS simulations performed by Prof. Vasileska.

slide37

Validity of the Hydrodynamic Model

14 nm device

SR = series resistance

Silvaco ATLAS simulations performed by Prof. Vasileska.

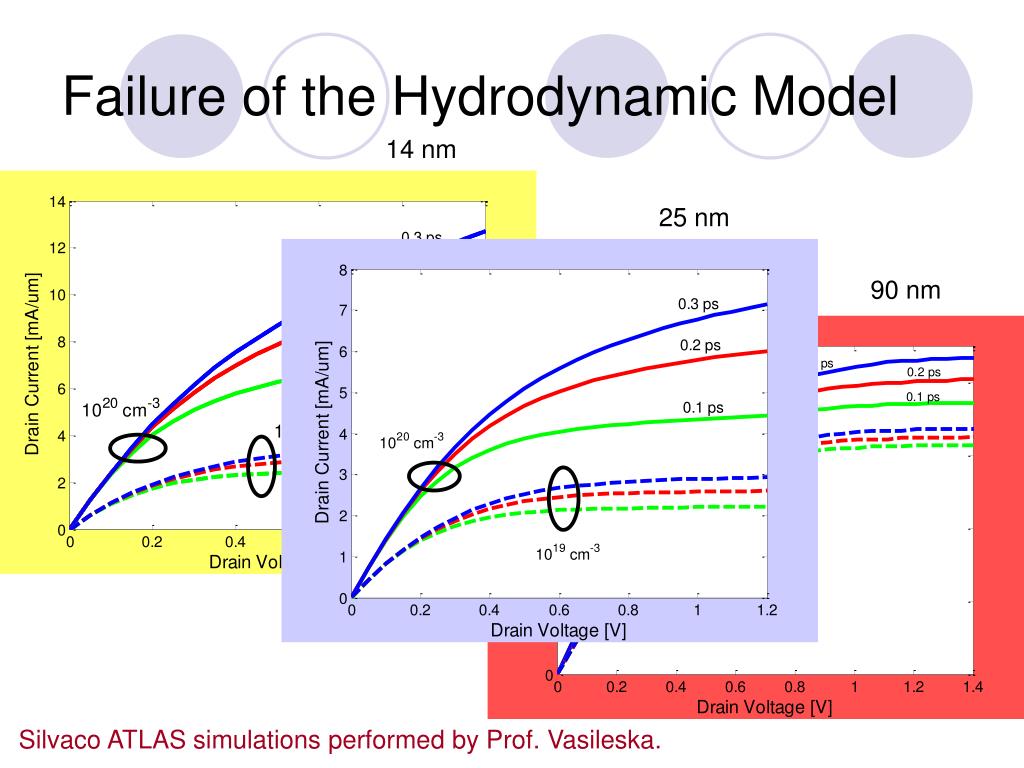

failure of the hydrodynamic model

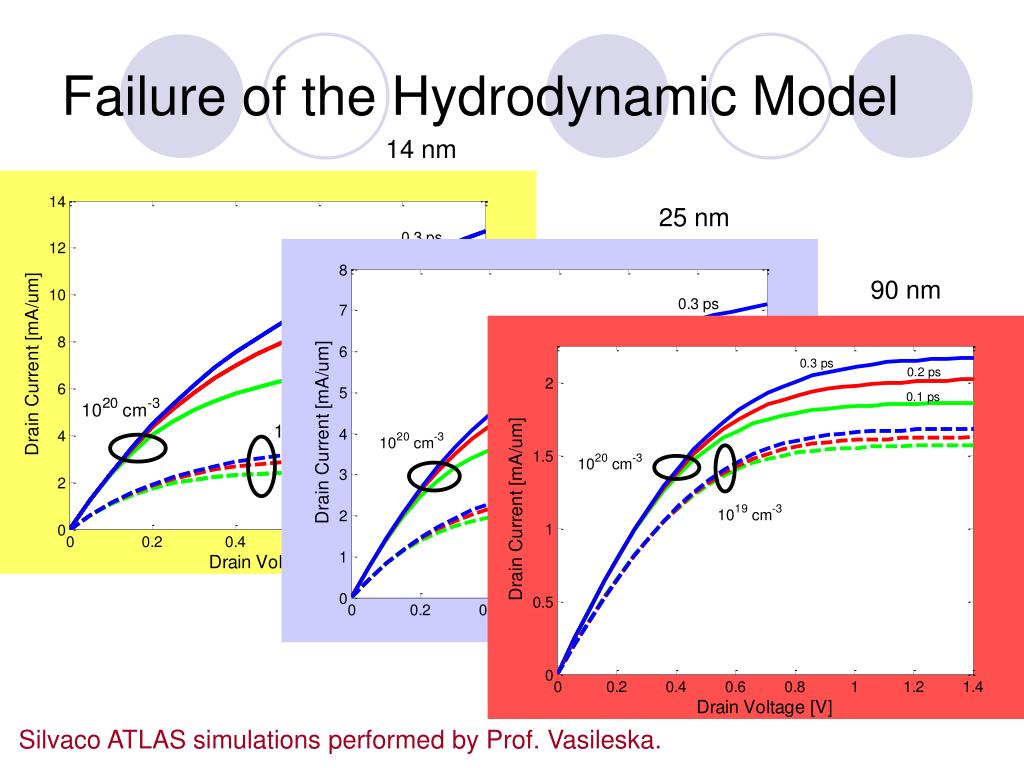

Failure of the Hydrodynamic Model

14 nm

25 nm

90 nm

Silvaco ATLAS simulations performed by Prof. Vasileska.

slide39

Failure of the Hydrodynamic Model

14 nm

25 nm

90 nm

Silvaco ATLAS simulations performed by Prof. Vasileska.

slide40

Failure of the Hydrodynamic Model

14 nm

25 nm

90 nm

Silvaco ATLAS simulations performed by Prof. Vasileska.

summary
Summary
  • Drift-Diffusion model is good for large MOSFET devices, BJTs, Solar Cells and/or high frequency/high power devices that operate in the velocity saturation regime
  • Hydrodynamic model must be used with caution when modeling devices in which velocity overshoot, which is a signature of non-stationary transport, exists in the device
  • Proper choice of the energy relaxation times is a problem in hydrodynamic modeling
