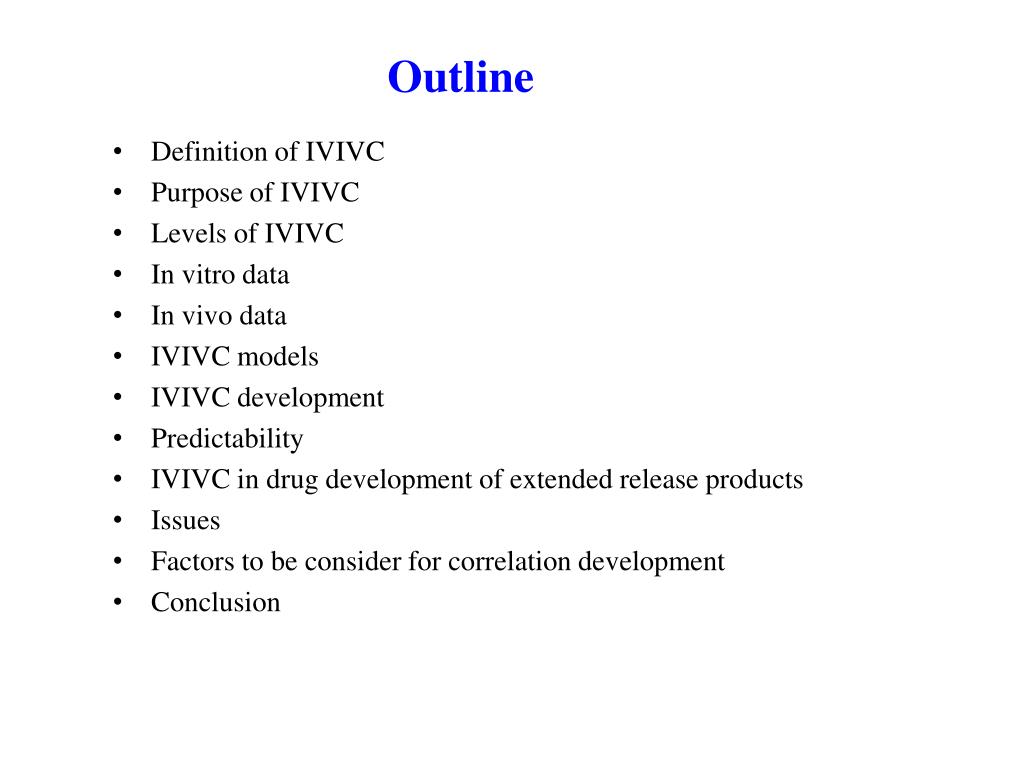

In-Vitro-In-Vivo Correlation (IVIVC): A Tool In drug Development . Mr. Somnath Sakore Cadila Pharmaceuticals Ltd . Outline. Definition of IVIVC Purpose of IVIVC Levels of IVIVC In vitro data In vivo data IVIVC models IVIVC development Predictability

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'In-Vitro-In-Vivo Correlation (IVIVC): A Tool In drug Development' - Jimmy

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
in vitro in vivo correlation ivivc a tool in drug development

In-Vitro-In-Vivo Correlation (IVIVC): A Tool In drug Development

Mr. Somnath Sakore

Cadila Pharmaceuticals Ltd


Definition of IVIVC

Purpose of IVIVC

Levels of IVIVC

In vitro data

In vivo data

IVIVC models

IVIVC development


IVIVC in drug development of extended release products


Factors to be consider for correlation development


definition of ivivc
Definition of IVIVC

United State Pharmacopoeia (USP) definition of IVIVC

The establishment of a rational relationship between a biological property, or a parameter derived from a biological property produced by a dosage form, and a physicochemical property or characteristic of the same dosage Form.

Food and Drug Administration (FDA) definition of IVIVC

An In-vitro in-vivo correlation (IVIVC) has been defined by the Food and Drug Administration (FDA) as “a predictive mathematical model describing the relationship between an in-vitro property of a dosage form and an in-vivo response”.

e.g., amount of drug absorbed, thus allowing an evaluation of the QC specifications, change in process, site, formulation and application for a biowaiver etc.

purpose of ivivc

Reduction of regulatory burden:

IVIVC can be used as substitute for additional in vivo experiments, under certain conditions.

Optimization of formulation :

The optimization of formulations may require changes in the composition, manufacturing process, equipment, and batch sizes. In order to prove the validity of a new formulation, which is bioequivalent with a target formulation, a considerable amount of efforts is required to study bioequivalence (BE)

/bioavailability (BA).



IVIVC as surrogate for in vivo bioequivalence and to support biowaivers (Time and cost saving)

The main purpose of an IVIVC model to utilize in vitro dissolution profiles as a surrogate for in vivo bioequivalence and to support biowaivers.

Scale up post approval changes (Time and cost saving during product development):

validated IVIVC is also serves as justification for a biowaivers in filings of a Level 3 (or Type II in Europe) variation, either during scale-up or post approval, as well as for line extensions (e.g., different dosage strengths)

Less testing in Human

levels of ivivc
Levels of IVIVC

Level B

Level A

Level C

Level A

Level A – point-point; first deconvolution to get in vivo %drug absorbed, then compare with %dissolved

Level B – Statistical moments; MRT or MDT in vivo vs. MDT in vitro

Level C – single point; PK parameter vs. %dissolved

Malinowski and Marroum, Encyclopedia of Contr. Drug Deliv.



1. Biopharmaceutics Classification System (BCS)

BCS guidelines are provided by USFDA, WHO, and EMEA

Class I: HIGH solubility / High permeability,

Class II: LOW solubility / High permeability,

Class III: HIGH solubility / LOW permeability

Class IV: LOW solubility / LOW permeability

BCS Criteria

• highly soluble drugs: therapeutic dose is soluble in 250 mL (pH 1 – 7.5)

• highly permeable drugs: extent of absorption: > 90%

•(rapidly dissolving: no less than 85% within 30 min,

USP II / 50 rpm /pH 1 - 6.8 ; always considered

similar if 85% released in less than 15 min)

generation of in vitro release profile
Generation of In-Vitro Release Profile
  • USP apparatus 1 (basket, 100 rpm) or 2 (paddle, 50&75 rpm)
  • Aqueous dissolution medium, 900 ml
    • pH 1-1.5, 4-4.5, 6-6.5 & 7-7.5 at 370C
    • A surfactant may be required (For low solubility drugs)
  • In-vitro food effect
    • Rotating dialysis cell method
    • Effects of oils, enzymes and pH

2. In vitro dissolution:

  • Compendial method (justify other method)
  • The dissolution profiles of at least 12 individual dosage units
  • from each lot should be determined
  • aqueous medium, n ≥ 12 (!), CV < 10%
  • difference factor f1, similarity factor f2

f1 values up to 15 (0-15)

f2 values greater than 50 (50-100)

n : number of time points,

Rt : dissolution value of the reference batch at time t,

Tt is the dissolution value of the test batch at time t

Comparison between dissolution profiles could be achieved using a difference factor (f1) and a similarity factor (f2)

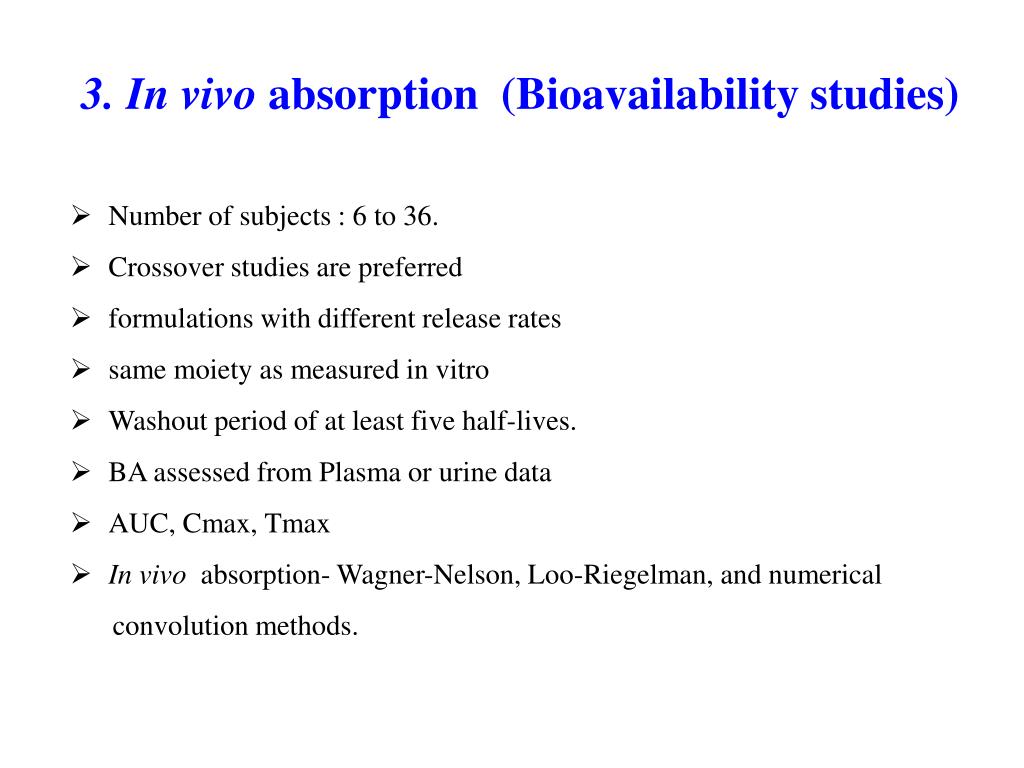

3. In vivo absorption (Bioavailability studies)

  • Number of subjects : 6 to 36.
  • Crossover studies are preferred
  • formulations with different release rates
  • same moiety as measured in vitro
  • Washout period of at least five half-lives.
  • BA assessed from Plasma or urine data
  • AUC, Cmax, Tmax
  • In vivo absorption- Wagner-Nelson, Loo-Riegelman, and numerical

convolution methods.

generation of in vivo release profile
Generation of In-Vivo Release Profile
  • Compartmental Models
    • Wagner-Nelson
    • Loo-Riegelman
  • Linear Systems Models
    • Deconvolution
    • Convolution
  • Mathematically they all yield the same result

First step:

Calculation of in vivo release profiles from plasma concentrations of an

oral solution and different formulations


Second step:

Comparison of calculated in vivo release with in vitro release data for the same formulations and establishment of a quantitative correlation model using a linear or non-linear regression

ivivc in the product development process for extended release products
IVIVC in the product development process for extended-release products

J.Emami, J Pharm Pharmaceut Sci ( 9(2):169-189, 2006

ivivc model predictability validation

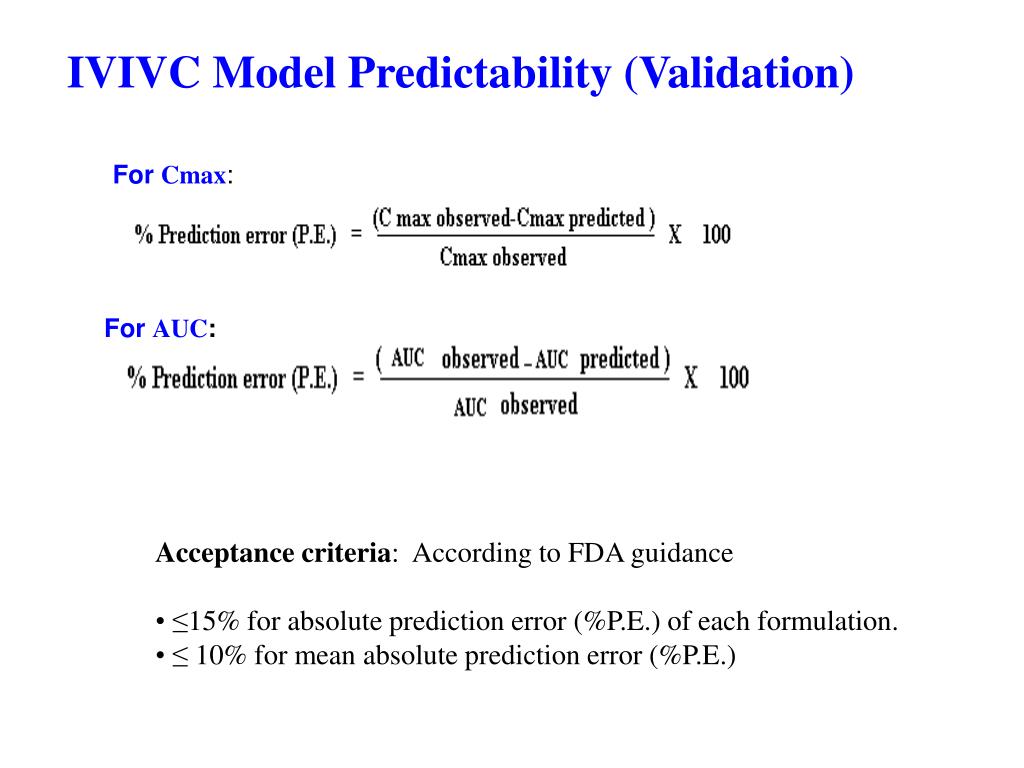

IVIVC Model Predictability (Validation)

For Cmax:

For AUC:

  • Acceptance criteria: According to FDA guidance
  • ≤15% for absolute prediction error (%P.E.) of each formulation.
  • ≤ 10% for mean absolute prediction error (%P.E.)
ivivc bench issues practical issues
IVIVC Bench Issues (Practical issues)
  • Reliable and biorelevant dissolution method and apparatus suitability
    • Qualification and calibration of equipment, sink conditions
    • Ability to discriminate non-BE lots
    • Apparatus and media for continuous IVIVC (minimum 3 lots) and tuning with GI conditions
  • Accurate deconvolution of the plasma concentration-time profile
    • e.g., %absorbed in-vivo may be reflective of processes other than release; absorption rate limitation is common for CR products
  • Dissolution Specifications
    • Based on biological findings rather than pharmacopeial or mechanistic
ivivc modeling issues
IVIVC Modeling Issues
  • Intra- and Inter-subject variation
    • High variations can distort the mean data and in turn the deconvolution
    • Enterohepatic recycling or second peak
    • Reproducibility of reference profiles
  • Modeling
    • Smoothness of input and response functions
    • Jumps in input rate functions, e.g., delayed release or gastric emptying
    • Statistical properties of the models

The pharmaceutical industry has been striving to find a ways to saving precious resources in relevance to the budgets and increasing cost of drug development. IVIVC is a tool applied in various areas and stages of drug development to find a place in the regulatory bodies around the world.

Biorelevant and reliable dissolution profiles can predict the in-vivo absorption of drugs from CR formulations.

Batches with similar dissolution will be BE and dissimilar dissolution will be non-BE

Several methods exist for estimating in-vivo absorption

Level A (point-to-point) or B (mean dissolution times) correlation can be obtained for BCS class 1 or 2 drugs

At least 3 lots (desirable, fast and slow) must be established with IVIVC and proper reference.

IVIVC is useful in SUPAC and biowaivers can save substantial costs and

time when registering product changes

Both practical and modeling issues must be addressed

need to develop methodologies and standards for non-oral delivery systems, to develop more meaningful dissolution and permeation methods.
