asce 7 05 seismic provisions

ASCE 7-05 Seismic Provisions

University of Alaska Anchorage

CE 694R – Loads on Structures

Fall 2007

Dr. T. Bart Quimby, P.E.

Quimby & Associates/UAA School of Engineering

earthquake protective design philosophical issues
Earthquake Protective Design Philosophical Issues
  • High probability of “Failure”
  • “Failure” redefined to permit behavior (yielding) that would be considered failure under other loads.
  • High Uncertainty
  • Importance of Details

“In dealing with earthquakes we must contend with appreciable probabilities that failure will occur in the near future. Otherwise, all the wealth of the world would prove insufficient… We must also face uncertainty on a large scale… In a way, earthquake engineering is a cartoon… Earthquakes systematically bring out the mistakes made in design and construction, even the minutest mistakes.” Newmark & Rosenblueth

hazard levels
Hazard Levels

Performance Levels

  • Incipient Collapse
  • Life Safety
  • Immediate Reoccupancy
  • Fully Operational
  • Occasional
    • 50% in 50 years
  • Rare
    • 10% in 50 years
  • Very Rare
    • 5% in 50 years
  • Max Considered
    • 2% in 50 years
design objective defined

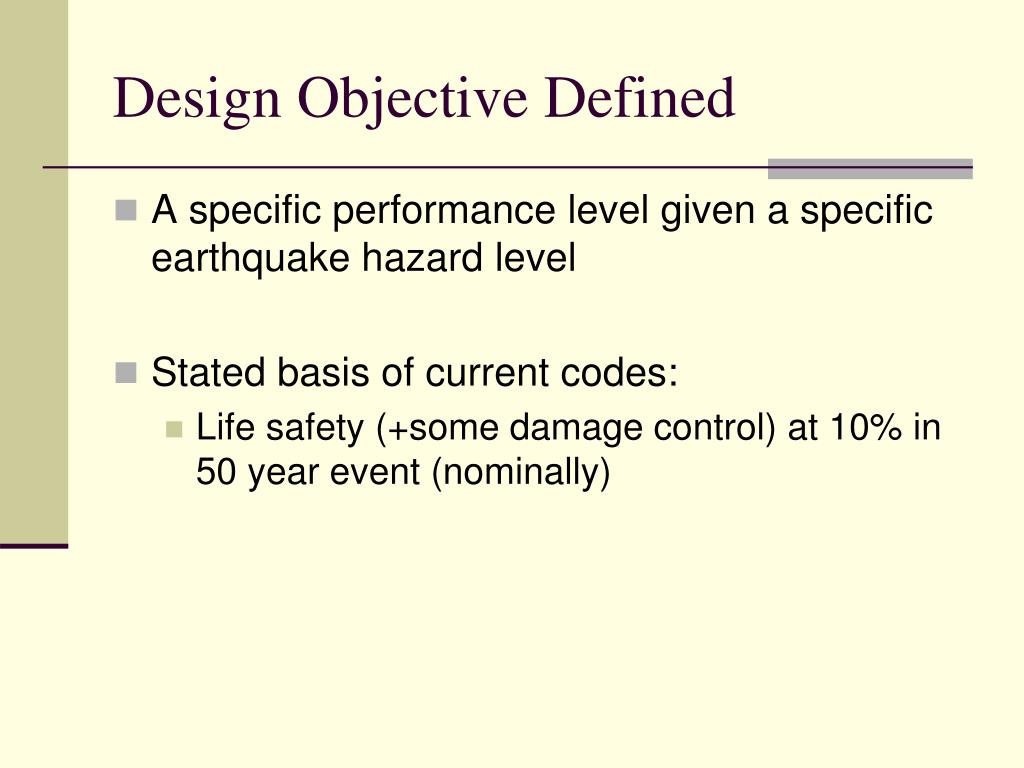

Design Objective Defined
  • A specific performance level given a specific earthquake hazard level
  • Stated basis of current codes:
    • Life safety (+some damage control) at 10% in 50 year event (nominally)
purpose of the provisions

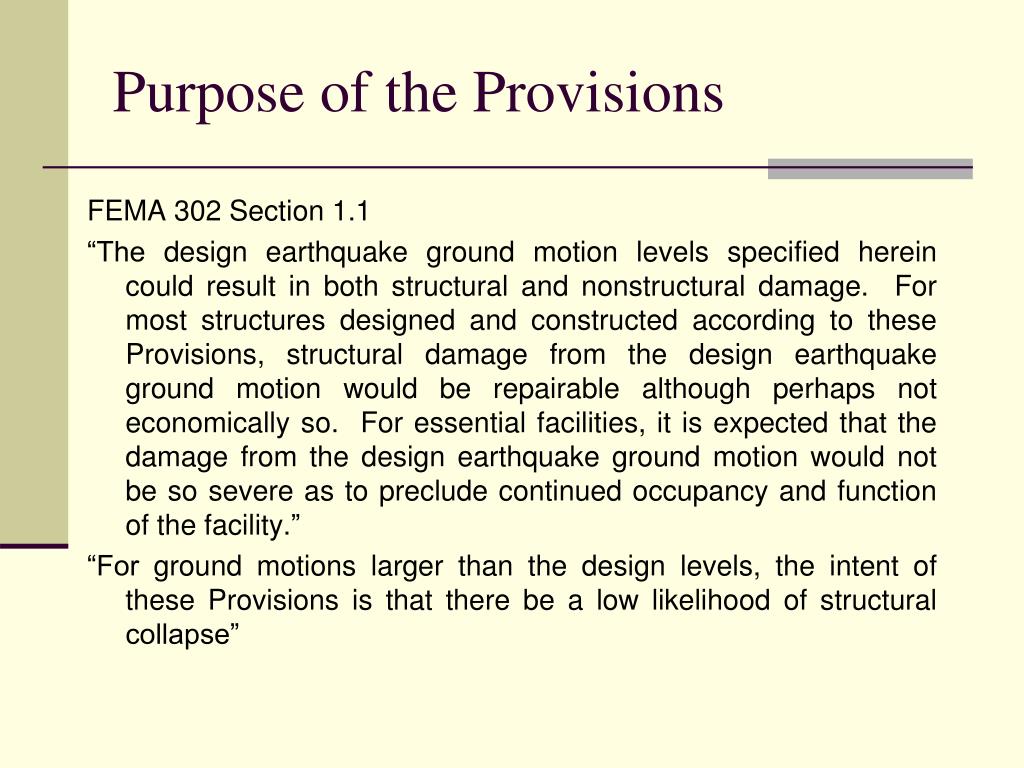

Purpose of the Provisions

FEMA 302 Section 1.1

“The design earthquake ground motion levels specified herein could result in both structural and nonstructural damage. For most structures designed and constructed according to these Provisions, structural damage from the design earthquake ground motion would be repairable although perhaps not economically so. For essential facilities, it is expected that the damage from the design earthquake ground motion would not be so severe as to preclude continued occupancy and function of the facility.”

“For ground motions larger than the design levels, the intent of these Provisions is that there be a low likelihood of structural collapse”

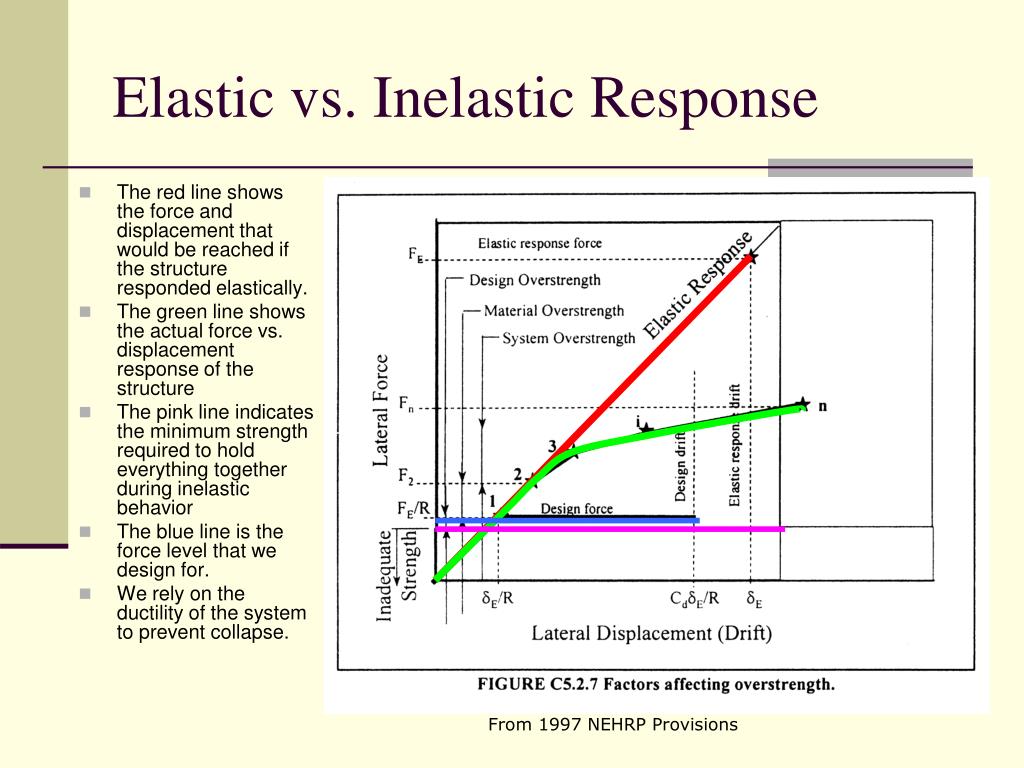

elastic vs inelastic response

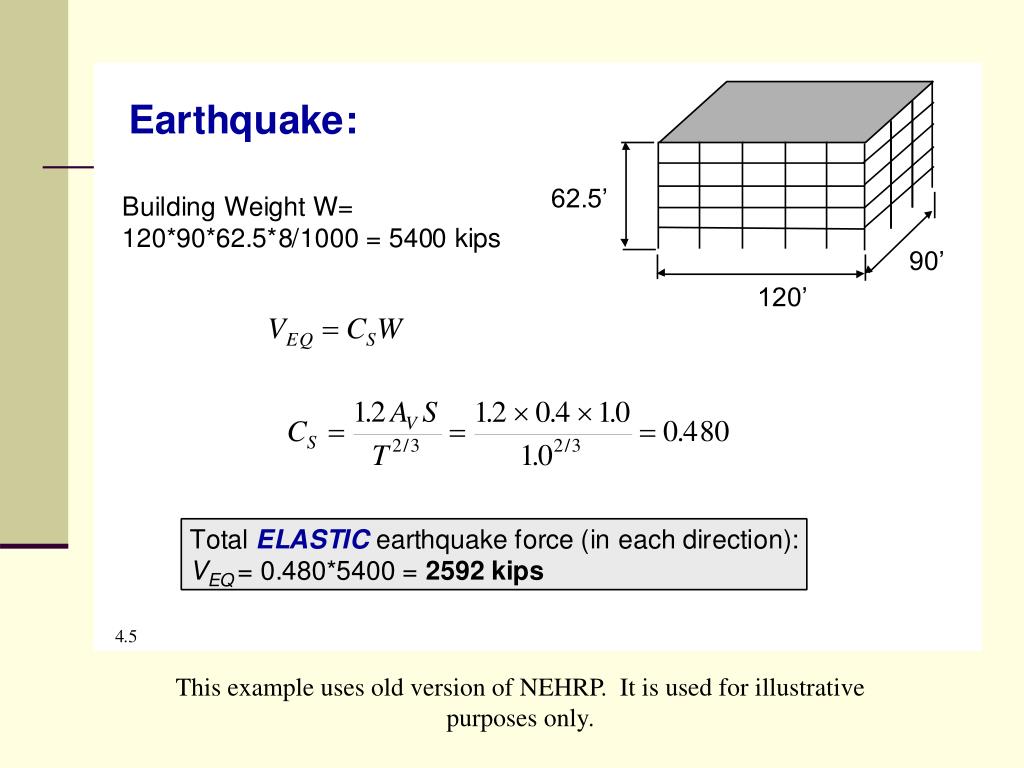

Elastic vs. Inelastic Response
  • The red line shows the force and displacement that would be reached if the structure responded elastically.
  • The green line shows the actual force vs. displacement response of the structure
  • The pink line indicates the minimum strength required to hold everything together during inelastic behavior
  • The blue line is the force level that we design for.
  • We rely on the ductility of the system to prevent collapse.

From 1997 NEHRP Provisions

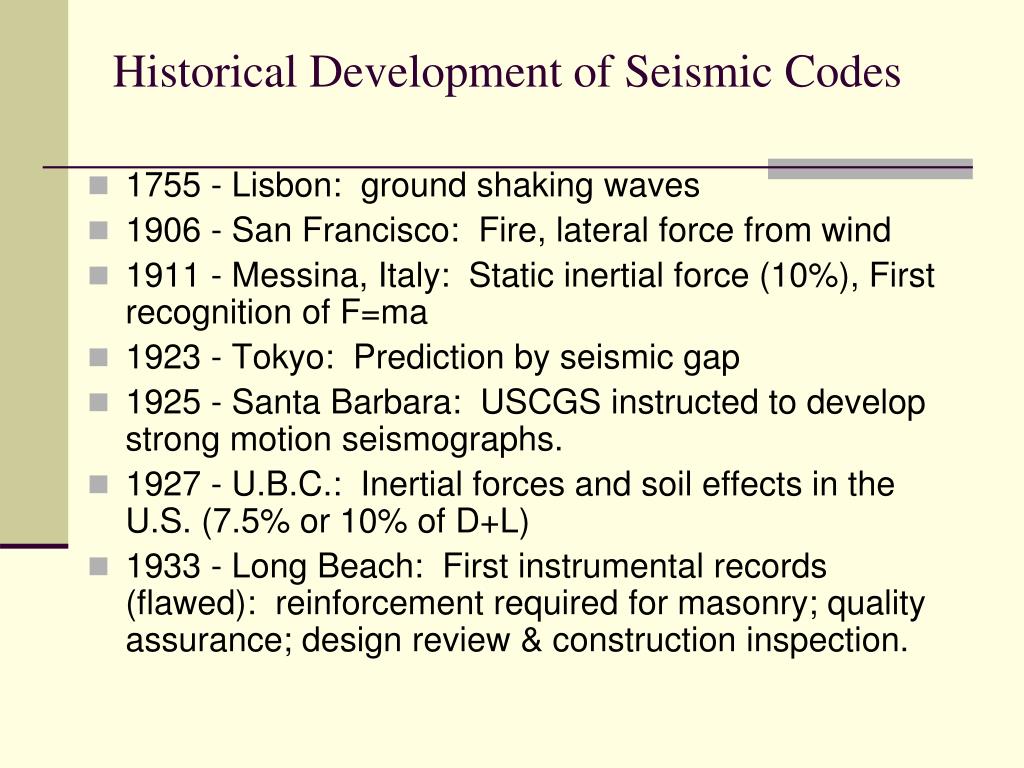

historical development of seismic codes
Historical Development of Seismic Codes
  • 1755 - Lisbon: ground shaking waves
  • 1906 - San Francisco: Fire, lateral force from wind
  • 1911 - Messina, Italy: Static inertial force (10%), First recognition of F=ma
  • 1923 - Tokyo: Prediction by seismic gap
  • 1925 - Santa Barbara: USCGS instructed to develop strong motion seismographs.
  • 1927 - U.B.C.: Inertial forces and soil effects in the U.S. (7.5% or 10% of D+L)
  • 1933 - Long Beach: First instrumental records (flawed): reinforcement required for masonry; quality assurance; design review & construction inspection.
historical development of seismic codes15

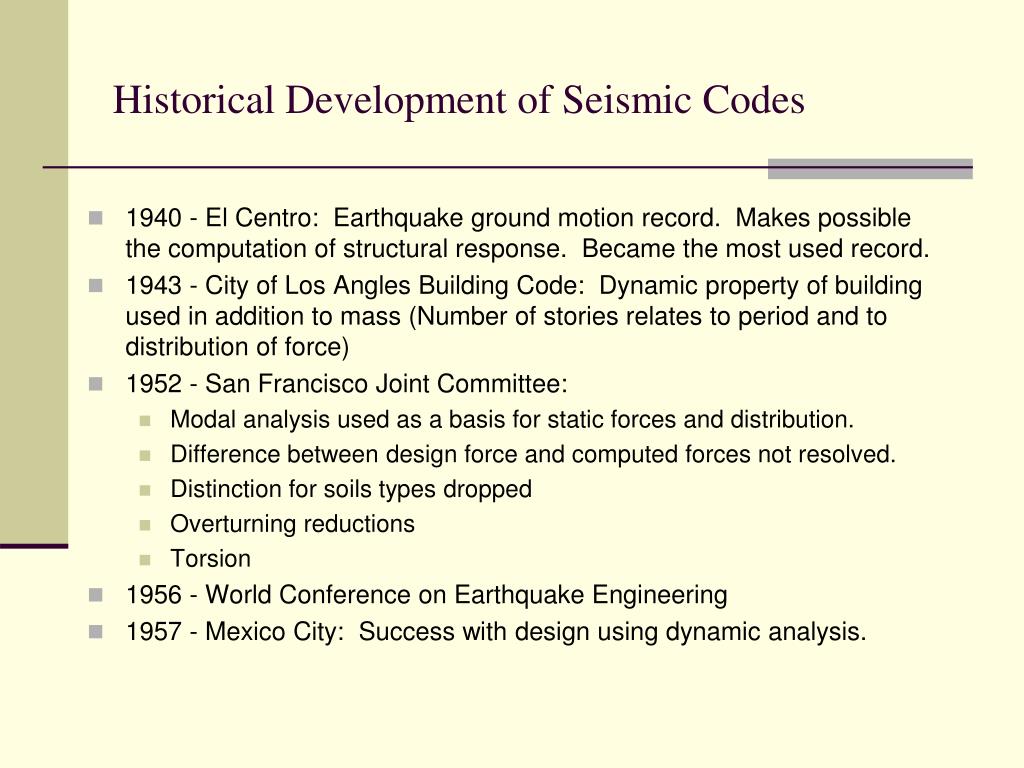

Historical Development of Seismic Codes
  • 1940 - El Centro: Earthquake ground motion record. Makes possible the computation of structural response. Became the most used record.
  • 1943 - City of Los Angles Building Code: Dynamic property of building used in addition to mass (Number of stories relates to period and to distribution of force)
  • 1952 - San Francisco Joint Committee:
    • Modal analysis used as a basis for static forces and distribution.
    • Difference between design force and computed forces not resolved.
    • Distinction for soils types dropped
    • Overturning reductions
    • Torsion
  • 1956 - World Conference on Earthquake Engineering
  • 1957 - Mexico City: Success with design using dynamic analysis.
historical development of seismic codes16

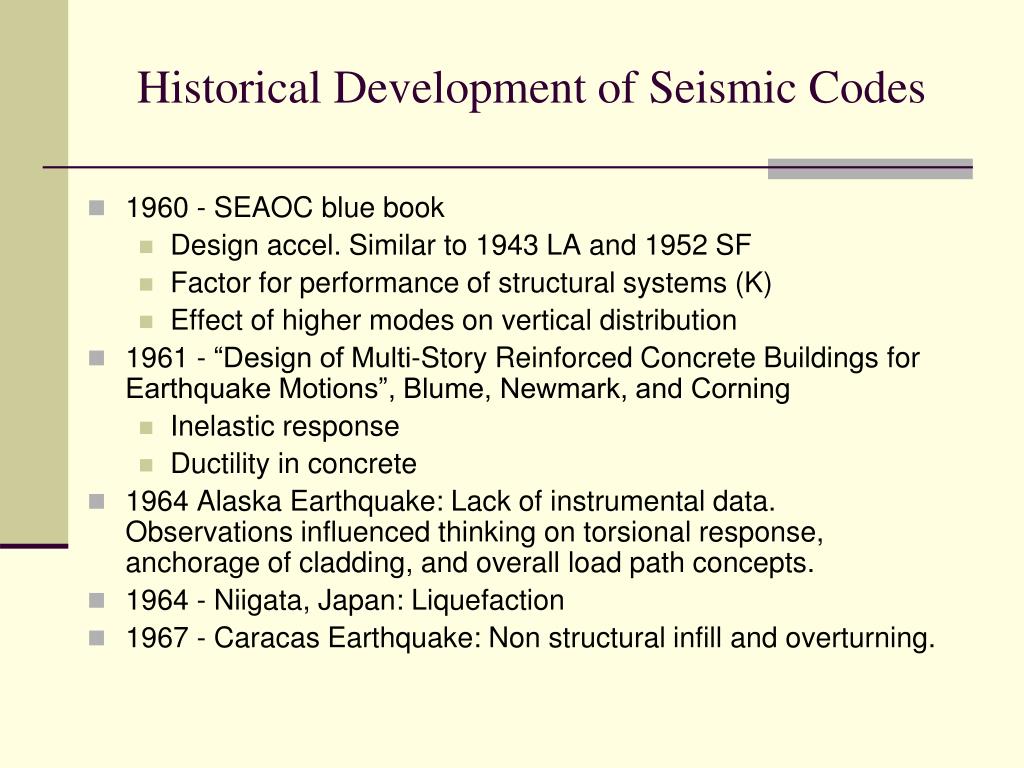

Historical Development of Seismic Codes
  • 1960 - SEAOC blue book
    • Design accel. Similar to 1943 LA and 1952 SF
    • Factor for performance of structural systems (K)
    • Effect of higher modes on vertical distribution
  • 1961 - “Design of Multi-Story Reinforced Concrete Buildings for Earthquake Motions”, Blume, Newmark, and Corning
    • Inelastic response
    • Ductility in concrete
  • 1964 Alaska Earthquake: Lack of instrumental data. Observations influenced thinking on torsional response, anchorage of cladding, and overall load path concepts.
  • 1964 - Niigata, Japan: Liquefaction
  • 1967 - Caracas Earthquake: Non structural infill and overturning.
historical development of seismic codes17

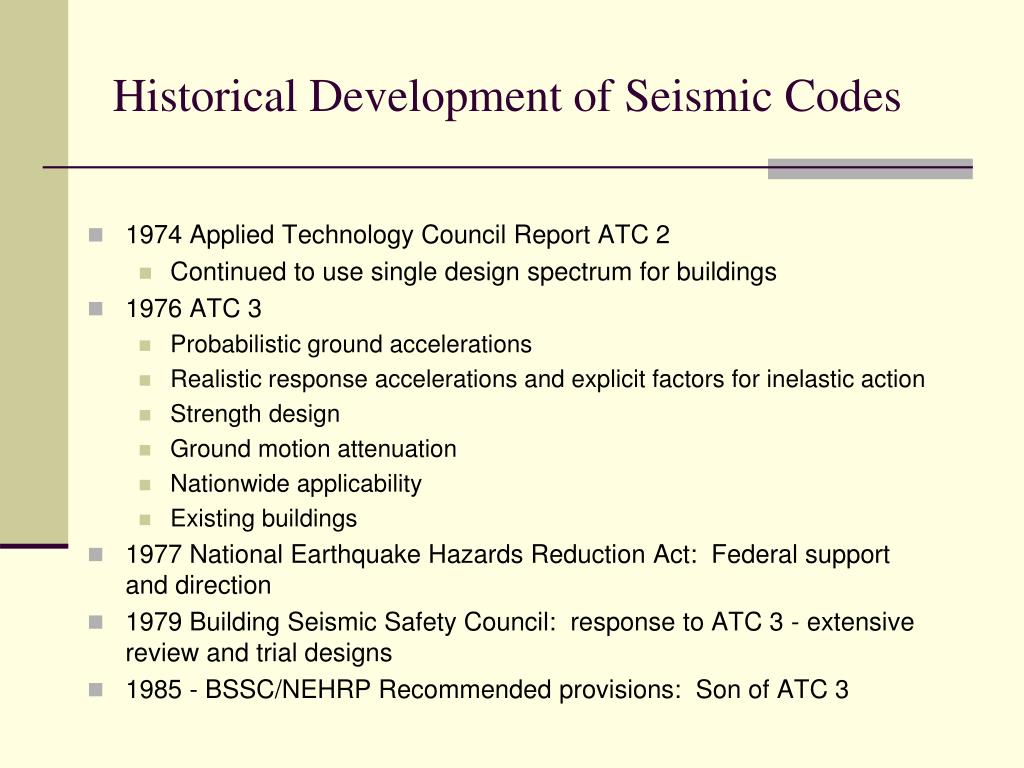

Historical Development of Seismic Codes
  • 1974 Applied Technology Council Report ATC 2
    • Continued to use single design spectrum for buildings
  • 1976 ATC 3
    • Probabilistic ground accelerations
    • Realistic response accelerations and explicit factors for inelastic action
    • Strength design
    • Ground motion attenuation
    • Nationwide applicability
    • Existing buildings
  • 1977 National Earthquake Hazards Reduction Act: Federal support and direction
  • 1979 Building Seismic Safety Council: response to ATC 3 - extensive review and trial designs
  • 1985 - BSSC/NEHRP Recommended provisions: Son of ATC 3
historical development of seismic codes18

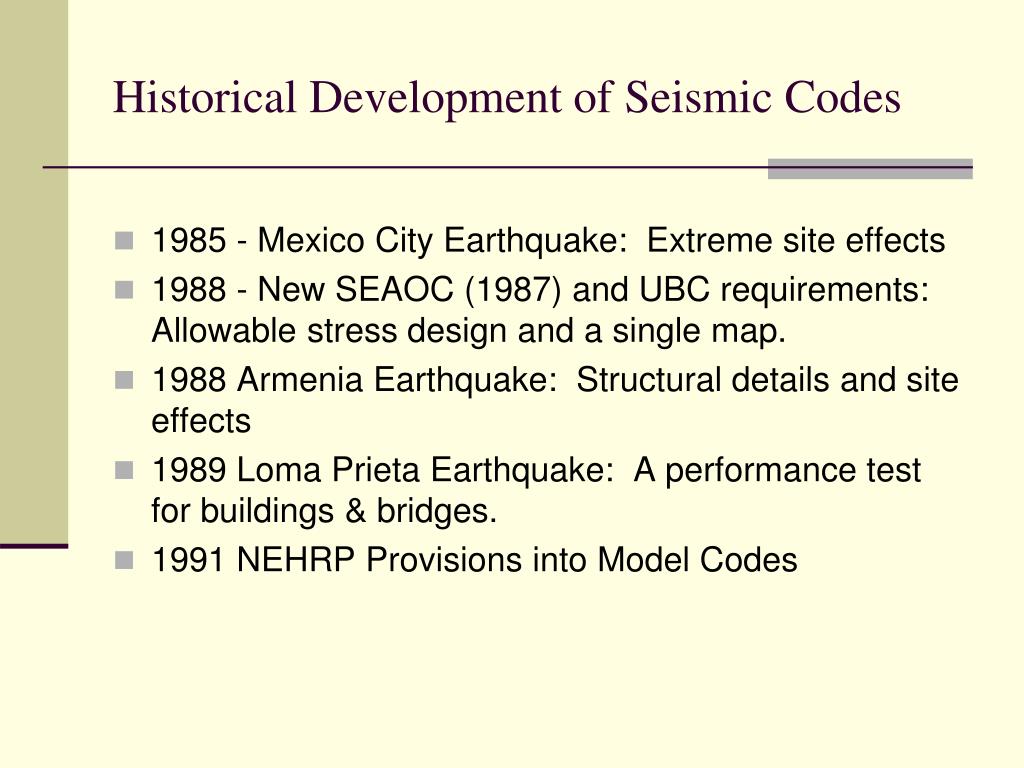

Historical Development of Seismic Codes
  • 1985 - Mexico City Earthquake: Extreme site effects
  • 1988 - New SEAOC (1987) and UBC requirements: Allowable stress design and a single map.
  • 1988 Armenia Earthquake: Structural details and site effects
  • 1989 Loma Prieta Earthquake: A performance test for buildings & bridges.
  • 1991 NEHRP Provisions into Model Codes
building seismic safety council http www bssconline org
Building Seismic Safety Councilhttp://www.bssconline.org/
  • Private
  • Voluntary
  • National Forum
  • Issues:
    • Technical
    • Social
    • Economical
  • Members are organizations (ASCE, ACI, AISC, AIA, ICBO, BOCA, EERI, SEAOC, etc…)
  • Consensus Process
seismic ground motion values
Seismic Ground Motion Values

See ASCE 7-05 11.4

  • Mapped Acceleration Parameters
    • Ss = Mapped 5% damped, spectral response acceleration parameter at short periods
    • S1 = Mapped 5% damped spectral response acceleration parameter at a period of 1 sec.
    • Can be found online at

http://earthquake.usgs.gov/research/hazmaps/

    • You need Java to run the downloadable application.
slide22
SS

See ASCE 7-05 22

  • Use Map to find the maximum considered ground motion for short periods.
  • The contours are irregularly spaced
  • Values are in % of g
slide23

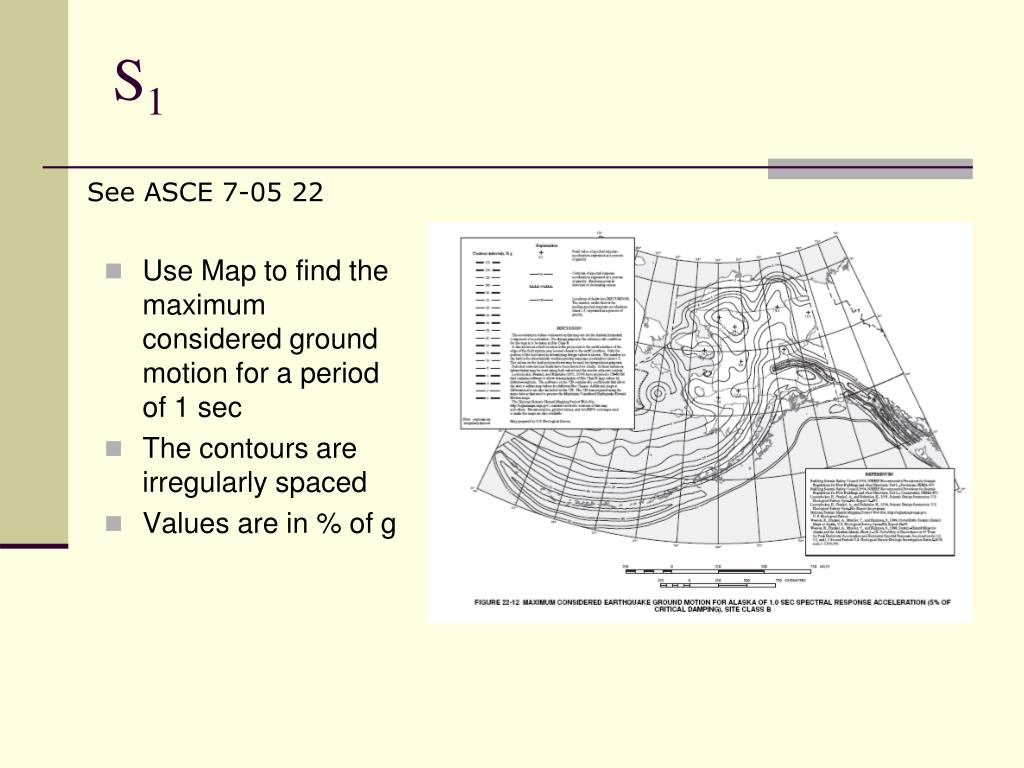

S1

See ASCE 7-05 22

  • Use Map to find the maximum considered ground motion for a period of 1 sec
  • The contours are irregularly spaced
  • Values are in % of g
site classes
Site Classes

See ASCE 7-05 11.4.2, 20

  • Site Classes are also labeled A-F
    • A is for hard rock, F for very soft soils
    • See definitions in ASCE 7-05 20
  • Choice of site class is based on soil stiffness which is measured in different ways for different types of soil.
  • See ASCE 7-05 20 for procedure
  • If insufficient data is available, assume Site Class D unless there is a probability of a Site Class F.

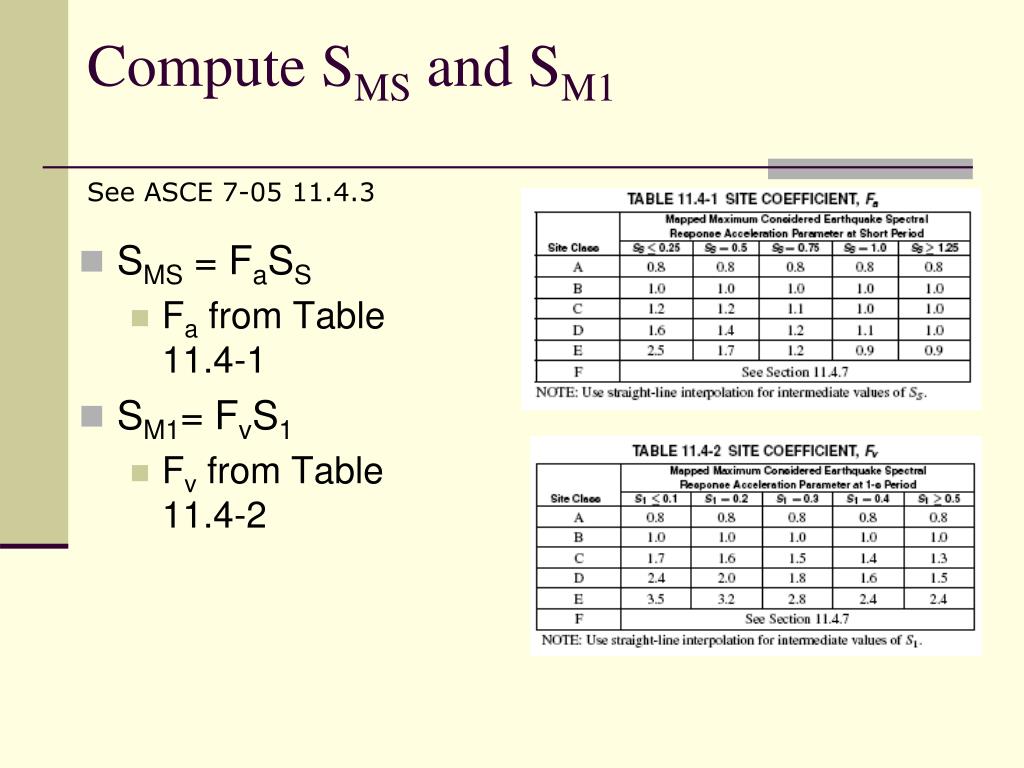

compute s ms and s m1
Compute SMS and SM1

See ASCE 7-05 11.4.3

  • SMS = FaSS
    • Fa from Table 11.4-1
  • SM1= FvS1
    • Fv from Table 11.4-2
spectral response accelerations s ds and s d1
Spectral Response Accelerations SDS and SD1

See ASCE 7-05 11.4.4

  • SDS is the design, 5% damped, spectral response acceleration for short periods.
  • SD1 is the design, 5% damped, spectral response acceleration at a period of 1 sec.
  • SDS and SD1 are used in selecting the Seismic Design Category and in the analysis methods.

SDS = 2*SMS/3 SD1 = 2*SM1/3

design response spectrum
Design Response Spectrum

See ASCE 7-05 11.4.5

  • Period Limiting Values
    • T0 = .2 SD1/SDS
    • TS = SD1/SDS
    • TL from ASCE 7-05 22
  • Sa, design spectral response acceleration
    • Sa is a function of structure period, T
    • Four regions, four equations.
importance factor i
Importance Factor, I

See ASCE 7-05 11.5

  • See ASCE 7-05 Table 11.5-1
    • Function of Occupancy Category
  • Requirement for structures adjacent to occupancy category IV structures where access is needed to get to the category IV structure.
seismic design categories

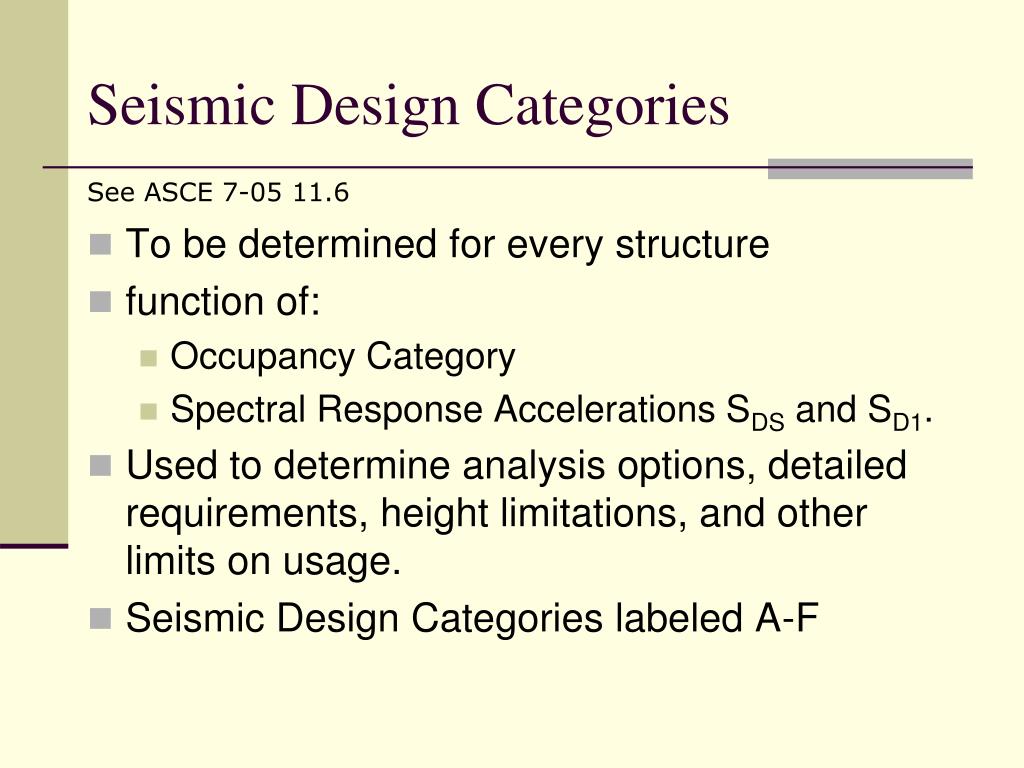

Seismic Design Categories

See ASCE 7-05 11.6

  • To be determined for every structure
  • function of:
    • Occupancy Category
    • Spectral Response Accelerations SDS and SD1.
  • Used to determine analysis options, detailed requirements, height limitations, and other limits on usage.
  • Seismic Design Categories labeled A-F
seismic design categories30

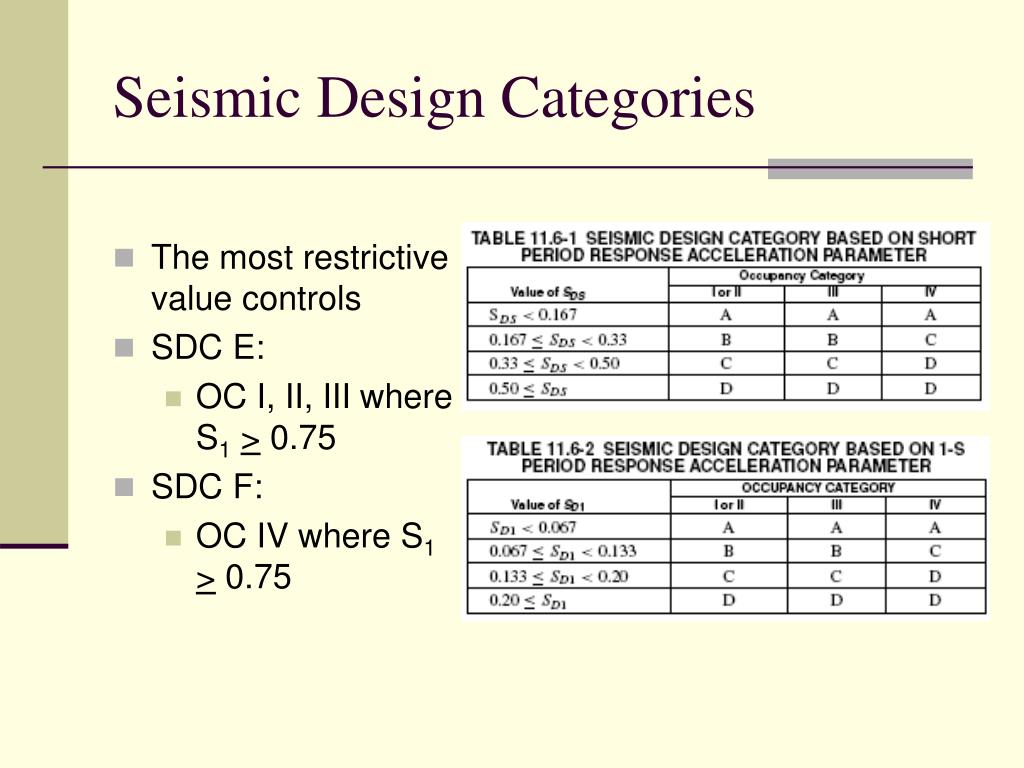

Seismic Design Categories
  • The most restrictive value controls
  • SDC E:
    • OC I, II, III where S1> 0.75
  • SDC F:
    • OC IV where S1> 0.75
seismic design category a
Seismic Design Category A

See ASCE 7-05 11.7

  • Very limited seismic exposure and risk
  • Lateral forces taken to equal 1% of structure weight.
  • A complete load path must be in place.
soil report requirements
Soil Report Requirements

See ASCE 7-05 11.8

  • Limits on where you can place a structure (SDC E or F)
  • SDC C – F:
    • specific evaluation of listed hazards.
  • SDC D-F:
    • Even more evaluation requirements.
seismic load analysis procedures
Seismic Load Analysis Procedures

See ASCE 7-05 12.6

  • Equivalent Lateral Force (ELF)
    • Static approximation.
    • May not be used on structures of Seismic Design Categories E or F with particular irregularities. (ASCE 7-05 Table 12.6-1)
  • Modal Analysis
    • 2D and 3D dynamic analysis
    • Required for buildings with particular irregularities
  • Site Specific Response Spectrum
    • Permitted for all structures
analysis procedures
Analysis Procedures
  • Category A: regular and irregular structures designed for a minimum lateral force
  • Category B & C: regular and irregular structures using any of the three methods
  • Category D, E, & F: Table 12.6-1 with some limits on SDS and SD1
    • ELF for regular and some irregular
    • Modal for some irregular
    • Site specific required in Site Classes E or F
structure configuration regular or irregular

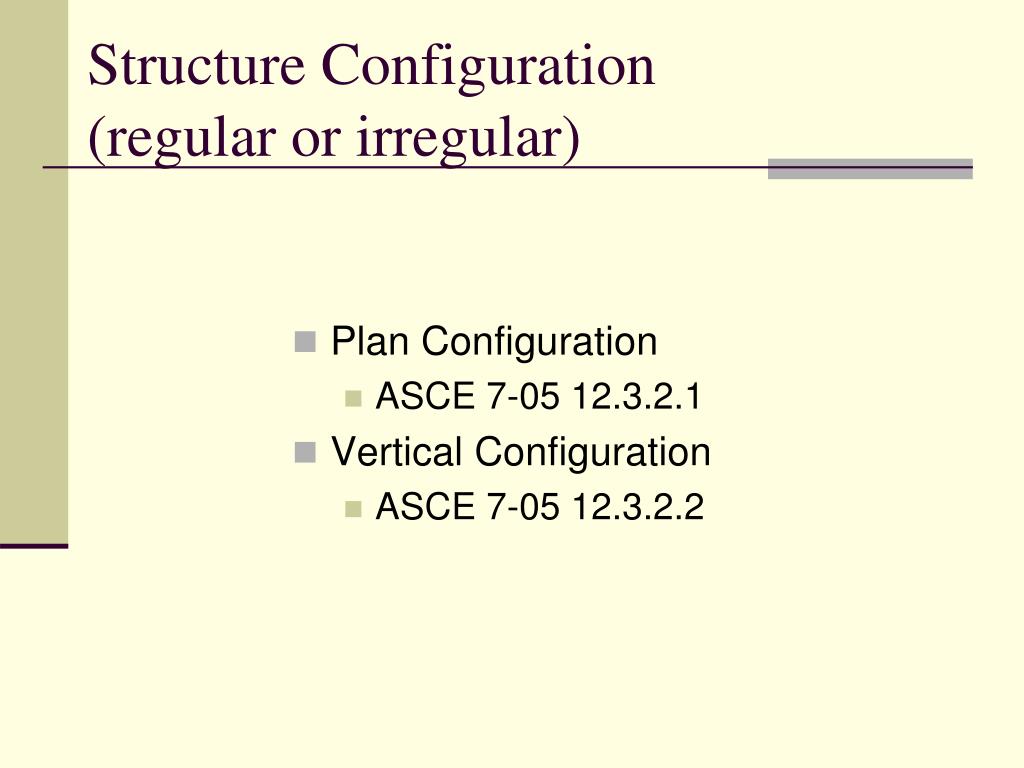

Structure Configuration(regular or irregular)
  • Plan Configuration
    • ASCE 7-05 12.3.2.1
  • Vertical Configuration
    • ASCE 7-05 12.3.2.2
plan structural irregularities
Plan Structural Irregularities
  • 1a - Torsional Irregularity
  • 1b - Extreme Torsional Irregularity
  • 2 - Re-entrant Corners
  • 3 - Diaphragm Discontinuity
  • 4 - Out-of-plane Offsets
  • 5 - Nonparallel Systems
type 1 torsional irregularities
Type 1: Torsional Irregularities
  • 1a - Torsional Irregularity
    • larger story drift more than 1.2 times average story drift
  • 1b - Extreme Torsional Irregularity
    • larger story drift more than 1.4 times average story drift
    • Not permitted in Design Categories E & F
  • Design forces for lateral force connections to be increased 25% in Design Categories D, E, & F.
type 2 re entrant corners
Type 2: Re-entrant Corners
  • Both projections beyond the corner are more than 15% of the plan dimension of the structure in the same direction
type 3 diaphragm discontinuities
Type 3: Diaphragm Discontinuities
  • Diaphragms with abrupt discontinuities or variations in stiffness, including those having cutout or open areas greater than 50% of the gross enclosed diaphragm area, or changes in effective diaphragm stiffness of more than 50% from one story to the next.
  • Design forces for lateral force connections to be increased 25% in Design Categories D, E, & F.
type 4 out of plane offsets
Type 4: Out-of-Plane Offsets
  • Discontinuities in a lateral force resistance path, such as out-of-plane offsets of the vertical elements.
  • Design forces for lateral force connections to be increased 25% in Design Categories D, E, & F.
type 5 nonparallel systems
Type 5: Nonparallel Systems
  • The vertical lateral force-resisting elements are not parallel to or symmetric about the major orthogonal axes of the lateral force resisting system.
  • Analyze for forces applied in the direction that causes the most critical load effect for Design Categories C - F.
vertical irregularities

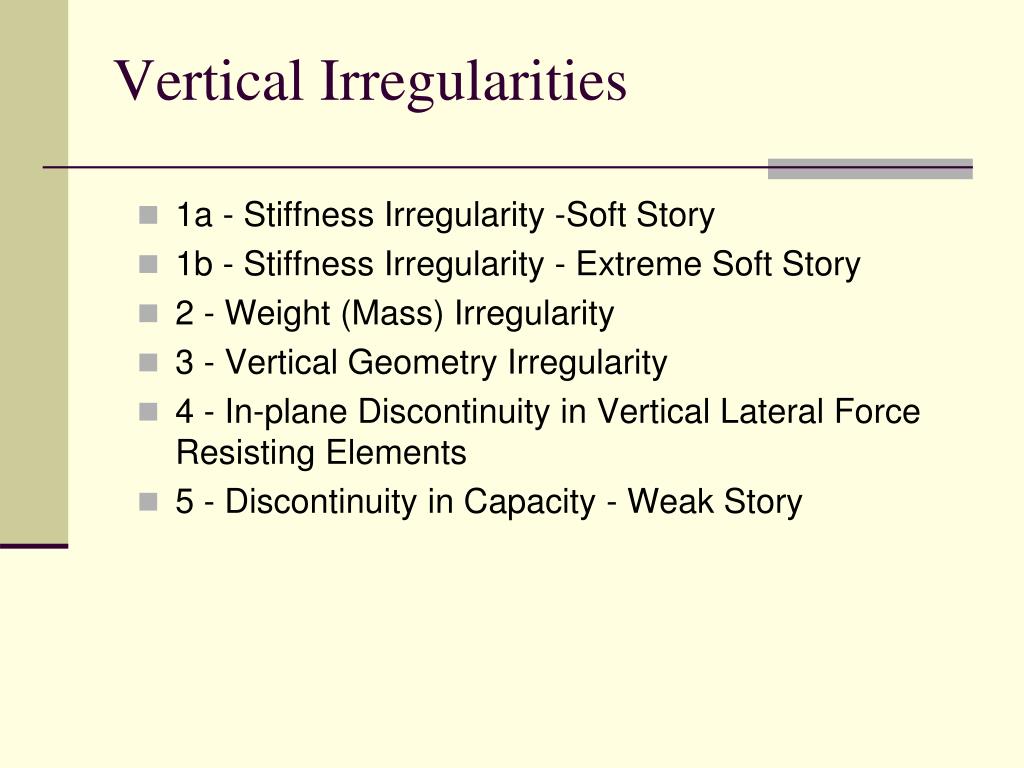

Vertical Irregularities
  • 1a - Stiffness Irregularity -Soft Story
  • 1b - Stiffness Irregularity - Extreme Soft Story
  • 2 - Weight (Mass) Irregularity

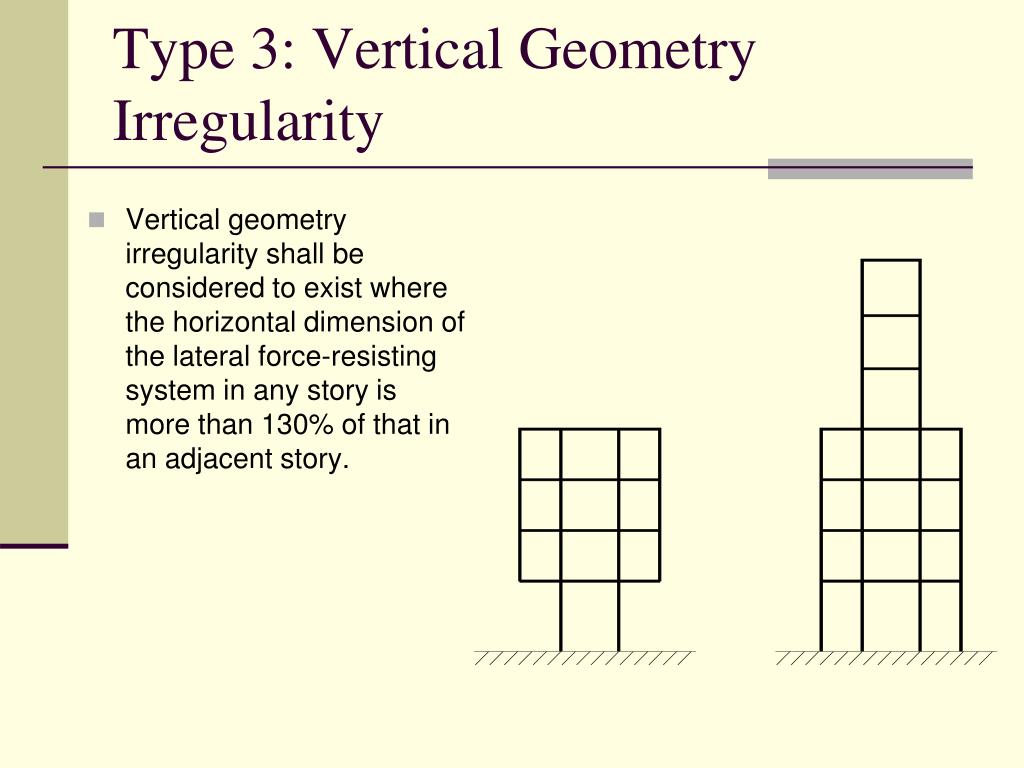

  • 3 - Vertical Geometry Irregularity

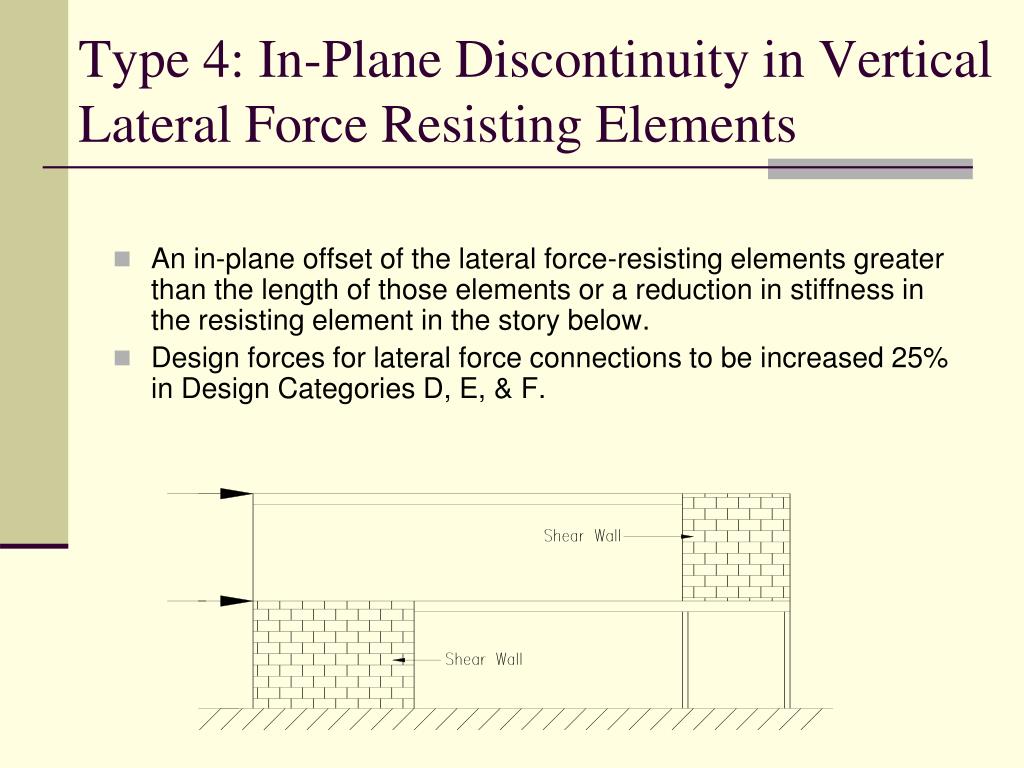

  • 4 - In-plane Discontinuity in Vertical Lateral Force Resisting Elements
  • 5 - Discontinuity in Capacity - Weak Story
type 1 stiffness irregularities
Type 1: Stiffness Irregularities
  • 1a - Soft Story
    • the lateral stiffness is less than 70% of that in the story above or less than 80% of the average stiffness of the three stories above.
  • 1b - Extreme Soft Story
    • the lateral stiffness is less than 60% of that in the story above or less than 70% of the average stiffness of the three stories above.
    • Not permitted in Design Categories E & F
type 2 weight mass irregularity
Type 2: Weight (Mass) Irregularity
  • Mass irregularity shall be considered to exist where the effective mass of any story is more than 150% of the effective mass of an adjacent story. A roof that is lighter than the floor below need not be considered.
type 3 vertical geometry irregularity
Type 3: Vertical Geometry Irregularity
  • Vertical geometry irregularity shall be considered to exist where the horizontal dimension of the lateral force-resisting system in any story is more than 130% of that in an adjacent story.
type 4 in plane discontinuity in vertical lateral force resisting elements
Type 4: In-Plane Discontinuity in Vertical Lateral Force Resisting Elements
  • An in-plane offset of the lateral force-resisting elements greater than the length of those elements or a reduction in stiffness in the resisting element in the story below.
  • Design forces for lateral force connections to be increased 25% in Design Categories D, E, & F.
type 5 discontinuity in capacity soft story
Type 5: Discontinuity in Capacity - Soft Story
  • A weak story is one in which the story lateral strength is less than 80% of that in the story above. The story strength is the total strength of all seismic-resisting elements sharing the story shear for the direction under consideration.
  • Do not confuse STIFFNESS with STRENGTH.
  • Not permitted in Design Categories E & F.

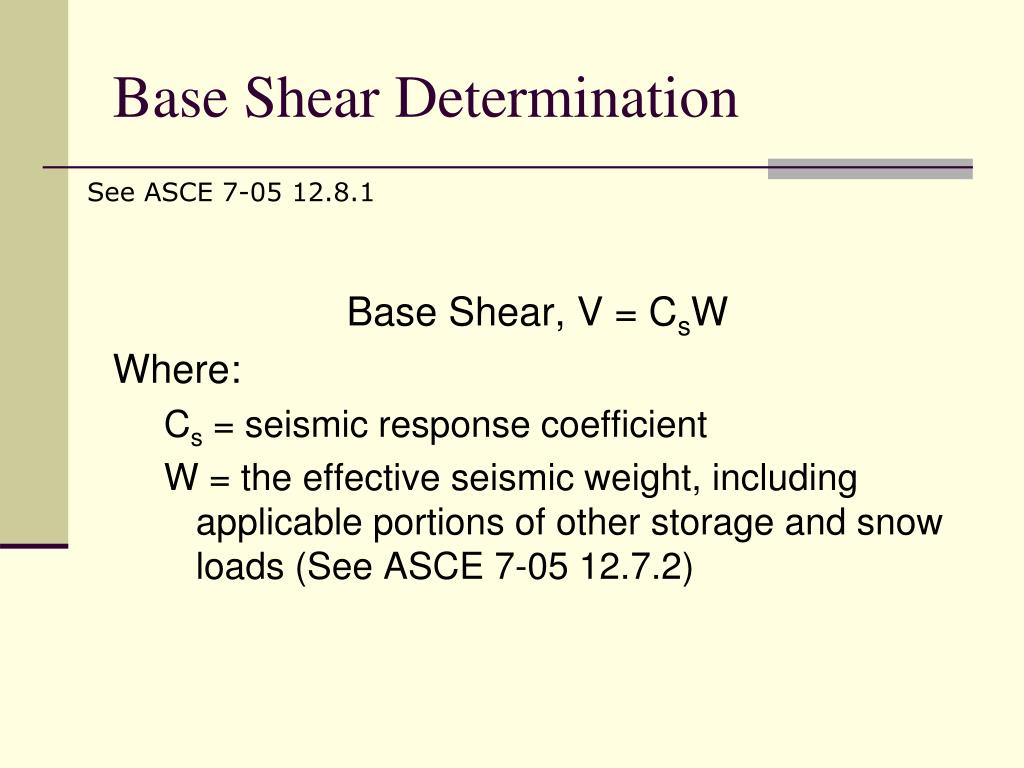

base shear determination
Base Shear Determination

See ASCE 7-05 12.8.1

Base Shear, V = CsW

Where:

Cs = seismic response coefficient

W = the effective seismic weight, including applicable portions of other storage and snow loads (See ASCE 7-05 12.7.2)

seismic weight w
Seismic Weight, W

See ASCE 7-05 12.7.2

  • W is to include:
    • all dead load (all permanent components of the building, including permanent equipment)
    • 25% of any design storage floor live loads except for floor live load in public garages and open parking structures.
    • If partition loads are considered in floor design, at least 10 psf is to be included.
    • A portion of the snow load (20% pf minimum) in regions where the flat roof snow load exceeds 30 psf.
seismic response coefficient c s
Seismic Response Coefficient, Cs

See ASCE 7-05 12.8.1.1

Cs = SDS /(R/I)

Cs need not exceed

SD1/(T(R/I)) for T < TL

SD1TL/(T2(R/I)) for T > TL

Cs shall not be taken less than

0.01 for S1 < 0.6g

0.5S1/(R/I) for S1> 0.6g

response modification coefficient r
Response Modification Coefficient, R

See ASCE 7-05 12.2

  • The response modification factor, R, accounts for the dynamic characteristics, lateral force resistance, and energy dissipation capacity of the structural system.
  • Can be different for different directions.
fundamental period t
Fundamental Period, T
  • May be computed by analytical means
  • May be computed by approximate means, Ta
  • Where analysis is used to compute T:

T < Cu Ta

  • May also use Ta in place of actual T
approximate fundamental period t a
Approximate Fundamental Period, Ta

See ASCE 7-05 12.8.2

  • An approximate means may be used.

Ta = CThnx

Where:

CT = Building period coefficient.

hn = height above the base to the highest level of the building

  • for moment frames not exceeding 12 stories and having a minimum story height of 10 ft, Ta may be taken as 0.1N, where N = number of stories.
  • For masonry or concrete shear wall buildings use eq 12.8-9
  • Ta may be different in each direction.
base shear summary
Base Shear Summary

V = CsW

From Design Spectrum

W = Building Seismic Weight

0.01 or 0.5S1/(R/I) < SDS/(R/I) < SD1/(T(R/I)) or TLSD1/(T2(R/I))

From map

Numerical Analysis or Ta = CThnx or Ta = 0.1N

R from Table 12.2-1 based on the Basic Seismic-Force-Resisting system

CT = 0.028, 0.016, 0.030, or 0.020

hn = building height

N = number of storys

I from Table 11.5-1 based on Occupancy Category

vertical distribution of base shear
Vertical Distribution of Base Shear

See ASCE 7-05 12.8.3

  • For short period buildings the vertical distribution follows generally follows the first mode of vibration in which the force increases linearly with height for evenly distributed mass.
  • For long period buildings the force is shifted upwards to account for the whipping action associated with increased flexibility
story force f x
Story Force, Fx

Fx = CvxV

Where Cvx = Vertical Distribution Factor

Wx = Weight at level x

hx = elevation of level x above the base

k = exponent related to structure period

When T < 0.5 s, k =1, When T > 2.5 s, k =2,

Linearly interpolate when 0.5 < T < 2.5 s

story shear v x
Story Shear, Vx
  • Story shear, Vx, is the shear force at a given story level
  • Vx is the sum of all the forces above that level.
horizontal distribution
Horizontal Distribution

See ASCE 7-05 12.8.4

  • Being an inertial force, the Story Force, Fx, is distributed in accordance with the distribution of the mass at each level.
  • The Story Shear, Vx, is distributed to the vertical lateral force resisting elements based on the relative lateral stiffnesses of the vertical resisting elements and the diaphragm.
torsion
Torsion

See ASCE 7-05 12.8.4.1-3

  • The analysis must take into account any torsional effects resulting from the location of the masses relative to the centers of resistance.
  • In addition to the predicted torsion, accidental torsion must be applied for structures with rigid diaphragms by assuming the center of mass at each level is moved from its actual location a distance equal to 5% the building dimension perpendicular to the direction of motion.
  • Buildings of Seismic Design Categories C, D, E, and F with torsional irregularities are to have torsional moments magnified.
using the results of the seismic analysis
Using the results of the Seismic Analysis

“The effects on the structure and its components due to gravity loads and seismic forces shall be combined in accordance with the factored load combinations as presented in ASCE 7 except that the effect of seismic loads, E, shall be as defined herein.”

overturning
Overturning

See ASCE 7-05 12.8.5

  • The effects of overturning must be considered.
  • The overturning moment at any level is the sum of the moments at that level created by the Story Forces at each level above it.
asce 7 load combinations that include seismic effects
ASCE 7 Load Combinations that include Seismic Effects

See ASCE 7-05 2.3 & 2.4

LRFD

5: 1.2D + 1.0E + L + 0.2S

7: 0.9D + 1.0E

ASD

5: D + (W or 0.7E)

6: D + 0.75(W or 0.7E) + 0.75L + 0.75(Lr or S or R)

8: 0.6D + 0.7E

definition of e
Definition of E

See ASCE 7-05 12.4

  • When Seismic effects and Dead Load effects are additive:

E = Eh + Ev = DQE + 0.2SDSD

  • When Seismic effects and Dead Load effects counteract:

E = Eh - Ev = DQE - 0.2SDSD

  • QE = Effect of horizontal seismic forces
  • D = the reliability factor
the reliability factor d
The Reliability Factor, D

See ASCE 7-05 12.3.4

  • The reliability factor is intended to account for redundancy in the structure.
  • The factor, D, may be taken as 1.0 for eight cases listed in ASCE 7-05 12.3.4.1, including Seismic Design Categories A-C.
  • For structures of Seismic Design Categories D-F:

D = 1.3

With listed exceptions (ASCE 7-05 12.3.4.2)
