Hastelloy C 276 Versatile Corrosion-Resistant Alloy for Diverse Applications

Hastelloy C-276 is a versatile nickel-molybdenum-chromium alloy known for its excellent corrosion resistance in a wide range of harsh environments. The alloy has excellent resistance to both oxidizing and reducing conditions making it ideal for a variety of industrial applications. This comprehensive description looks at Hastelloy C-276's properties, description, and wide range of uses.

Download Presentation

Hastelloy C 276 Versatile Corrosion-Resistant Alloy for Diverse Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

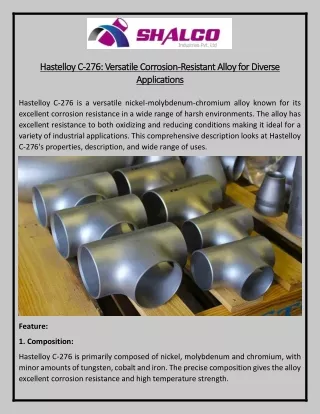

  1. Hastelloy C Hastelloy C- -276: Versatile Corrosion 276: Versatile Corrosion- -Resistant Alloy for Diverse Applications Applications Resistant Alloy for Diverse Hastelloy C-276 is a versatile nickel-molybdenum-chromium alloy known for its excellent corrosion resistance in a wide range of harsh environments. The alloy has excellent resistance to both oxidizing and reducing conditions making it ideal for a variety of industrial applications. This comprehensive description looks at Hastelloy C-276's properties, description, and wide range of uses. Feature: 1. Composition: Hastelloy C-276 is primarily composed of nickel, molybdenum and chromium, with minor amounts of tungsten, cobalt and iron. The precise composition gives the alloy excellent corrosion resistance and high temperature strength.

  2. 2. Corrosion resistance: Hastelloy C-276 is known for its excellent resistance to a wide range of corrosive environments, including acidic, alkaline and chloride-containing media. Offers excellent resistance to pitting, crevice corrosion, stress corrosion cracking (SCC), sulfuric acid, hydrochloric acid and other aggressive chemicals. 3. High temperature strength: Hastelloy C-276 retains its strength and mechanical properties even at elevated temperatures. It can withstand temperatures up to 1095°C (2000°F) without significant loss of strength, making it suitable for high temperature applications. Four. Versatility: The alloy's versatility is demonstrated by its ability to perform well in a variety of environments, including oxidizing and reducing atmospheres, acidic and alkaline solutions, and seawater. This property makes Hastelloy C-276 suitable for a wide range of applications in various industries. 5. Manufacturability: Hastelloy C-276 has excellent machinability and is easy to form, weld and machine. This property enables the production of complex components including tubes, fittings, valves and other complex geometries to meet specific application needs. 6. Low permeability: Hastelloy C-276's low magnetic permeability makes it suitable for applications where magnetic properties are undesirable, such as electronics and magnetic resonance imaging (MRI) equipment. explanation: Hastelloy C-276 is available in a variety of forms including sheets, plates, bars, tubes, pipes, fittings and filler metals. These shapes can be further processed into bespoke components based on specific industrial needs. Hastelloy C-276 has a face centered cubic (FCC) crystal structure and a bright silvery appearance.

  3. This alloy is typically manufactured by processes such as hot or cold working, forging and casting. These processes ensure that the desired dimensions, mechanical properties and surface finish are achieved. Hastelloy C-276 can be further processed to improve its properties, such as heat treatment to optimize strength and corrosion resistance. Application: 1. Chemical treatment: Hastelloy C-276 is widely used in the chemical industry due to its excellent corrosion resistance. Used in equipment such as reactors, columns, heat exchangers, pipes, valves and pumps. The alloy's resistance to a wide range of chemicals, including sulfuric, hydrochloric, phosphoric, and organic acids, makes it ideal for handling corrosive materials. 2. Petrochemical industry: Hastelloy C-276 is used in critical applications in the petrochemical industry. Used in a variety of components such as distillation columns, heat exchangers, valves and piping for handling harsh chemicals, acid gases and corrosive liquids in refinery processes. 3. Oil and gas industry: Hastelloy C-276 is used in the oil and gas industry, especially in marine and terrestrial environments. Used for downhole equipment such as pipes and casings, piping, valves and fittings exposed to corrosive liquids, salt water and acid gases. 4. Pharmaceutical industry: Hastelloy C-276 is used in the pharmaceutical industry for its resistance to corrosive chemicals and ease of cleaning. It is used in equipment such as reactors, vessels, and piping systems used in the manufacturing process of pharmaceuticals. 5. Desalination Plant: Hastelloy C-276 is ideal for desalination plants that convert seawater into freshwater. The alloy's corrosion resistance and ability to withstand high chloride concentrations make it suitable for critical components such as heat exchangers, evaporators and brine heaters.

  4. 6. Power generation: Hastelloy C-276 is used in power generation equipment such as fossil fuel power plants and nuclear power plants. It is used for components such as heat exchangers, condensers, flue gas desulfurization systems and scrubbers where corrosion resistance is important. 7. Aerospace industry: The aerospace industry uses Hastelloy C-276 for its excellent corrosion resistance and high temperature strength. It is used in aircraft components where resistance to aggressive gases, combustion products and high temperatures is critical, such as exhaust systems, combustors and aerospace engines. 8. Environmental protection: Hastelloy C-276 plays an important role in pollution control systems. Used in scrubbers, absorbers, and emission control equipment to withstand corrosive gases, acids, and high temperature environments. 9. Marine applications: Hastelloy C-276 is used in marine environments due to its resistance to seawater corrosion and biofouling. Used in seawater treatment systems, heat exchangers and piping systems for ships and offshore structures. 10. Pulp and Paper Industry: Hastelloy C-276 is used in the pulp and paper industry due to its resistance to corrosive chemicals used in bleaching and pulping processes. Used in equipment such as digesters, bleaching towers and recovery boilers. 11. Mining and ore processing: Hastelloy C-276 is used in mining and ore processing. Used in equipment such as grinders, screens, pumps and piping systems that handle corrosive slurries and chemicals.

  5. 12. Waste disposal: Hastelloy C-276 is used in waste treatment facilities such as incinerators to withstand hot combustion gases and harsh chemical environments. 13. Semiconductor industry: Hastelloy C-276 is used in the semiconductor industry due to its ease of cleaning and resistance to corrosive chemicals used in the semiconductor manufacturing process. Its composition, properties, and wide range of applications make it an extremely valuable material in industries such as chemical processing, petrochemicals, oil and gas, pharmaceuticals, power generation, aerospace, marine, and environmental protection. The alloy's resistance to a variety of corrosive environments, combined with its workability and low magnetic permeability, ensure the integrity and reliability of critical components. Hastelloy C-276 continues to play an important role in a variety of industries where corrosion resistance, durability and high-performance materials are critical to maintaining operational efficiency and safety. Conclusion: Hastelloy C-276 is a highly versatile alloy known for its excellentcorrosion resistance and high temperature strength.
