Enhance Your Knowledge about Semi Rigid Cable

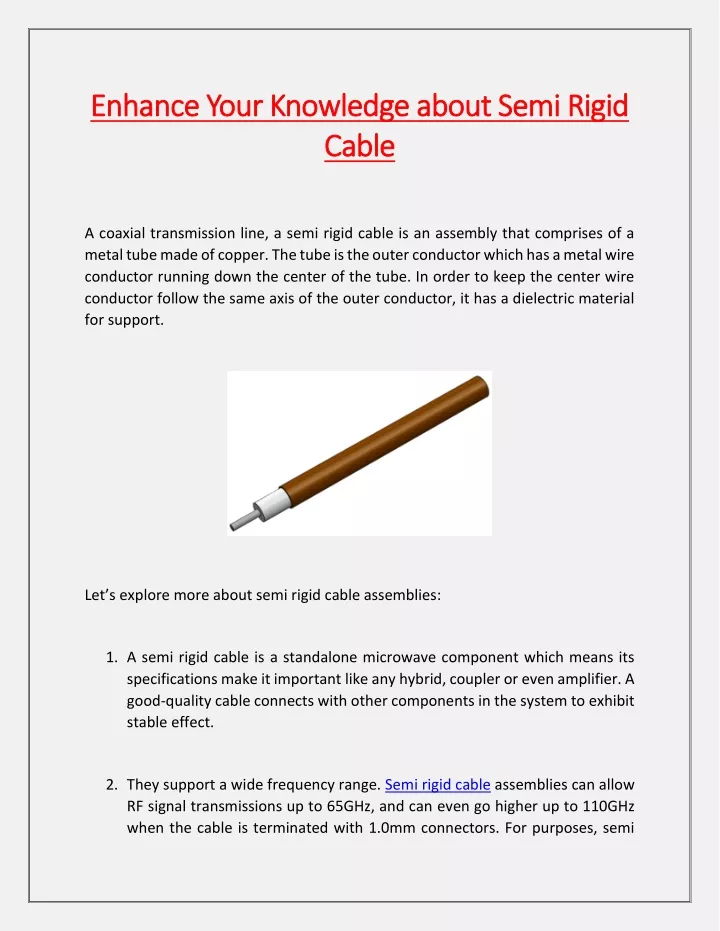

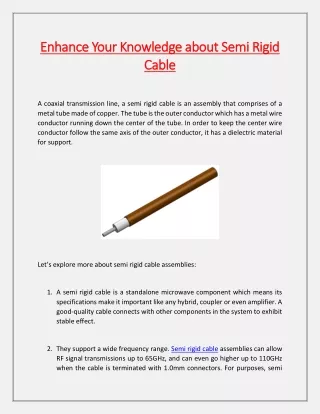

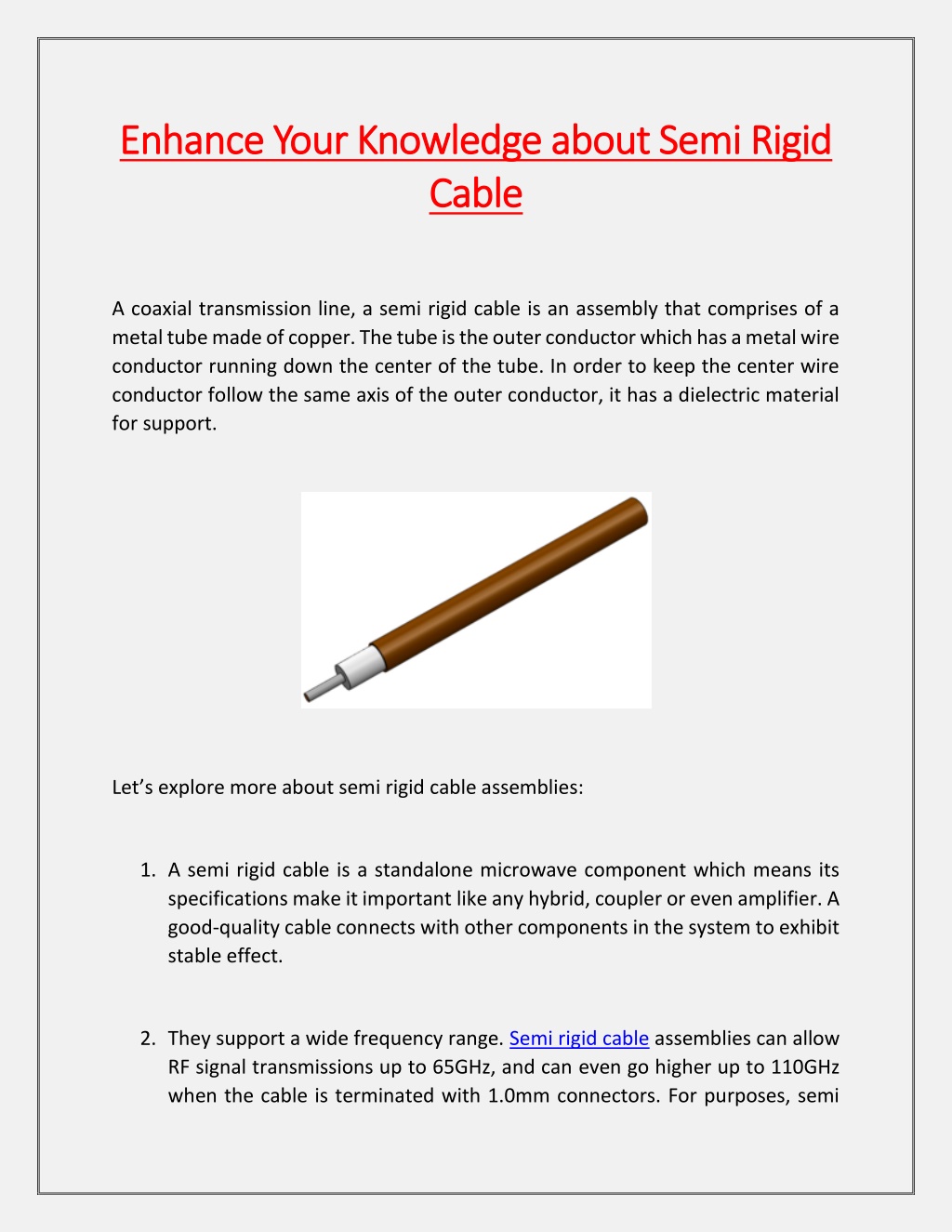

1. Enhance Your Knowledge about Semi Rigid Enhance Your Knowledge about Semi Rigid Cable Cable A coaxial transmission line, a semi rigid cable is an assembly that comprises of a metal tube made of copper. The tube is the outer conductor which has a metal wire conductor running down the center of the tube. In order to keep the center wire conductor follow the same axis of the outer conductor, it has a dielectric material for support. Let’s explore more about semi rigid cable assemblies: 1.A semi rigid cable is a standalone microwave component which means its specifications make it important like any hybrid, coupler or even amplifier. A good-quality cable connects with other components in the system to exhibit stable effect. 2.They support a wide frequency range. Semi rigid cable assemblies can allow RF signal transmissions up to 65GHz, and can even go higher up to 110GHz when the cable is terminated with 1.0mm connectors. For purposes, semi

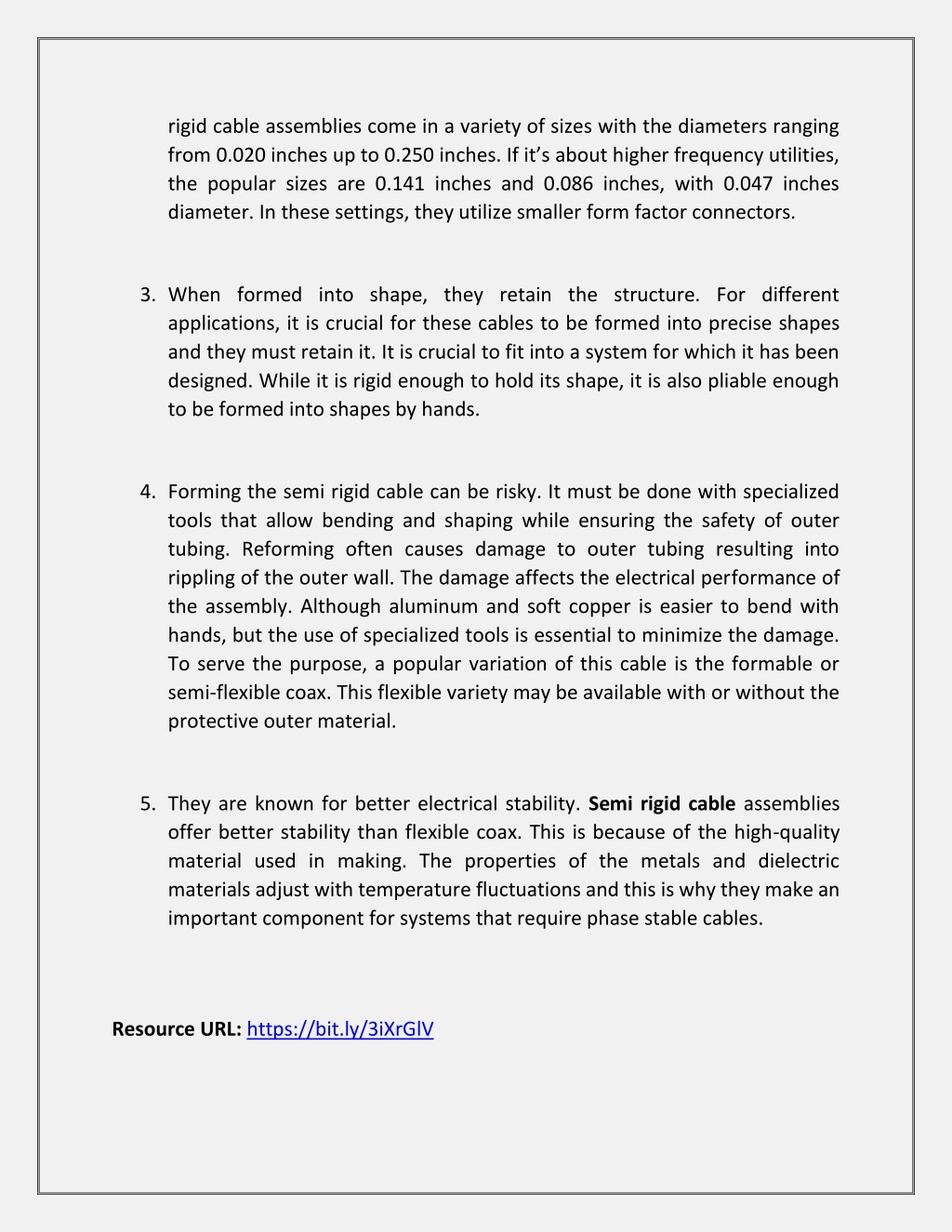

2. rigid cable assemblies come in a variety of sizes with the diameters ranging from 0.020 inches up to 0.250 inches. If it’s about higher frequency utilities, the popular sizes are 0.141 inches and 0.086 inches, with 0.047 inches diameter. In these settings, they utilize smaller form factor connectors. 3.When formed into shape, they retain the structure. For different applications, it is crucial for these cables to be formed into precise shapes and they must retain it. It is crucial to fit into a system for which it has been designed. While it is rigid enough to hold its shape, it is also pliable enough to be formed into shapes by hands. 4.Forming the semi rigid cable can be risky. It must be done with specialized tools that allow bending and shaping while ensuring the safety of outer tubing. Reforming often causes damage to outer tubing resulting into rippling of the outer wall. The damage affects the electrical performance of the assembly. Although aluminum and soft copper is easier to bend with hands, but the use of specialized tools is essential to minimize the damage. To serve the purpose, a popular variation of this cable is the formable or semi-flexible coax. This flexible variety may be available with or without the protective outer material. 5.They are known for better electrical stability. Semi rigid cable assemblies offer better stability than flexible coax. This is because of the high-quality material used in making. The properties of the metals and dielectric materials adjust with temperature fluctuations and this is why they make an important component for systems that require phase stable cables. Resource URL: https://bit.ly/3iXrGlV
