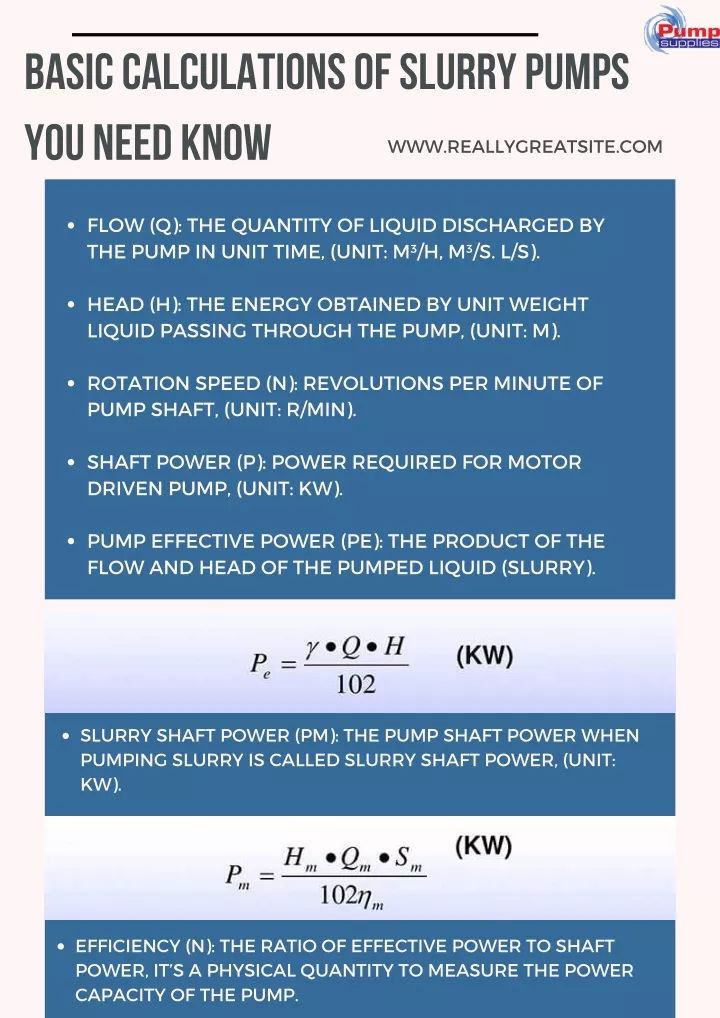

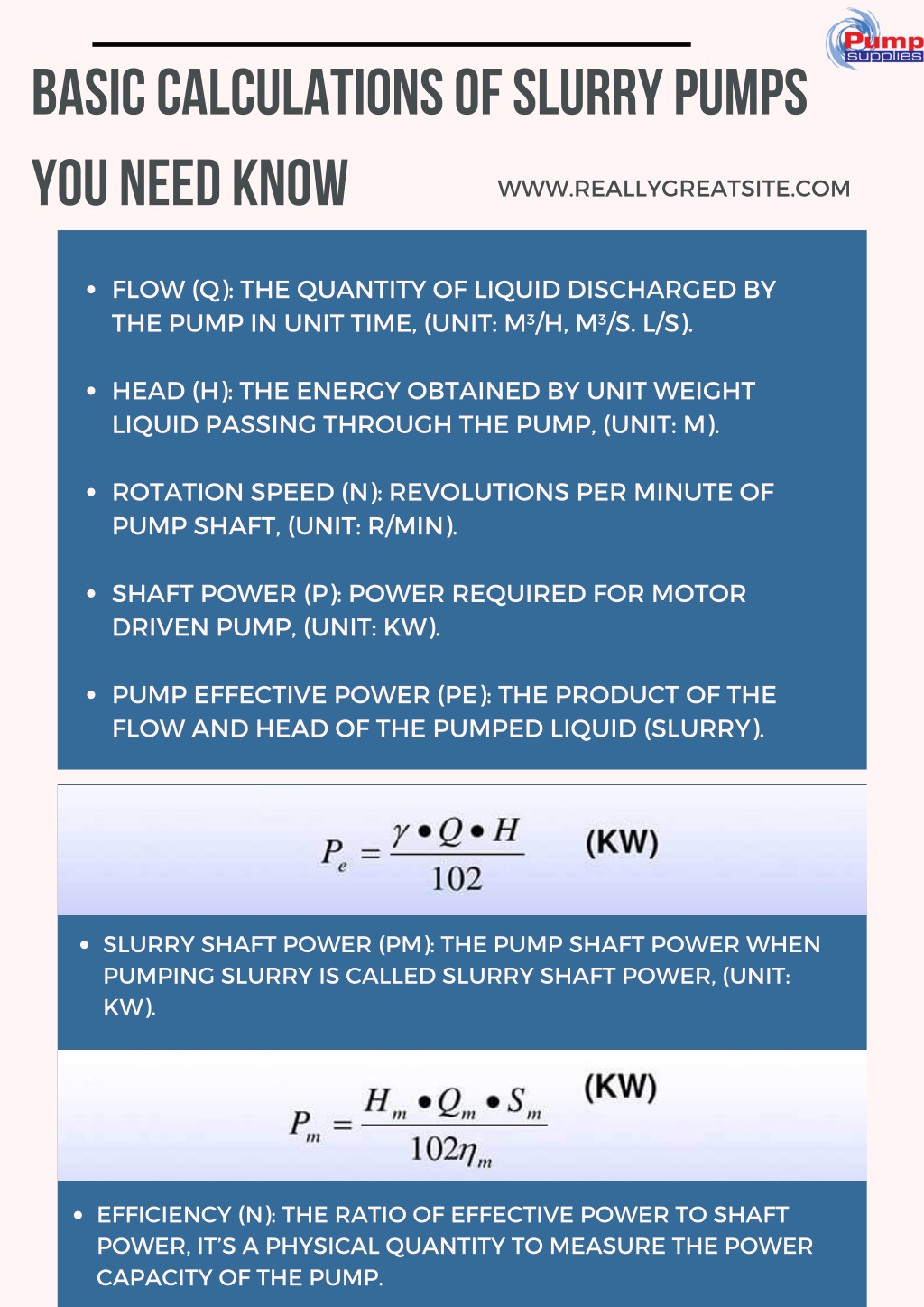

  1. BASIC CALCULATIONS OF SLURRY PUMPS YOU NEED KNOW WWW.REALLYGREATSITE.COM FLOW (Q): THE QUANTITY OF LIQUID DISCHARGED BY THE PUMP IN UNIT TIME, (UNIT: M³/H, M³/S. L/S). HEAD (H): THE ENERGY OBTAINED BY UNIT WEIGHT LIQUID PASSING THROUGH THE PUMP, (UNIT: M). ROTATION SPEED (N): REVOLUTIONS PER MINUTE OF PUMP SHAFT, (UNIT: R/MIN). SHAFT POWER (P): POWER REQUIRED FOR MOTOR DRIVEN PUMP, (UNIT: KW). PUMP EFFECTIVE POWER (PE): THE PRODUCT OF THE FLOW AND HEAD OF THE PUMPED LIQUID (SLURRY). SLURRY SHAFT POWER (PM): THE PUMP SHAFT POWER WHEN PUMPING SLURRY IS CALLED SLURRY SHAFT POWER, (UNIT: KW). EFFICIENCY (N): THE RATIO OF EFFECTIVE POWER TO SHAFT POWER, IT’S A PHYSICAL QUANTITY TO MEASURE THE POWER CAPACITY OF THE PUMP.
