Black Durostone Composite Sheet Suppliers

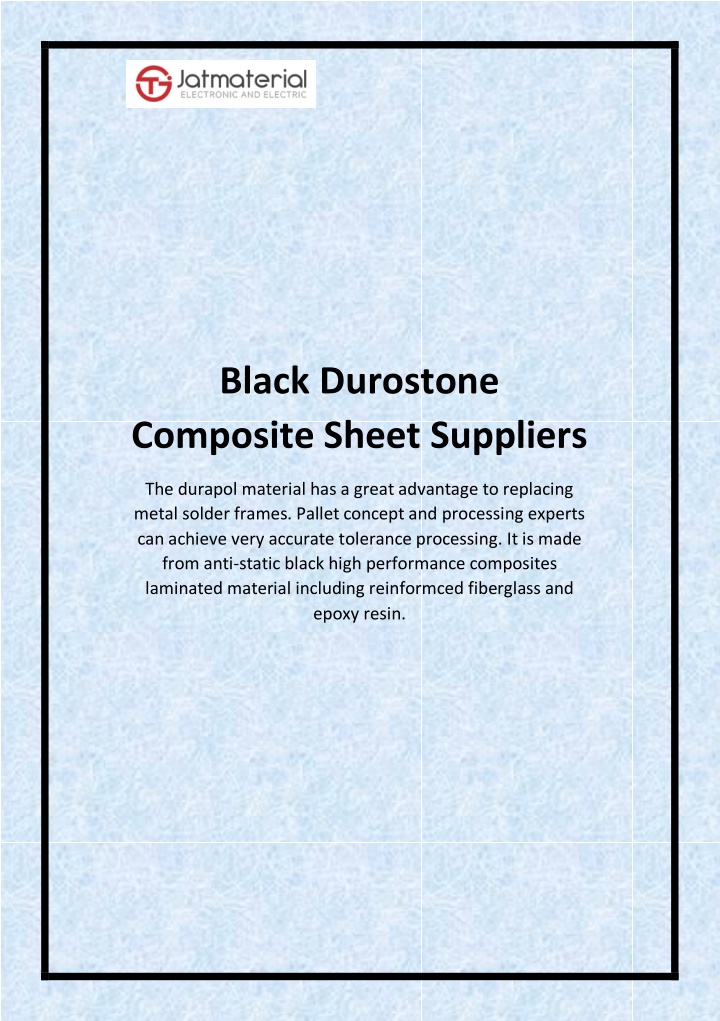

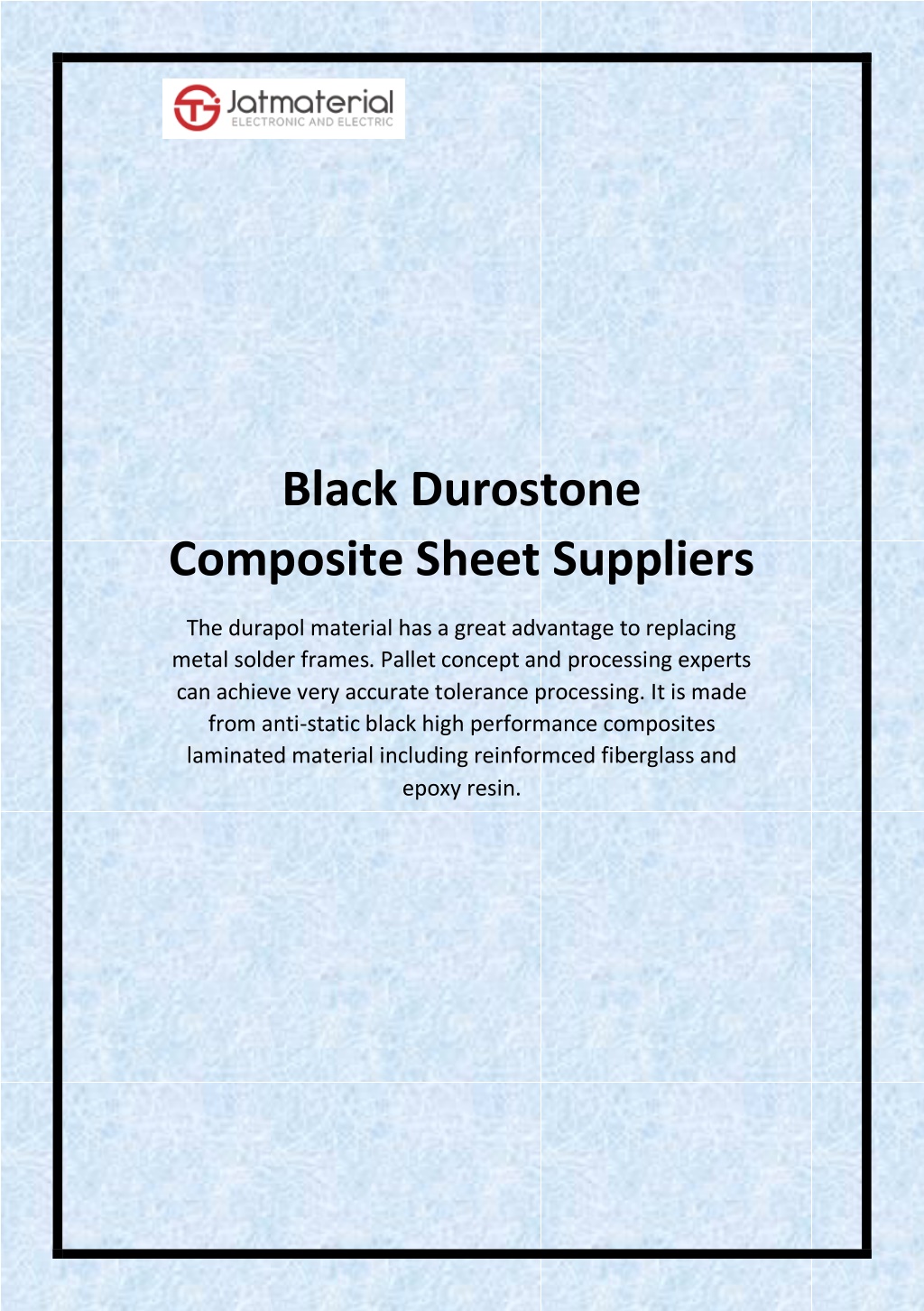

1. Black Durostone Composite Sheet Suppliers The durapol material has a great advantage to replacing metal solder frames. Pallet concept and processing experts can achieve very accurate tolerance processing. It is made from anti-static black high performance composites laminated material including reinformced fiberglass and epoxy resin.

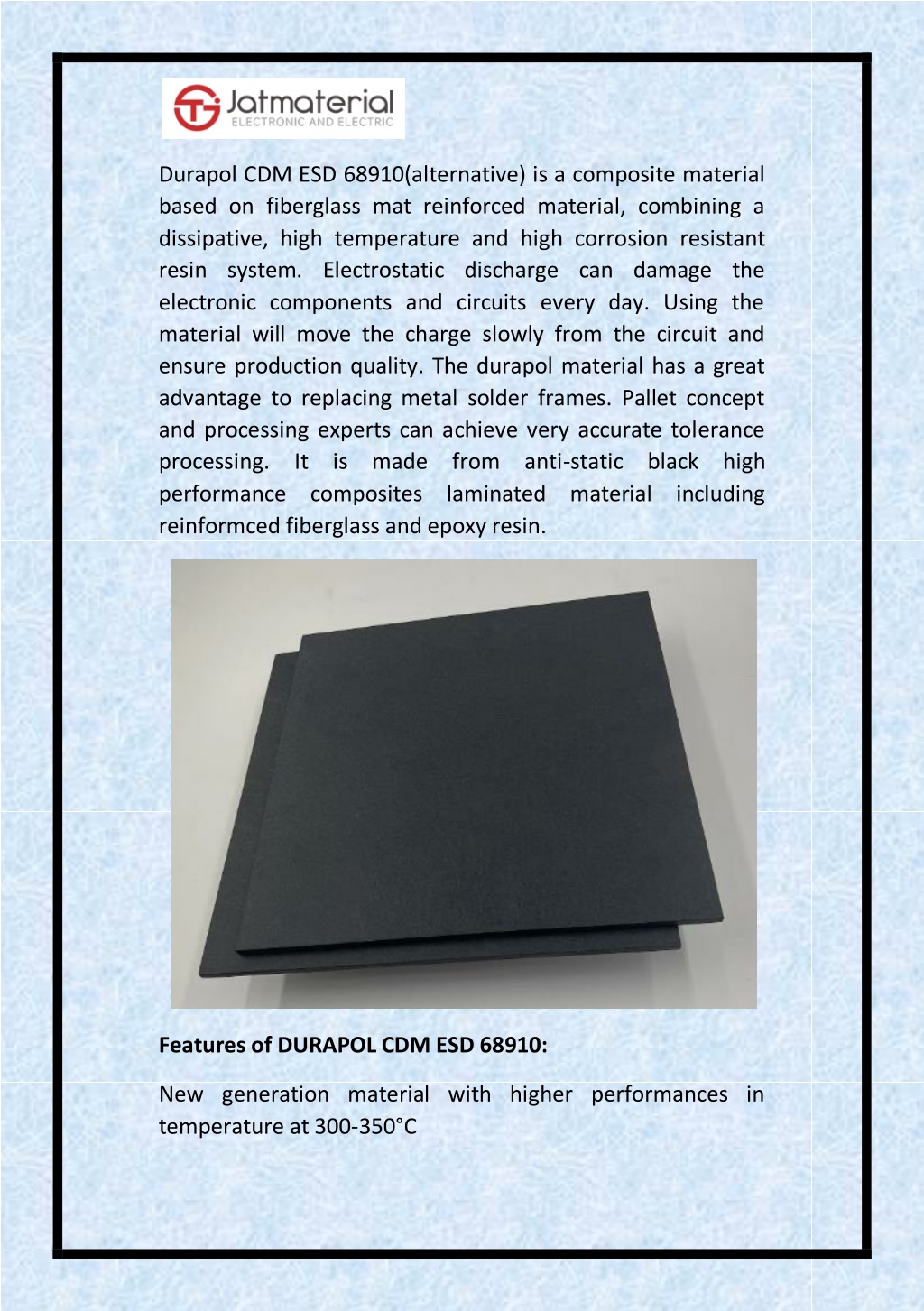

2. Durapol CDM ESD 68910(alternative) is a composite material based on fiberglass mat reinforced material, combining a dissipative, high temperature and high corrosion resistant resin system. Electrostatic discharge can damage the electronic components and circuits every day. Using the material will move the charge slowly from the circuit and ensure production quality. The durapol material has a great advantage to replacing metal solder frames. Pallet concept and processing experts can achieve very accurate tolerance processing. It is made from anti-static black high performance composites laminated material including reinformced fiberglass and epoxy resin. Features of DURAPOL CDM ESD 68910: New generation material with higher performances in temperature at 300-350°C

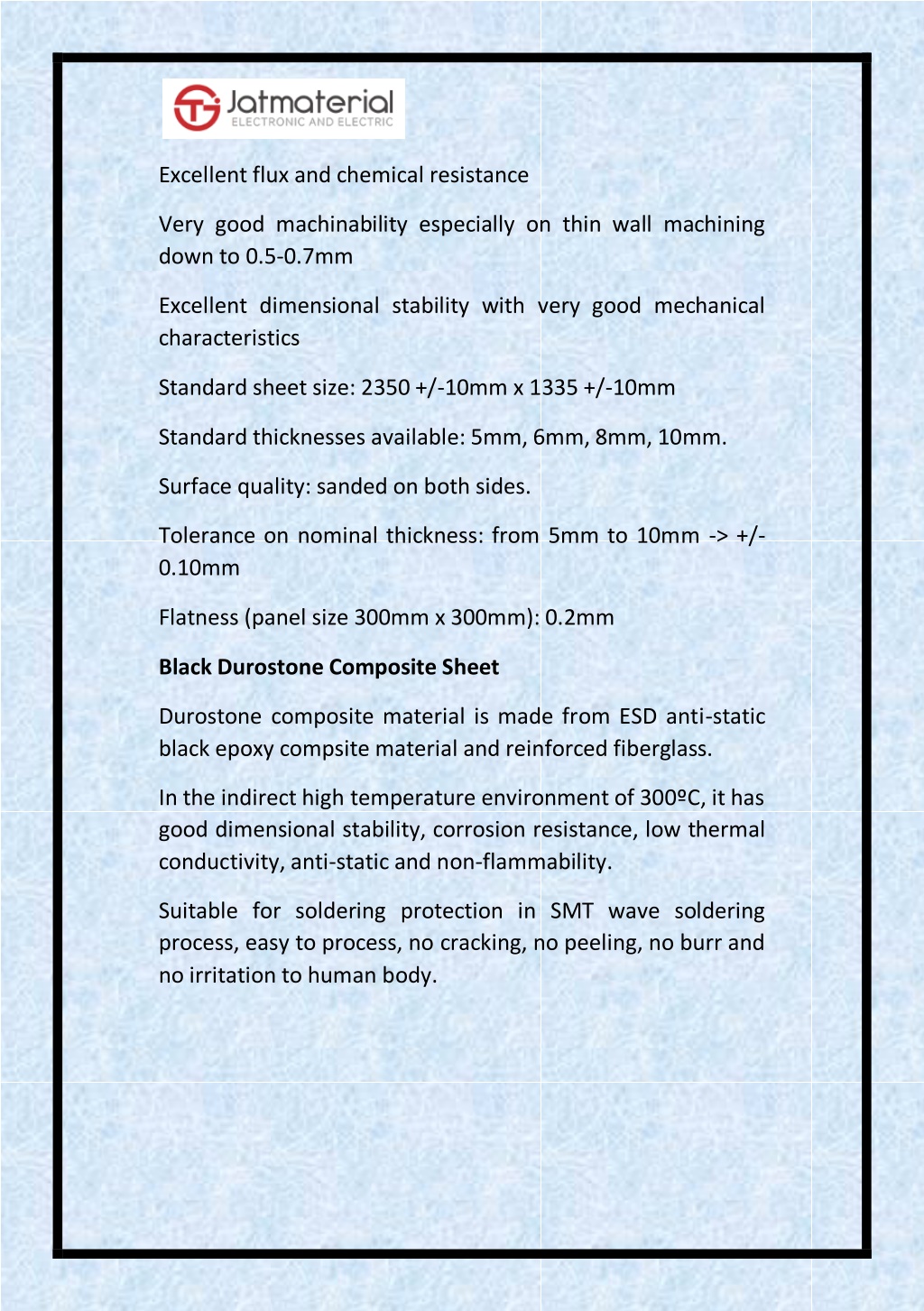

3. Excellent flux and chemical resistance Very good machinability especially on thin wall machining down to 0.5-0.7mm Excellent dimensional stability with very good mechanical characteristics Standard sheet size: 2350 +/-10mm x 1335 +/-10mm Standard thicknesses available: 5mm, 6mm, 8mm, 10mm. Surface quality: sanded on both sides. Tolerance on nominal thickness: from 5mm to 10mm -> +/- 0.10mm Flatness (panel size 300mm x 300mm): 0.2mm Black Durostone Composite Sheet Durostone composite material is made from ESD anti-static black epoxy compsite material and reinforced fiberglass. In the indirect high temperature environment of 300ºC, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability. Suitable for soldering protection in SMT wave soldering process, easy to process, no cracking, no peeling, no burr and no irritation to human body.

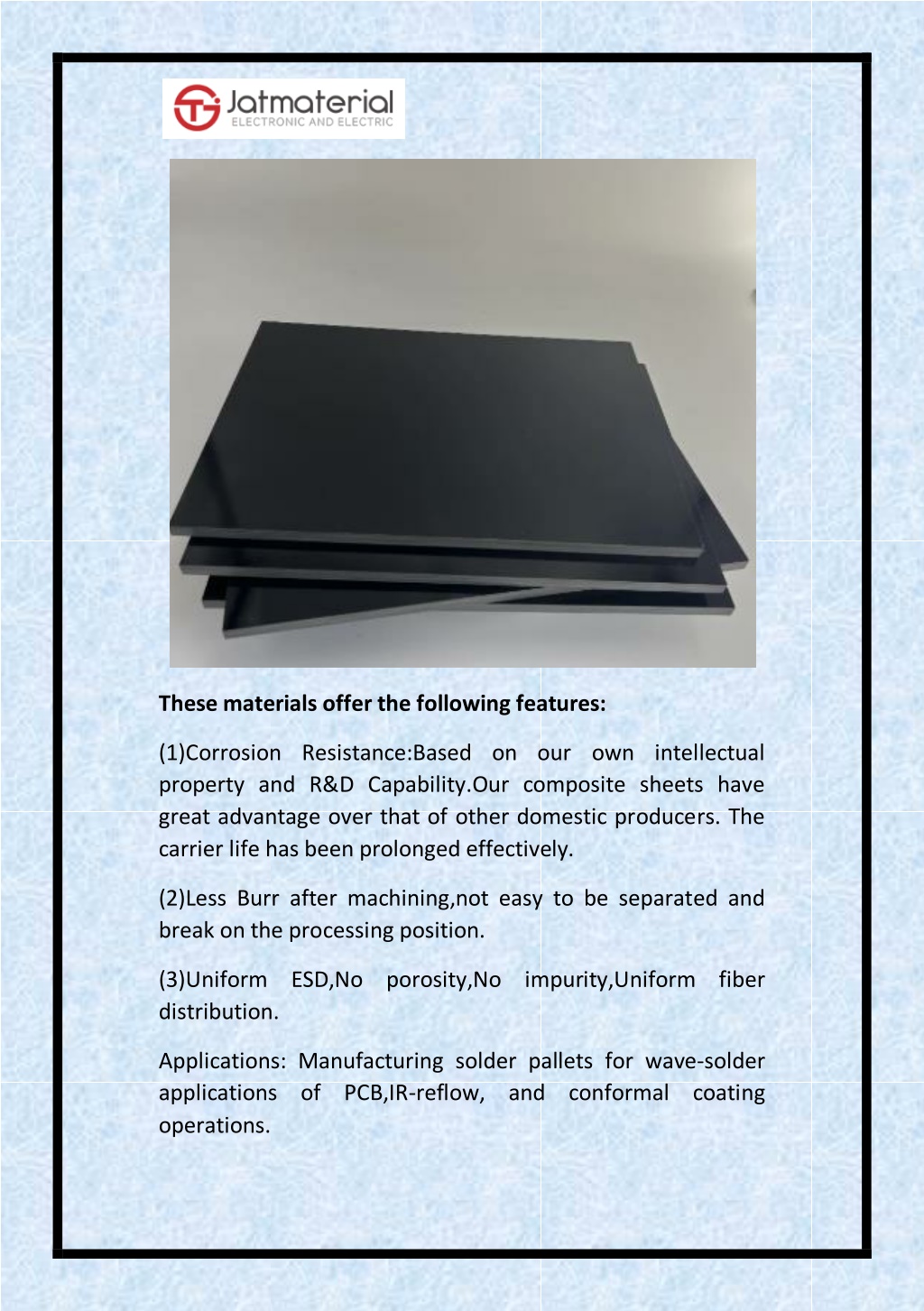

4. These materials offer the following features: (1)Corrosion Resistance:Based on our own intellectual property and R&D Capability.Our composite sheets have great advantage over that of other domestic producers. The carrier life has been prolonged effectively. (2)Less Burr after machining,not easy to be separated and break on the processing position. (3)Uniform ESD,No porosity,No impurity,Uniform fiber distribution. Applications: Manufacturing solder pallets for wave-solder applications of PCB,IR-reflow, and conformal coating operations.

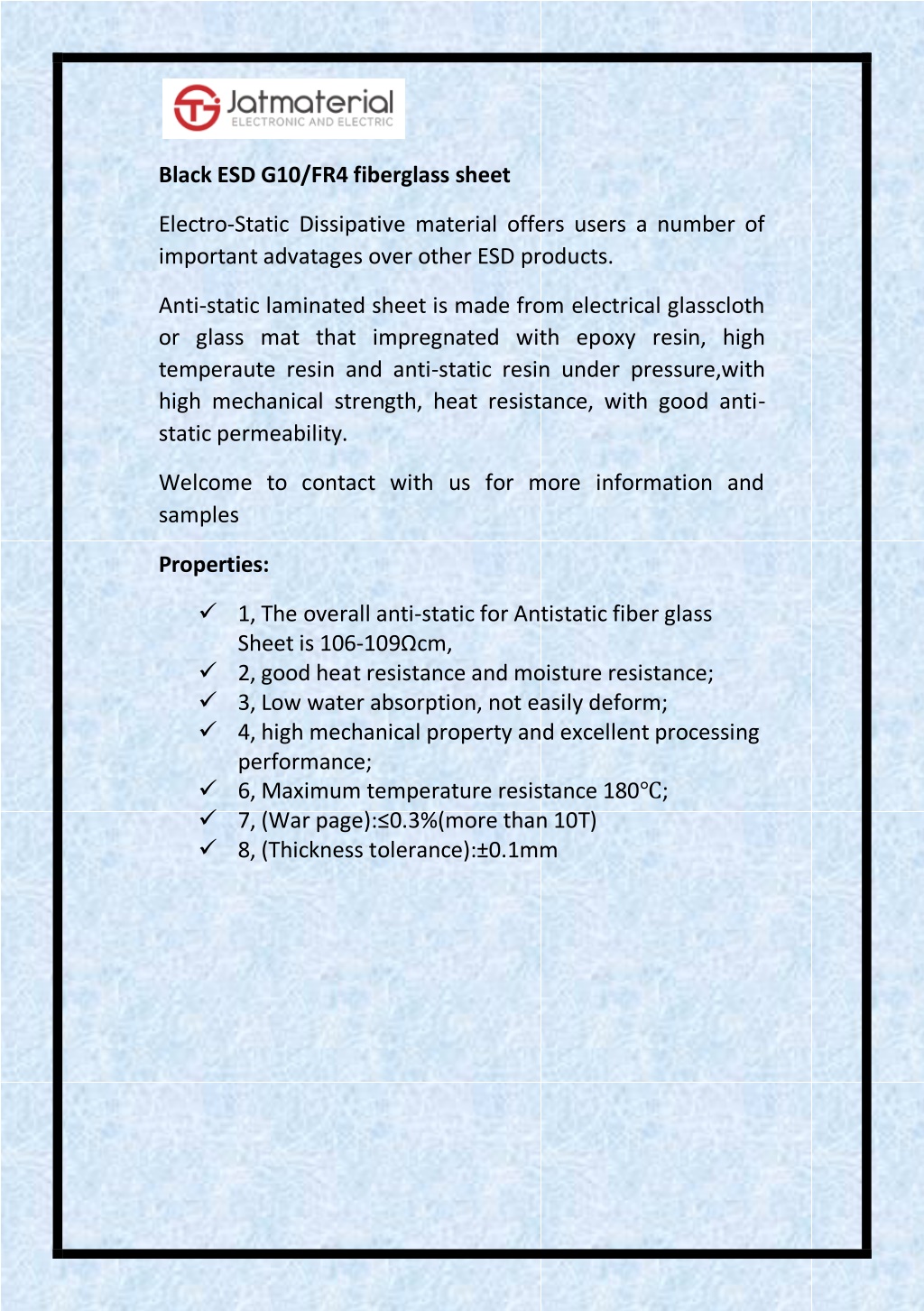

5. Black ESD G10/FR4 fiberglass sheet Electro-Static Dissipative material offers users a number of important advatages over other ESD products. Anti-static laminated sheet is made from electrical glasscloth or glass mat that impregnated with epoxy resin, high temperaute resin and anti-static resin under pressure,with high mechanical strength, heat resistance, with good anti- static permeability. Welcome to contact with us for more information and samples Properties: 1, The overall anti-static for Antistatic fiber glass Sheet is 106-109Ωcm, 2, good heat resistance and moisture resistance; 3, Low water absorption, not easily deform; 4, high mechanical property and excellent processing performance; 6, Maximum temperature resistance 180℃; 7, (War page):≤0.3%(more than 10T) 8, (Thickness tolerance):±0.1mm

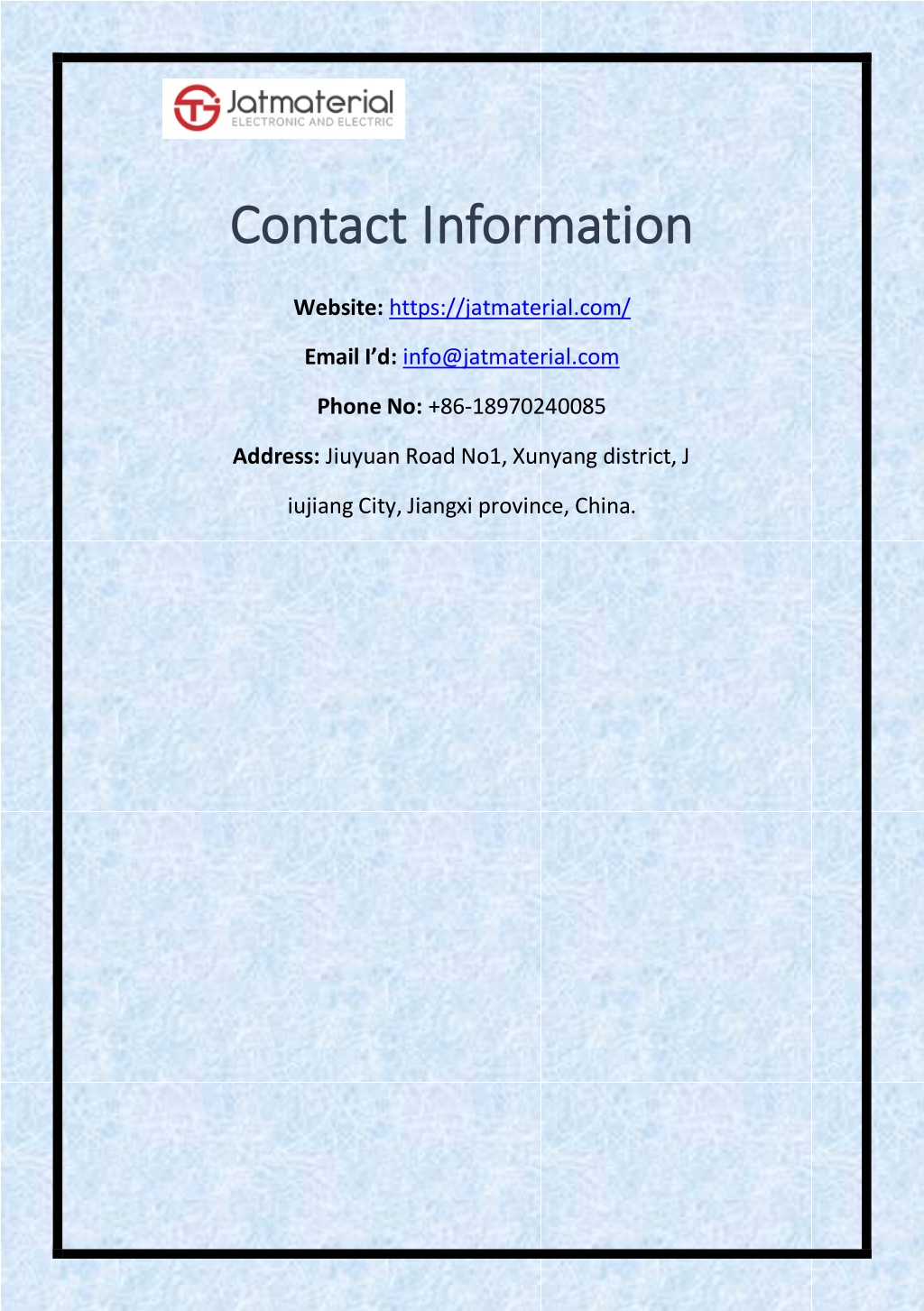

6. Contact I Contact Information nformation Website: https://jatmaterial.com/ Email I’d: info@jatmaterial.com Phone No: +86-18970240085 Address: Jiuyuan Road No1, Xunyang district, J iujiang City, Jiangxi province, China.
