Presentation Transcript

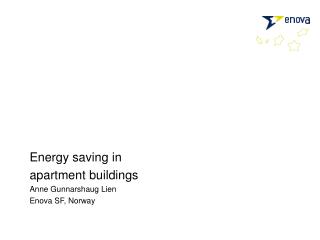

slide1
Energy saving in

apartment buildings

Anne Gunnarshaug Lien

Enova SF, Norway

slide2
Enova SF, State owned enterprise

under the Ministry of Petroleum and Energy

Established June 22. 2001 - in operation from

January 1. 2002

30 people located in Trondheim

enovas goals towards 2010
Enovas goals towards 2010:

4 TWh heat energy from renewable energy

sources, heat pumps and from waste heat

3 TWh electricity from wind mills

5 TWh energy saving in households, buildings and

industry, and other renewable energy sourses

The total goal is 12 TWh saved energy and produced

renewable energy in 2010

slide4
Two strategies for energy saving in

existing buildings:

1 Energy management

2 Renovation with focus on energy

slide5
1

Energy management in housing co-operatives

monitor and visualize the energy use

compare the results with other housing co-operatives

influence user habits

individual measurement of warm water use

improved management

control of ventilation

temperature control

lighting control

slide6

Specific energy use

heated area

Housing co-operative (16)

Result: 5-10 % reduced energy use

slide7
2

Renovation

Focus on energy use from the early planning phase

set a goal for the new energy use

sign a contract for economic support

The economic support is given in given in relation to

the saving and the installation of renewable energy

slide8
Cool, comfort and cost

The objectives for the projects:

sustainable houses

ecological houses

healthy houses

comfortable houses

robust and user friendly systems

cost effective houses

houses for the future

The Netherlands, Waaldijk, Dalem

norway husby terrasse in stj rdal 105 apartments 1969
Norway, Husby Terrasse in Stjørdal105 apartments (1969)

Objectives:

50% reduction of delivered energy

improved comfort

modernised design

Technical systems:

Extra insulation, new windows

Balanced ventilation system

with heat recovery

Control system

norway husby terrasse in stj rdal 105 apartments11
Norway, Husby Terrasse in Stjørdal105 apartments

External thermography of south facing facade.

Balcony doors and windows have poor thermal quality and dominate the heat losses through the facade (lighter color show higher surface temperature and the highest heat loss)

slide12

Thermography of the interior show thermal bridges where the roof meet the wall and where the wall meet the floor. Also the electrical installations have very low surface temperatures.

Norway, Husby Terrasse in Stjørdal105 apartments

slide14
Energy budget (net energy use)Apartment 105 m2Total energy use before: 27 000 kWhTotal energy use after: 13 000 kWh
norway husby amfi in stj rdal 56 new apartments
Norway, Husby Amfi in Stjørdal56 new apartments

Objectives:

50% reduction of delivered energy

High indoor quality

Robust and user friendly design

Technical systems:

Well insulated building envelope

Heat recovery on ventilation air

Heat pump take heat from

grey water

Norway,

Husby Amfi

slide16

Energy performance:

Total net energy use: 89 kWh/m² a

Delivered energy: 61 kWh/m² a

Saving including heat pump:

60 + 30 = 90 kWh/m² x 73 m² = 6 570 kWh

per apartment

Saving only for passive measures:

60 kWh/m² x 73 m² = 4 380 kWh

per apartment

Costs and payback time:

Investment for only the passive house measures: 3 370 Euro

Energy price of 0,12 Euro result in a

payback time of 10 year

Investment including heat pump: 5 060 Euro

Energy price of 0,12 Euro result in a

payback time 11 year

(running cost for heat pump is included)

Three room apartment, 73 m2

Norway, Husby Amfi

slide17
The goal for renovation is to optimize

investments for energy saving, and

investments for use of renewable energy sources, and

investments in healthy, comfortable, sustainable houses

and good design

to get the good feeling!
