objects in java

Objects in Java

Peter Cappello

object based programming outline
Object-Based ProgrammingOutline
  • Introduction
  • Implementing a Complex class
  • Class scope
  • Controlling Access to Members
  • Initializing Class Objects: Constructors
  • Using set & get Methods
object based programming outline1

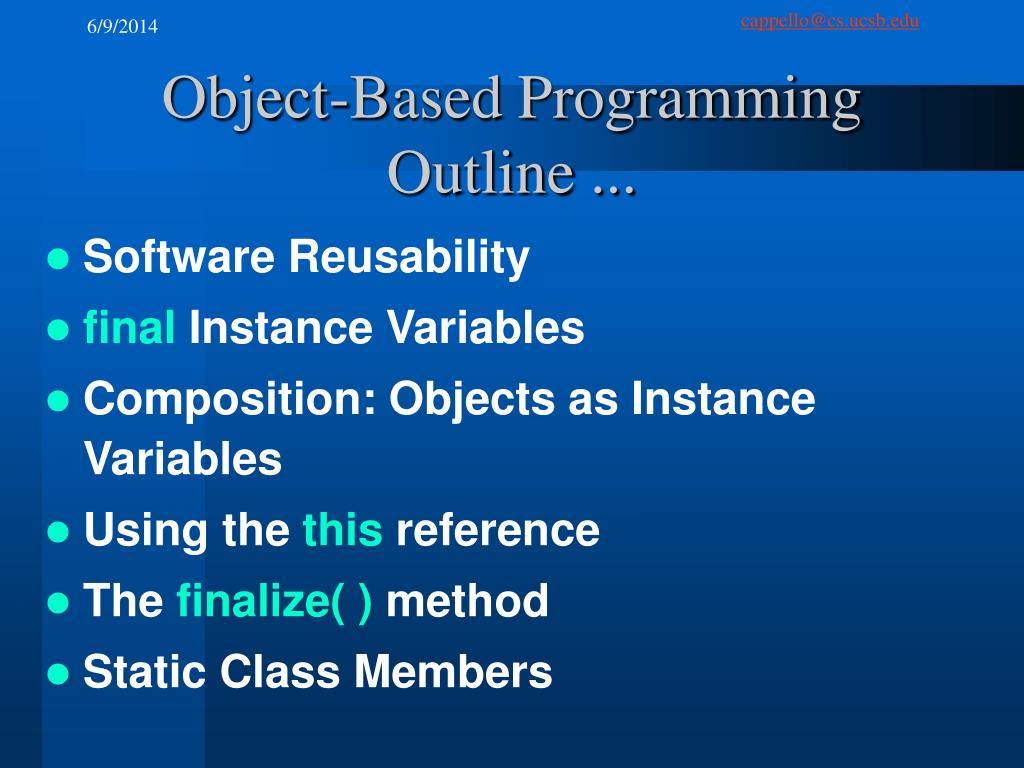

Object-Based ProgrammingOutline ...
  • Software Reusability
  • final Instance Variables
  • Composition: Objects as Instance Variables
  • Using the this reference
  • The finalize( ) method

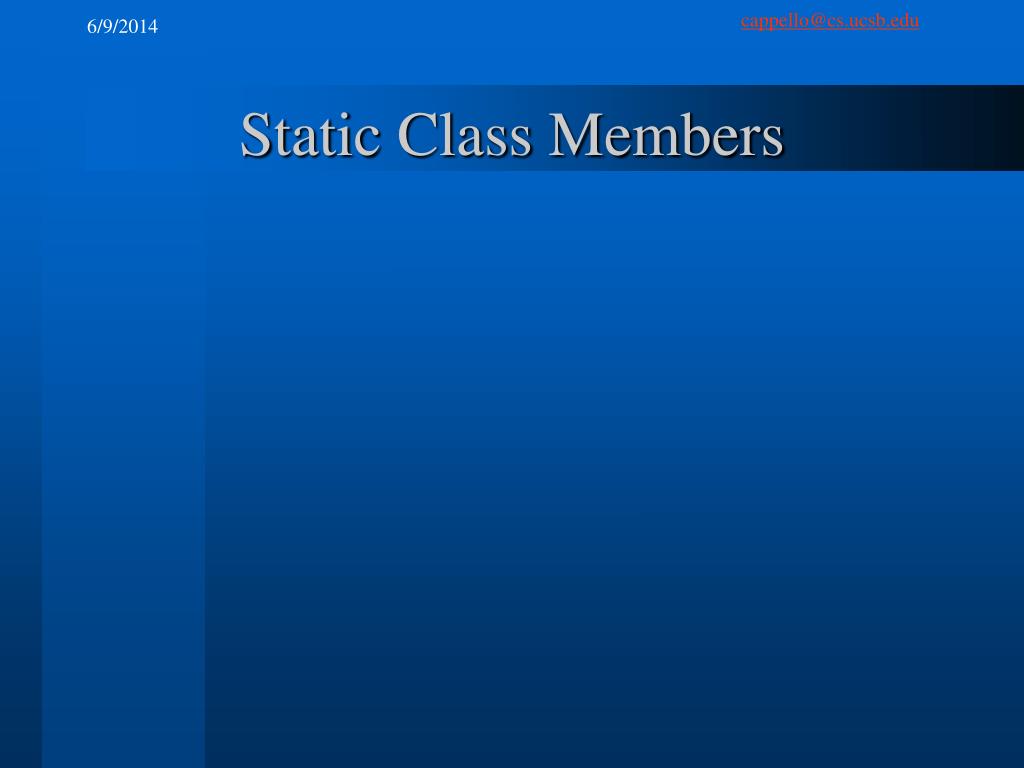

  • Static Class Members
introduction

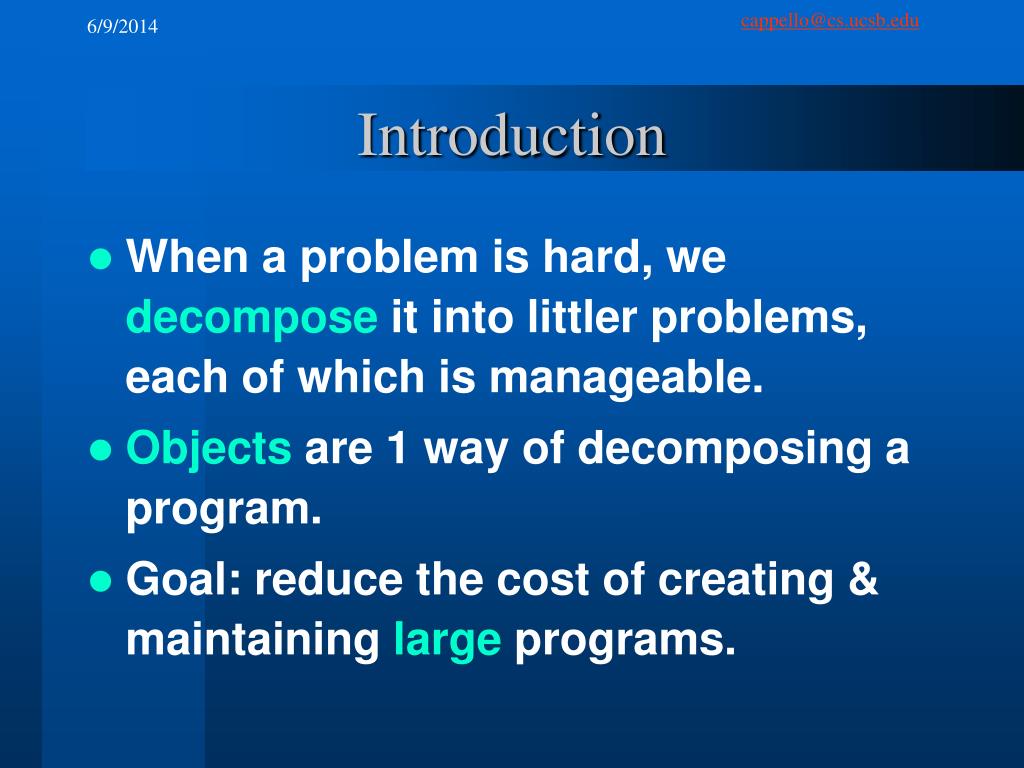

Introduction
  • When a problem is hard, we decompose it into littler problems, each of which is manageable.
  • Objects are 1 way of decomposing a program.
  • Goal: reduce the cost of creating & maintaining large programs.
introduction1
Introduction ...
  • Object-oriented programming encapsulates:
    • data (attributes or instance variables)
    • methods (behaviors)

into objects.

  • You interact with an object via its methods.
  • You do not [need to] know how the object is implemented.
introduction2
Introduction ...
  • The set of methods through which you interact with an object is called its interface.
  • Generally, you are not allowed to change the internal state of an object directly (i.e., by changing its attribute values).
    • This is a custom, not a feature of Java.
introduction3
Introduction ...
  • Decompose your program into programmer-defined types called classes
  • Each class is a generic description of a type of object (e.g., Color, Label).
  • Create particular elements (aka instantiating). These are objects.
    • Color is a class
    • Color.red is an object
implementing a complex class

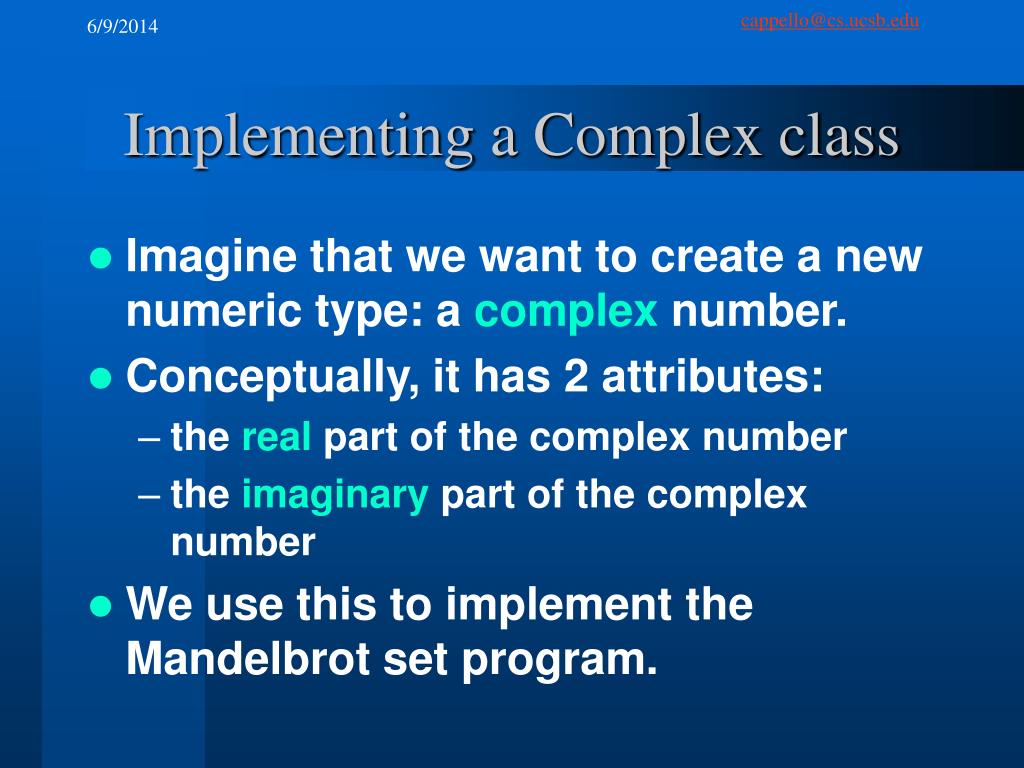

Implementing a Complex class
  • Imagine that we want to create a new numeric type: a complex number.
  • Conceptually, it has 2 attributes:
    • the real part of the complex number
    • the imaginary part of the complex number
  • We use this to implement the Mandelbrot set program.
slide9

// Complex - implements a complex number

public class Complex

{

private double real, // the real part

imag; // the imaginary

public Complex(double r, double i)

{

real = r;

imag = i;

}

public Complex(Complex c)

{

real = c.getReal();

imag = c.getImag();

}

slide10

public double getReal() { return real; }

public double getImag() { return imag; }

public void add(Complex c)

{

real += c.getReal();

imag += c.getImag();

}

public void multiply(Complex c)

{

double temp = real * c.getReal() - imag * c.getImag();

imag = real * c.getImag() + imag * c.getReal();

real = temp;

}

public double sizeSquared() { return real*real + imag*imag; }

} // end Complex class

the class complex

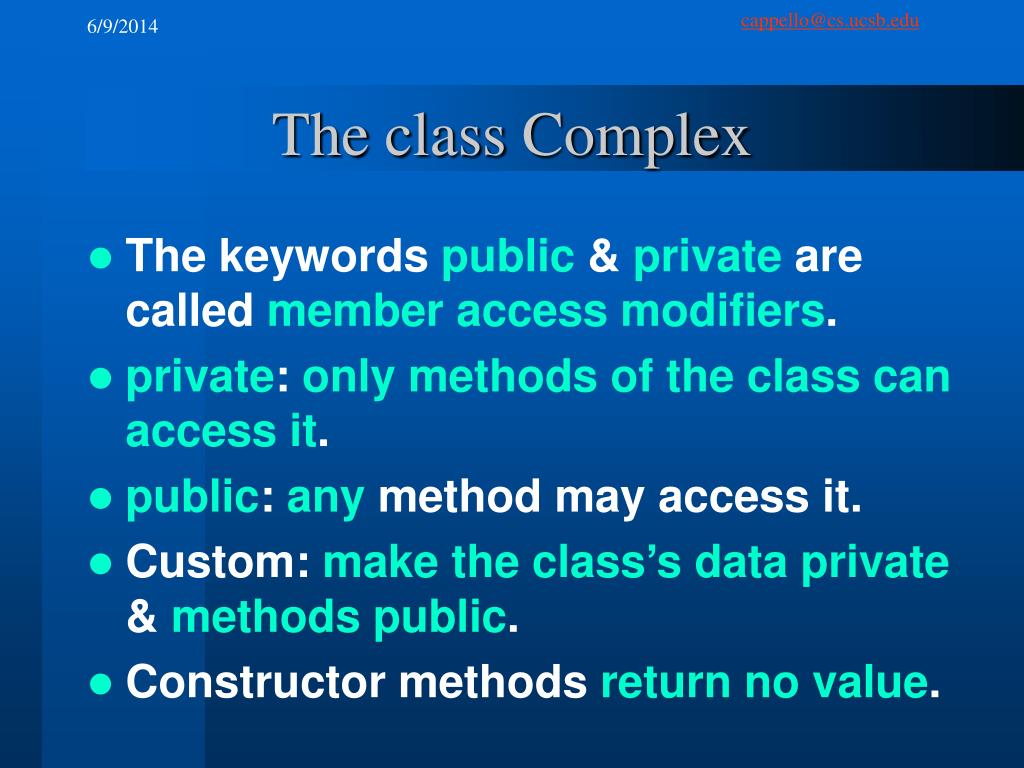

The class Complex
  • The keywords public & private are called member access modifiers.
  • private: only methods of the class can access it.
  • public: any method may access it.
  • Custom: make the class’s data private & methods public.
  • Constructor methods return no value.
clients using the complex class

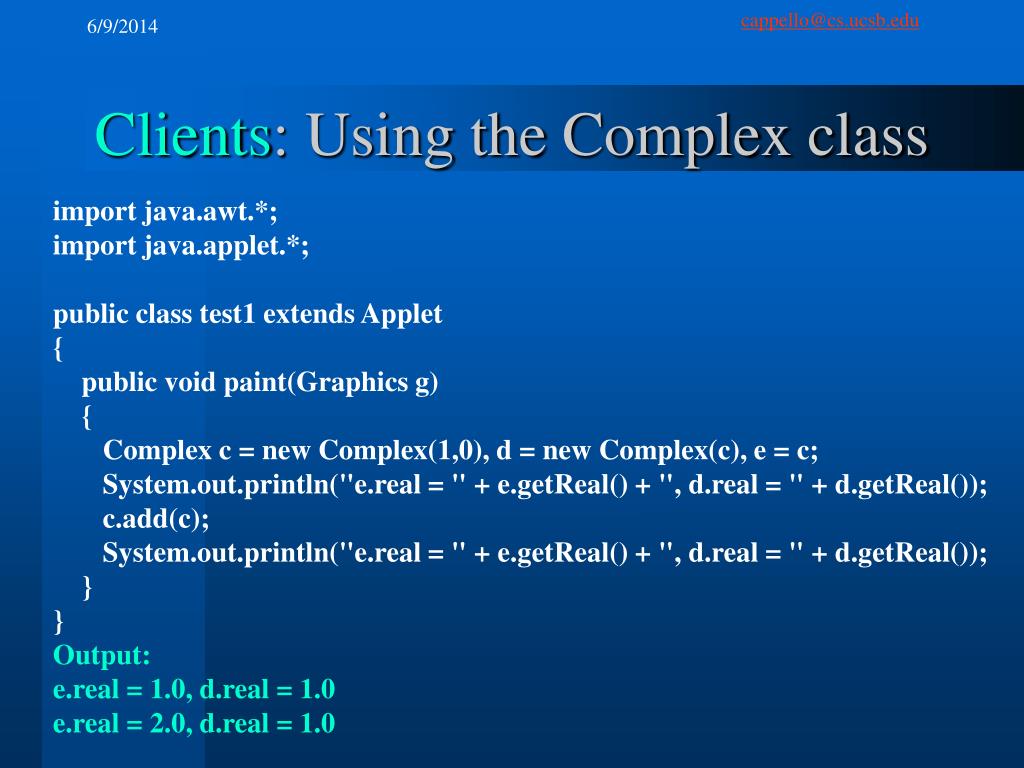

Clients: Using the Complex class

import java.awt.*;

import java.applet.*;

public class test1 extends Applet

{

public void paint(Graphics g)

{

Complex c = new Complex(1,0), d = new Complex(c), e = c;

System.out.println("e.real = " + e.getReal() + ", d.real = " + d.getReal());

c.add(c);

System.out.println("e.real = " + e.getReal() + ", d.real = " + d.getReal());

}

}

Output:

e.real = 1.0, d.real = 1.0

e.real = 2.0, d.real = 1.0

clients using the complex class1

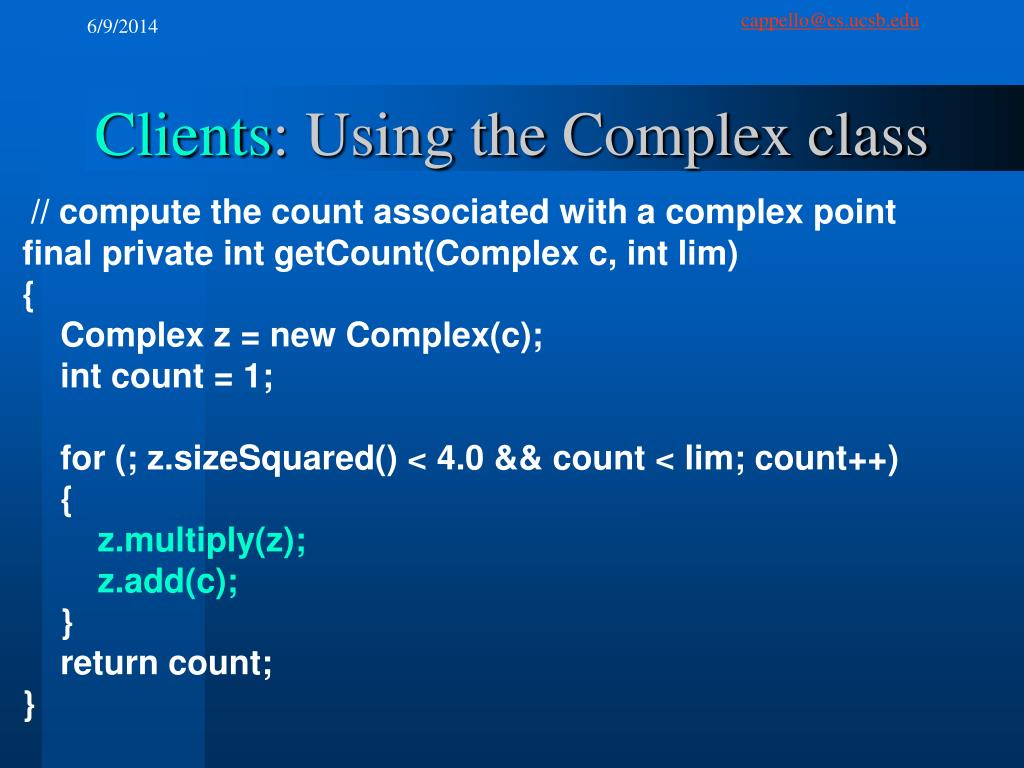

Clients: Using the Complex class

// compute the count associated with a complex point

final private int getCount(Complex c, int lim)

{

Complex z = new Complex(c);

int count = 1;

for (; z.sizeSquared() < 4.0 && count < lim; count++)

{

z.multiply(z);

z.add(c);

}

return count;

}

the class complex1
The class Complex ...
  • When no identifier refers to an object, it is garbage.

Complex c = new Complex(0,0);

. . .

c = new Complex(1,1);

  • Java’s garbage collector notes what objects are not being used (referenced), & collects their memory for reuse.
class scope

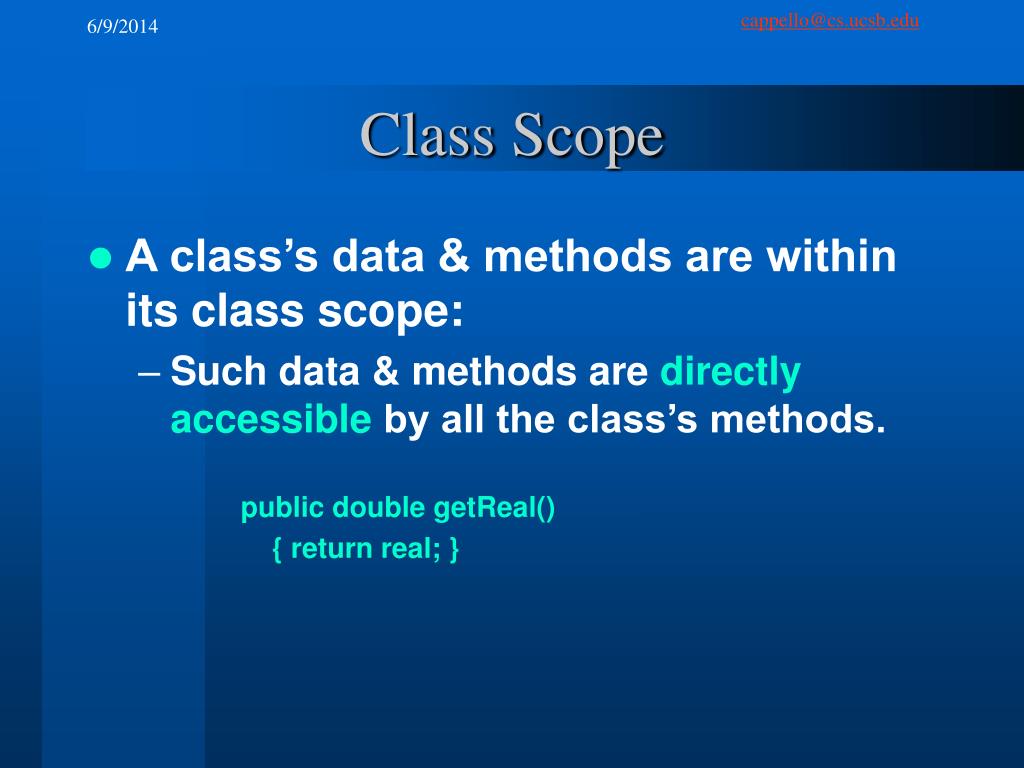

Class Scope
  • A class’s data & methods are within its class scope:
    • Such data & methods are directly accessible by all the class’s methods.

public double getReal()

{ return real; }

class scope1
Class Scope ...
  • Outside a class’s scope, public class members are accessible via a handle.
    • In the MandelbrotComplet class, we have:

z.multiply(z);

z.add(c);

  • We talk about hidden instance variables after we introduce the “this” reference.
controlling access to members
Controlling Access to Members

import java.applet.*;

public class test1 extends Applet

{

public void paint(Graphics g)

{

Complex c = new Complex(0,0);

c.real = 1; // compile error - real is private

}

}

“Variable real in Complex not accessible from Complex”

  • Idea:
    • Clients only see interface
    • They do not see data or implementation of public methods.
initializing objects constructors
Initializing Objects: Constructors
  • If you do not provide a constructor, Java provides a no-argument constructor.
  • Otherwise, Java provides no constructor.
  • The no-argument constructor initializes instance variables to their default values:
    • Numeric: 0
    • boolean: false
    • Objects: null
slide19
public class Complex

{

private double real, // the real part of the complex number

imag; // the imaginary part of the number

public Complex(double r, double i)

{

real = r;

imag = i;

}

public Complex(Complex c)

{

real = c.getReal();

imag = c.getImag();

}

. . .

  • Constructors have no return type.
  • Their name is the class name.
  • Constructors typically are overloaded, as above.
using set get methods

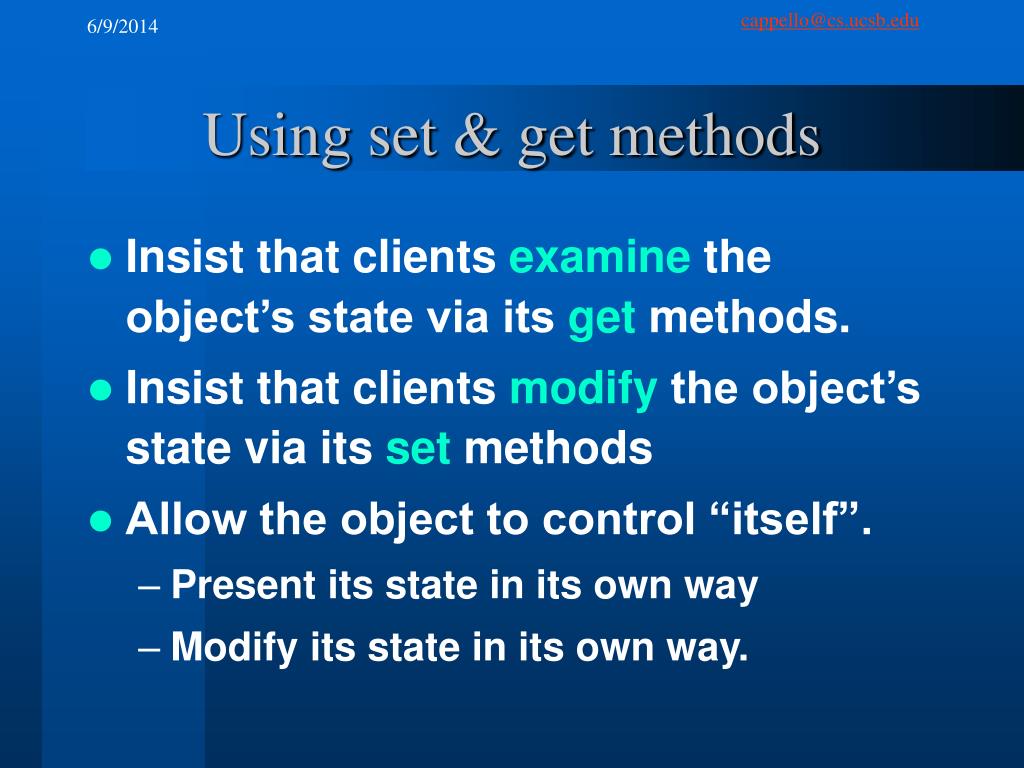

Using set & get methods
  • Insist that clients examine the object’s state via its get methods.
  • Insist that clients modify the object’s state via its set methods
  • Allow the object to control “itself”.
    • Present its state in its own way
    • Modify its state in its own way.
encapsulation as self ownership
Encapsulation as self-ownership
  • This notion of property rights for objects (“self-ownership”) prevents the chaos that is involuntary brain surgery:
    • Do not allow other objects to modify an object’s state without its consent.
software reusability
Software Reusability
  • The goal is reuse
  • A means: the use of class libraries
  • Java class libraries are being created at a rapid rate.
  • Java programs then can be created from portable high quality classes with respect to their:
    • definition, design, implementation, test, documentation
    • The cost of quality is amortized over a large set of clients, increasing value.
final instance variables
Final Instance Variables
  • Defensive programming manifests itself by giving an entity no more privilege than it needs (e.g., need to know)
  • When a variable is a program constant (i.e., its value is set once in the program), we can specify this with the modifier final.
final instance variables1
Final Instance Variables ...
  • When final is specified, the program:
    • must initialize it within the statement that declares it final
    • cannot modify after that
      • A compiler error results, if you do.
final instance variables2

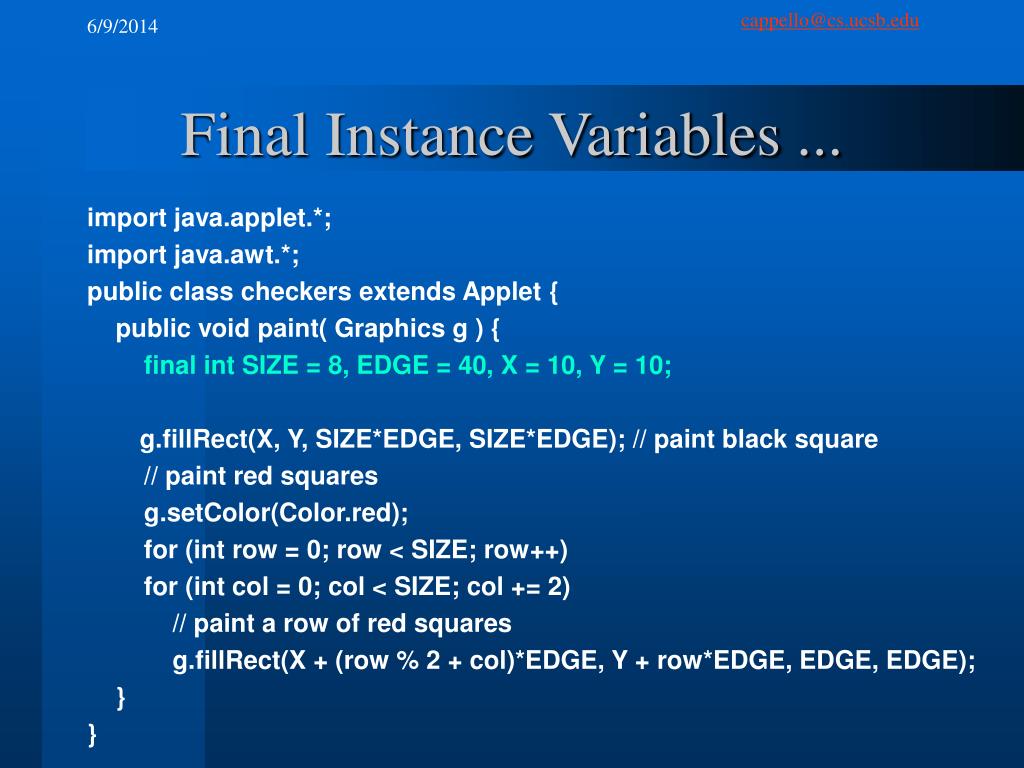

Final Instance Variables ...

import java.applet.*;

import java.awt.*;

public class checkers extends Applet {

public void paint( Graphics g ) {

final int SIZE = 8, EDGE = 40, X = 10, Y = 10;

g.fillRect(X, Y, SIZE*EDGE, SIZE*EDGE); // paint black square

// paint red squares

g.setColor(Color.red);

for (int row = 0; row < SIZE; row++)

for (int col = 0; col < SIZE; col += 2)

// paint a row of red squares

g.fillRect(X + (row % 2 + col)*EDGE, Y + row*EDGE, EDGE, EDGE);

}

}

composition objects as instance variables
Composition: Objects as Instance Variables
  • The most important use of objects is as instance variables of more complex objects.
  • Composition is referred to as a “has a” relation:
    • A car has an engine
    • An engine has a carburetor
    • A carburetor has a screw ...
composition objects as instance variables1
Composition: Objects as Instance Variables
  • For example, we can define a class of Mandelbrot sets (see Lectures page)
  • Its instances are Mandelbrot sets.
  • A Mandelbrot set may be characterized by:
      • Complex LL - the complex point of its lower left corner
      • double edge - the length of its square region
      • int res - the resolution of its depiction
      • int lim - the iteration limit
using the this reference

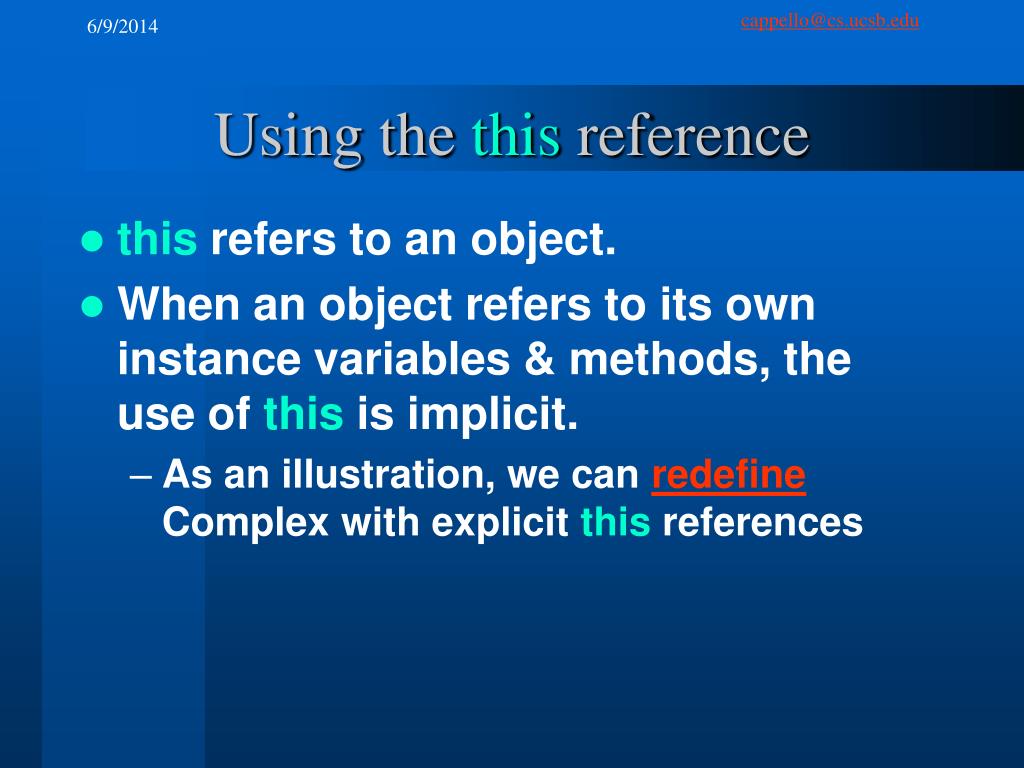

Using the this reference
  • this refers to an object.
  • When an object refers to its own instance variables & methods, the use of this is implicit.
    • As an illustration, we can redefine Complex with explicit this references
using the this reference1
Using the this reference ...
  • Another use of this is in the multiply method:
    • Instead of returning nothing (void), it now returns an object of type Complex:

return this; // return myself!

  • See modified Mandelbrot usage, called concatenated (or cascaded or chained) method invocations.
  • The . operator associates left to right.
the finalize method

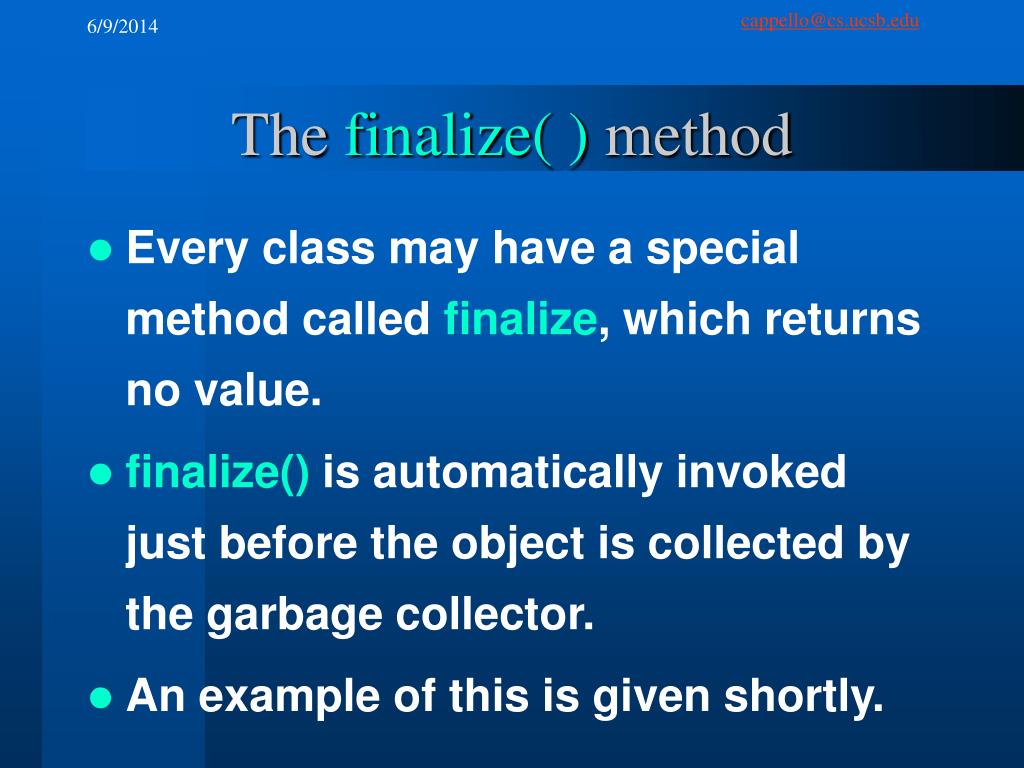

The finalize( ) method
  • Every class may have a special method called finalize, which returns no value.
  • finalize() is automatically invoked just before the object is collected by the garbage collector.
  • An example of this is given shortly.
