Interfacing with Learning Technologies. Shaaron Ainsworth. Overview. Interface Issues in Learning Technologies Advantages of the ‘right’ representation Properties of representations More than one representation (MultiMedia) Mayer Ainsworth Conclusions.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Interfacing with Learning Technologies' - JasminFlorian


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
overview

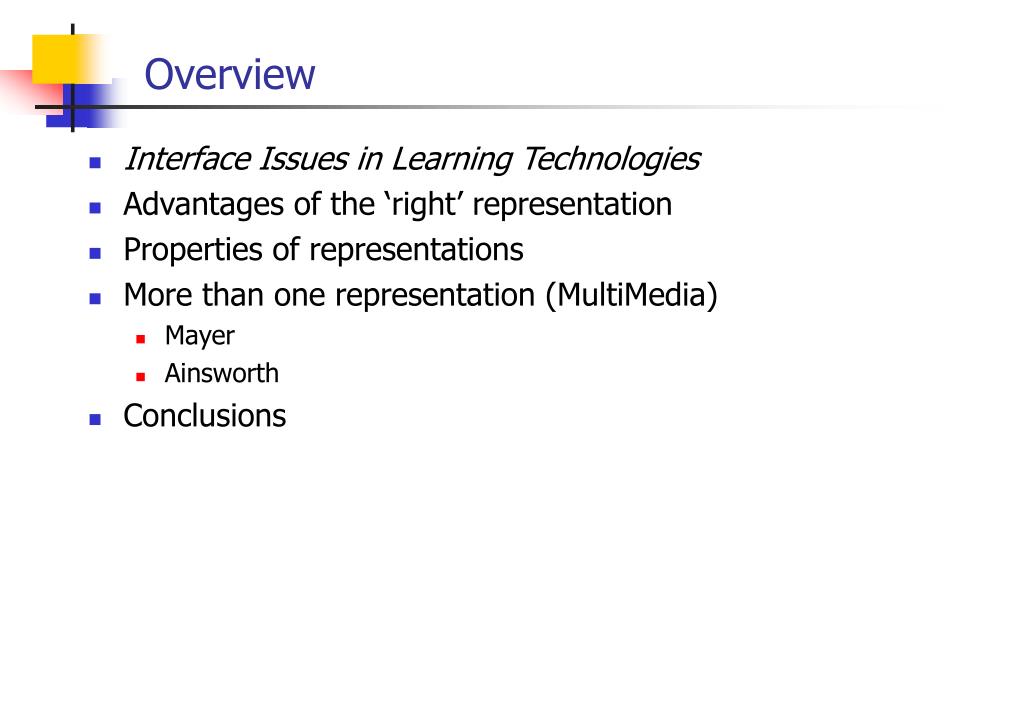

Overview
  • Interface Issues in Learning Technologies
  • Advantages of the ‘right’ representation
  • Properties of representations
  • More than one representation (MultiMedia)
    • Mayer
    • Ainsworth
  • Conclusions
interface issues in learning technologies
Interface Issues in Learning Technologies
  • For the first 30 years of computer-based learning, the interface was a non-issue.
  • Early systems were all textual. As a result, the interface was almost a forgotten issue till around 1985.
  • Usability of the Interface
    • Interfaces should be design to be as easy to use and transparent as possible (see O'Malley 1990). (or should they?)
  • Domain/Knowledge Representation
    • How the knowledge is presented (e.g. what to put on a slide, should I use text or graphics, animations or static representations, etc)
    • The focus of the presentation
usability

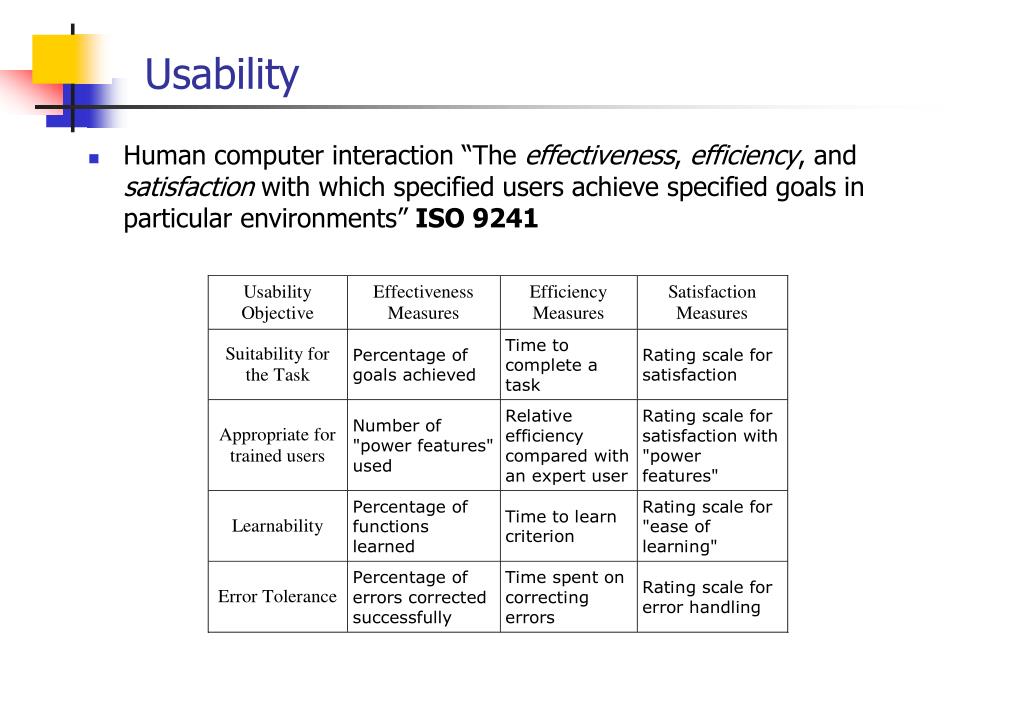

Usability
  • Human computer interaction “The effectiveness, efficiency, and satisfaction with which specified users achieve specified goals in particular environments” ISO 9241
consequences of poor usability
Consequences of poor usability
  • If you have the wrong interface, the environment may be sufficiently unusable that learners will find it difficult to use or may not to use the it at all.
  • Or …..
usability for learning environments
Usability for Learning environments
  • Learning to use a new system is not the same as learning though a system.
  • Effects with technology or effects of technology (Salomon)
  • Learning technologies may require different principles (Gilmore, 1996).
  • For example, direct manipulation of an interface is not as good for learning the Towers of Hanoi as a command language interface
overview1
Overview
  • Interface Issues in Learning Technologies
  • Advantages of the ‘right’ representation
  • Properties of representations
  • More than one representation (MultiMedia)
    • Mayer
    • Ainsworth
  • Conclusions
domain or knowledge representation
Domain or Knowledge Representation
  • What information do you chose to display to learners
  • How do you chose to display it?
  • What interactivity will you support?
representations and learning technologies

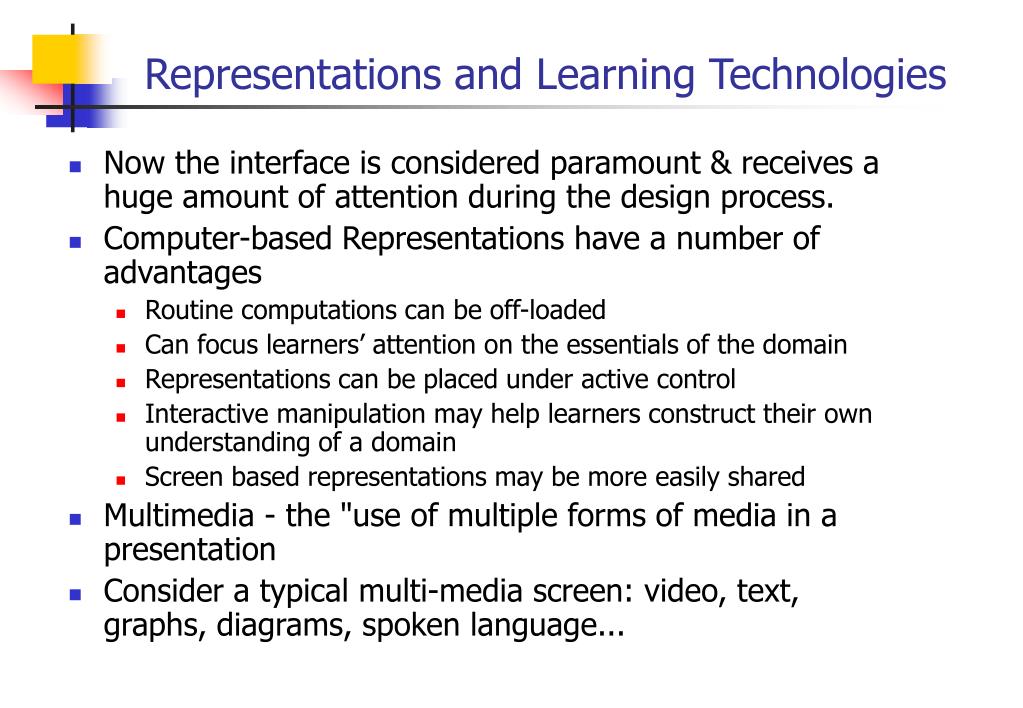

Representations and Learning Technologies
  • Now the interface is considered paramount & receives a huge amount of attention during the design process.
  • Computer-based Representations have a number of advantages
    • Routine computations can be off-loaded
    • Can focus learners’ attention on the essentials of the domain
    • Representations can be placed under active control
    • Interactive manipulation may help learners construct their own understanding of a domain
    • Screen based representations may be more easily shared
  • Multimedia - the "use of multiple forms of media in a presentation

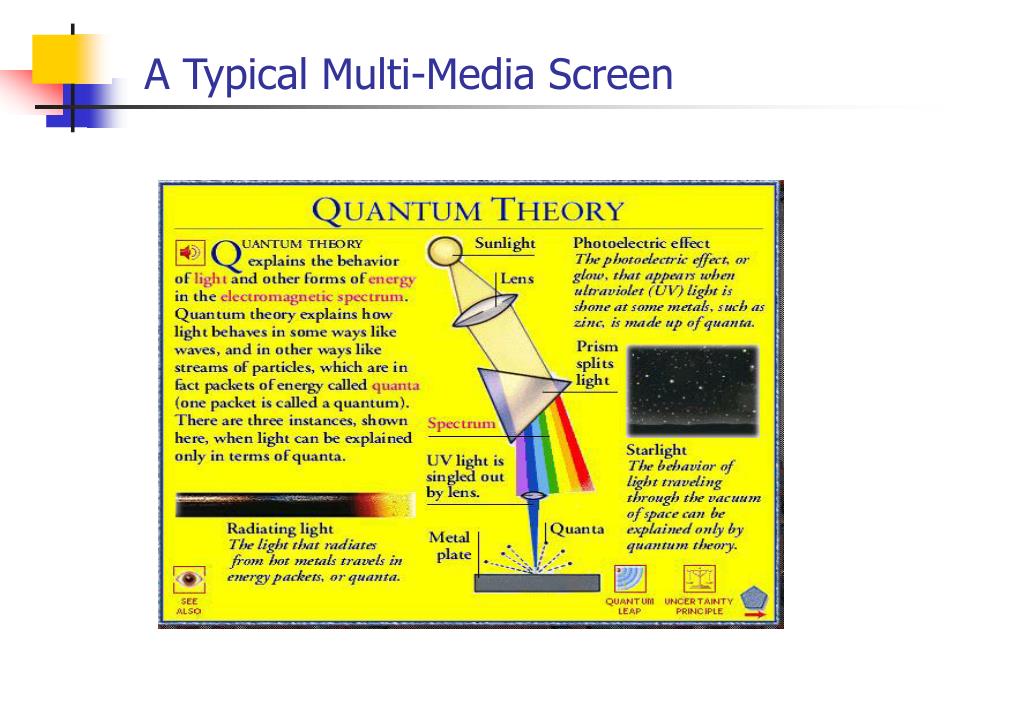

  • Consider a typical multi-media screen: video, text, graphs, diagrams, spoken language...
but is this a good idea
But is this a good idea?
  • Multimedia sells…. But is it effective and how should it be designed?
  • Two approaches
    • Mayer’s Cognitive load theory of multimedia learning
    • Ainsworth’s DeFT framework for learning with multiple ERs
mayer cognitive theory of multi media learning

Verbally-based

Words

Text-base

Model

SELECT

ORGANIZE

Words

Words

INTEGRATE

Visually-based

Images

Image-base

model

ORGANIZE

SELECT

Images

images

Mayer: Cognitive Theory of Multi-Media Learning
  • Visual & auditory experiences/information are processed through separate information processing "channels."
  • Each channel is limited in its ability to process information.
  • Processing is an active cognitive process designed to construct coherent mental representations
typical empirical study

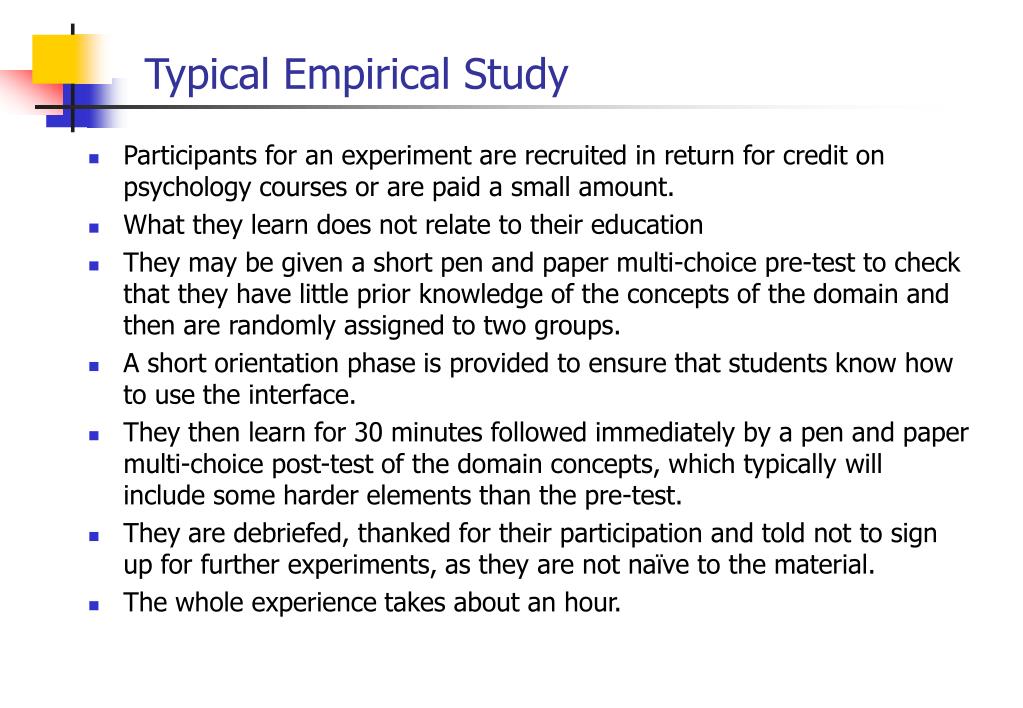

Typical Empirical Study
  • Participants for an experiment are recruited in return for credit on psychology courses or are paid a small amount.
  • What they learn does not relate to their education
  • They may be given a short pen and paper multi-choice pre-test to check that they have little prior knowledge of the concepts of the domain and then are randomly assigned to two groups.
  • A short orientation phase is provided to ensure that students know how to use the interface.
  • They then learn for 30 minutes followed immediately by a pen and paper multi-choice post-test of the domain concepts, which typically will include some harder elements than the pre-test.
  • They are debriefed, thanked for their participation and told not to sign up for further experiments, as they are not naïve to the material.
  • The whole experience takes about an hour.
multimedia
Multimedia
  • From words and pictures than from words alone.
    • Students who listened to a narration explaining how a bicycle tire pump works while viewing a corresponding animation gave twice as many useful solutions to transfer questions than did students who listened to the same narration without the animation (Mayer & Anderson, 1991).
    • Students build two different mental representations --a verbal model and a visual model -- and build connections between them.
temporal contiguity
Temporal Contiguity
  • When corresponding words and pictures are presented simultaneously
    • Mayer, Moreno, Boire & Vagge, (1999) found that presenting simultaneous narration and large chunks of animation was better than sequential presentation
    • Corresponding words and pictures must be in working memory at the same time in order to facilitate the construction of referential links between them
principles students learn more
Principles: Students learn more
  • Multimedia: From words and pictures than from words alone.

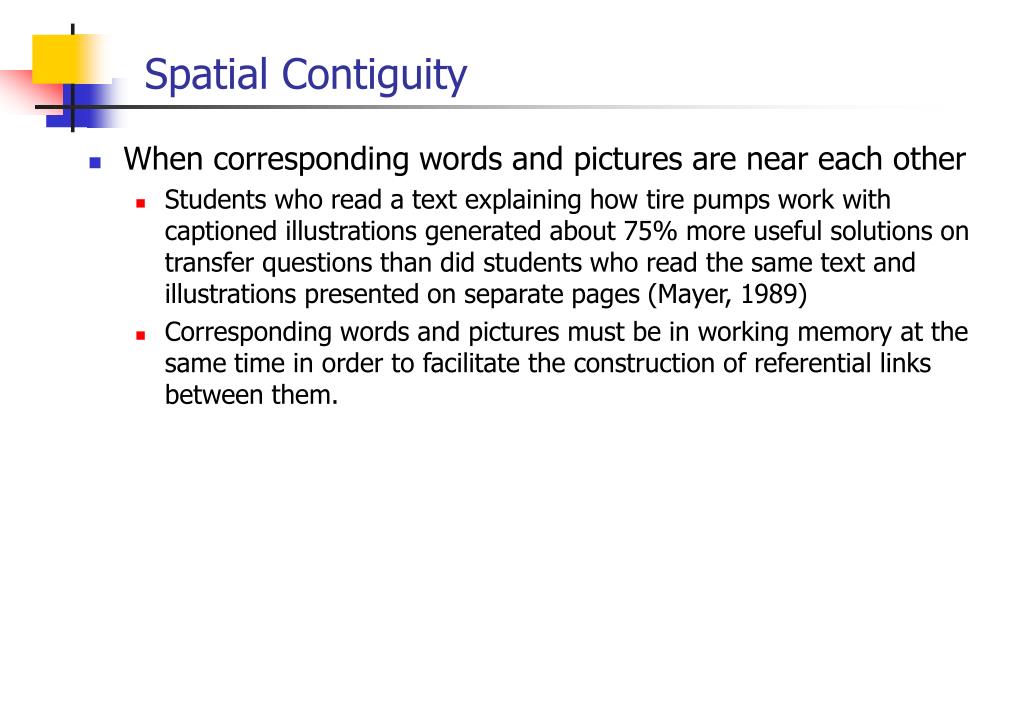

  • Spatial contiguity: When corresponding words and pictures are near each other

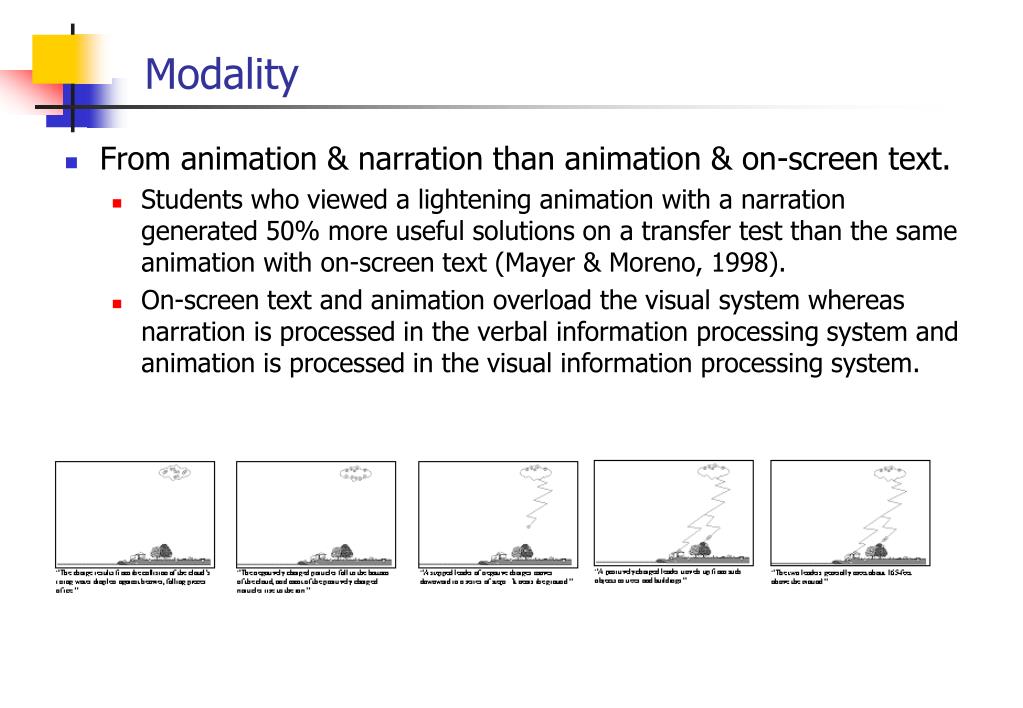

  • Modality: From animation & narration than animation & on-screen text.
  • Coherence: When extraneous information is excluded
  • Temporal contiguity: When corresponding words and pictures are presented simultaneously
  • Redundancy: From animation and narration than from animation, narration, and on-screen text.
  • Individual Differences: Effects are stronger for low-knowledge learners than for high-knowledge and for high spatial rather than from low spatial learners.
mayer analysis positive
Mayer Analysis: Positive
  • Robust and replicable results confirmed by others
  • Relationship between theory, design and evaluation
  • Statistical rigour and experiments which explore conditions when multimedia is not effective
  • Explore different forms of learning outcome (e.g. facts, transferable knowledge)
  • The most popular current theory (see also Cognitive Load theory)
mayer analysis minus

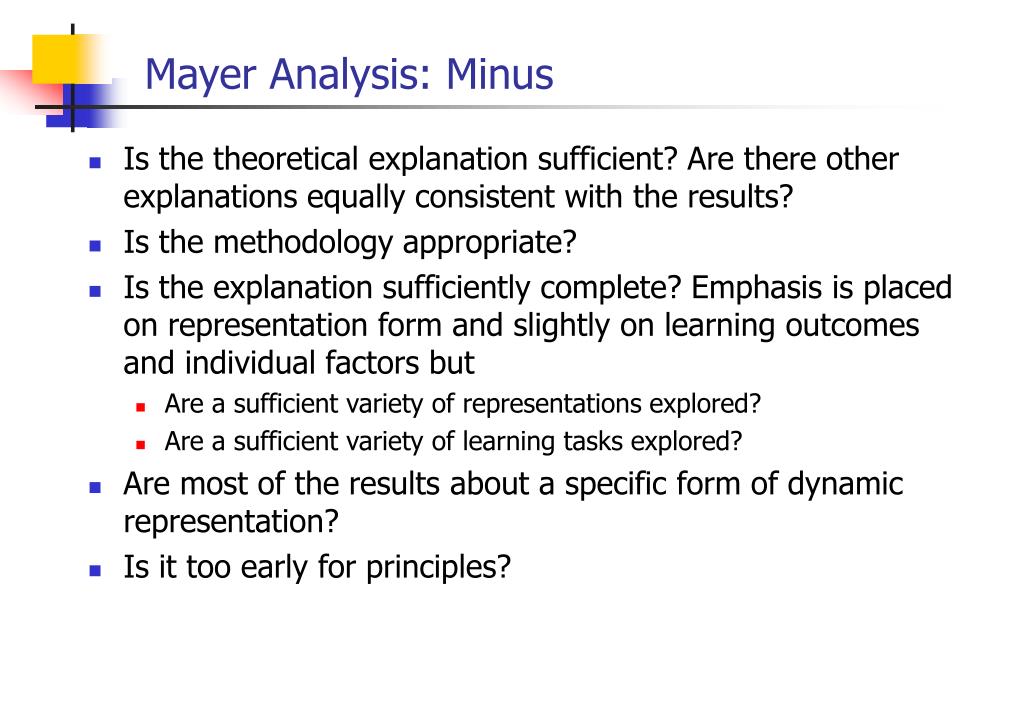

Mayer Analysis: Minus
  • Is the theoretical explanation sufficient? Are there other explanations equally consistent with the results?
  • Is the methodology appropriate?
  • Is the explanation sufficiently complete? Emphasis is placed on representation form and slightly on learning outcomes and individual factors but
    • Are a sufficient variety of representations explored?
    • Are a sufficient variety of learning tasks explored?
  • Are most of the results about a specific form of dynamic representation?
  • Is it too early for principles?
overview2

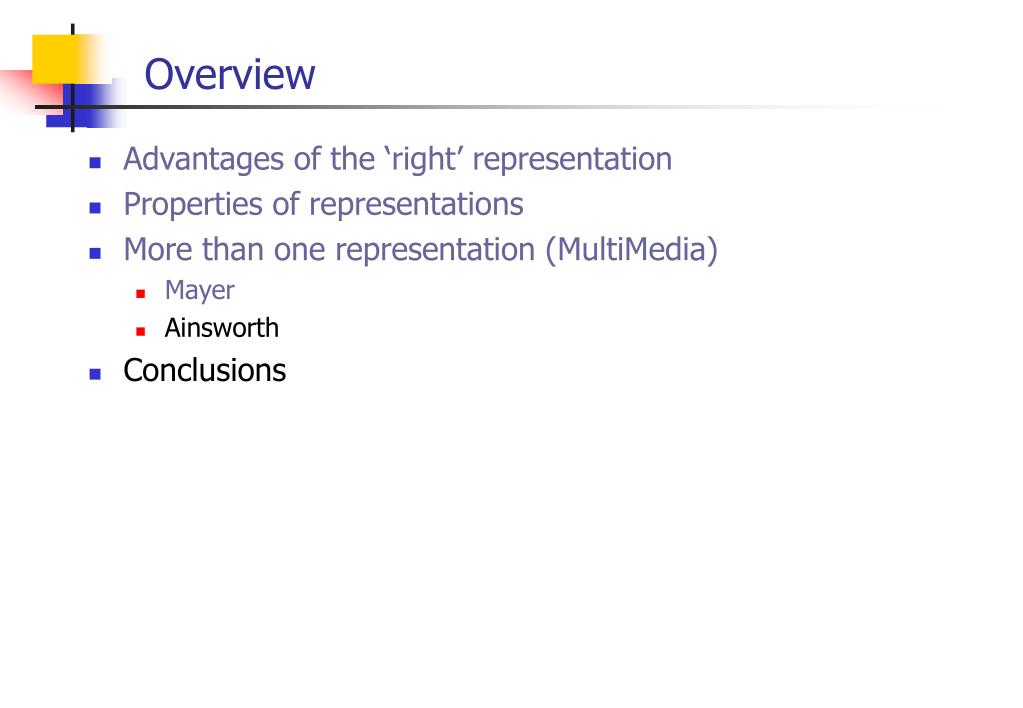

Overview
  • Advantages of the ‘right’ representation
  • Properties of representations
  • More than one representation (MultiMedia)
    • Mayer
    • Ainsworth
  • Conclusions
an alternative deft ainsworth in press
An Alternative: DeFT (Ainsworth, in press)
  • In order to understand learning with multiple representations, we need to explore a wider variety of learning scenarios and provide a deeper account of the processes involved in learning
  • Three key questions
    • How is the system designed? (Design)
    • What are you using the multiple representations for? (Functions)
    • What cognitive tasks must learners perform? (Tasks)
  • Ignores type of learning outcome (for now)

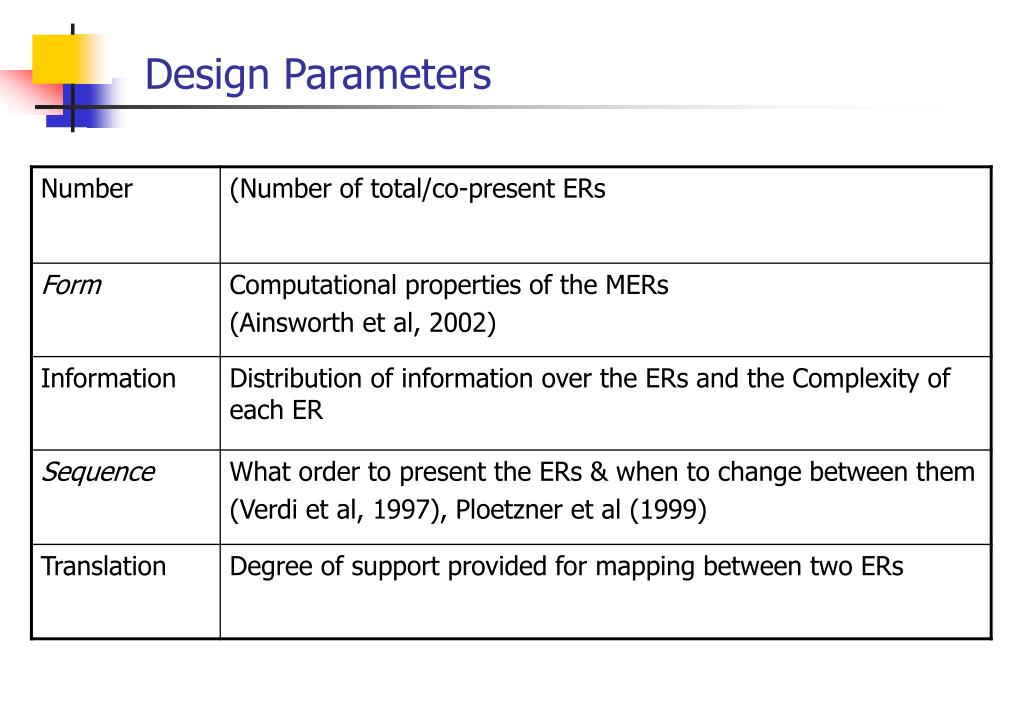

slide21

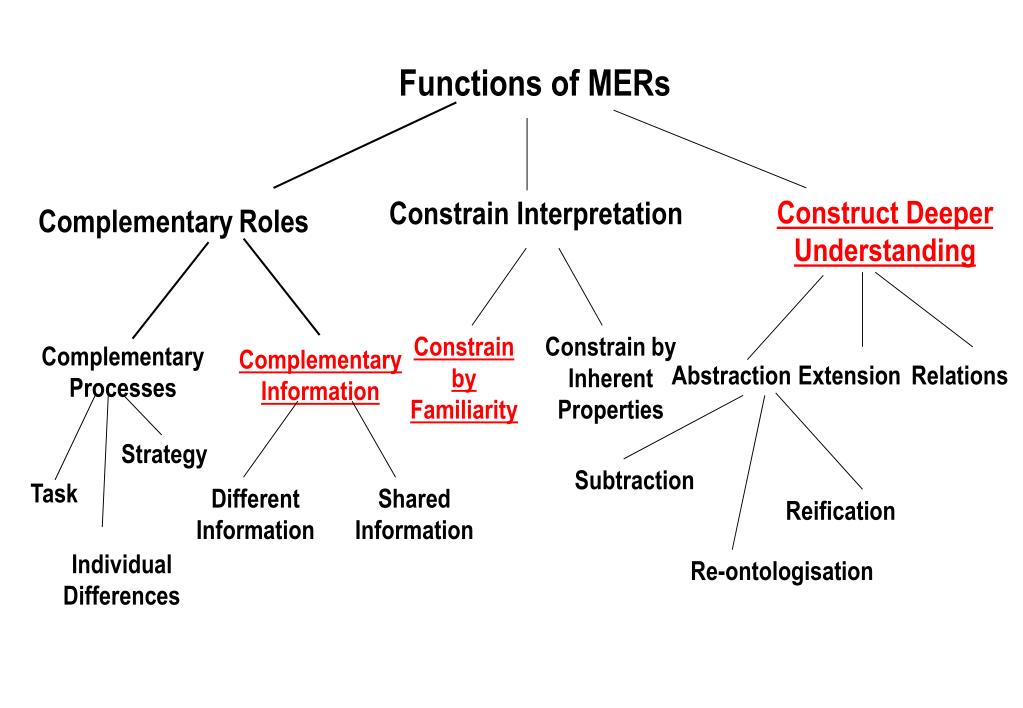

Functions of MERs

Construct Deeper Understanding

Constrain Interpretation

ComplementaryRoles

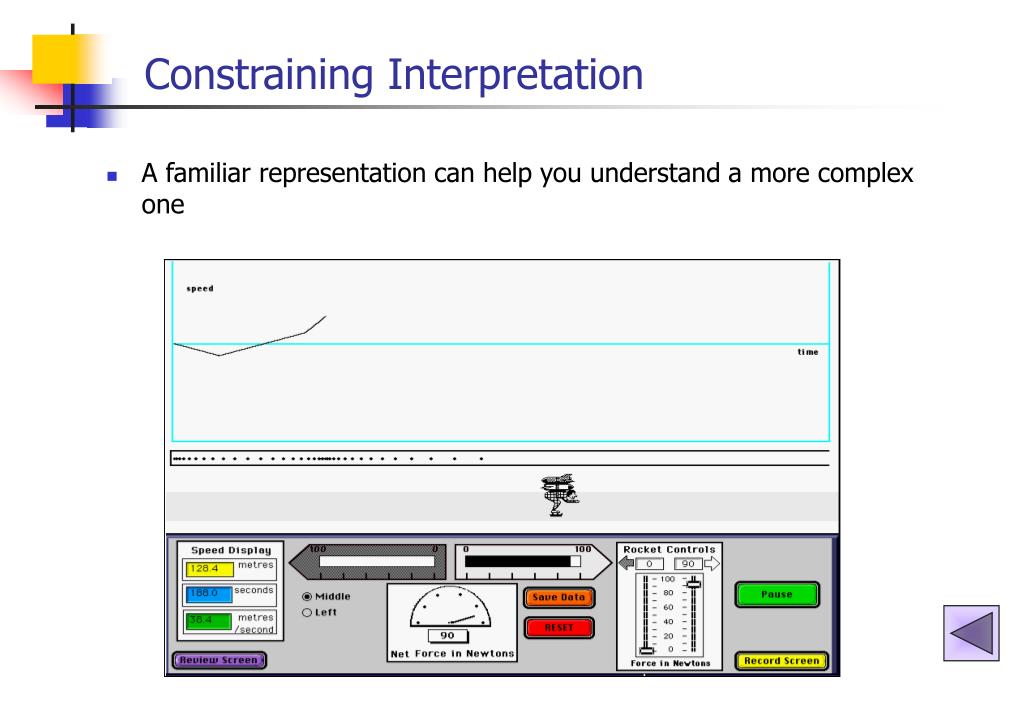

Constrain by Familiarity

Constrain by Inherent Properties

Complementary Processes

Complementary Information

Abstraction

Extension

Relations

Strategy

Subtraction

Task

Different Information

Shared Information

Reification

Individual Differences

Re-ontologisation

cognitive tasks

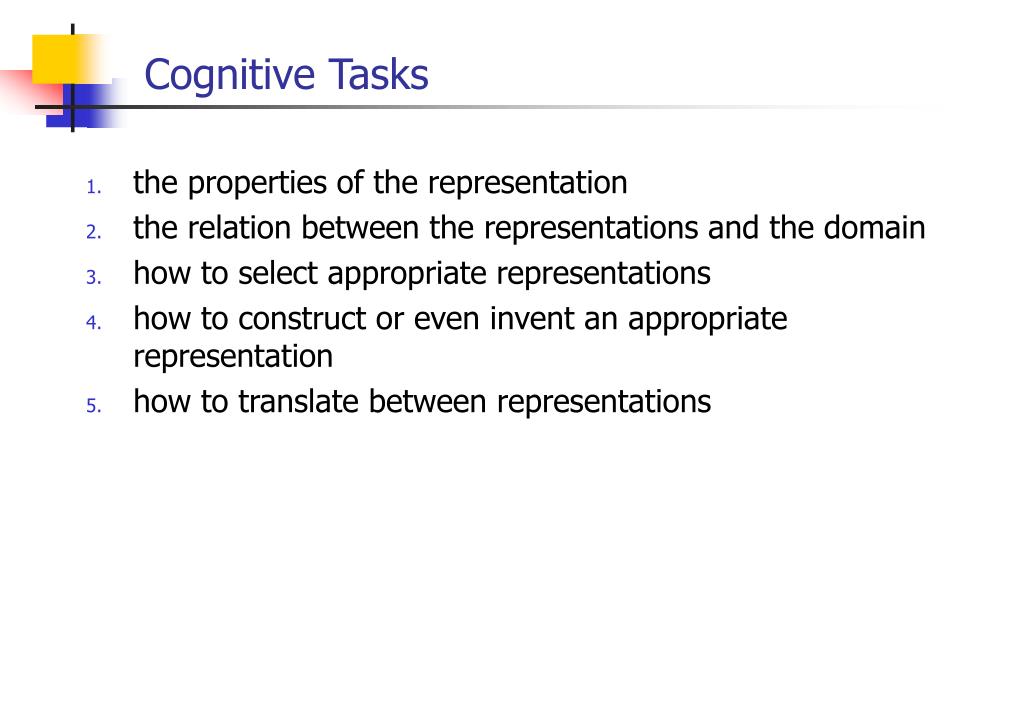

Cognitive Tasks
  • the properties of the representation
  • the relation between the representations and the domain
  • how to select appropriate representations
  • how to construct or even invent an appropriate representation
  • how to translate between representations
the properties of the representation
The properties of the representation
  • Learners must know how a representation encodes and presents information (the ‘format’).
    • In the case of a graph, the format would be attributes such as lines, labels, and axes.
  • They must also learn what the ‘operators’ are for a given representation.
    • For a graph, operators to be learnt include how to find the gradients of lines, maxima and minima, and intercepts.
the relation between the representations and the domain
The relation between the representations and the domain
  • Interpretation of representations is inherently contextualised
  • It particularly difficult for learning, as this understanding must be forged upon incomplete domain knowledge.
  • Learners need to determine which operators to apply to a representation to retrieve the relevant domain information
    • For example, when attempting to read the velocity of an object from a distance-time graph, children often examine the height of line, rather than its gradient
how to select appropriate representations
How to select appropriate representations
  • Learners may have to consider such aspects of the situation as the representation and task characteristics as well as individual preferences.
  • Novick, Hurley & Francis (1999) found that students were able to choose which of hierarchical, matrix or network representations was most appropriate to represent the structure of a story problem.
  • But Cox (1996) found that learners without good insight into the problem tended to “thrash about” – choosing representations without moving themselves nearer to a solution.
  • Selecting appropriate representations will be more difficult for novices than experts as they can lack understanding of the deep nature of the tasks they are trying to solve (Chi, Feltovich, & Glaser, 1981).
how to construct or invent an appropriate representation
How to construct or invent an appropriate representation
  • Learners often construct their representations inaccurately (e.g. Cox 1996).
  • However, learners could sometimes draw the correct inference even if they form incorrect representations.
  • There is evidence that creating representations can lead to a better understanding of the situation. Grossen & Carnine (1990) found that children learned to solve logic problems more effectively if they drew their responses to problems rather than selected a pre-drawn diagram.
how to translate between representations

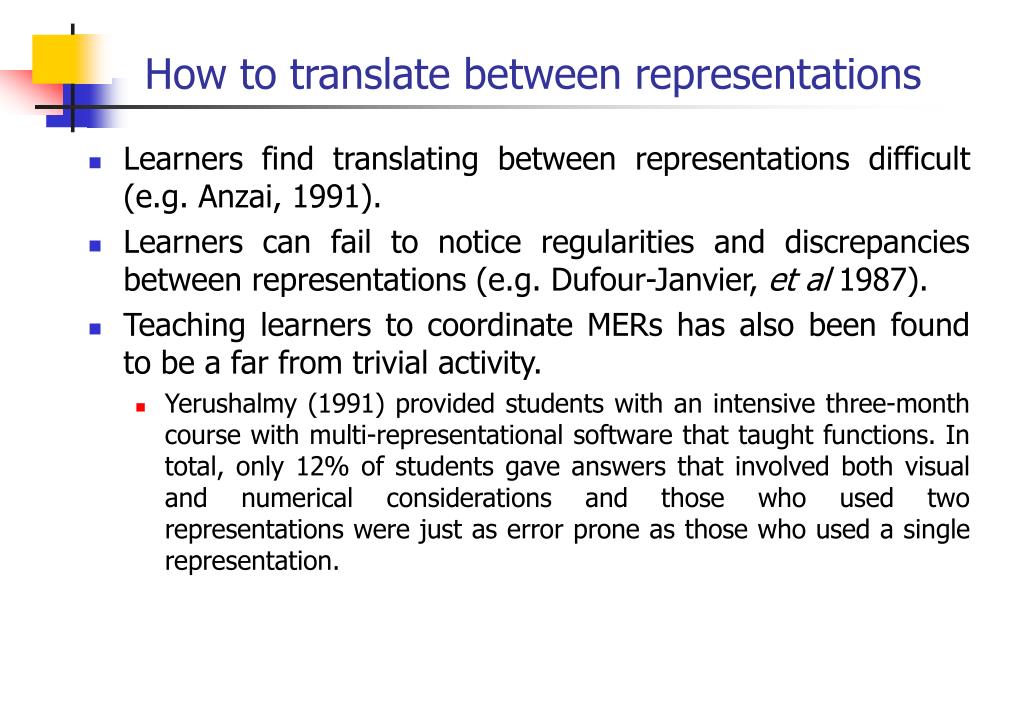

How to translate between representations
  • Learners find translating between representations difficult (e.g. Anzai, 1991).
  • Learners can fail to notice regularities and discrepancies between representations (e.g. Dufour-Janvier, et al 1987).
  • Teaching learners to coordinate MERs has also been found to be a far from trivial activity.
    • Yerushalmy (1991) provided students with an intensive three-month course with multi-representational software that taught functions. In total, only 12% of students gave answers that involved both visual and numerical considerations and those who used two representations were just as error prone as those who used a single representation.
cognitive tasks summary

Known

Easy

Constructed

Presented

?

Hard

Unknown

Cognitive Tasks Summary
  • Many of the tasks that learners must undertake to learning with multiple representations are not trivial
  • They multiply as more representations are used
cents mers format redundancy

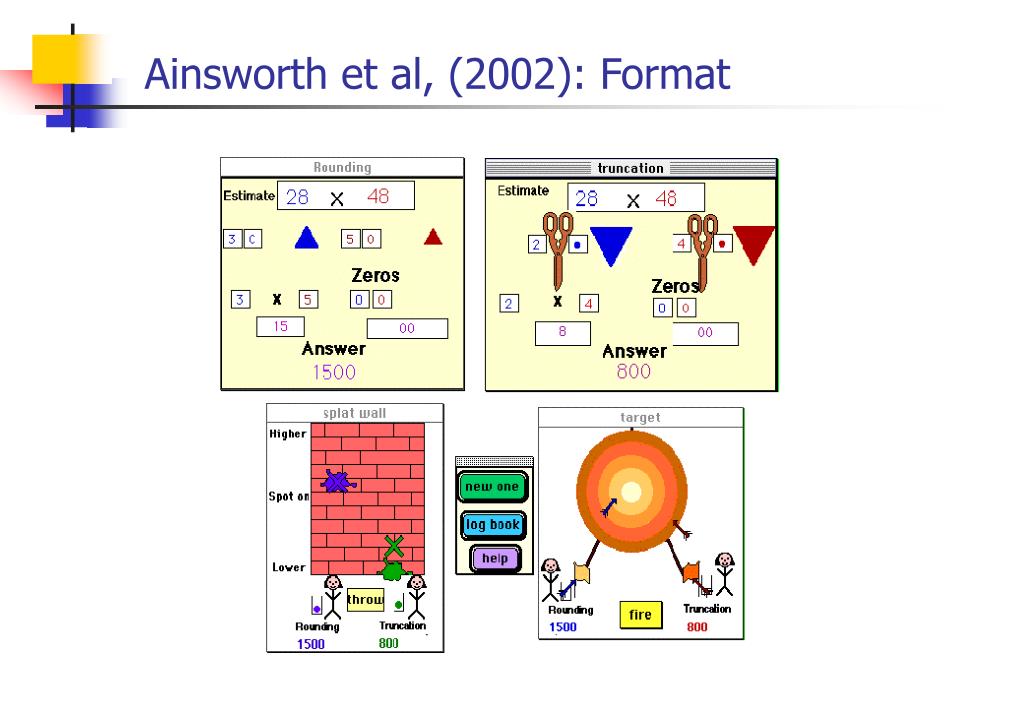

CENTS MERs: Format & Redundancy

Maths

Picts

Mixed

Categorical

Magnitude

Continuous

Magnitude & Dir.

results
Results
  • All experimental groups improved at estimating
  • The maths/picts group improved at accuracy judgements, but the mixed group did not
  • Use of the representations showed -
can learners co ordinate representations

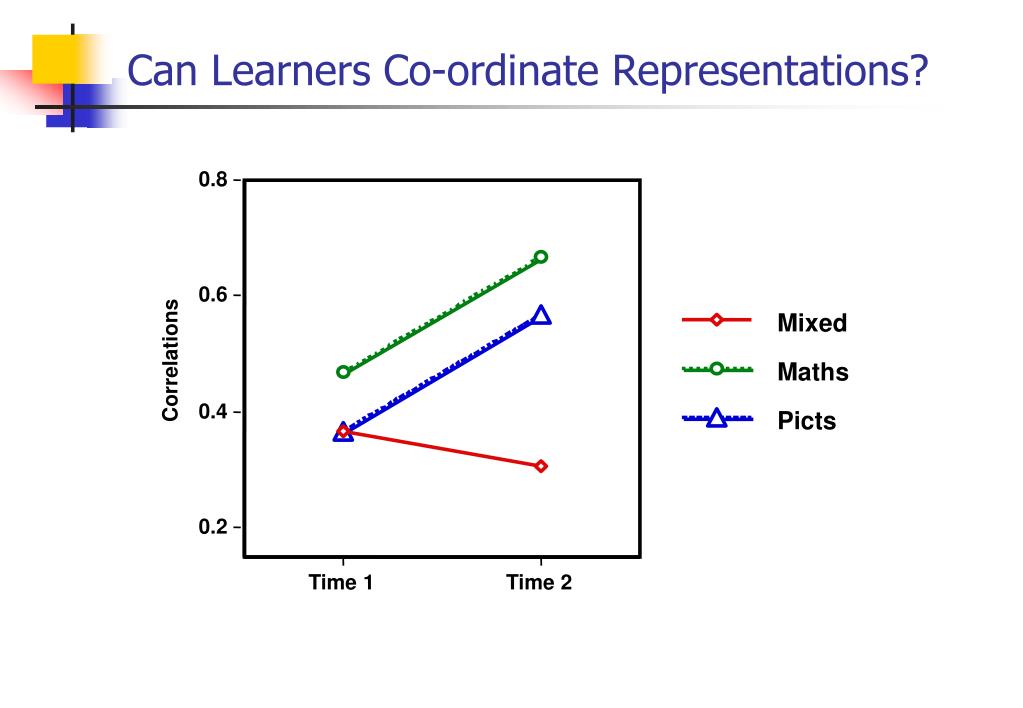

Can Learners Co-ordinate Representations?

0.8

0.6

Mixed

Correlations

Maths

0.4

Picts

0.2

Time 1

Time 2

deft analysis positive
DeFT analysis: Positive
  • In favour
    • Considers a wider range of learning scenarios and takes more seriously the idea that different pedagogical functions require different multimedia designs
    • Attempts a deeper analysis of cognitive processes
    • Evaluations in more naturalistic situations
    • Integrates a wider range of research
deft analysis negative

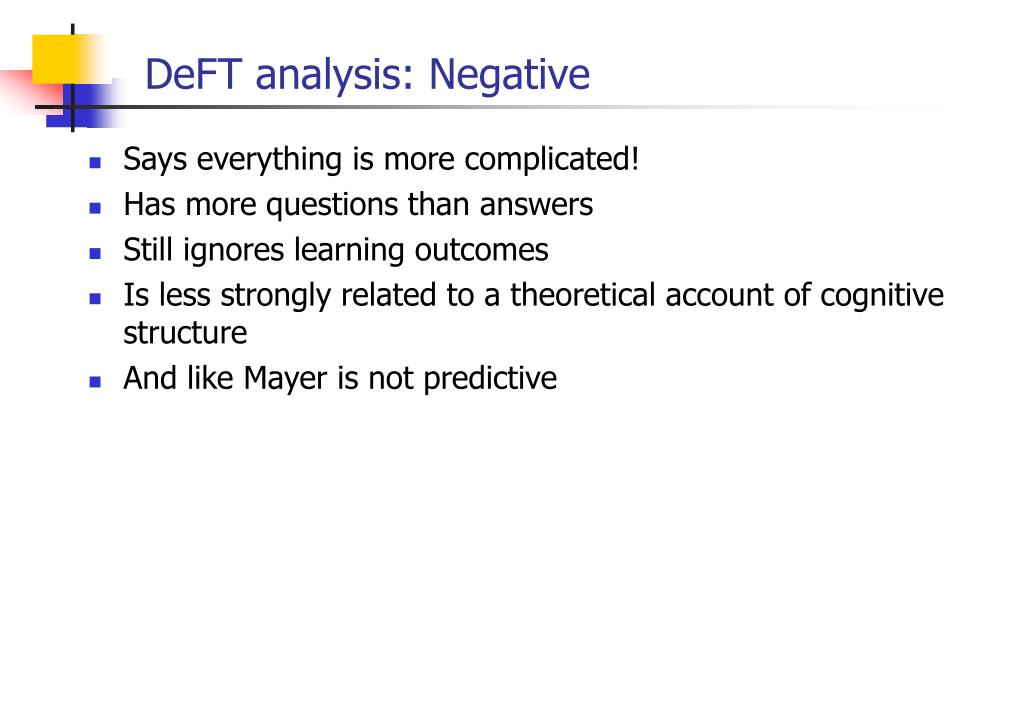

DeFT analysis: Negative
  • Says everything is more complicated!
  • Has more questions than answers
  • Still ignores learning outcomes
  • Is less strongly related to a theoretical account of cognitive structure
  • And like Mayer is not predictive
conclusions
Conclusions
  • Representations are crucial for learning. A learning environment must present information in such a way that it encourages learning.
  • Learning with representations involves at least four factors: Representation, Learner, Task and Outcome.
  • Multiple representations/multi-media have an important role to play
  • They may be motivating
  • However, multimedia should be designed carefully to achieve the benefits without losing out to the costs
  • How do so is still an open question…..
open questions
Open Questions?
  • How important is the interface in educational software?
  • Is it more important to design for usability or learnability?
  • What can the design of new interfaces learn from old interfaces? And do computers represent anything uniquely different?
  • Do we know enough to design effective multimedia?
  • Can classical cognitive psychological approaches explain learning with multimedia or do we need alternative perspectives?
  • What new interface issues may arise in future?
  • How should we evaluate the contribution that an interface makes to the success of an item of educational technology?
reading from course text
Reading From Course Text
  • How People Learn
    • Some relevant discussion in Chapter 3 and Chapter 9
reading from original sources
Reading From Original Sources

Ainsworth, S.E. (1999) A Functional Taxonomy of Multiple Representations. Computers and Education

Ainsworth, S. E., Bibby, P., & Wood, D. (2002). Examining the effects of different multiple representational systems in learning primary mathematics. Journal of the Learning Sciences, 11(1), 25-61.

Ainsworth, S. E., & Loizou, A. T. (2003). The effects of self-explaining when learning with text or diagrams. Cognitive Science, 27(4), 669-681.

Ainsworth (in press) DEFT – a framework for learning with multiple representations on my website)

Chi, M. T. H., Bassok, M., Lewis, M. W., Reimann, P., & Glaser, R. (1989). Self-explanations: How students study and use examples in learning to solve problems. Cognitive Science, 5, 145-182.

Gilmore, D. J. (1996). The relevance of HCI guidelines for educational interfaces. Machine-Mediated Learning, 5(2), 119-133

Larkin, J. H., & Simon, H. A. (1987). Why a diagram is (sometimes) worth ten thousand words. Cognitive Science, 11, 65-99.

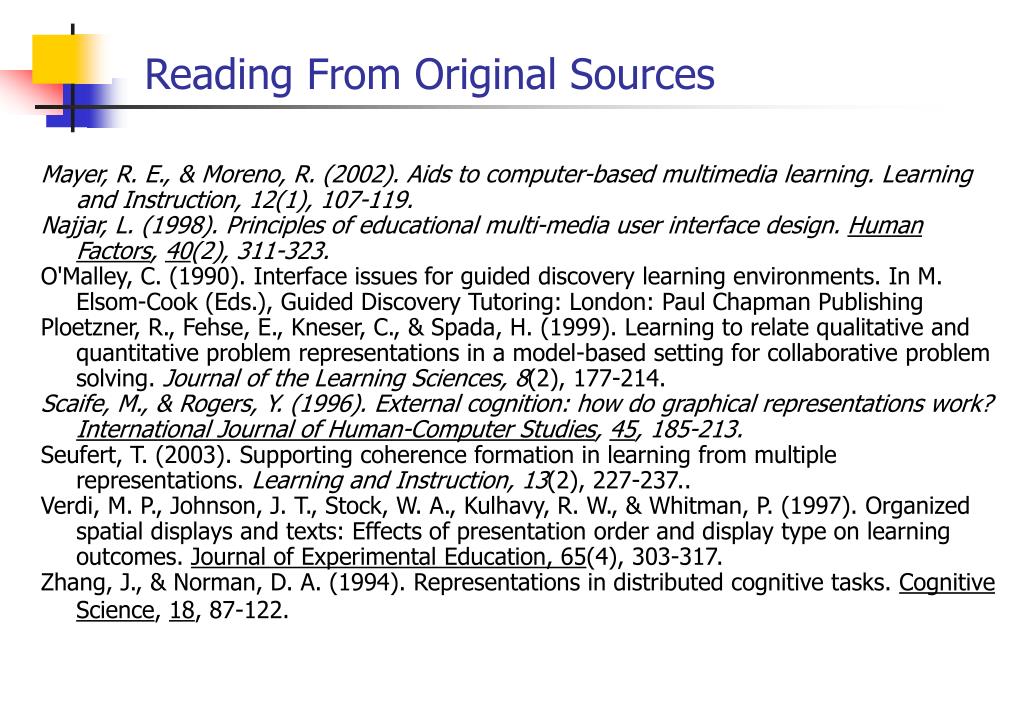

reading from original sources1
Reading From Original Sources

Mayer, R. E., & Moreno, R. (2002). Aids to computer-based multimedia learning. Learning and Instruction, 12(1), 107-119.

Najjar, L. (1998). Principles of educational multi-media user interface design. Human Factors, 40(2), 311-323.

O'Malley, C. (1990). Interface issues for guided discovery learning environments. In M. Elsom-Cook (Eds.), Guided Discovery Tutoring: London: Paul Chapman Publishing

Ploetzner, R., Fehse, E., Kneser, C., & Spada, H. (1999). Learning to relate qualitative and quantitative problem representations in a model-based setting for collaborative problem solving. Journal of the Learning Sciences, 8(2), 177-214.

Scaife, M., & Rogers, Y. (1996). External cognition: how do graphical representations work? International Journal of Human-Computer Studies, 45, 185-213.

Seufert, T. (2003). Supporting coherence formation in learning from multiple representations. Learning and Instruction, 13(2), 227-237..

Verdi, M. P., Johnson, J. T., Stock, W. A., Kulhavy, R. W., & Whitman, P. (1997). Organized spatial displays and texts: Effects of presentation order and display type on learning outcomes. Journal of Experimental Education, 65(4), 303-317.

Zhang, J., & Norman, D. A. (1994). Representations in distributed cognitive tasks. Cognitive Science, 18, 87-122.

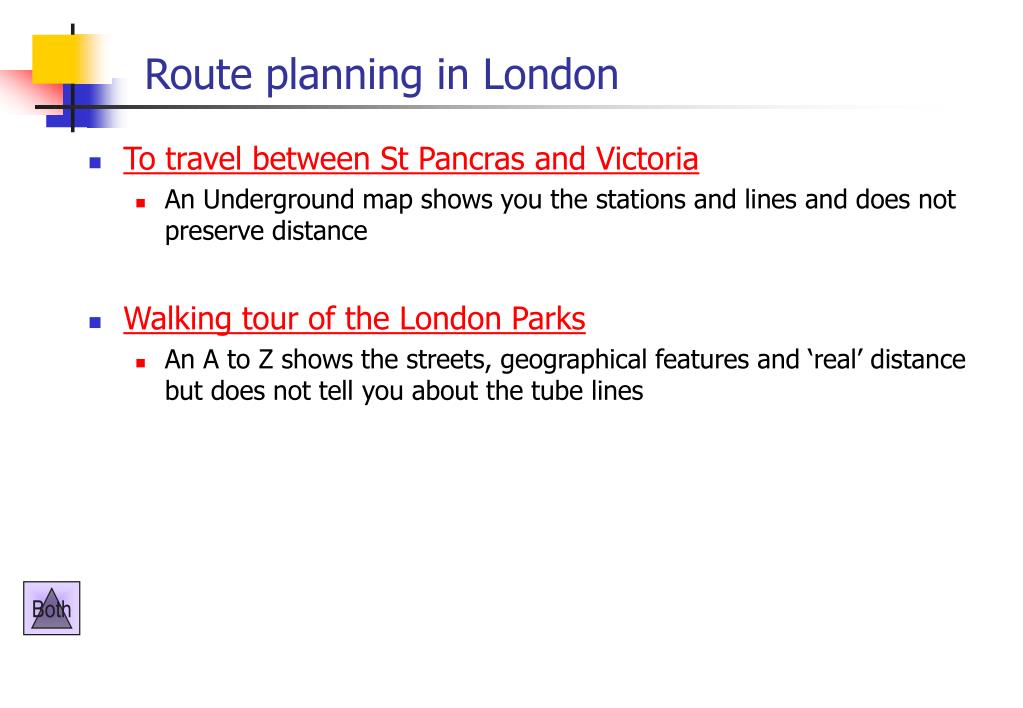

route planning in london
Route planning in London
  • To travel between St Pancras and Victoria

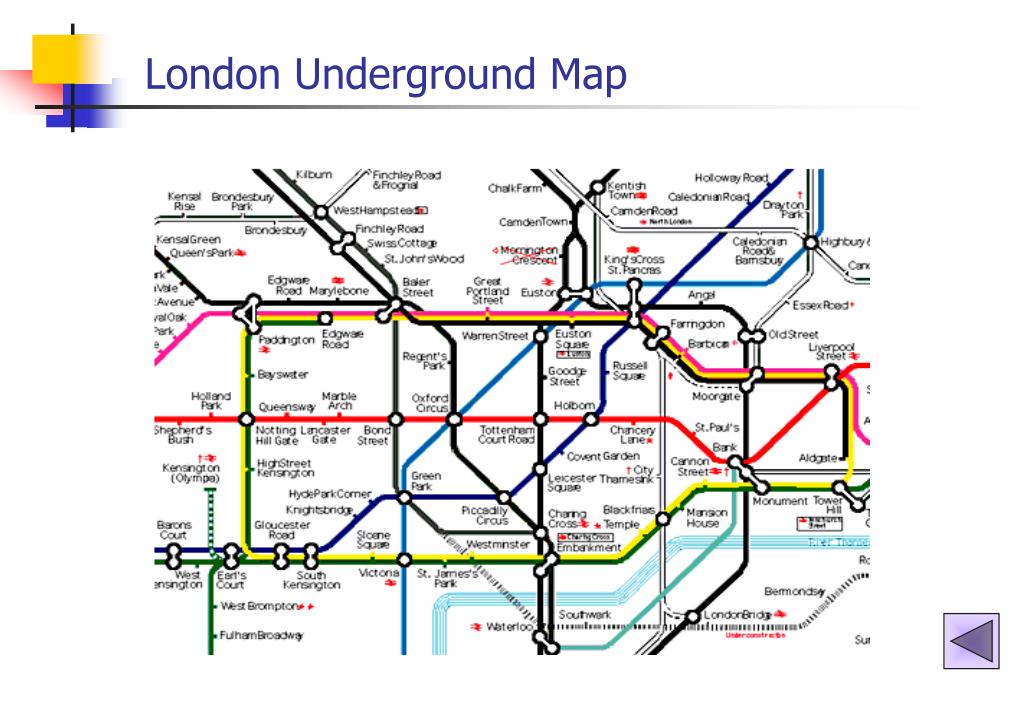

    • An Underground map shows you the stations and lines and does not preserve distance
  • Walking tour of the London Parks
    • An A to Z shows the streets, geographical features and ‘real’ distance but does not tell you about the tube lines

Both

constraining interpretation
Constraining Interpretation
  • A familiar representation can help you understand a more complex one
deeper understanding
Deeper Understanding
  • The Quadratic Tutor (Wood & Wood, 1999)
spatial contiguity
Spatial Contiguity
  • When corresponding words and pictures are near each other
    • Students who read a text explaining how tire pumps work with captioned illustrations generated about 75% more useful solutions on transfer questions than did students who read the same text and illustrations presented on separate pages (Mayer, 1989)
    • Corresponding words and pictures must be in working memory at the same time in order to facilitate the construction of referential links between them.
modality
Modality
  • From animation & narration than animation & on-screen text.
    • Students who viewed a lightening animation with a narration generated 50% more useful solutions on a transfer test than the same animation with on-screen text (Mayer & Moreno, 1998).
    • On-screen text and animation overload the visual system whereas narration is processed in the verbal information processing system and animation is processed in the visual information processing system.
coherence

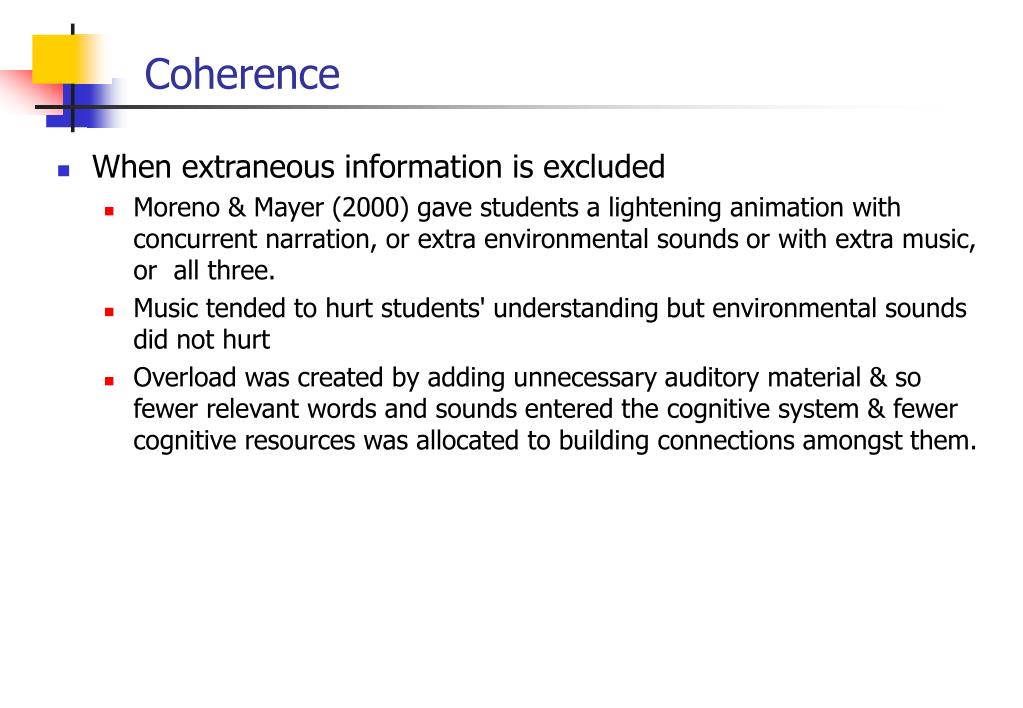

Coherence
  • When extraneous information is excluded
    • Moreno & Mayer (2000) gave students a lightening animation with concurrent narration, or extra environmental sounds or with extra music, or all three.
    • Music tended to hurt students' understanding but environmental sounds did not hurt
    • Overload was created by adding unnecessary auditory material & so fewer relevant words and sounds entered the cognitive system & fewer cognitive resources was allocated to building connections amongst them.
redundancy
Redundancy
  • From animation and narration than from animation, narration, and on-screen text.
    • Additional text harmed learners performance on transfer problems as this induced a split-attention effect
individual differences
Individual Differences
  • Effects are stronger for low-knowledge learners than for high-knowledge and for high spatial rather than from low spatial learners.
    • Students with high prior knowledge may be able to generate their own mental images while listening to an animation or reading a verbal text so having a contiguous visual presentation is not needed.
    • Students with high spatial ability are able to hold the visual image in visual working memory and thus are more likely to benefit from contiguous presentation of words and pictures.
