Presentation Transcript

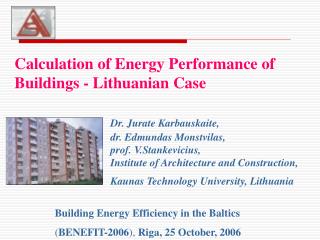

Slide1 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian CaseDr. Jurate Karbauskaite, dr. Edmundas Monstvilas, prof. V.Stankevicius, Institute of Architecture and Construction, Kaunas Technology University, Lithuania

Building Energy Efficiency in the Baltics

(BENEFIT-2006), Riga, 25 October, 2006


Calculation of energy performance of buildings lithuanian case l.jpg
Calculation of Energy Performance of Buildings - Lithuanian Case

At the point of view of long-term energy policy, the buildings ought to conform to the minimal requirements of energy performance in them in respect to the local climate.

The factors which serve to the growth of energy efficiency, must be taken into advantage

The biggest part in environment pollution is formed by heating of buildings

(IEA data)

BENEFIT-2006, Riga, 25 October, 2006


Slide3 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Comparison of energy consumption in Lithuania building stock with the European trends

BENEFIT-2006, Riga, 25 October, 2006


Slide4 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Energy consumption for heating during the recent 1997-2001 has been decreased by 15 - 20 %. In big apartment buildings mean energy consumption value can be assumed as 145 -240 kWh/m2 at 3790 degree days at indoor air temperature of 18 °C.

Energy consumption in a big part, about 30 % of them, is significantly lower, mainly due to lowered indoor temperature, as well as other 30 % are consuming more than mean value. .

BENEFIT-2006, Riga, 25 October, 2006


Slide5 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

The National Building Code STR 2.01.09.2005 (BUILDING TECHNICAL REGULATION) BUILDING ENERGY PERFORMANCE CERTIFICATION states, that building energy efficiency is assessed only by calculation of the building energy consumption according to the method presented in the obligatory Annex.

Character of the tenants behavior and

state of the building envelope are not taken into consideration in recent normative document

Development in this direction shall be provided in the future stage

BENEFIT-2006, Riga, 25 October, 2006


Slide6 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

The energy performance is evaluated by classification indicator value,

which shall bedeterminated for a considered building due to the

total building normative QN.sum, reference QR.sum and calculated Qsumvalues

of building energyconsumption for 1 m2 of buildingheated area.

classification indicator valueis expressed by equation:

,

if

if

in the other cases

BENEFIT-2006, Riga, 25 October, 2006


Slide7 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

The performance class, depending on the value of the classification indicator C :

- Class A, if C  0,5;

- Class B, if 0,5 C 1;

- Class C, if 1 C 1,5;

- Class D, if 1,5 C 2;

- Class E, if 2 C 2,5;

- Class F, if 2,5 C 3;

- Class G, if C  3.

THE BUILDINGS COULD BE ATTRIBUTED TO ONE OF THE 7CLASSES:

A.B, C, D, E, F, G.

CLASS A IS AT THE TOP AND SUCH A BUILDING IS VERY ENERGY EFFICIENT WITH LOW ENERGY CONSUMPTION IN IT.

BENEFIT-2006, Riga, 25 October, 2006


Slide8 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Heating season values

Heat losses through the external walls;

Heat losses through roof;

Heat losses through building ceilings, which are in contact with external air;

Heat losses through building ceilings over unheated basement and crawls;

Heat losses through building elements on ground;

Heat losses through the windows;

Heat losses through external doors, excluding the heat losses due the door opening;

Heat losses through thermal bridges in building;

Heat losses due to opening of external door

Transmission heat losses

Heat losses due to door opening

Ventilation heat losses

Heat losses due over-infiltration of external air through windows

-

Solar heat gains

Internal heat gains

Domestic hot water supply (annual value)

Building energy

performance components

Electricity (annual value)

BENEFIT-2006, Riga, 25 October, 2006


Slide9 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Lay-out of basic heat losses in the residential buildings according to the construction year

BENEFIT-2006, Riga, 25 October, 2006


Slide10 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

  • Calculation of the energy used for the ventilation of the building

  • Ventilation systems could be attributed to one of the three types:

  • natural ventilation;

  • mechanical ventilation without heat recovery;

  • mechanical ventilation with heat recovery.

The calculated efficiency factor of the mechanical ventilation system with heat recovery r

BENEFIT-2006, Riga, 25 October, 2006


Slide11 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Calculation of the heat losses because of extra normative infiltration of external air through windows and external doors

Normative heat lossesQN.inf. (kWh/(m2per year)) during the heating season because of extra normative infiltration of external air through windows and external doors, is set, that there should be no higher infiltration of external air than it’s needed for the ventilation of the building, so QN.inf.=0.

Reference QR.inf. (kWh/(m2per year)) heat losses during the heating season because of extra normative infiltration of external air through windows and external doors shall be calculated with respect to new and old window and door amount according to the equations in the Annex 2 of the Regulation.

Calculated Qinf(kWh/(m2per year)) heat losses during the heating season because of extra normative infiltration of external air through windows and external doors shall be calculated with respect to new and old window and door amount according to the equations in the Annex 2 of the Regulation.

BENEFIT-2006, Riga, 25 October, 2006


Slide12 l.jpg

Calculation of the heat losses through the external door due to doors opening

The heat losses Qd1 (kWh/(m2year)) during the heating season through the external door due to door opening shall be calculated according to the equation:

Calculation of Energy Performance of Buildings - Lithuanian Case

Calculation of the heat losses through the external door due to doors opening

The heat losses Qd1 (kWh/(m2 per year)) during the heating season through the external door due to door opening shall be calculated according to the equation:

where: Ao – the area for one occupant (m2). Selected from table 2.4;

kd1 – the correction coefficient, evaluating the frequency of opening of external doors of different types of the buildings, selected from table 2.11 of the Regulation.

kd2 – the correction coefficient, evaluating the type of external doors. The value of the coefficient shall be selected from table 2.12 of the Regulation with respect to the type of the external doors: according to the door, that is most frequently used or according to the door, that generalized corresponds to all types of external doors of the building;

h – the height of the building (m). That is the distance from the ground level to the highest point of the heated room, located at the upper part of the building.

BENEFIT-2006, Riga, 25 October, 2006


Slide13 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Correction coefficient for the doors kd1

Correction coefficient for the doors kd2

BENEFIT-2006, Riga, 25 October, 2006


Slide14 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Calculation of energy use for domestic hot water

Annual energy use for hot water Qh.w.(kWh/(m2per year)):

The efficiency factor of the hot water supply system h.w.

where:

ψh.w.– the annual energy demand for hot water per unit of the building area (kWh/(m2per year)). Selected from table 2.4;

h.w. – the efficiency factor of the hot water supply system. Selected from table 2.4.

BENEFIT-2006, Riga, 25 October, 2006


Slide15 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Calculation of sum energy consumption of the building

Normative sum QN.sum. (kWh/(m2per year)), reference sum QR.sum. (kWh/(m2 per year)) and calculated sum Qsum(kWh/(m2per year)) :

; ( )

BENEFIT-2006, Riga, 25 October, 2006


Slide16 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Casec

The calculated efficiency factor of the heat source 2

Calculated efficiency factor of the temperature control devices of the heating system 1

BENEFIT-2006, Riga, 25 October, 2006


Slide17 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Casec

Normative N.h.s. and reference Rh.s. heating system efficiency factors, different types of buildings

BENEFIT-2006, Riga, 25 October, 2006


Slide18 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

  • Translation of the indices

  • Building address

  • Building destination

  • Heated area of building

  • Building energy performance classification indicator

  • Calculated summed energy consumption related to 1 m2 heated area of the building (building part)

  • Main heat supply source

  • Certificate issue date

  • Building (building part) certificate expiry date

  • Name and surname of expert

  • Expert certificate registration number

  • Expert signature

BENEFIT-2006, Riga, 25 October, 2006


Slide19 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

  • Calculation example:

  • Apartment building, 3 staircases, 5 stories

  • Input data:

  • Heated area 2700 m2;

  • Window area – 15 % from building heated area;

  • Ventilation natural;

  • Domestic hot water supply with manual control;

  • Temperature control in building heating system is absent;

  • Energy source - district heating, manual temperature control.

BENEFIT-2006, Riga, 25 October, 2006


Slide20 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Energy consumption lay-out for 5-story apartment building

BENEFIT-2006, Riga, 25 October, 2006


Slide21 l.jpg

Calculation of Energy Performance of Buildings - Lithuanian Case

Calculation program window with the part of input data and calculation results.

Building data:

Destination – residential

Heated area- 175,22 m2

Height – 4,2 m

Walls, windows, doors by facades:

External door description

DHW supply system- gas heater

Energy consumption – 213,76

Classification indicator value – 0,80

Energy performance class - B

BENEFIT-2006, Riga, 25 October, 2006
