basin analysis

Basin Analysis

Chapter1: Basins and their plate tectonic environment

This presentation contains illustrations from Allen and Allen (2005 ) as well as illustrations from Press et al. (2004)

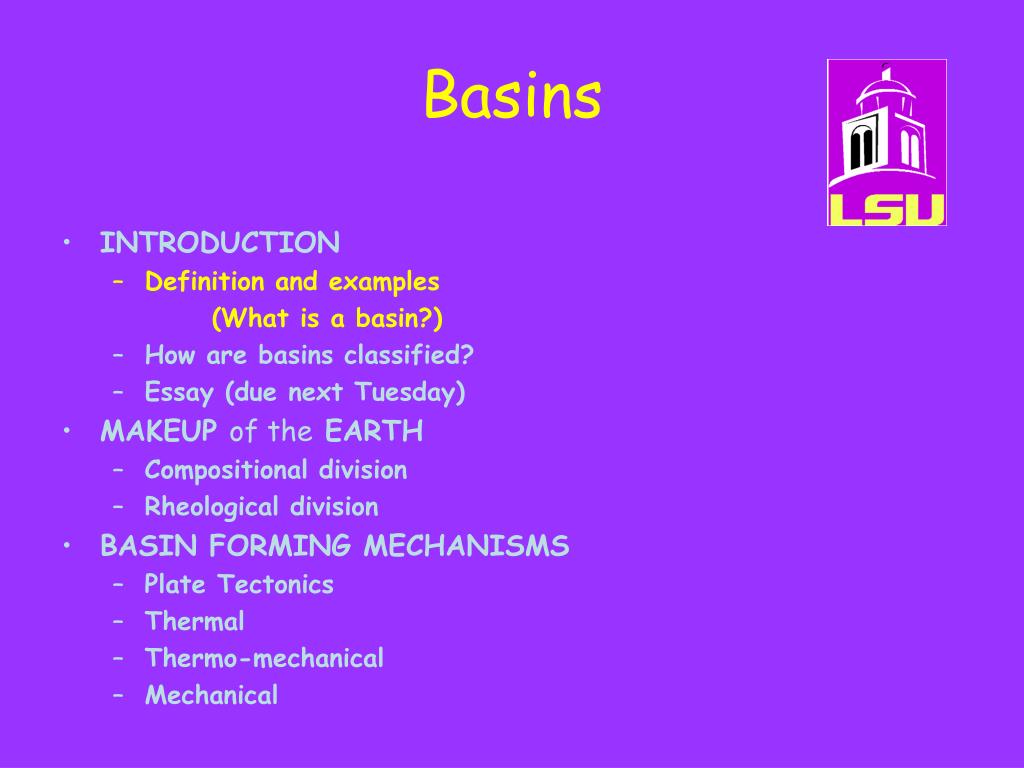

basins
Basins
  • INTRODUCTION
    • Definition and examples

(What is a basin?)

    • How are basins classified?
    • Essay (due next Tuesday)
  • MAKEUP of the EARTH
    • Compositional division
    • Rheological division
  • BASIN FORMING MECHANISMS
    • Plate Tectonics
    • Thermal
    • Thermo-mechanical
    • Mechanical

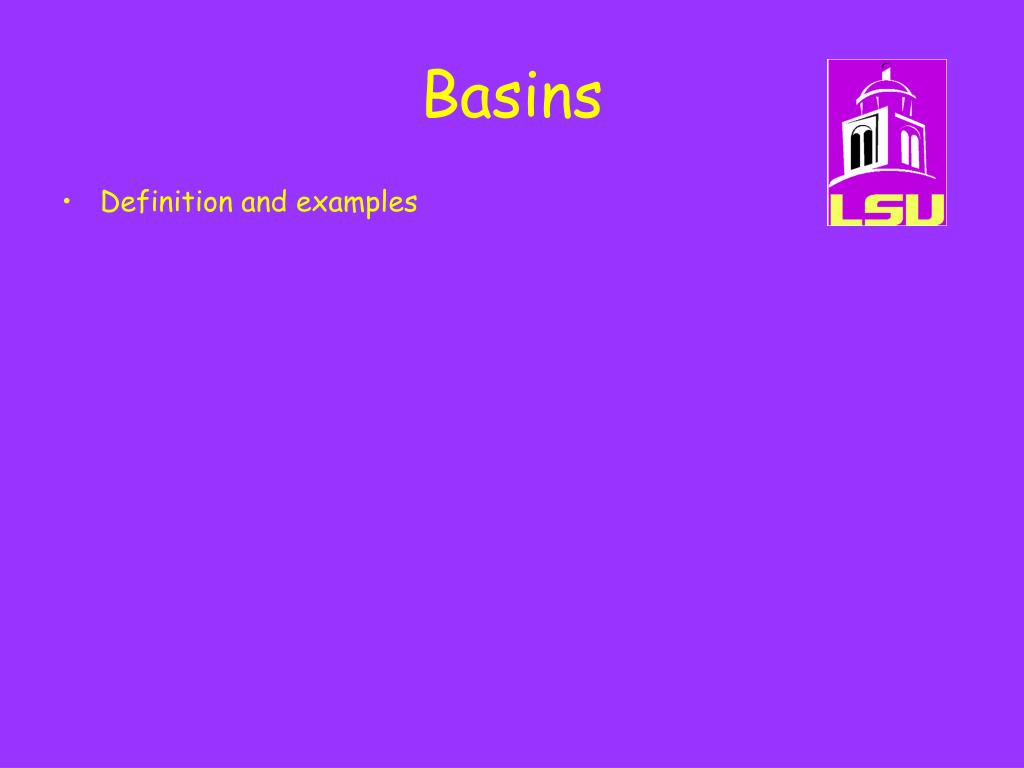

basins3
Basins
  • Definition and examples
basins4
Basins
  • Definition
  • Areas of the earth where there is a net sedimentation, or in the fossil (ancient) record of such areas
  • Zones of pronounced subsidence where sediment can accumulate.  The larger the thickness of sediments and longer the accumulation has taken place,  the more interesting to the oil companies the basin becomes.
  • Examples
  • Gulf of Mexico (today and ancient)
  • Pyrenees (ancient)
  • Oman (oil from 650 Ma stromatolites still in living position)
basins5
Basins
  • INTRODUCTION
    • Definition and examples

(What is a basin?)

    • How are basins classified?
    • Homework # 1.A (due next Tuesday)
  • MAKEUP of the EARTH
    • Compositional division
    • Rheological division
  • BASIN FORMING MECHANISMS
    • Plate Tectonics
    • Thermal
    • Thermo-mechanical
    • Mechanical
how are basins classified
How are basins classified?

Basin can be classified according to many priorities of the individual.  A classification scheme should not just create "order from the chaos", but highlight patterns that are useful for predicting stratigraphy, and faulting.

Dickinson's (1974) classification scheme is based on tectonic history:

(a) lithospheric substratum: oceanic versus continental

(b) proximity of the basin to a plate margin

(c) type of plate margin nearest the basin i.e., convergent, divergent, conservative (similar to Bally and Snelson, 1980)

Other factors used are: hydrocarbon characteristics, types of sedimentary sequences filling the basin, and the tectonics that modify the sediment infill

If on the other hand one is interested in WHERE they are to be found with respect to PLATE TECTONIC boundaries we might also get a hint about the mechanism of formation.  Fossil basins may no longer be in the plate tectonic setting in which they were originally formed.

.

how are basins classified7
How are basins classified?

If one is interested in HOW Basins are formed then it is very natural that we break up the basin types according to their mechanism of formation. E.g., mechanical, thermal or thermal-mechanical.

basins8
Basins
  • INTRODUCTION
    • Definition and examples

(What is a basin?)

    • How are basins classified?
    • Homework # 1.A (due next Tuesday)
  • MAKEUP of the EARTH
    • Compositional division
    • Rheological division
  • BASIN FORMING MECHANISMS
    • Plate Tectonics
    • Thermal
    • Thermo-mechanical
    • Mechanical
homework due next tuesday

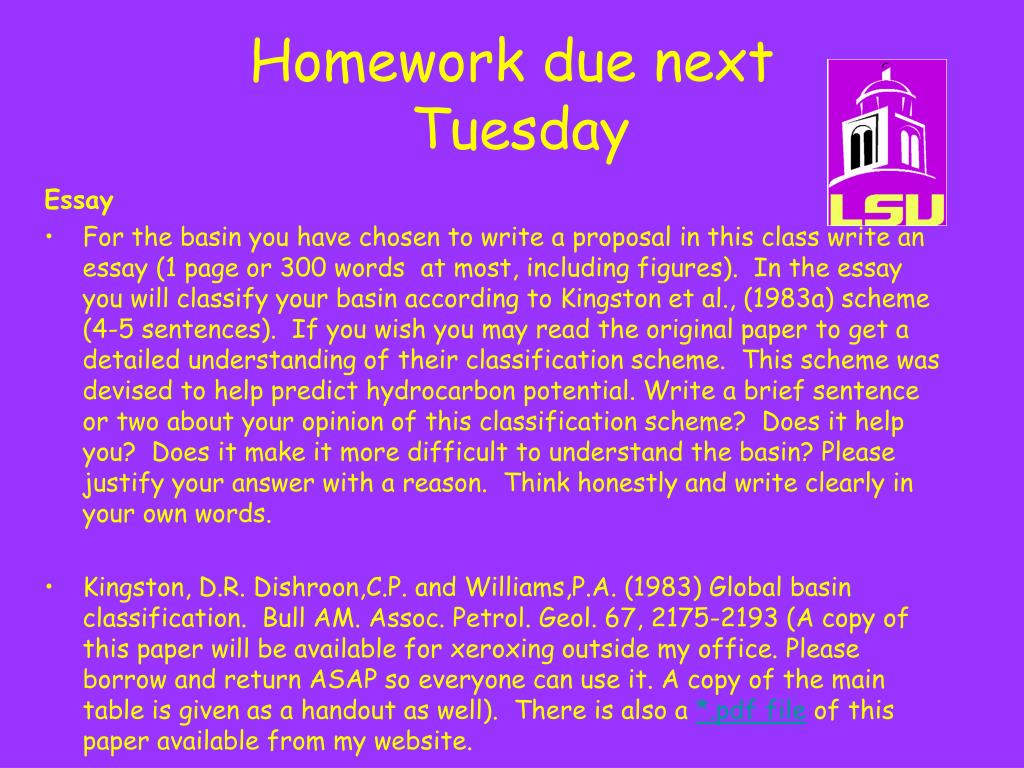

Homework due next Tuesday

Essay

  • For the basin you have chosen to write a proposal in this class write an essay (1 page or 300 words  at most, including figures).  In the essay you will classify your basin according to Kingston et al., (1983a) scheme (4-5 sentences).  If you wish you may read the original paper to get a detailed understanding of their classification scheme.  This scheme was devised to help predict hydrocarbon potential. Write a brief sentence or two about your opinion of this classification scheme?  Does it help you?  Does it make it more difficult to understand the basin? Please justify your answer with a reason.  Think honestly and write clearly in your own words.
  • Kingston, D.R. Dishroon,C.P. and Williams,P.A. (1983) Global basin classification.  Bull AM. Assoc. Petrol. Geol. 67, 2175-2193 (A copy of this paper will be available for xeroxing outside my office. Please borrow and return ASAP so everyone can use it. A copy of the main table is given as a handout as well).  There is also a *.pdf file of this paper available from my website.
basins10

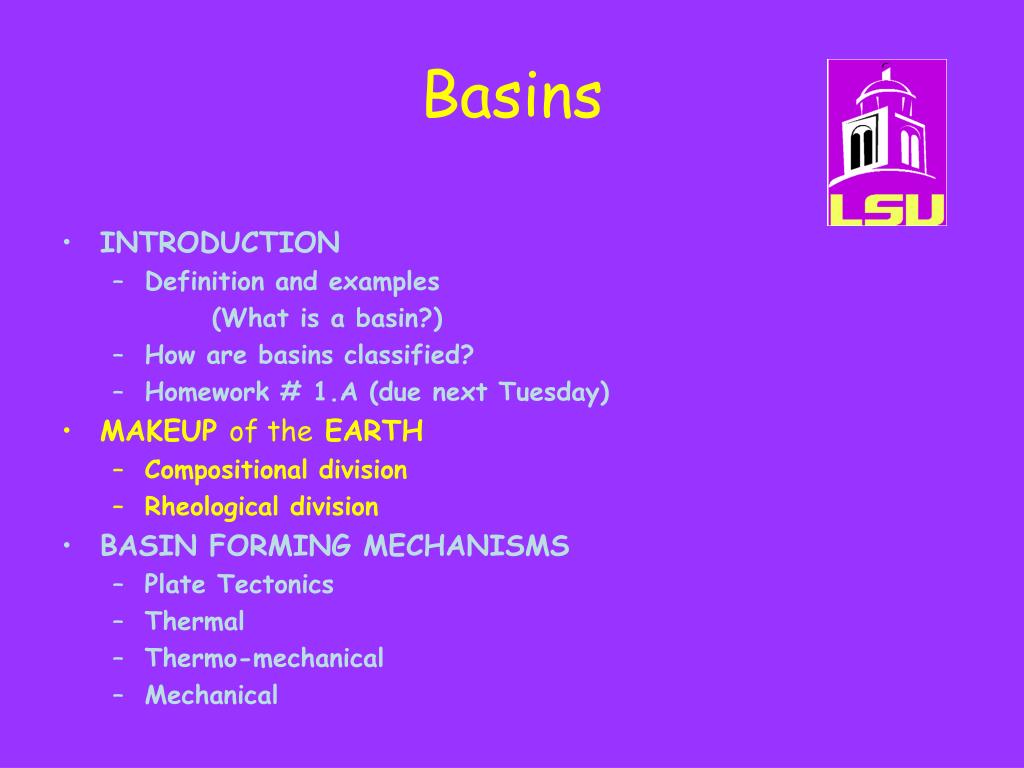

Basins
  • INTRODUCTION
    • Definition and examples

(What is a basin?)

    • How are basins classified?
    • Homework # 1.A (due next Tuesday)
  • MAKEUP of the EARTH
    • Compositional division
    • Rheological division
  • BASIN FORMING MECHANISMS
    • Plate Tectonics
    • Thermal
    • Thermo-mechanical
    • Mechanical

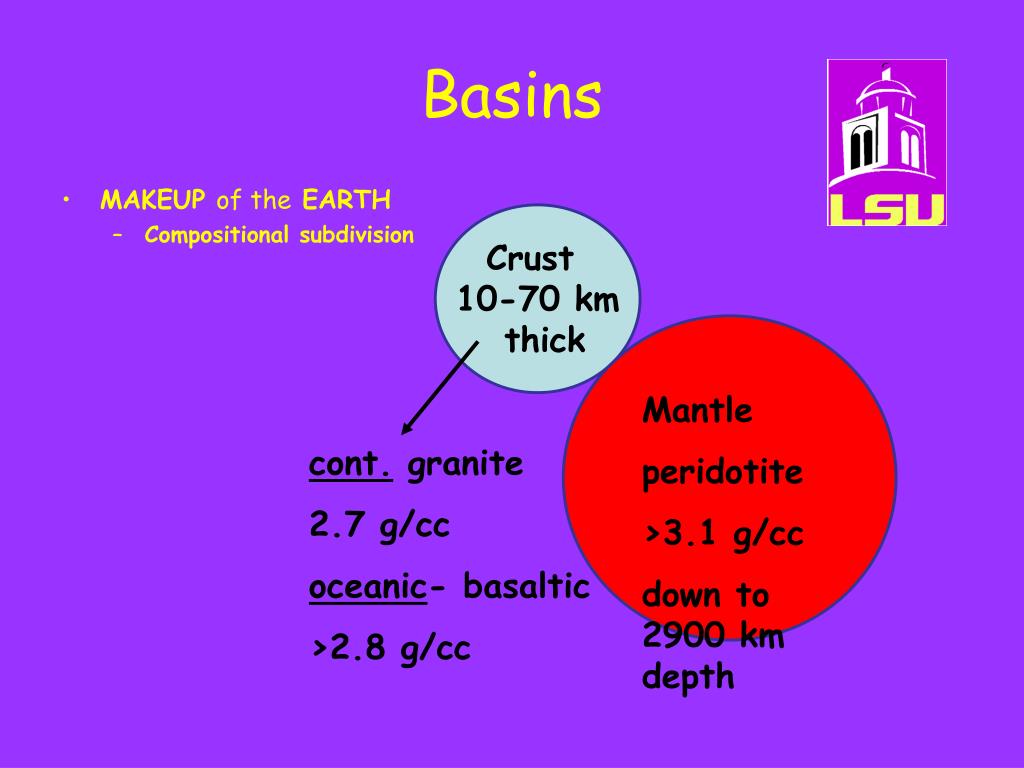

basins11
Basins
  • MAKEUP of the EARTH
    • Compositional subdivision

Crust

10-70 km

thick

cont. granite

2.7 g/cc

oceanic- basaltic

>2.8 g/cc

Mantle

peridotite

>3.1 g/cc

down to 2900 km depth

mantle

slide12

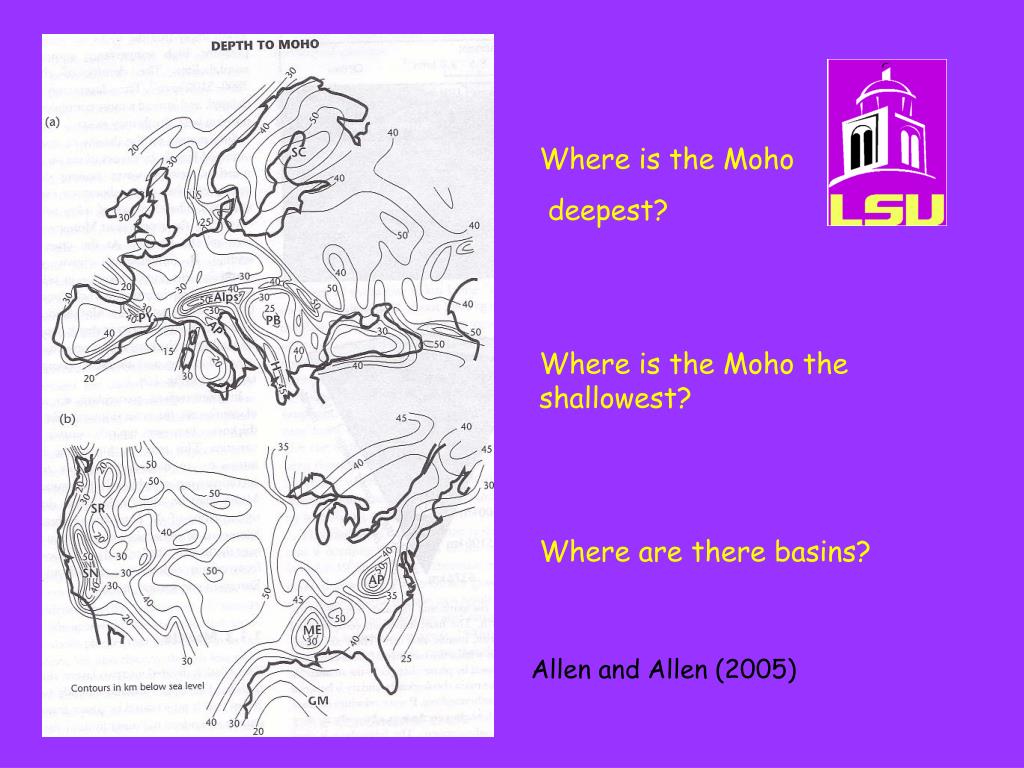

Where is the Moho

deepest?

Where is the Moho the shallowest?

Where are there basins?

Allen and Allen (2005)

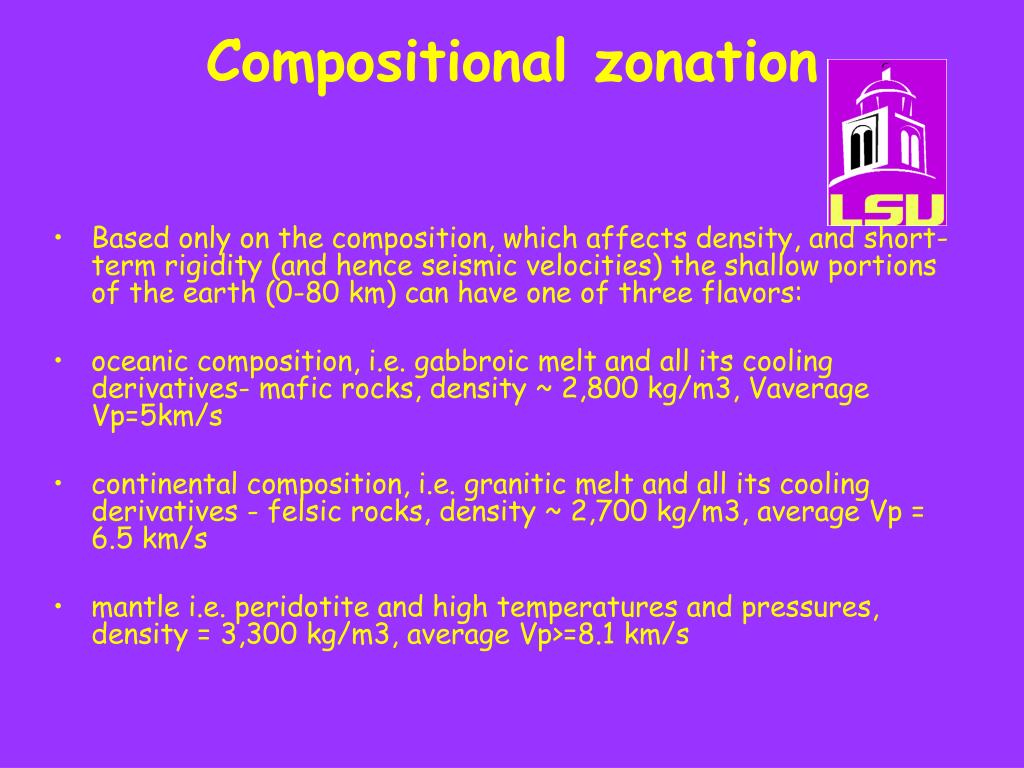

compositional zonation
Compositional zonation
  • Based only on the composition, which affects density, and short-term rigidity (and hence seismic velocities) the shallow portions of the earth (0-80 km) can have one of three flavors:
  • oceanic composition, i.e. gabbroic melt and all its cooling derivatives- mafic rocks, density ~ 2,800 kg/m3, Vaverage Vp=5km/s
  • continental composition, i.e. granitic melt and all its cooling derivatives - felsic rocks, density ~ 2,700 kg/m3, average Vp = 6.5 km/s
  • mantle i.e. peridotite and high temperatures and pressures, density = 3,300 kg/m3, average Vp>=8.1 km/s
basins14
Basins
  • MAKEUP of the EARTH
    • Rheological divisions

lithosphere

RIGID

asthenosphere

DUCTILE

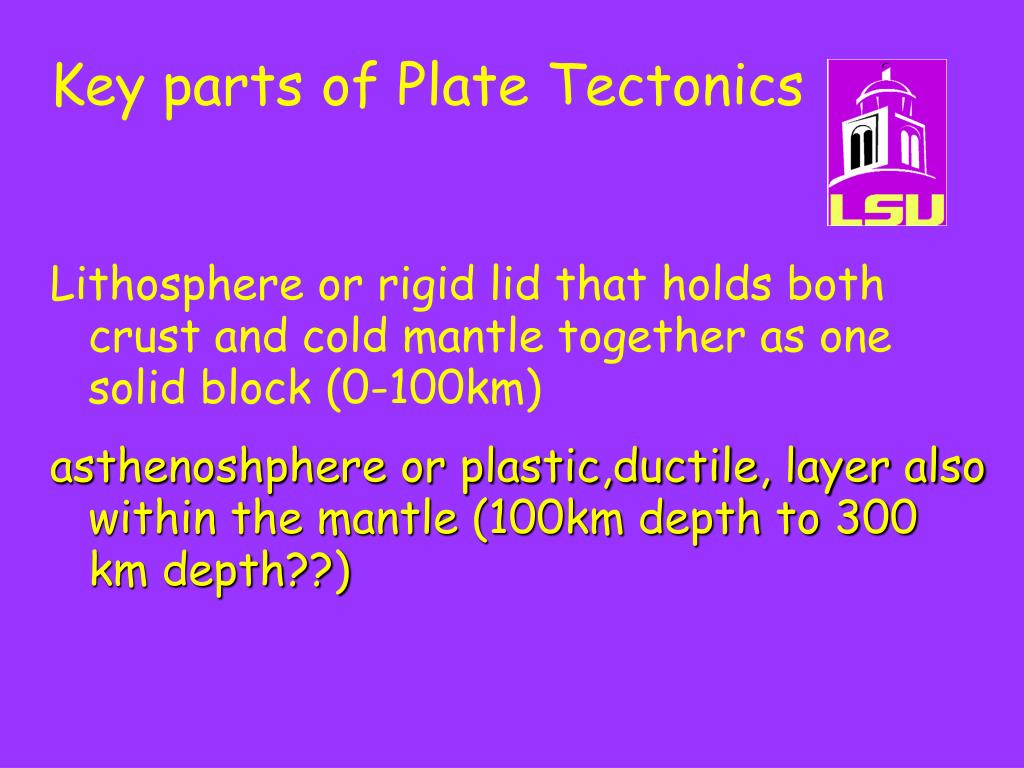

key parts of plate tectonics
Key parts of Plate Tectonics

Lithosphere or rigid lid that holds both crust and cold mantle together as one solid block (0-100km)

asthenoshphere or plastic,ductile, layer also within the mantle (100km depth to 300 km depth??)

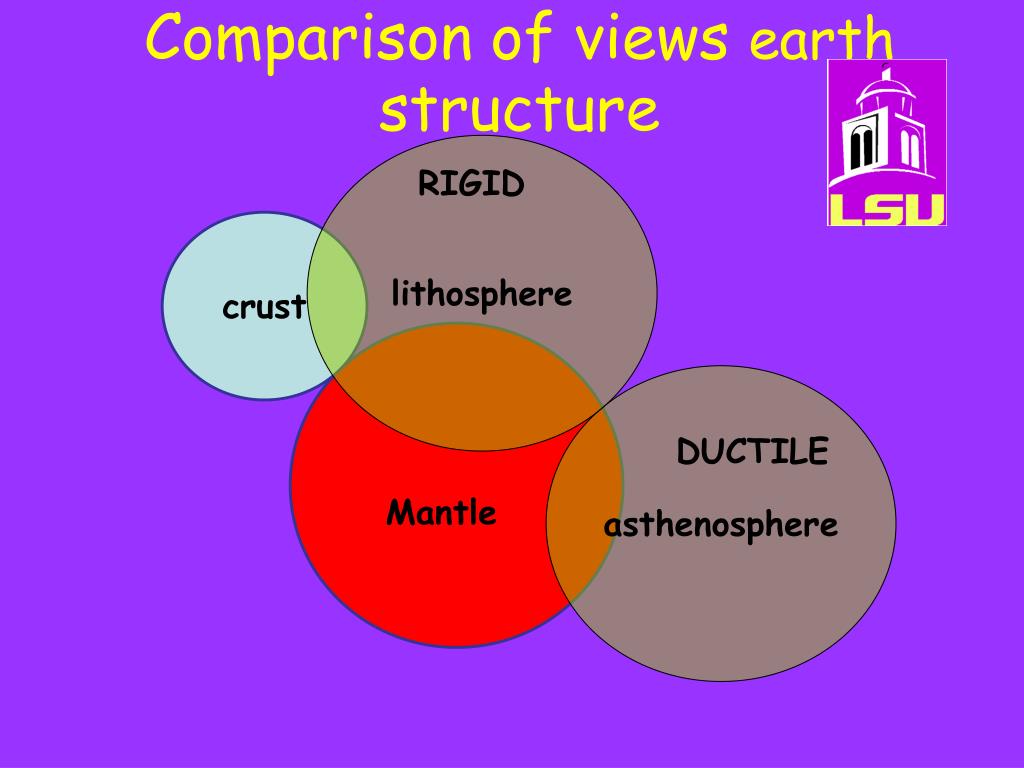

comparison of views earth structure
Comparison of views earthstructure

lithosphere

RIGID

crust

asthenosphere

DUCTILE

mantle

Mantle

plates
Plates
  • Group of rocks all moving in the same direction
  • Can have both oceanic and continental crust or just one kind.

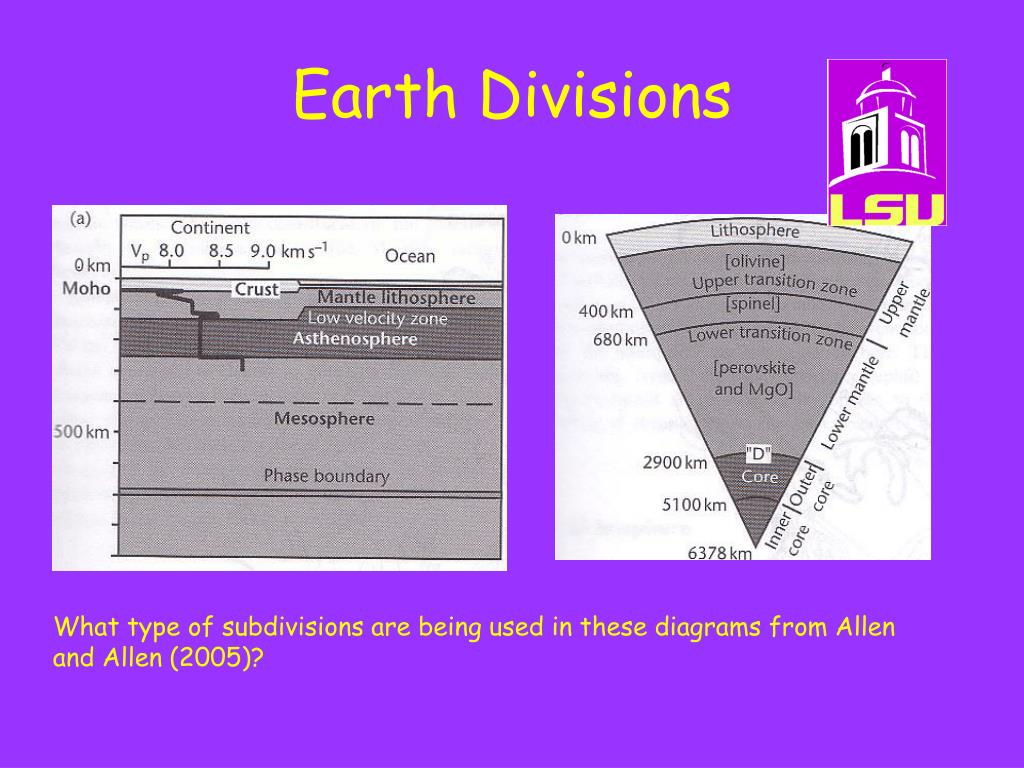

earth divisions
Earth Divisions

What type of subdivisions are being used in these diagrams from Allen and Allen (2005)?

basins19

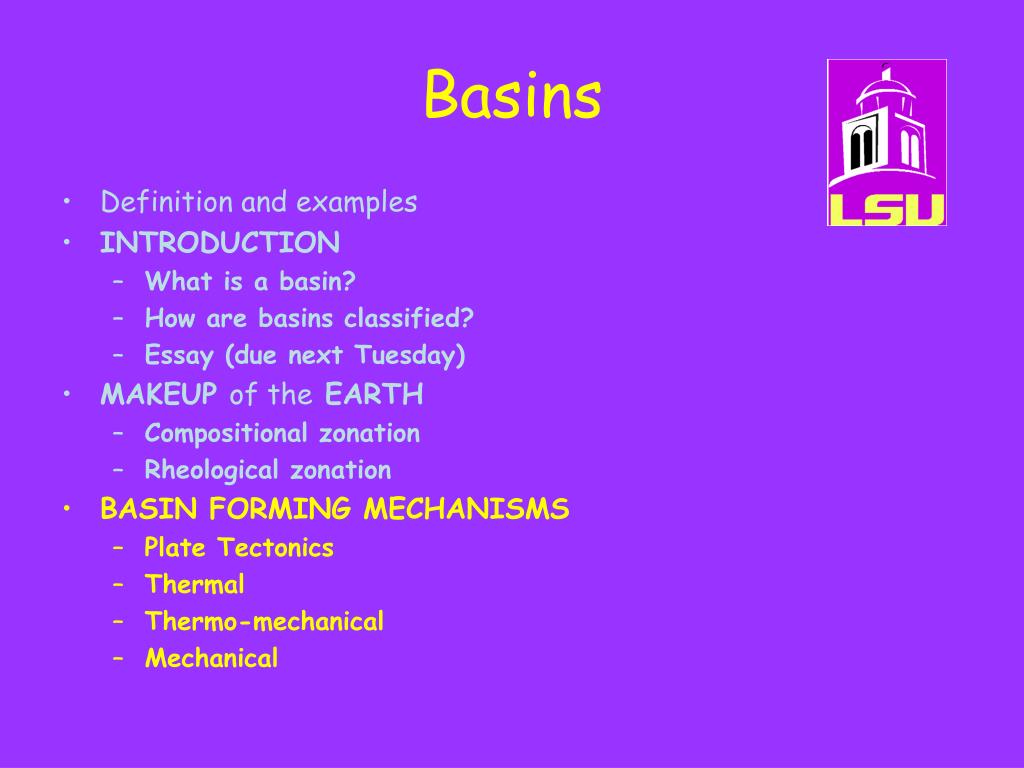

Basins
  • Definition and examples
  • INTRODUCTION
    • What is a basin?
    • How are basins classified?
    • Essay (due next Tuesday)
  • MAKEUP of the EARTH
    • Compositional zonation
    • Rheological zonation
  • BASIN FORMING MECHANISMS
    • Plate Tectonics
    • Thermal
    • Thermo-mechanical
    • Mechanical
plate tectonics
Plate Tectonics

What drives plate tectonics?

driving mechanism of plate tectonics
Driving Mechanism of Plate Tectonics
  • GRAVITY
  • Convection may have overturned asthenosphere 4–6 times.
  • Convection may initiate process but cooling leads to densification and plate movement?
  • A cold planet is a dead planet. Is there oil on Mars?
slide22

Ridge Push and Trench Pull

Press et al., 2005

slide23

Two Models of Mantle

Convection

Press et al. 2004

slide24

Divergent Plate Boundary

Usually start within continents—

grows to become ocean basin

Press et al. 2004

basins25
Basins
  • BASIN FORMING MECHANISMS
    • Thermal
    • Thermo-mechanical
    • Mechanical

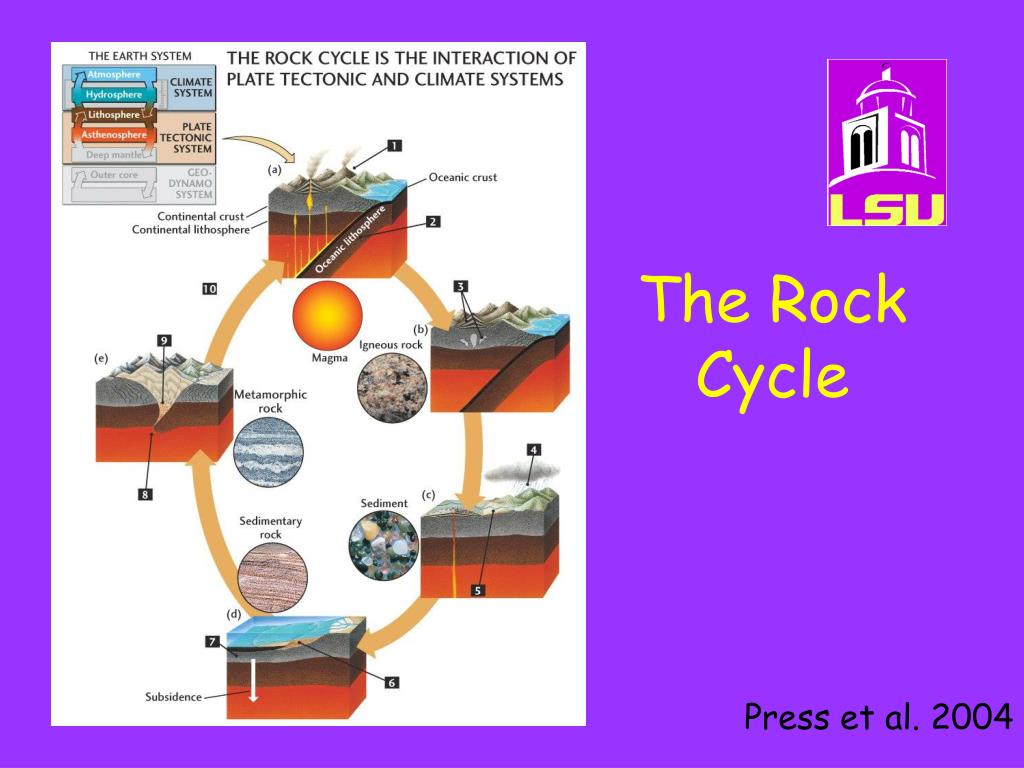

the rock cycle
The Rock Cycle

Press et al. 2004

rock cycle

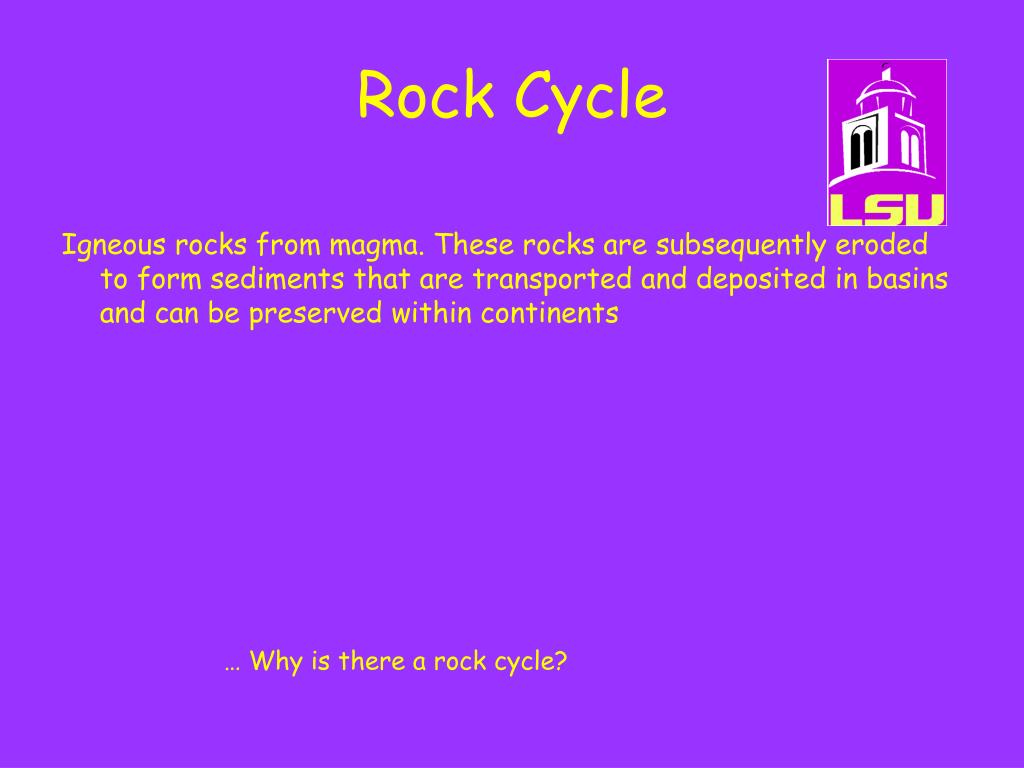

Rock Cycle

Igneous rocks from magma. These rocks are subsequently eroded to form sediments that are transported and deposited in basins and can be preserved within continents

… Why is there a rock cycle?
