Presentation Transcript
aries example

WA,B

WC

1

CRASH

WD

WA

2

WB

WE

3

CP

Flush

ARIES Example

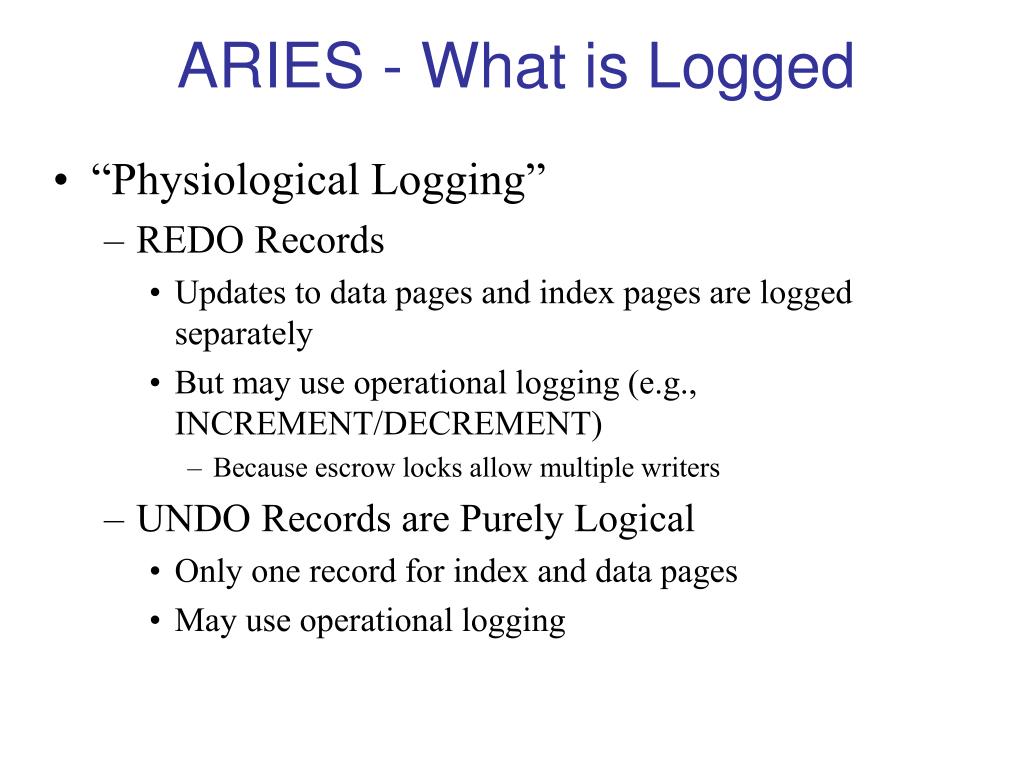

aries what is logged
ARIES - What is Logged
  • “Physiological Logging”
    • REDO Records
      • Updates to data pages and index pages are logged separately
      • But may use operational logging (e.g., INCREMENT/DECREMENT)
        • Because escrow locks allow multiple writers
    • UNDO Records are Purely Logical
      • Only one record for index and data pages
      • May use operational logging
aries data structures

WA,B

WC

1

CRASH

WD

WA

2

WB

WE

3

CP

Flush

ARIES Data Structures

xactionTable

dirtyPgTable

Checkpoint

Disk

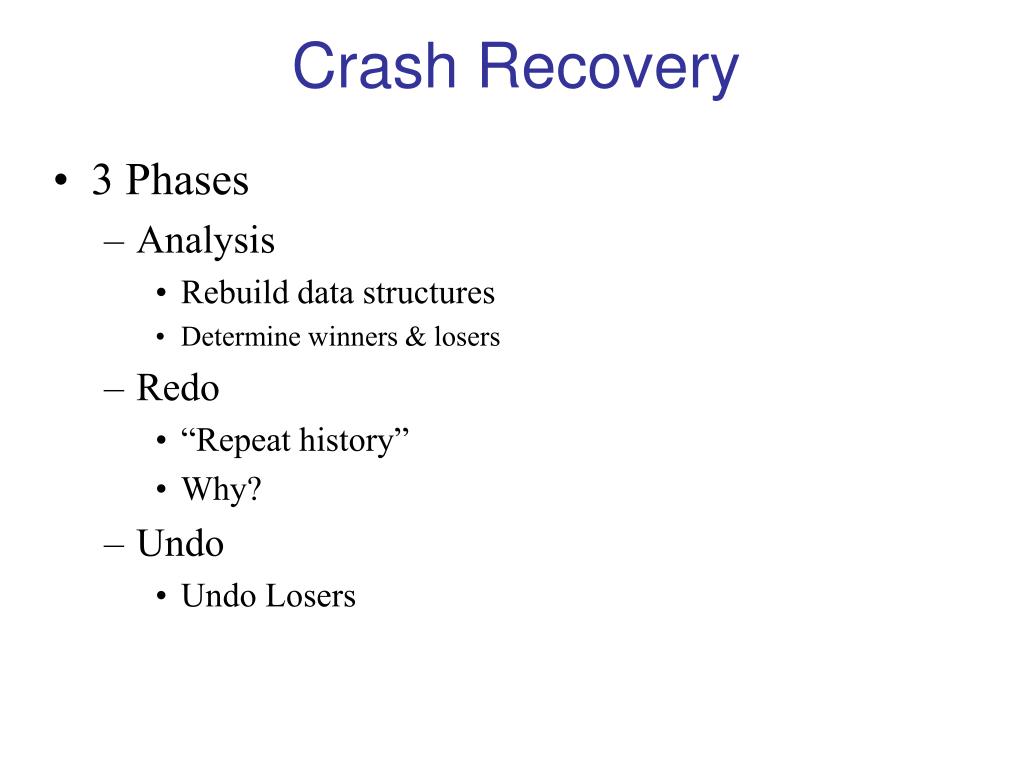

crash recovery
Crash Recovery
  • 3 Phases
    • Analysis
      • Rebuild data structures
      • Determine winners & losers
    • Redo
      • “Repeat history”
      • Why?
    • Undo
      • Undo Losers

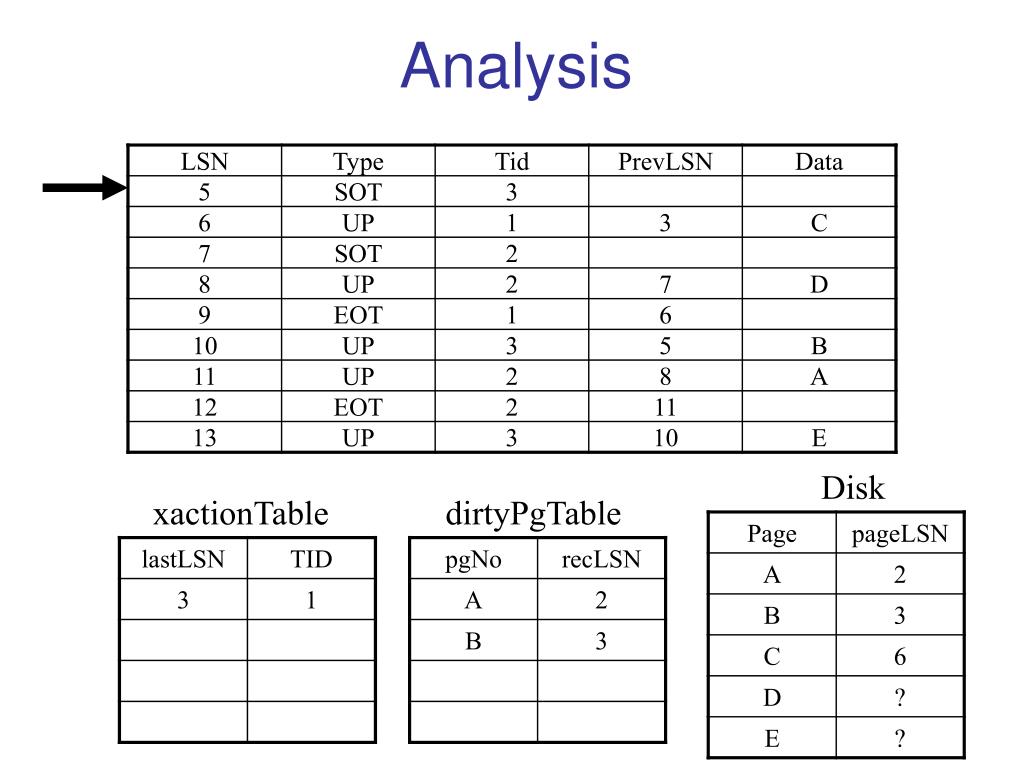

analysis6
Analysis

Disk

xactionTable

dirtyPgTable

analysis7
Analysis

Disk

xactionTable

dirtyPgTable

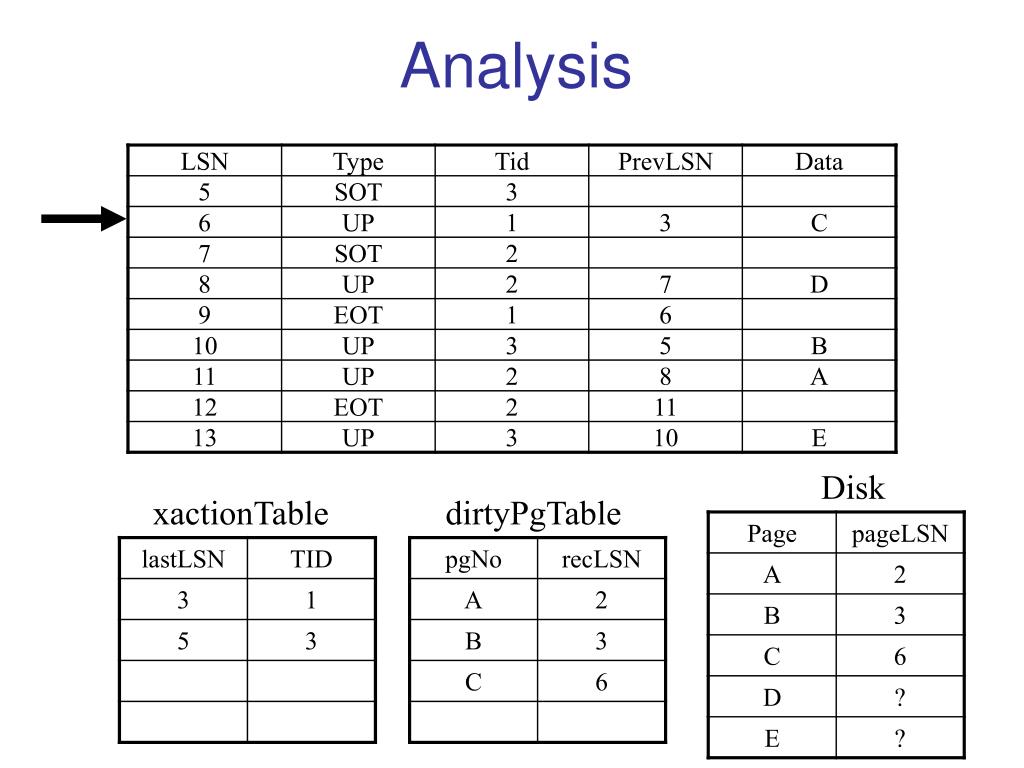

analysis8
Analysis

Disk

xactionTable

dirtyPgTable

analysis9
Analysis

Disk

xactionTable

dirtyPgTable

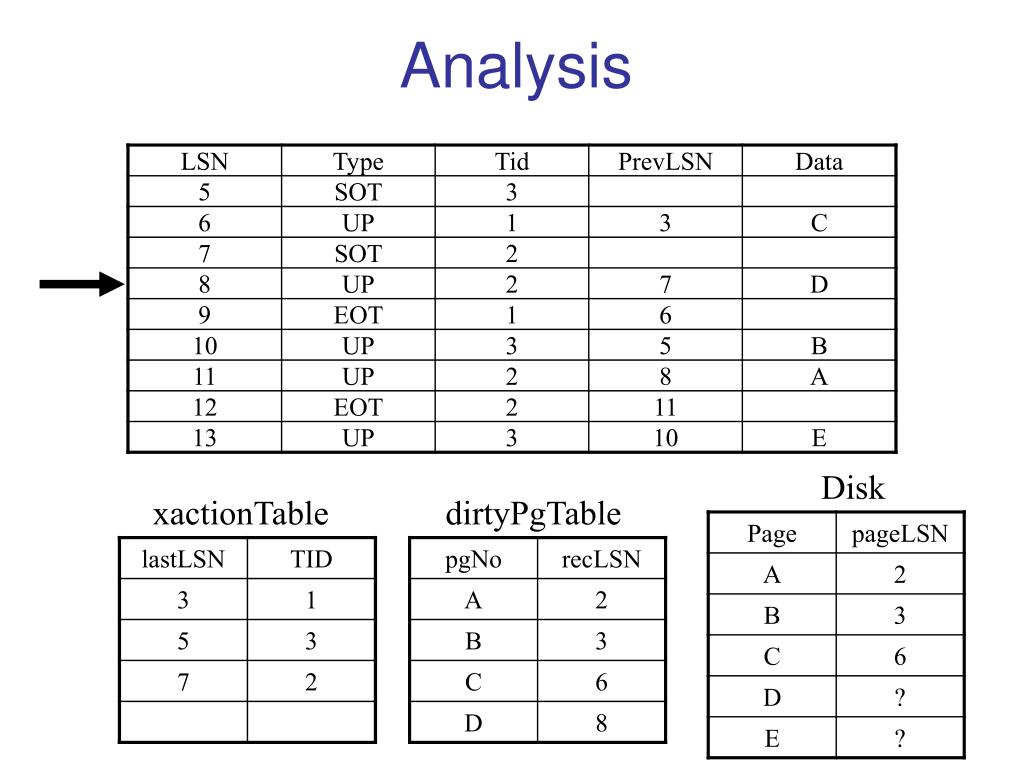

analysis10
Analysis

Disk

xactionTable

dirtyPgTable

analysis11

Not the same as just before

crash (note disk state)

Analysis

dirtyPgTable

Disk

xactionTable

Losers

slide12
Redo

dirtyPgTable

  • Where to begin?
    • Checkpoint?
    • Min(recLSN)!
  • What to REDO
    • Everything?
      • Slow
      • Problematic if using operational (escrow) logging
    • Redo an update UNLESS:

1.

2.

3.

Disk

redo example
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

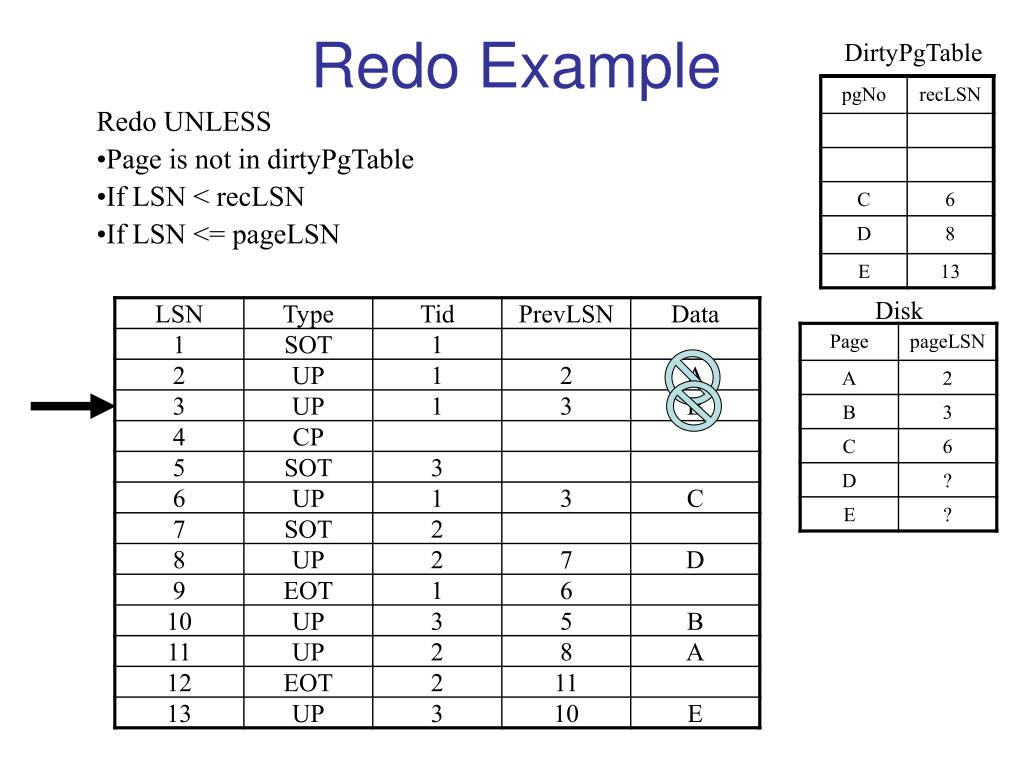

redo example14
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

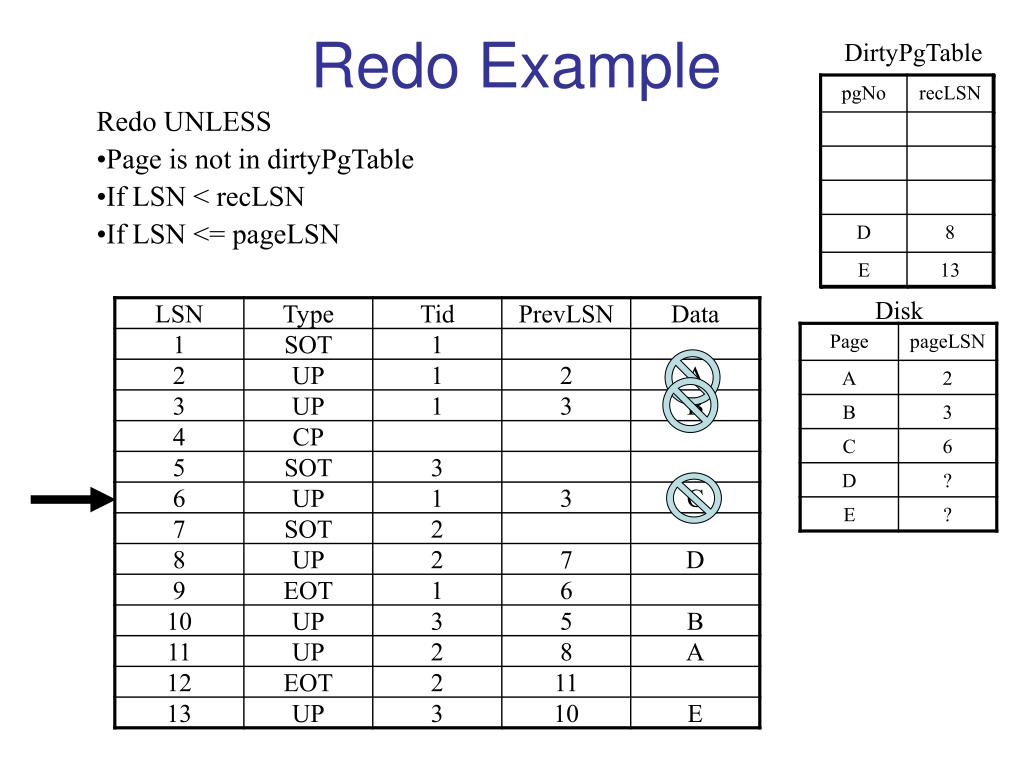

redo example15
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

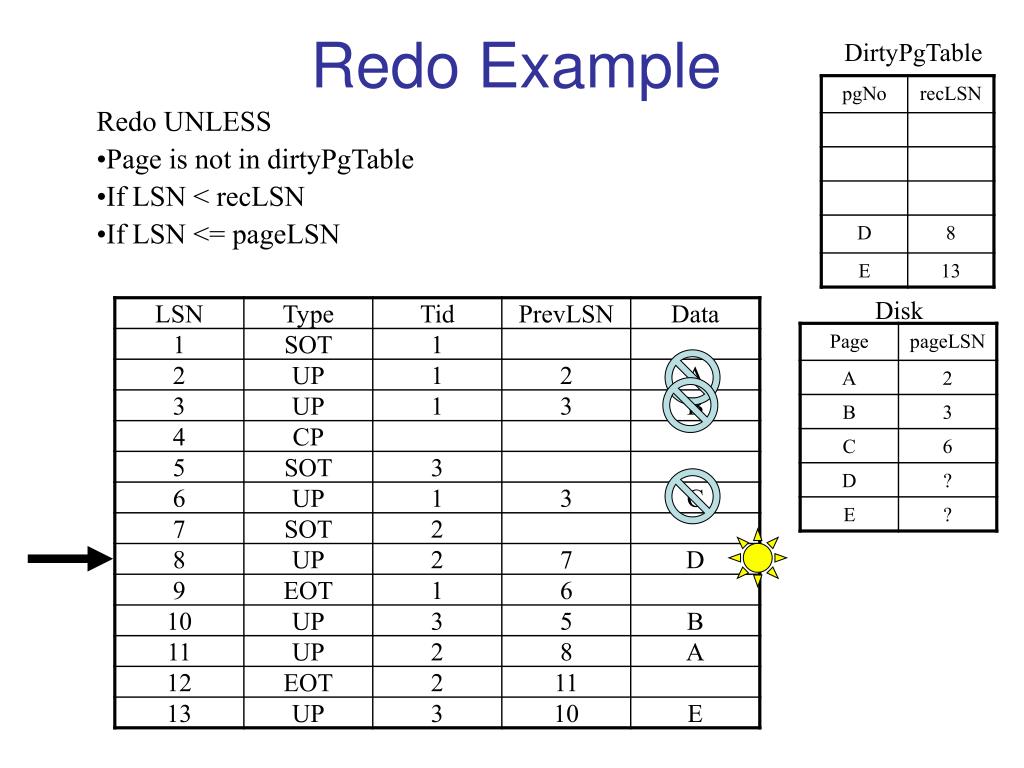

redo example16
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

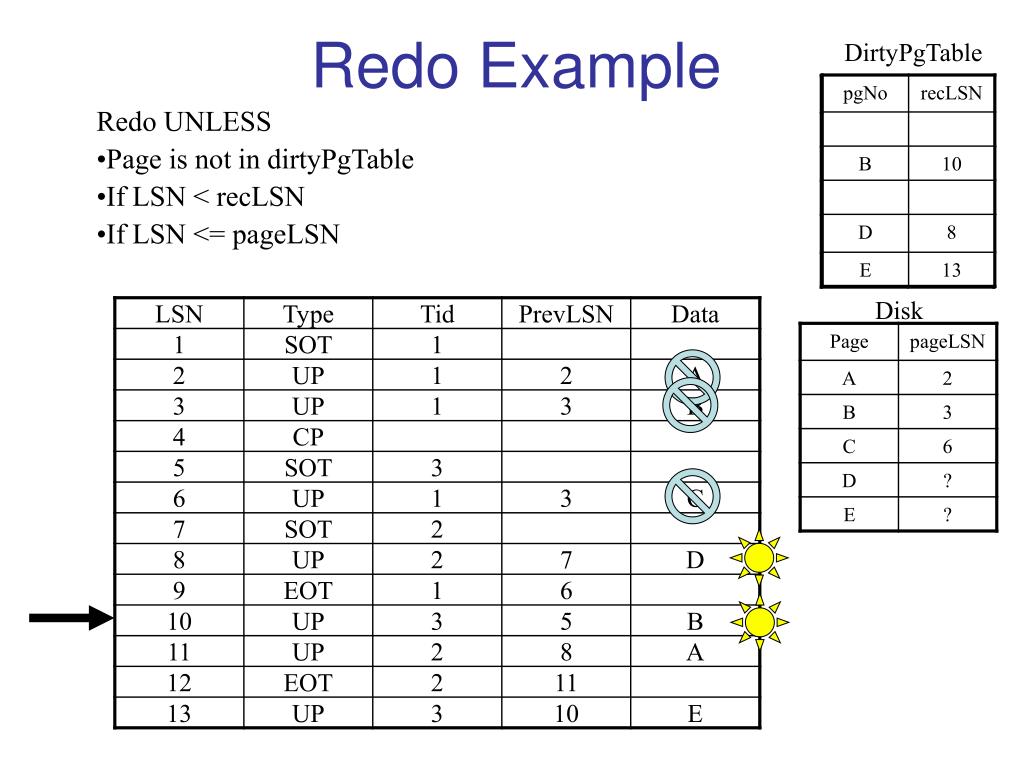

redo example17
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

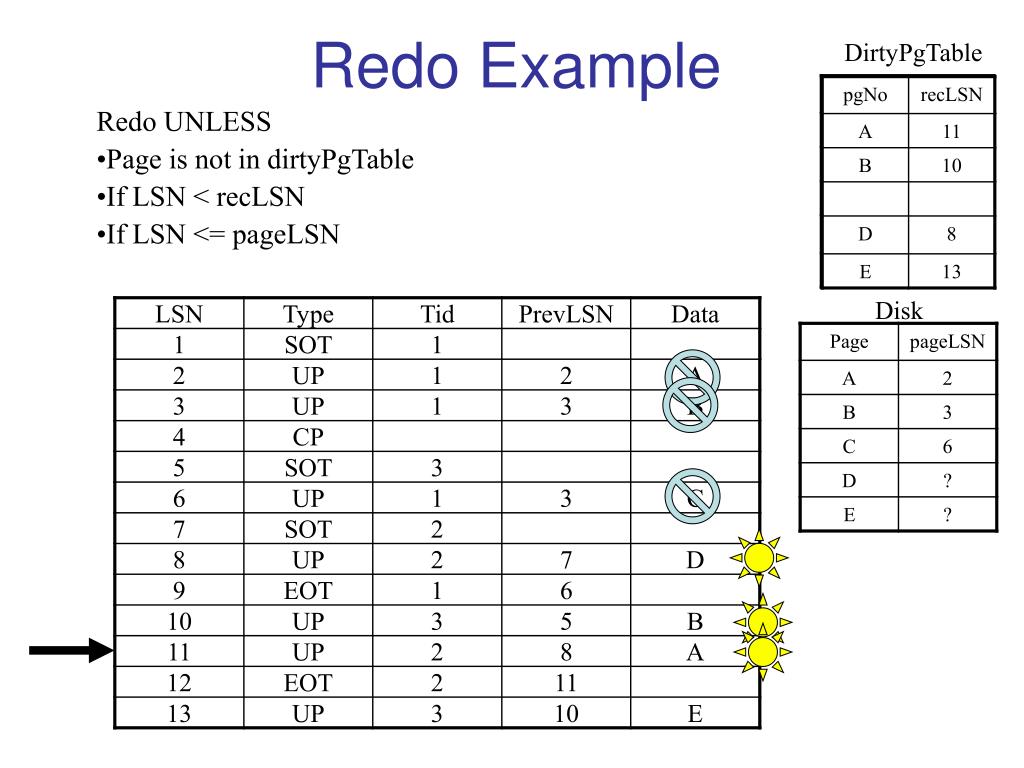

redo example18
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

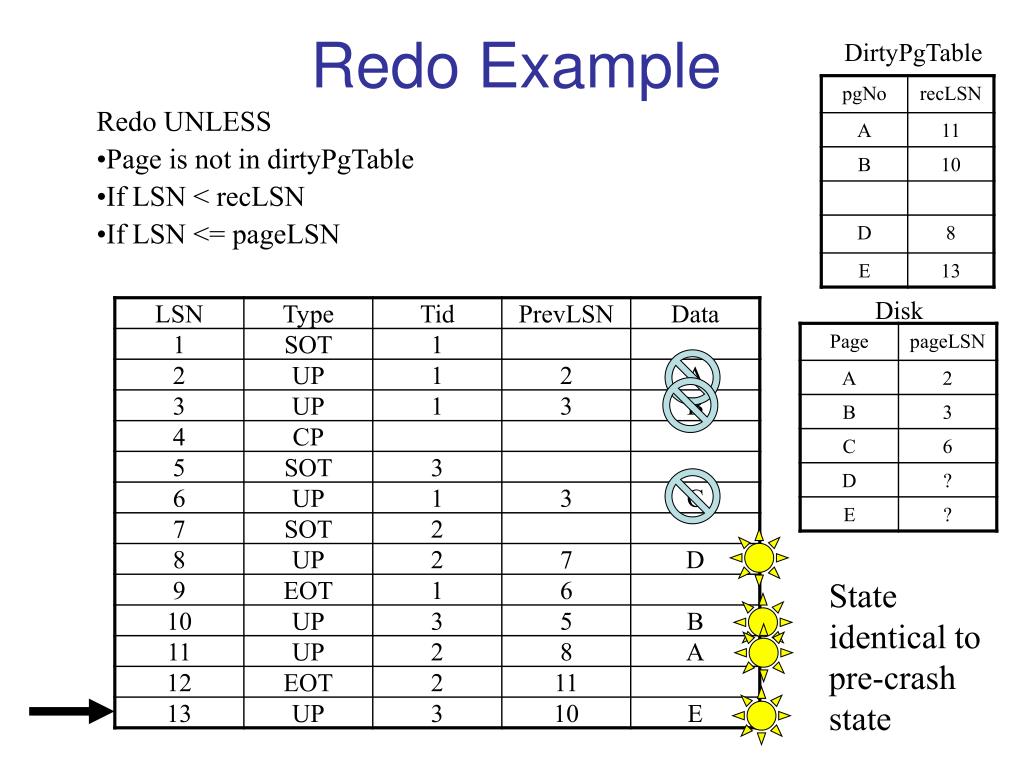

redo example19
Redo Example

DirtyPgTable

  • Redo UNLESS
  • Page is not in dirtyPgTable
  • If LSN < recLSN
  • If LSN <= pageLSN

Disk

State identical to pre-crash state

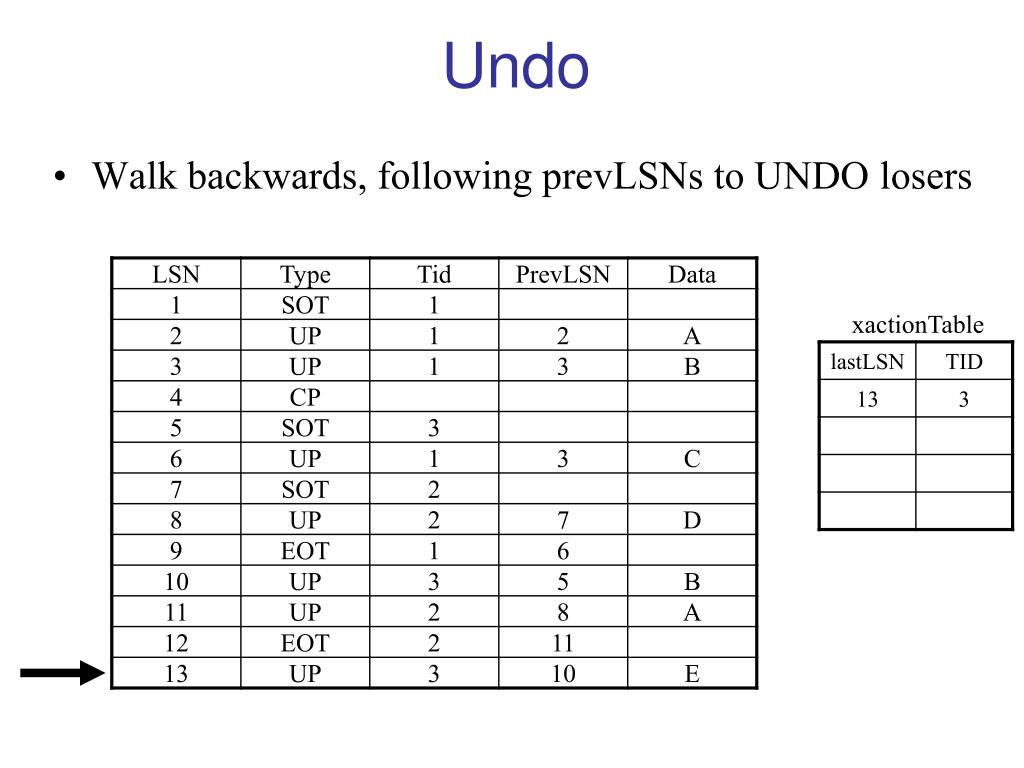

slide20
Undo
  • Walk backwards, following prevLSNs to UNDO losers

xactionTable

slide21
Undo
  • Walk backwards, following prevLSNs to UNDO losers

xactionTable

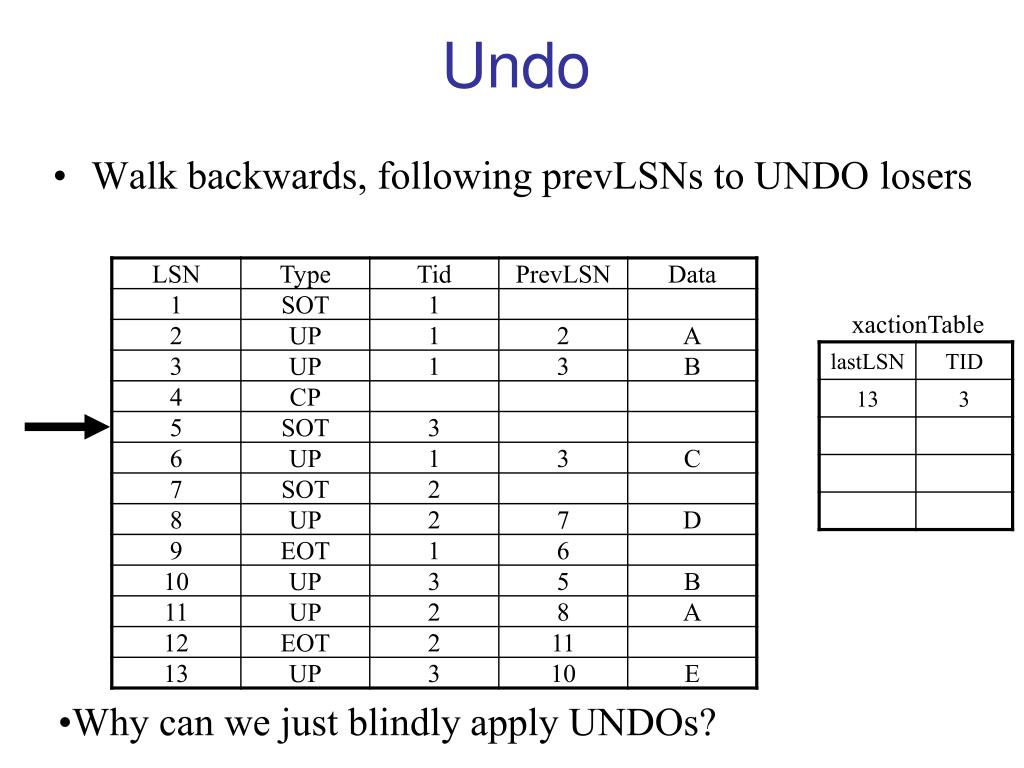

slide22
Undo
  • Walk backwards, following prevLSNs to UNDO losers

xactionTable

  • Why can we just blindly apply UNDOs?
undo wrinkles
UNDO Wrinkles
  • Logical UNDO
    • Why?
  • “Compensation Log Records” -- CLRs
    • Avoid repeating UNDO work
    • Why?

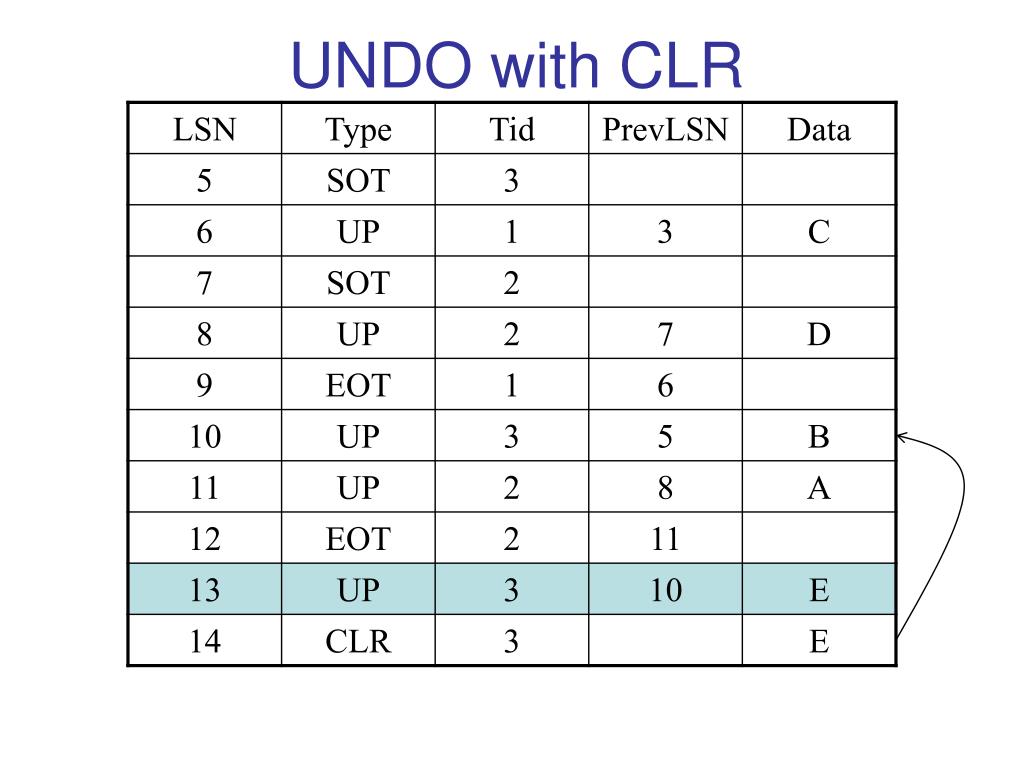

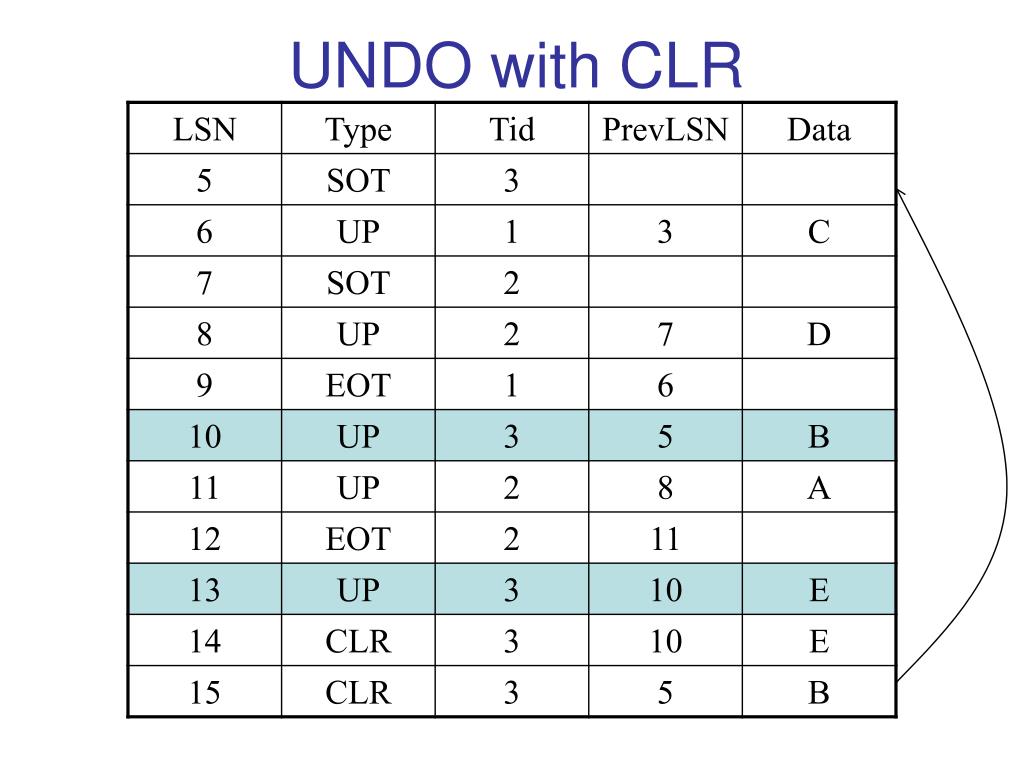

undo with clr
UNDO with CLR

Losers: 3

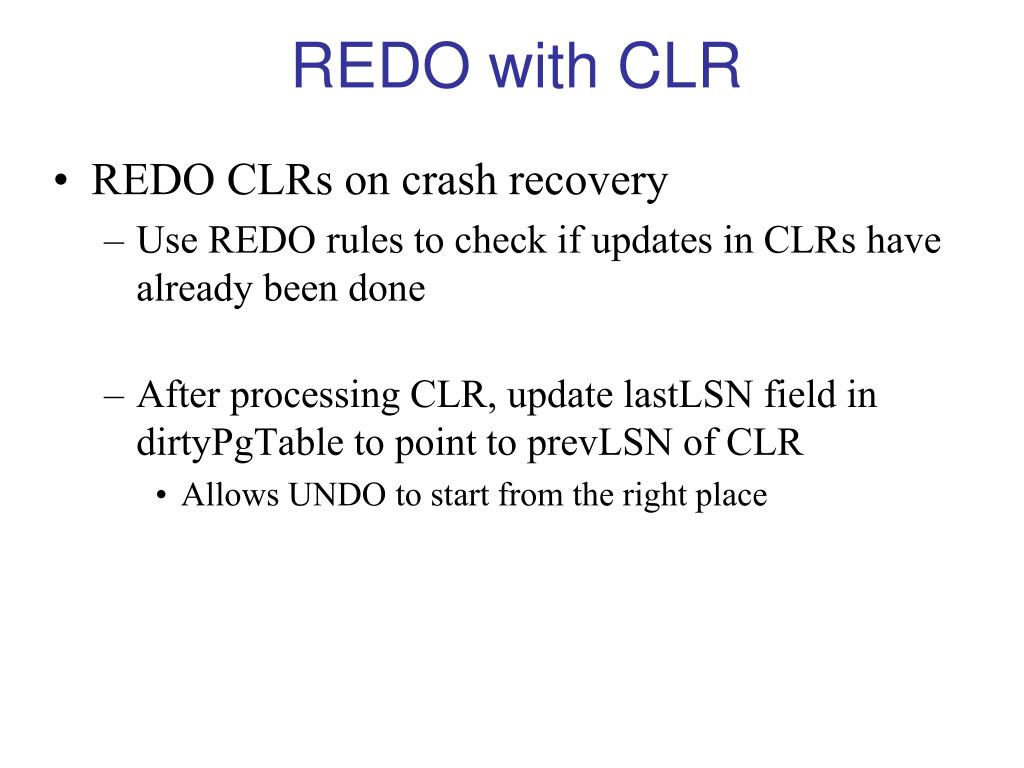

redo with clr
REDO with CLR
  • REDO CLRs on crash recovery
    • Use REDO rules to check if updates in CLRs have already been done
    • After processing CLR, update lastLSN field in dirtyPgTable to point to prevLSN of CLR
      • Allows UNDO to start from the right place
