Horizontal-Autoclave-BZAH-503 (1)

Labzee Horizontal autoclave features a stainless steel chamber with automatic sterilization control. It offers 280 L capacity with u03c6440u00d71000 mm volume. The temperature ranges from 105 to 134 u00b0C. Includes over-temperature and over-pressure protection with a water shortage alarm system

Janice46
Download Presentation

Horizontal-Autoclave-BZAH-503 (1)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

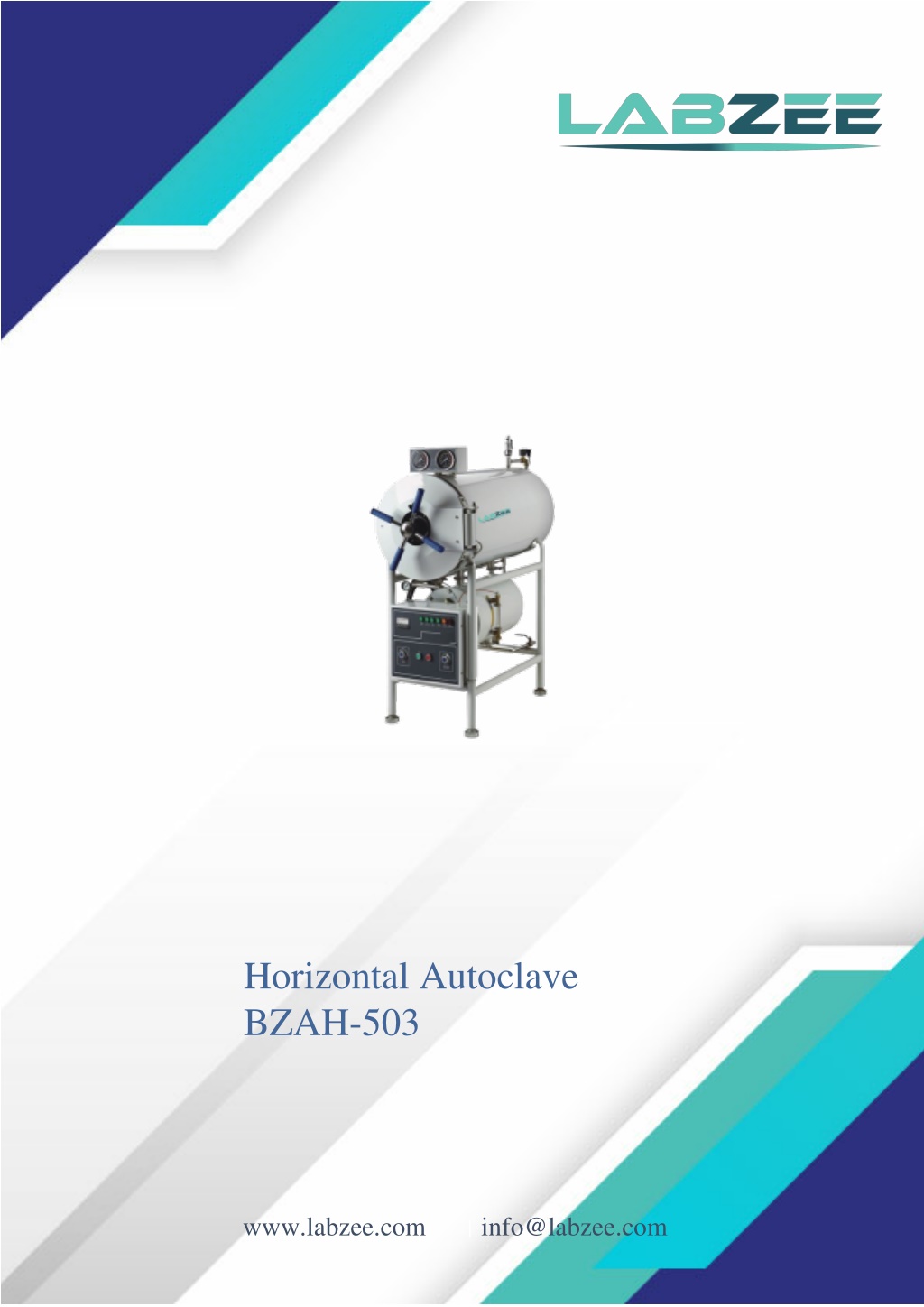

  1. Horizontal Autoclave BZAH-503 www.labzee.com info@labzee.com |

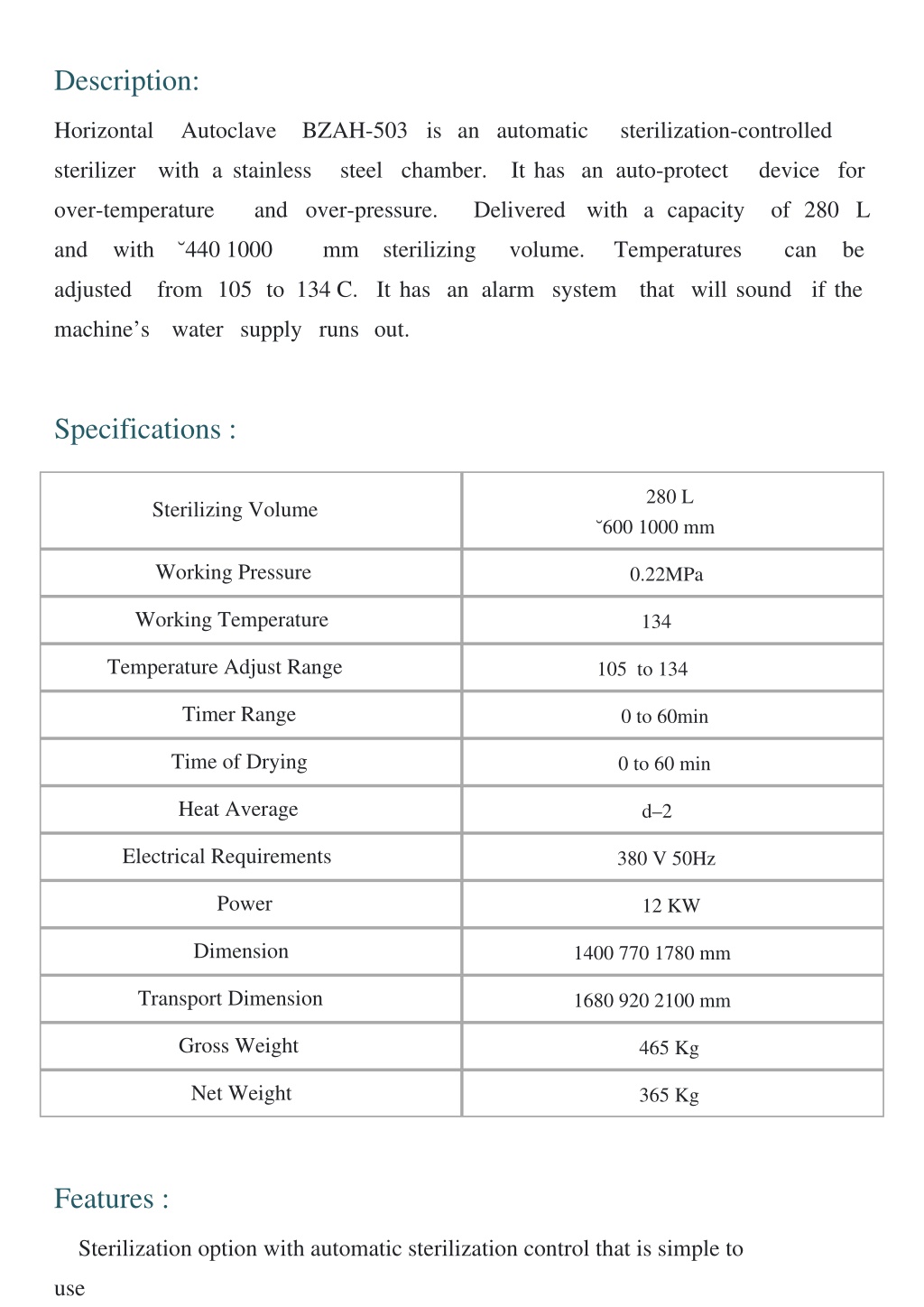

  2. Description: Horizontal Autoclave BZAH-503 is an automatic sterilization-controlled sterilizer with a stainless steel chamber. It has an auto-protect device for over-temperature and over-pressure. Delivered with a capacity of 280 L and with ˘440?1000 mm sterilizing volume. Temperatures can be adjusted from 105 to 134?C. It has an alarm system that will sound if the machine’s water supply runs out. Specifications : 280 L Sterilizing Volume ˘600?1000 mm Working Pressure 0.22MPa Working Temperature 134 ? Temperature Adjust Range 105? to 134 ? Timer Range 0 to 60min Time of Drying 0 to 60 min Heat Average d–2 ? Electrical Requirements 380 V 50Hz Power 12 KW Dimension 1400?770?1780 mm Transport Dimension 1680?920?2100 mm Gross Weight 465 Kg Net Weight 365 Kg Features : Sterilization option with automatic sterilization control that is simple to ? use

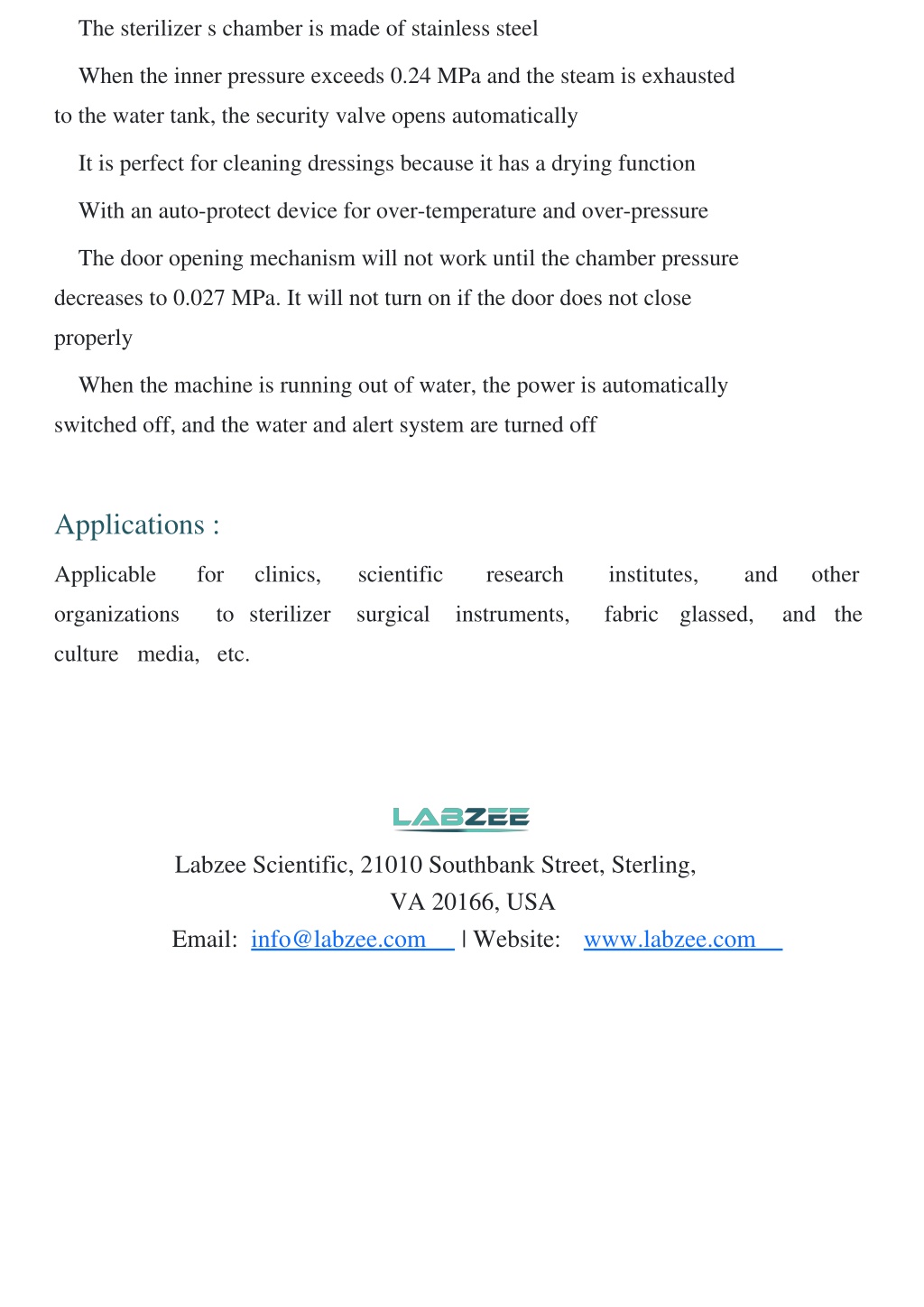

  3. The sterilizer?s chamber is made of stainless steel ? When the inner pressure exceeds 0.24 MPa and the steam is exhausted ? to the water tank, the security valve opens automatically It is perfect for cleaning dressings because it has a drying function ? With an auto-protect device for over-temperature and over-pressure ? The door opening mechanism will not work until the chamber pressure ? decreases to 0.027 MPa. It will not turn on if the door does not close properly When the machine is running out of water, the power is automatically ? switched off, and the water and alert system are turned off Applications : Applicable for clinics, scientific research institutes, and other organizations to sterilizer surgical instruments, fabric glassed, and the culture media, etc. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166, USA Email: info@labzee.com | Website: www.labzee.com
