Digital-Multimeter

Labzee Digital Multimeter operates from 0 to 40 u00b0C under 80 percent humidity. It features 12 functions including voltage, current, resistance, frequency and more. The dual display shows two input parameters. It supports multiple triggers and adjustable rates for versatile testing.<br>

Janice46
Download Presentation

Digital-Multimeter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

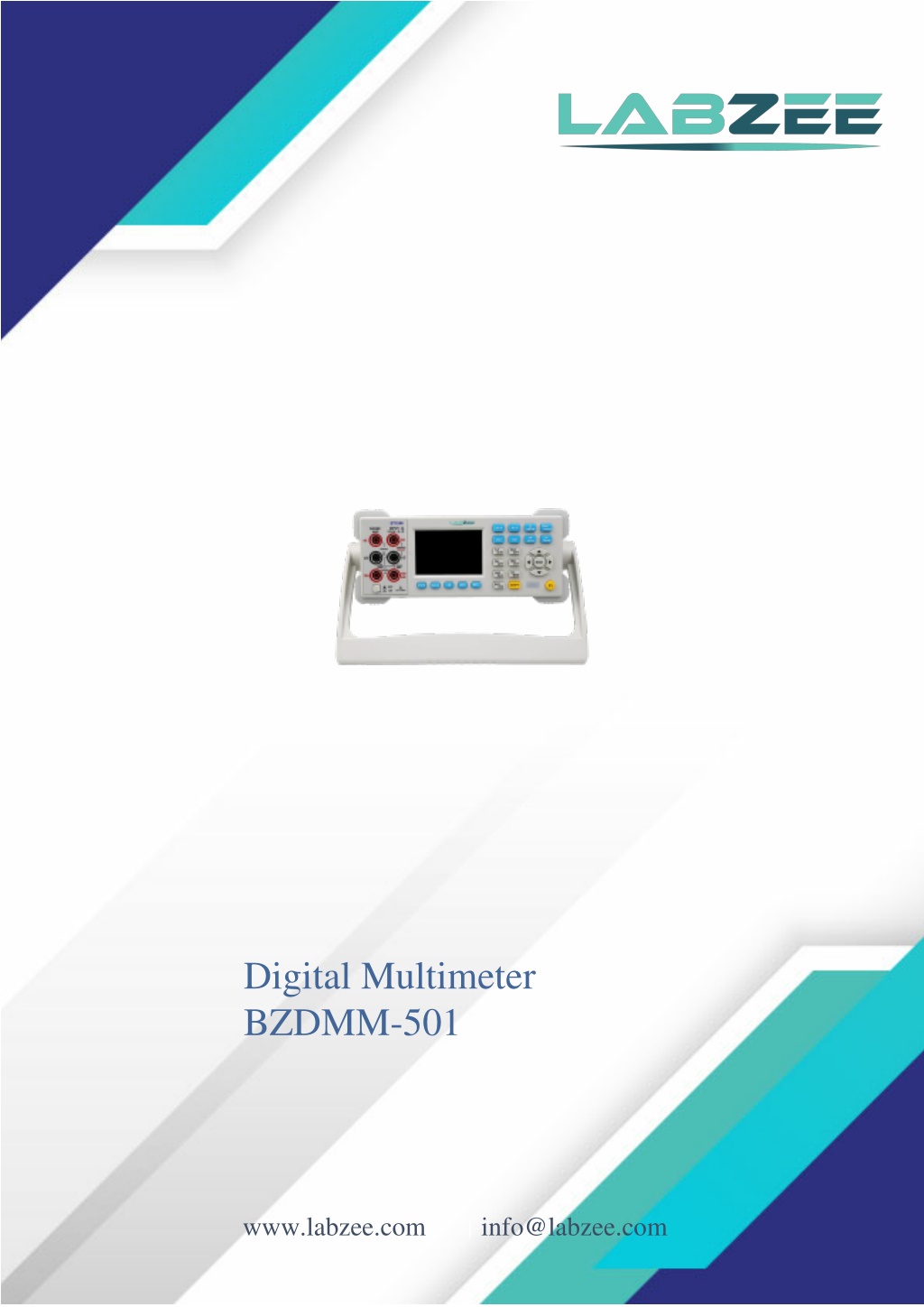

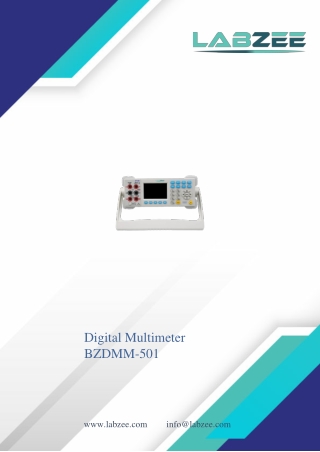

  1. Digital Multimeter BZDMM-501 www.labzee.com info@labzee.com |

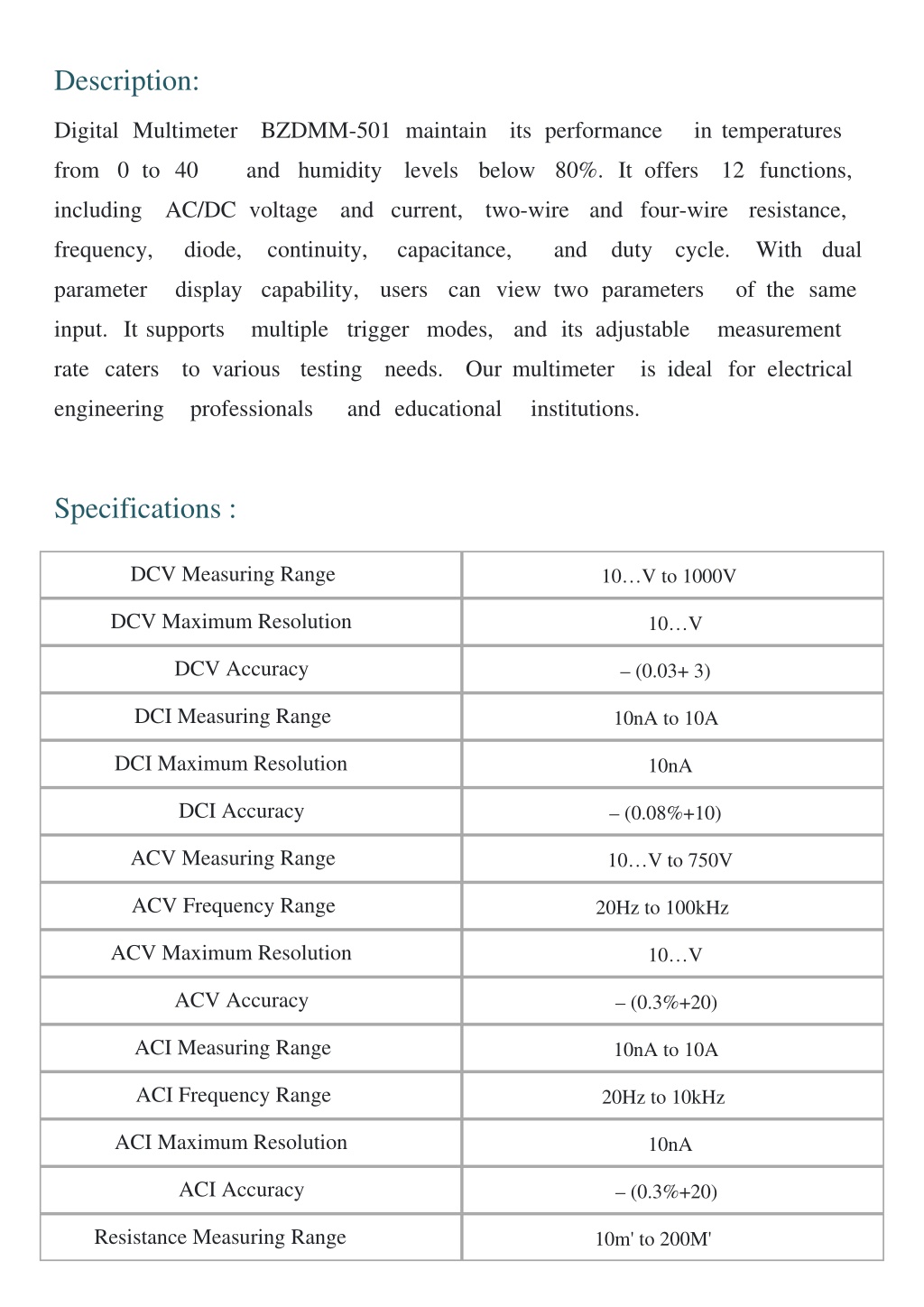

  2. Description: Digital Multimeter BZDMM-501 maintain its performance in temperatures from 0 to 40? and humidity levels below 80%. It offers 12 functions, including AC/DC voltage and current, two-wire and four-wire resistance, frequency, diode, continuity, capacitance, and duty cycle. With dual parameter display capability, users can view two parameters of the same input. It supports multiple trigger modes, and its adjustable measurement rate caters to various testing needs. Our multimeter is ideal for electrical engineering professionals and educational institutions. Specifications : DCV Measuring Range 10…V to 1000V DCV Maximum Resolution 10…V DCV Accuracy – (0.03+ 3) DCI Measuring Range 10nA to 10A DCI Maximum Resolution 10nA DCI Accuracy – (0.08%+10) ACV Measuring Range 10…V to 750V ACV Frequency Range 20Hz to 100kHz ACV Maximum Resolution 10…V ACV Accuracy – (0.3%+20) ACI Measuring Range 10nA to 10A ACI Frequency Range 20Hz to 10kHz ACI Maximum Resolution 10nA ACI Accuracy – (0.3%+20) Resistance Measuring Range 10m' to 200M'

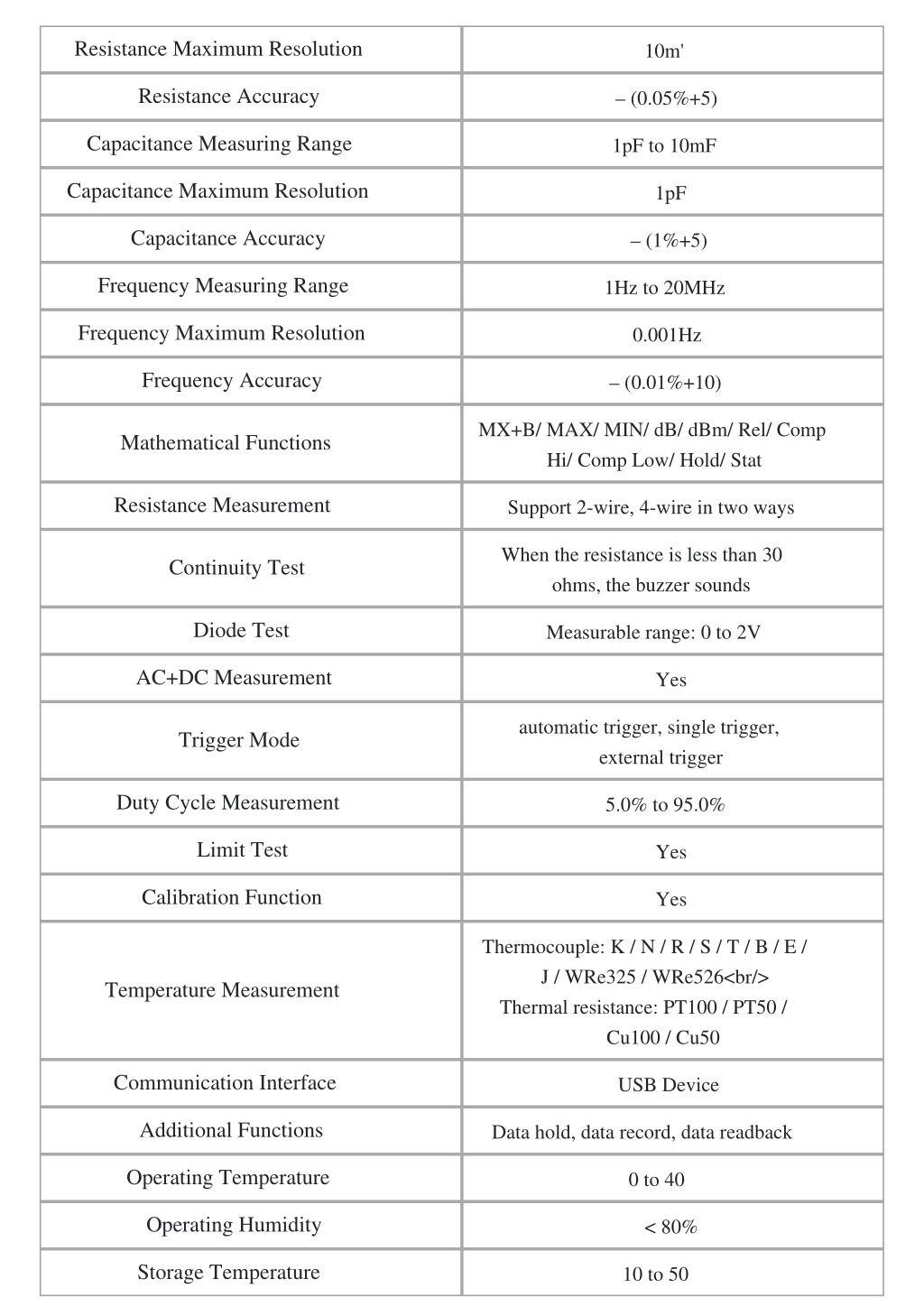

  3. Resistance Maximum Resolution 10m' Resistance Accuracy – (0.05%+5) Capacitance Measuring Range 1pF to 10mF Capacitance Maximum Resolution 1pF Capacitance Accuracy – (1%+5) Frequency Measuring Range 1Hz to 20MHz Frequency Maximum Resolution 0.001Hz Frequency Accuracy – (0.01%+10) MX+B/ MAX/ MIN/ dB/ dBm/ Rel/ Comp Hi/ Comp Low/ Hold/ Stat Mathematical Functions Resistance Measurement Support 2-wire, 4-wire in two ways When the resistance is less than 30 ohms, the buzzer sounds Continuity Test Diode Test Measurable range: 0 to 2V AC+DC Measurement Yes automatic trigger, single trigger, external trigger Trigger Mode Duty Cycle Measurement 5.0% to 95.0% Limit Test Yes Calibration Function Yes Thermocouple: K / N / R / S / T / B / E / J / WRe325 / WRe526<br/> Thermal resistance: PT100 / PT50 / Cu100 / Cu50 Temperature Measurement Communication Interface USB Device Additional Functions Data hold, data record, data readback Operating Temperature 0 to 40? Operating Humidity < 80% Storage Temperature 10 to 50?

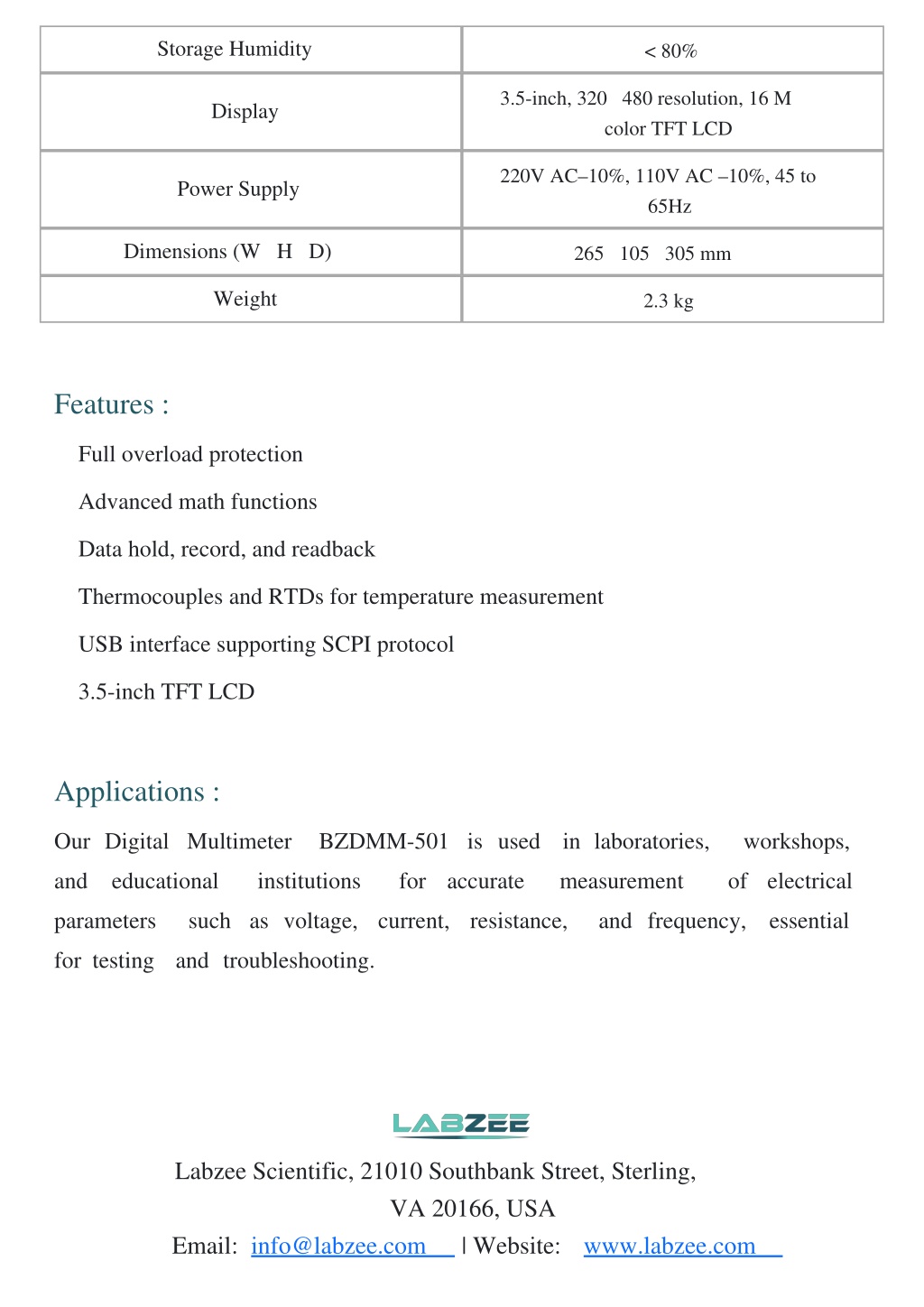

  4. Storage Humidity < 80% 3.5-inch, 320 ? 480 resolution, 16 M color TFT LCD Display 220V AC–10%, 110V AC –10%, 45 to 65Hz Power Supply Dimensions (W ? H ? D) 265 ? 105 ? 305 mm Weight 2.3 kg Features : Full overload protection ? Advanced math functions ? Data hold, record, and readback ? Thermocouples and RTDs for temperature measurement ? USB interface supporting SCPI protocol ? 3.5-inch TFT LCD ? Applications : Our Digital Multimeter BZDMM-501 is used in laboratories, workshops, and educational institutions for accurate measurement of electrical parameters such as voltage, current, resistance, and frequency, essential for testing and troubleshooting. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166, USA Email: info@labzee.com | Website: www.labzee.com
