Digital-ECG-Machine-BZECG-503

Labzee Digital ECG machine offers 12-lead acquisition with high-resolution sampling, Manual Auto R-R modes, floating input circuit defibrillator protection, multiple formats, adjustable paper speeds, thermal printing, 5.5-inch color display, USB printer and rechargeable battery.

Janice46
Download Presentation

Digital-ECG-Machine-BZECG-503

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

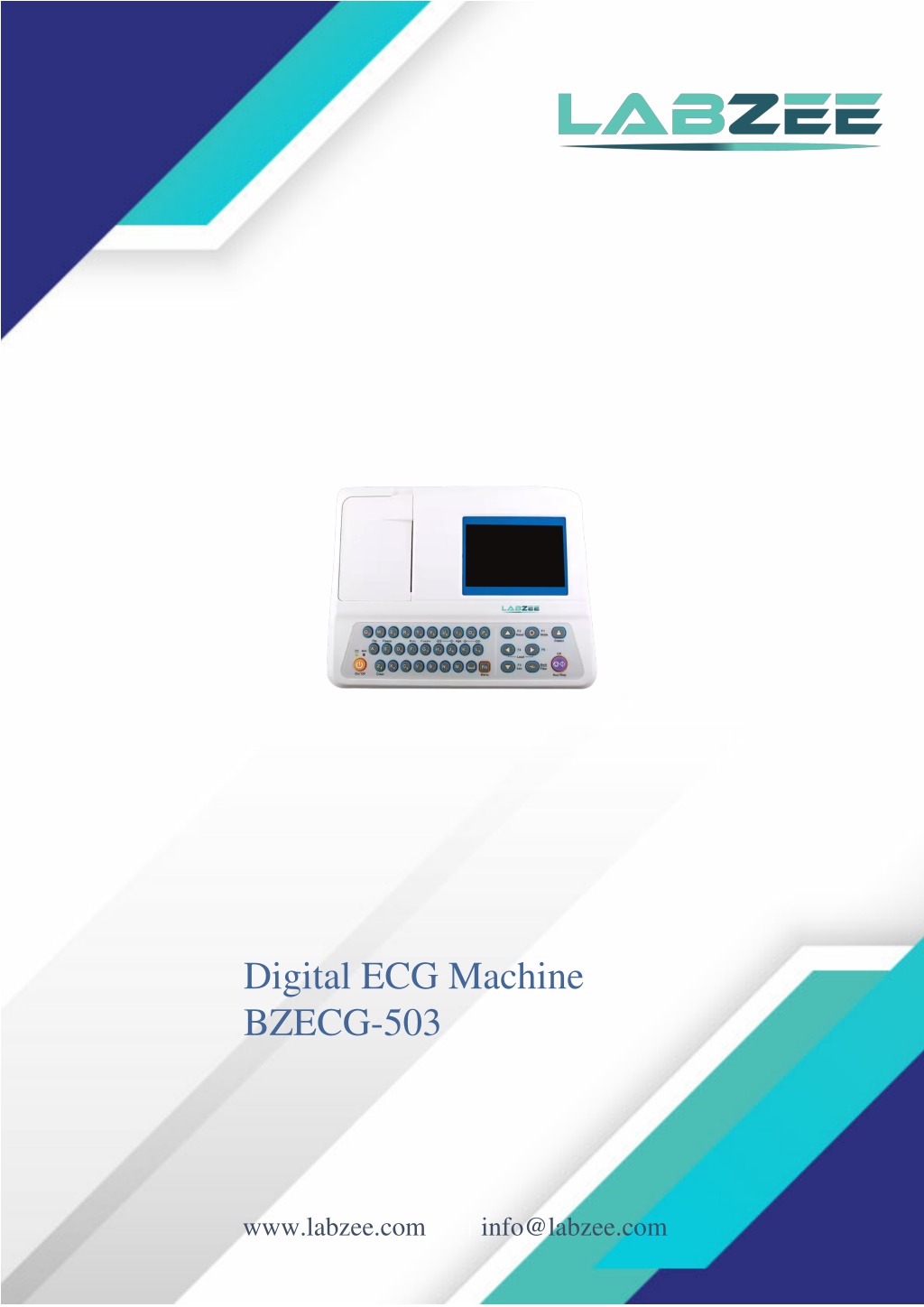

  1. Digital ECG Machine BZECG-503 www.labzee.com info@labzee.com |

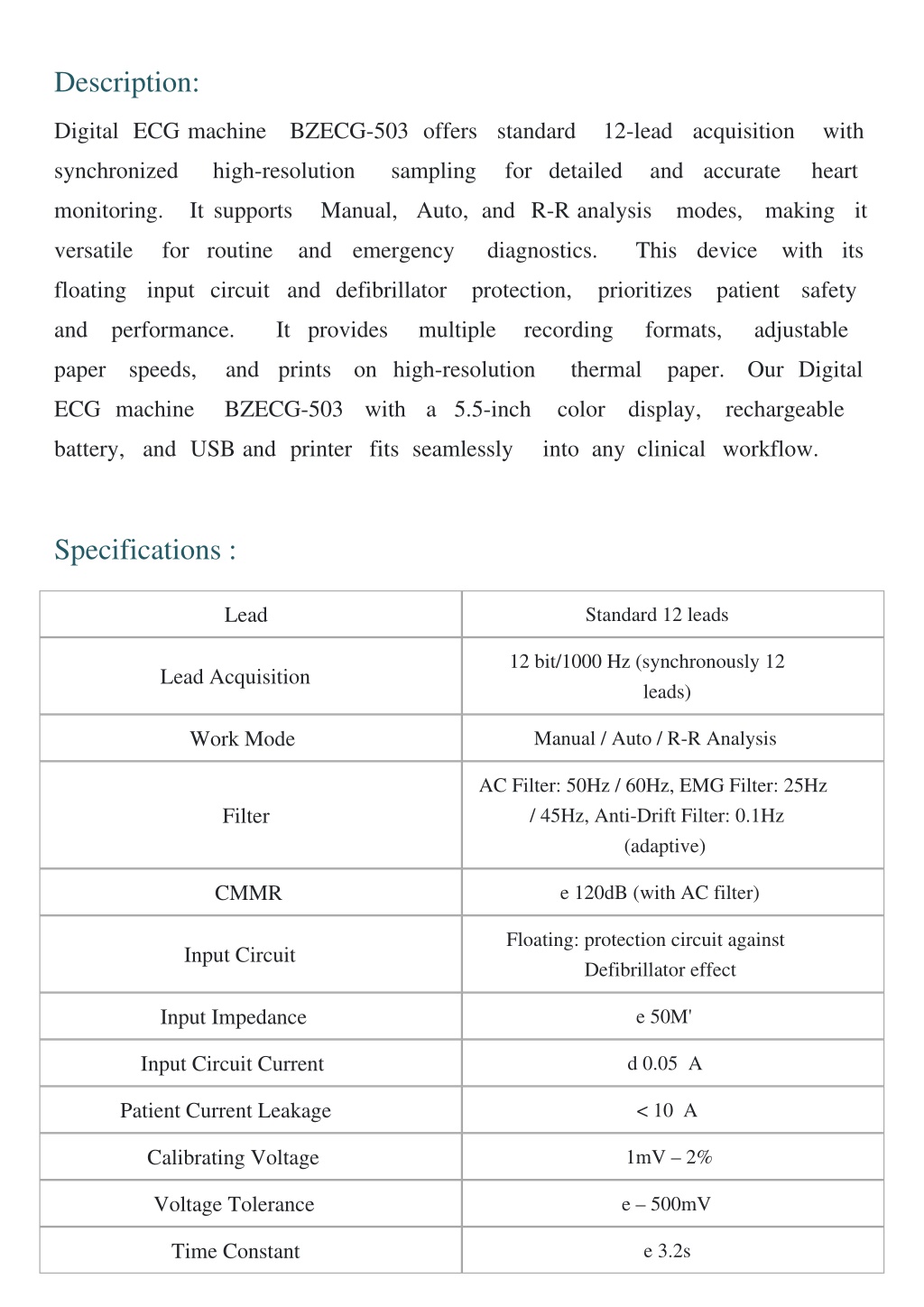

  2. Description: Digital ECG machine BZECG-503 offers standard 12-lead acquisition with synchronized high-resolution sampling for detailed and accurate heart monitoring. It supports Manual, Auto, and R-R analysis modes, making it versatile for routine and emergency diagnostics. This device with its floating input circuit and defibrillator protection, prioritizes patient safety and performance. It provides multiple recording formats, adjustable paper speeds, and prints on high-resolution thermal paper. Our Digital ECG machine BZECG-503 with a 5.5-inch color display, rechargeable battery, and USB and printer fits seamlessly into any clinical workflow. Specifications : Lead Standard 12 leads 12 bit/1000 Hz (synchronously 12 leads) Lead Acquisition Work Mode Manual / Auto / R-R Analysis AC Filter: 50Hz / 60Hz, EMG Filter: 25Hz / 45Hz, Anti-Drift Filter: 0.1Hz (adaptive) Filter CMMR e 120dB (with AC filter) Floating: protection circuit against Defibrillator effect Input Circuit Input Impedance e 50M' Input Circuit Current d 0.05 ?A Patient Current Leakage < 10 ?A Calibrating Voltage 1mV – 2% Voltage Tolerance e – 500mV Time Constant e 3.2s

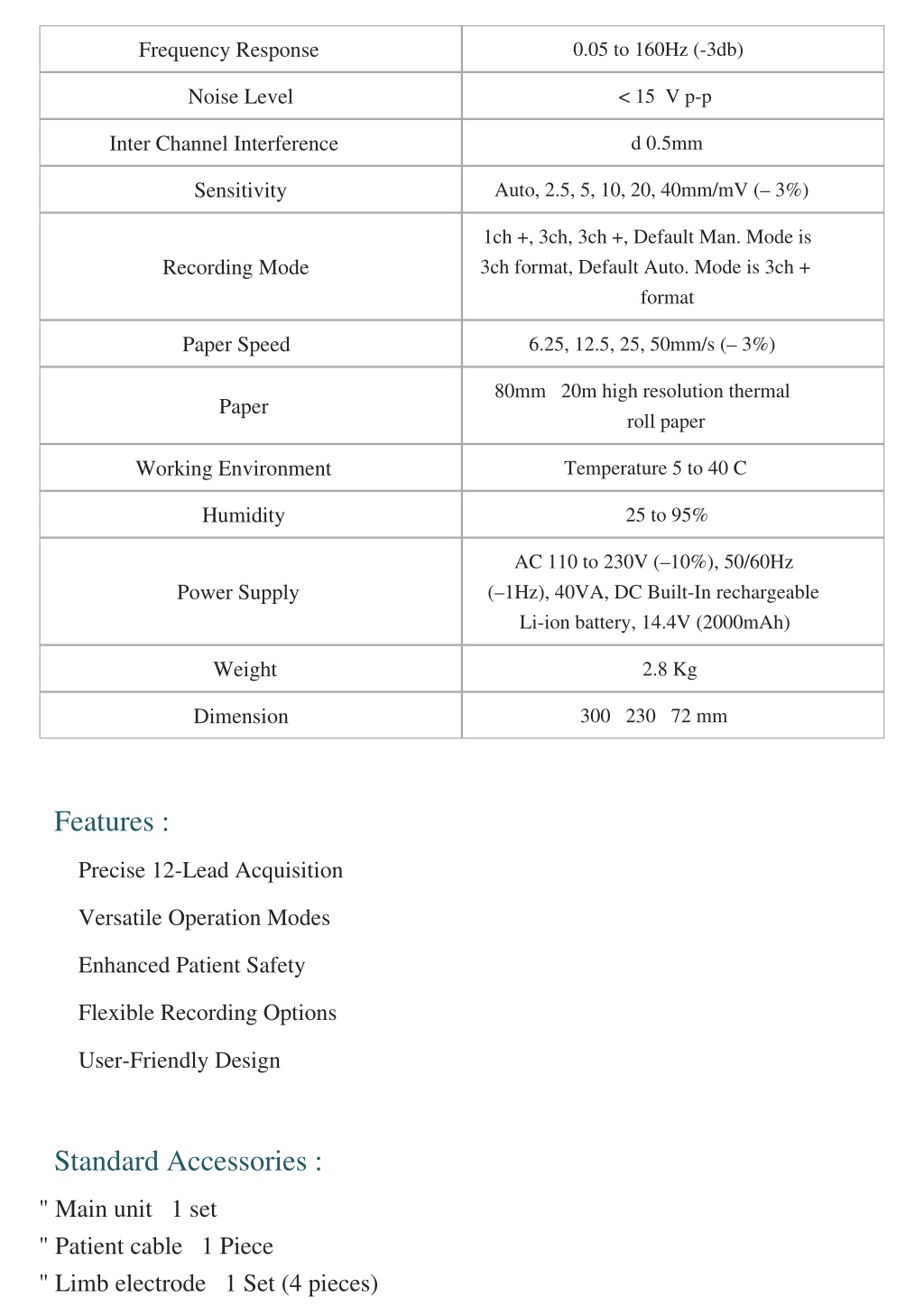

  3. Frequency Response 0.05 to 160Hz (-3db) Noise Level < 15 ?V p-p Inter Channel Interference d 0.5mm Sensitivity Auto, 2.5, 5, 10, 20, 40mm/mV (– 3%) 1ch +, 3ch, 3ch +, Default Man. Mode is 3ch format, Default Auto. Mode is 3ch + format Recording Mode Paper Speed 6.25, 12.5, 25, 50mm/s (– 3%) 80mm ? 20m high resolution thermal roll paper Paper Working Environment Temperature 5 to 40?C Humidity 25 to 95% AC 110 to 230V (–10%), 50/60Hz (–1Hz), 40VA, DC Built-In rechargeable Li-ion battery, 14.4V (2000mAh) Power Supply Weight 2.8 Kg Dimension 300 ? 230 ? 72 mm Features : Precise 12-Lead Acquisition ? Versatile Operation Modes ? Enhanced Patient Safety ? Flexible Recording Options ? User-Friendly Design ? Standard Accessories : " Main unit ? 1 set " Patient cable ? 1 Piece " Limb electrode ? 1 Set (4 pieces)

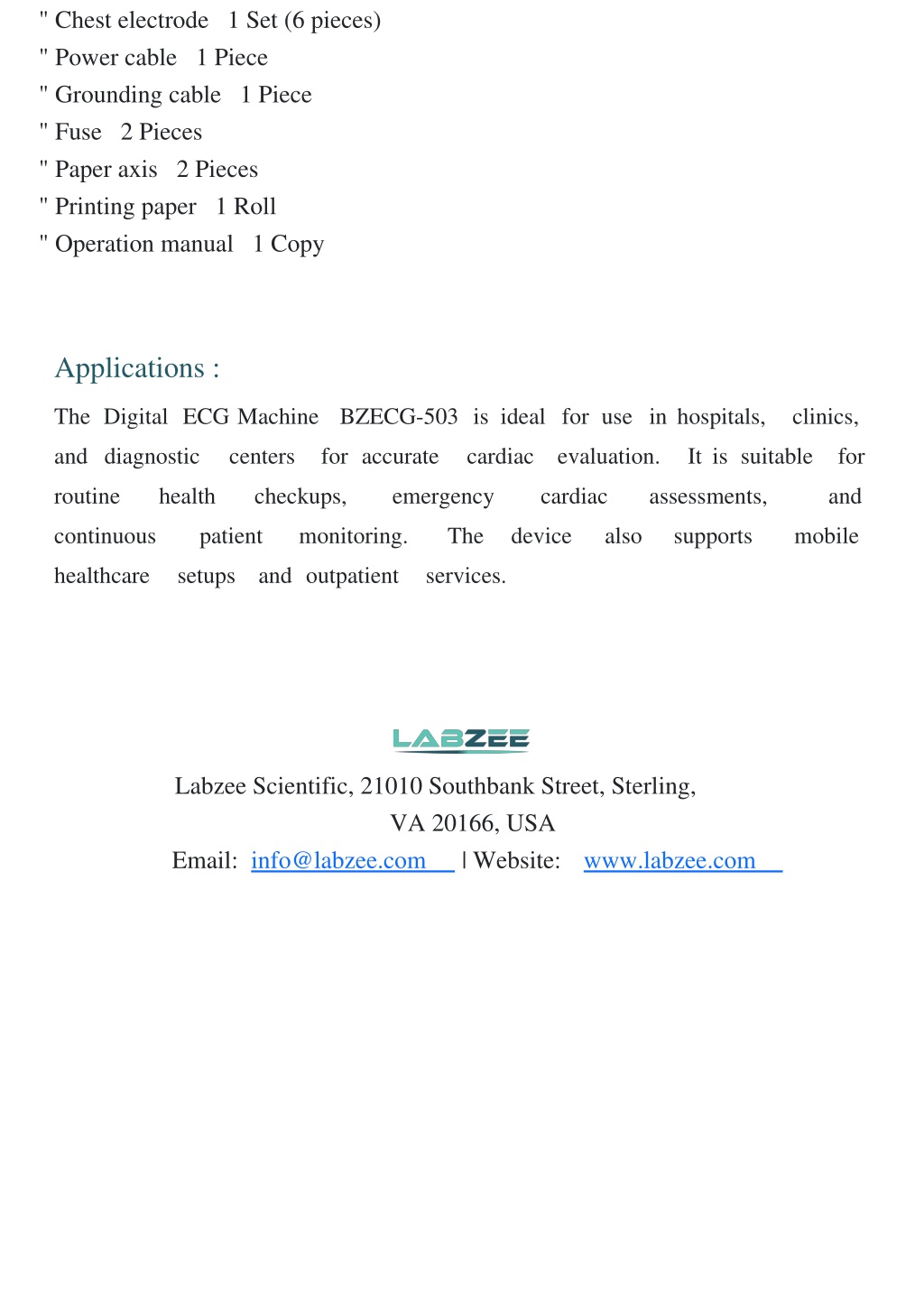

  4. " Chest electrode ? 1 Set (6 pieces) " Power cable ? 1 Piece " Grounding cable ? 1 Piece " Fuse ? 2 Pieces " Paper axis ? 2 Pieces " Printing paper ? 1 Roll " Operation manual ? 1 Copy Applications : The Digital ECG Machine BZECG-503 is ideal for use in hospitals, clinics, and diagnostic centers for accurate cardiac evaluation. It is suitable for routine health checkups, emergency cardiac assessments, and continuous patient monitoring. The device also supports mobile healthcare setups and outpatient services. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166, USA Email: info@labzee.com | Website: www.labzee.com
