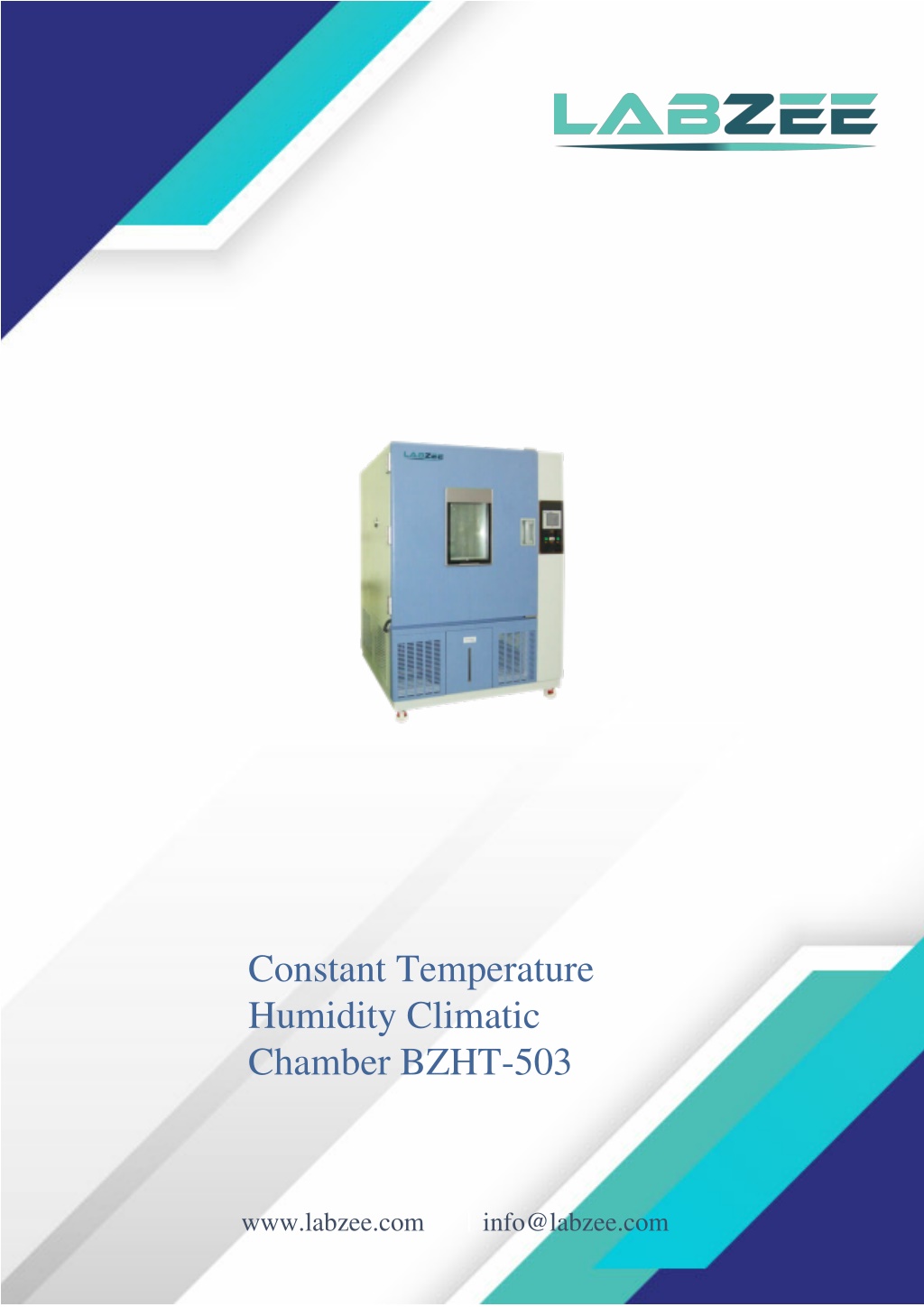

  1. Constant Temperature Humidity Climatic Chamber BZHT-503 | www.labzee.com info@labzee.com

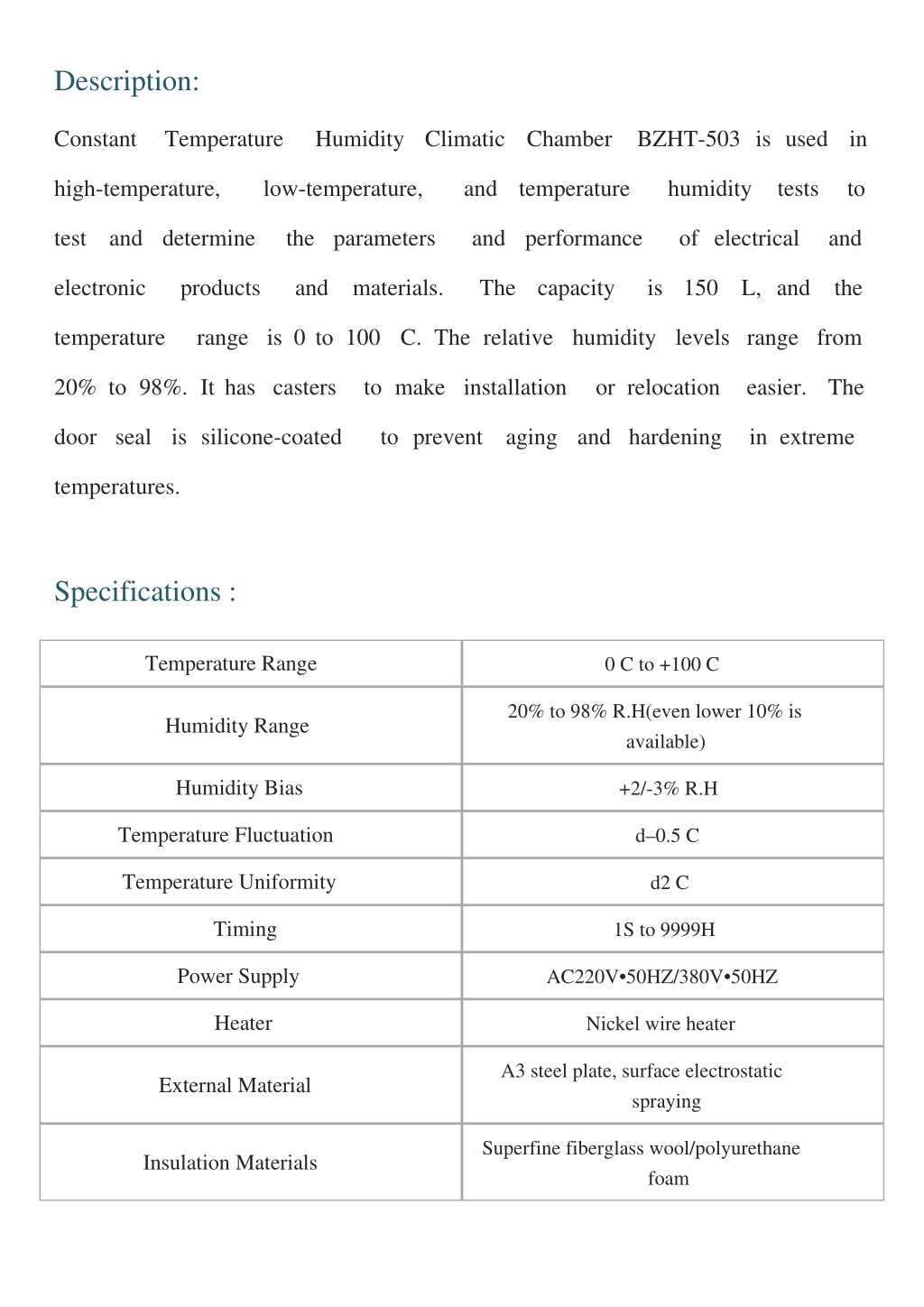

  2. Description: Constant Temperature Humidity Climatic Chamber BZHT-503 is used in high-temperature, low-temperature, and temperature humidity tests to test and determine the parameters and performance of electrical and electronic products and materials. The capacity is 150 L, and the temperature range is 0 to 100 ?C. The relative humidity levels range from 20% to 98%. It has casters to make installation or relocation easier. The door seal is silicone-coated to prevent aging and hardening in extreme temperatures. Specifications : Temperature Range 0?C to +100?C 20% to 98% R.H(even lower 10% is available) Humidity Range Humidity Bias +2/-3% R.H Temperature Fluctuation d–0.5?C Temperature Uniformity d2?C Timing 1S to 9999H Power Supply AC220V•50HZ/380V•50HZ Heater Nickel wire heater A3 steel plate, surface electrostatic spraying External Material Superfine fiberglass wool/polyurethane Insulation Materials foam

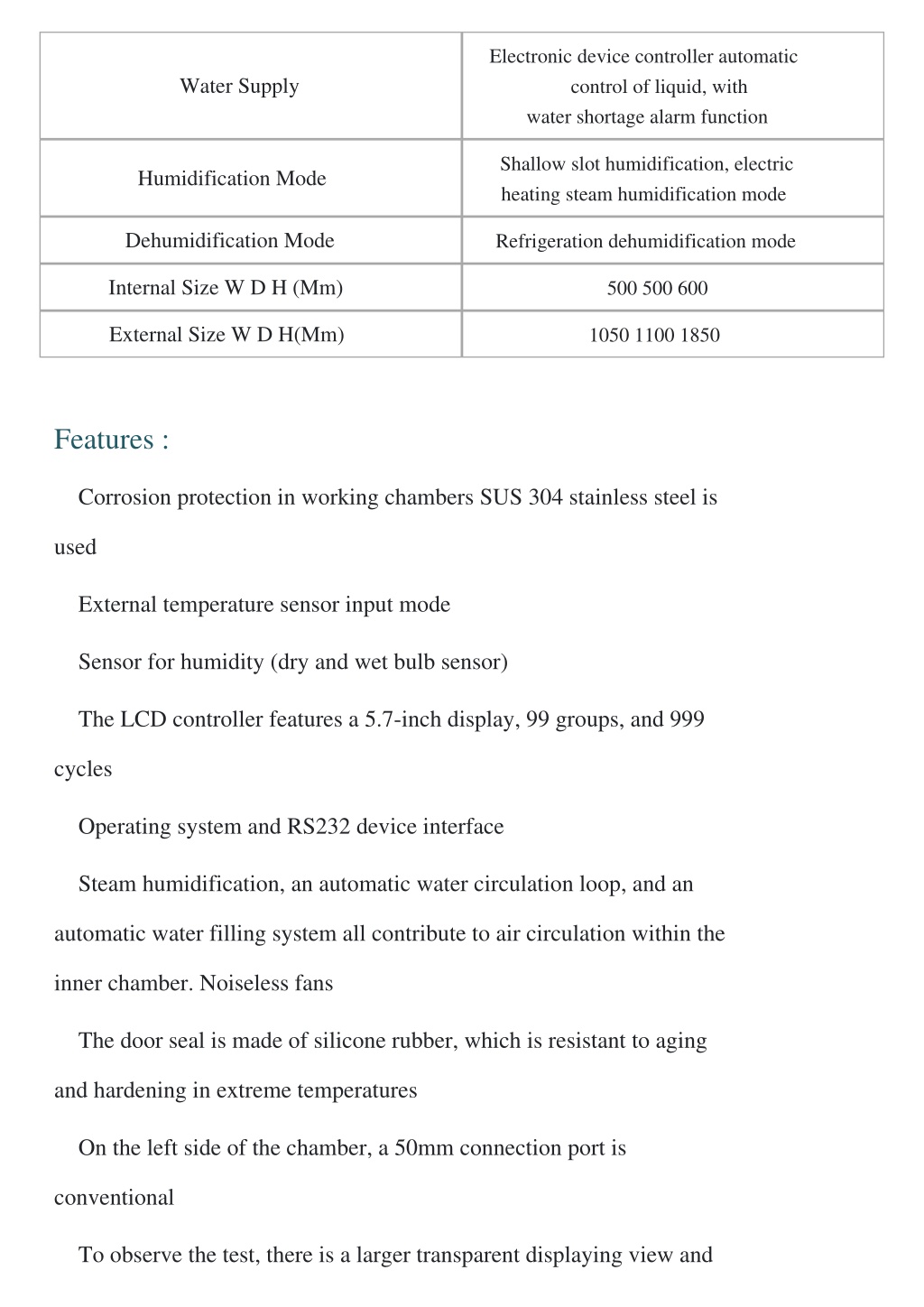

  3. Electronic device controller automatic control of liquid, with water shortage alarm function Water Supply Shallow slot humidification, electric heating steam humidification mode Humidification Mode Dehumidification Mode Refrigeration dehumidification mode Internal Size W?D?H (Mm) 500?500?600 External Size W?D?H(Mm) 1050?1100?1850 Features : Corrosion protection in working chambers SUS 304 stainless steel is ? used External temperature sensor input mode ? Sensor for humidity (dry and wet bulb sensor) ? The LCD controller features a 5.7-inch display, 99 groups, and 999 ? cycles Operating system and RS232 device interface ? Steam humidification, an automatic water circulation loop, and an ? automatic water filling system all contribute to air circulation within the inner chamber. Noiseless fans The door seal is made of silicone rubber, which is resistant to aging ? and hardening in extreme temperatures On the left side of the chamber, a 50mm connection port is ? conventional To observe the test, there is a larger transparent displaying view and ?

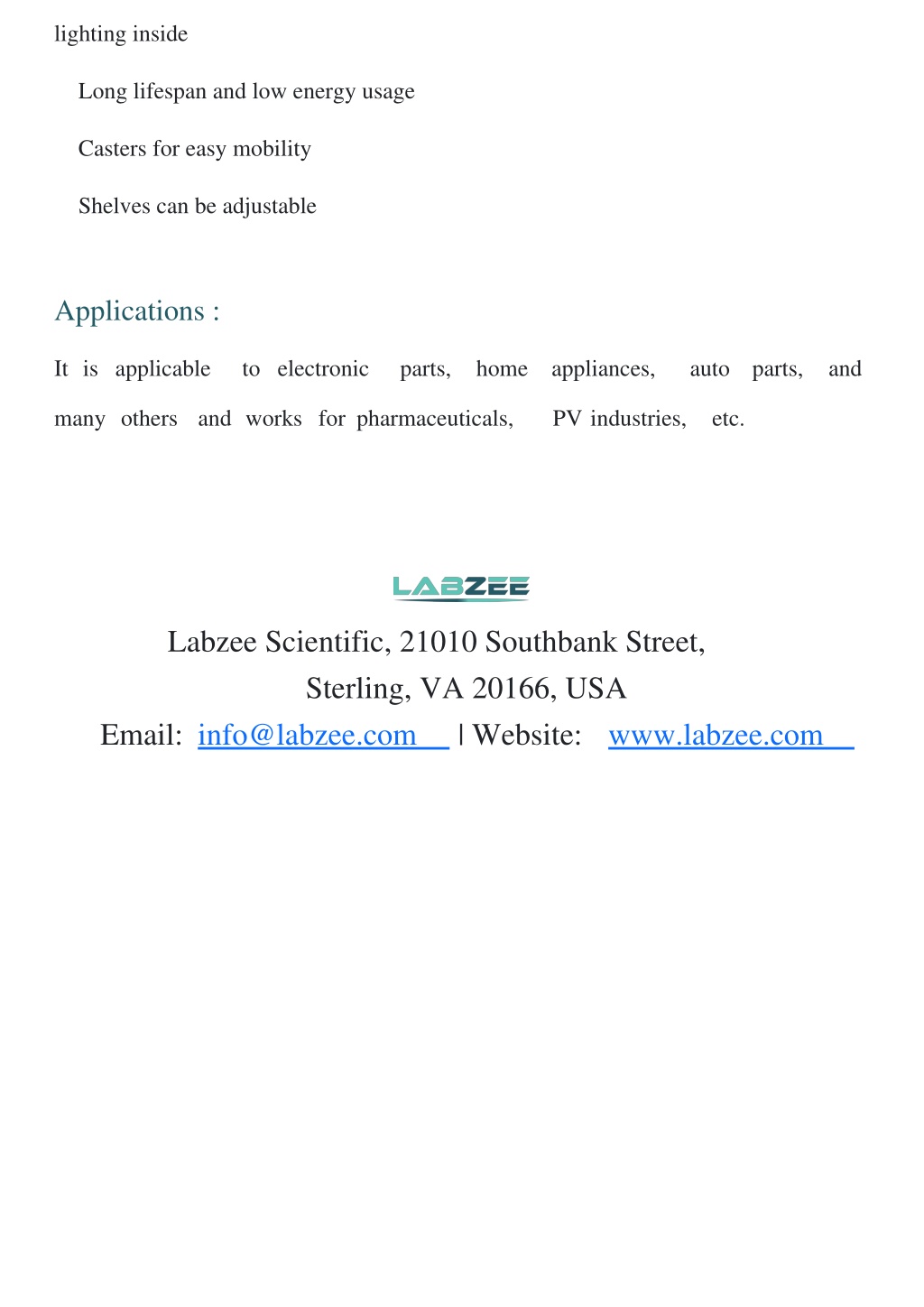

  4. lighting inside Long lifespan and low energy usage ? Casters for easy mobility ? Shelves can be adjustable ? Applications : It is applicable to electronic parts, home appliances, auto parts, and many others and works for pharmaceuticals, PV industries, etc. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166, USA Email: info@labzee.com | Website: www.labzee.com
