  1. What are the Differences a Cat5e, Cat6 & Cat6aCable?

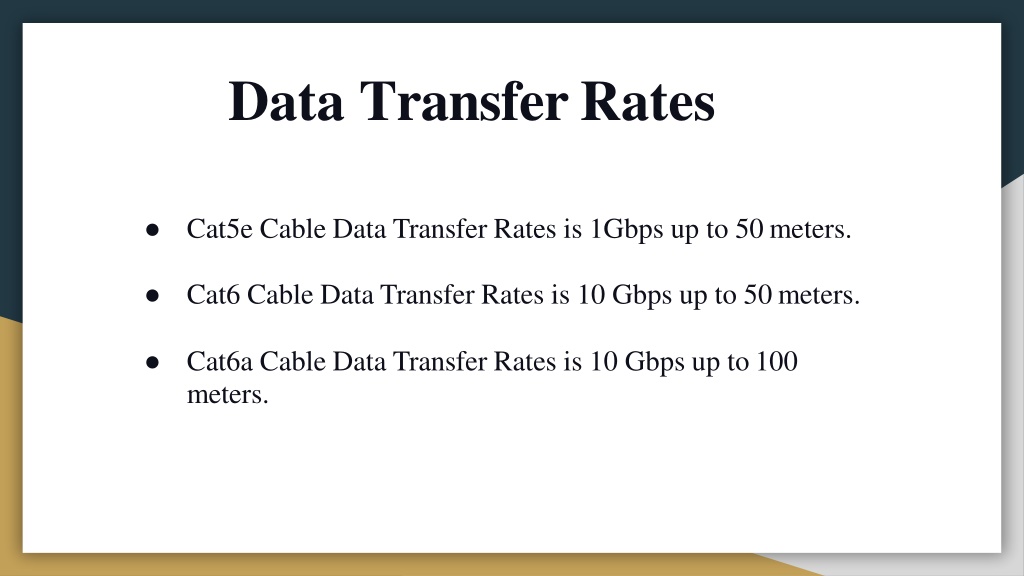

  2. Data TransferRates • Cat5e Cable Data Transfer Rates is 1Gbps up to 50meters. • Cat6 Cable Data Transfer Rates is 10 Gbps up to 50meters. • Cat6a Cable Data Transfer Rates is 10 Gbps up to100 meters.

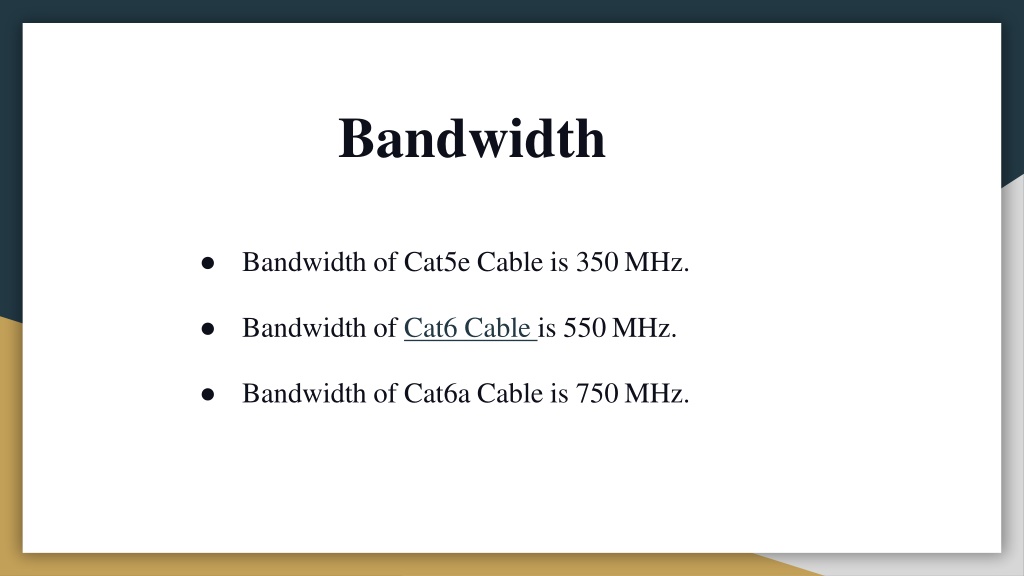

  3. Bandwidth • Bandwidth of Cat5e Cable is 350MHz. • Bandwidth of Cat6 Cable is 550MHz. • Bandwidth of Cat6a Cable is 750MHz.

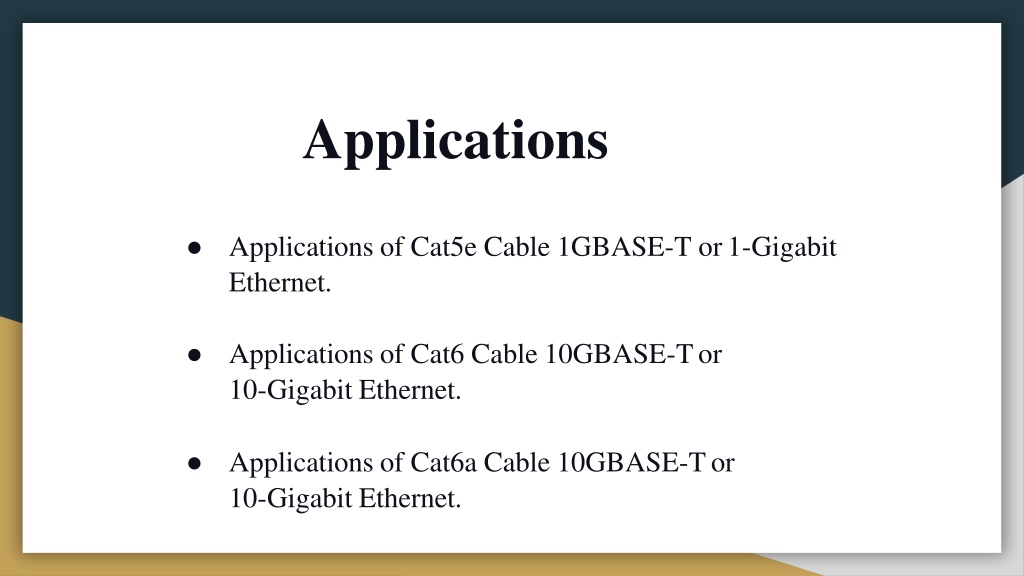

  4. Applications • Applications of Cat5e Cable 1GBASE-T or1-Gigabit Ethernet. • Applications of Cat6 Cable 10GBASE-Tor 10-Gigabit Ethernet. • Applications of Cat6a Cable 10GBASE-Tor 10-Gigabit Ethernet.

  5. ThankYou smartechcables.com
