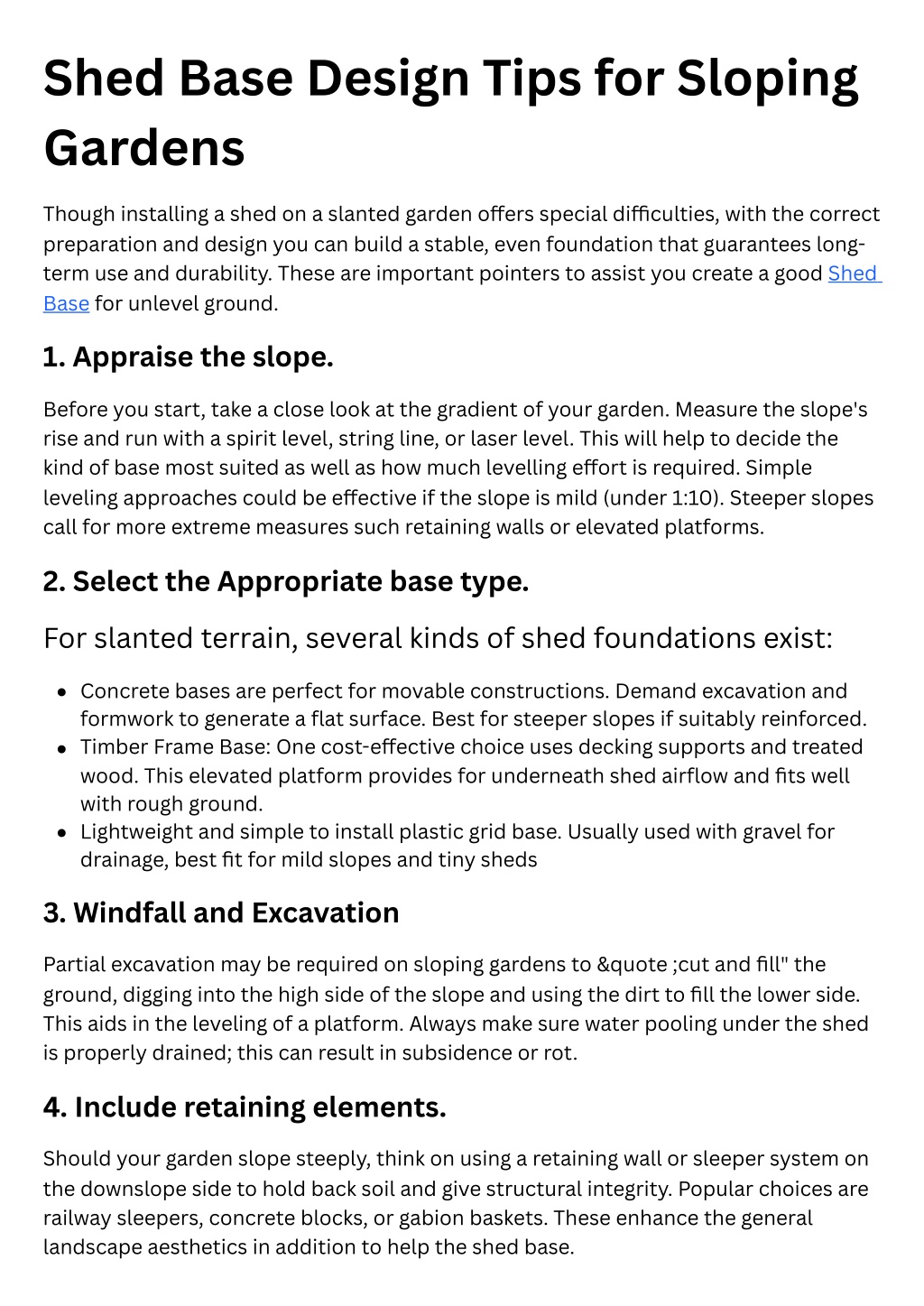

  1. Shed Base Design Tips for Sloping Gardens Though installing a shed on a slanted garden o?ers special di?culties, with the correct preparation and design you can build a stable, even foundation that guarantees long- term use and durability. These are important pointers to assist you create a good Shed Base for unlevel ground. 1. Appraise the slope. Before you start, take a close look at the gradient of your garden. Measure the slope's rise and run with a spirit level, string line, or laser level. This will help to decide the kind of base most suited as well as how much levelling e?ort is required. Simple leveling approaches could be e?ective if the slope is mild (under 1:10). Steeper slopes call for more extreme measures such retaining walls or elevated platforms. 2. Select the Appropriate base type. For slanted terrain, several kinds of shed foundations exist: Concrete bases are perfect for movable constructions. Demand excavation and formwork to generate a flat surface. Best for steeper slopes if suitably reinforced. Timber Frame Base: One cost-e?ective choice uses decking supports and treated wood. This elevated platform provides for underneath shed airflow and fits well with rough ground. Lightweight and simple to install plastic grid base. Usually used with gravel for drainage, best fit for mild slopes and tiny sheds 3. Windfall and Excavation Partial excavation may be required on sloping gardens to &quote ;cut and fill" the ground, digging into the high side of the slope and using the dirt to fill the lower side. This aids in the leveling of a platform. Always make sure water pooling under the shed is properly drained; this can result in subsidence or rot. 4. Include retaining elements. Should your garden slope steeply, think on using a retaining wall or sleeper system on the downslope side to hold back soil and give structural integrity. Popular choices are railway sleepers, concrete blocks, or gabion baskets. These enhance the general landscape aesthetics in addition to help the shed base.

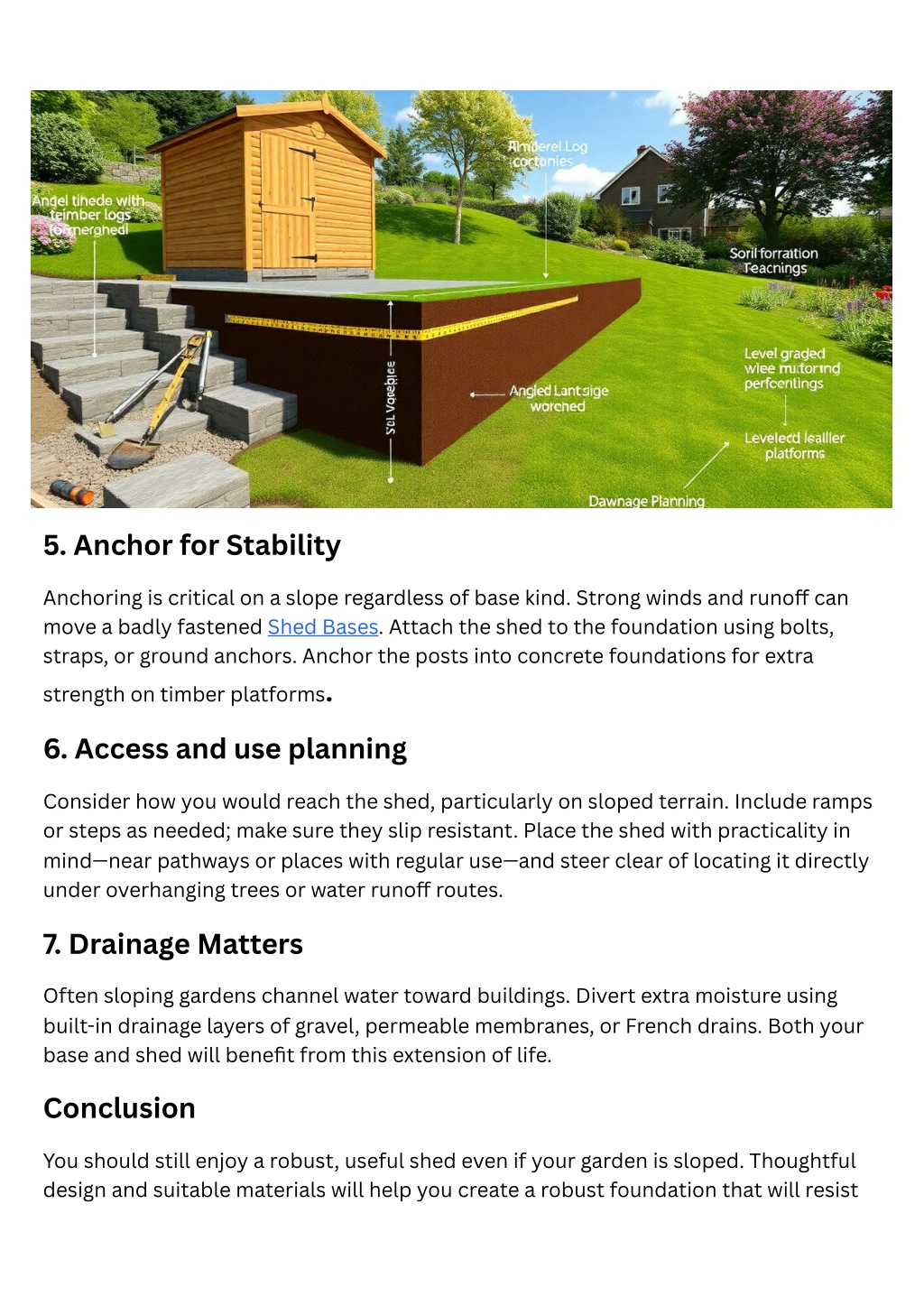

  2. 5. Anchor for Stability Anchoring is critical on a slope regardless of base kind. Strong winds and runo? can move a badly fastened Shed Bases. Attach the shed to the foundation using bolts, straps, or ground anchors. Anchor the posts into concrete foundations for extra strength on timber platforms. 6. Access and use planning Consider how you would reach the shed, particularly on sloped terrain. Include ramps or steps as needed; make sure they slip resistant. Place the shed with practicality in mind—near pathways or places with regular use—and steer clear of locating it directly under overhanging trees or water runo? routes. 7. Drainage Matters Often sloping gardens channel water toward buildings. Divert extra moisture using built-in drainage layers of gravel, permeable membranes, or French drains. Both your base and shed will benefit from this extension of life. Conclusion You should still enjoy a robust, useful shed even if your garden is sloped. Thoughtful design and suitable materials will help you create a robust foundation that will resist

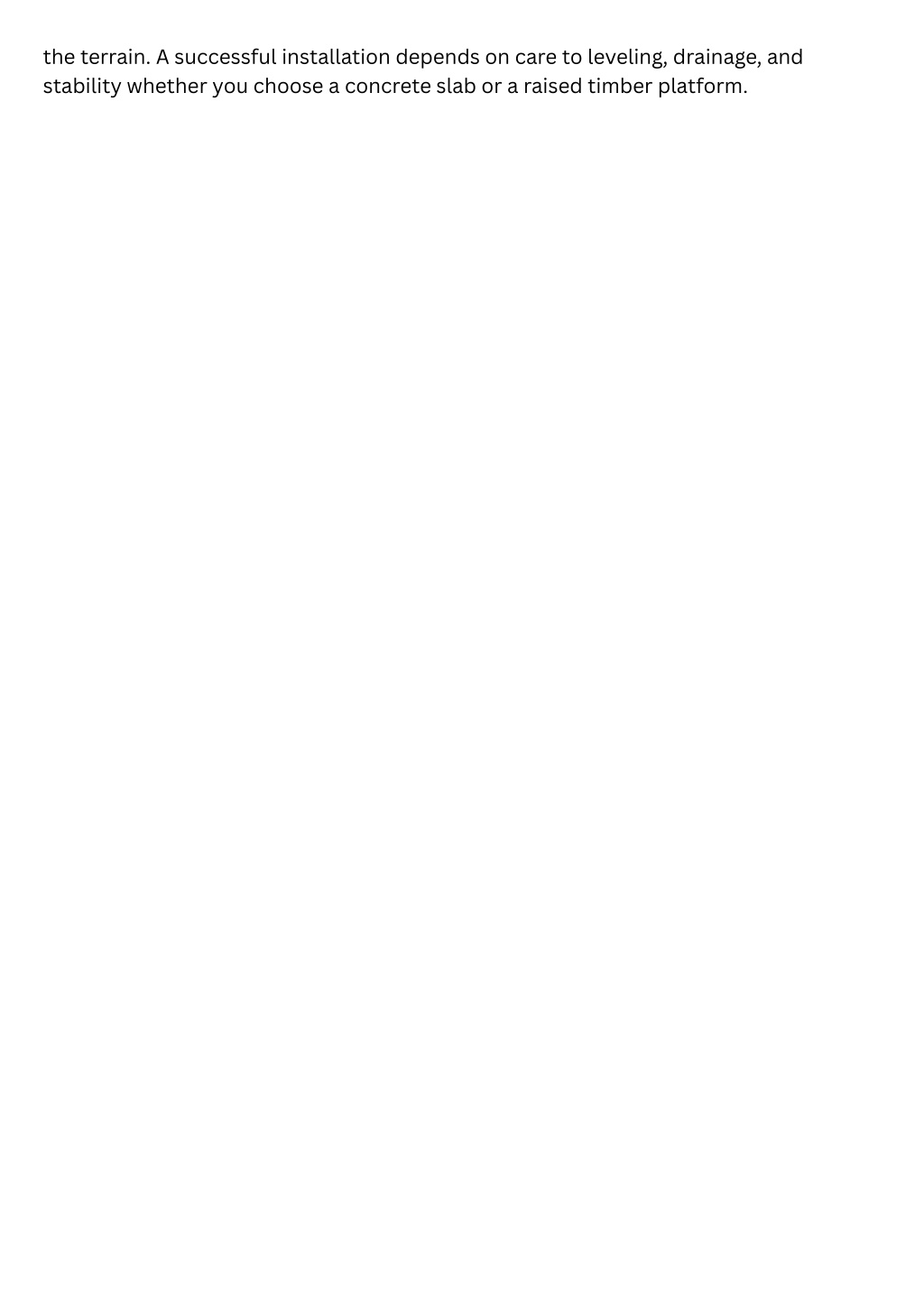

  3. the terrain. A successful installation depends on care to leveling, drainage, and stability whether you choose a concrete slab or a raised timber platform.
