Titanium Grade 2 Plates

Titanium Grade 2 Sheets plates coils have some of the great features to provide like light weight, hard wearing as well as soaring tensile potency. Jaiman provides you such materials in different shapes and sizes. The sheets, plates, coils are being used in chemical processing, architecture, automotive, desalination, automotive, medical, power generation, marine, and chlorate manufacturing.

Jaiman1
Download Presentation

Titanium Grade 2 Plates

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

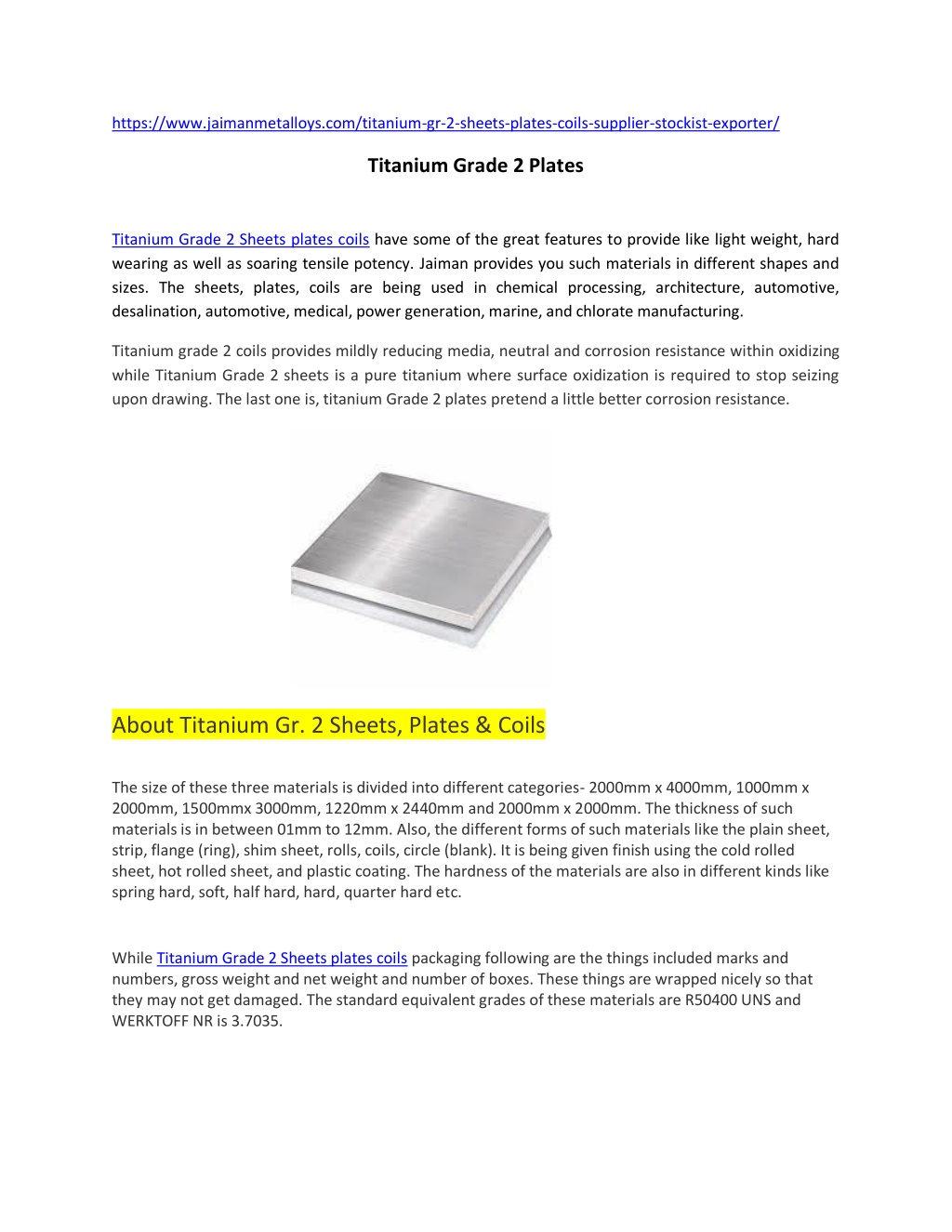

  1. https://www.jaimanmetalloys.com/titanium-gr-2-sheets-plates-coils-supplier-stockist-exporter/ Titanium Grade 2 Plates Titanium Grade 2 Sheets plates coils have some of the great features to provide like light weight, hard wearing as well as soaring tensile potency. Jaiman provides you such materials in different shapes and sizes. The sheets, plates, coils are being used in chemical processing, architecture, automotive, desalination, automotive, medical, power generation, marine, and chlorate manufacturing. Titanium grade 2 coils provides mildly reducing media, neutral and corrosion resistance within oxidizing while Titanium Grade 2 sheets is a pure titanium where surface oxidization is required to stop seizing upon drawing. The last one is, titanium Grade 2 plates pretend a little better corrosion resistance. About Titanium Gr. 2 Sheets, Plates & Coils The size of these three materials is divided into different categories- 2000mm x 4000mm, 1000mm x 2000mm, 1500mmx 3000mm, 1220mm x 2440mm and 2000mm x 2000mm. The thickness of such materials is in between 01mm to 12mm. Also, the different forms of such materials like the plain sheet, strip, flange (ring), shim sheet, rolls, coils, circle (blank). It is being given finish using the cold rolled sheet, hot rolled sheet, and plastic coating. The hardness of the materials are also in different kinds like spring hard, soft, half hard, hard, quarter hard etc. While Titanium Grade 2 Sheets plates coils packaging following are the things included marks and numbers, gross weight and net weight and number of boxes. These things are wrapped nicely so that they may not get damaged. The standard equivalent grades of these materials are R50400 UNS and WERKTOFF NR is 3.7035.

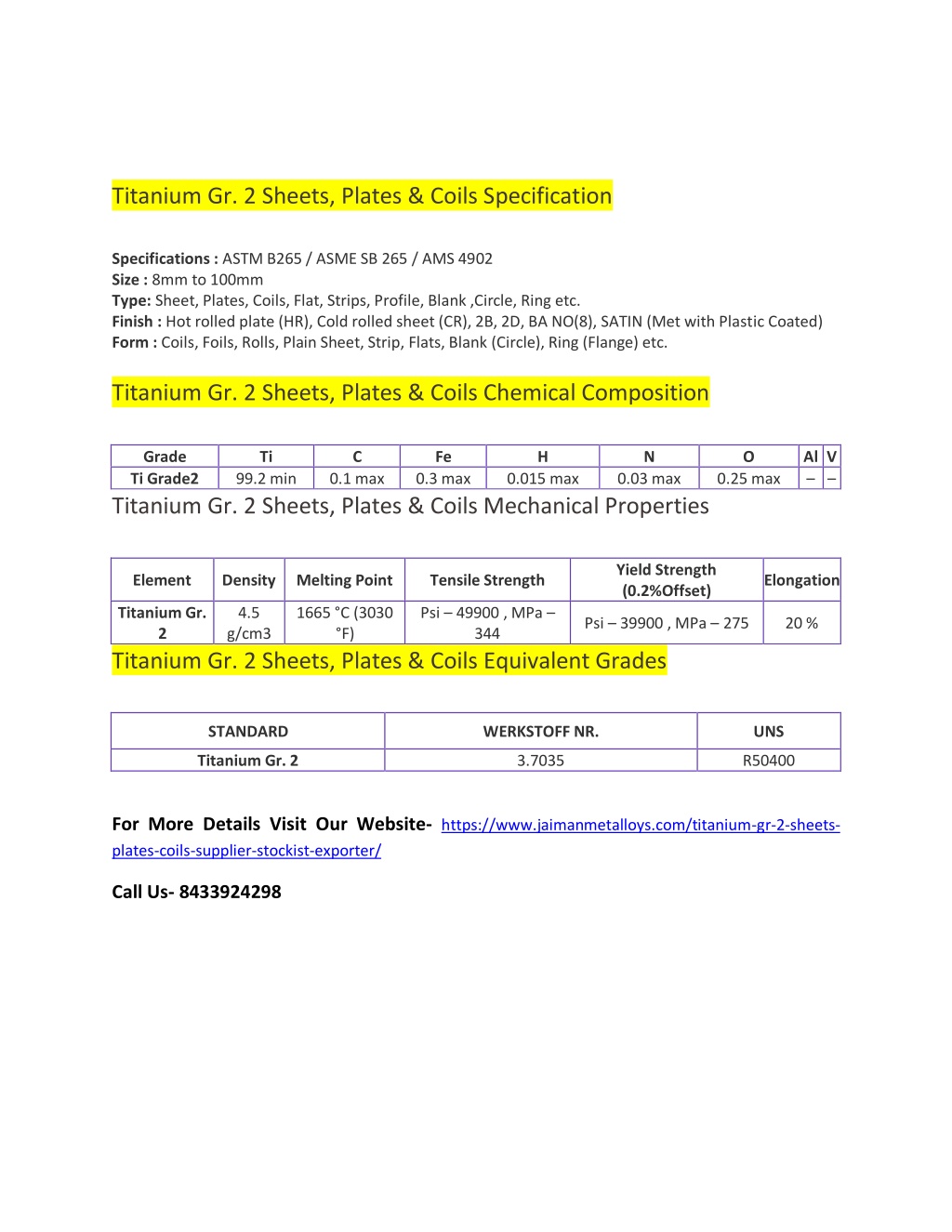

  2. Titanium Gr. 2 Sheets, Plates & Coils Specification Specifications : ASTM B265 / ASME SB 265 / AMS 4902 Size : 8mm to 100mm Type: Sheet, Plates, Coils, Flat, Strips, Profile, Blank ,Circle, Ring etc. Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. Titanium Gr. 2 Sheets, Plates & Coils Chemical Composition Grade Ti Grade2 Titanium Gr. 2 Sheets, Plates & Coils Mechanical Properties Ti C Fe H N O AlV –– 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max Yield Strength (0.2%Offset) Element Density Melting Point Tensile Strength Elongation Titanium Gr. 2 Titanium Gr. 2 Sheets, Plates & Coils Equivalent Grades 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 % STANDARD WERKSTOFF NR. UNS Titanium Gr. 2 3.7035 R50400 For More Details Visit Our Website- https://www.jaimanmetalloys.com/titanium-gr-2-sheets- plates-coils-supplier-stockist-exporter/ Call Us- 8433924298
