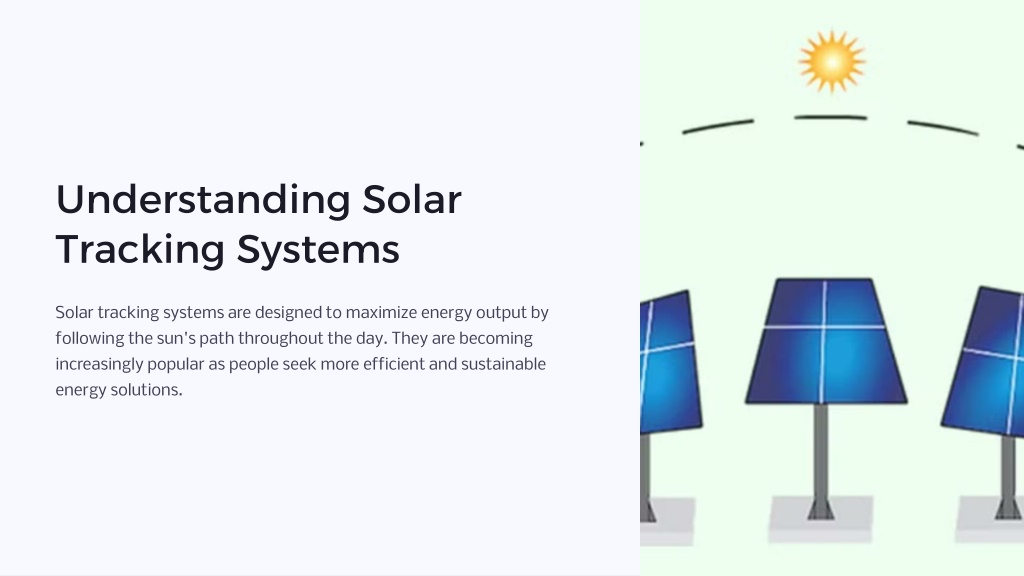

  1. Understanding Solar Tracking Systems Solar tracking systems are designed to maximize energy output by following the sun's path throughout the day. They are becoming increasingly popular as people seek more efficient and sustainable energy solutions.

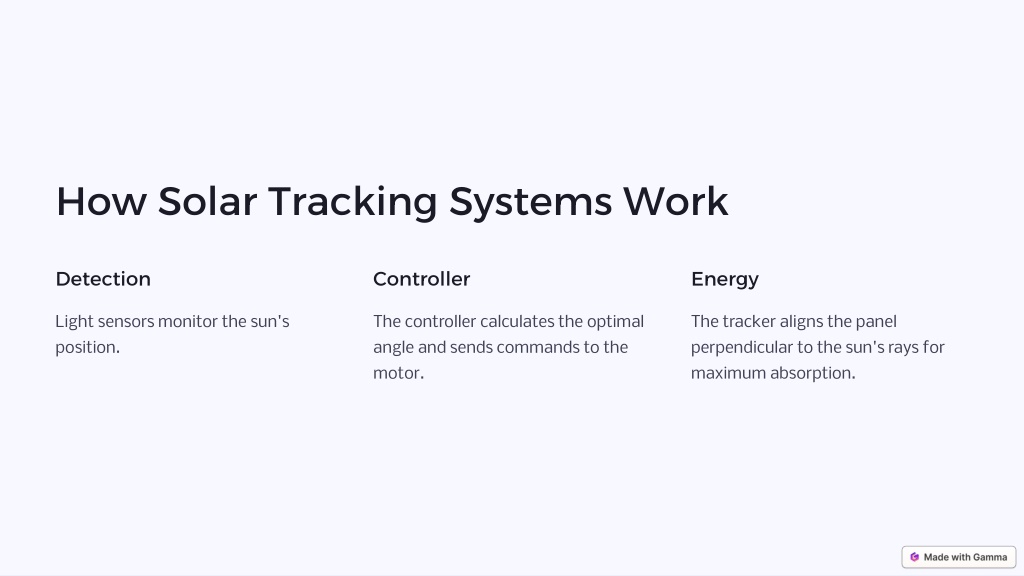

  2. How Solar Tracking Systems Work Detection Controller Energy Light sensors monitor the sun's position. The controller calculates the optimal angle and sends commands to the motor. The tracker aligns the panel perpendicular to the sun's rays for maximum absorption.

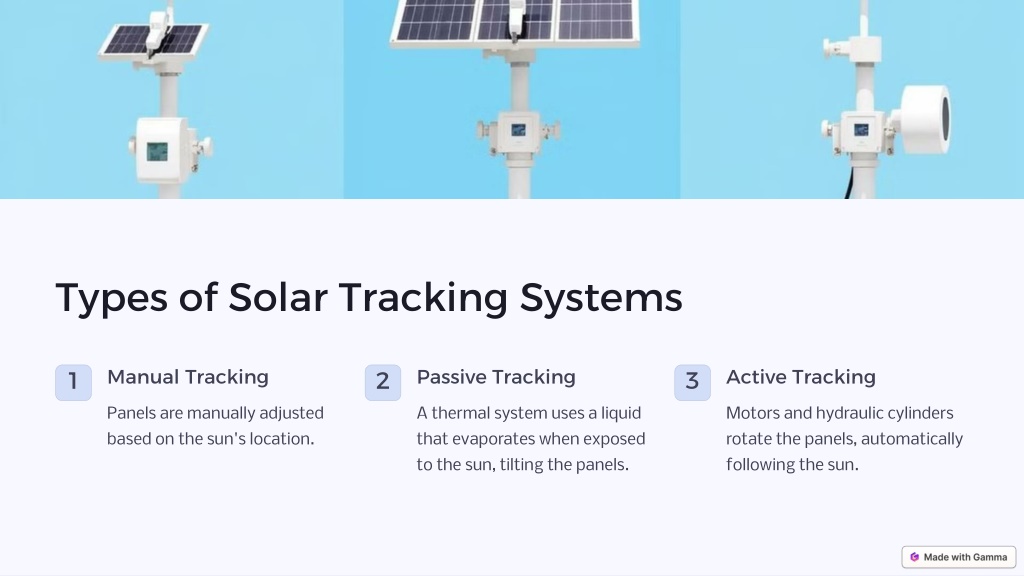

  3. Types of Solar Tracking Systems Manual Tracking Passive Tracking Active Tracking 1 2 3 Panels are manually adjusted based on the sun's location. A thermal system uses a liquid that evaporates when exposed to the sun, tilting the panels. Motors and hydraulic cylinders rotate the panels, automatically following the sun.

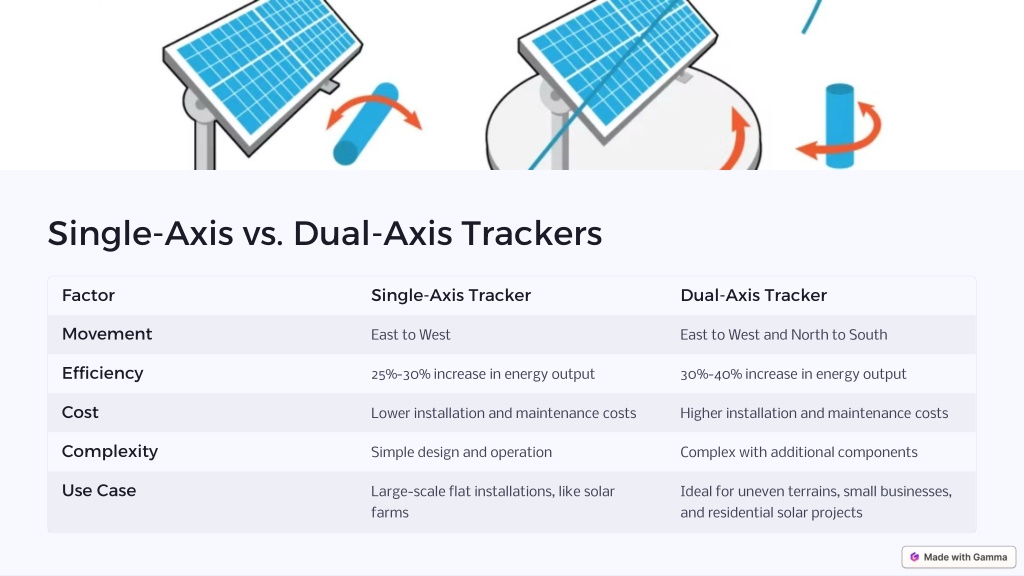

  4. Single-Axis vs. Dual-Axis Trackers Factor Single-Axis Tracker Dual-Axis Tracker Movement East to West East to West and North to South Efficiency 25%-30% increase in energy output 30%-40% increase in energy output Cost Lower installation and maintenance costs Higher installation and maintenance costs Complexity Simple design and operation Complex with additional components Use Case Large-scale flat installations, like solar farms Ideal for uneven terrains, small businesses, and residential solar projects

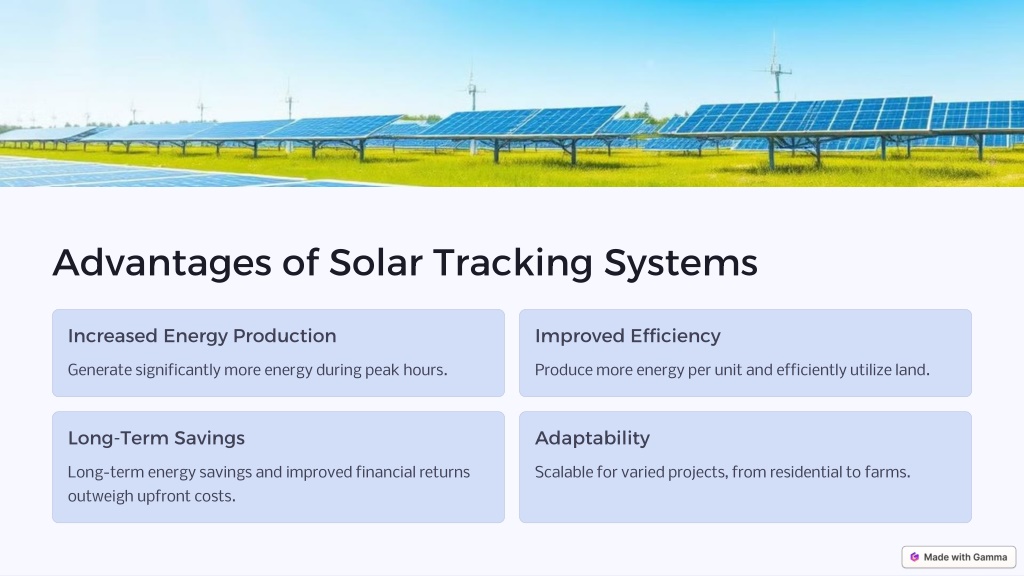

  5. Advantages of Solar Tracking Systems Increased Energy Production Improved Efficiency Generate significantly more energy during peak hours. Produce more energy per unit and efficiently utilize land. Long-Term Savings Adaptability Long-term energy savings and improved financial returns outweigh upfront costs. Scalable for varied projects, from residential to farms.

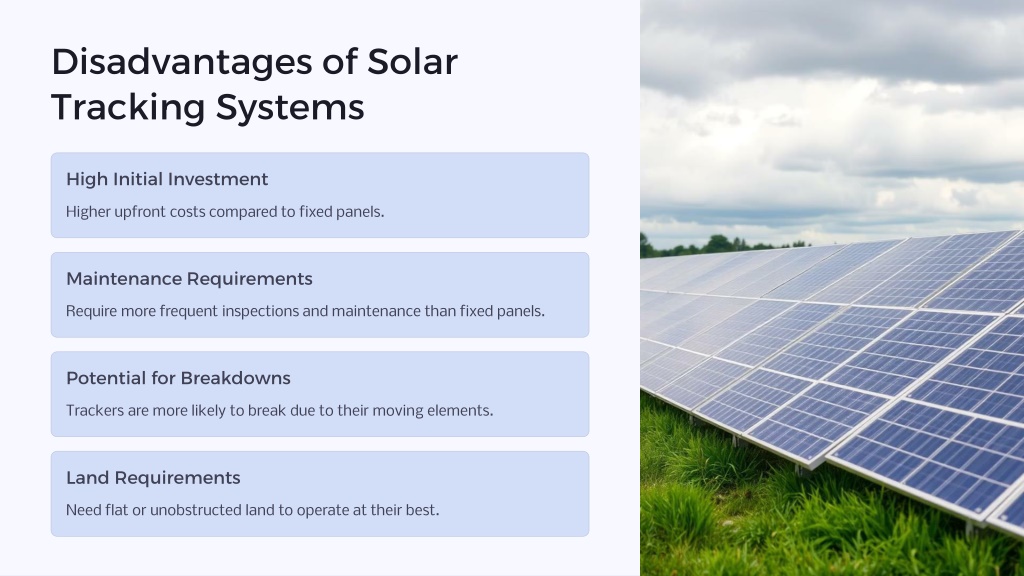

  6. Disadvantages of Solar Tracking Systems High Initial Investment Higher upfront costs compared to fixed panels. Maintenance Requirements Require more frequent inspections and maintenance than fixed panels. Potential for Breakdowns Trackers are more likely to break due to their moving elements. Land Requirements Need flat or unobstructed land to operate at their best.

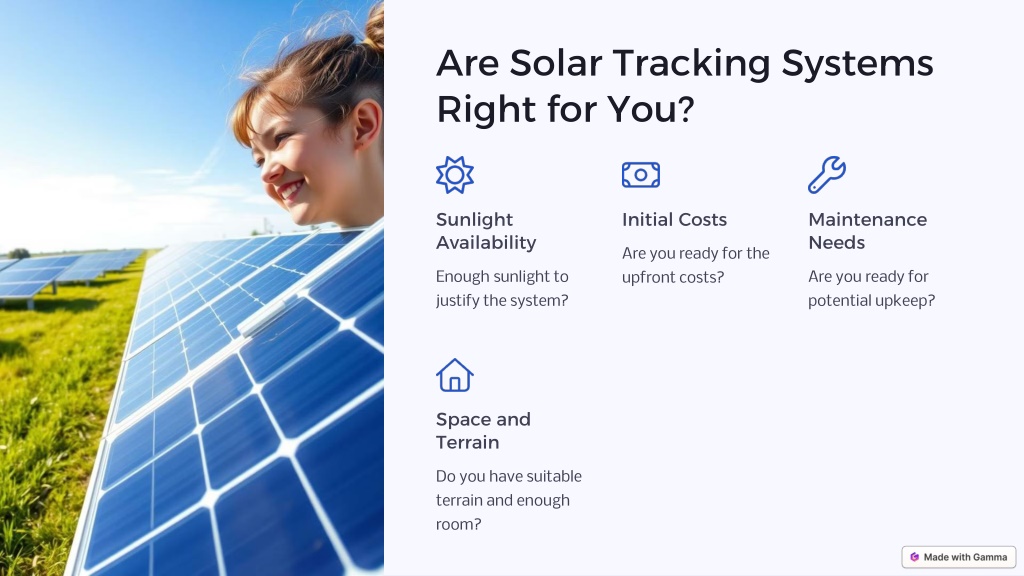

  7. Are Solar Tracking Systems Right for You? Sunlight Availability Initial Costs Maintenance Needs Are you ready for the upfront costs? Enough sunlight to justify the system? Are you ready for potential upkeep? Space and Terrain Do you have suitable terrain and enough room?

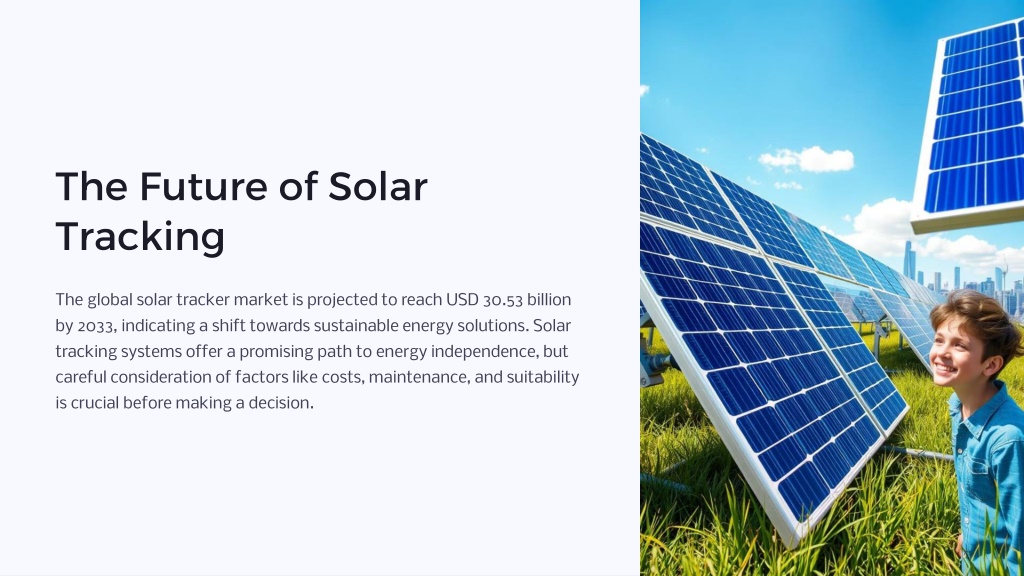

  8. The Future of Solar Tracking The global solar tracker market is projected to reach USD 30.53 billion by 2033, indicating a shift towards sustainable energy solutions. Solar tracking systems offer a promising path to energy independence, but careful consideration of factors like costs, maintenance, and suitability is crucial before making a decision.
