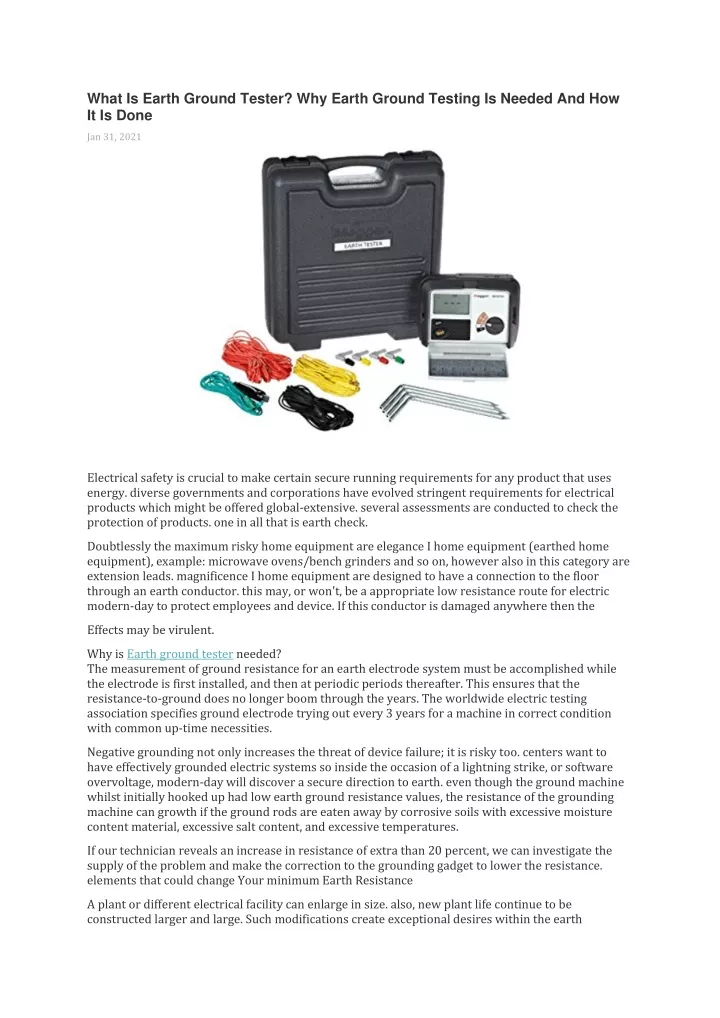

1. What Is Earth Ground Tester? Why Earth Ground Testing Is Needed And How It Is Done Jan 31, 2021 Electrical safety is crucial to make certain secure running requirements for any product that uses energy. diverse governments and corporations have evolved stringent requirements for electrical products which might be offered global-extensive. several assessments are conducted to check the protection of products. one in all that is earth check. Doubtlessly the maximum risky home equipment are elegance I home equipment (earthed home equipment), example: microwave ovens/bench grinders and so on, however also in this category are extension leads. magnificence I home equipment are designed to have a connection to the floor through an earth conductor. this may, or won't, be a appropriate low resistance route for electric modern-day to protect employees and device. If this conductor is damaged anywhere then the Effects may be virulent. Why is Earth ground tester needed? The measurement of ground resistance for an earth electrode system must be accomplished while the electrode is first installed, and then at periodic periods thereafter. This ensures that the resistance-to-ground does no longer boom through the years. The worldwide electric testing association specifies ground electrode trying out every 3 years for a machine in correct condition with common up-time necessities. Negative grounding not only increases the threat of device failure; it is risky too. centers want to have effectively grounded electric systems so inside the occasion of a lightning strike, or software overvoltage, modern-day will discover a secure direction to earth. even though the ground machine whilst initially hooked up had low earth ground resistance values, the resistance of the grounding machine can growth if the ground rods are eaten away by corrosive soils with excessive moisture content material, excessive salt content, and excessive temperatures. If our technician reveals an increase in resistance of extra than 20 percent, we can investigate the supply of the problem and make the correction to the grounding gadget to lower the resistance. elements that could change Your minimum Earth Resistance A plant or different electrical facility can enlarge in size. also, new plant life continue to be constructed larger and large. Such modifications create exceptional desires within the earth

2. electrode. What changed into previously a certainly low earth resistance can emerge as an obsolete “general.” As facilities add extra present day sensitive laptop-managed system, the problems of electrical noise is magnified. Noise that might no longer impact cruder, older system can reason every day issues with new gadget. As greater non-steel pipes and conduits are set up underground, such installations emerge as less and less dependable as effective, low-resistance ground connections. In lots of locations, the water table is step by step falling. In a yr or so, earth electrode structures that previously had been powerful may also become in dry earth of excessive resistance. These factors emphasize the importance of a non-stop, periodic software of earth-resistance trying out. It isn't always enough to test the earth resistance handiest on the time of installation. Factors Influencing necessities for an amazing Grounding system restricting to precise values the voltage to earth of the whole electric system. Use of a suitable grounding device can do this by means of preserving a few point in the circuit at earth potential. any such grounding system affords those advantages: Limits voltage to which the gadget-to-ground insulation is subjected, thereby greater really solving the insulation score. Limits the machine-to-floor or gadget-to-frame voltage to values safe for personnel. provides a notably stable system with at the very least transient over-voltage. lets in any system fault to ground to be fast isolated. right grounding of metal enclosures and help structures which can be part of the electrical device and can be contacted by employees. additionally to be protected are portable electrically operated devices. take into account that handiest a small quantity of electric modern-day — as low as 01 A for one second — can be deadly! a good smaller quantity can motive you to lose muscular control. those low currents can arise for your body at voltages as low as one hundred V, in case your pores and skin is wet. protection in opposition to static energy from friction. at the side of this are the attendant risks of shock, fire and explosion. moving gadgets that may be inherent insulators – inclusive of paper, textiles, conveyor belts or energy belts and rubberised fabrics – can broaden enormously excessive prices unless properly grounded. protection towards direct lightning strokes. multiplied structures, along with stacks, the building proper, and water tanks may require lightning rods connected into the grounding device. safety in opposition to brought about lightning voltages. this is in particular a issue if aerial energy distribution and communications circuits are worried. Lightning arresters can be required in strategic places throughout the plant. supplying top grounds for electric method manage and conversation circuits. With the accelerated use of commercial manipulate gadgets, computer systems, and communications device, accessibility of low resistance floor connections in many plant locations — in office and production areas — need to be taken into consideration. Resistance to earth can vary with changes in climate and temperature. Such modifications may be great. An earth electrode that become excellent (low-resistance) while hooked up might not stay that manner; to be sure, you ought to test it periodically. We cannot inform you what your most earth resistance ought to be. For precise systems in definite places, specifications are regularly set. some call for 5 Ω maximum; others accept no extra than three Ω. In sure cases, resistances as low as a small fraction of an ohm are required. Nature of an Earth Electrode Nature of an Earth Electrode Resistance to current via an earth electrode virtually has three components: Resistance of the electrode itself and connections to it. contact resistance among the electrode and the soil adjoining to it. Resistance of the encompassing earth. Electrode Resistance: Rods, pipes, masses of metal, structures, and other gadgets are normally used for earth connections. those are normally of sufficient size or pass-phase that their resistance is a

3. negligible a part of the full resistance. Electrode-Earth contact Resistance: that is plenty much less than you would possibly suppose. If the electrode is unfastened from paint or grease, and the earth is packed firmly, touch resistance is negligible. Rust on an iron electrode has very little effect but if an iron pipe has rusted through, the component beneath the smash isn't powerful as a part of the earth electrode Resistance of Surrounding Earth: An electrode pushed into earth of uniform resistivity radiates present day in all guidelines. think of the electrode as being surrounded by way of shells of earth, all of same thickness. The earth shell nearest the electrode obviously has the smallest floor vicinity and so offers the best resistance concepts involved in Earth Resistance testing The resistance to earth of any machine of electrodes theoretically may be calculated from formulation based upon the overall resistance system: R = ρ la wherein ρ is the resistivity of the earth in ohm-cm, L is the period of the conducting route, and A is the cross-sectional location of the direction. All such formulas can be simplified a little by means of basing them on the assumption that the earth’s resistivity is uniform during the whole soil quantity below consideration. There are five fundamental test strategies as stated beneath Soil Resistivity testing: Wenner four-pole same method [19] has been taken into consideration in measuring the soil resistivity. the best layout of an earthing system relies upon certain understanding of the local floor resistivity. this is measured as a feature of intensity at a chain of places across the website online, the usage of an increasing four electrode Wenner array (BS EN 50522). The manner is called soil resistivity or earth resistance trying out. correct measurement is mainly important in regions of excessive resistivity ground, where electrical currents are not able to burn up. In those conditions acquiring an earth may be tricky, and data on ground resistivity is required to an awful lot extra depths for the a hit set up of an earthing gadget. Fall-of-capacity technique: With a 4-terminal tester, P1 and C1 terminals at the tool are related to the earth electrode underneath check. With a three-terminal tool, join X to the earth electrode. despite the fact that 4 terminals are necessary for resistivity measurements, using both 3 of 4 terminals is essentially optionally available for trying out the resistance of an installed electrode. the usage of 3 terminals is greater convenient as it calls for one result in be linked. The change-off is that the resistance of this not unusual lead is covered in the dimension. normally, this effect can be minimized by using retaining the lead brief, to house easy check requirements. The small extra resistance consequently brought is negligible. while appearing extra complicated checks or meeting stringent necessities, but, it can be higher to use all 4 terminals by a lead from the P1 terminal to the take a look at electrode (connecting it within the lead from C1). this is a real 4 twine test configuration which eliminates all lead resistance from the dimension. The added accuracy may also show great while assembly very low resistance specs or the use of take a look at techniques that necessitate an extra digit of dimension which will meet the mathematical requirements. The choice is optional, based on the operator’s checking out goals and the approach used. The driven reference rod C have to be located as a ways from the earth electrode as sensible; this distance may be restrained by means of the period of extension wire available, or the geography of the environment. Leads should be separated and “snaked,” not run close and parallel to every different, to dispose of mutual inductance. ability-reference rod P is then pushed in at a number of factors more or less on a instantly line between the earth electrode and C. Resistance readings are logged for each of the points. dead Earth technique: whilst the use of a four-terminal instrument, P1 and C1 terminals hook up with the earth electrode under take a look at; P2 and C2 terminals hook up with an all-metallic water-pipe gadget. With a 3- terminal device, connect X to the earth electrode, P and C to the pipe gadget. If the water gadget is massive (masking a huge vicinity), its resistance should simplest be a fragment of an ohm. you could then take the device studying as being the resistance of the electrode under check. The dead earth approach is the best manner to make an earth resistance check. With this approach, resistance of two electrodes in collection is measured — the driven rod and the water device. however there are 3

4. essential obstacles: The waterpipe machine ought to be tremendous sufficient to have a negligible resistance. The waterpipe device have to be metal throughout, with none insulating couplings or flanges. The earth electrode beneath test must be a ways enough far from the water-pipe gadget to be out of doors its sphere of impact. In some places, your earth electrode can be so near the water-pipe system which you cannot separate the two by way of the required distance for size by using the 2- terminal approach. beneath those situations, if conditions 1 and a pair of above are met, you can connect to the water- pipe system and attain a suitable earth electrode. As a precaution against any viable destiny changes in the resistance of the water-pipe system, but, you should also installation an earth electrode. Clamp-on method: Fall-of-capability testing, and its adjustments, is the handiest floor testing technique that conforms to IEEE 81. it's miles extremely reliable, especially accurate and can be used to check any size ground system. additionally, the operator has whole manipulate of the take a look at set-up and might take a look at or proof his/her outcomes by checking out at unique probe spacing. unfortunately, the autumn of potential method also comes with drawbacks: it's far extremely time ingesting and labour in depth. character ground electrodes need to be disconnected from the device to be measured. The clamp-on ground trying out method, even though it does no longer agree to IEEE eighty one, does offer the operator with the capacity to make powerful measurements below the proper conditions. The clamp-on method is based on Ohm’s law (R=V/I). A regarded voltage is carried out to a entire circuit and the ensuing cutting-edge go with the flow is measured. The resistance of the circuit can then be calculated. The clamp-on floor tester applies the sign and measures the modern with out an instantaneous electric connection. The clamp consists of a transmit coil that applies the voltage and a receive coil that measures the present day. Selective dimension checking out: Selective testing may be very much like the fall-of-ability testing, presenting all of the same measurements, but in a much more secure and easier way. this is because with Selective testing, the earth electrode of interest does no longer need to be disconnected from its connection to the web page! The technician does not must endanger himself by means of disconnecting floor, nor endanger other employees or electric system internal a no grounded shape. the way to improve Earth Resistance when you locate that your earth electrode resistance isn't low sufficient, there are numerous approaches you may enhance it: extend the earth electrode in the earth. Use multiple rods. treat the soil. effect of Rod size: As you may suspect, driving an extended rod deeper into the earth, materially decreases its resistance. In trendy, doubling the rod length reduces resistance by approximately 40 percentage. Use of more than one Rods: nicely-spaced rods pushed into the earth provide parallel paths. they're, in impact, two resistances in parallel. the guideline for two resistances in parallel does no longer observe exactly; that is, the resultant resistance is not one-half of the character rod resistances (assuming they are of the same length and depth). remedy of the Soil: Chemical remedy of soil is a good manner to improve earth electrode resistance while you cannot pressure deeper ground rods due to tough underlying rock, for example. it's miles beyond the scope of this guide to endorse the excellent remedy chemicals for all conditions. you need to keep in mind the feasible corrosive impact at the electrode in addition to EPA and local environmental rules. Magnesium sulfate, copper sulfate, and ordinary rock salt are suitable non-corrosive materials. Magnesium sulfate is the least corrosive, however rock salt is cheaper and does the activity if applied in a trench dug across the electrode. It need to be referred to that soluble sulfates attack concrete, and have to be kept faraway from building foundations. some other famous approach is to backfill around the electrode with a specialized conductive concrete. a number of those products, like bentonite, are available in the marketplace.

5. impact of Temperature in the world Resistivity no longer plenty data has been accumulated on the results of temperature. two facts cause the logical conclusion that an growth in temperature will lower resistivity: Water found in soil primarily determines the resistivity An boom in temperature markedly decreases the resistivity of water. The resistivity maintains to growth as temperatures cross below freezing. Grounding testers are critical troubleshooting gear to help you maintain up time. it is recommended that all grounds and ground connections be checked at the least yearly as a part of your regular predictive maintenance plan. should an boom in resistance of more than 20% be measured at some stage in these periodic tests, the technician must look at the supply of the problem and make the correction to decrease the resistance by changing or adding ground rods to the ground gadget.
