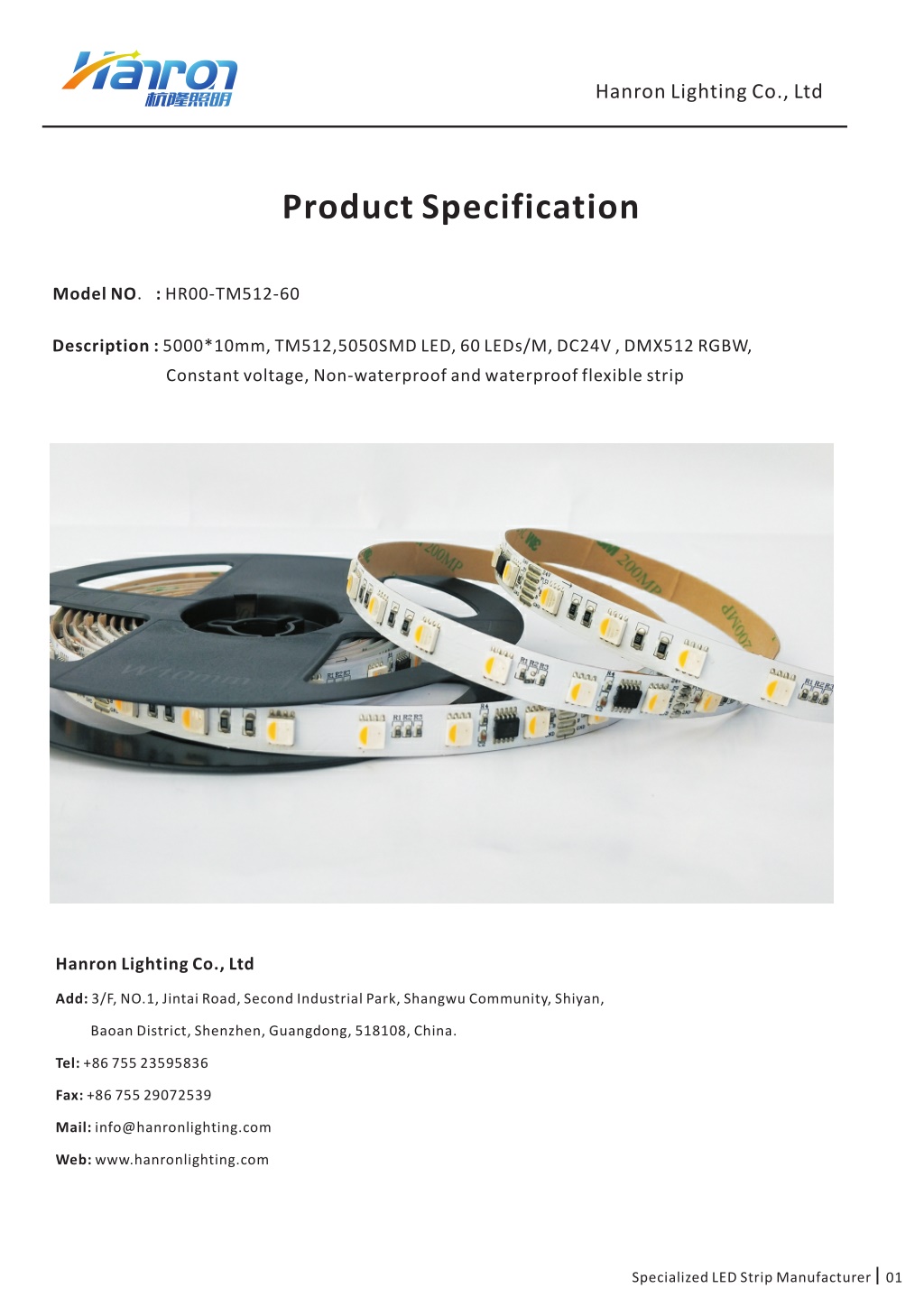

  1. Hanron Lighting Co., Ltd Product Specification Model NO. : HR00-TM512-60 Description : 5000*10mm, TM512,5050SMD LED, 60 LEDs/M, DC24V , DMX512 RGBW, Constant voltage, Non-waterproof and waterproof flexible strip Hanron Lighting Co., Ltd Add: 3/F, NO.1, Jintai Road, Second Industrial Park, Shangwu Community, Shiyan, Baoan District, Shenzhen, Guangdong, 518108, China. Tel: +86 755 23595836 Fax: +86 755 29072539 Mail: info@hanronlighting.com Web: www.hanronlighting.com Specialized LED Strip Manufacturer 01

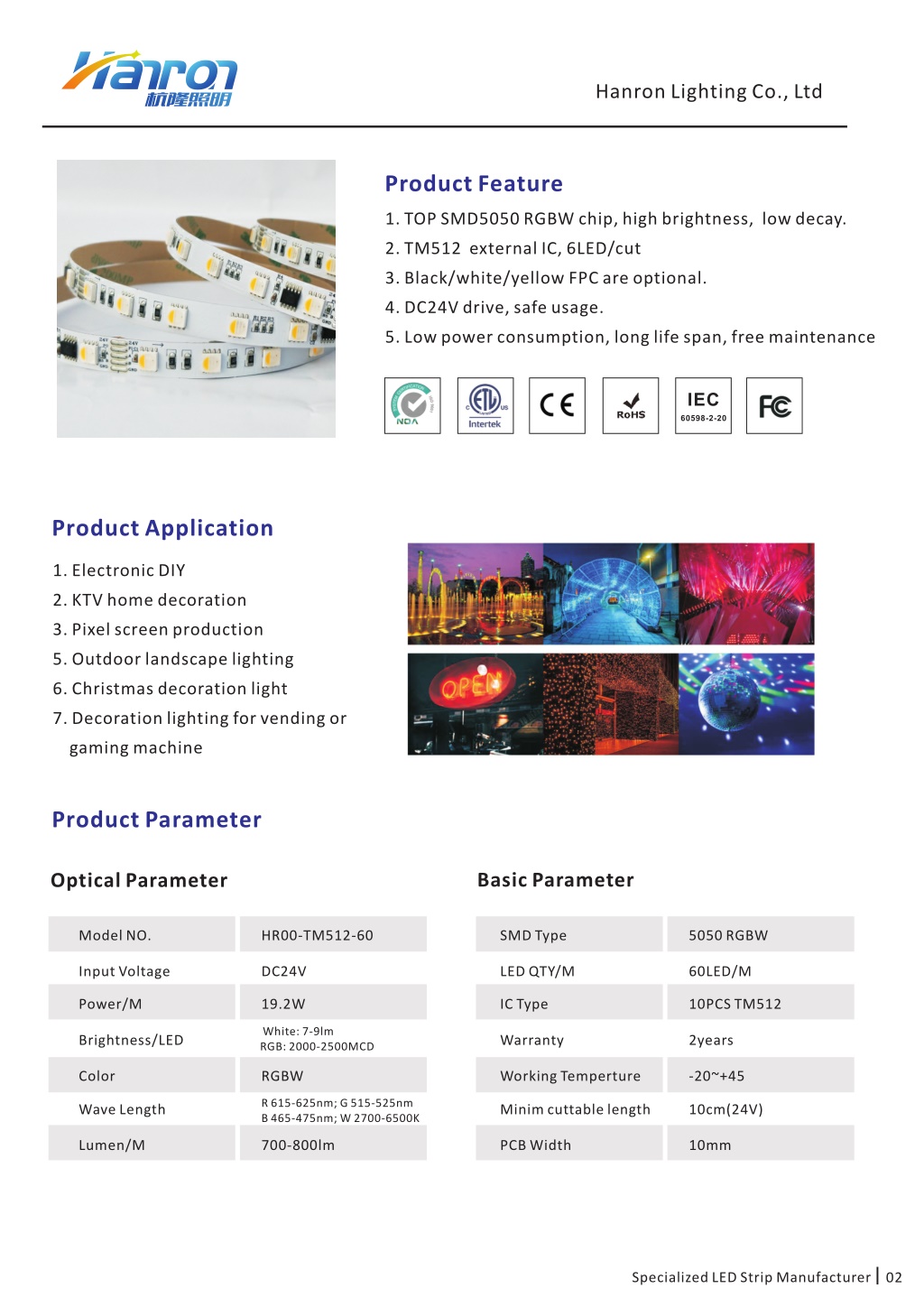

  2. Hanron Lighting Co., Ltd Product Feature 1. TOP SMD5050 RGBW chip, high brightness, low decay. 2. TM512 external IC, 6LED/cut 3. Black/white/yellow FPC are optional. 4. DC24V drive, safe usage. 5. Low power consumption, long life span, free maintenance Product Application 1. 2. KTV home decoration 3. Pixel screen production 5. Outdoor landscape lighting 6. Christmas decoration light 7. Decoration lighting for vending or gaming machine Electronic DIY Product Parameter Basic Parameter Optical Parameter Model NO. HR00-TM512-60 SMD Type 5050 RGBW Input Voltage DC24V LED QTY/M 60LED/M Power/M 19.2W IC Type 10PCS TM512 White: 7-9lm RGB: 2000-2500MCD Brightness/LED Warranty 2years Color RGBW Working Temperture -20~+45 R 615-625nm; G 515-525nm B 465-475nm; W 2700-6500K Wave Length Minim cuttable length 10cm(24V) Lumen/M 700-800lm PCB Width 10mm Specialized LED Strip Manufacturer 02

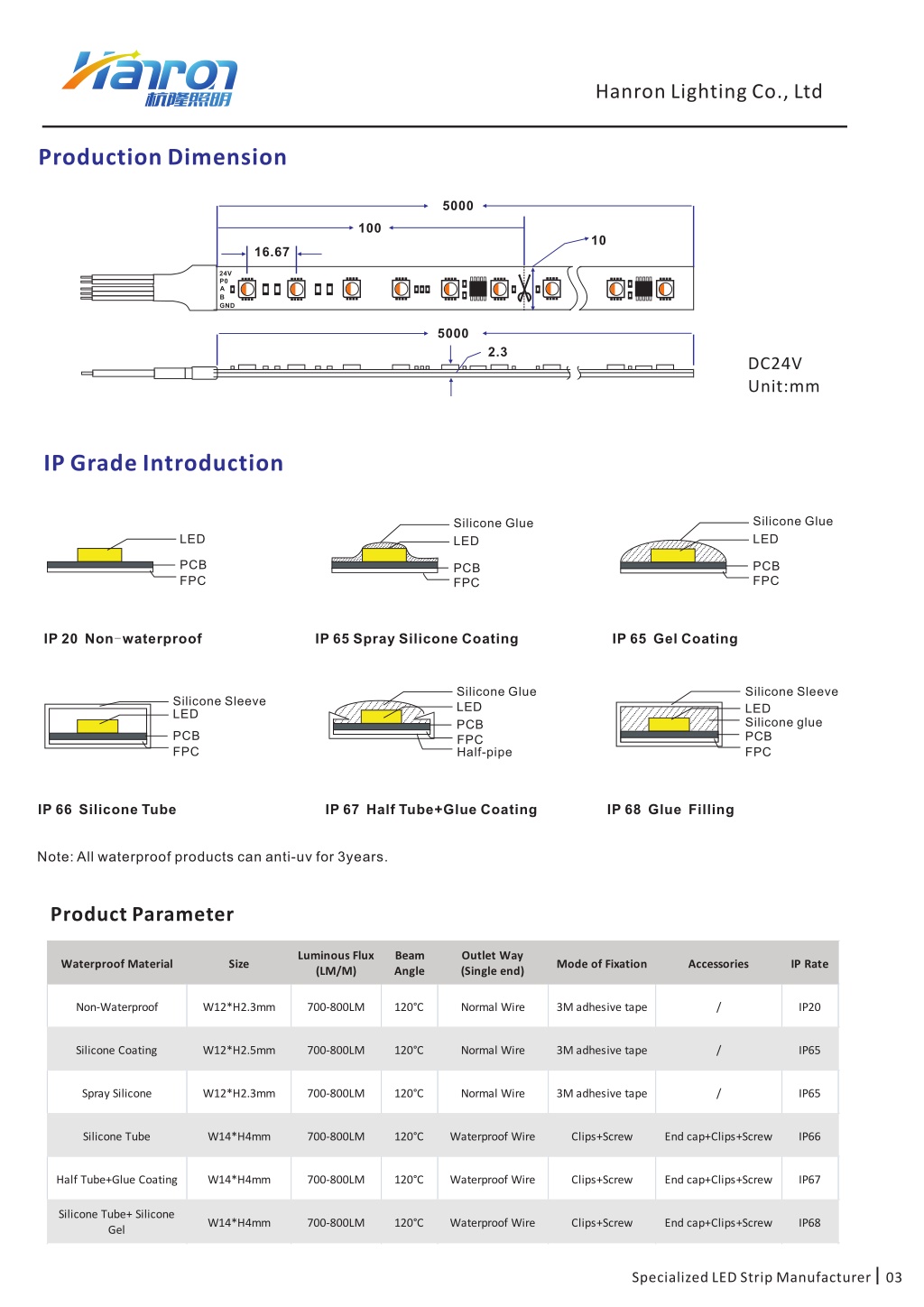

  3. Hanron Lighting Co., Ltd Production Dimension 5000 100 10 16.67 24V P0 A B GND 5000 2.3 DC24V Unit:mm IP Grade Introduction Silicone Glue Silicone Glue LED LED LED PCB FPC PCB FPC PCB FPC IP 20Non-waterproof IP 65 Spray Silicone Coating IP 65Gel Coating Silicone Glue Silicone Sleeve Silicone Sleeve LED LED Silicone glue LED PCB FPC Half-pipe PCB FPC PCB FPC IP 66Silicone Tube IP 67Half Tube+Glue Coating IP 68GlueFilling Note: All waterproof products can anti-uv for 3years. Product Parameter Luminous Flux (LM/M) Beam Angle Outlet Way (Single end) Waterproof Material Size Mode of Fixation Accessories IP Rate Non-Waterproof W12*H2.3mm 700-800LM 120°C Normal Wire 3M adhesive tape / IP20 Silicone Coating W12*H2.5mm 700-800LM 120°C Normal Wire 3M adhesive tape / IP65 Spray Silicone W12*H2.3mm 700-800LM 120°C Normal Wire 3M adhesive tape / IP65 Silicone Tube W14*H4mm 700-800LM 120°C Waterproof Wire Clips+Screw End cap+Clips+Screw IP66 Half Tube+Glue Coating W14*H4mm 700-800LM 120°C Waterproof Wire Clips+Screw End cap+Clips+Screw IP67 Silicone Tube+ Silicone Gel W14*H4mm 700-800LM 120°C Waterproof Wire Clips+Screw End cap+Clips+Screw IP68 Specialized LED Strip Manufacturer 03

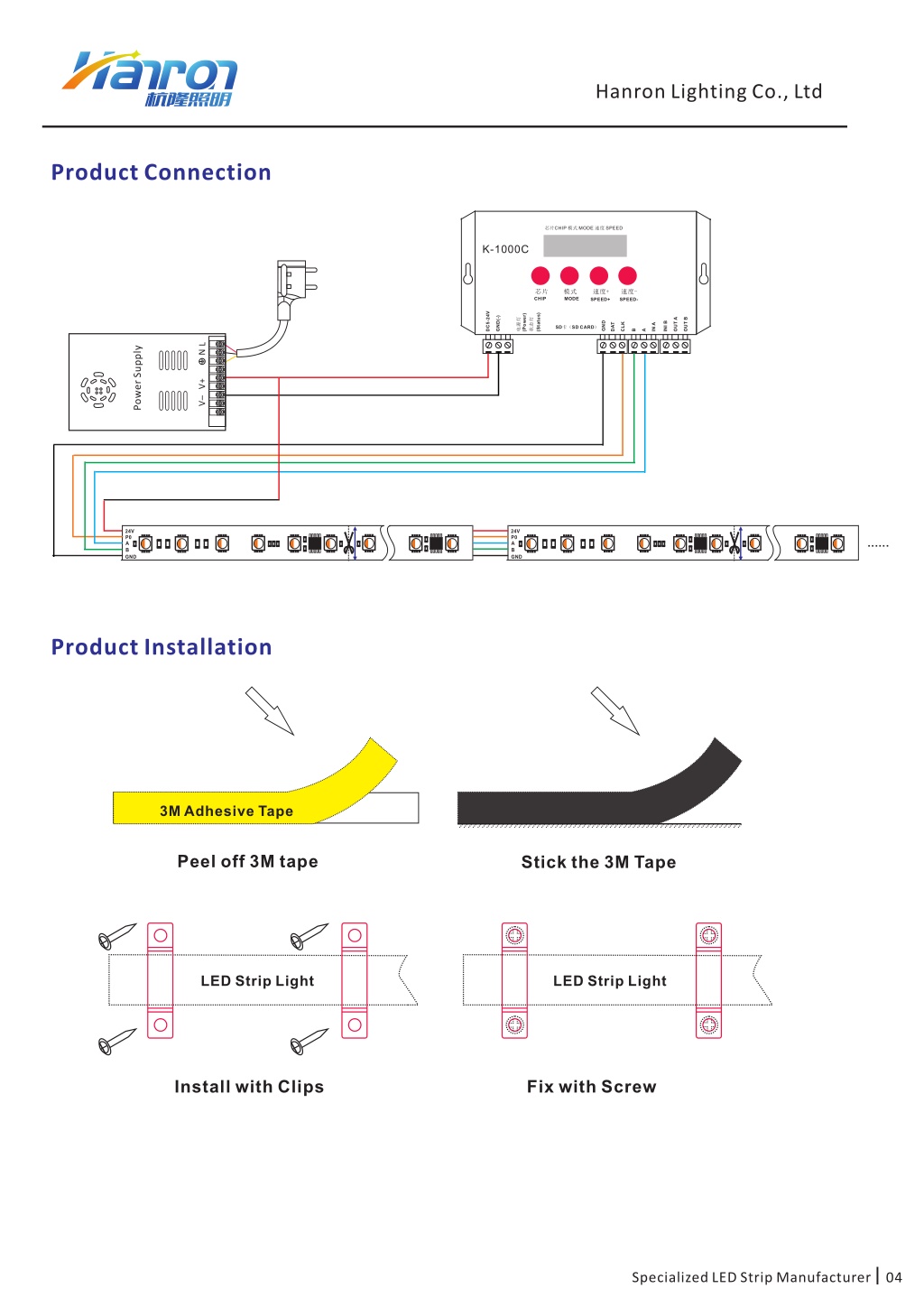

  4. Hanron Lighting Co., Ltd Product Connection 芯片CHIP 模式 MODE 速度 SPEED K-1000C 芯片 CHIP 模式 MODE 速度+ SPEED+ 速度- SPEED- DC5-24V (Status) (Power) GND(-) OUT B 状态灯 电源灯 OUT A GND INI B CLK DAT IN A SD卡（SD CARD） B A N L Power Supply V+ V– 24V P0 A B GND 24V P0 A B GND ...... Product Installation 3M Adhesive Tape Peel off 3M tape Stick the 3M Tape LED Strip Light LED Strip Light Install with Clips Fix with Screw Specialized LED Strip Manufacturer 04

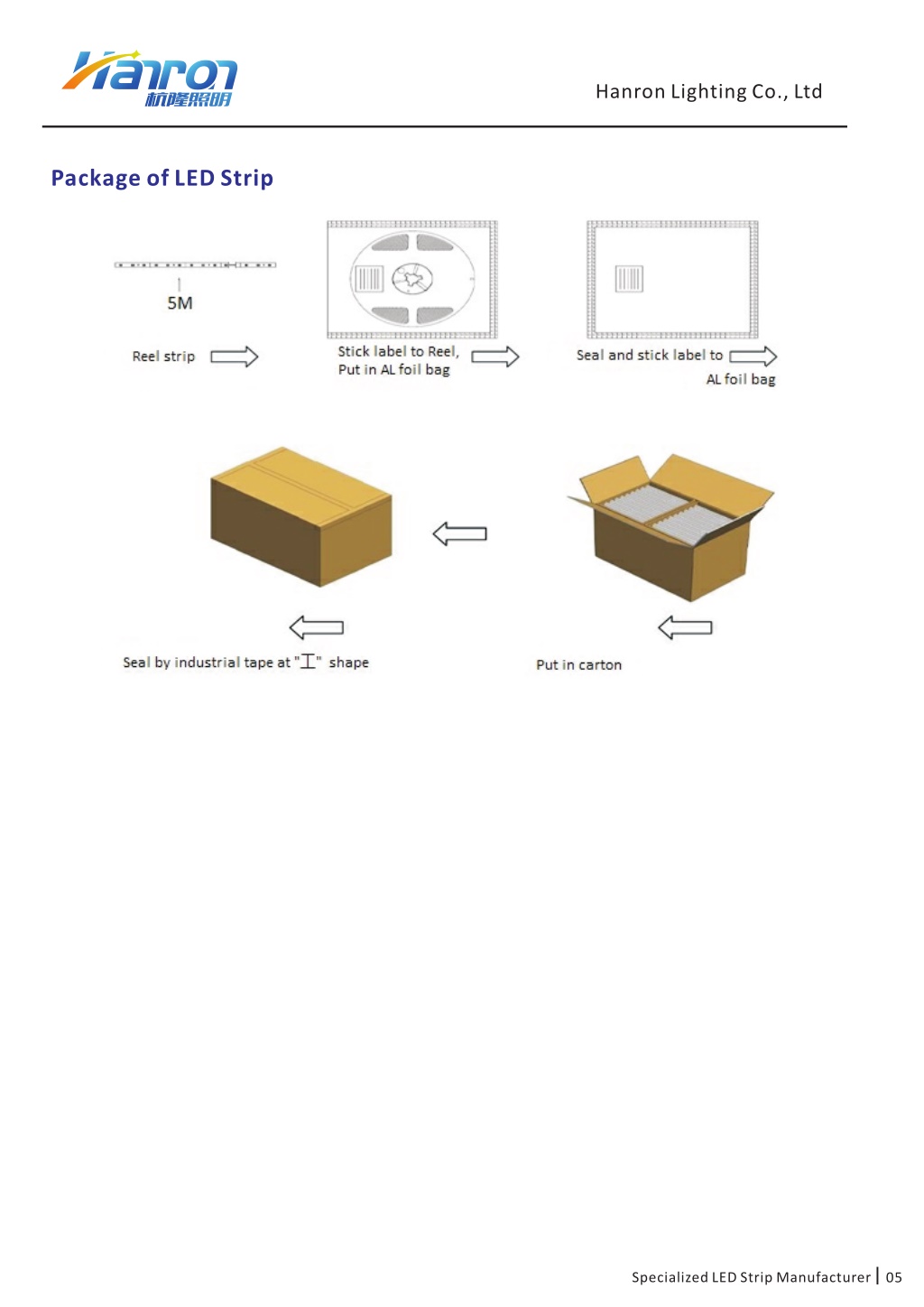

  5. Hanron Lighting Co., Ltd Package of LED Strip Specialized LED Strip Manufacturer 05
