Leveraging 3D Printing for Enhanced Injection Molding with Conformal Cooling

Cooling is a crucial factor in injection molding as it affects both manufacturing efficiency and product quality. At HLH Prototypes, we recognize the importance of precise temperature control, which is why we incorporate conformal cooling channels into custom molds to achieve optimal results.

HLHPrototypes
Download Presentation

Leveraging 3D Printing for Enhanced Injection Molding with Conformal Cooling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

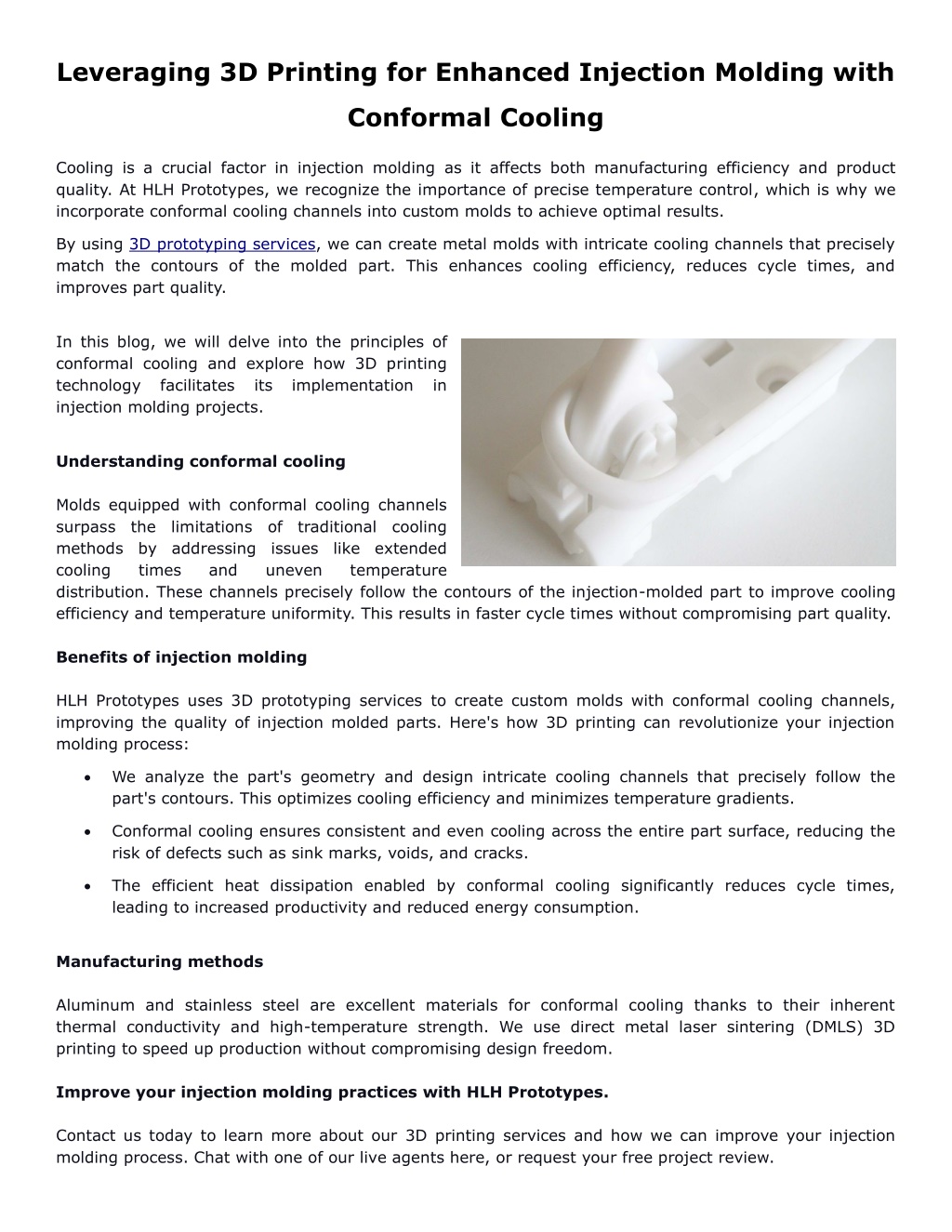

  1. Leveraging 3D Printing for Enhanced Injection Molding with Conformal Cooling Cooling is a crucial factor in injection molding as it affects both manufacturing efficiency and product quality. At HLH Prototypes, we recognize the importance of precise temperature control, which is why we incorporate conformal cooling channels into custom molds to achieve optimal results. By using 3D prototyping services, we can create metal molds with intricate cooling channels that precisely match the contours of the molded part. This enhances cooling efficiency, reduces cycle times, and improves part quality. In this blog, we will delve into the principles of conformal cooling and explore how 3D printing technology facilitates its implementation in injection molding projects. Understanding conformal cooling Molds equipped with conformal cooling channels surpass the limitations of traditional cooling methods by addressing issues like extended cooling times and distribution. These channels precisely follow the contours of the injection-molded part to improve cooling efficiency and temperature uniformity. This results in faster cycle times without compromising part quality. Benefits of injection molding HLH Prototypes uses 3D prototyping services to create custom molds with conformal cooling channels, improving the quality of injection molded parts. Here's how 3D printing can revolutionize your injection molding process: uneven temperature • We analyze the part's geometry and design intricate cooling channels that precisely follow the part's contours. This optimizes cooling efficiency and minimizes temperature gradients. • Conformal cooling ensures consistent and even cooling across the entire part surface, reducing the risk of defects such as sink marks, voids, and cracks. • The efficient heat dissipation enabled by conformal cooling significantly reduces cycle times, leading to increased productivity and reduced energy consumption. Manufacturing methods Aluminum and stainless steel are excellent materials for conformal cooling thanks to their inherent thermal conductivity and high-temperature strength. We use direct metal laser sintering (DMLS) 3D printing to speed up production without compromising design freedom. Improve your injection molding practices with HLH Prototypes. Contact us today to learn more about our 3D printing services and how we can improve your injection molding process. Chat with one of our live agents here, or request your free project review.
