The Role of Tuning Forks in Medical Diagnostics

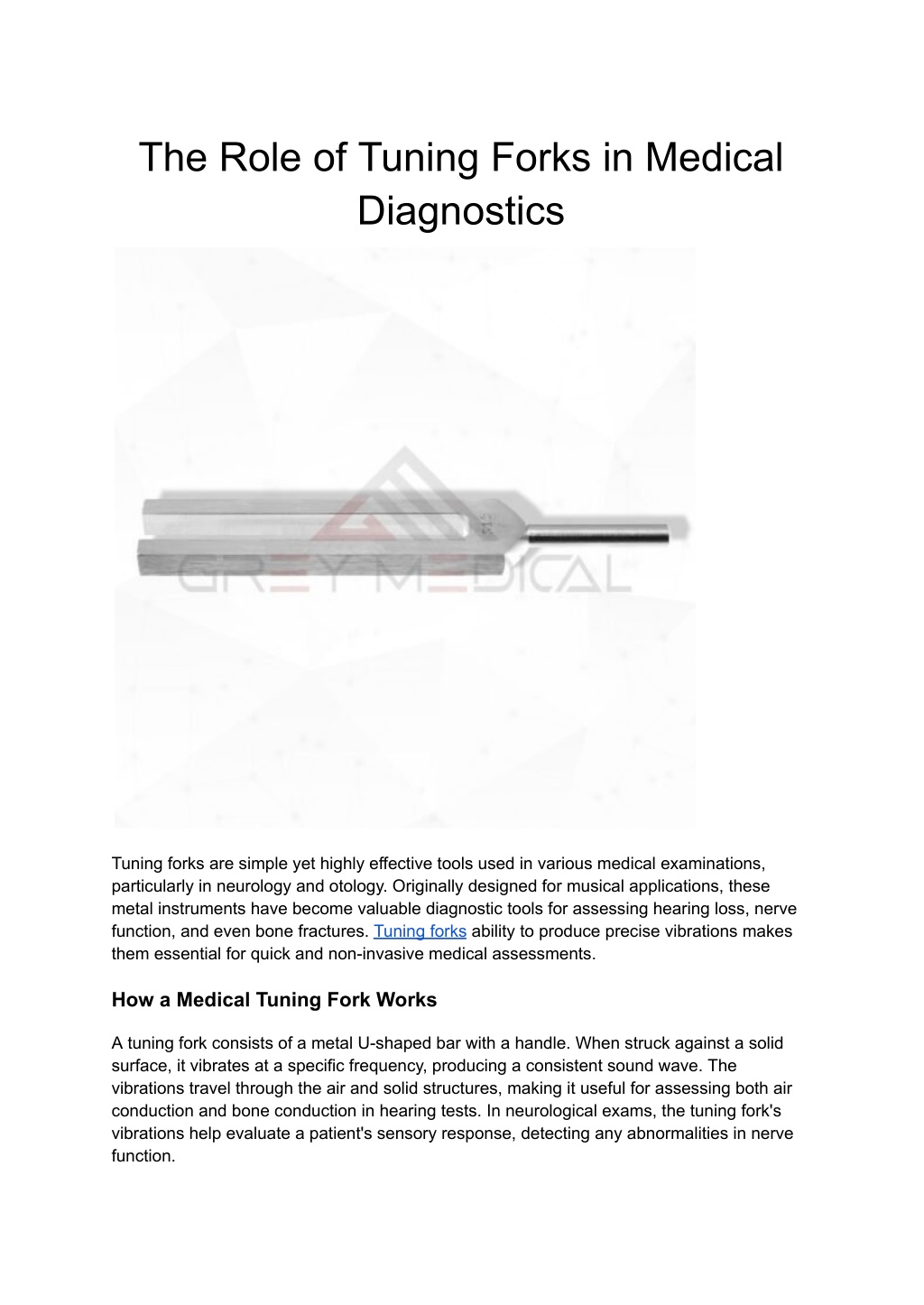

1. The Role of Tuning Forks in Medical Diagnostics Tuning forks are simple yet highly effective tools used in various medical examinations, particularly in neurology and otology. Originally designed for musical applications, these metal instruments have become valuable diagnostic tools for assessing hearing loss, nerve function, and even bone fractures. Tuning forks ability to produce precise vibrations makes them essential for quick and non-invasive medical assessments. How a Medical Tuning Fork Works A tuning fork consists of a metal U-shaped bar with a handle. When struck against a solid surface, it vibrates at a specific frequency, producing a consistent sound wave. The vibrations travel through the air and solid structures, making it useful for assessing both air conduction and bone conduction in hearing tests. In neurological exams, the tuning fork's vibrations help evaluate a patient's sensory response, detecting any abnormalities in nerve function.

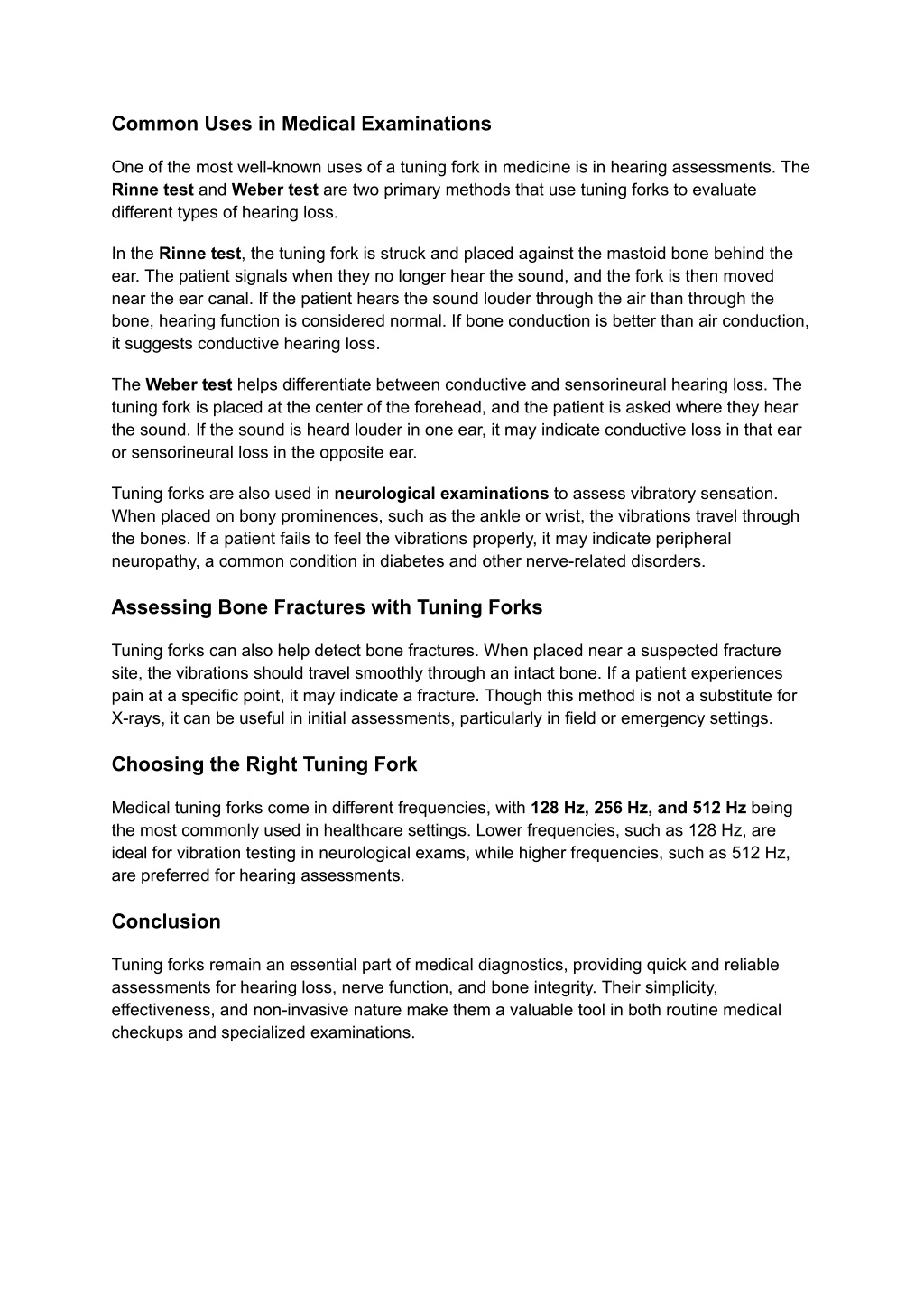

2. Common Uses in Medical Examinations One of the most well-known uses of a tuning fork in medicine is in hearing assessments. The Rinne test and Weber test are two primary methods that use tuning forks to evaluate different types of hearing loss. In the Rinne test, the tuning fork is struck and placed against the mastoid bone behind the ear. The patient signals when they no longer hear the sound, and the fork is then moved near the ear canal. If the patient hears the sound louder through the air than through the bone, hearing function is considered normal. If bone conduction is better than air conduction, it suggests conductive hearing loss. The Weber test helps differentiate between conductive and sensorineural hearing loss. The tuning fork is placed at the center of the forehead, and the patient is asked where they hear the sound. If the sound is heard louder in one ear, it may indicate conductive loss in that ear or sensorineural loss in the opposite ear. Tuning forks are also used in neurological examinations to assess vibratory sensation. When placed on bony prominences, such as the ankle or wrist, the vibrations travel through the bones. If a patient fails to feel the vibrations properly, it may indicate peripheral neuropathy, a common condition in diabetes and other nerve-related disorders. Assessing Bone Fractures with Tuning Forks Tuning forks can also help detect bone fractures. When placed near a suspected fracture site, the vibrations should travel smoothly through an intact bone. If a patient experiences pain at a specific point, it may indicate a fracture. Though this method is not a substitute for X-rays, it can be useful in initial assessments, particularly in field or emergency settings. Choosing the Right Tuning Fork Medical tuning forks come in different frequencies, with 128 Hz, 256 Hz, and 512 Hz being the most commonly used in healthcare settings. Lower frequencies, such as 128 Hz, are ideal for vibration testing in neurological exams, while higher frequencies, such as 512 Hz, are preferred for hearing assessments. Conclusion Tuning forks remain an essential part of medical diagnostics, providing quick and reliable assessments for hearing loss, nerve function, and bone integrity. Their simplicity, effectiveness, and non-invasive nature make them a valuable tool in both routine medical checkups and specialized examinations.
