1. How Does Temperature and Pressure Affect Hot Tapping for Tie-Ins?

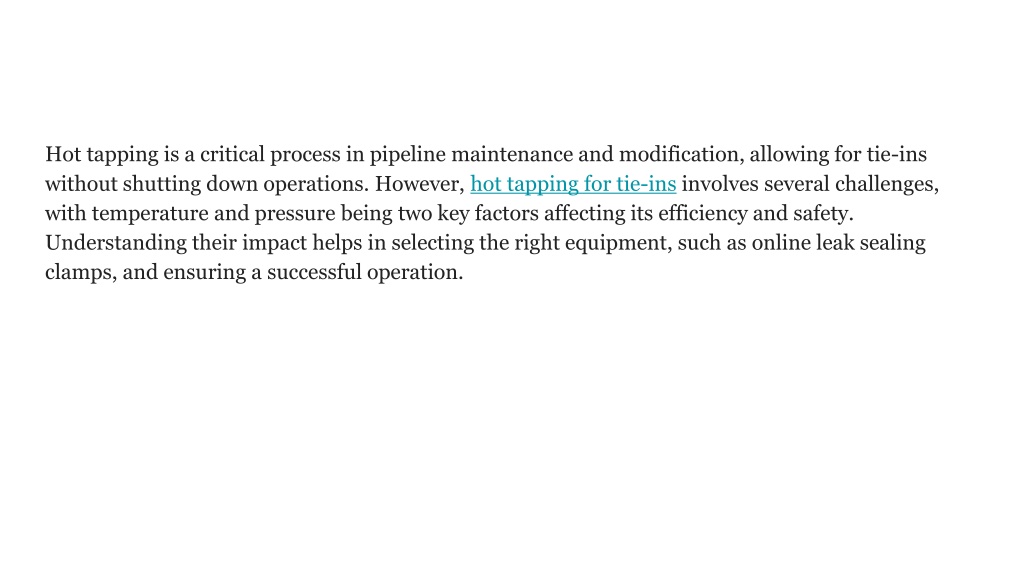

2. Hot tapping is a critical process in pipeline maintenance and modification, allowing for tie-ins without shutting down operations. However, hot tapping for tie-ins involves several challenges, with temperature and pressure being two key factors affecting its efficiency and safety. Understanding their impact helps in selecting the right equipment, such as online leak sealing clamps, and ensuring a successful operation.

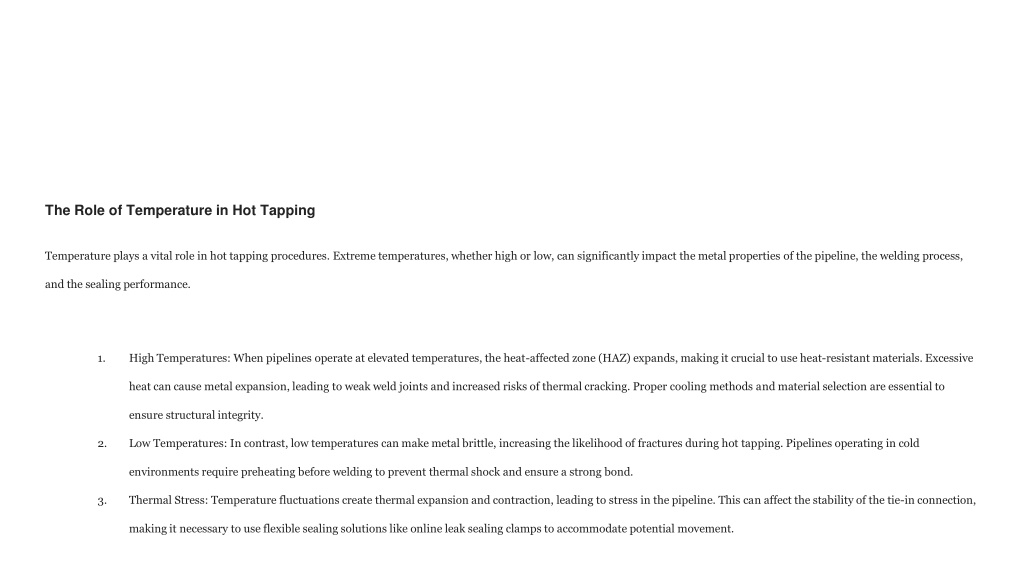

3. The Role of Temperature in Hot Tapping Temperature plays a vital role in hot tapping procedures. Extreme temperatures, whether high or low, can significantly impact the metal properties of the pipeline, the welding process, and the sealing performance. • High Temperatures: When pipelines operate at elevated temperatures, the heat-affected zone (HAZ) expands, making it crucial to use heat-resistant materials. Excessive heat can cause metal expansion, leading to weak weld joints and increased risks of thermal cracking. Proper cooling methods and material selection are essential to ensure structural integrity. • Low Temperatures: In contrast, low temperatures can make metal brittle, increasing the likelihood of fractures during hot tapping. Pipelines operating in cold environments require preheating before welding to prevent thermal shock and ensure a strong bond. • Thermal Stress: Temperature fluctuations create thermal expansion and contraction, leading to stress in the pipeline. This can affect the stability of the tie-in connection, making it necessary to use flexible sealing solutions like online leak sealing clamps to accommodate potential movement.

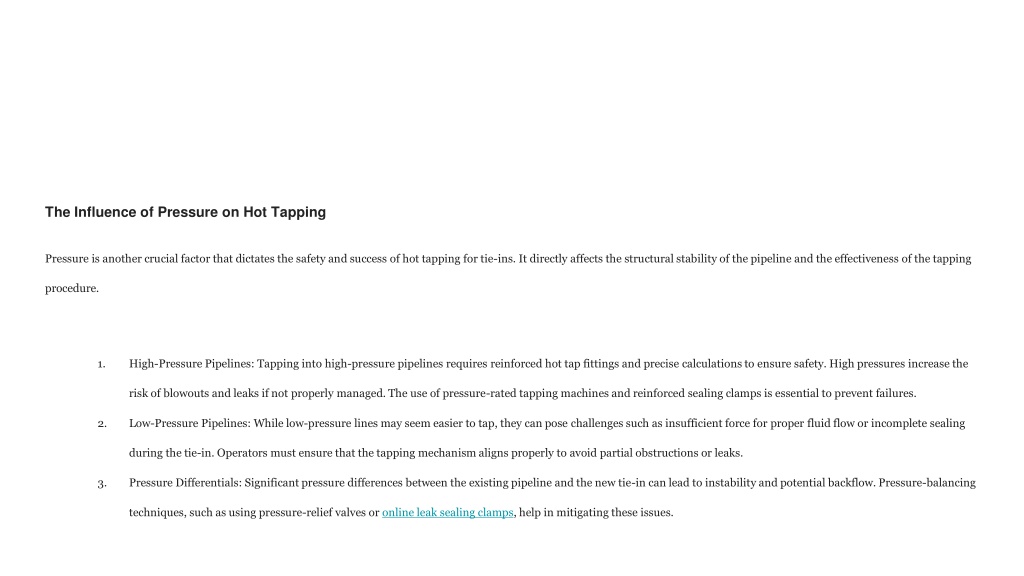

4. The Influence of Pressure on Hot Tapping Pressure is another crucial factor that dictates the safety and success of hot tapping for tie-ins. It directly affects the structural stability of the pipeline and the effectiveness of the tapping procedure. • High-Pressure Pipelines: Tapping into high-pressure pipelines requires reinforced hot tap fittings and precise calculations to ensure safety. High pressures increase the risk of blowouts and leaks if not properly managed. The use of pressure-rated tapping machines and reinforced sealing clamps is essential to prevent failures. • Low-Pressure Pipelines: While low-pressure lines may seem easier to tap, they can pose challenges such as insufficient force for proper fluid flow or incomplete sealing during the tie-in. Operators must ensure that the tapping mechanism aligns properly to avoid partial obstructions or leaks. • Pressure Differentials: Significant pressure differences between the existing pipeline and the new tie-in can lead to instability and potential backflow. Pressure-balancing techniques, such as using pressure-relief valves or online leak sealing clamps, help in mitigating these issues.

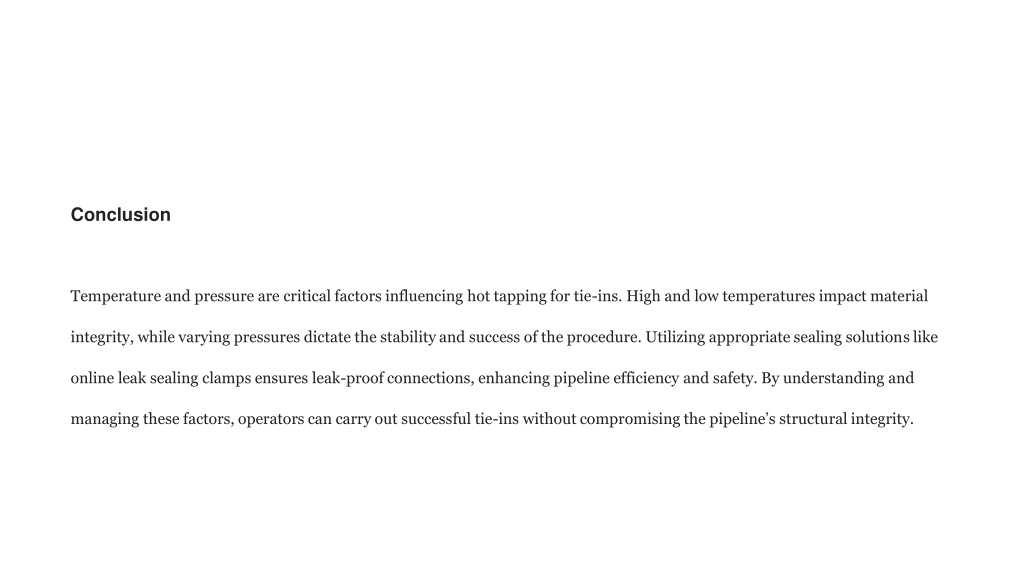

5. Conclusion Temperature and pressure are critical factors influencing hot tapping for tie-ins. High and low temperatures impact material integrity, while varying pressures dictate the stability and success of the procedure. Utilizing appropriate sealing solutions like online leak sealing clamps ensures leak-proof connections, enhancing pipeline efficiency and safety. By understanding and managing these factors, operators can carry out successful tie-ins without compromising the pipeline’s structural integrity.
