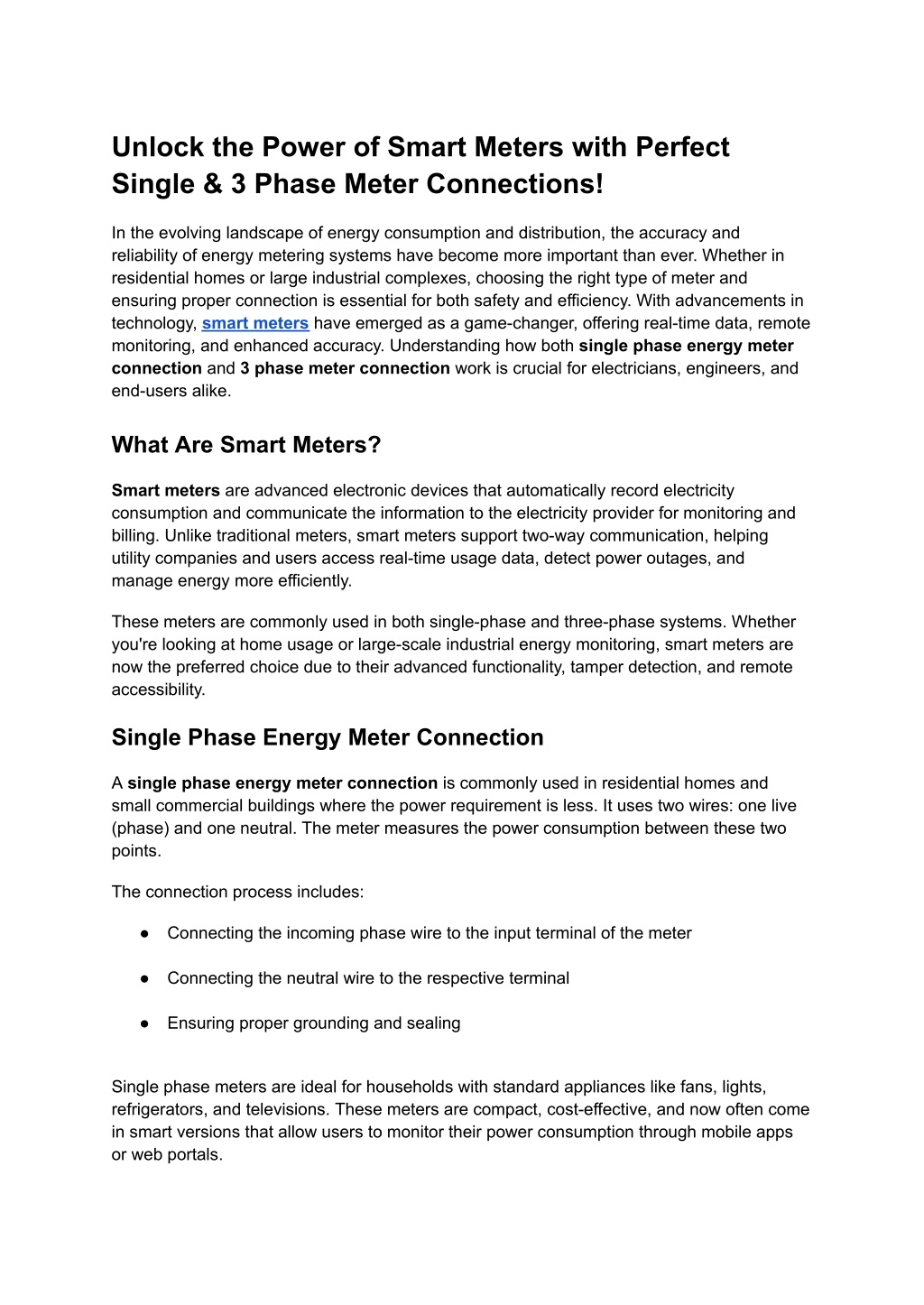

  1. Unlock the Power of Smart Meters with Perfect Single & 3 Phase Meter Connections! In the evolving landscape of energy consumption and distribution, the accuracy and reliability of energy metering systems have become more important than ever. Whether in residential homes or large industrial complexes, choosing the right type of meter and ensuring proper connection is essential for both safety and efficiency. With advancements in technology, smart meters have emerged as a game-changer, offering real-time data, remote monitoring, and enhanced accuracy. Understanding how both single phase energy meter connection and 3 phase meter connection work is crucial for electricians, engineers, and end-users alike. What Are Smart Meters? Smart meters are advanced electronic devices that automatically record electricity consumption and communicate the information to the electricity provider for monitoring and billing. Unlike traditional meters, smart meters support two-way communication, helping utility companies and users access real-time usage data, detect power outages, and manage energy more efficiently. These meters are commonly used in both single-phase and three-phase systems. Whether you're looking at home usage or large-scale industrial energy monitoring, smart meters are now the preferred choice due to their advanced functionality, tamper detection, and remote accessibility. Single Phase Energy Meter Connection A single phase energy meter connection is commonly used in residential homes and small commercial buildings where the power requirement is less. It uses two wires: one live (phase) and one neutral. The meter measures the power consumption between these two points. The connection process includes: ● Connecting the incoming phase wire to the input terminal of the meter ● Connecting the neutral wire to the respective terminal ● Ensuring proper grounding and sealing Single phase meters are ideal for households with standard appliances like fans, lights, refrigerators, and televisions. These meters are compact, cost-effective, and now often come in smart versions that allow users to monitor their power consumption through mobile apps or web portals.

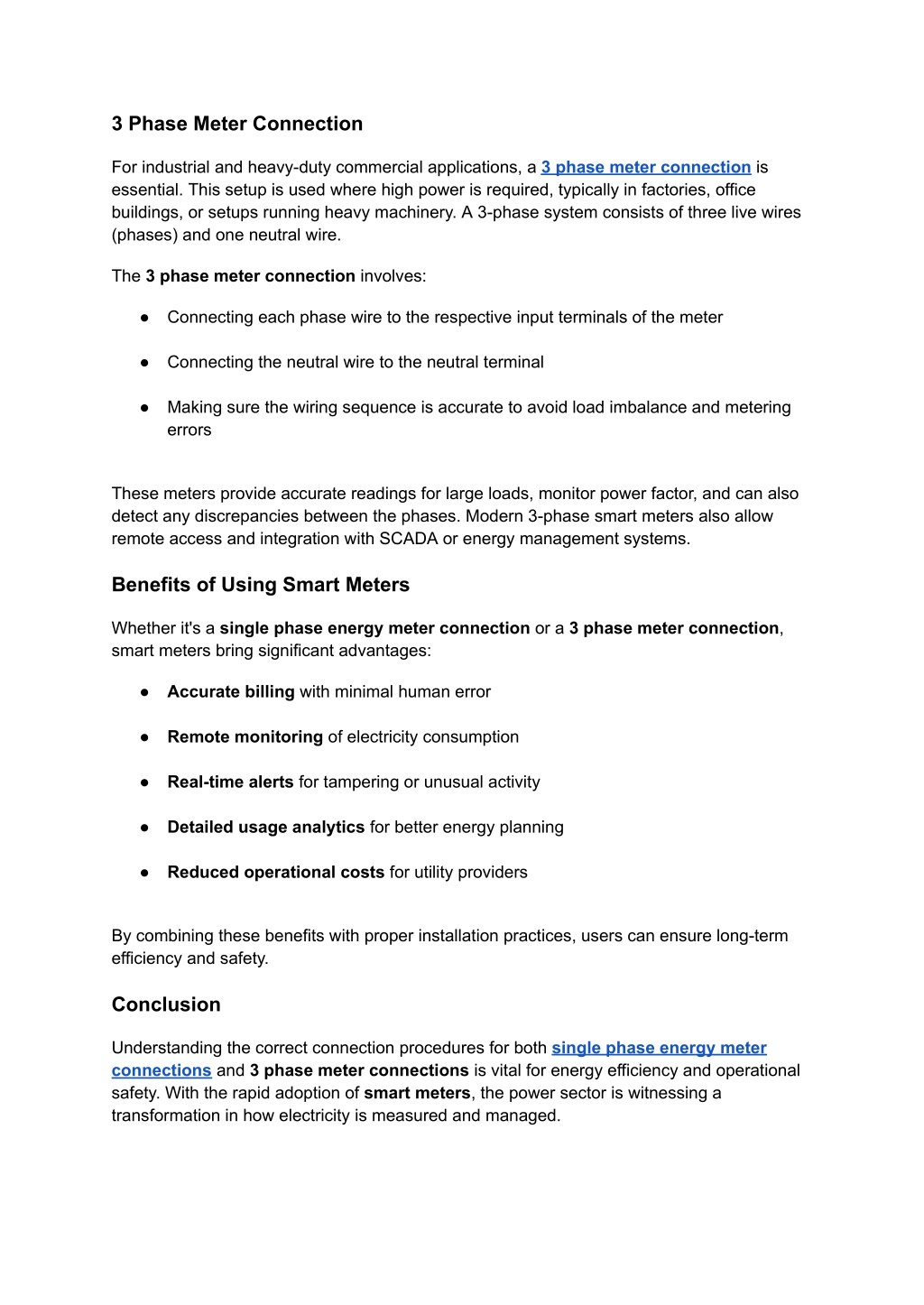

  2. 3 Phase Meter Connection For industrial and heavy-duty commercial applications, a 3 phase meter connection is essential. This setup is used where high power is required, typically in factories, office buildings, or setups running heavy machinery. A 3-phase system consists of three live wires (phases) and one neutral wire. The 3 phase meter connection involves: ● Connecting each phase wire to the respective input terminals of the meter ● Connecting the neutral wire to the neutral terminal ● Making sure the wiring sequence is accurate to avoid load imbalance and metering errors These meters provide accurate readings for large loads, monitor power factor, and can also detect any discrepancies between the phases. Modern 3-phase smart meters also allow remote access and integration with SCADA or energy management systems. Benefits of Using Smart Meters Whether it's a single phase energy meter connection or a 3 phase meter connection, smart meters bring significant advantages: ● Accurate billing with minimal human error ● Remote monitoring of electricity consumption ● Real-time alerts for tampering or unusual activity ● Detailed usage analytics for better energy planning ● Reduced operational costs for utility providers By combining these benefits with proper installation practices, users can ensure long-term efficiency and safety. Conclusion Understanding the correct connection procedures for both single phase energy meter connections and 3 phase meter connections is vital for energy efficiency and operational safety. With the rapid adoption of smart meters, the power sector is witnessing a transformation in how electricity is measured and managed.

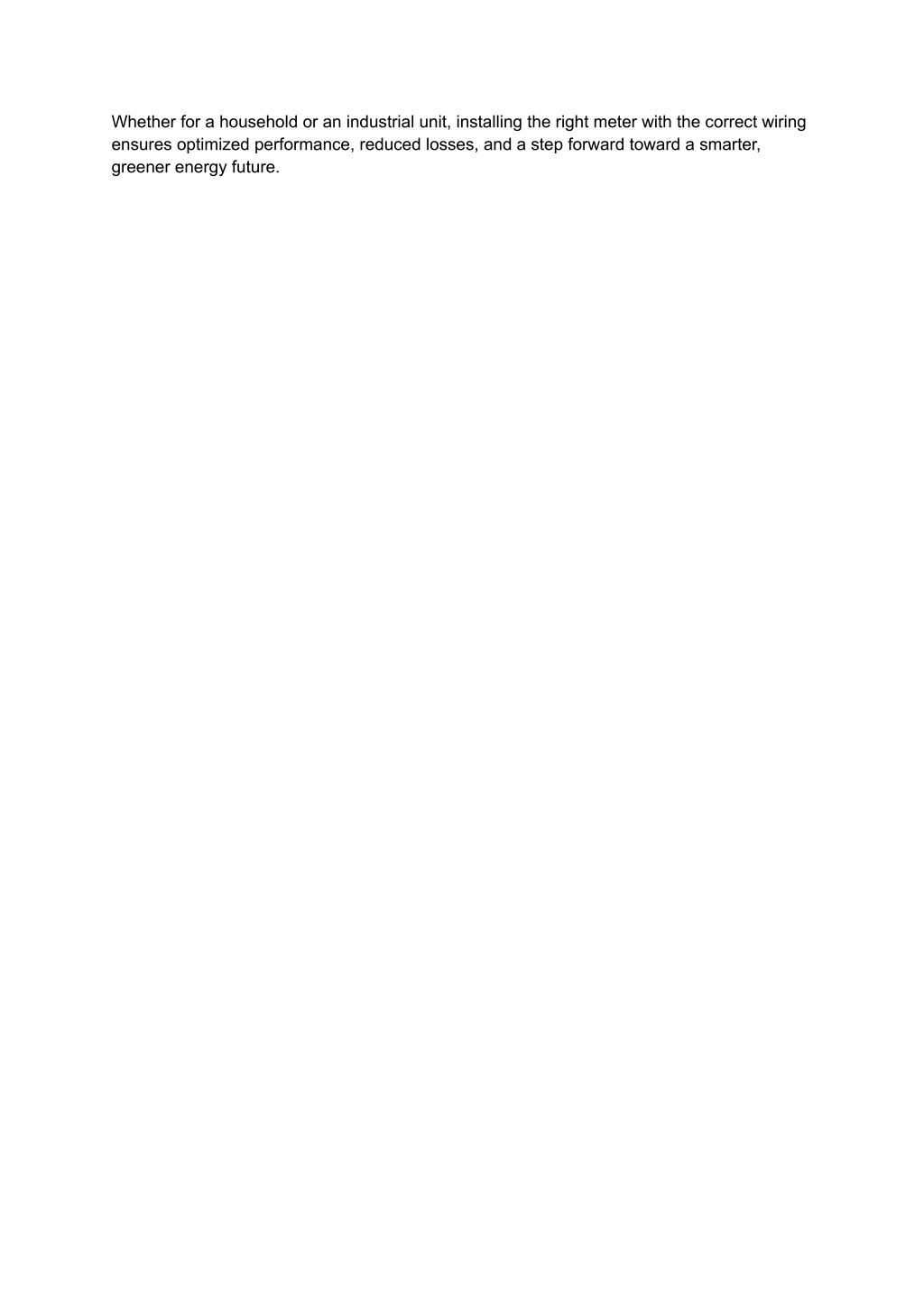

  3. Whether for a household or an industrial unit, installing the right meter with the correct wiring ensures optimized performance, reduced losses, and a step forward toward a smarter, greener energy future.
