Exploring CIPP vs. SIPP Which Method is Right for Your Pipes

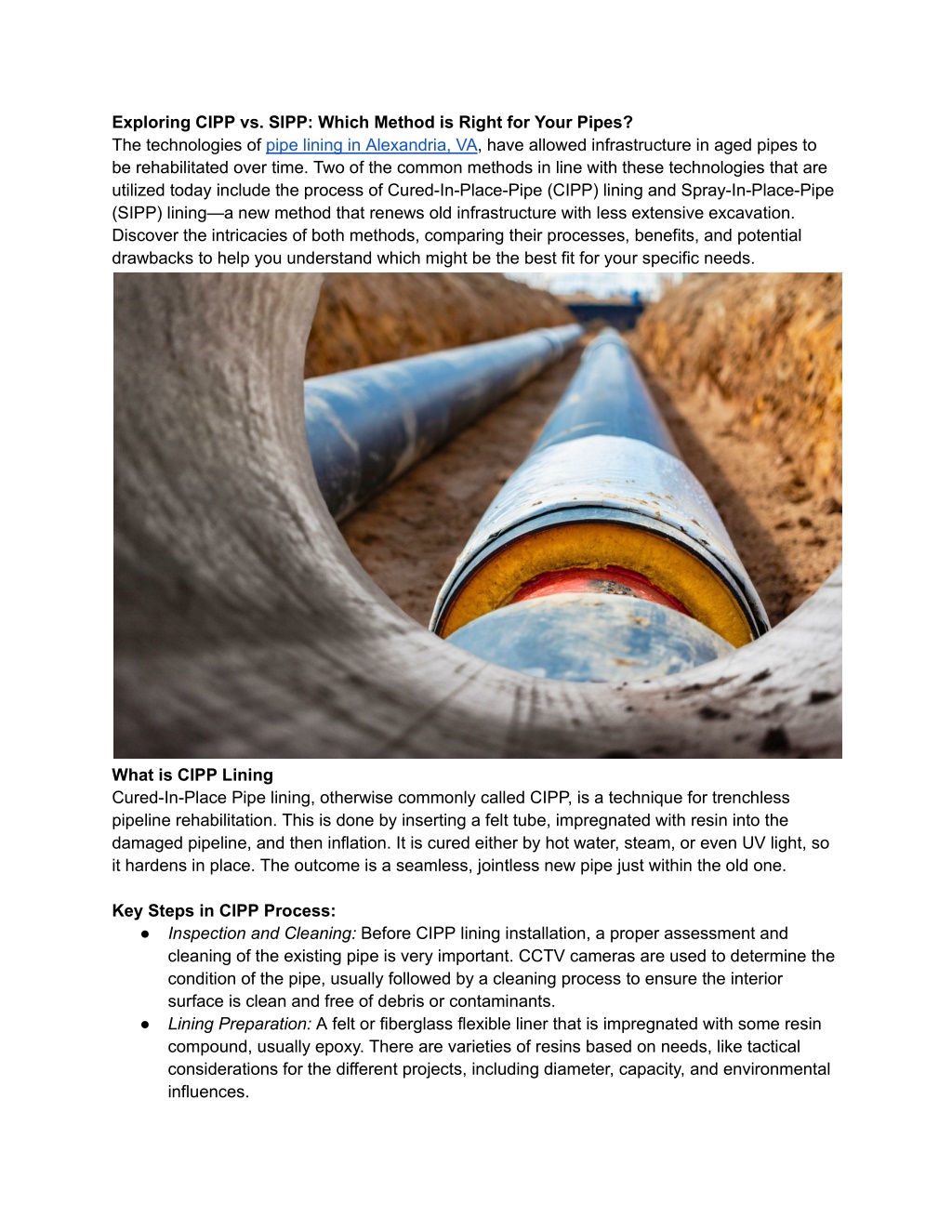

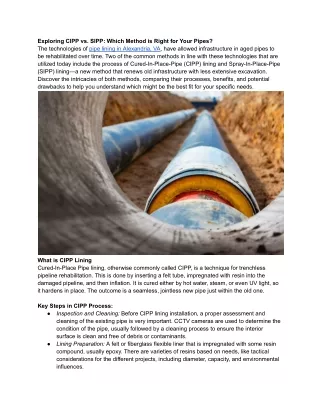

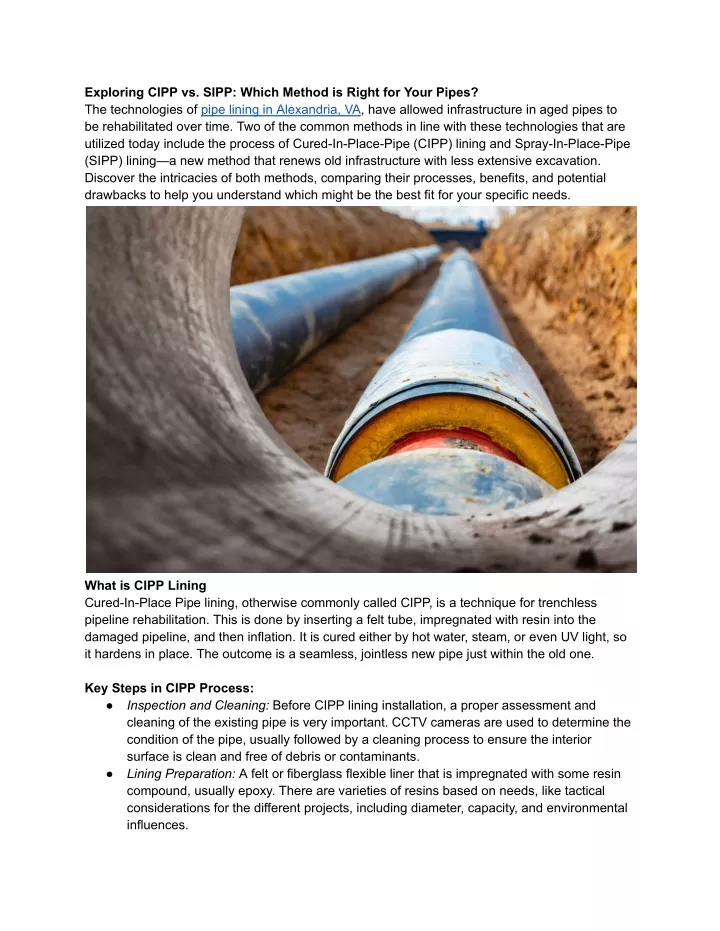

1. Exploring CIPP vs. SIPP: Which Method is Right for Your Pipes? The technologies of pipe lining in Alexandria, VA, have allowed infrastructure in aged pipes to be rehabilitated over time. Two of the common methods in line with these technologies that are utilized today include the process of Cured-In-Place-Pipe (CIPP) lining and Spray-In-Place-Pipe (SIPP) lining—a new method that renews old infrastructure with less extensive excavation. Discover the intricacies of both methods, comparing their processes, benefits, and potential drawbacks to help you understand which might be the best fit for your specific needs. What is CIPP Lining Cured-In-Place Pipe lining, otherwise commonly called CIPP, is a technique for trenchless pipeline rehabilitation. This is done by inserting a felt tube, impregnated with resin into the damaged pipeline, and then inflation. It is cured either by hot water, steam, or even UV light, so it hardens in place. The outcome is a seamless, jointless new pipe just within the old one. Key Steps in CIPP Process: ● Inspection and Cleaning: Before CIPP lining installation, a proper assessment and cleaning of the existing pipe is very important. CCTV cameras are used to determine the condition of the pipe, usually followed by a cleaning process to ensure the interior surface is clean and free of debris or contaminants. ● Lining Preparation: A felt or fiberglass flexible liner that is impregnated with some resin compound, usually epoxy. There are varieties of resins based on needs, like tactical considerations for the different projects, including diameter, capacity, and environmental influences.

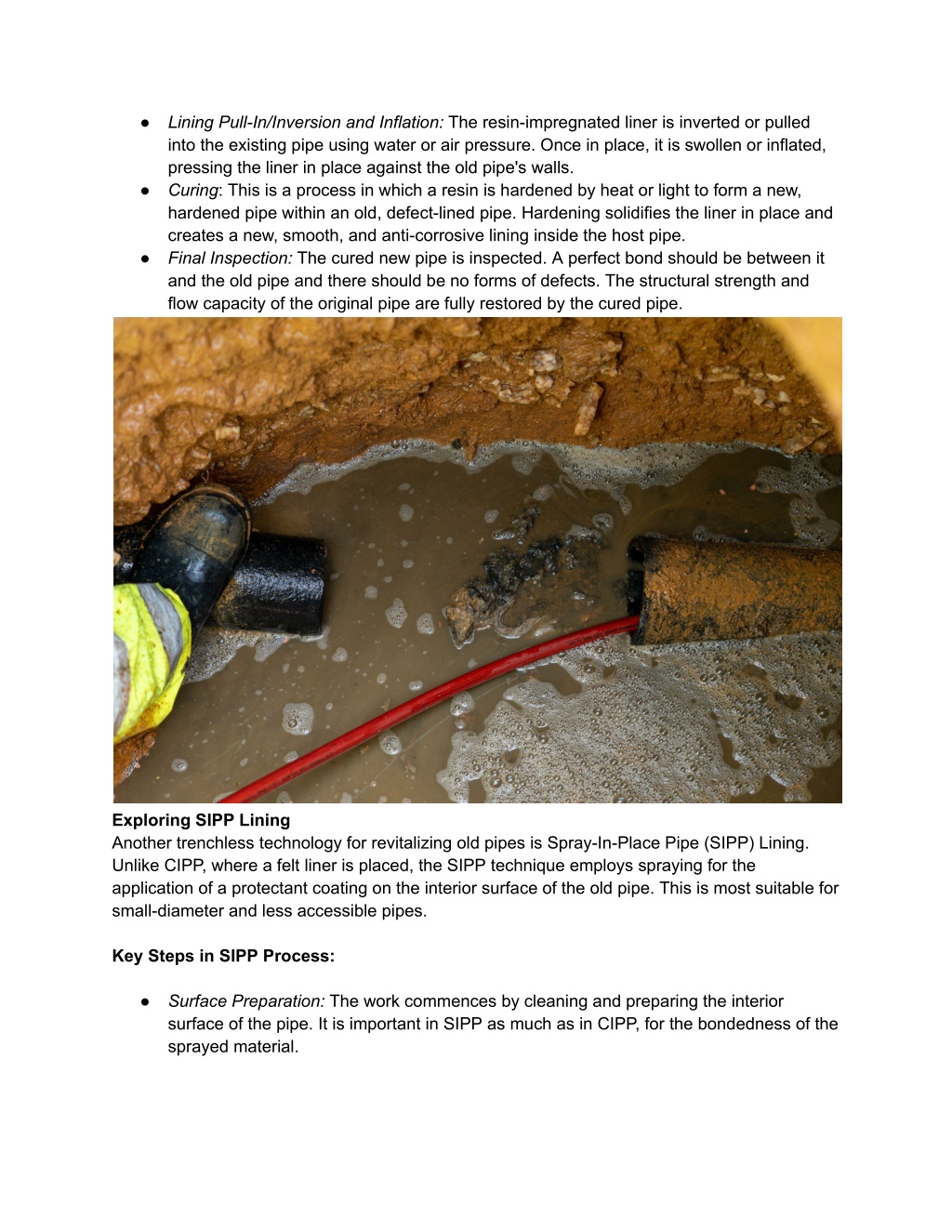

2. ● Lining Pull-In/Inversion and Inflation: The resin-impregnated liner is inverted or pulled into the existing pipe using water or air pressure. Once in place, it is swollen or inflated, pressing the liner in place against the old pipe's walls. Curing: This is a process in which a resin is hardened by heat or light to form a new, hardened pipe within an old, defect-lined pipe. Hardening solidifies the liner in place and creates a new, smooth, and anti-corrosive lining inside the host pipe. Final Inspection: The cured new pipe is inspected. A perfect bond should be between it and the old pipe and there should be no forms of defects. The structural strength and flow capacity of the original pipe are fully restored by the cured pipe. ● ● Exploring SIPP Lining Another trenchless technology for revitalizing old pipes is Spray-In-Place Pipe (SIPP) Lining. Unlike CIPP, where a felt liner is placed, the SIPP technique employs spraying for the application of a protectant coating on the interior surface of the old pipe. This is most suitable for small-diameter and less accessible pipes. Key Steps in SIPP Process: ● Surface Preparation: The work commences by cleaning and preparing the interior surface of the pipe. It is important in SIPP as much as in CIPP, for the bondedness of the sprayed material.

3. ● Spraying the Coating: A specially developed nozzle sprays a polymer coating, generally epoxy or polyurethane-based, onto the inner surface of the pipe. The coating put is in layers to have the required thickness. Curing and Hardening: The coated pipe, depending upon the material used, dries quickly to establish a continuous, smooth, nonreactive, and virtually impermeable barrier that is resistant to corrosion. Curing time extends from minutes in some cases to much longer times with different materials. Inspection: The pipe is then inspected to check for complete coverage without any defects. The new lining formed results in a continuous barrier that effectively insulates the pipe from any more corrosion or leakage. ● ● Comparison between CIPP and SIPP Lining The processes of both CIPP and the SIPP lining carry a good number of advantages regarding pipe rehabilitation, but major particulars defer the two: Application and Suitability ● CIPP Lining: Ideal for extensive ranges of diameters and lengths for a pipe, an aspect of structural repair can ideally be put to use with the aid of SIPP pipeline lining, which can take care of moderate ranges of bends in the line pipes. All sorts of pipes, including that of clay, concrete, and paint iron, can ideally be rehabilitated using this method.

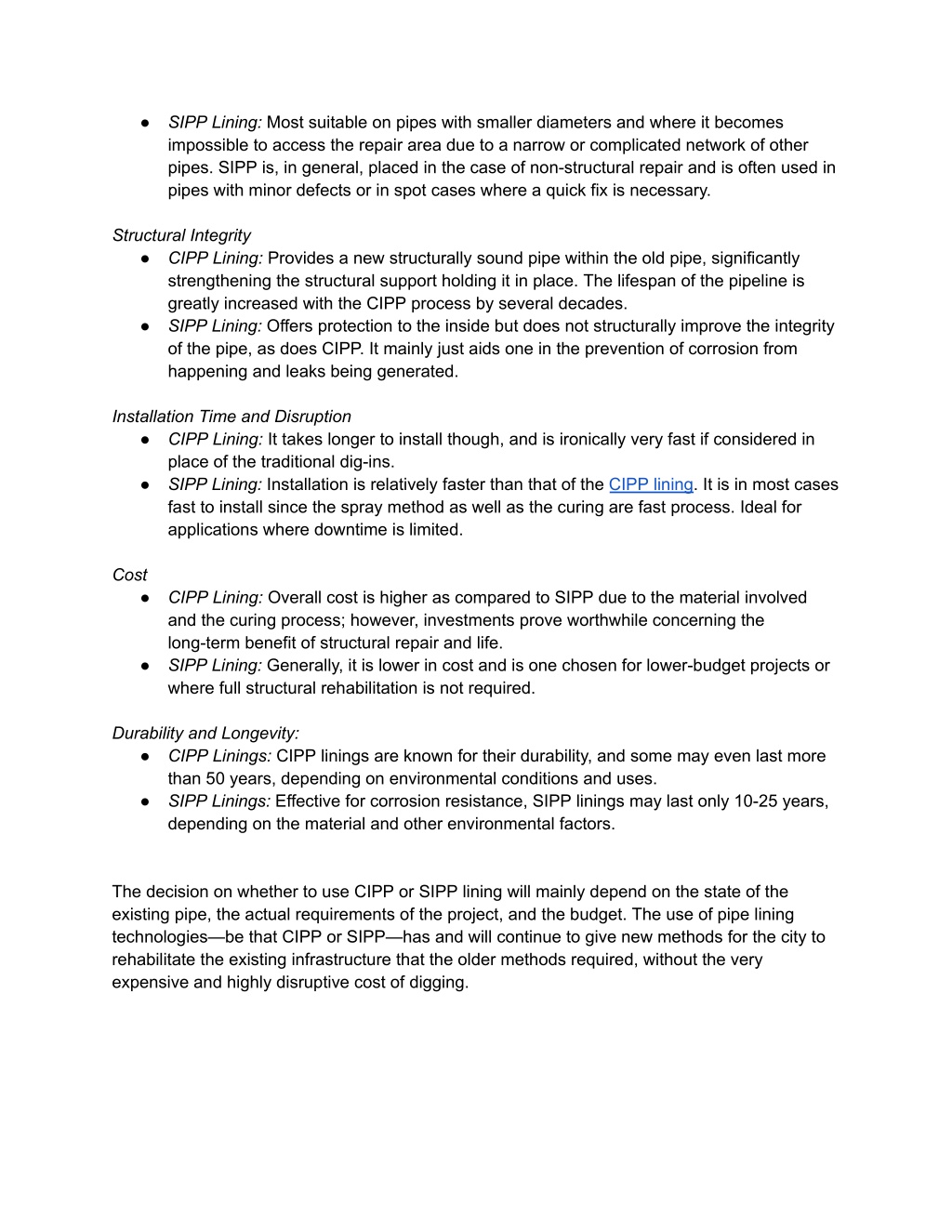

4. ● SIPP Lining: Most suitable on pipes with smaller diameters and where it becomes impossible to access the repair area due to a narrow or complicated network of other pipes. SIPP is, in general, placed in the case of non-structural repair and is often used in pipes with minor defects or in spot cases where a quick fix is necessary. Structural Integrity ● CIPP Lining: Provides a new structurally sound pipe within the old pipe, significantly strengthening the structural support holding it in place. The lifespan of the pipeline is greatly increased with the CIPP process by several decades. ● SIPP Lining: Offers protection to the inside but does not structurally improve the integrity of the pipe, as does CIPP. It mainly just aids one in the prevention of corrosion from happening and leaks being generated. Installation Time and Disruption ● CIPP Lining: It takes longer to install though, and is ironically very fast if considered in place of the traditional dig-ins. ● SIPP Lining: Installation is relatively faster than that of the CIPP lining. It is in most cases fast to install since the spray method as well as the curing are fast process. Ideal for applications where downtime is limited. Cost ● CIPP Lining: Overall cost is higher as compared to SIPP due to the material involved and the curing process; however, investments prove worthwhile concerning the long-term benefit of structural repair and life. SIPP Lining: Generally, it is lower in cost and is one chosen for lower-budget projects or where full structural rehabilitation is not required. ● Durability and Longevity: ● CIPP Linings: CIPP linings are known for their durability, and some may even last more than 50 years, depending on environmental conditions and uses. ● SIPP Linings: Effective for corrosion resistance, SIPP linings may last only 10-25 years, depending on the material and other environmental factors. The decision on whether to use CIPP or SIPP lining will mainly depend on the state of the existing pipe, the actual requirements of the project, and the budget. The use of pipe lining technologies—be that CIPP or SIPP—has and will continue to give new methods for the city to rehabilitate the existing infrastructure that the older methods required, without the very expensive and highly disruptive cost of digging.
