Secure provenance policies in selinks l.jpg

Secure Provenance Policies in SELinks

Michael Hicks

with Nikhil Swamy and Brian Corcoran

University of Maryland, College Park, USA

Fable and selinks enforcing user defined security policies including provenance for web apps l.jpg

or …

Fable (and SELinks):Enforcing User-defined Security Policies (including provenance) for Web Apps

Michael Hicks

with Nikhil Swamy and Brian Corcoran

University of Maryland, College Park, USA

Goal reliable enforcement of security policies l.jpg
Goal: Reliable Enforcement of Security Policies

  • Software systems aim to enforce a variety of security policies

    • Flavors of access control (RBAC, HBAC, …)

    • Security automata, stack inspection

    • Information flow, tainting, provenance, …

  • But policies are regularly circumvented due to software errors

    • Access control bypasses, information leaks, missing input validation checks, etc.

Security typed programming languages shape of a solution l.jpg

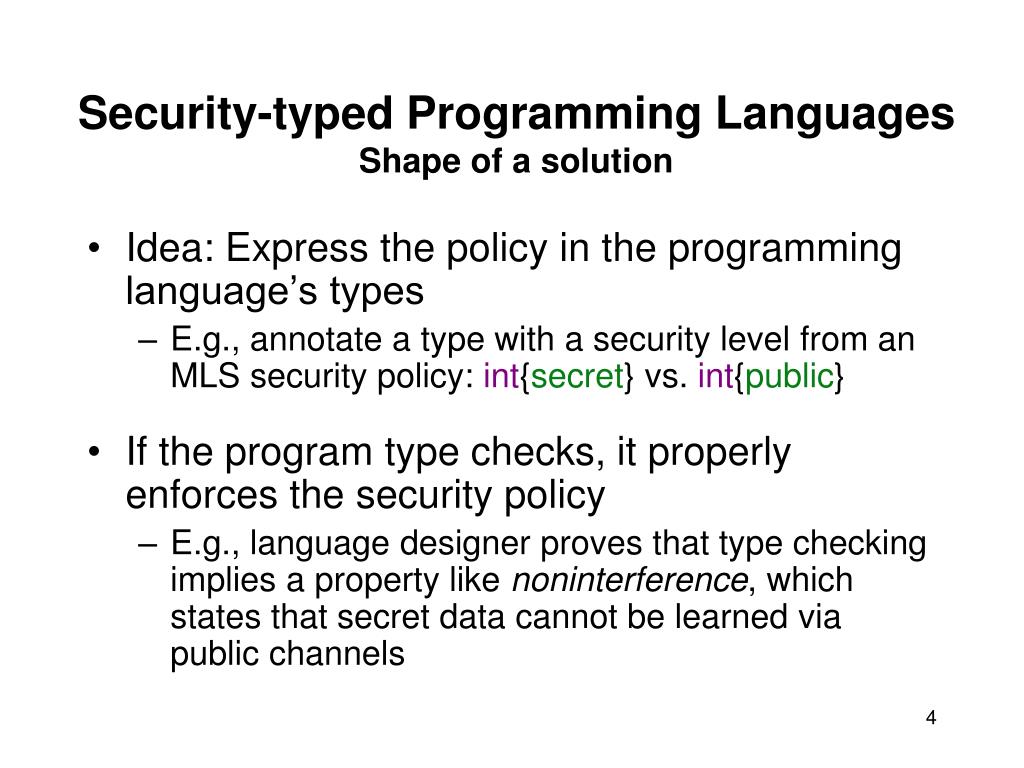

Security-typed Programming LanguagesShape of a solution

  • Idea: Express the policy in the programming language’s types

    • E.g., annotate a type with a security level from an MLS security policy: int{secret} vs. int{public}

  • If the program type checks, it properly enforces the security policy

    • E.g., language designer proves that type checking implies a property like noninterference, which states that secret data cannot be learned via public channels

One size does not fit all l.jpg
One size does not fit all

  • Existing security-typed languages focus on specific sorts of policies

    • Jif, FlowCaml enforce information flow policies

    • But what about flavors of access control, stack inspection, security automata, … ?

    • Provenance tracking is a security concern: must be trusted as correct for meaningful audit

  • Want the benefits of security typing but the flexibility to define a variety of policies

Our approach fable a type system for user defined security policies l.jpg

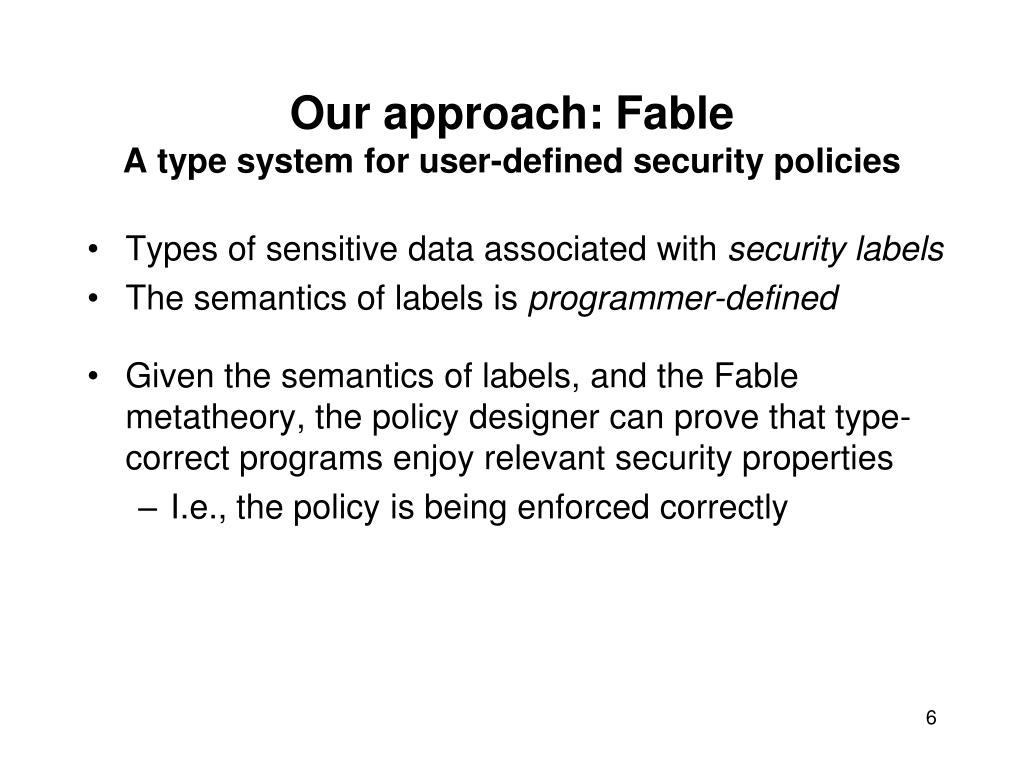

Our approach: FableA type system for user-defined security policies

  • Types of sensitive data associated with security labels

  • The semantics of labels is programmer-defined

  • Given the semantics of labels, and the Fable metatheory, the policy designer can prove that type-correct programs enjoy relevant security properties

    • I.e., the policy is being enforced correctly

The fable approach pictorially l.jpg




The Fable approach, pictorially



2. Prove that this library correctly enforces security policy for type-correct programs

3. Write program that uses this policy - if it typechecks then it is secure

1. Design format and semantics for labels as a library







Program 2


Program 3

Reuse library for several applications …

Develop new libraries for new policies l.jpg
Develop new libraries for new policies













Release Pol.










Applications may use several policies l.jpg
Applications may use several policies













The rest of the talk l.jpg
The rest of the talk

  • An overview of Fable using access control and provenance tracking as examples

  • SELinks: Implementation of Fable as an extension to the Links web programming language

  • SEWiki: A wiki that enforces fine-grained access control and provenance policies, built with SELinks

    • Also built a model health record database, SESpine, and a secured on-line store, SEWinestore

Customizable security labels associate data and policy l.jpg
Customizable Security LabelsAssociate Data and Policy

  • Labels can be arbitrary data values

    • labl = High

    • labm = ACL(nswamy,bjc,mwh)

  • Protected data refers to its label in its type

    • int x = … // unprotected data

    • int{l}y = … // protected by labell

    • bool{Low}z = … // protected by labelLow

  • In general, protected data has a dependent type t{e}

    • t is the type of the underlying data

    • e is an expression that represents a security label

Semantics of security labels an access control enforcement policy l.jpg

High integrity user credential.

Produced, say, by a login function

Data protected by acl

Check if cred is mentioned in the ACL


Success: unlabel data and expose to application code

Only policy code can destruct a labeled value

Semantics of Security LabelsAn Access Control Enforcement Policy

a list, e.g.,[uid1; uid2; …]

sig access : (Cred{High}, acl<-Acl,

funaccess (cred, acl, data) policy {

ifmember (cred, acl) then

unlabel (data)

else error(“access denied”)


  • {acl}) ->

  • String{acl}) ->String

policy keyword identifies

this code as privileged

Access control in action l.jpg

Credential of user currently logged in

“Phantom” label polymorphism

  • var (acl2:Acl,f2:File{acl2})= open_in “f2.txt” ;

Open file: get acl and file handle

And must be the

right check

  • printstr (access(user,acl2,line)) ;

Infer instantiation of label variable

Must call policy authorization

check before printing

String{acl2} -> String

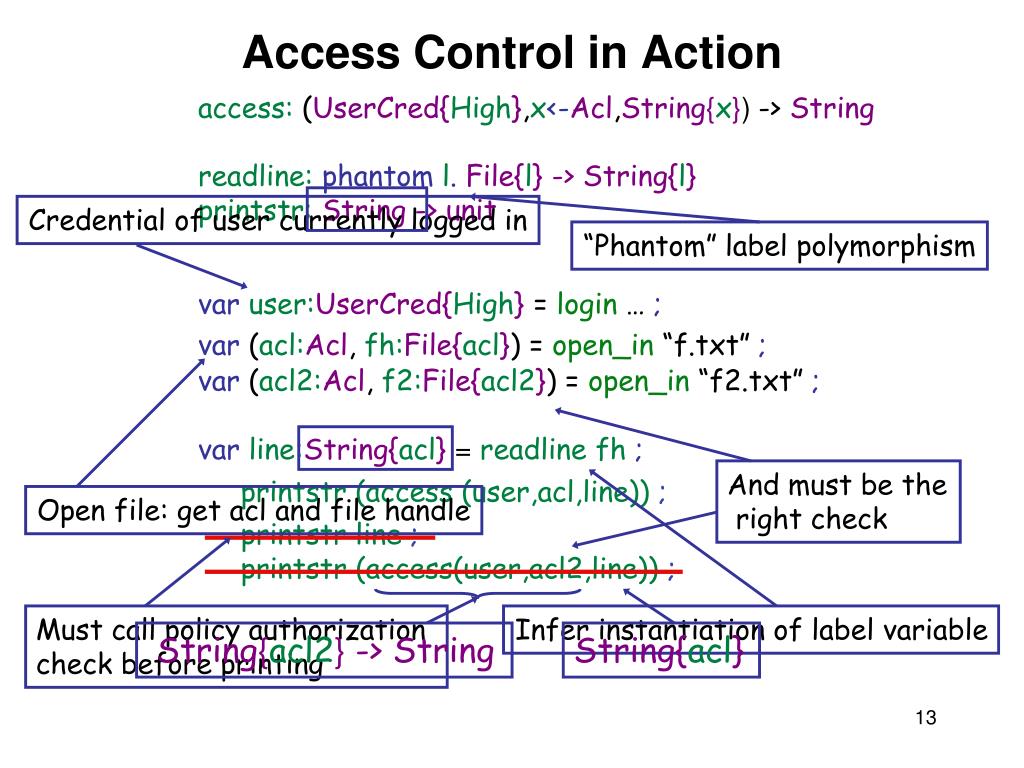

Access Control in Action

  • access: (UserCred{High},x<-Acl,String{x})-> String

  • readline: phantoml. File{l} -> String{l}

  • printstr: String -> unit

var user:UserCred{High} = login … ;

var (acl:Acl,fh:File{acl})= open_in “f.txt” ;

  • var line:String{acl} = readline fh ;

  • printstr (access (user,acl,line)) ;

  • printstr line ;

Other policies l.jpg
Other policies

  • Information flow policies with static and dynamic labels

    • Proved that both ensure noninterference

  • Provenance policy for dynamically tracking data dependencies

    • Proved that all relevant dependencies are tracked (completeness)

  • Stateful, automata-based policies for information release

    • Proved that release obligations satisfied prior to information release (see PLAS 2008 paper)

Provenance tracking in fable l.jpg
Provenance Tracking in Fable

Values tagged with labels to reflect their origin or derivation

  • E.g., track all dependences through a computation

  • Correct attribution

    • Accurately associate provenance with data

  • Complete mediation

    • Every sensitive operation on tracked data propagates provenance correctly

  • Metadata security

    • Can protect the confidentiality and integrity of the provenance itself

Data provenance tracking l.jpg

Representation of

provenance tracked data

Computation depends

on both x and y

Tag with provenance

of both x and y

Data Provenance Tracking

A dependently typed pair containing the provenance metadata l and the data 

Objective: track dependences in the label associated with the result of a computation

  • typename Prov() = (l<-ProvLab,{l})

  • var x:Prov int = (Alice, label(0,Alice)) ;

  • var y:Prov int = (Bob, label(1,Bob)) ;

  • var l = Union(Alice,Bob) ; (l, label(x+y, l))

Data provenance tracking17 l.jpg

Policy tracks provenance through function application

A function tagged with provenance

Argument tagged with provenance

Unlabel before applying f to x




Return type: Prov 

Provenance of result, includes provenance of f and x

Data Provenance Tracking

  • typename Prov=(l<-ProvLab,{l})

  • sig apply (Prov ( -> ), Prov ) -> Prov 

  • fun apply (lf,mx) policy {

  • var (l, f)= lf ;

  • var (m, x)= mx ;

  • var result = unlabel(f)(unlabel(x)) ;

  • var l_result = Union(l, m) ;

  • (l_result, label(result, l_result))

  • }

Protecting provenance information l.jpg

Protect the provenance label

with its own security policy

Provenance data can itself be confidential

Protecting Provenance Information

  • typename Prov = (l<-ProvLab{Acl(Admins)},{unlabel l})

  • typename Prov = (l<-ProvLab,{l})

  • var l = File “secret.txt” ;

  • (label(l, Acl(Admins)), label(“secret data”, l))

  • var l = File “secret.txt” ;

  • (l, label(“secret data”, l))

Slide19 l.jpg

A db schema in selinks l.jpg

Table name language

Custom datatype extensions

allow SELinks values to be stored in DB (implemented for Postgres and Oracle)

1st column is the primary key

2nd column is a label that protects the

data in the 3rd column

A DB Schema in SELinks

  • Every DB table is given an SELinks type

    • Types can include label dependences

table “labeled_doc” with =

(id : Int,

acl: Acl,

data : String{acl})

from database ”db”

Accessing labeled db data l.jpg

For each row language

in the table

Where-clause checks access control policy, compiled to stored DB proc, to inspect data

Result is a list of all rows that

satisfy the where-clause

Accessing Labeled DB Data

  • Links treats every table as a list of tuples

    • Queries are list comprehensions

  • Search for all rows that contain the string “foo”

var ld =table … with … from db;

var result =

for (row <-- ld)

where(access (cred, row.label, /foo/)


Application experience sewiki l.jpg
Application Experience: SEWiki language

  • SEWiki: A blog/wiki written in SELinks

    • Supports standard features for page creation, hyperlinking, formatting, etc.

    • Enforces a fine-grained composite policy on document elements

      • Access control governs read/writes (200 LOC)

      • Provenance of changes made (100 LOC)

    • Roughly 3000 lines of SELinks code

  • SESpine: Health record web app/DB

  • SEWinestore: E-commerce app from Links

Overview of sewiki l.jpg

A document with language

components at different

security levels

Record provenance:

revision history etc.

Filter out part of document

not accessible to this user

saves changes

Edits content in visible

part of document

Overview of SEWiki



Fine grained labeling of documents l.jpg

Documents are n-ary trees language

with with words at the leaves

A dependently typed pair

Some subtrees can

be protected

by a security label

First component a label l that protects

the subtree in the second component

Fine-grained Labeling of Documents

typenameBlock = mu block.

([| Word: String

| Compound: [block]

| Labeled: (l<-Label, block{l})

| … |]);

Label format l.jpg

Provenance used to track document modifications language

Labels may have an access control

and a provenance component

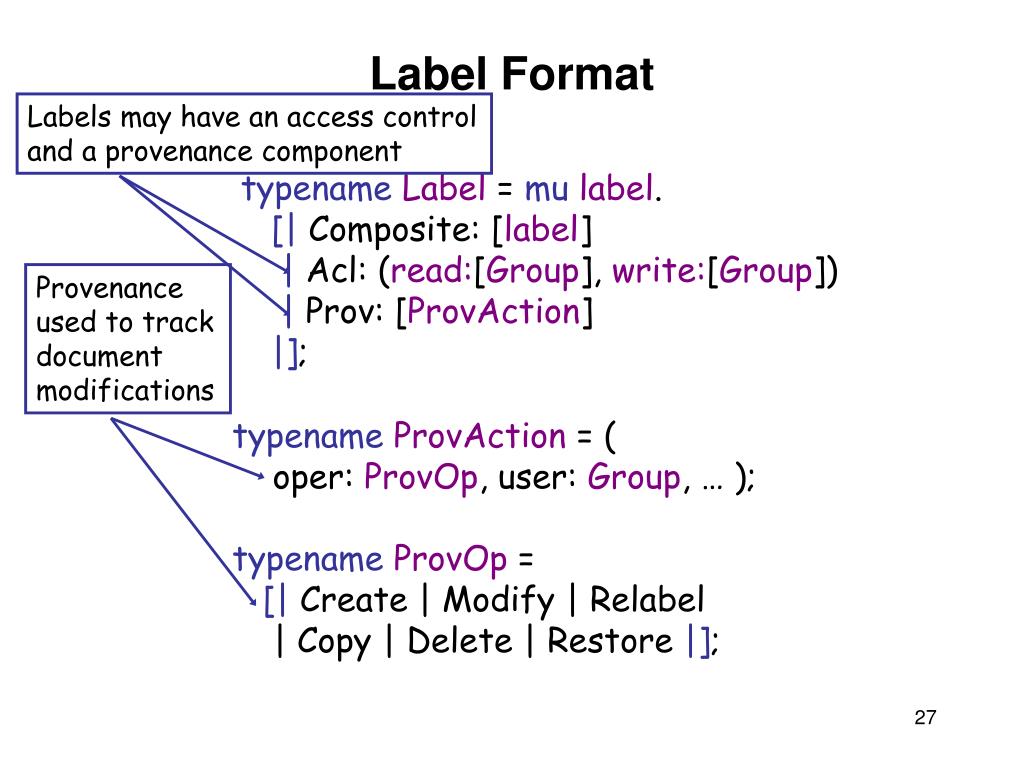

Label Format

typenameLabel = mu label.

[| Composite: [label]

| Acl: (read:[Group], write:[Group])

| Prov: [ProvAction]


typenameProvAction = (

oper: ProvOp, user: Group, … );

typenameProvOp =

[| Create | Modify | Relabel

| Copy | Delete | Restore |];

Assessment l.jpg
Assessment language

  • Relatively easy to work with simple policies

    • Easy to write policy code and to interpose policy checks

  • Policy code can be packaged as reusable components

    • Shared access control code between SEWiki, SEWinestore, and SESpine.

    • Shared provenance code with SEWiki and SESpine

  • More complex policies (information flow) are harder

    • Wrap all operations in policy functions to track implicit flows

      • Similar problem with finer-grained provenance tracking

    • Automata policies require writing in a store-passing style

Ongoing work l.jpg
Ongoing Work language

  • Automatic insertion of calls to policy functions

    • View the problem as “type coercion insertion”

    • Paper upcoming, ICFP ‘09 (in Edinburgh!)

  • Better support for policy composition

    • If policy/label p yields property P, and policy/label q yields property Q, then labels (p,q) yield property P and Q. And: unrelated policies do not interfere.

  • Mechanized metatheory for Fable policies

    • Semi-automated proofs of high-level security properties

Conclusions l.jpg
Conclusions language

  • Enforcement of user-defined security policies brings the benefit of security typing to a wide range of policies

    • Notably, we can prove that provenance is tracked correctly

  • Security assurances as strong as those provided by special-purpose systems

    • Fable metatheory assists in security proof

  • Works for web apps!

    • Download SELinks, try our demos

Extra slides l.jpg

Non observability correctness of access control l.jpg

member Alice acl -->* false

Non-ObservabilityCorrectness of Access Control

  • Given an application e with x protected by some aclu:UserCred{High}, x:bool{acl}|- e :t

  • Then, executions with x=true and x=false are identical

  • e[x -> true, u -> Alice] --> e’ [x -> true, u -> Alice ]

  • <=>

  • e[x -> false, u -> Alice] --> e’ [x -> false, u -> Alice ]

Executing selinks queries in the db l.jpg

SQL compiled from language

list comprehension

Stored proc. compiled

from enforcement policy

Executing SELinks Queries in the DB

  • Policy functions in a query must be executed in DB

    • Essential for reasonable performance

  • Solution: compile SELinks enforcement policies to DB stored procedures

    • SQL queries can call these procedures to enforce a policy


(SELECT tab.label AS label, tab.pageid AS pageid, tab.text AS text,

access(’mwh', tab.label, tab.text) AS tmp1

FROM page_blocks AS tab) AS tab


CREATE FUNCTION access(text, record, anyelement)

RETURNS variant AS $$


$$ language ‘plpgsql’

Information flow in fable l.jpg

lub language just a user-defined function

Concat’d string at

least as confidential

as the arguments

  • letlub _ High = High

  • lub High _ = High

  • lub _ _ = Low

Type checker can reduce these expressions to show type equivalence

Information Flow in Fable

  • Static enforcement via type conversions

  • strcat: phantom l,m. String{l} -> String{m} -> String{lub l m}

  • String{lub Low High} ~ String{High}

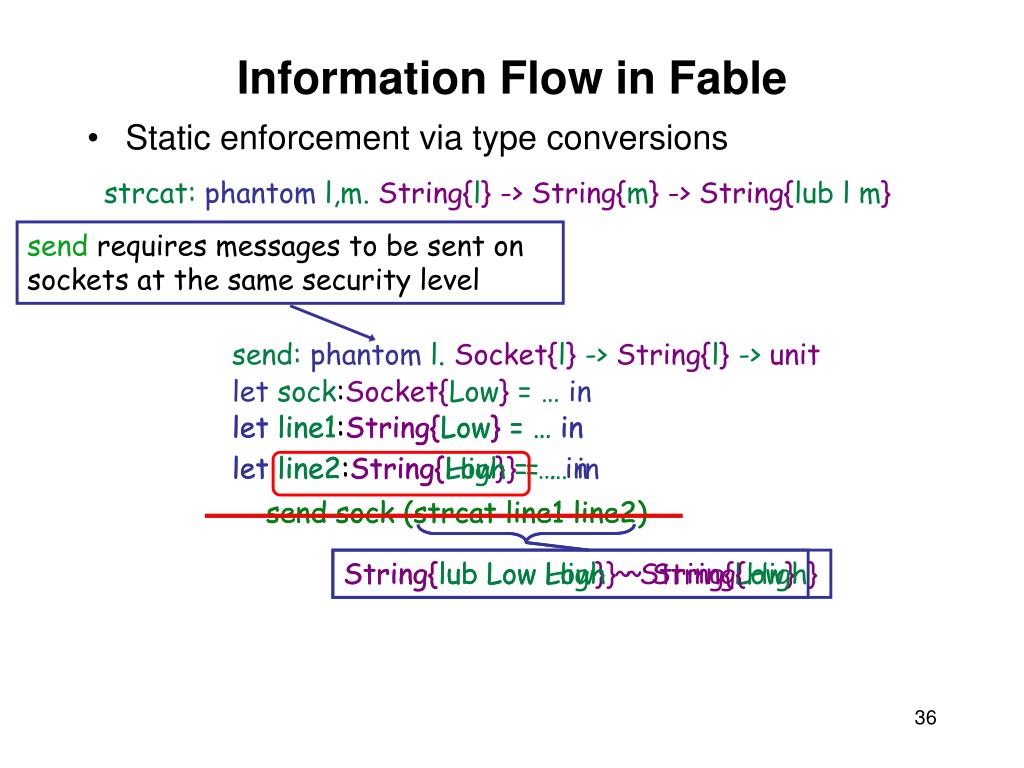

Information flow in fable36 l.jpg

send languagerequires messages to be sent on sockets at the same security level

  • send sock (strcat line1 line2)

  • send sock (strcat line1 line2)

String{lub Low Low} ~ String{Low}

String{lub Low High} ~ String{High}

Information Flow in Fable

  • strcat: phantom l,m. String{l} -> String{m} -> String{lub l m}

  • Static enforcement via type conversions

  • send: phantom l. Socket{l} -> String{l} -> unit

  • letsock:Socket{Low} = … in

  • letline1:String{Low} = … in

  • letline2:String{Low} = … in

  • letline1:String{Low} = … in

  • letline2:String{High} = … in

Information flow in fable37 l.jpg

  • match languagelabel with Low->send socket line

  • | High -> ()

line protected by label which is unknown statically

Refine the type of line to String{Low}

based on runtime check

Information Flow in Fable

  • Dynamic enforcement via type refinements

  • send: phantom l. Socket{l} -> String{l} -> unit

  • letsock:Socket{Low} = … in

  • let label, line:String{label} = … in

Label modification39 l.jpg
Label Modification language

  • Changing access control labels must be done through relabelBlock policy

  • Modifies labels

  • Also adds Relabel provenance label

  • Ensures all relabeling actions are logged

  • Records complete security history

Copy paste l.jpg
Copy/Paste language

  • Based on Copy/Paste DB from “Provenance Management in Curated Databases”

  • Allows derivative pages to have increased/decreased levels of access control

  • “Read-only” users could modify personal version

  • Block could be copied into classified report

  • (no access for original authors)

Example modify block policy l.jpg
Example: Modify Block Policy language

  • Modifies the content of a block

    • Usually in context of editing text

  • Requires successful access control check

  • Records action as provenance label

Modify block code l.jpg
Modify Block Code language

  • fun modifyBlock(cred,page,path,block){

    • fun replace (li, _) {

      • var lProv =mkProvLabel(Modify,cred);

      • var l=joinLabels(li,lProv);

      • labelBlock(l,block)

  • }

  • applyWriteToBlock(cred,replace,path,page)

  • }

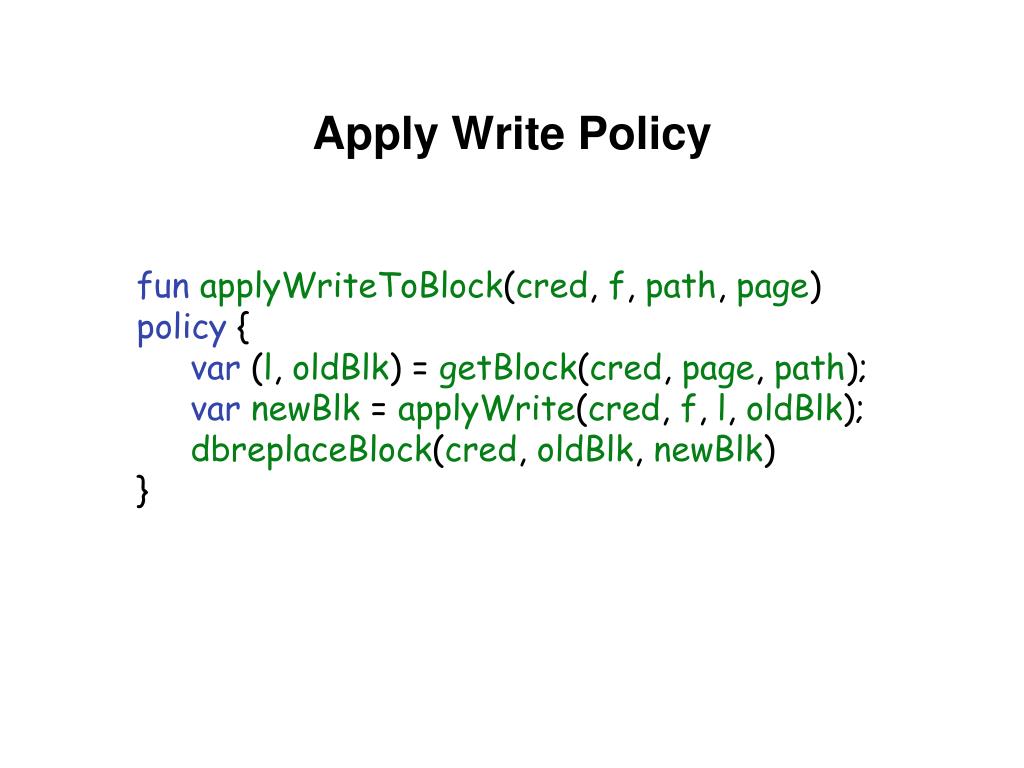

  • Apply write policy l.jpg
    Apply Write Policy language

    • fun applyWriteToBlock(cred, f, path, page)

    • policy {

      • var (l, oldBlk) = getBlock(cred, page, path);

      • var newBlk = applyWrite(cred, f, l, oldBlk);

      • dbreplaceBlock(cred, oldBlk, newBlk)

    • }

    Apply write policy45 l.jpg
    Apply Write Policy language

    • sig applyWriteToBlock :

    • (Cred, (Doc)->Doc, Path, Page{l}) -> Page{l}

    • fun applyWriteToBlock(cred, f, path, page)

    • policy {

      • var (l, oldBlk) = getBlock(cred, page, path);

      • var newBlk = applyWrite(cred, f, l, oldBlk);

      • dbreplaceBlock(cred, oldBlk, newBlk)

    • }
