contemplative questions
Contemplative Questions
  • What techniques are available for gathering information about requirements?
  • Which technique is best? When is each appropriate to use?
  • What are the problems of bias? From where can bias come?
issues
Issues
  • What are all the sources of information available?
  • What is the goal? What is the end result of gathering information about requirements?
sources
Sources
  • Users
  • Reports
  • Forms
  • Procedures

Is it “better” to utilize more than one of the above?

How do we define “better”?

What is the inherent tradeoff here?

what characteristics should analysts possess

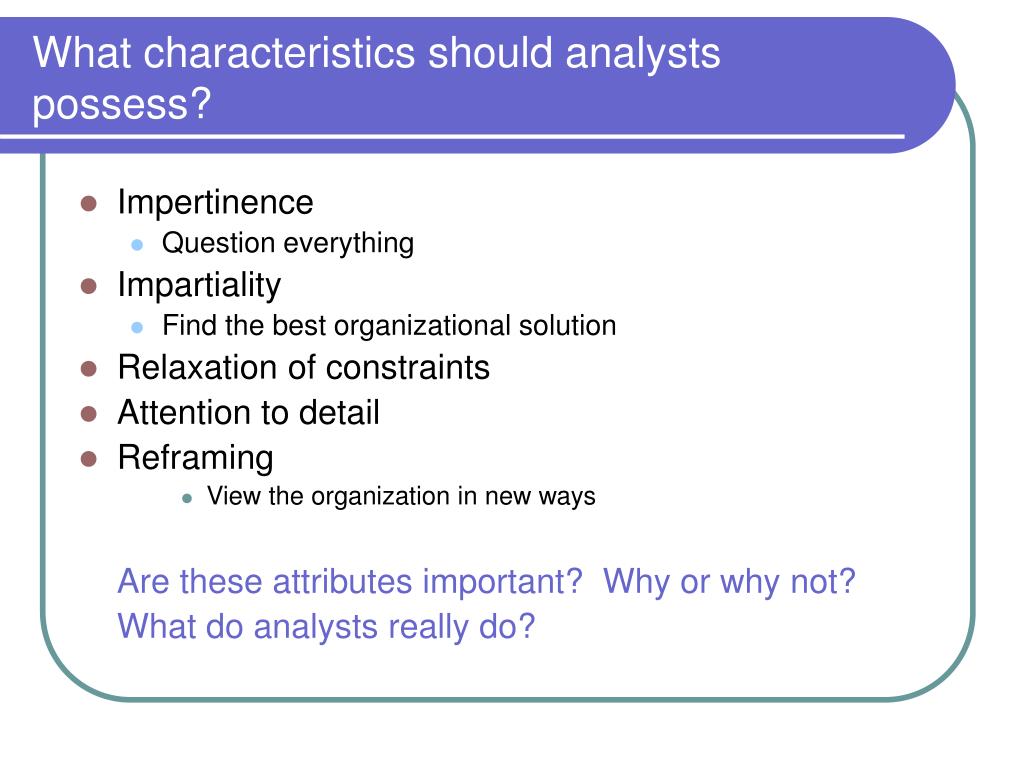

What characteristics should analysts possess?
  • Impertinence
    • Question everything
  • Impartiality
    • Find the best organizational solution
  • Relaxation of constraints
  • Attention to detail
  • Reframing
      • View the organization in new ways

Are these attributes important? Why or why not?

What do analysts really do?

deliverables

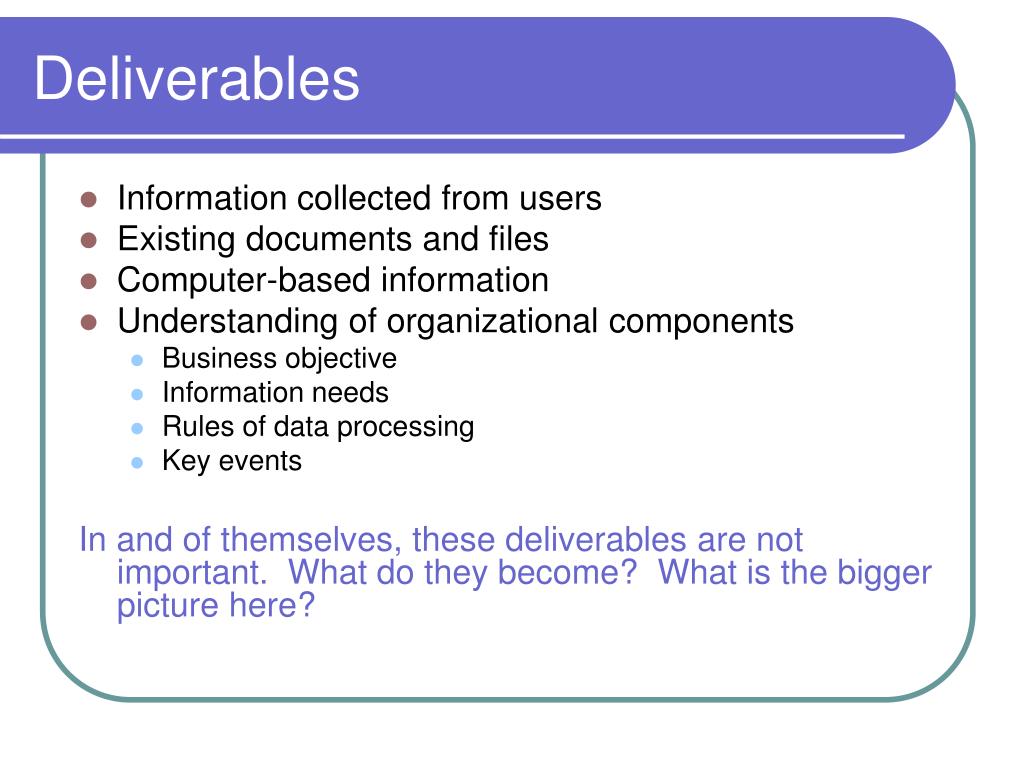

Deliverables
  • Information collected from users
  • Existing documents and files
  • Computer-based information
  • Understanding of organizational components
    • Business objective
    • Information needs
    • Rules of data processing
    • Key events

In and of themselves, these deliverables are not important. What do they become? What is the bigger picture here?

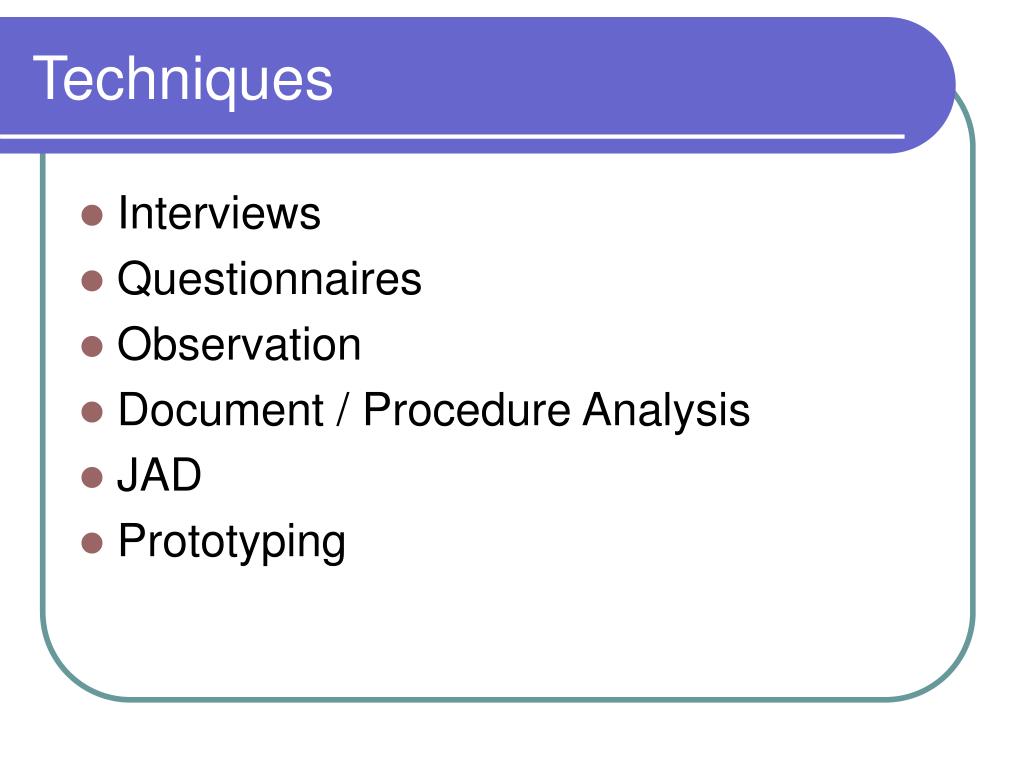

techniques
Techniques
  • Interviews
  • Questionnaires
  • Observation
  • Document / Procedure Analysis
  • JAD
  • Prototyping
exercise
Exercise
  • Rate each of the previous techniques based on these criteria (high, medium or low):
    • Degree of participation with user
    • Information "richness" (depth)
    • Breadth of information (scope)
    • Cost (Analysts' Time)
    • Cost (Users’ Time)
    • Ability to integrate information
    • User involvement w/ system design
interviews five basic steps
Interviews -- Five Basic Steps
  • Selecting Interviewees
  • Designing the Interview Guide
  • Preparing for the Interview
  • Conducting the Interview
  • Post-Interview Follow-up

Each of these steps is ripe with opportunities for injecting bias.

Is bias a bad thing? Why or why not?

Which step takes the longest?

interviews
Interviews
  • Selecting Interviewees
    • Same guidelines as questionnaires
    • Should be representative of all users
    • Recall the effects of bias
    • Types of samples
      • Convenient
      • Random sample
      • Purposeful sample
      • Stratified sample
interviews11

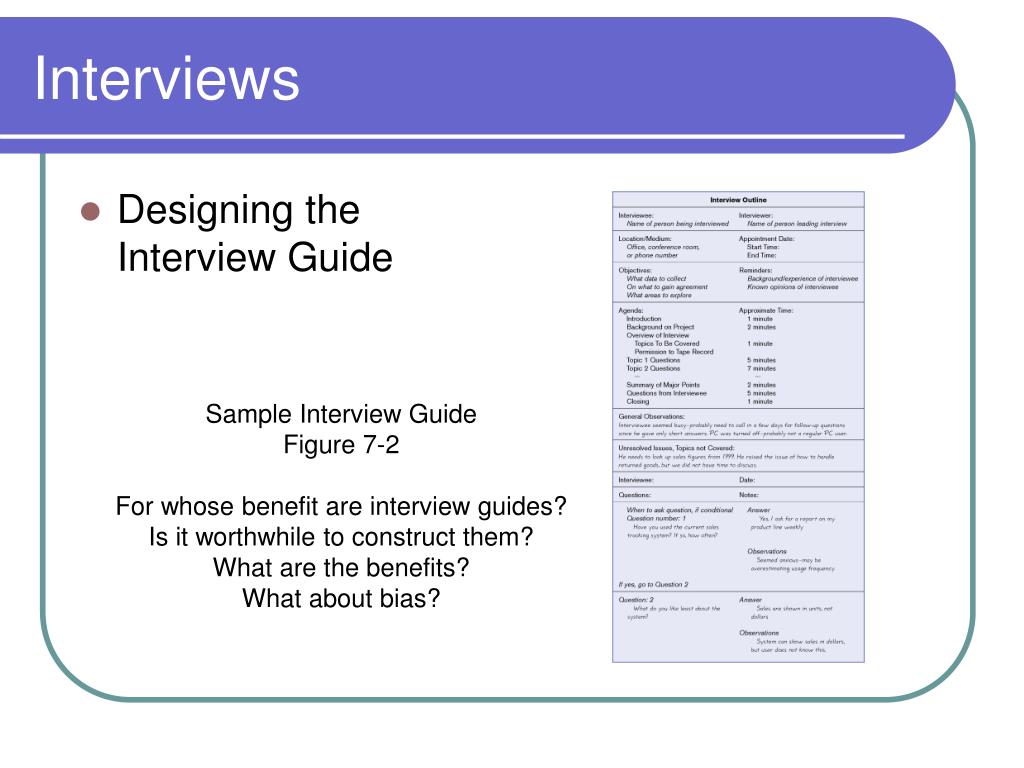

Interviews
  • Designing the Interview Guide

Sample Interview Guide

Figure 7-2

For whose benefit are interview guides?

Is it worthwhile to construct them?

What are the benefits?

What about bias?

interviews12
Interviews
  • Designing the Interview Guide
    • Overall Questioning Strategies
      • General area, narrowing to specific topic (preferred)
        • Tell me about CTI site, then Courses, then Course Information, then enrollment numbers
      • Specific topic, moving to General
        • Enrollment numbers on Course Info page to CTI site in general
    • Types of Interview Questions
      • Open-Ended
        • No pre-specified answers
      • Close-Ended
        • Respondent is asked to choose from a set of specified responses
interviews13
Interviews
  • Preparing for the Interview
    • Confirm place/time
    • Review areas to be covered
    • Encourage interviewee to bring reference materials
interviews14

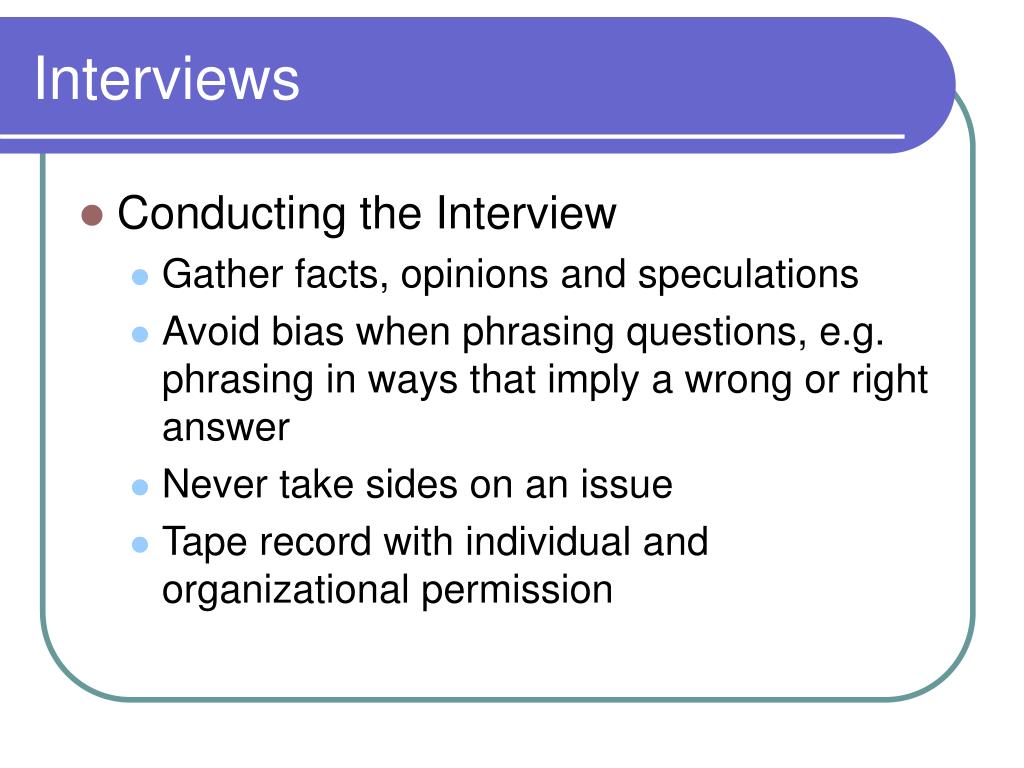

Interviews
  • Conducting the Interview
    • Gather facts, opinions and speculations
    • Avoid bias when phrasing questions, e.g. phrasing in ways that imply a wrong or right answer
    • Never take sides on an issue
    • Tape record with individual and organizational permission
interviews15

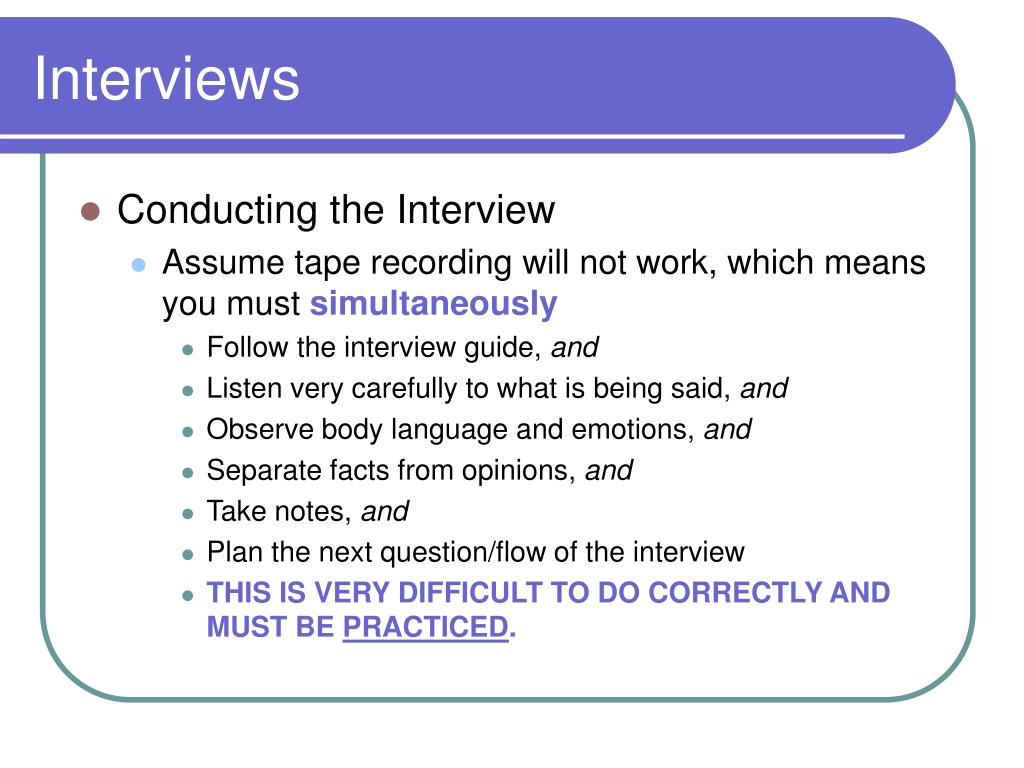

Interviews
  • Conducting the Interview
    • Assume tape recording will not work, which means you must simultaneously
      • Follow the interview guide, and
      • Listen very carefully to what is being said, and
      • Observe body language and emotions, and
      • Separate facts from opinions, and
      • Take notes, and
      • Plan the next question/flow of the interview
      • THIS IS VERY DIFFICULT TO DO CORRECTLY AND MUST BE PRACTICED.
interviews16
Interviews
  • Conducting the Interview--practical tips
    • Don’t worry, be happy
    • Pay attention
    • Summarize key points
    • Be succinct and honest
    • Give interviewee time to ask questions
    • Be sure to thank the interviewee
    • End on time
    • And, don’t ask unnecessary questions!
interviews17
Interviews
  • Post Interview
    • Consider asking for more time if necessary
    • Confirm major points identified with interviewee
    • Look for Gaps and New Questions
    • “If it isn’t in the field notes, it never happened.”
    • Type up notes within 24 hours (preferably immediately after the interview is over
interviewing groups
Interviewing Groups
  • Advantages
    • More effective use of time
    • Enables people to hear opinions of others and to agree or disagree
  • Disadvantages
    • Difficulty in scheduling
  • Nominal Group Technique
    • Facilitated process to support idea generation by groups
    • Individuals work alone to generate ideas which are pooled under guidance of a trained facilitator
questionnaires

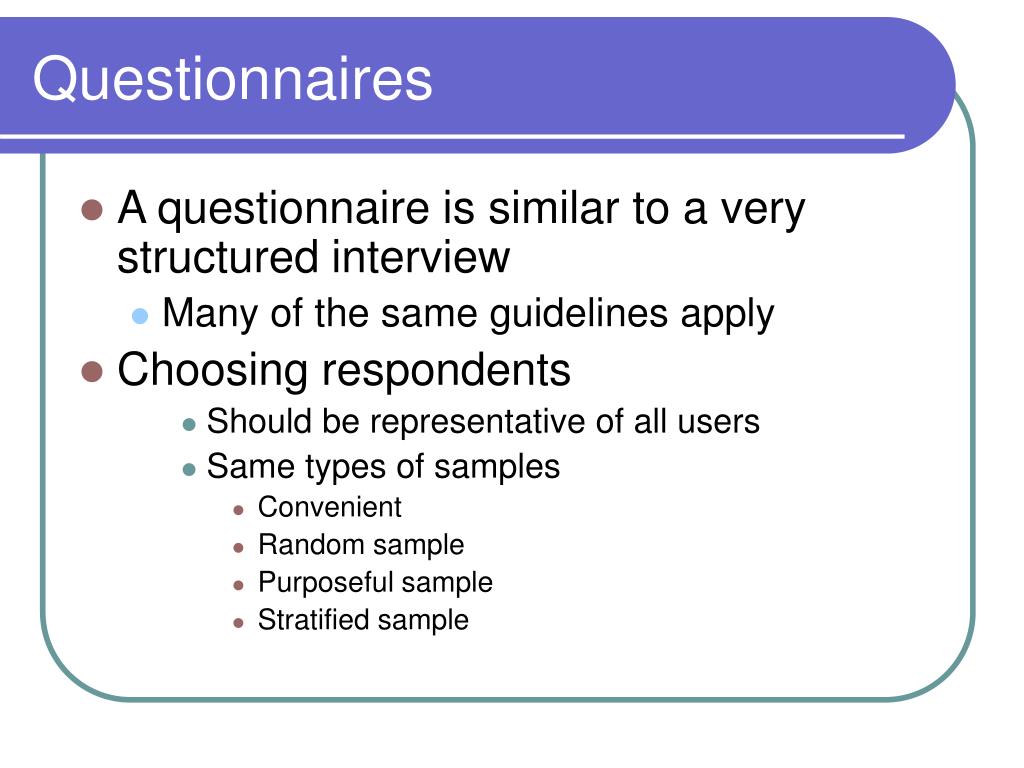

Questionnaires
  • A questionnaire is similar to a very structured interview
    • Many of the same guidelines apply
  • Choosing respondents
      • Should be representative of all users
      • Same types of samples
        • Convenient
        • Random sample
        • Purposeful sample
        • Stratified sample
questionnaires20
Questionnaires

Response rates to questionnaires are commonly low—

over 15% is sometimes considered very good.

observation
Observation
  • Directly Observing Users
    • Serves as a good method to supplement interviews
    • Often difficult to obtain unbiased data
      • People often work differently when being observed
    • Be cognizant of normal and abnormal conditions, e.g. entering an order vs. the end of quarter sales report
document procedure analysis

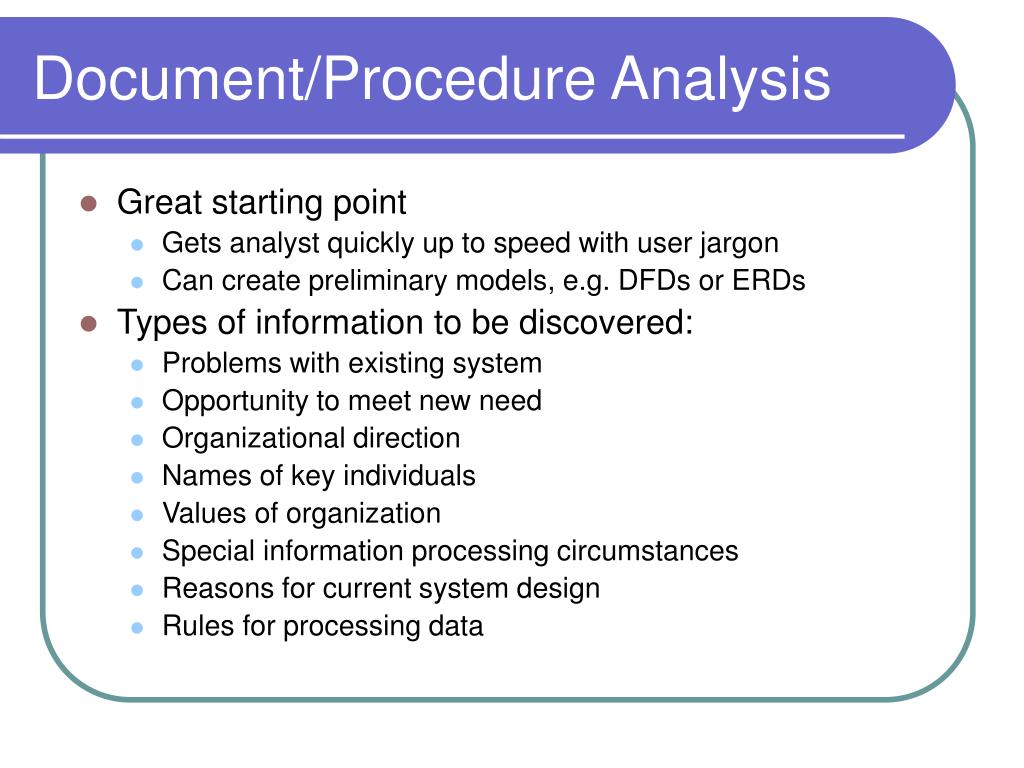

Document/Procedure Analysis
  • Great starting point
    • Gets analyst quickly up to speed with user jargon
    • Can create preliminary models, e.g. DFDs or ERDs
  • Types of information to be discovered:
    • Problems with existing system
    • Opportunity to meet new need
    • Organizational direction
    • Names of key individuals
    • Values of organization
    • Special information processing circumstances
    • Reasons for current system design
    • Rules for processing data
document procedure analysis23
Document/Procedure Analysis
  • Four types of useful documents
    • Written work procedures
      • Describes how a job is performed
      • Includes data and information used and created in the process of performing the job or task
    • Business form
      • Explicitly indicate data flow in or out of a system
    • Report
      • Enables the analyst to work backwards from the report to the data that generated it
    • Description of current information system
joint application design
Joint Application Design
  • Joint Application Design (JAD)
    • Brings together key users, managers and systems analysts
    • Purpose: collect system requirements simultaneously from key people
    • Conducted off-site
joint application design26
Joint Application Design
  • Participants
    • Session Leader
    • Users
    • Managers
    • Sponsor
    • Systems Analysts
    • Scribe
    • IS Staff
joint application design27
Joint Application Design
  • Supporting JAD with GSS
    • Group support systems (GSS) can be used to enable more participation by group members in JAD
    • Members type their answers into the computer
    • All members of the group see what other members have been typing
joint application design28
Joint Application Design
  • End Result
    • Documentation detailing existing system
    • Consensus on features of proposed system
  • CASE Tools During JAD
    • Upper CASE tools are used
    • Enables analysts to enter system models directly into CASE during the JAD session
    • Screen designs and prototyping can be done during JAD and shown to users

What is the apparent drawback with JAD?

prototyping

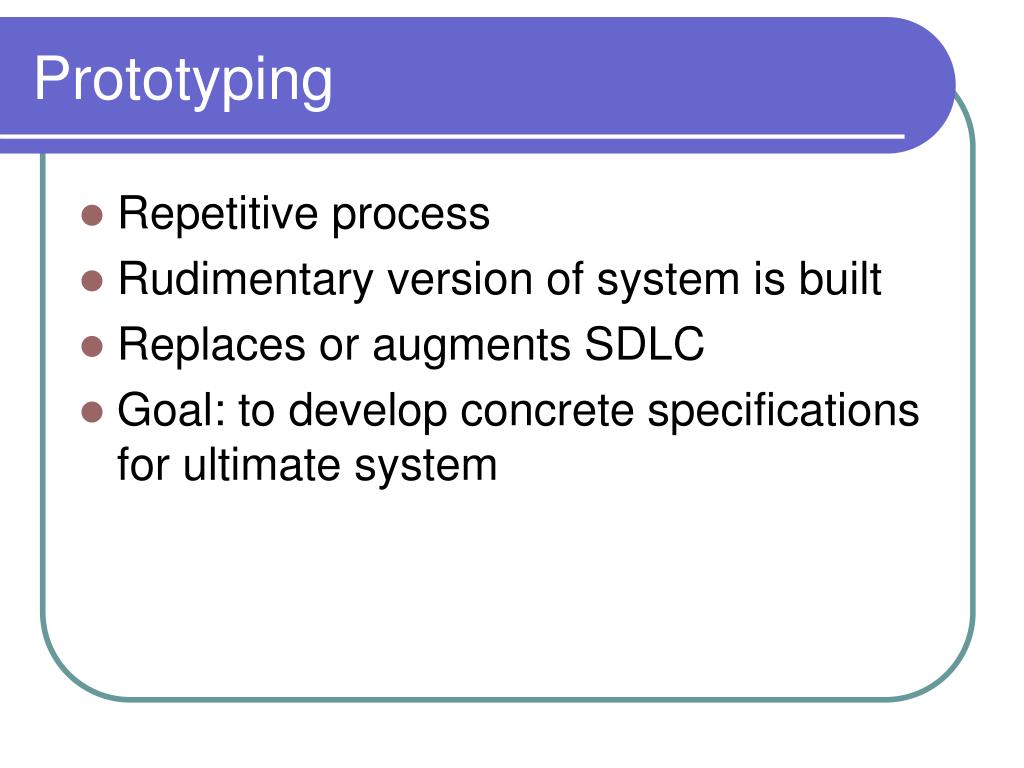

Prototyping
  • Repetitive process
  • Rudimentary version of system is built
  • Replaces or augments SDLC
  • Goal: to develop concrete specifications for ultimate system
prototyping30
Prototyping
  • Quickly converts requirements to working version of system
  • Once the user sees requirements converted to system, will ask for modifications or will generate additional requests
  • Is prototyping useful in any of these cases?
    • User requests are not clear
    • Few users are involved in the system
    • Designs are complex and require concrete form
    • History of communication problems between analysts and users
    • Tools are readily available to build prototype
prototyping31
Prototyping
  • Drawbacks
    • Tendency to avoid formal documentation
    • Difficult to adapt to more general user audience
    • Sharing data with other systems is often not considered
    • Systems Development Life Cycle (SDLC) checks are often bypassed
business process reengineering bpr
Business Process Reengineering (BPR)
  • Changes to the underlying Business Process (BP) can vary from project to project
    • Minor changes to process (BP Automation)
    • Moderate changes (BP Improvement)
    • Major (BP Reengineering)
  • BPR is the search for and implementation of radical change in business processes to achieve breakthrough improvements in products and services
  • Some common BPR Goals
    • Reorganize complete flow of data in major sections of an organization
    • Eliminate unnecessary steps completely
    • Combine steps, or
    • Become more responsive to future change
business process reengineering bpr33
Business Process Reengineering (BPR)
  • Identification of processes to reengineer
    • Key business processes
      • Set of activities designed to produce specific output for a particular customer or market
      • Focused on customers and outcome
      • Same techniques are used as were used for requirements determination
business process reengineering bpr34
Business Process Reengineering (BPR)
  • Identify specific activities that can be improved through BPR
  • Disruptive technologies
    • Technologies that enable the breaking of long-held business rules that inhibit organizations from making radical business changes
    • See table 7-7
summary
Summary
  • There are many techniques for gathering information about functional requirements
  • To minimize bias it is a good idea to use more than one technique
    • Consider the pros and cons of each
  • Theoretically you should gather information until saturation, i.e. you learn nothing new
